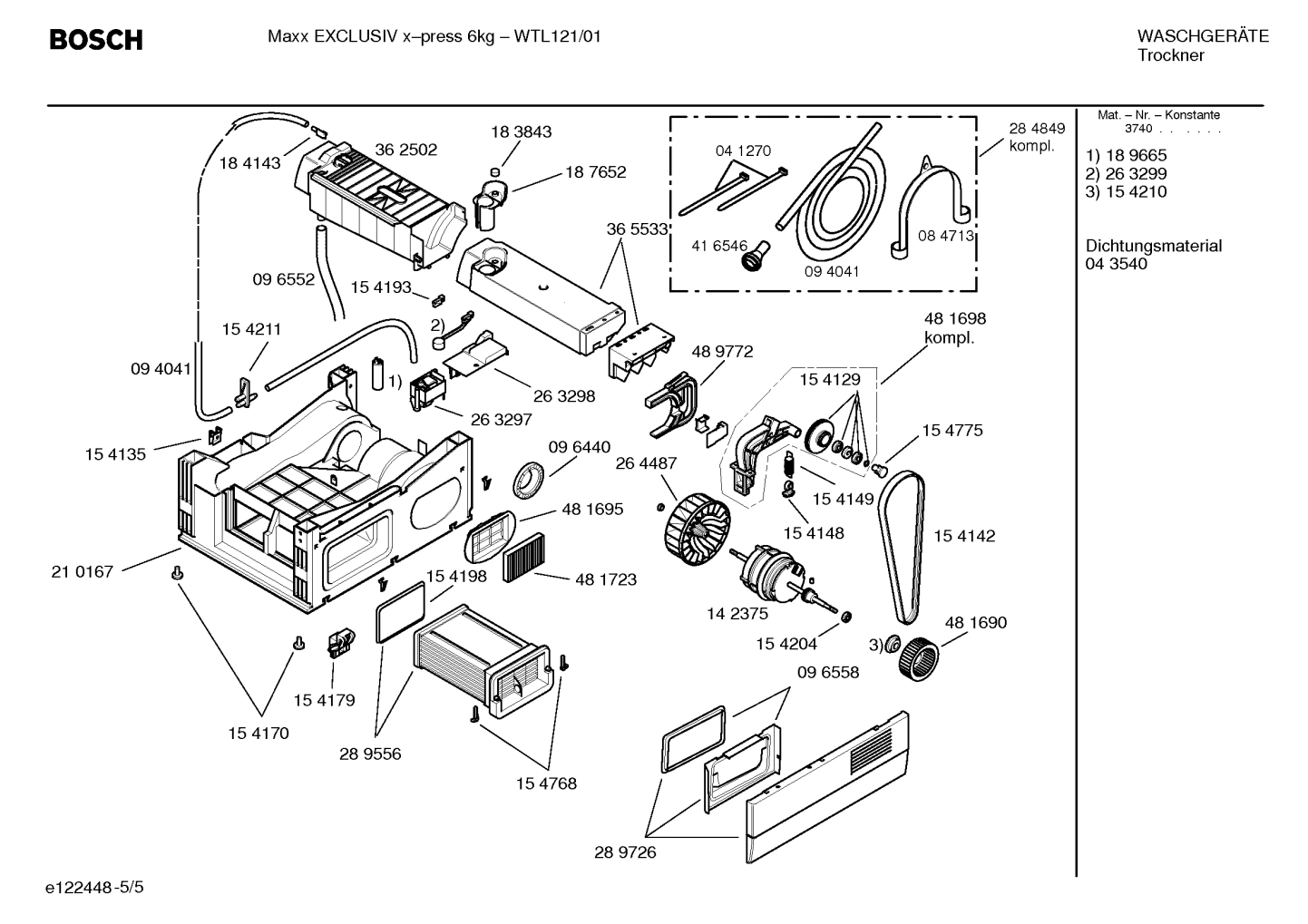

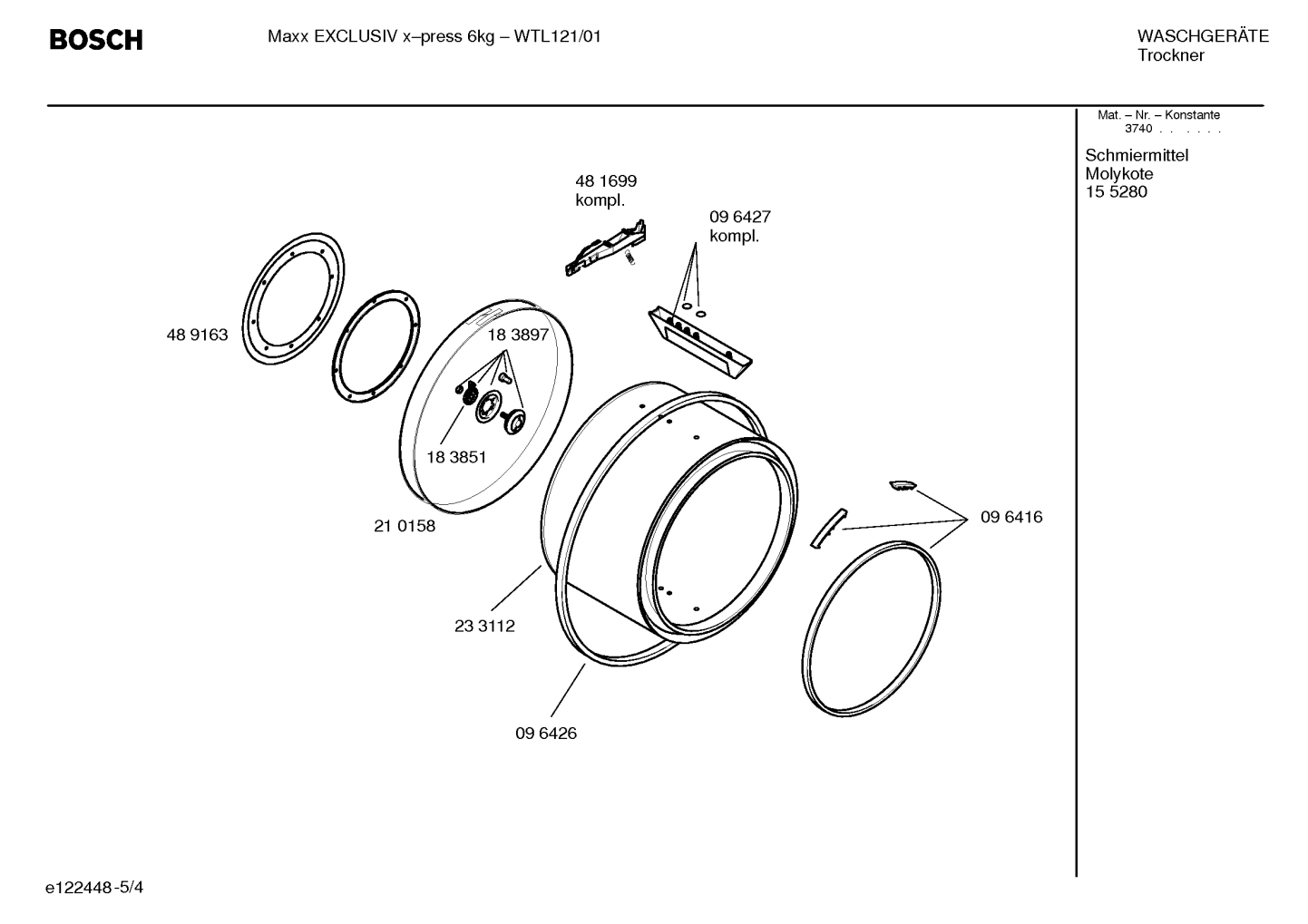

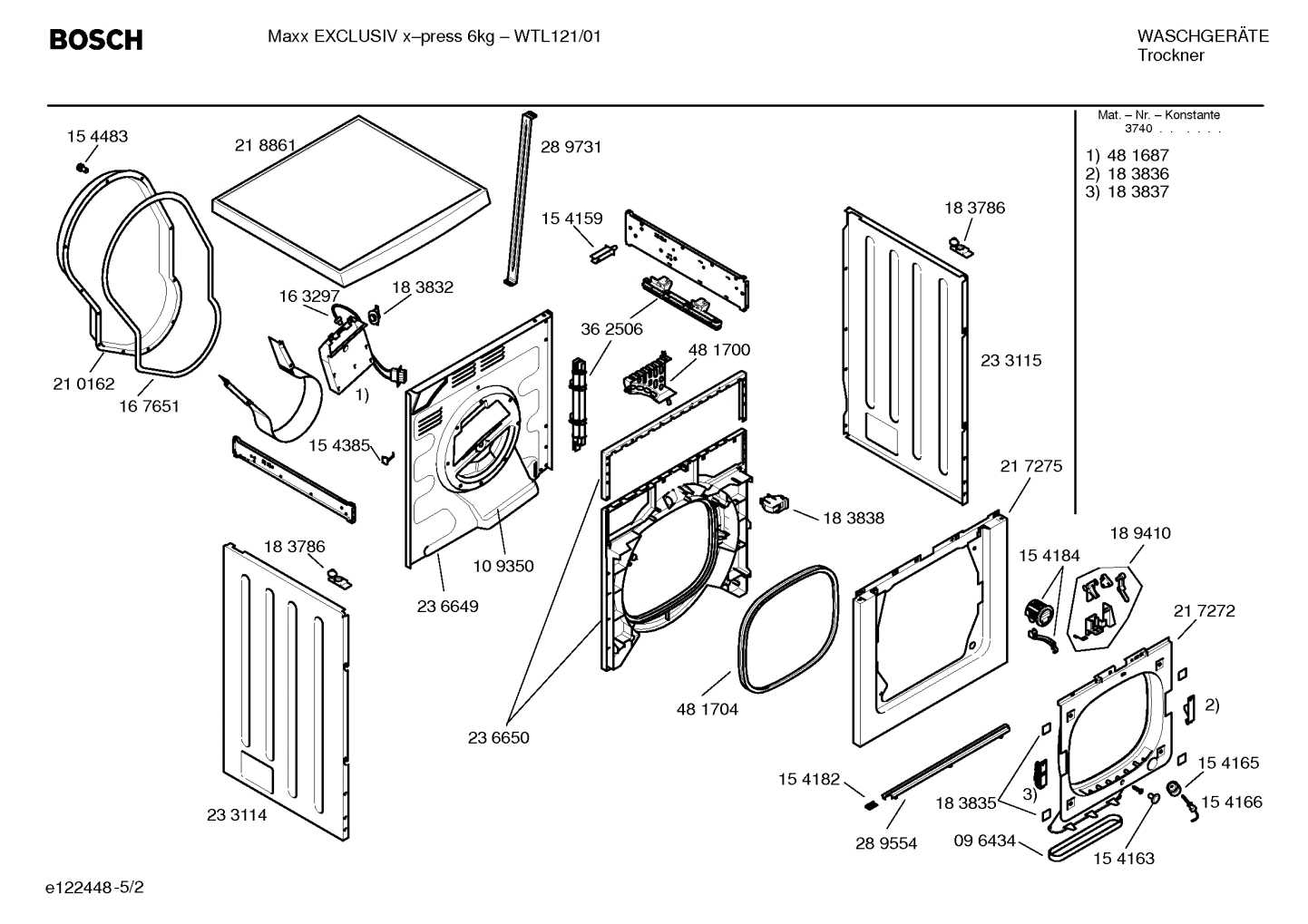

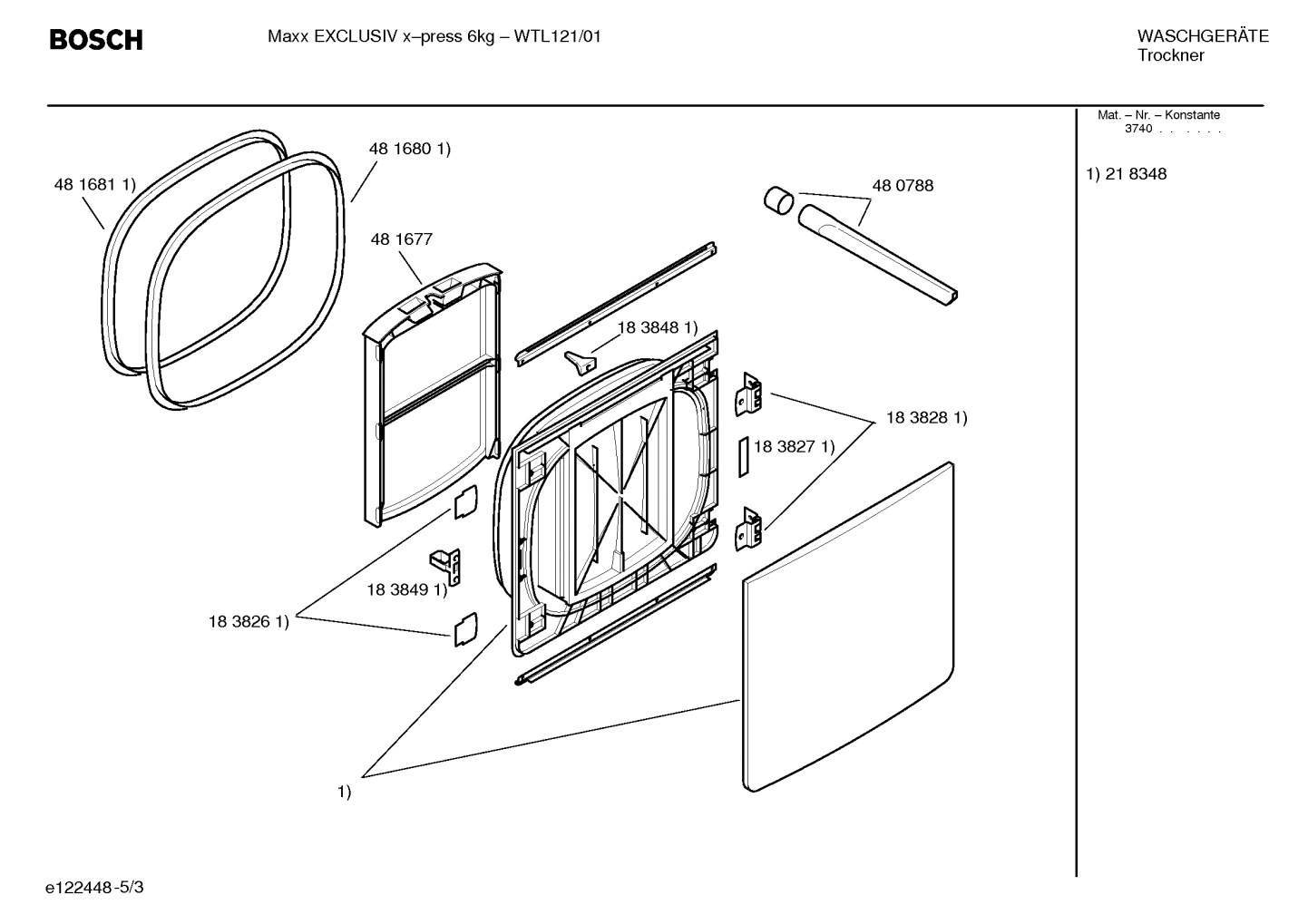

Model Bosch WTL121/01 Dryer – Common Parts & Diagrams

0201
Rivet
Rivet BOS 00154483 Contact Us For Availability
View on Model
0204
Limiter-temperature
Limiter-temperature BOS 00163297 Contact Us For Availability
View on Model
0221
Strip
Strip BOS 00289554 Contact Us For Availability
View on Model
0224
Key
Key BOS 00154184 Contact Us For Availability
View on Model
0304
Corner nozzle
Corner nozzle BOS 17008375 Contact Us For Availability
View on Model
0403
Holder
Holder BOS 00183851 Contact Us For Availability
View on Model
0407
Seal set - drum support
Seal set - drum support BOS 00096416 Contact Us For Availability
View on Model
0410
Lubricant
Lubricant BOS 00155280 Contact Us For Availability
View on Model
0509
Roller-tension
Roller-tension BOS 00154129 Contact Us For Availability
View on Model
0520
Fan drum
Fan drum BOS 00264487 Contact Us For Availability
View on Model
0521
Panel-base
Panel-base BOS 00289726 Contact Us For Availability
View on Model
0523
Lock-mechanical
Lock-mechanical BOS 00154768 Contact Us For Availability
View on Model
0529
Nut
Nut BOS 00154135 Contact Us For Availability
View on Model
0533
Cover
Cover BOS 00263298 Contact Us For Availability
View on Model
