Model Bosch WTA4100/02 Dryer – Common Parts & Diagrams

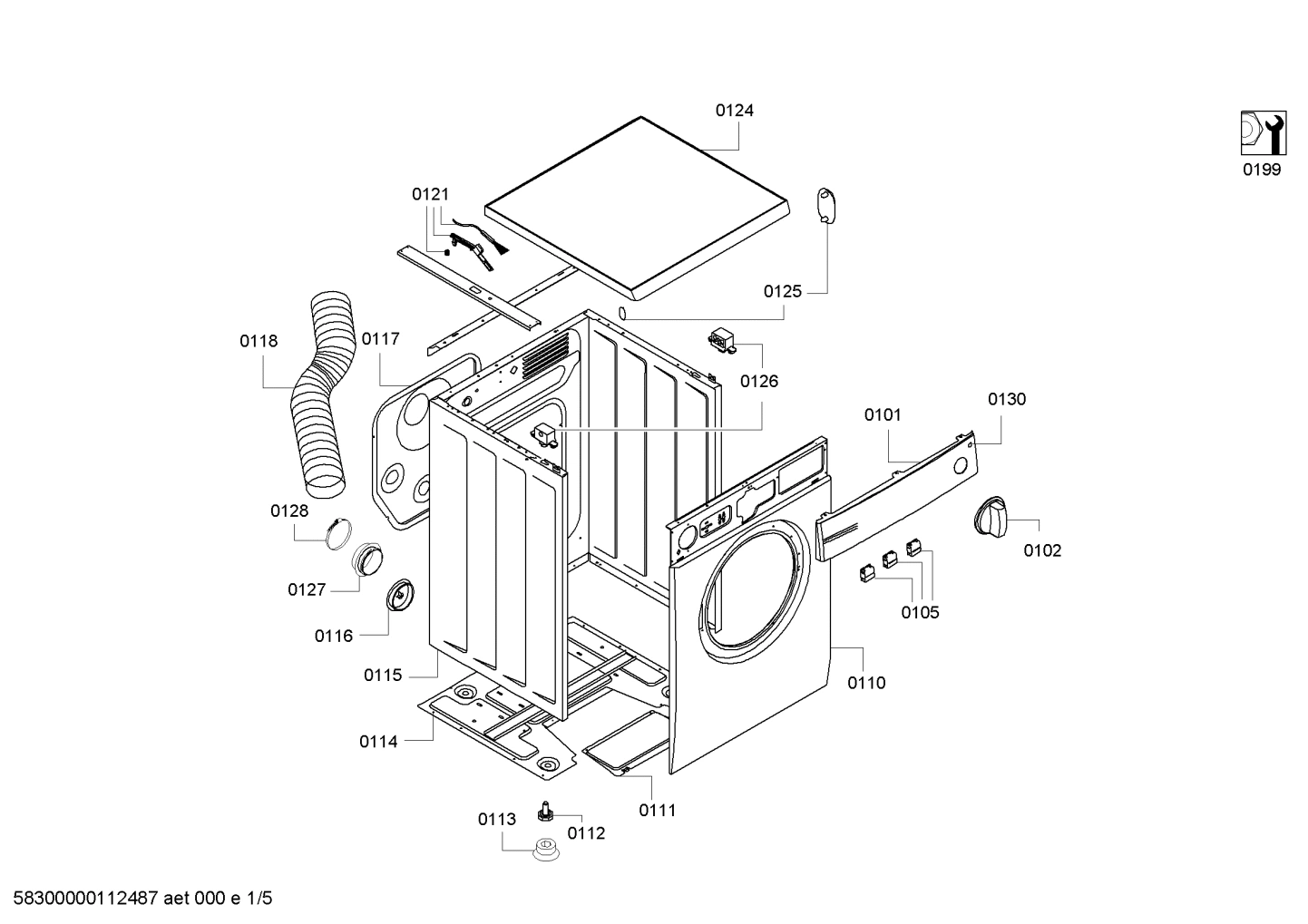

Diagram 1

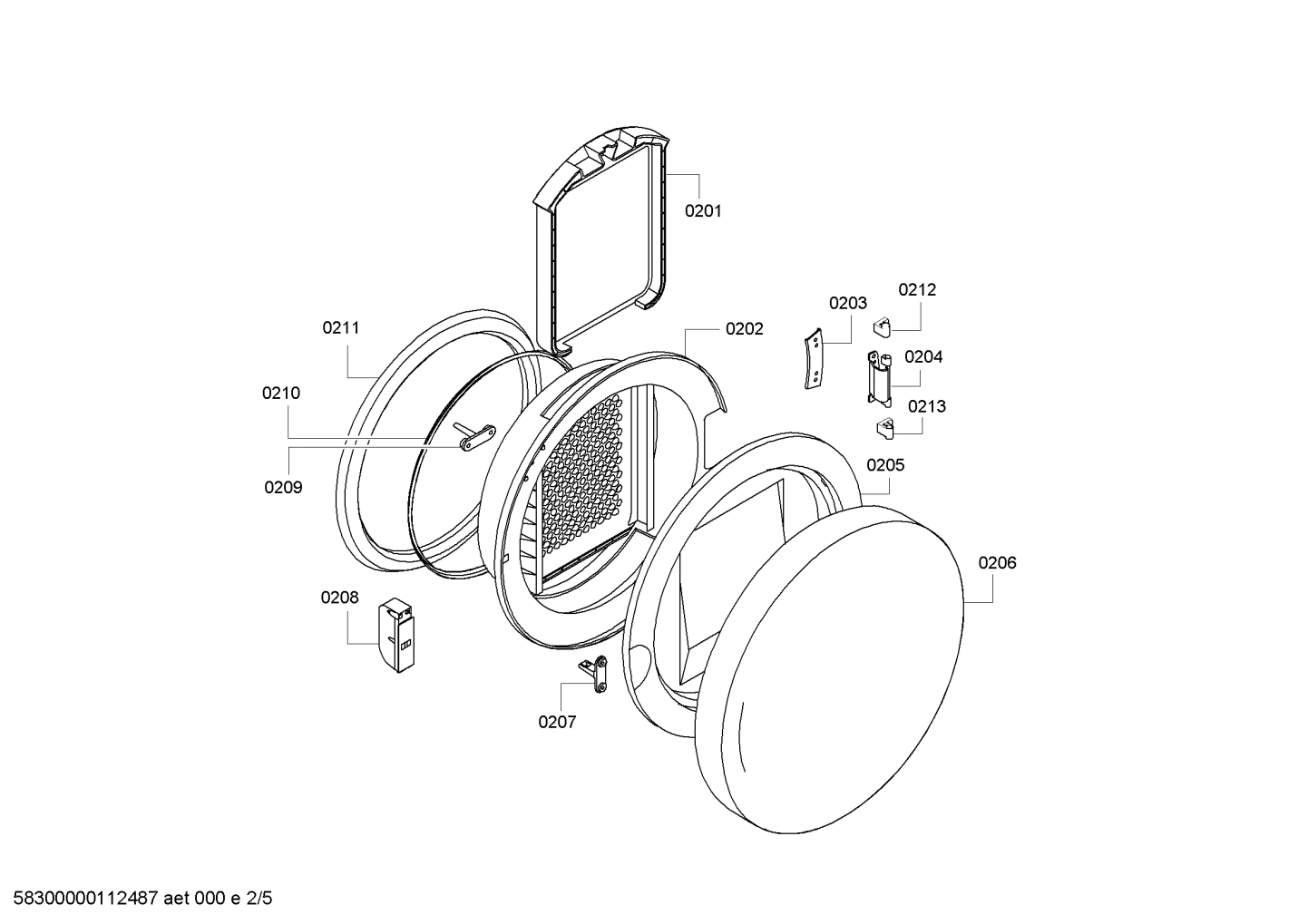

Diagram 2

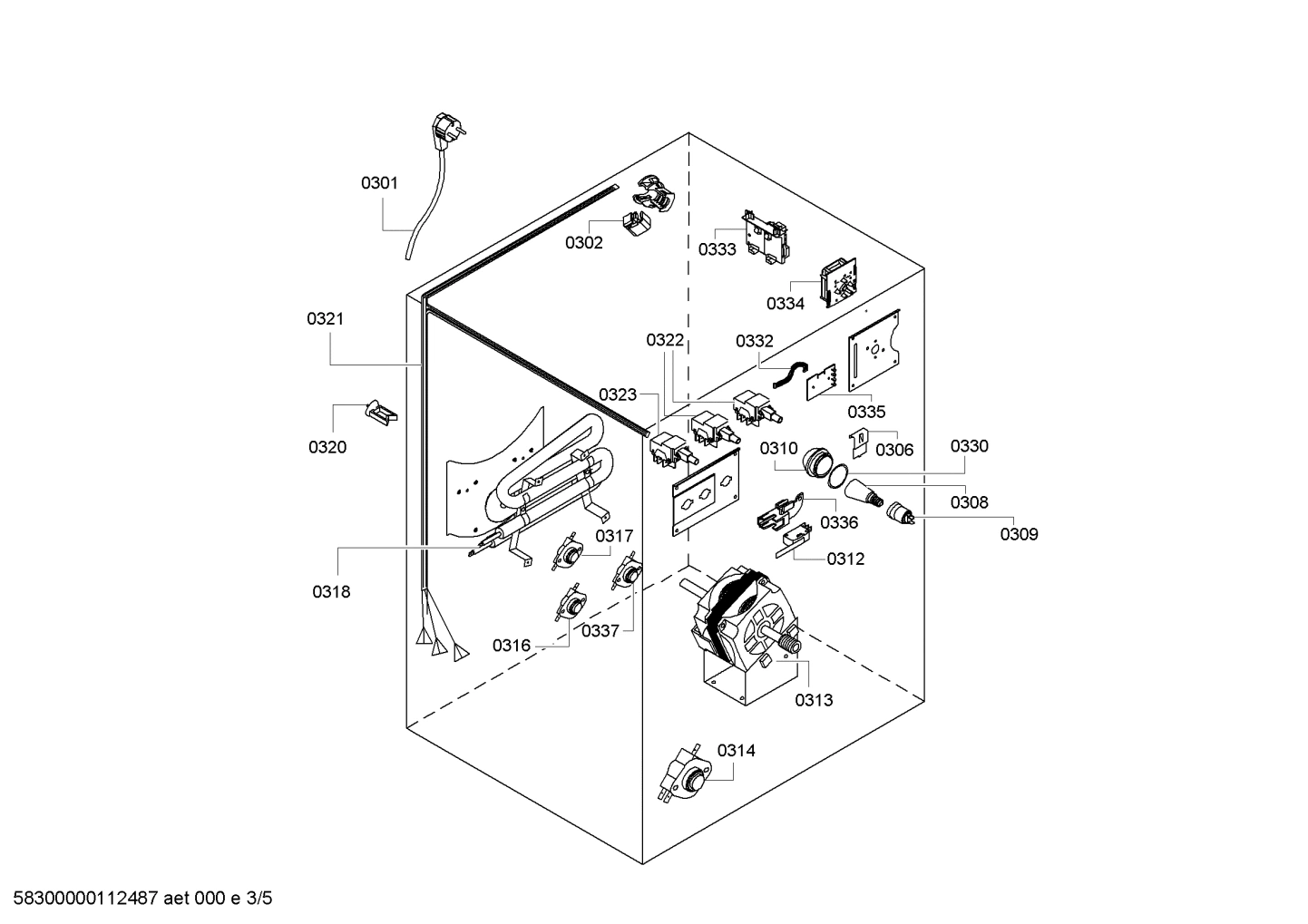

Diagram 3

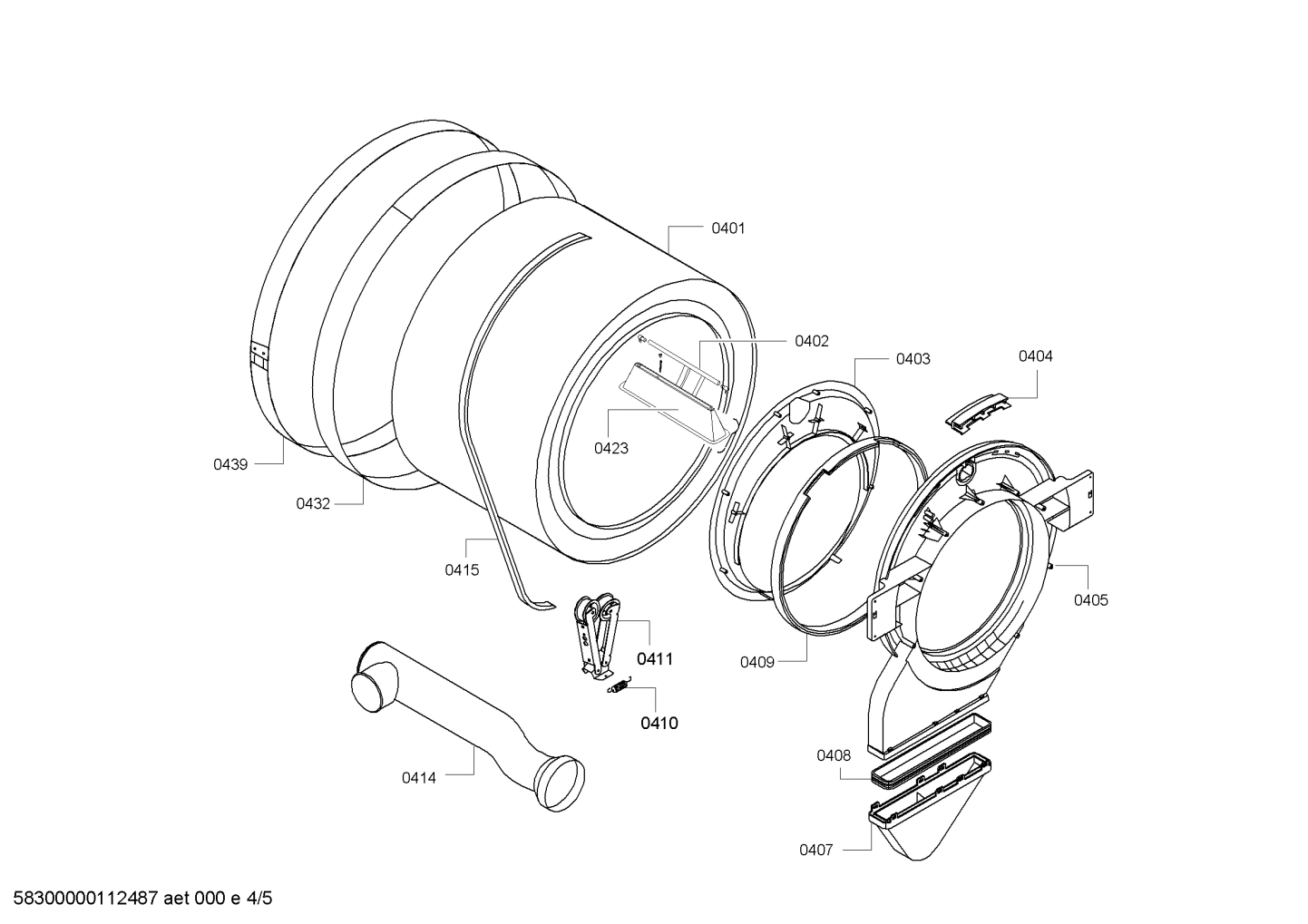

Diagram 4

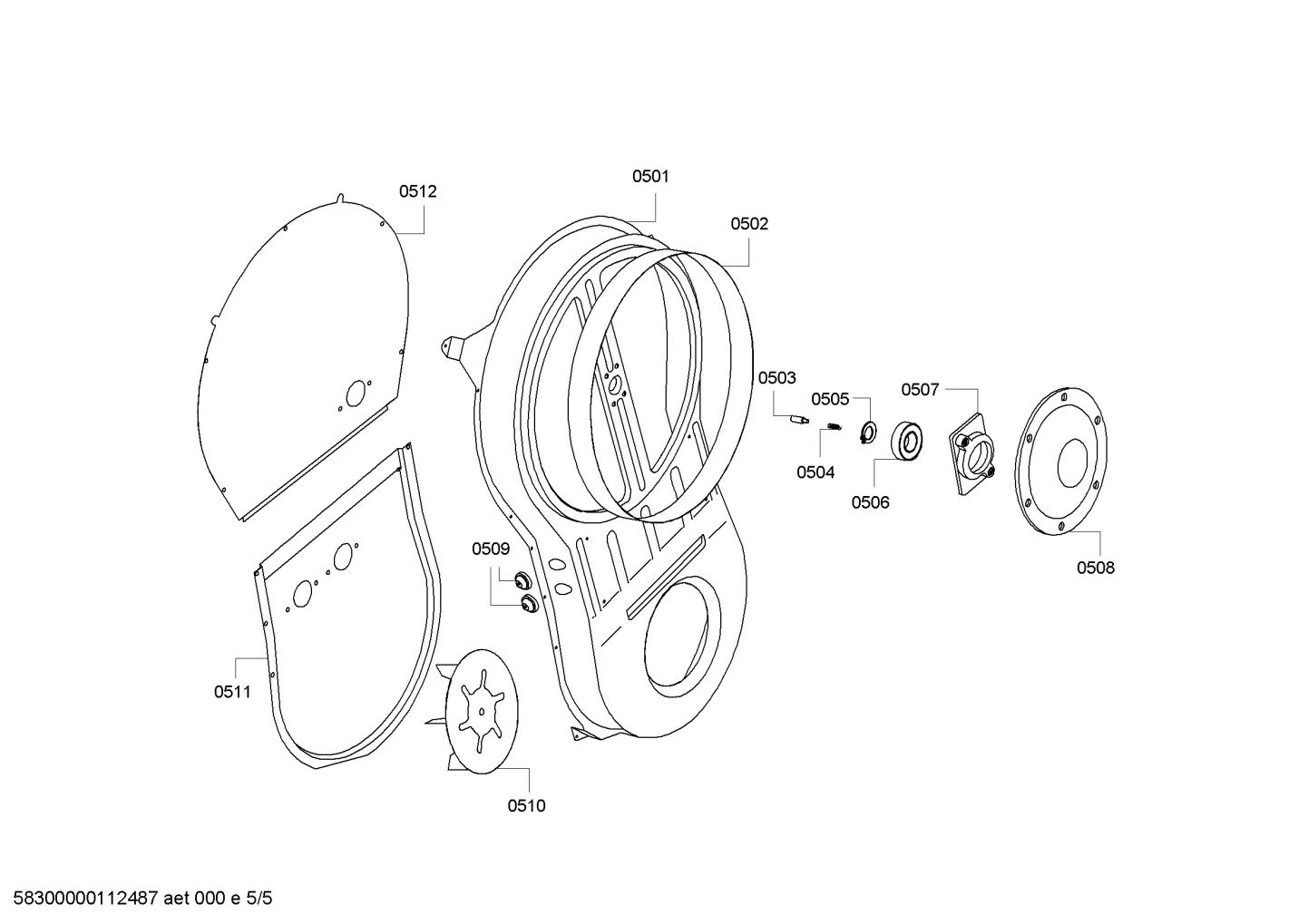

Diagram 5
Common parts from model Bosch WTA4100/02 Dryer
0102
Knob-programme BOS 00604440 Contact Us For Availability
0208
Latch BOS 00423034 Contact Us For Availability
0210
Seal-door BOS 00423059 Contact Us For Availability
0211
Seal-door BOS 00437451 Contact Us For Availability
0212
Pin BOS 00425684 Contact Us For Availability
0213
Pin BOS 00425683 Contact Us For Availability
0308
Lamp BOS 00424101 Contact Us For Availability
0309
Light socket BOS 00424102 Contact Us For Availability
0312
Switch BOS 00423044 Contact Us For Availability
0313
Motor BOS 00143766 Contact Us For Availability
0320
Cable clip BOS 00423080 Contact Us For Availability
0332
Flat cable BOS 00423043 Contact Us For Availability
0336
Support BOS 00600005 Contact Us For Availability
0401
Drum BOS 00475577 Contact Us For Availability
0403
Bearing shield BOS 00437479 Contact Us For Availability
0404
Seating BOS 00423063 Contact Us For Availability
0405
Bearing shield BOS 00472072 Contact Us For Availability
0408
Sealing BOS 00423062 Contact Us For Availability
0409
Sealing BOS 00492206 Contact Us For Availability
0410
Spring BOS 00423316 Contact Us For Availability
0411
Roller-tension BOS 00492318 Contact Us For Availability
0423
Drive coupling BOS 00492329 Contact Us For Availability
0432
Band BOS 00475207 Contact Us For Availability
0439
Band BOS 00475208 Contact Us For Availability
0501
Ventilation duct BOS 00437447 Contact Us For Availability
0502
Seal set - drum support BOS 00437454 Contact Us For Availability
0505
Pin BOS 00423317 Contact Us For Availability
0506
Bearing BOS 00423057 Contact Us For Availability
0507
Bearing block BOS 00612658 Contact Us For Availability
0508
Flange BOS 00492200 Contact Us For Availability
0509
Sleeve BOS 00423086 Contact Us For Availability
0510
Fan wheel BOS 00492199 Contact Us For Availability
0512
Cover BOS 00437450 Contact Us For Availability
× ![]()
