Model Bosch WTA3200AU/02 Dryer – Common Parts & Diagrams

Common parts from model Bosch WTA3200AU/02 Dryer

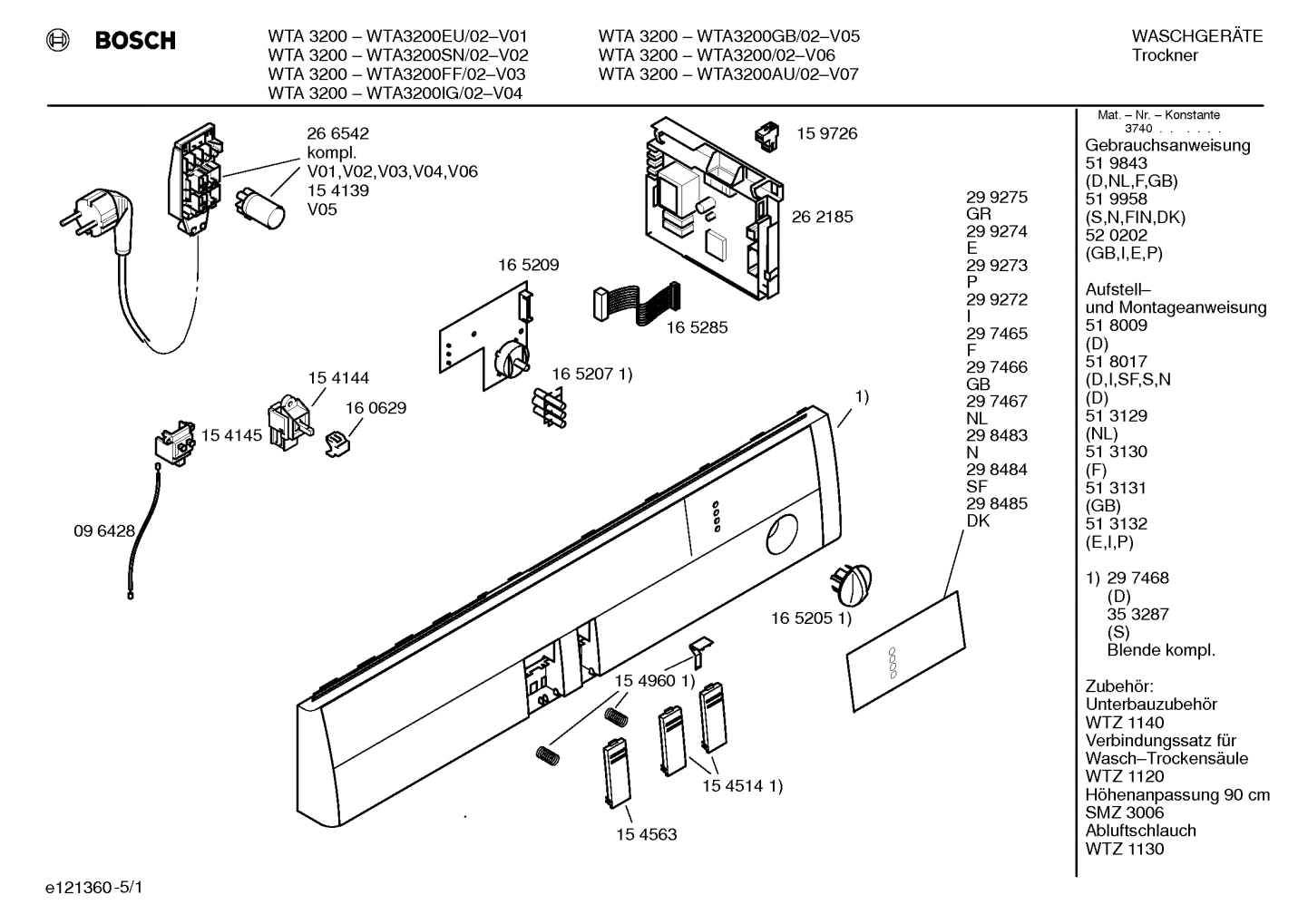

Diagram 1

Print

• This Diagram
• All Diagrams

0008

00096428 Bosch Laundry Bowden Cable Backorder BOS 00096428 View Details $69.53

View on Model

0020

00154514 Bosch Dryer Push Button Cap Backorder BOS 00154514 View Details $11.32

View on Model

0209

Limiter-temperature BOS 00163297 Contact Us For Availability

View on Model

0223

Screw BOS 00032636 Contact Us For Availability

View on Model

0224

Panel-base BOS 00289546 Contact Us For Availability

View on Model

0227

00154165 Bosch Laundry Seal Backorder BOS 00154165 View Details $24.21

View on Model

0228

10010119 Bosch Laundry Repair Set In Stock BOS 10010119 View Details $36.71

View on Model

0301

Sealing BOS 00096422 Contact Us For Availability

View on Model

0302

Seal-door BOS 00096421 Contact Us For Availability

View on Model

0304

00154074 Bosch Laundry Hook Backorder BOS 00154074 View Details $14.41

View on Model

0403

Holder BOS 00493666 Contact Us For Availability

View on Model

0406

Seal set - drum support BOS 00096416 Contact Us For Availability

View on Model

0407

00183897 Bosch Laundry Bearing Set Backorder BOS 00183897 View Details $356.37

View on Model

0411

00096426 Bosch Laundry Drive Belt In Stock BOS 00096426 View Details $62.82

View on Model

0502

00260807 Bosch Laundry Sealing Kit Backorder BOS 00260807 View Details $61.79

View on Model

0504

Nut BOS 00154135 Contact Us For Availability

View on Model

0506

00265678 Bosch Laundry Stud Backorder BOS 00265678 View Details $62.32

View on Model

0507

00611942 Bosch Laundry Foot In Stock BOS 00611942 View Details $12.62

View on Model

0509

00481698 Bosch Laundry Holder In Stock BOS 00481698 View Details $350.19

View on Model

0510

Roller-tension BOS 00154129 Contact Us For Availability

View on Model

0511

00154775 Bosch Laundry Holder Backorder BOS 00154775 View Details $6.17

View on Model

0512

00154149 Bosch Laundry Spring Backorder BOS 00154149 View Details $49.43

View on Model

0513

00154148 Bosch Laundry Holder Backorder BOS 00154148 View Details $5.15

View on Model

0514

Fan drum BOS 00096429 Contact Us For Availability

View on Model

0515

00154272 Bosch Laundry Bushing Backorder BOS 00154272 View Details $75.71

View on Model

×
