Bosch WFX2843EE/01 Washer Parts List

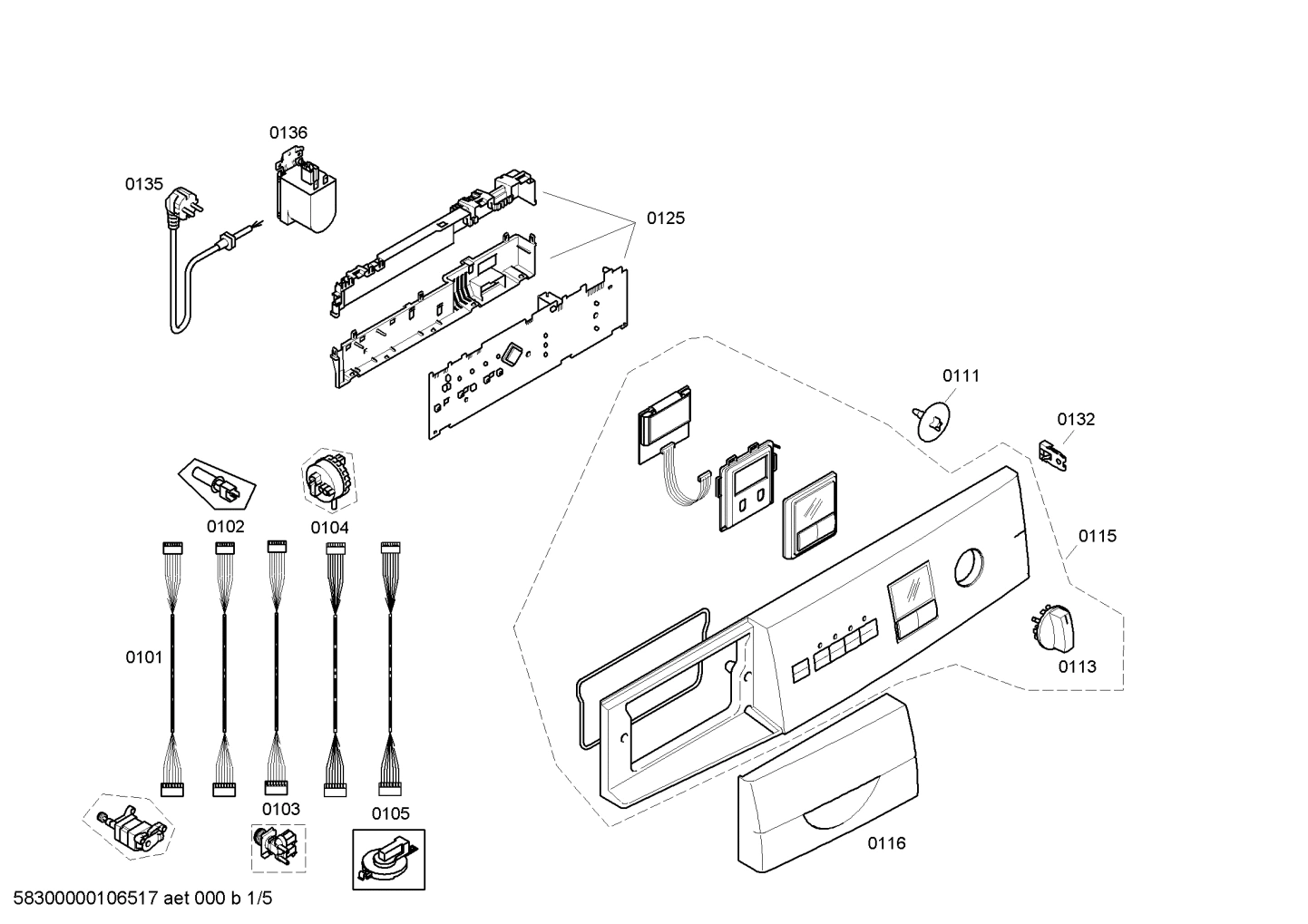

0136

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $55.61

View on Model

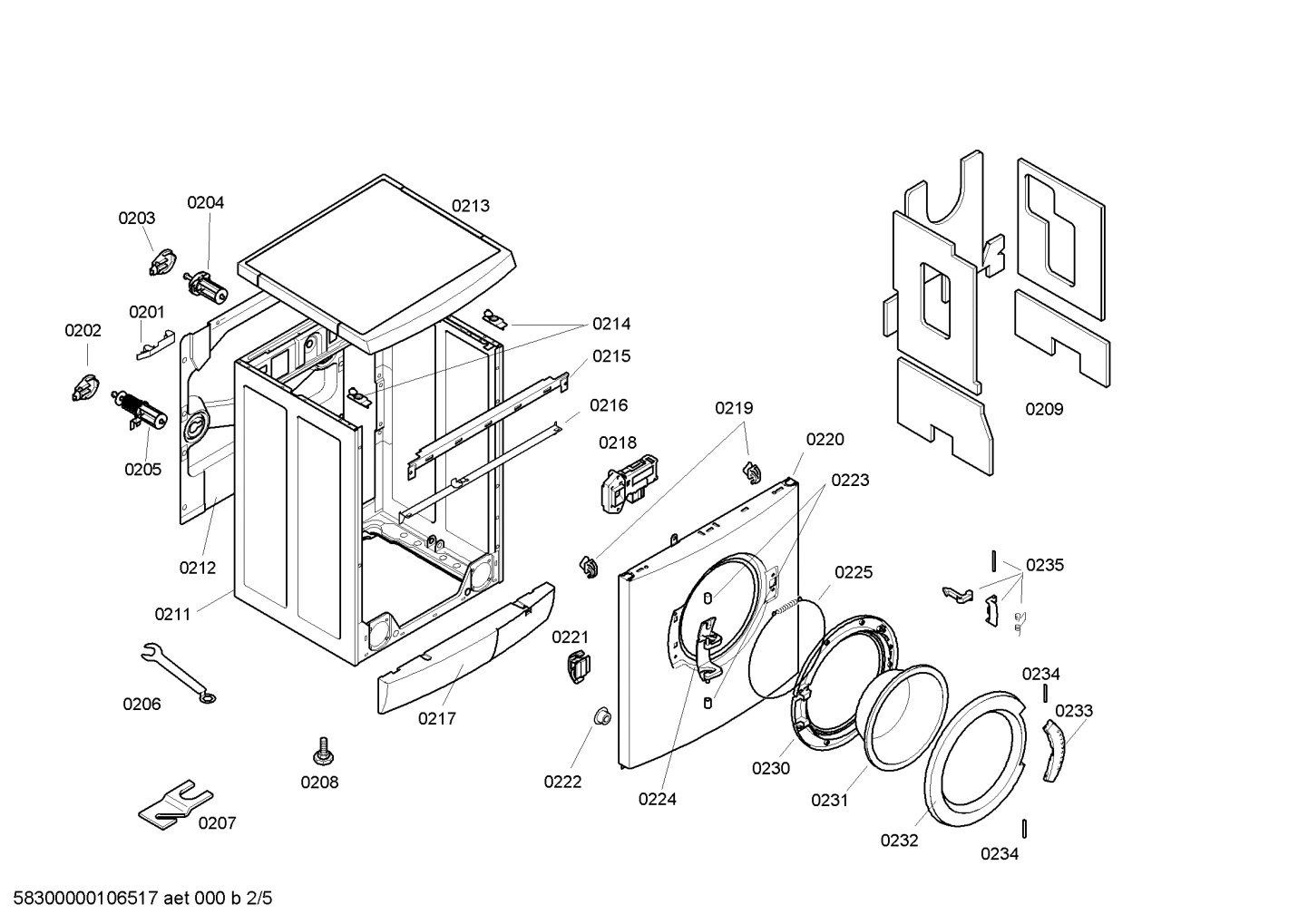

0202

Cover BOS 00170933 Contact Us For Availability

View on Model

0205

Transit bolt BOS 00173225 Contact Us For Availability

View on Model

0206

00416875 Bosch Auxiliary Tool Backorder BOS 00416875 $3.08

View on Model

0207

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $59.73

View on Model

0217

00669408 Bosch Laundry Base Panel Backorder BOS 00669408 $79.30

View on Model

0220

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $222.47

View on Model

0222

00606923 Bosch Laundry Holder Backorder BOS 00606923 $6.17

View on Model

0223

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $18.55

View on Model

0224

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $35.54

View on Model

0225

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $15.46

View on Model

0230

00432073 Bosch Laundry Ring Backorder BOS 00432073 $45.31

View on Model

0231

11020392 Bosch Laundry Window Backorder BOS 11020392 $53.55

View on Model

0233

00266751 Bosch Laundry Handle Backorder BOS 00266751 $143.69

View on Model

0234

00171255 Bosch Laundry Axis Backorder BOS 00171255 $15.44

View on Model

0235

00634207 Bosch Washer Latch In Stock BOS 00634207 $58.70

View on Model

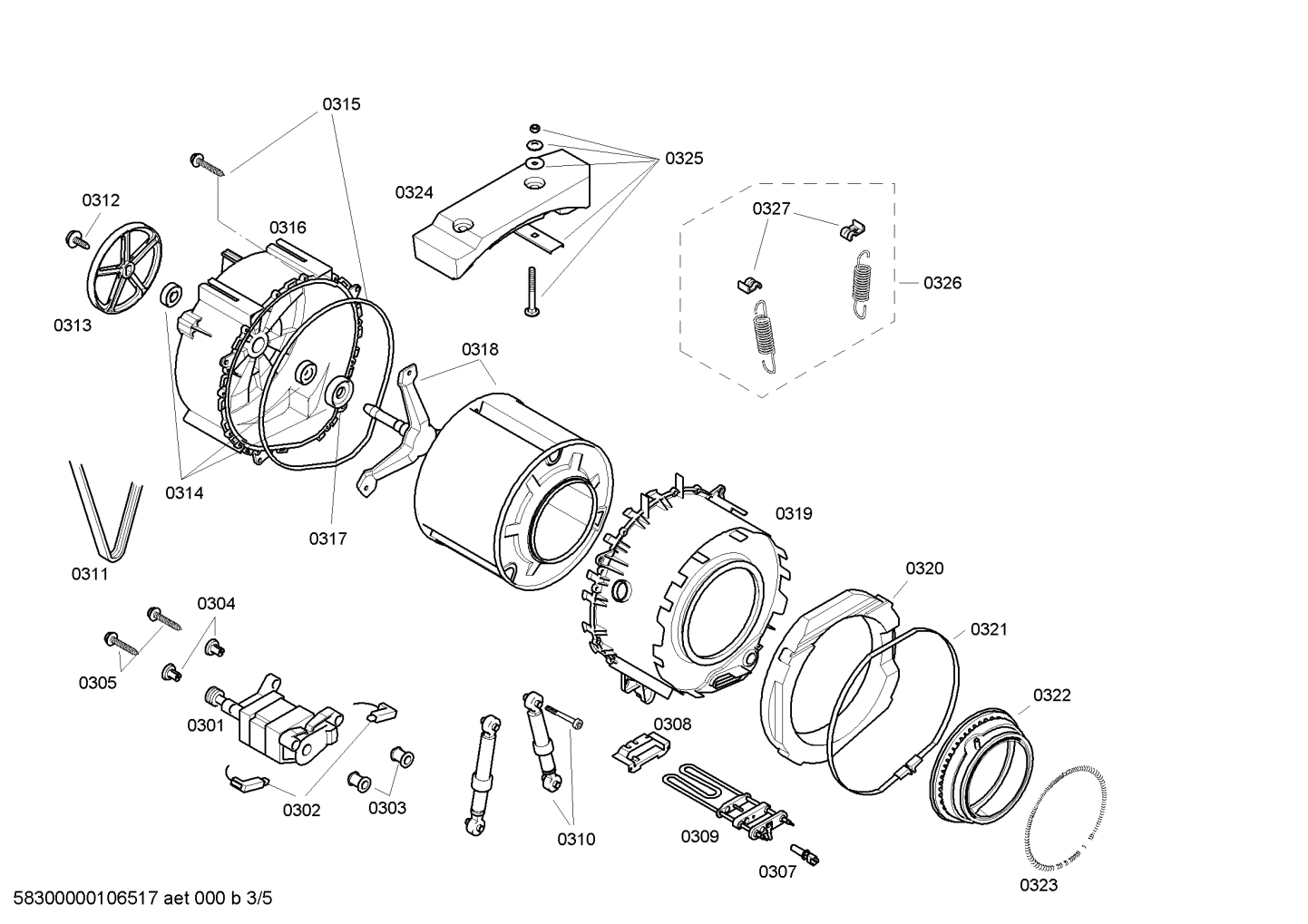

0301

00145678 Bosch Laundry Motor Backorder BOS 00145678 $438.77

View on Model

0302

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 $75.73

View on Model

0303

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.64

View on Model

0304

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0305

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.11

View on Model

0308

Holder BOS 00171273 Contact Us For Availability

View on Model

0311

00439490 Bosch Washer Drive Belt In Stock BOS 00439490 $40.16

View on Model

0312

00171270 Bosch Screw Backorder BOS 00171270 $4.11

View on Model

0313

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $61.29

View on Model

0319

00715100 Bosch Laundry Tub Backorder BOS 00715100 $289.95

View on Model

0321

00265965 Bosch Laundry Band Backorder BOS 00265965 $42.22

View on Model

0322

00361127 Bosch Washer Boot Gasket In Stock BOS 00361127 $81.89

View on Model

0323

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.79

View on Model

0325

00631639 Bosch Laundry Fixing Kit Backorder BOS 00631639 $30.39

View on Model

0326

00642529 Bosch Laundry Spring Tank Backorder BOS 00642529 $45.31

View on Model

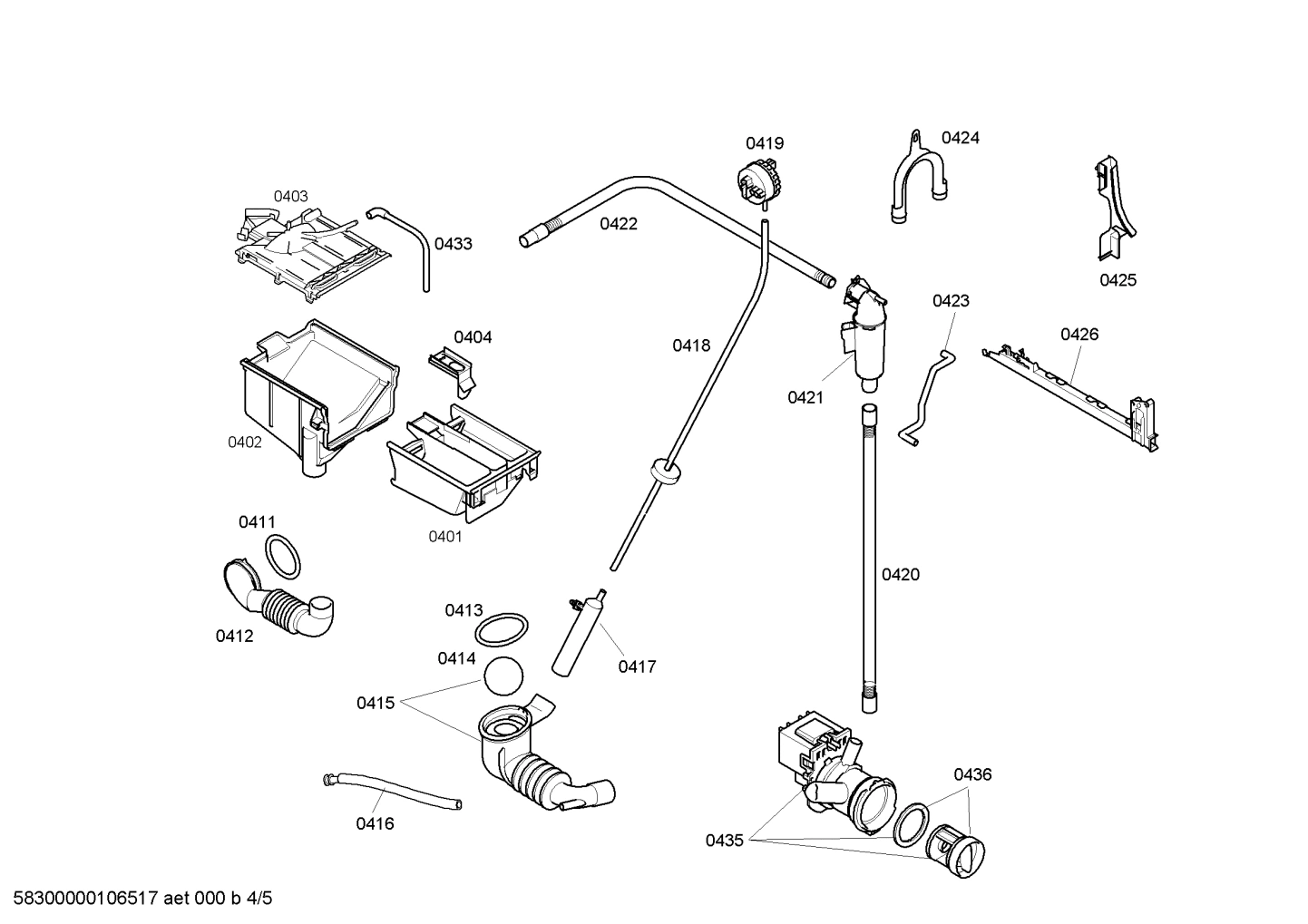

0401

00361166 Bosch Laundry Dispenser Tray Backorder BOS 00361166 $46.87

View on Model

0404

00182245 Bosch Laundry Siphon Device Backorder BOS 00182245 $9.79

View on Model

0411

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

View on Model

0412

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $25.24

View on Model

0413

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41

View on Model

0414

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

View on Model

0415

00480436 Bosch Laundry Eco Hose Backorder BOS 00480436 $28.33

View on Model

0416

00421214 Bosch Laundry Drain Hose Backorder BOS 00421214 $13.91

View on Model

0417

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0418

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0419

00600925 Bosch Laundry Water Level Regulator Backorder BOS 00600925 $109.70

View on Model

0420

00358305 Bosch Laundry Hose In Stock BOS 00358305 $23.18

View on Model

0421

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $69.00

View on Model

0422

Drain Hose BOS 00358306 Contact Us For Availability

View on Model

0423

00175789 Bosch Laundry Vent Hose Backorder BOS 00175789 $33.98

View on Model

0424

00655300 Bosch Laundry Holder Backorder BOS 00655300 $15.97

View on Model

0436

00182430 Bosch Laundry Fluff Filter Backorder BOS 00182430 $25.74

View on Model

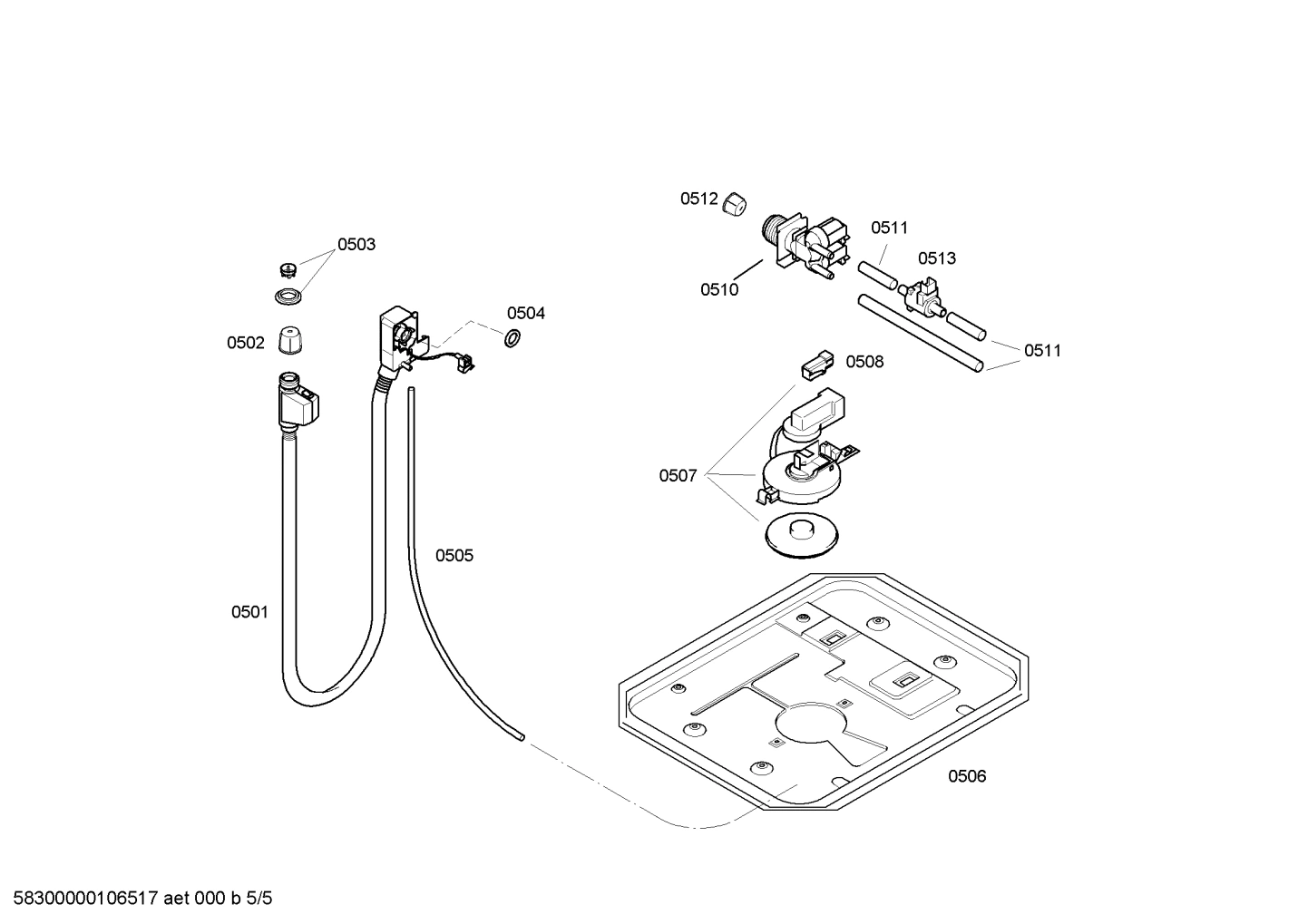

0503

00166671 Bosch Dishwasher Seal Backorder BOS 00166671 $25.74

View on Model

0504

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $15.97

View on Model

0511

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $33.48

View on Model

Model Bosch WFX2843EE/01 Washer – Common Parts & Diagrams

Common parts from model Bosch WFX2843EE/01 Washer
