Bosch WFX2440/09 Parts List

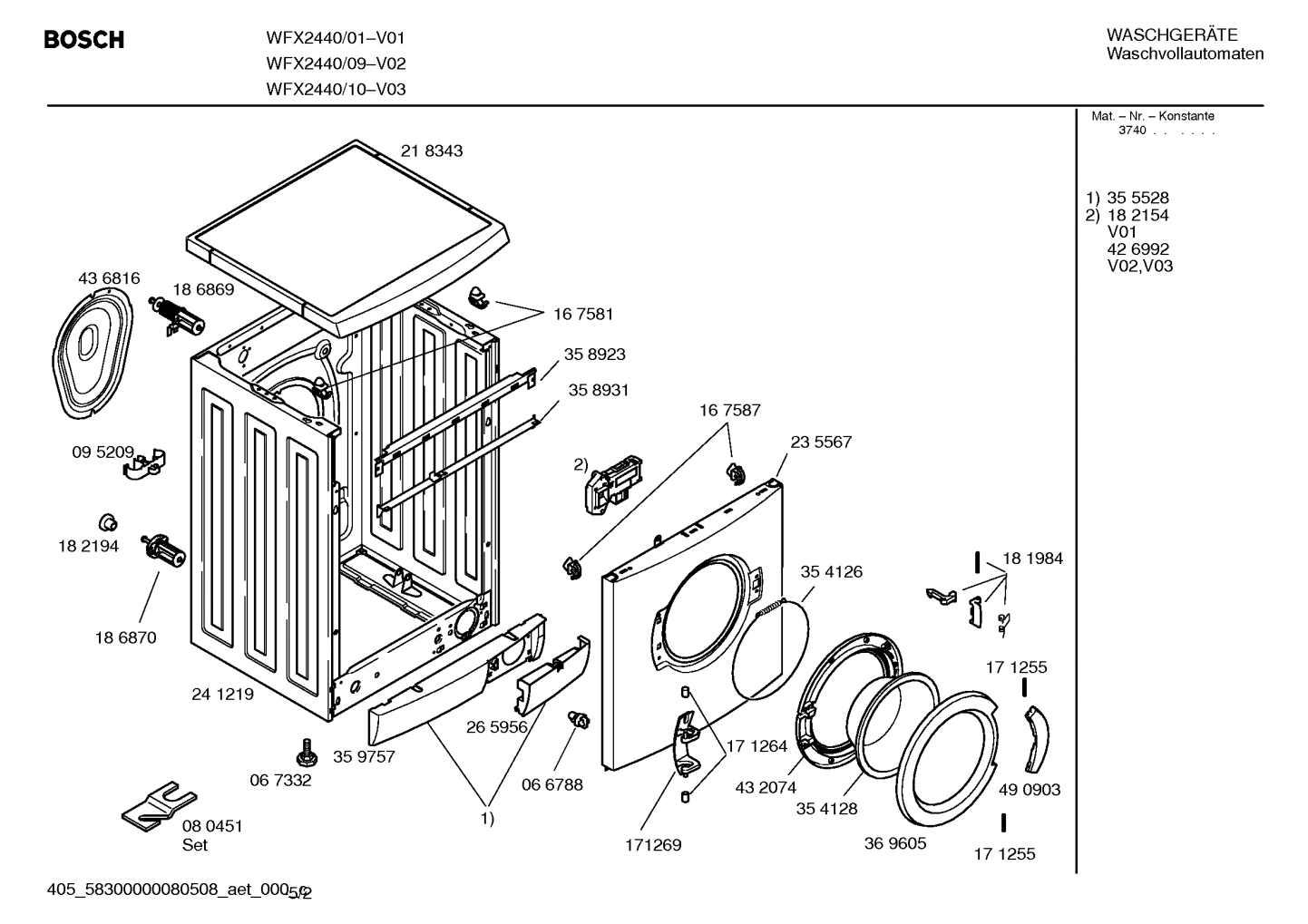

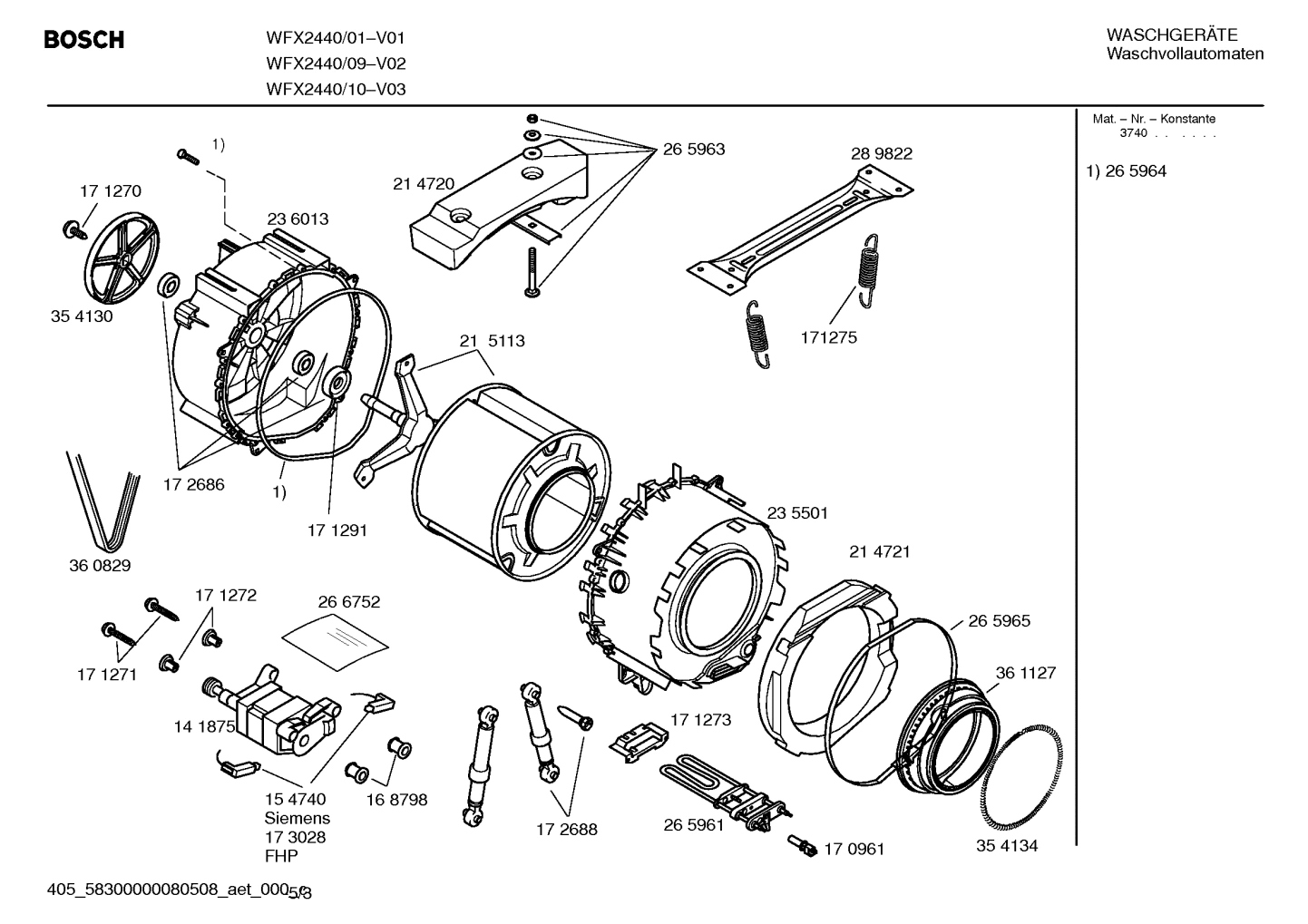

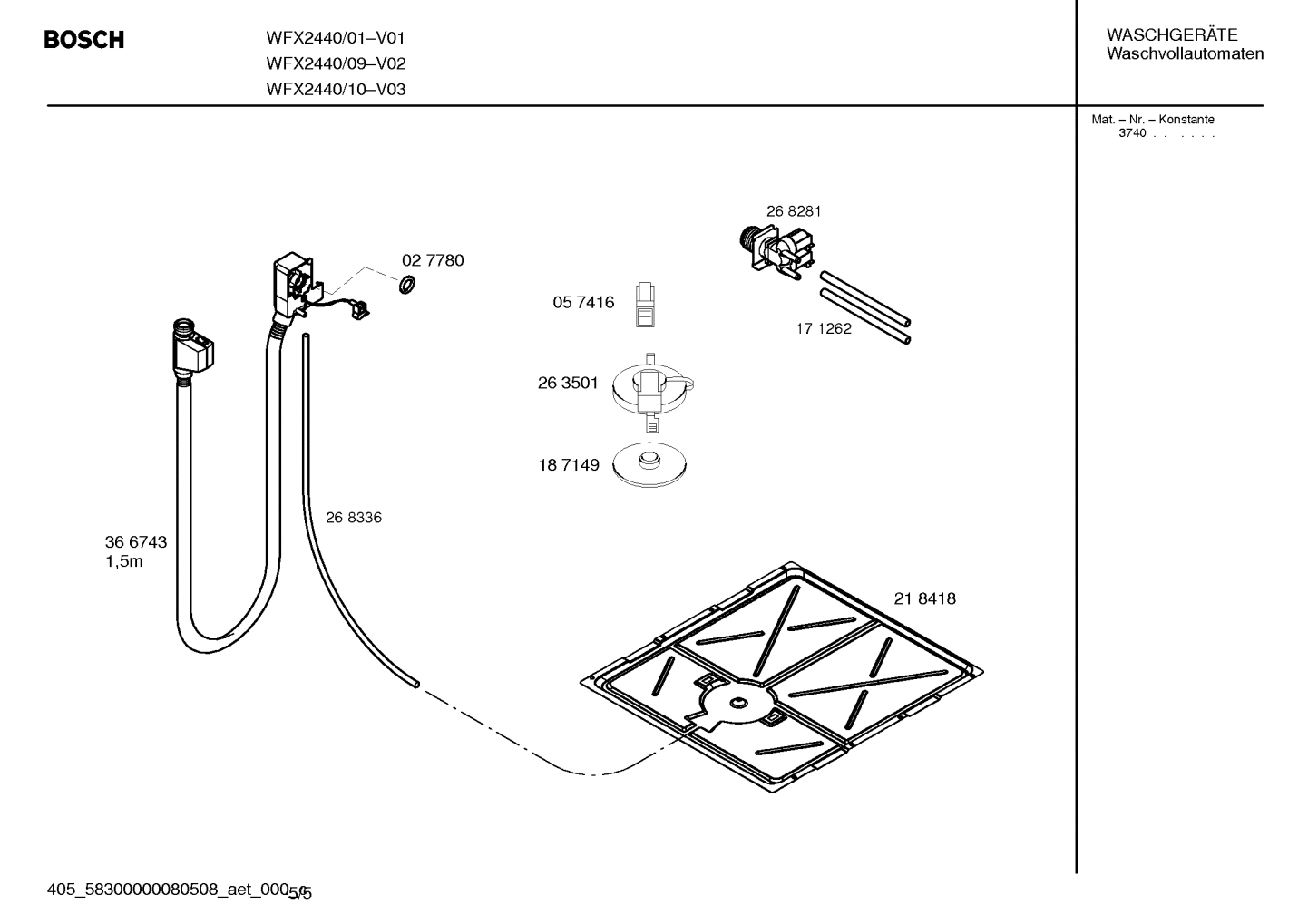

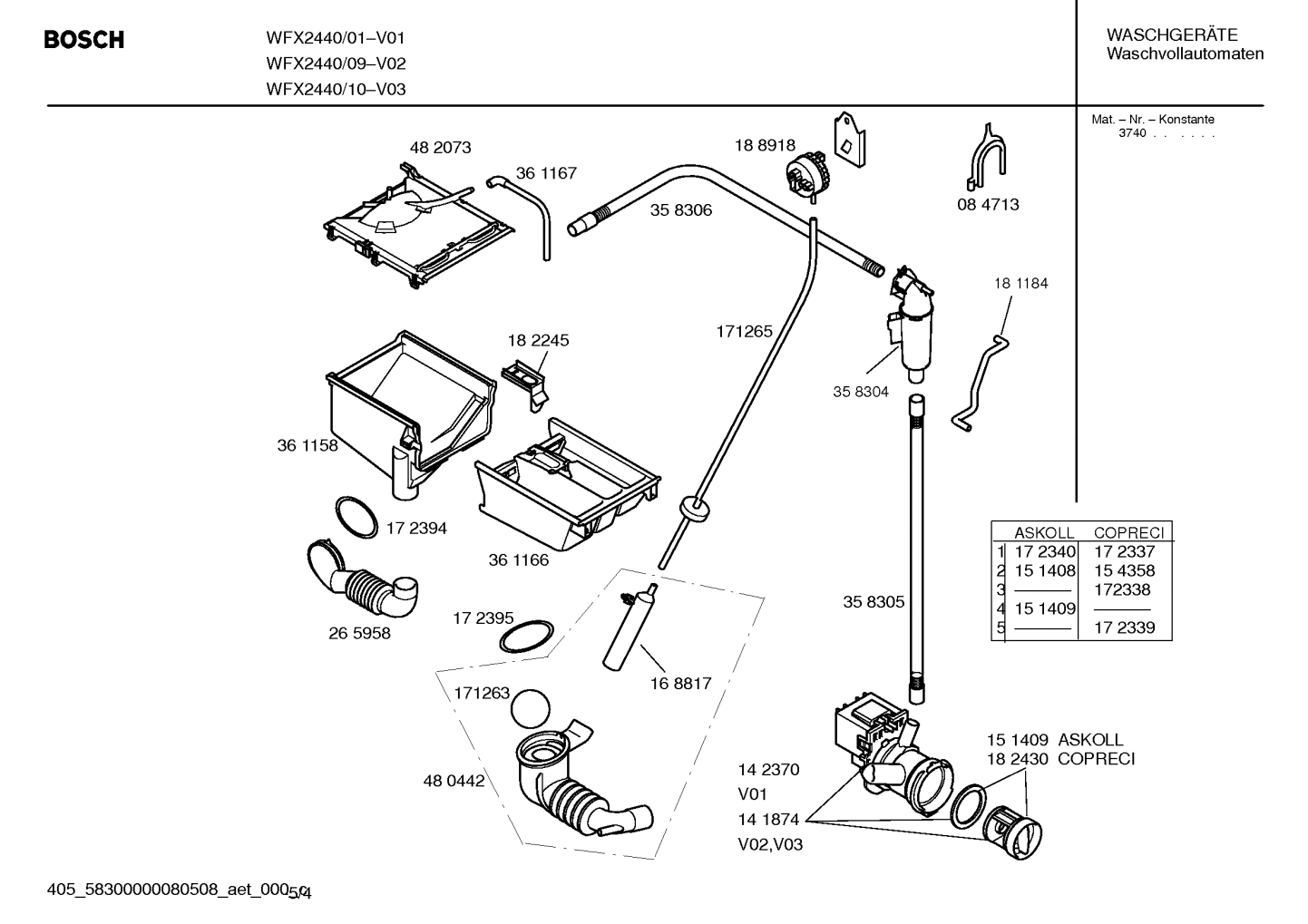

Model Bosch WFX2440/09 Washer – Common Parts & Diagrams

Common parts from model Bosch WFX2440/09 Washer

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $15.97

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $4.11

00170961 Bosch Laundry NTC Sensor

00170961 Bosch Laundry NTC Sensor Backorder BOS 00170961 $20.09

00623842 Bosch Laundry Suppression Capacitor

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $55.61

00171262 Bosch Laundry Valve Hose Soap Box

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $33.48

10007126 Bosch Laundry Screw

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.11

00171272 Bosch Laundry Fixture

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

Holder

Holder BOS 00171273 Contact Us For Availability

00606818 Bosch Laundry Tank Spring

00606818 Bosch Laundry Tank Spring Backorder BOS 00606818 $11.32

00421488 Bosch Laundry Fastening Ring

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41

00182194 Bosch Laundry Lid

00182194 Bosch Laundry Lid Backorder BOS 00182194 $6.17

00186870 Bosch Transit Bolt

00186870 Bosch Transit Bolt Backorder BOS 00186870 $23.18

00773699 Bosch Laundry Drum

00773699 Bosch Laundry Drum Backorder BOS 00773699 $242.04

00715100 Bosch Laundry Tub

00715100 Bosch Laundry Tub Backorder BOS 00715100 $289.95

00235567 Bosch Laundry Front Panel

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $222.47

Tub

Tub BOS 00236013 Contact Us For Availability

00265958 Bosch Laundry Fill Hose

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $25.24

00265965 Bosch Laundry Band

00265965 Bosch Laundry Band Backorder BOS 00265965 $42.22

00439671 Bosch Laundry Fastening Ring

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $15.46

11002942 Bosch Laundry Pulley

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $61.29

00354134 Bosch Laundry Fastening Ring

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.79

00358305 Bosch Laundry Hose

00358305 Bosch Laundry Hose In Stock BOS 00358305 $23.18

Drain Hose

Drain Hose BOS 00358306 Contact Us For Availability

00439490 Bosch Washer Drive Belt

00439490 Bosch Washer Drive Belt In Stock BOS 00439490 $40.16

00361127 Bosch Washer Boot Gasket

00361127 Bosch Washer Boot Gasket In Stock BOS 00361127 $81.89

00358304 Bosch Laundry Return Container

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $69.00

11020392 Bosch Laundry Window

11020392 Bosch Laundry Window Backorder BOS 11020392 $53.55

00171255 Bosch Laundry Axis

00171255 Bosch Laundry Axis Backorder BOS 00171255 $15.44

00171264 Bosch Laundry Bushing

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $18.55

00171269 Bosch Laundry Hinge Window

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $35.54

00634207 Bosch Washer Latch

00634207 Bosch Washer Latch In Stock BOS 00634207 $58.70

00369605 Bosch Washer Window Frame

00369605 Bosch Washer Window Frame Backorder BOS 00369605 $106.08

12003957 Bosch Handle

12003957 Bosch Handle Backorder BOS 12003957 $56.64

00432074 Bosch Washer Window Frame

00432074 Bosch Washer Window Frame In Stock BOS 00432074 $44.30

00361166 Bosch Laundry Dispenser Tray

00361166 Bosch Laundry Dispenser Tray Backorder BOS 00361166 $46.87

00182245 Bosch Laundry Siphon Device

00182245 Bosch Laundry Siphon Device Backorder BOS 00182245 $9.79

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38
