Model Bosch WFVC844PUC/23 Washer – Common Parts & Diagrams

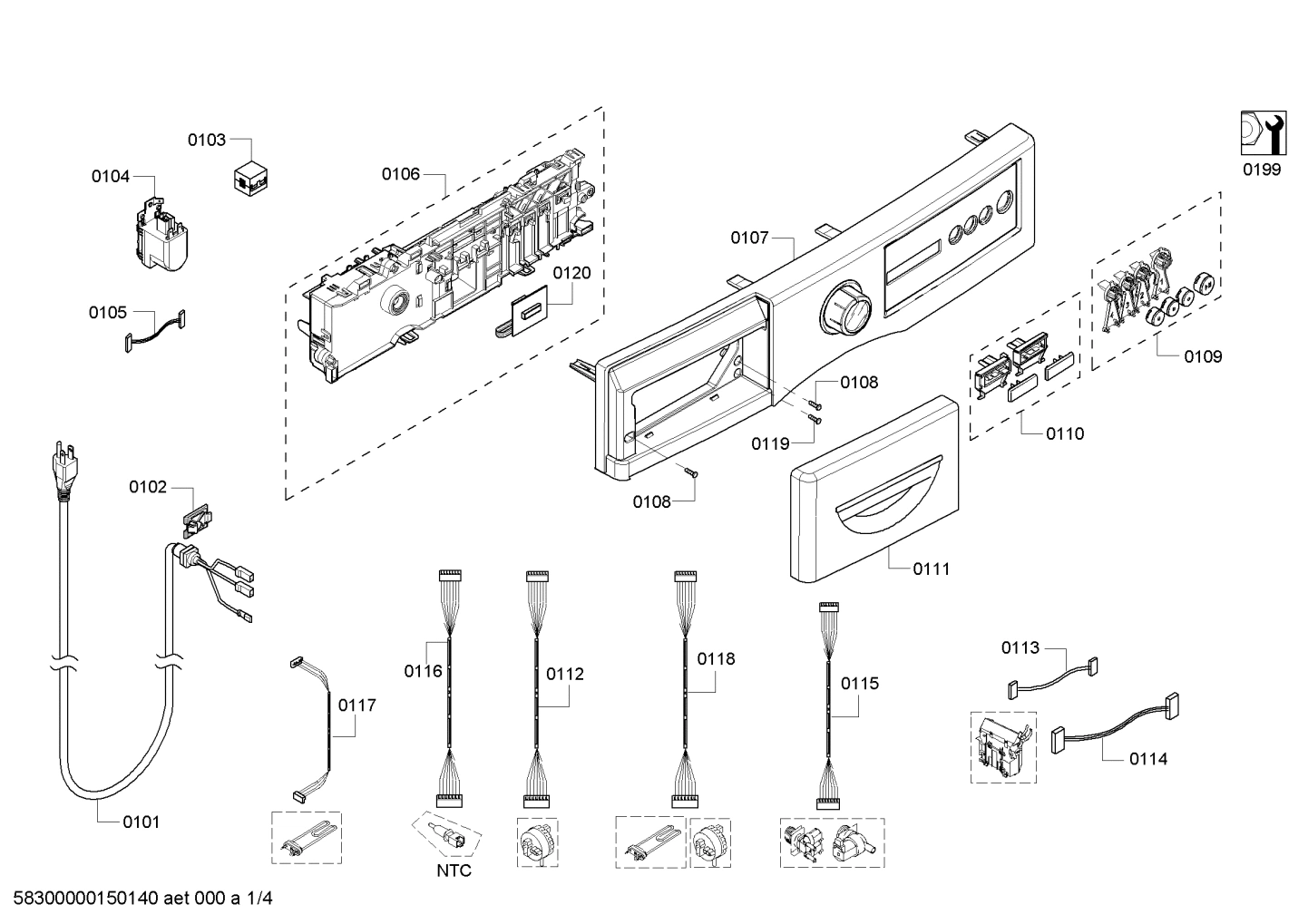

Diagram 1

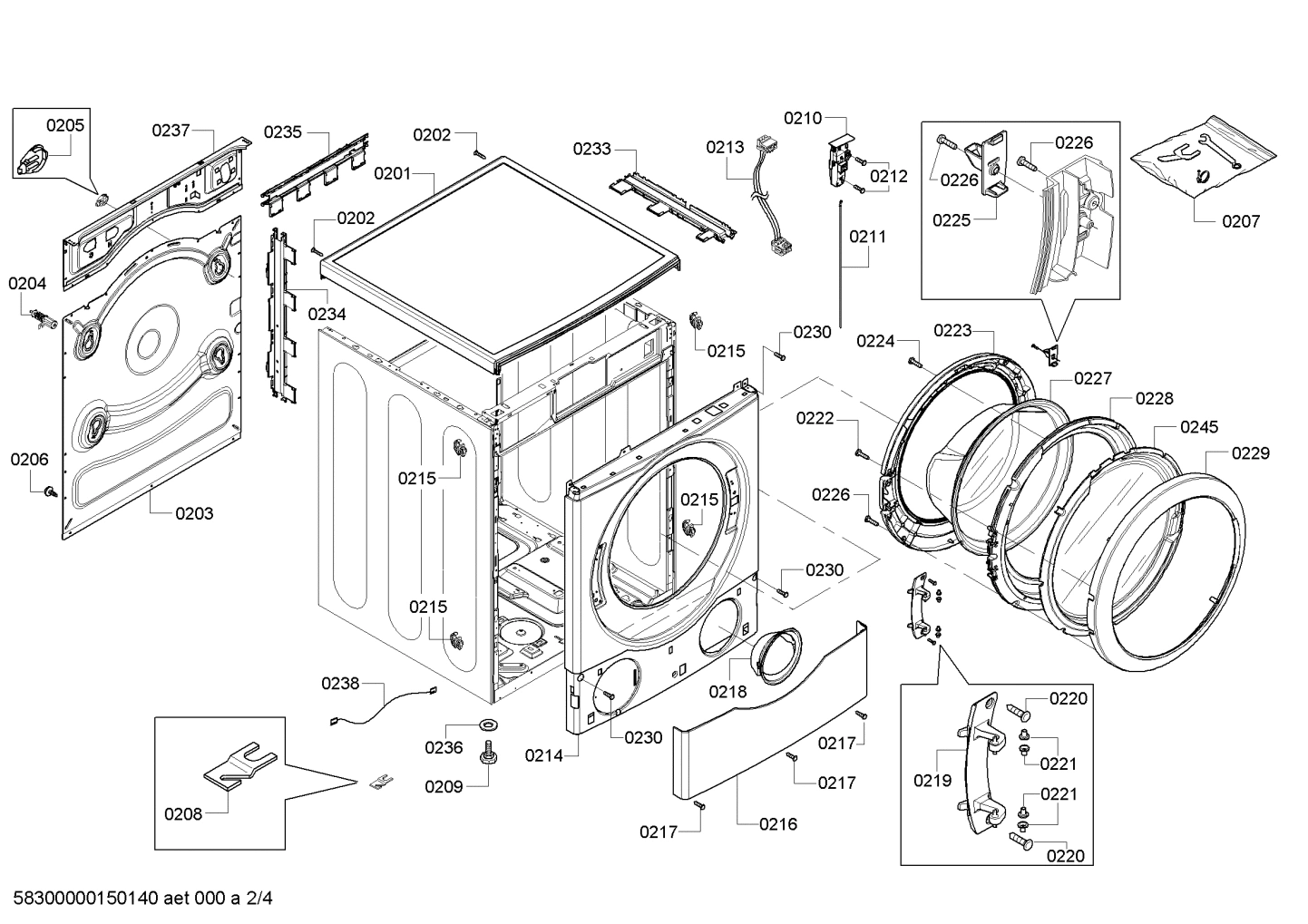

Diagram 2

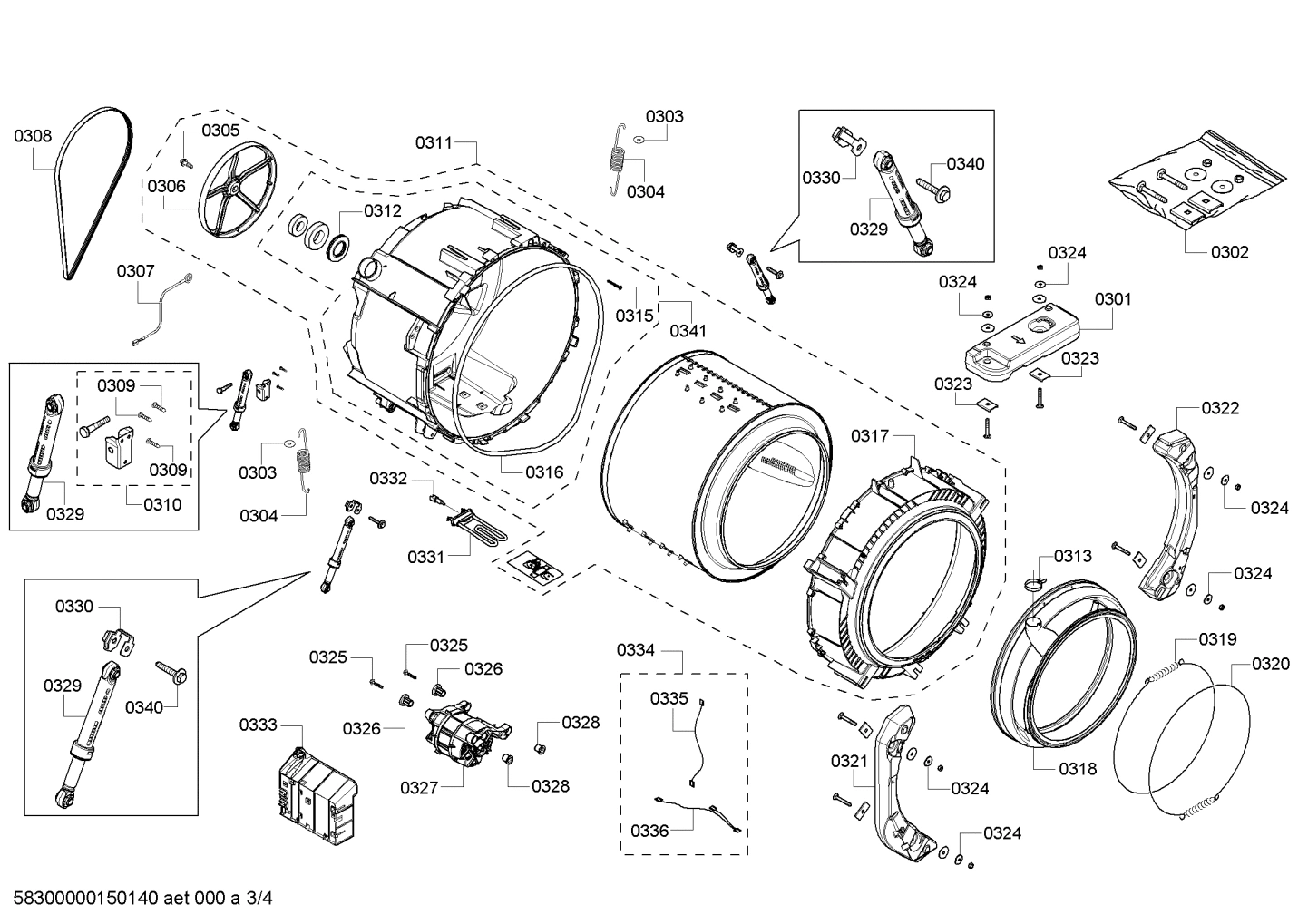

Diagram 3

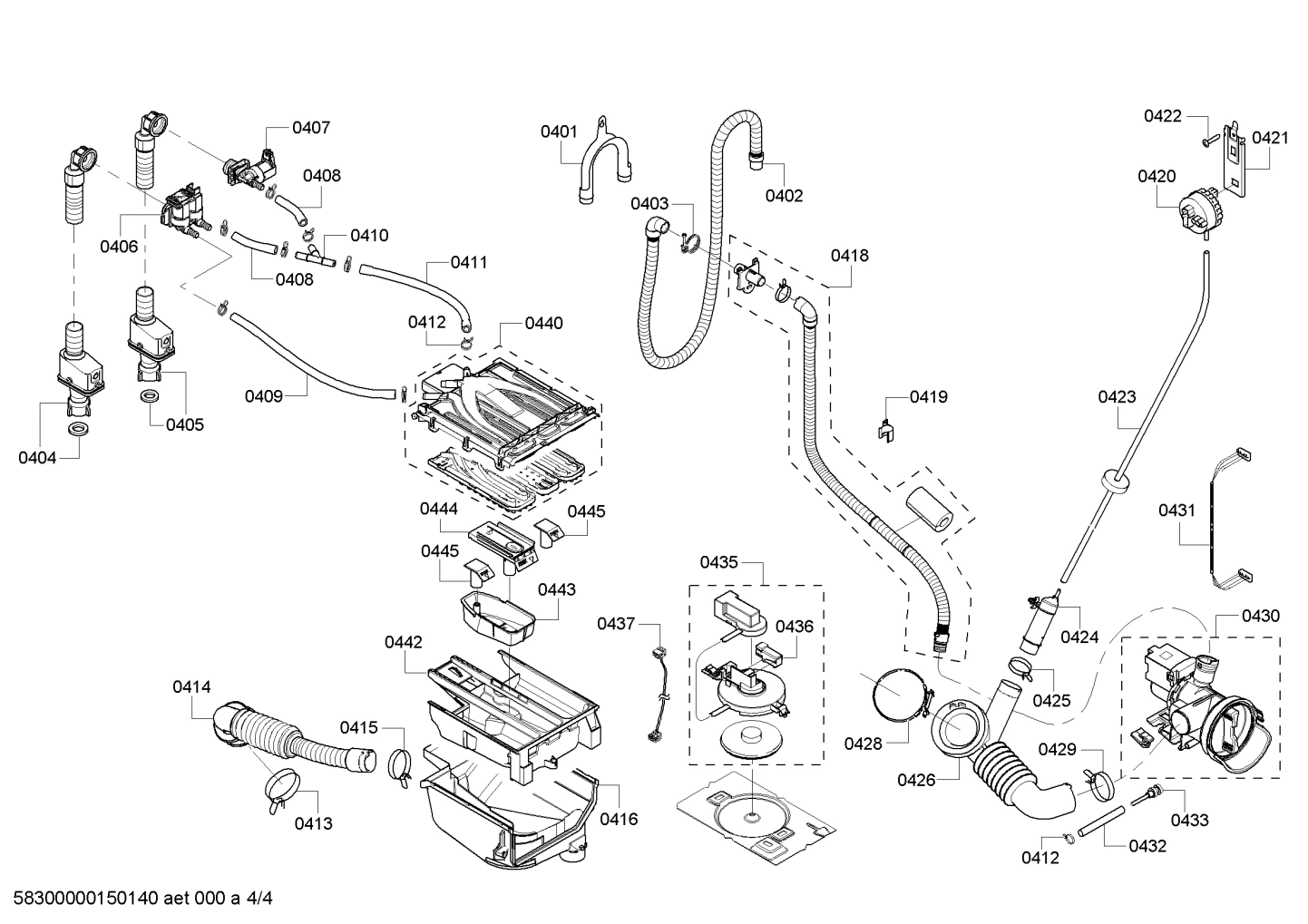

Diagram 4
Common parts from model Bosch WFVC844PUC/23 Washer
0101
Power cord BOS 00442362 Contact Us For Availability
0106
Control module BOS 00676887 Contact Us For Availability
0202
Screw BOS 00422240 No Longer Available
0212
Screw BOS 00615773 Contact Us For Availability
0213
Cable harness BOS 00617774 Contact Us For Availability
0215
Plug BOS 00427416 Contact Us For Availability
0218
Funnel BOS 00649290 Contact Us For Availability
0219
Door hinge BOS 00649704 Contact Us For Availability
0221
Sleeve BOS 00422204 Contact Us For Availability
0223
Door-inner BOS 00684146 Contact Us For Availability
0224
Screw BOS 00422239 Contact Us For Availability
0225
Lock-mechanical BOS 00617812 Contact Us For Availability
0226
Screw BOS 00619609 Contact Us For Availability
0228
Door-inner BOS 00684147 Contact Us For Availability
0245
Window BOS 00684145 Contact Us For Availability
0303
Support BOS 00422246 No Longer Available
0304
Spring-tank BOS 00648276 Contact Us For Availability
0305
Screw BOS 00422237 Contact Us For Availability
0306
Pulley BOS 00436480 Contact Us For Availability
0308
Belt BOS 00491680 Contact Us For Availability
0310
Bracket BOS 00651967 Contact Us For Availability
0313
Hose clamp BOS 00616713 Contact Us For Availability
0315
Screw BOS 00422236 Contact Us For Availability
0321
Weight BOS 00143681 Contact Us For Availability
0322
Weight BOS 00143682 Contact Us For Availability
0323
Plate BOS 00618291 Contact Us For Availability
0327
Motor BOS 00660487 No Longer Available
0329
Shock absorber BOS 00648176 Contact Us For Availability
0332
Sensor-NTC BOS 00609240 No Longer Available
0333
Control unit BOS 00668952 Contact Us For Availability
0335
Cable harness BOS 00609223 Contact Us For Availability
0340
Screw BOS 00607974 Contact Us For Availability
0401
Holder BOS 00493776 Contact Us For Availability
0402
Outlet hose BOS 00643751 Contact Us For Availability
0404
Aquastop Hose (Cold Water) BOS 00646221 Contact Us For Availability
0408
Hose-inlet BOS 00600338 Contact Us For Availability
0409
Hose-inlet BOS 00616700 Contact Us For Availability
0410
Connection piece BOS 00173254 Contact Us For Availability
0415
Hose clamp BOS 00648273 Contact Us For Availability
0416
Dispenser case BOS 00651933 Contact Us For Availability
0418
Drain gutter BOS 00665711 Contact Us For Availability
0420
Analogue pressure sensor BOS 00648529 Contact Us For Availability
0421
Bracket BOS 00647779 Contact Us For Availability
0423
Hose-pressure chamber BOS 00491919 Contact Us For Availability
0424
Pressure chamber BOS 00424981 Contact Us For Availability
0428
Hose clamp BOS 00422209 Contact Us For Availability
0429
Hose clamp BOS 00422207 Contact Us For Availability
0430
Pump-drain BOS 00436440 Contact Us For Availability
0431
Cable harness BOS 00617777 Contact Us For Availability
0432
Outlet hose BOS 00600339 Contact Us For Availability
0433
Latch BOS 00113221 Contact Us For Availability
0440
Dispenser case BOS 00649278 Contact Us For Availability
0444
Cover BOS 00649253 Contact Us For Availability
× ![]()
