Bosch WFVC544AUC/24 Washer

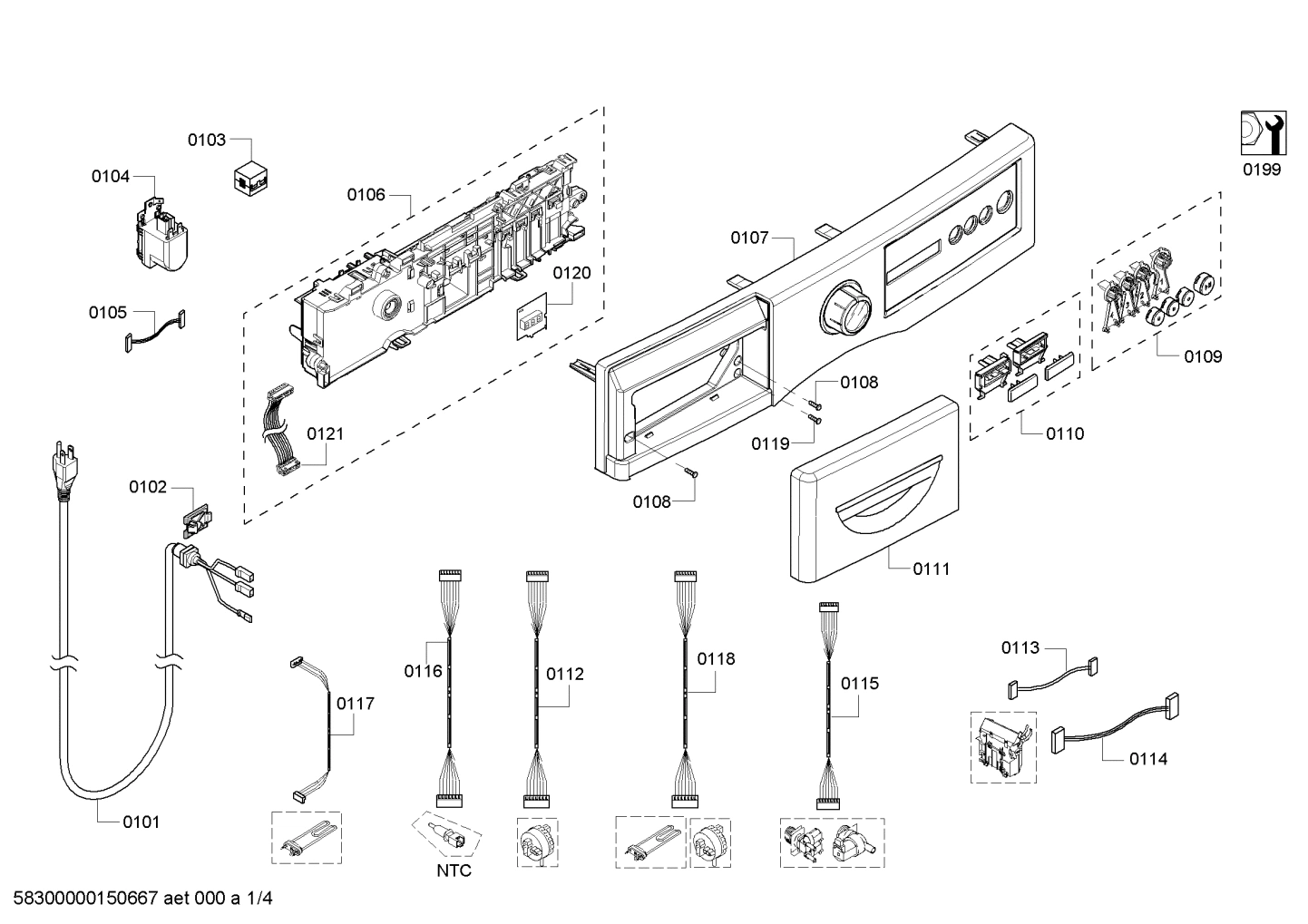

0101

Power cord BOS 00442362 Contact Us For Availability

View on Model

0103

00174409 Bosch Laundry Clamping Piece Backorder BOS 00174409 $28.83

View on Model

0104

00429052 Bosch Laundry Capacitor Backorder BOS 00429052 $55.61

View on Model

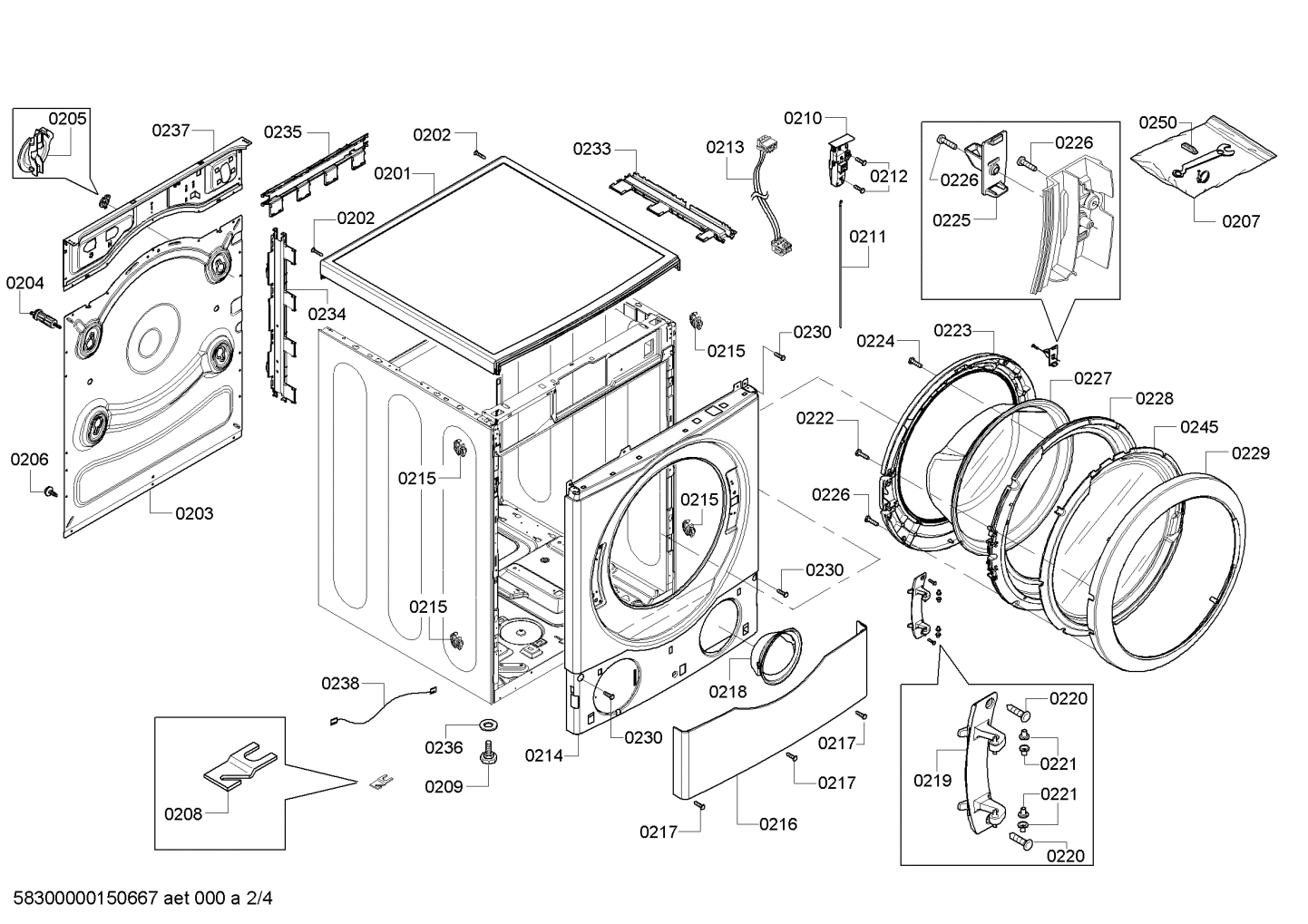

0202

Self-Tapping Screw BOS 00422240 No Longer Available

View on Model

0208

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $58.70

View on Model

0209

00610643 Bosch Laundry Foot Assembly In Stock BOS 00610643 $11.14

View on Model

0210

00648526 Bosch Washer Mechanical Lock In Stock BOS 00648526 $158.40

View on Model

0212

Screw BOS 00615773 No Longer Available

View on Model

0213

Cable harness BOS 00617774 Contact Us For Availability

View on Model

0215

Fastening Knob BOS 00427416 Contact Us For Availability

View on Model

0216

Panel-base BOS 00684473 Contact Us For Availability

View on Model

0220

00610840 Bosch Laundry Screw In Stock BOS 00610840 $10.28

View on Model

0224

Screw BOS 00422239 Contact Us For Availability

View on Model

0225

Lock-mechanical BOS 00617812 Contact Us For Availability

View on Model

0226

Screw BOS 00619609 Contact Us For Availability

View on Model

0227

00684123 Bosch Laundry Window Assembly Backorder BOS 00684123 $131.83

View on Model

0228

Door-inner BOS 00684147 Contact Us For Availability

View on Model

0236

00605059 Bosch Washer Backorder BOS 00605059 $2.05

View on Model

0302

00631639 Bosch Laundry Fixing Kit Backorder BOS 00631639 $29.86

View on Model

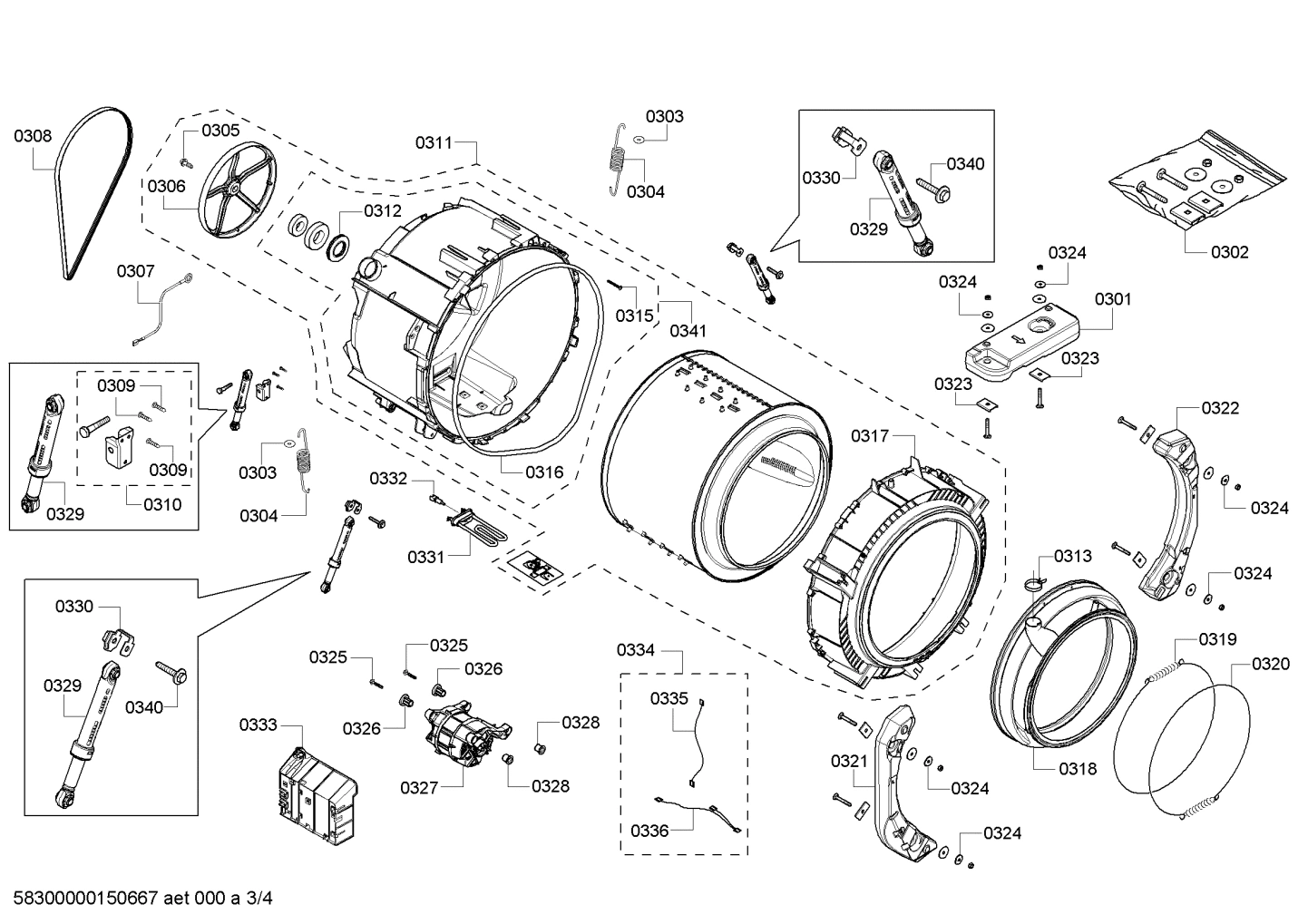

0303

Support BOS 00422246 No Longer Available

View on Model

0304

Spring-tank BOS 00648276 Contact Us For Availability

View on Model

0305

Screw BOS 00422237 Contact Us For Availability

View on Model

0306

Pulley BOS 00436480 Contact Us For Availability

View on Model

0310

Bracket BOS 00651967 Contact Us For Availability

View on Model

0312

00613084 Bosch Laundry Seal Shaft Backorder BOS 00613084 $21.62

View on Model

0316

SEALING In Stock BOS 12054183 $13.38

View on Model

0317

00710158 Bosch Laundry Tub Backorder BOS 00710158 $819.87

View on Model

0318

00701333 Bosch Washer Boot Gasket In Stock BOS 00701333 $131.25

View on Model

0319

00648264 Bosch Laundry Clamp In Stock BOS 00648264 $11.32

View on Model

0320

00648528 Bosch Laundry Clamp In Stock BOS 00648528 $5.14

View on Model

0323

Plate BOS 00618291 Contact Us For Availability

View on Model

0325

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.10

View on Model

0326

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0327

Motor BOS 00660487 No Longer Available

View on Model

0328

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.11

View on Model

0330

00491695 Bosch Laundry Bracket Backorder BOS 00491695 $40.16

View on Model

0332

Sensor-NTC BOS 00609240 No Longer Available

View on Model

0334

00609228 Bosch Laundry Harness Cable In Stock BOS 00609228 $56.64

View on Model

0335

Cable harness BOS 00609223 Contact Us For Availability

View on Model

0340

Screw BOS 00607974 Contact Us For Availability

View on Model

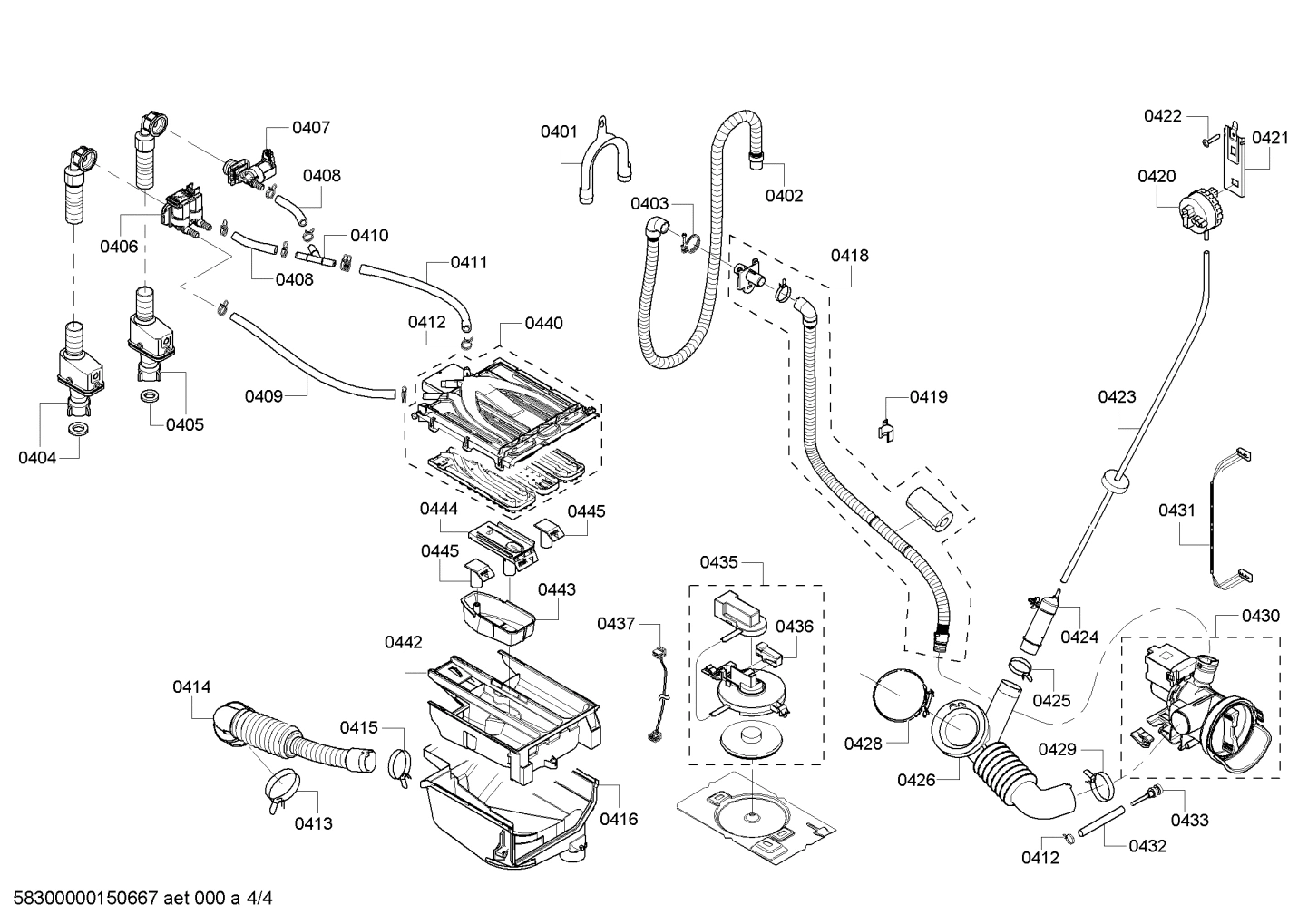

0401

Holder BOS 00493776 Contact Us For Availability

View on Model

0404

Aquastop Hose (Cold Water) BOS 00646221 Contact Us For Availability

View on Model

0405

00646220 Bosch Laundry Inlet Hose In Stock BOS 00646220 $95.78

View on Model

0406

00422244 Bosch Washer Magnet Valve In Stock BOS 00422244 $51.78

View on Model

0407

00422245 Bosch Laundry Magnet Valve In Stock BOS 00422245 $38.07

View on Model

0408

Hose-inlet BOS 00600338 Contact Us For Availability

View on Model

0410

00173254 Bosch Laundry Connection Piece Backorder BOS 00173254 $6.17

View on Model

0412

00187337 Bosch Hose Clamp Backorder BOS 00187337 $4.11

View on Model

0413

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

View on Model

0414

00648274 Bosch Laundry Inlet Hose In Stock BOS 00648274 $158.40

View on Model

0415

Hose clamp BOS 00648273 Contact Us For Availability

View on Model

0416

Dispenser case BOS 00651933 Contact Us For Availability

View on Model

0421

Bracket BOS 00647779 Contact Us For Availability

View on Model

0422

00617527 Bosch Oven Screw In Stock BOS 00617527 $27.82

View on Model

0423

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0424

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0426

00648272 Bosch Laundry Sump Backorder BOS 00648272 $26.77

View on Model

0429

Hose clamp BOS 00422207 Contact Us For Availability

View on Model

0430

Pump-drain BOS 00436440 Contact Us For Availability

View on Model

0432

Outlet hose BOS 00600339 Contact Us For Availability

View on Model

0440

Dispenser case BOS 00649278 Contact Us For Availability

View on Model

0442

00649251 Bosch Laundry Dispenser Tray Backorder BOS 00649251 $223.58

View on Model

0443

00649252 Bosch Laundry Dispenser Tray Backorder BOS 00649252 $40.16

View on Model

0444

Cover BOS 00649253 Contact Us For Availability

View on Model

0445

00617847 Bosch Laundry Cover Assembly Backorder BOS 00617847 $11.32

View on Model

0446

00422126 Bosch Oven Screw In Stock BOS 00422126 $20.87

View on Model

Model Bosch WFVC544AUC/24 Washer – Common Parts & Diagrams

Common parts from model Bosch WFVC544AUC/24 Washer
