Model Bosch WFVC5400UC/28 Washer – Common Parts & Diagrams
Diagram 1

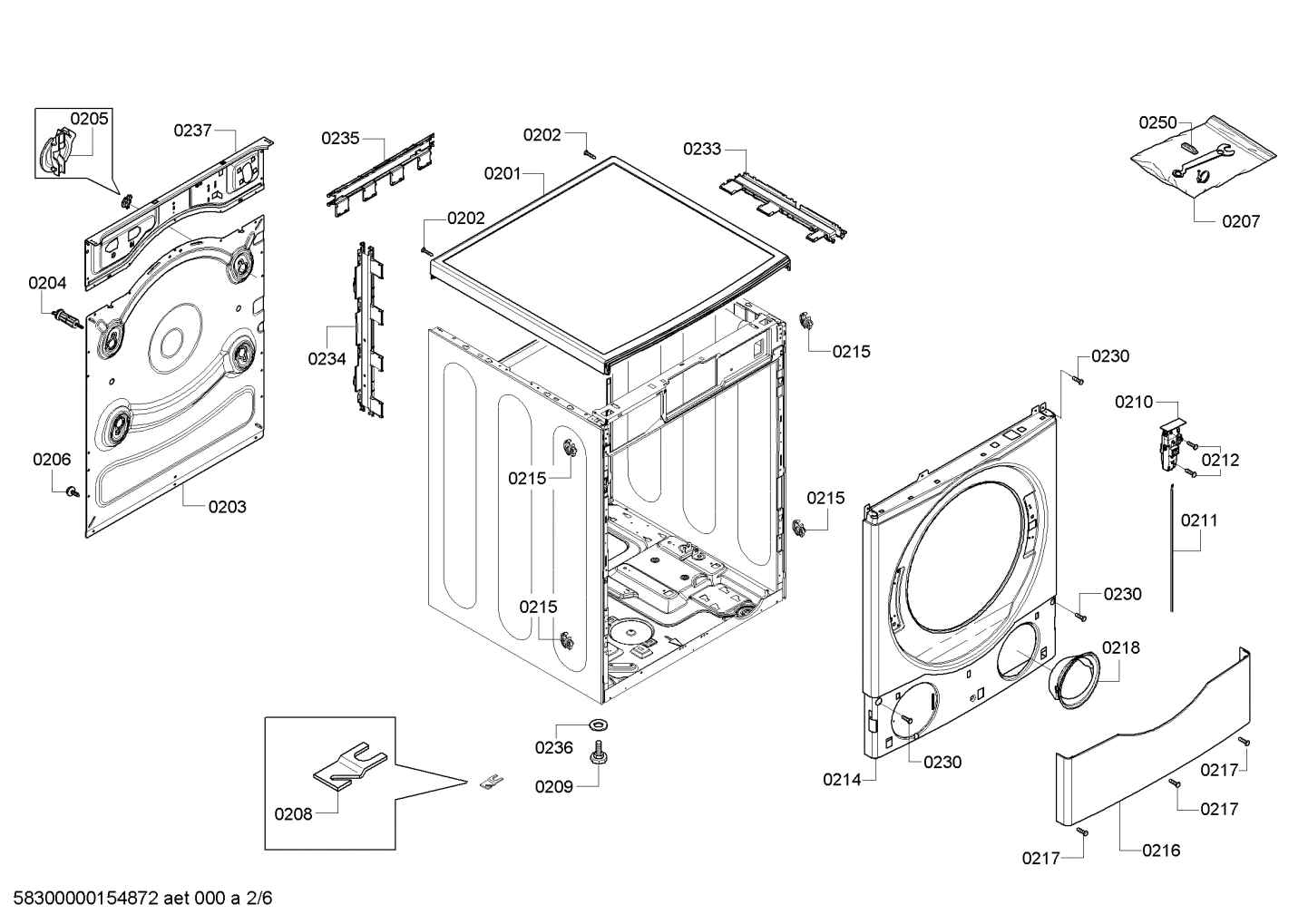

Diagram 2

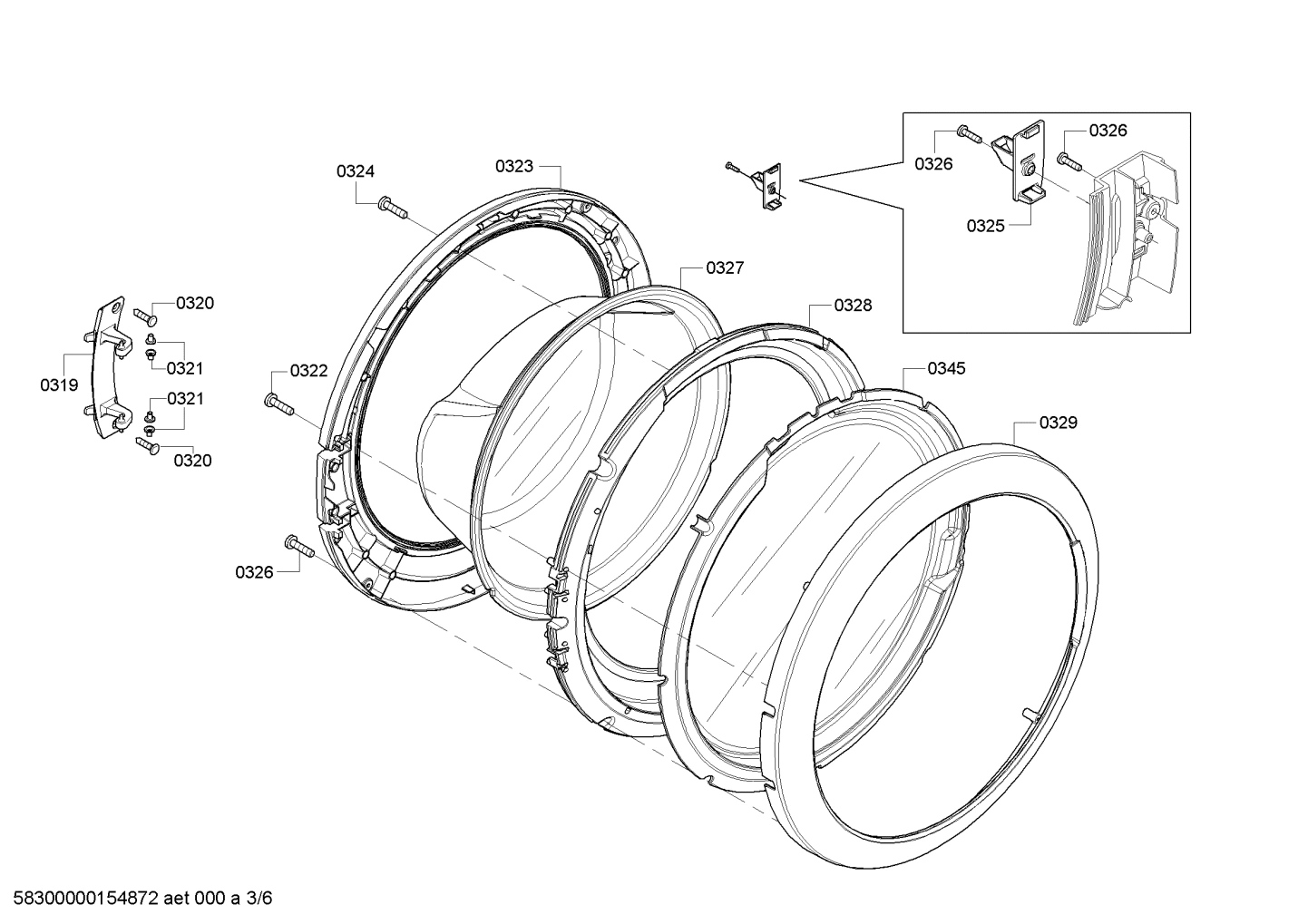

Diagram 3

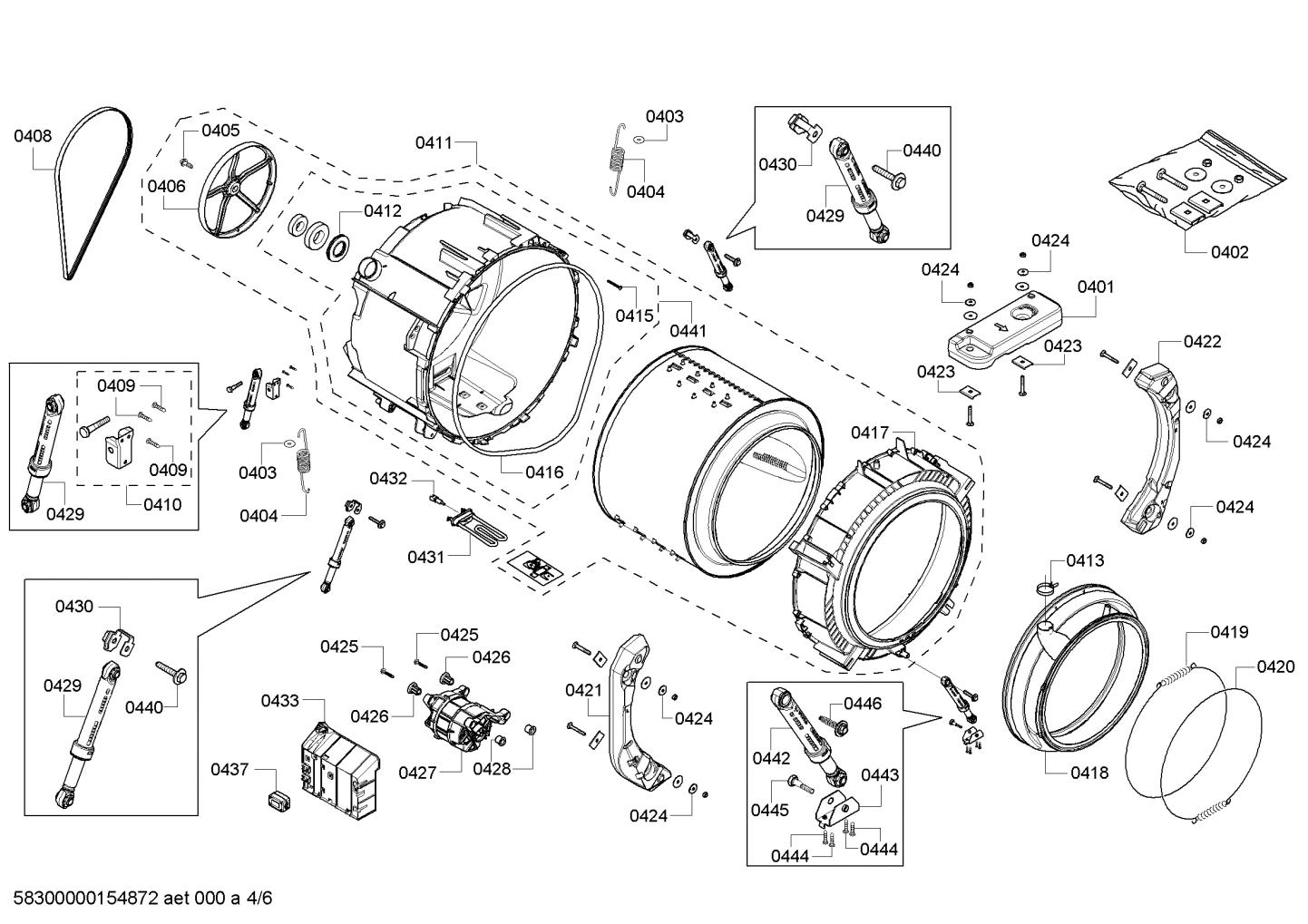

Diagram 4

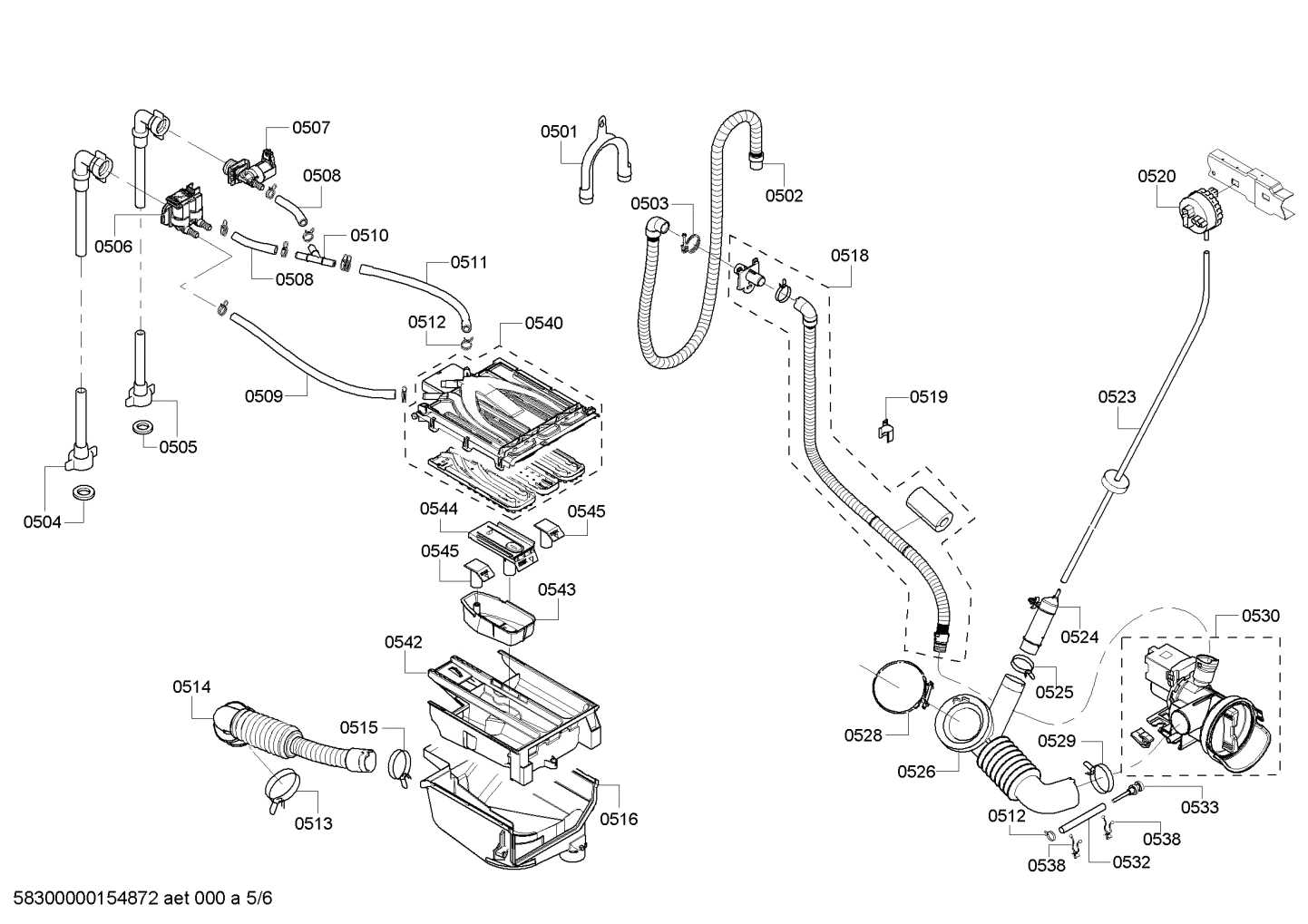

Diagram 5

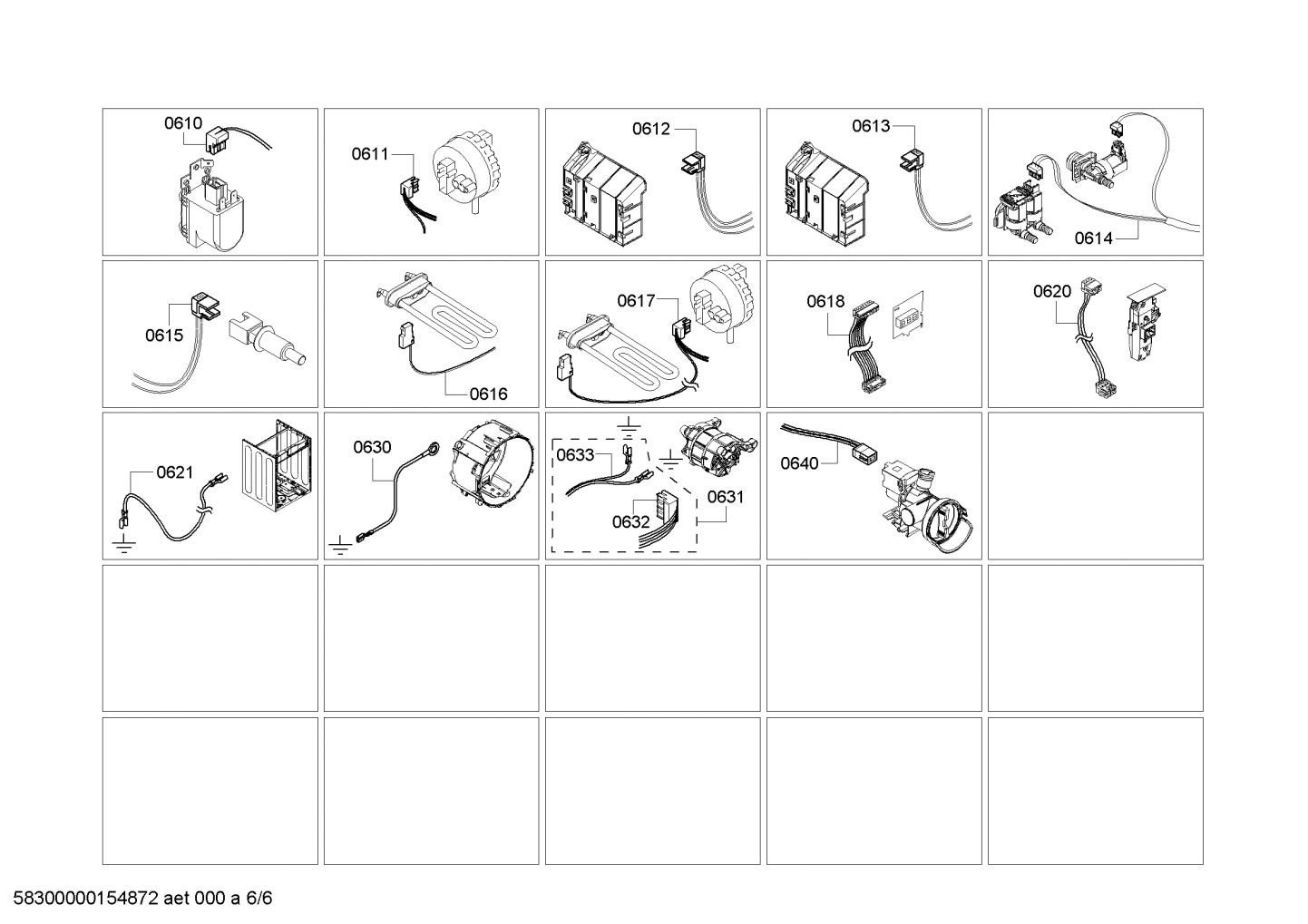

Diagram 6
Common parts from model Bosch WFVC5400UC/28 Washer
0101
Power cord BOS 00442362 Contact Us For Availability
0106
Control module BOS 00674497 Contact Us For Availability
0109
Button-set BOS 00618341 Contact Us For Availability
0111
Handle-strip BOS 00649707 Contact Us For Availability
0120
Display module BOS 00615694 Contact Us For Availability
0202
Screw BOS 00422240 No Longer Available
0212
Screw BOS 00615773 Contact Us For Availability
0214
Front panel BOS 00248801 Contact Us For Availability
0215
Plug BOS 00427416 Contact Us For Availability
0216
Panel-base BOS 00684150 Contact Us For Availability
0218
Funnel BOS 00649290 Contact Us For Availability
0319
Door hinge BOS 00649704 Contact Us For Availability
0321
Sleeve BOS 00422204 Contact Us For Availability
0322
Screw BOS 00619609 Contact Us For Availability
0323
Door-inner BOS 00684146 Contact Us For Availability
0325
Lock-mechanical BOS 00617812 Contact Us For Availability
0326
Screw BOS 00422239 Contact Us For Availability
0328
Door-inner BOS 00684147 Contact Us For Availability
0345
Window BOS 00684145 Contact Us For Availability
0403
Support BOS 00422246 No Longer Available
0404
Spring-tank BOS 00648276 Contact Us For Availability
0405
Screw BOS 00422237 Contact Us For Availability
0406
Pulley BOS 00436480 Contact Us For Availability
0408
Belt BOS 00491680 Contact Us For Availability
0410
Bracket BOS 00651967 Contact Us For Availability
0413
Hose clamp BOS 00616713 Contact Us For Availability
0415
Screw BOS 00422236 Contact Us For Availability
0417
Tub BOS 00710160 Contact Us For Availability
0421
Weight BOS 00143681 Contact Us For Availability
0422
Weight BOS 00143682 Contact Us For Availability
0423
Plate BOS 00618291 Contact Us For Availability
0427
Motor BOS 00660487 No Longer Available
0429
Shock absorber BOS 00648176 Contact Us For Availability
0432
Sensor-NTC BOS 00609240 No Longer Available
0433
Control unit BOS 00668952 Contact Us For Availability
0440
Screw BOS 00607974 Contact Us For Availability
0442
Shock absorber BOS 00653116 Contact Us For Availability
0501
Holder BOS 00493776 Contact Us For Availability
0502
Outlet hose BOS 00643751 Contact Us For Availability
0504
Hose-inlet BOS 00493765 Contact Us For Availability
0505
Hose-inlet BOS 00493766 No Longer Available
0508
Hose-inlet BOS 00600338 Contact Us For Availability
0509
Hose-inlet BOS 00616700 Contact Us For Availability
0510
Connection piece BOS 00173254 Contact Us For Availability
0515
Hose clamp BOS 00648273 Contact Us For Availability
0516
Dispenser case BOS 00651933 Contact Us For Availability
0518
Drain gutter BOS 00665711 Contact Us For Availability
0520
Analogue pressure sensor BOS 00648529 Contact Us For Availability
0523
Hose-pressure chamber BOS 00491919 Contact Us For Availability
0524
Pressure chamber BOS 00424981 Contact Us For Availability
0528
Hose clamp BOS 00422209 Contact Us For Availability
0529
Hose clamp BOS 00422207 Contact Us For Availability
0530
Pump-drain BOS 00436440 Contact Us For Availability
0532
Outlet hose BOS 00621837 Contact Us For Availability
0533
Latch BOS 00113221 Contact Us For Availability
0540
Dispenser case BOS 00649278 Contact Us For Availability
0544
Cover BOS 00649253 Contact Us For Availability
0620
Cable harness BOS 00617774 Contact Us For Availability
0632
Cable harness BOS 00609223 Contact Us For Availability
0640
Cable harness BOS 00617777 Contact Us For Availability
× ![]()
