Model Bosch WFV6800/12 Washer – Common Parts & Diagrams

Common parts from model Bosch WFV6800/12 Washer

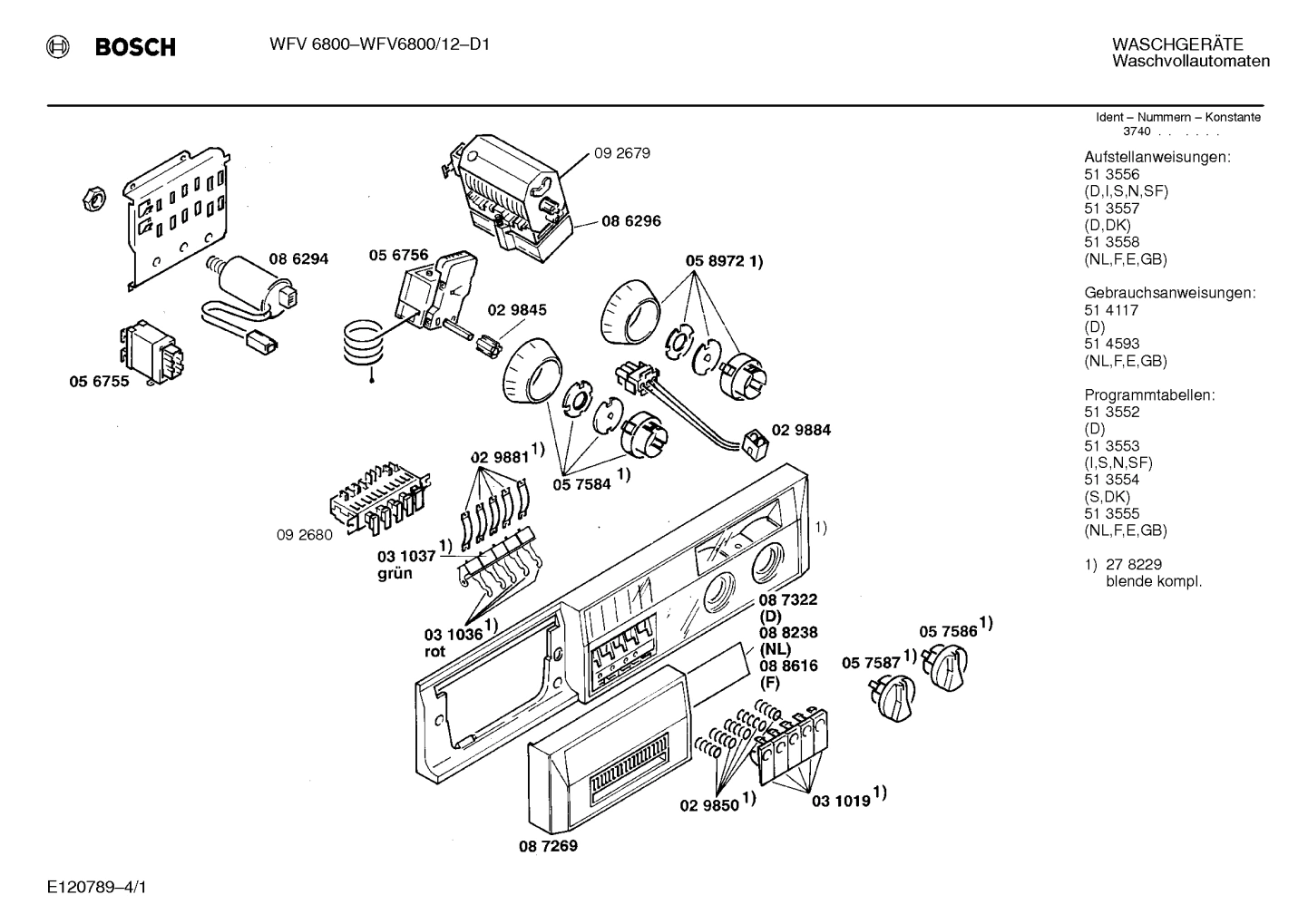

Diagram 1

Print

• This Diagram
• All Diagrams

0034

00606923 Bosch Laundry Holder Backorder BOS 00606923 View Details $6.17

View on Model

0047

Electric lock BOS 00056762 Contact Us For Availability

View on Model

0050

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 View Details $59.73

View on Model

0053

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 View Details $20.09

View on Model

0055

Window BOS 00118919 Contact Us For Availability

View on Model

0065

15000636 Bosch Power Cord Backorder BOS 15000636 View Details $26.77

View on Model

0067

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0073

00171270 Bosch Screw Backorder BOS 00171270 View Details $4.11

View on Model

0076

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 View Details $35.01

View on Model

0077

00056765 Bosch Laundry Spring Backorder BOS 00056765 View Details $25.74

View on Model

0081

00059320 Bosch Laundry Holder Backorder BOS 00059320 View Details $12.35

View on Model

0082

Screw BOS 00059345 Contact Us For Availability

View on Model

0088

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 View Details $83.42

View on Model

0089

Pulley BOS 00118921 Contact Us For Availability

View on Model

0090

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 View Details $40.16

View on Model

0101

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 View Details $40.16

View on Model

0106

00027696 Bosch Laundry Stud Backorder BOS 00027696 View Details $13.38

View on Model

0107

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 View Details $15.97

View on Model

0115

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $14.41

View on Model

0117

Sealing BOS 00051840 Contact Us For Availability

View on Model

0119

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0123

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $13.38

View on Model

0125

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $15.97

View on Model

0133

Latch BOS 00113221 Contact Us For Availability

View on Model

0134

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 View Details $46.34

View on Model

0143

00272654 Bosch Laundry Hose Backorder BOS 00272654 View Details $78.80

View on Model

×
