Bosch WFR2431CH/11 Washer Parts List

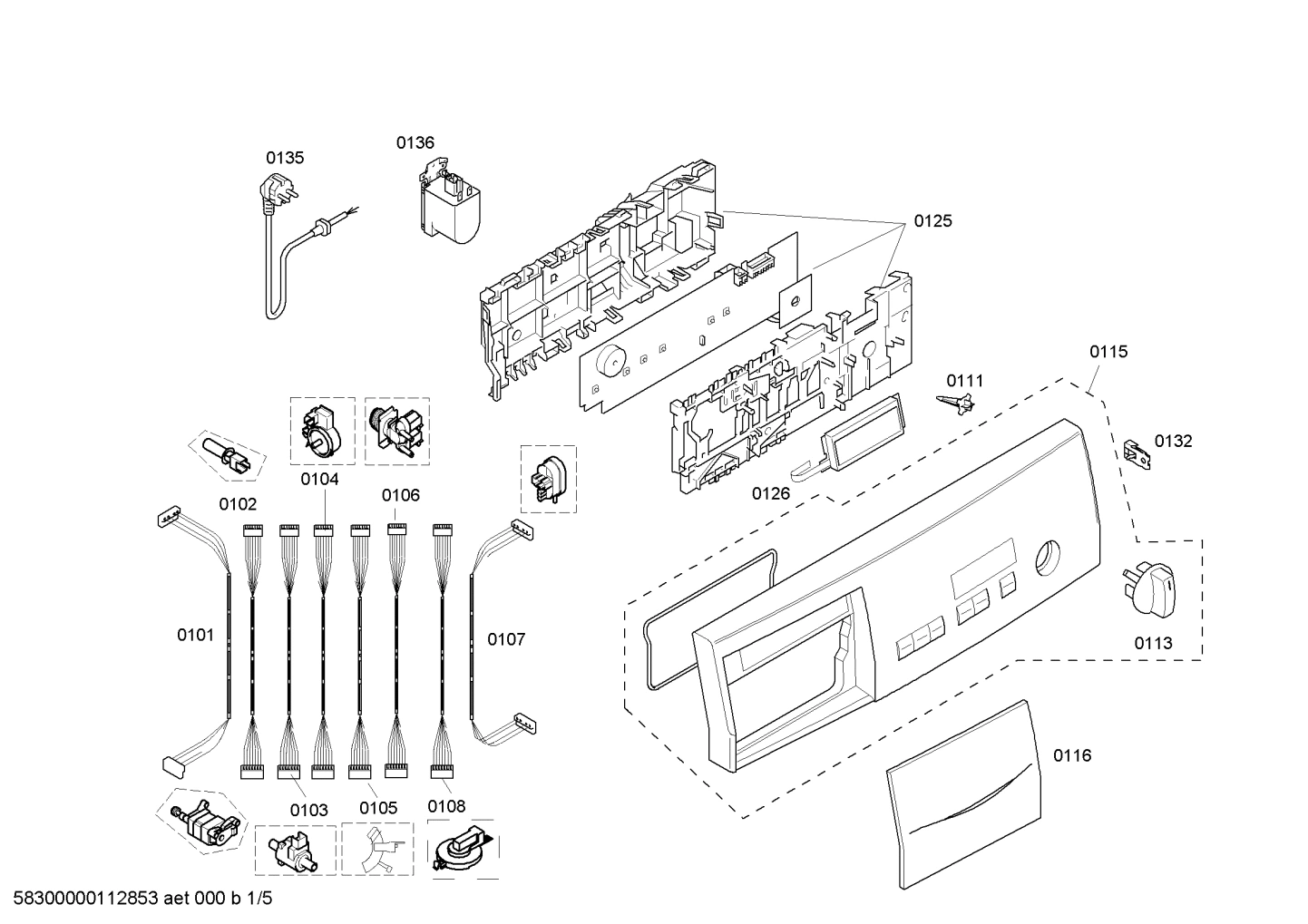

0113

00183592 Bosch Laundry Program Knob Backorder BOS 00183592 $20.59

View on Model

0126

00424675 Bosch Laundry Module Display Backorder BOS 00424675 $241.54

View on Model

0136

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $55.61

View on Model

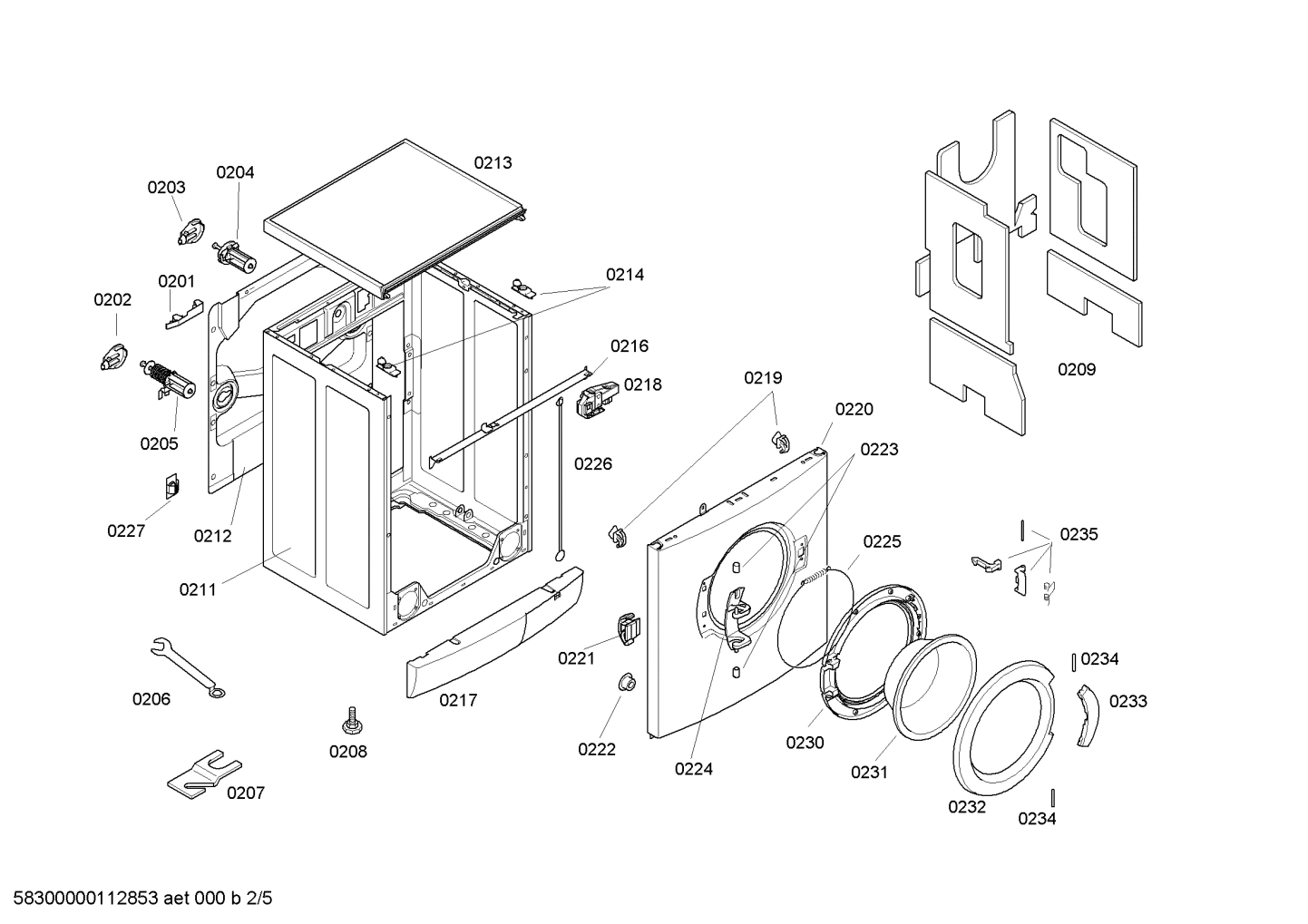

0205

Transit bolt BOS 00173225 Contact Us For Availability

View on Model

0206

00416875 Bosch Auxiliary Tool Backorder BOS 00416875 $3.08

View on Model

0207

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $59.73

View on Model

0218

00182173 Bosch Laundry Electric Lock Backorder BOS 00182173 $118.97

View on Model

0220

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $222.47

View on Model

0222

00606923 Bosch Laundry Holder Backorder BOS 00606923 $6.17

View on Model

0223

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $18.55

View on Model

0224

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $35.54

View on Model

0225

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $15.46

View on Model

0230

00432074 Bosch Washer Window Frame In Stock BOS 00432074 $44.30

View on Model

0231

11020392 Bosch Laundry Window Backorder BOS 11020392 $53.55

View on Model

0232

Heating element BOS 00431412 Contact Us For Availability

View on Model

0233

00647449 Bosch Laundry Handle Backorder BOS 00647449 $54.08

View on Model

0234

00171255 Bosch Laundry Axis Backorder BOS 00171255 $15.44

View on Model

0235

00634207 Bosch Washer Latch In Stock BOS 00634207 $58.70

View on Model

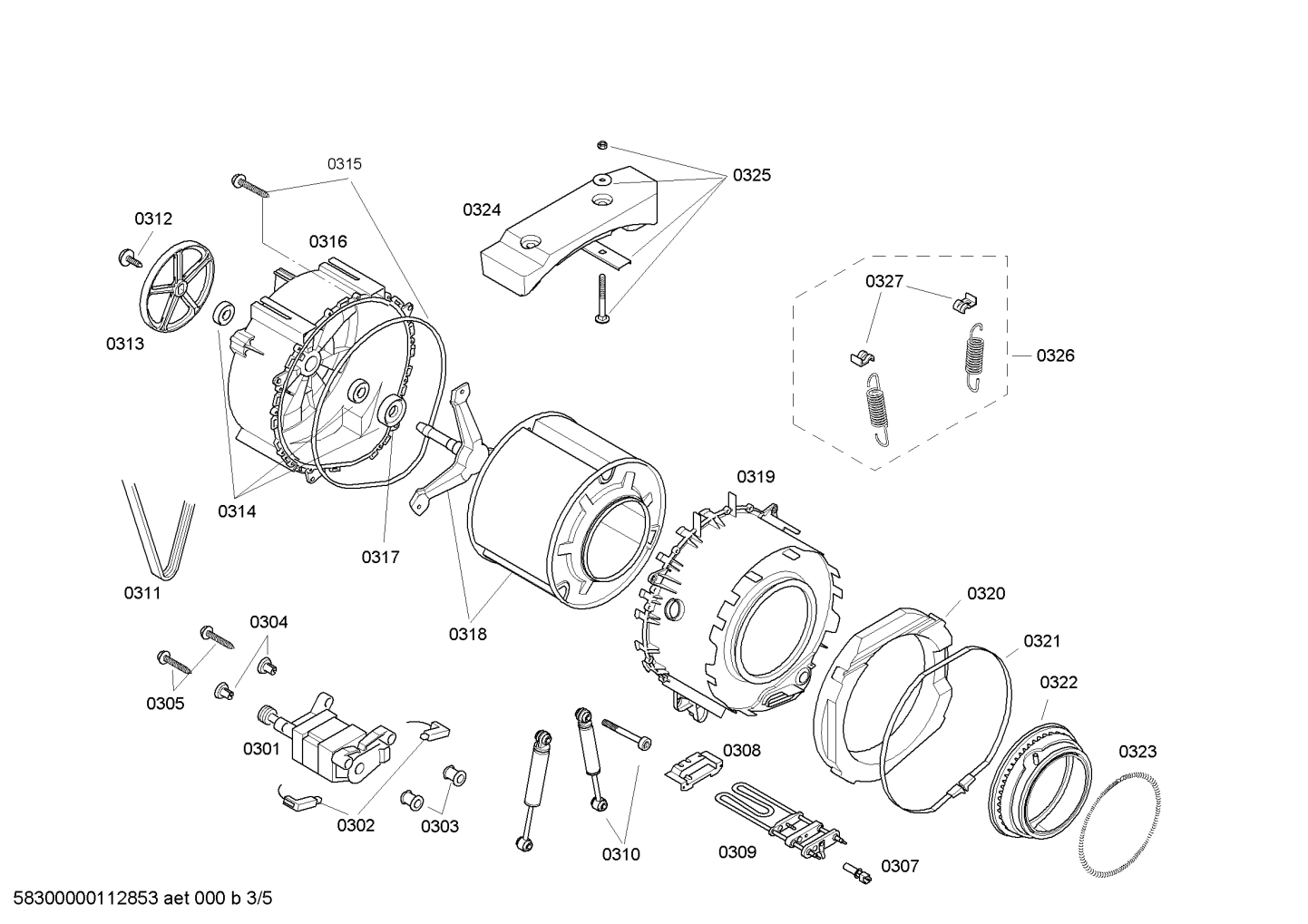

0301

00145678 Bosch Laundry Motor Backorder BOS 00145678 $438.77

View on Model

0302

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 $75.73

View on Model

0303

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.64

View on Model

0304

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0305

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.11

View on Model

0308

Holder BOS 00171273 Contact Us For Availability

View on Model

0311

00439490 Bosch Washer Drive Belt In Stock BOS 00439490 $40.16

View on Model

0312

00171270 Bosch Screw Backorder BOS 00171270 $4.11

View on Model

0313

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $61.29

View on Model

0321

00265965 Bosch Laundry Band Backorder BOS 00265965 $42.22

View on Model

0322

00361127 Bosch Washer Boot Gasket In Stock BOS 00361127 $81.89

View on Model

0323

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.79

View on Model

0325

00631639 Bosch Laundry Fixing Kit Backorder BOS 00631639 $30.39

View on Model

0326

00642529 Bosch Laundry Spring Tank Backorder BOS 00642529 $45.31

View on Model

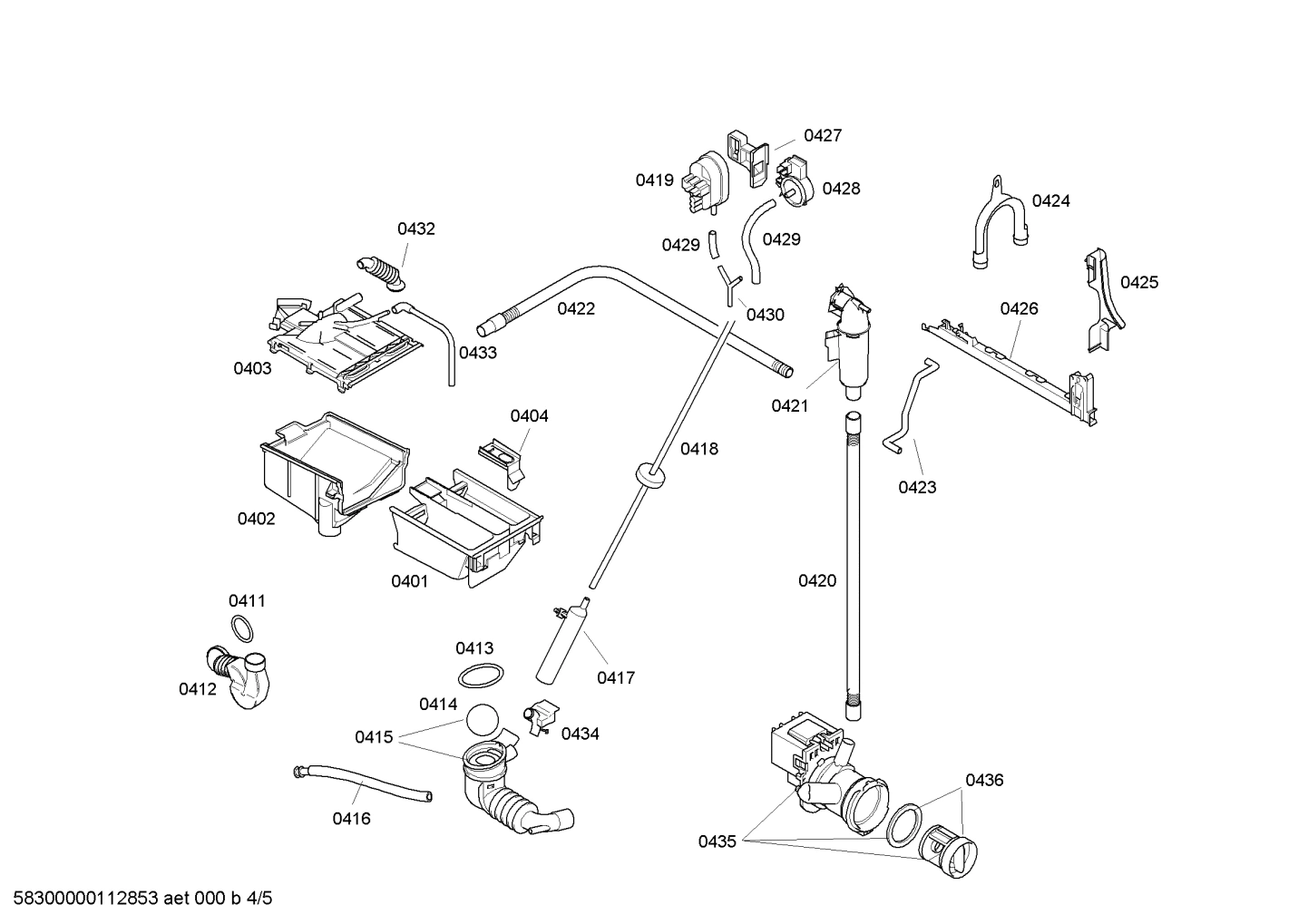

0401

00361166 Bosch Laundry Dispenser Tray Backorder BOS 00361166 $46.87

View on Model

0404

00182245 Bosch Laundry Siphon Device Backorder BOS 00182245 $9.79

View on Model

0411

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

View on Model

0412

00480833 Bosch Laundry Fill Hose Backorder BOS 00480833 $24.71

View on Model

0413

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41

View on Model

0414

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

View on Model

0416

00421214 Bosch Laundry Drain Hose Backorder BOS 00421214 $13.91

View on Model

0417

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0419

00427041 Bosch Laundry Water Level Regulator Backorder BOS 00427041 $59.23

View on Model

0420

00358305 Bosch Laundry Hose In Stock BOS 00358305 $23.18

View on Model

0421

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $69.00

View on Model

0422

Drain Hose BOS 00358306 Contact Us For Availability

View on Model

0423

00175789 Bosch Laundry Vent Hose Backorder BOS 00175789 $33.98

View on Model

0424

00655300 Bosch Laundry Holder Backorder BOS 00655300 $15.97

View on Model

0428

00182238 Bosch Laundry Analog Pressure Sensor Backorder BOS 00182238 $124.62

View on Model

0429

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0436

00647920 Bosch Laundry Fluff Filter In Stock BOS 00647920 $33.27

View on Model

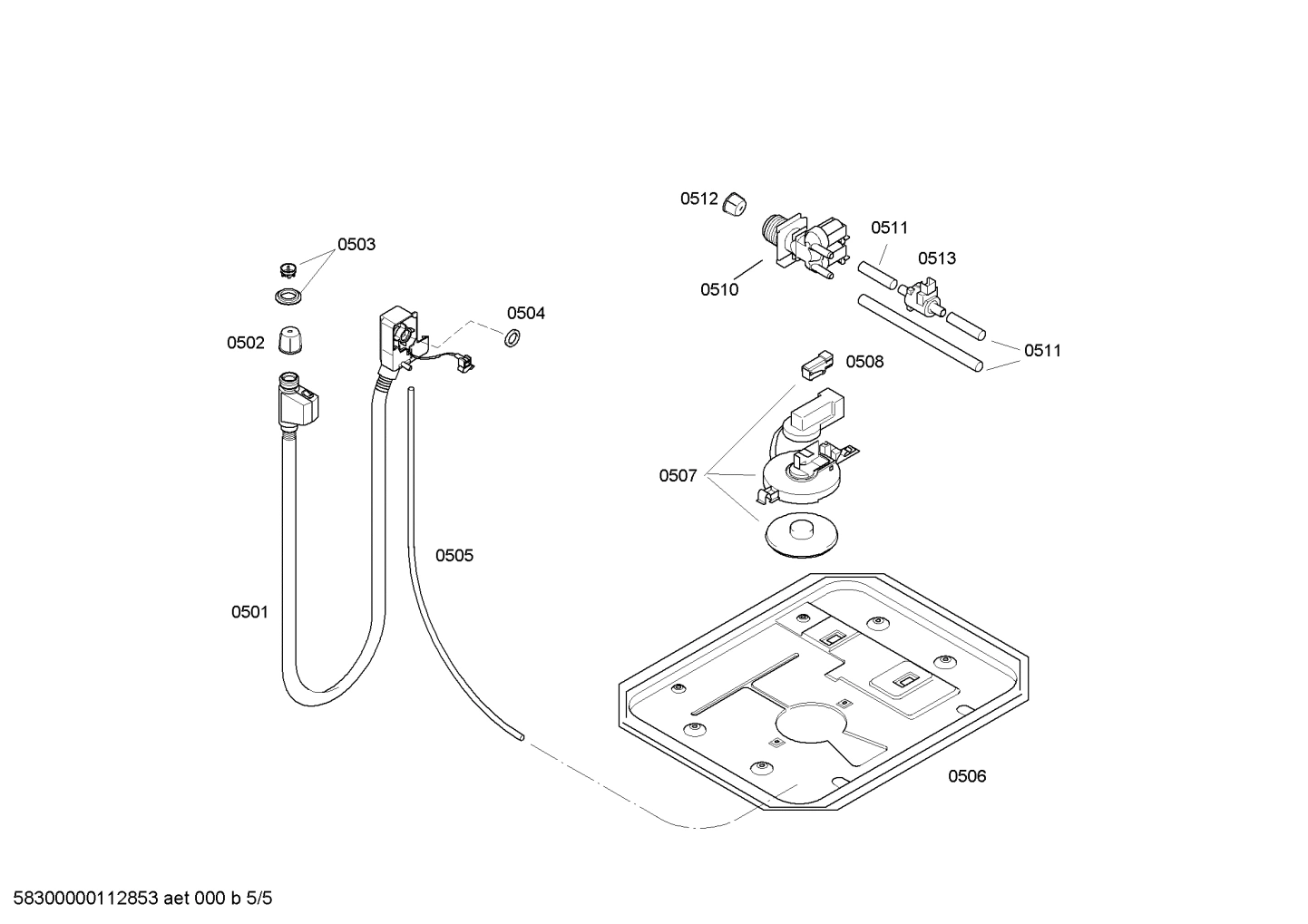

0503

00166671 Bosch Dishwasher Seal Backorder BOS 00166671 $25.74

View on Model

0504

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $15.97

View on Model

0511

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $33.48

View on Model

0513

00602819 Bosch Laundry Flow Sensor Backorder BOS 00602819 $53.55

View on Model
