Model Bosch WFO121A/01 Washer – Common Parts & Diagrams

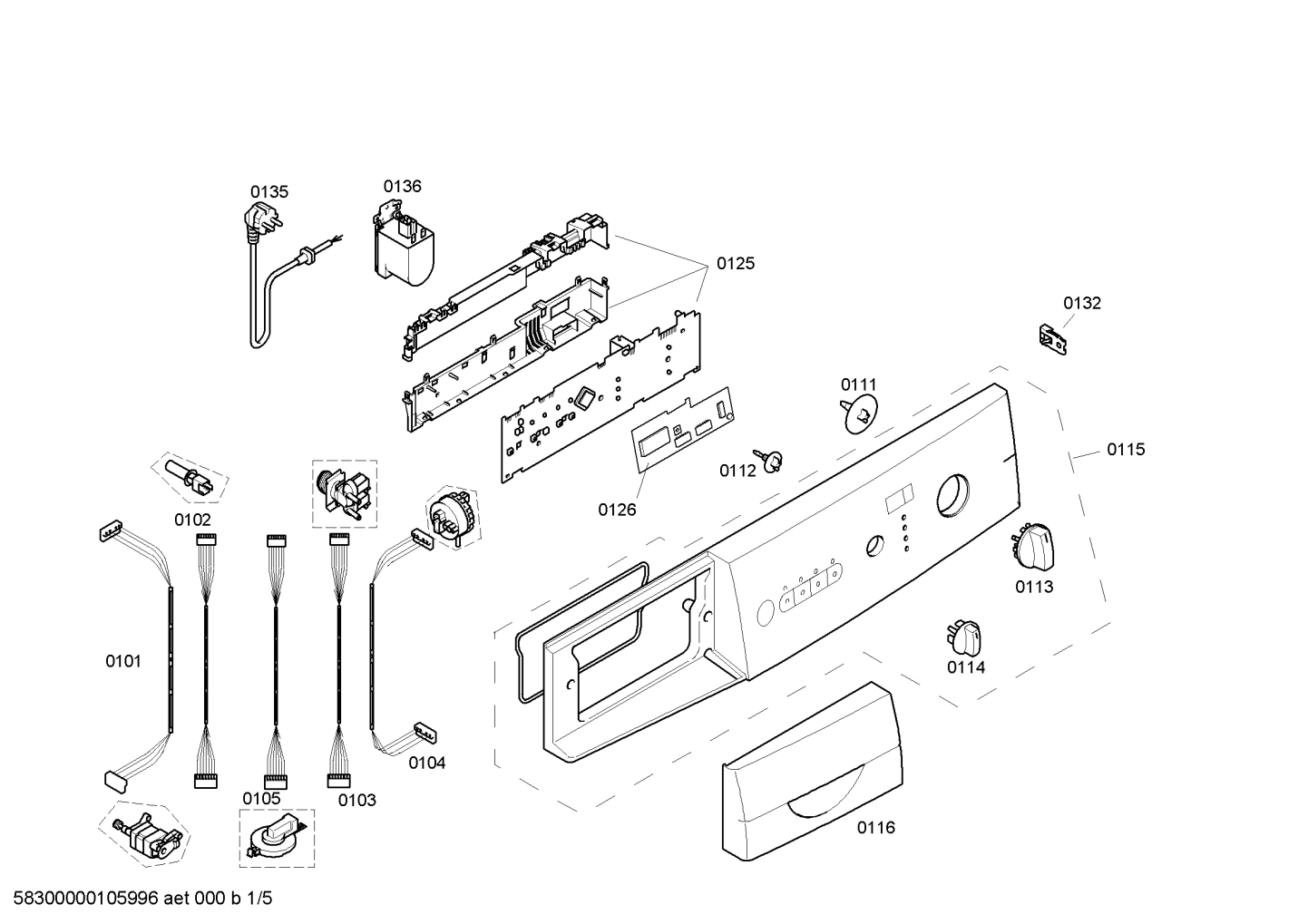

Diagram 1

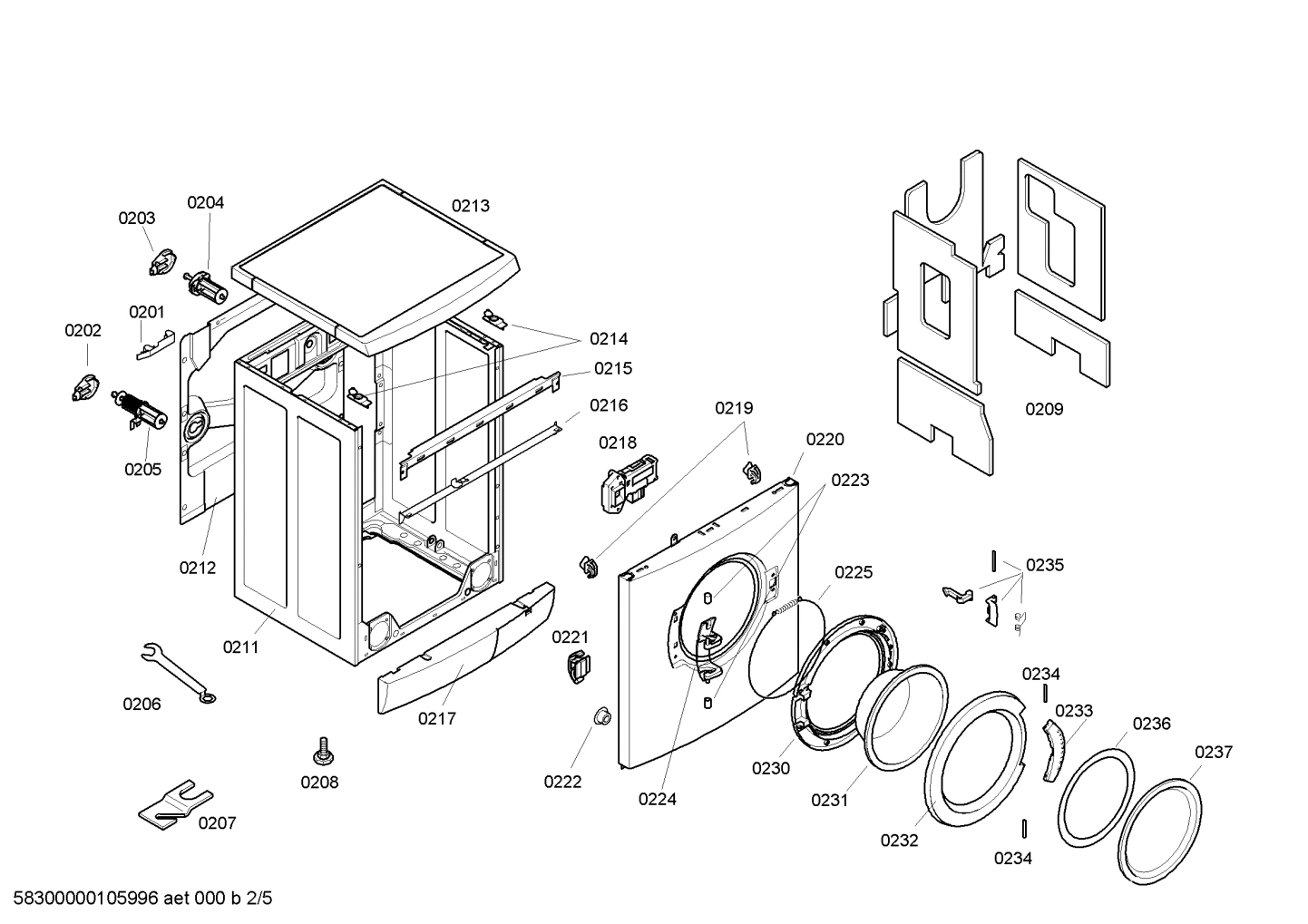

Diagram 2

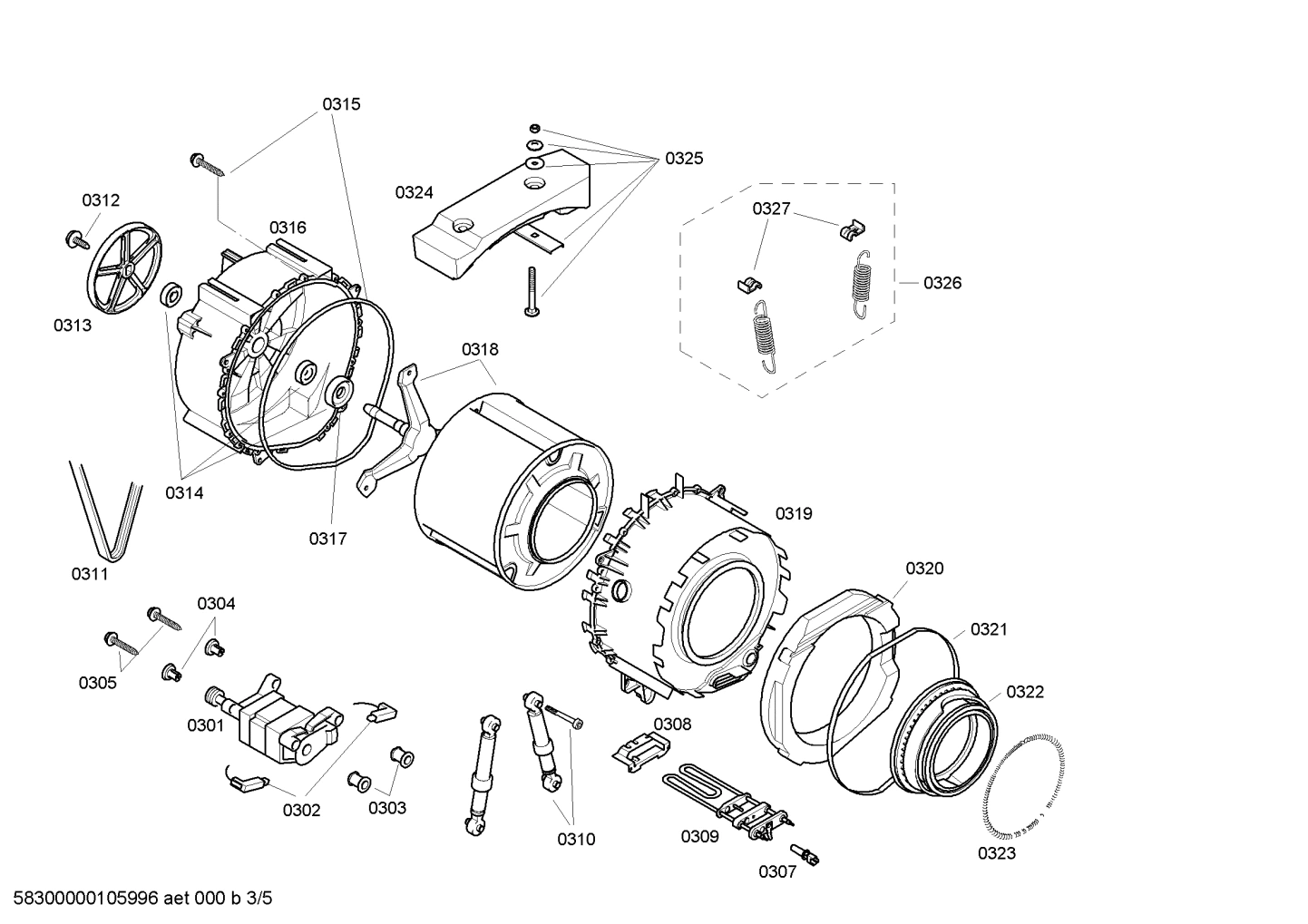

Diagram 3

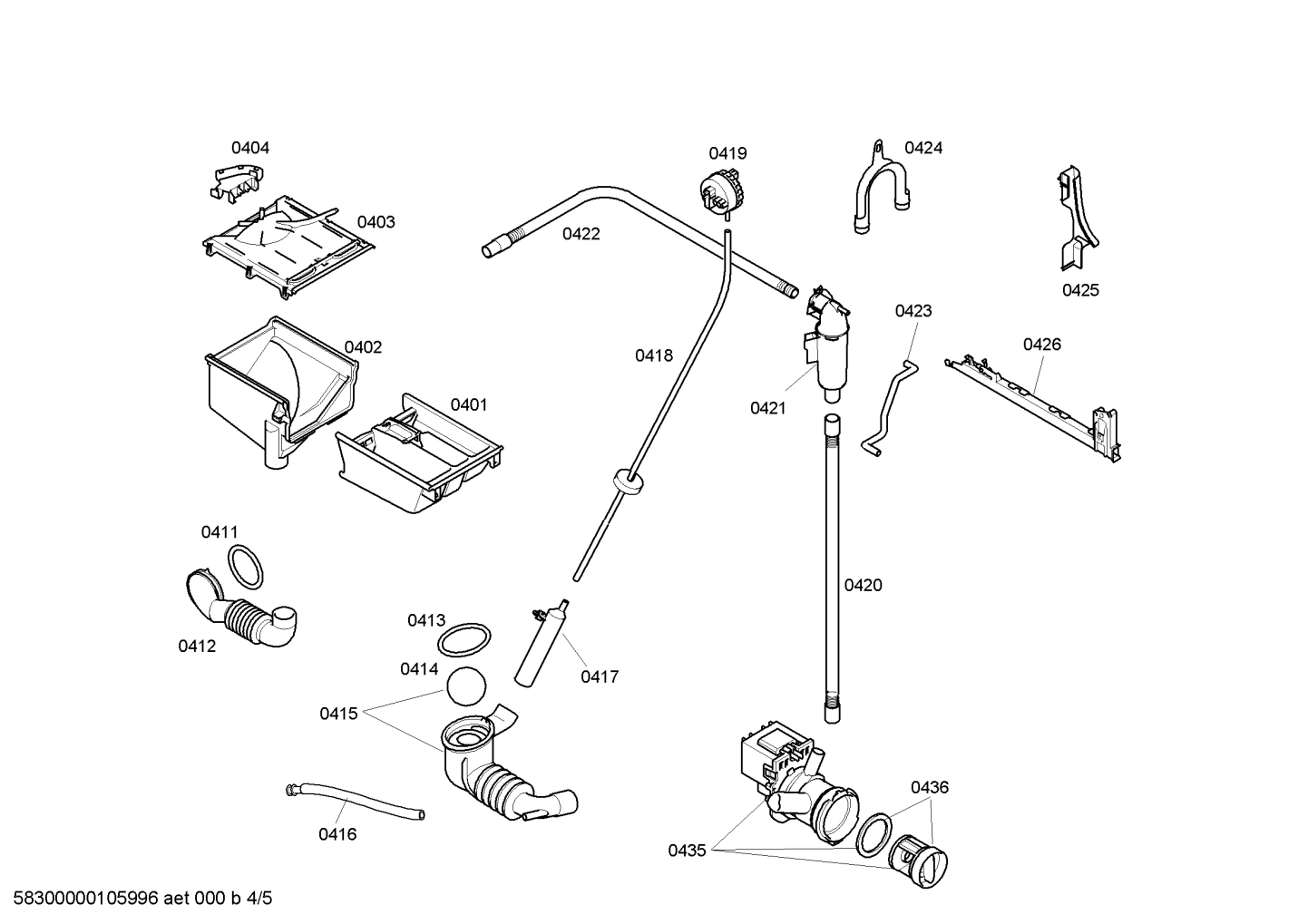

Diagram 4

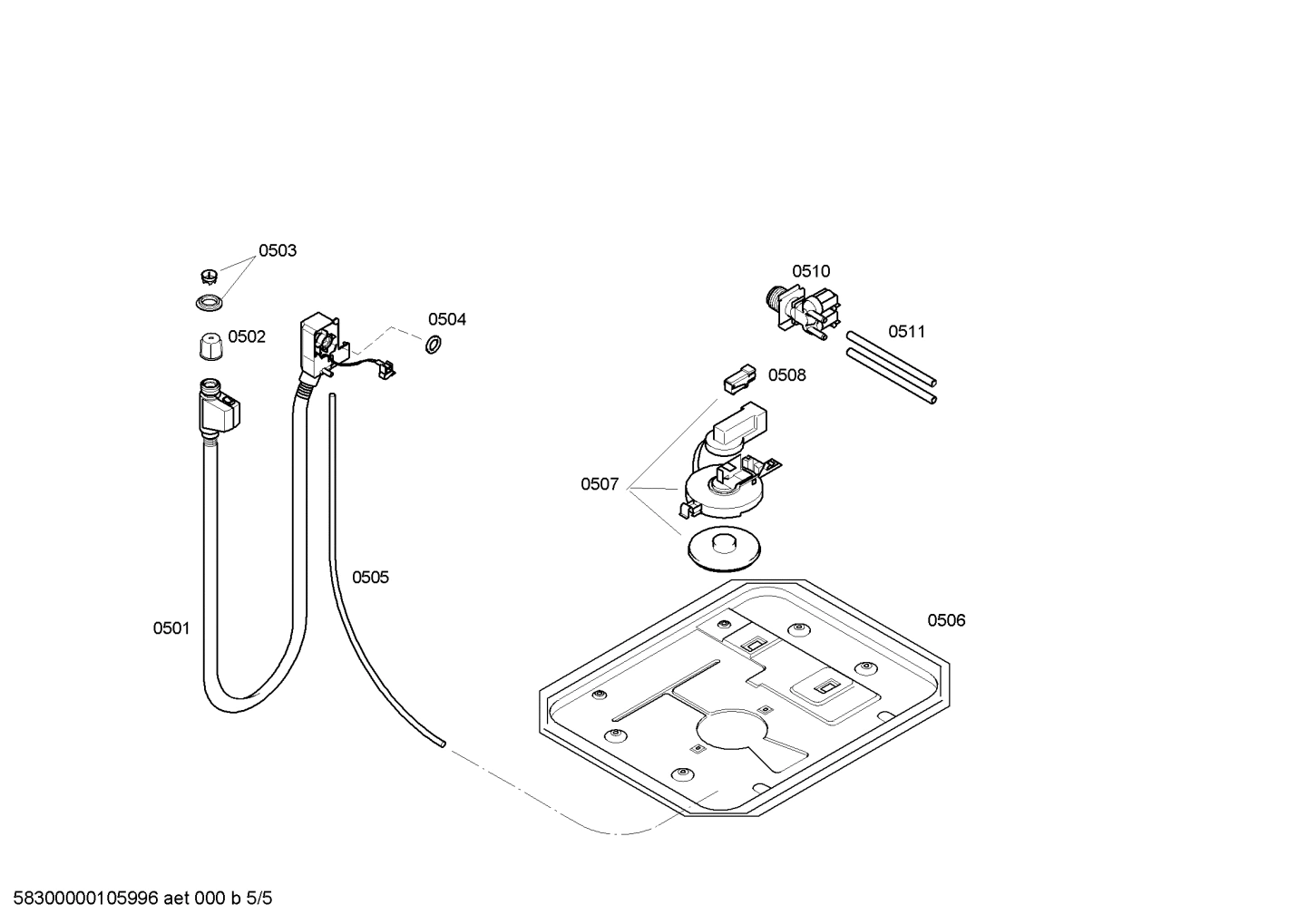

Diagram 5
Common parts from model Bosch WFO121A/01 Washer
0112
Coupling BOS 00172698 Contact Us For Availability
0136
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
0202
Cover BOS 00170933 Contact Us For Availability
0222
Holder BOS 00606923 Contact Us For Availability
0223
Bushing BOS 00171264 Contact Us For Availability
0225
fastening ring BOS 00439671 Contact Us For Availability
0231
Window BOS 11020392 Contact Us For Availability
0234
Axis BOS 00171255 Contact Us For Availability
0303
Holder BOS 00168798 Contact Us For Availability
0304
Fixture BOS 00171272 Contact Us For Availability
0307
Sensor-NTC BOS 00170961 Contact Us For Availability
0308
Holder BOS 00171273 Contact Us For Availability
0312
Screw BOS 00171270 Contact Us For Availability
0314
Bearing set BOS 00172686 Contact Us For Availability
0316
Tub BOS 00236013 Contact Us For Availability
0319
Tub BOS 00715100 Contact Us For Availability
0401
Dispenser tray BOS 00703270 Contact Us For Availability
0403
Dispenser case BOS 11035255 Contact Us For Availability
0413
fastening ring BOS 00603523 Contact Us For Availability
0414
Ball-sump BOS 00171263 Contact Us For Availability
0417
Pressure chamber BOS 00424981 Contact Us For Availability
0418
Hose-pressure chamber BOS 00491919 Contact Us For Availability
0419
Regulator-water level BOS 00600925 Contact Us For Availability
0436
Fluff Filter BOS 00182430 Contact Us For Availability
0503
Sealing BOS 00166671 Contact Us For Availability
0504
Filter-water inlet BOS 00027780 Contact Us For Availability
0511
Hose-valve/soap box BOS 00171262 Contact Us For Availability
× ![]()
