Bosch WFMC2100UC/02 Washer

0101

Power cord BOS 00436477 Contact Us For Availability

View on Model

0103

00174409 Bosch Laundry Clamping Piece Backorder BOS 00174409 $28.83

View on Model

0104

00429052 Bosch Laundry Capacitor Backorder BOS 00429052 $55.61

View on Model

0106

00661081 Bosch Laundry Control Module In Stock BOS 00661081 $729.22

View on Model

0108

Self-Tapping Screw BOS 00422240 No Longer Available

View on Model

0109

Cap, Control Panel Screw BOS 00422175 Contact Us For Availability

View on Model

0110

Bracket BOS 00605033 Contact Us For Availability

View on Model

0204

00175724 Bosch Washer Spacer In Stock BOS 00175724 $13.37

View on Model

0205

00182194 Bosch Laundry Lid Backorder BOS 00182194 $6.17

View on Model

0208

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $58.70

View on Model

0209

00610643 Bosch Laundry Foot Assembly In Stock BOS 00610643 $11.14

View on Model

0212

Lock-clamp BOS 00600305 Contact Us For Availability

View on Model

0215

Fastening Knob BOS 00427416 Contact Us For Availability

View on Model

0219

00651004 Bosch Washer Door Hinge In Stock BOS 00651004 $37.31

View on Model

0220

Screw BOS 00422242 Contact Us For Availability

View on Model

0221

Hinge Bushing BOS 00422174 No Longer Available

View on Model

0222

Cover Plate BOS 00491626 Contact Us For Availability

View on Model

0223

Screw BOS 00615773 No Longer Available

View on Model

0224

Hook BOS 00422182 Contact Us For Availability

View on Model

0225

Hook BOS 00422205 No Longer Available

View on Model

0226

Screw BOS 00422239 Contact Us For Availability

View on Model

0227

00471561 Bosch Laundry Front Assembly Backorder BOS 00471561 $179.21

View on Model

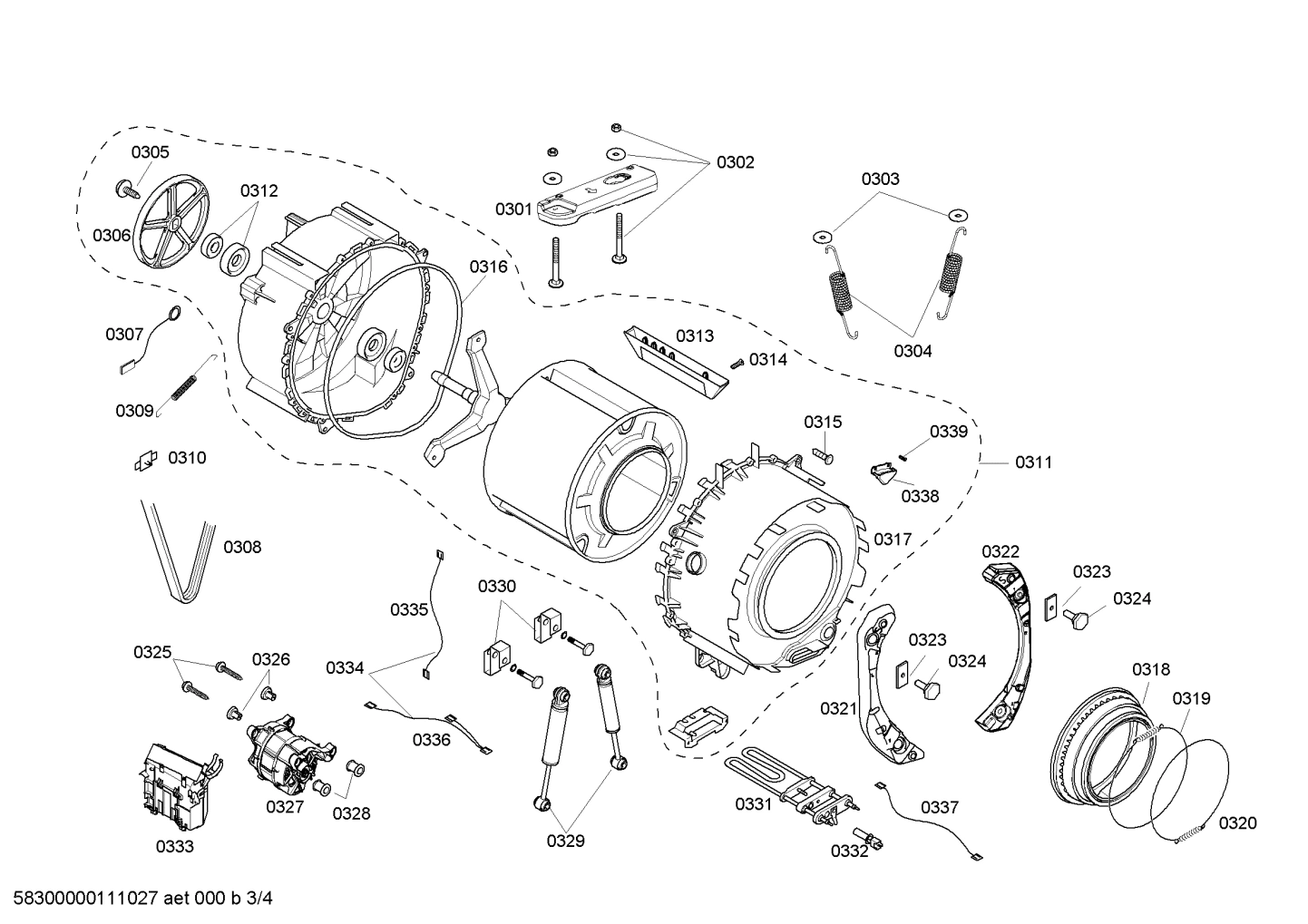

0302

00631639 Bosch Laundry Fixing Kit Backorder BOS 00631639 $29.86

View on Model

0303

Support BOS 00422246 No Longer Available

View on Model

0305

Screw BOS 00422237 Contact Us For Availability

View on Model

0306

Pulley BOS 00436480 Contact Us For Availability

View on Model

0309

Spring-tank BOS 00491606 Contact Us For Availability

View on Model

0310

Holder BOS 00422271 Contact Us For Availability

View on Model

0312

00613084 Bosch Laundry Seal Shaft Backorder BOS 00613084 $21.62

View on Model

0316

SEALING In Stock BOS 12054183 $13.38

View on Model

0318

00667489 Bosch Washer Boot Gasket In Stock BOS 00667489 $83.51

View on Model

0319

00648264 Bosch Laundry Clamp In Stock BOS 00648264 $11.32

View on Model

0320

00644646 Bosch Washer Clamp In Stock BOS 00644646 $9.91

View on Model

0324

00626808 Bosch Laundry Fixing Kit Backorder BOS 00626808 $39.13

View on Model

0325

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.10

View on Model

0326

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0328

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.11

View on Model

0329

00642112 Bosch Washer Damper In Stock BOS 00642112 $63.62

View on Model

0330

00491695 Bosch Laundry Bracket Backorder BOS 00491695 $40.16

View on Model

0332

Sensor-NTC BOS 00422222 Contact Us For Availability

View on Model

0339

00644226 Bosch Washer Deflector Backorder BOS 00644226 $40.16

View on Model

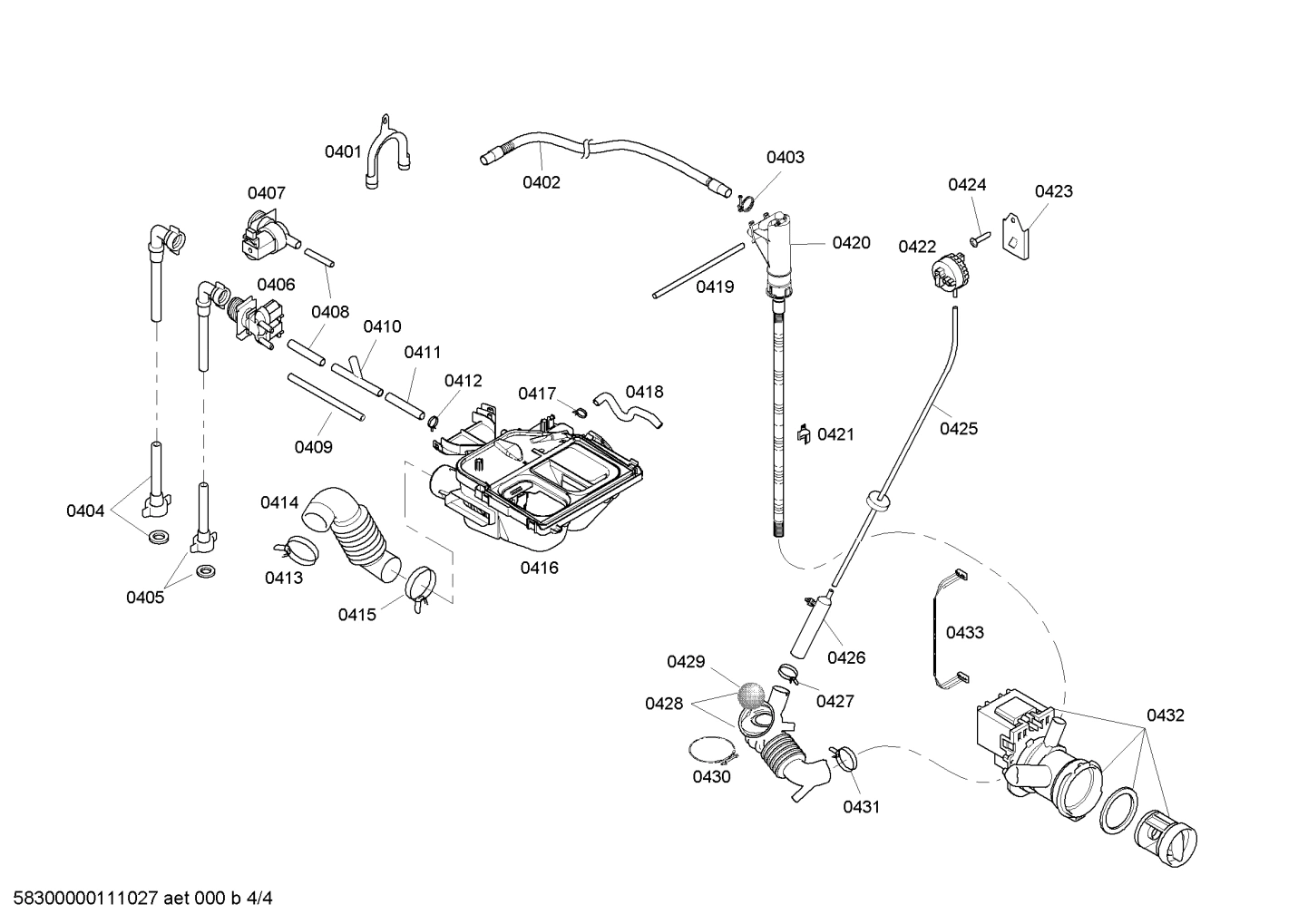

0401

Holder BOS 00493776 Contact Us For Availability

View on Model

0402

Drain Hose BOS 00493775 Contact Us For Availability

View on Model

0403

00436508 Bosch Laundry Installation Kit Backorder BOS 00436508 $39.13

View on Model

0404

Hot Water Inlet Hose BOS 00493765 No Longer Available

View on Model

0405

Cold Water Inlet Hose BOS 00493766 No Longer Available

View on Model

0406

00422244 Bosch Washer Magnet Valve In Stock BOS 00422244 $51.78

View on Model

0407

00422245 Bosch Laundry Magnet Valve In Stock BOS 00422245 $38.07

View on Model

0408

Hose-inlet BOS 00600338 Contact Us For Availability

View on Model

0409

00600353 Bosch Laundry Inlet Hose Backorder BOS 00600353 $5.14

View on Model

0410

00173254 Bosch Laundry Connection Piece Backorder BOS 00173254 $6.17

View on Model

0412

00187337 Bosch Hose Clamp Backorder BOS 00187337 $4.11

View on Model

0413

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

View on Model

0414

00491649 Bosch Laundry Inlet Hose Backorder BOS 00491649 $26.77

View on Model

0422

Pressure Switch BOS 00491681 Contact Us For Availability

View on Model

0424

00617527 Bosch Oven Screw In Stock BOS 00617527 $27.82

View on Model

0425

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0426

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0428

00491678 Bosch Laundry Sump Backorder BOS 00491678 $57.67

View on Model

0429

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

View on Model

0431

Hose clamp BOS 00422207 Contact Us For Availability

View on Model

0432

00436440 Bosch Laundry Drain Pump Backorder BOS 00436440 $227.62

View on Model

0433

Cable harness BOS 00421565 Contact Us For Availability

View on Model

Model Bosch WFMC2100UC/02 Washer – Common Parts & Diagrams

Common parts from model Bosch WFMC2100UC/02 Washer
