Model Bosch WFM3710/15 Washer – Common Parts & Diagrams

Common parts from model Bosch WFM3710/15 Washer

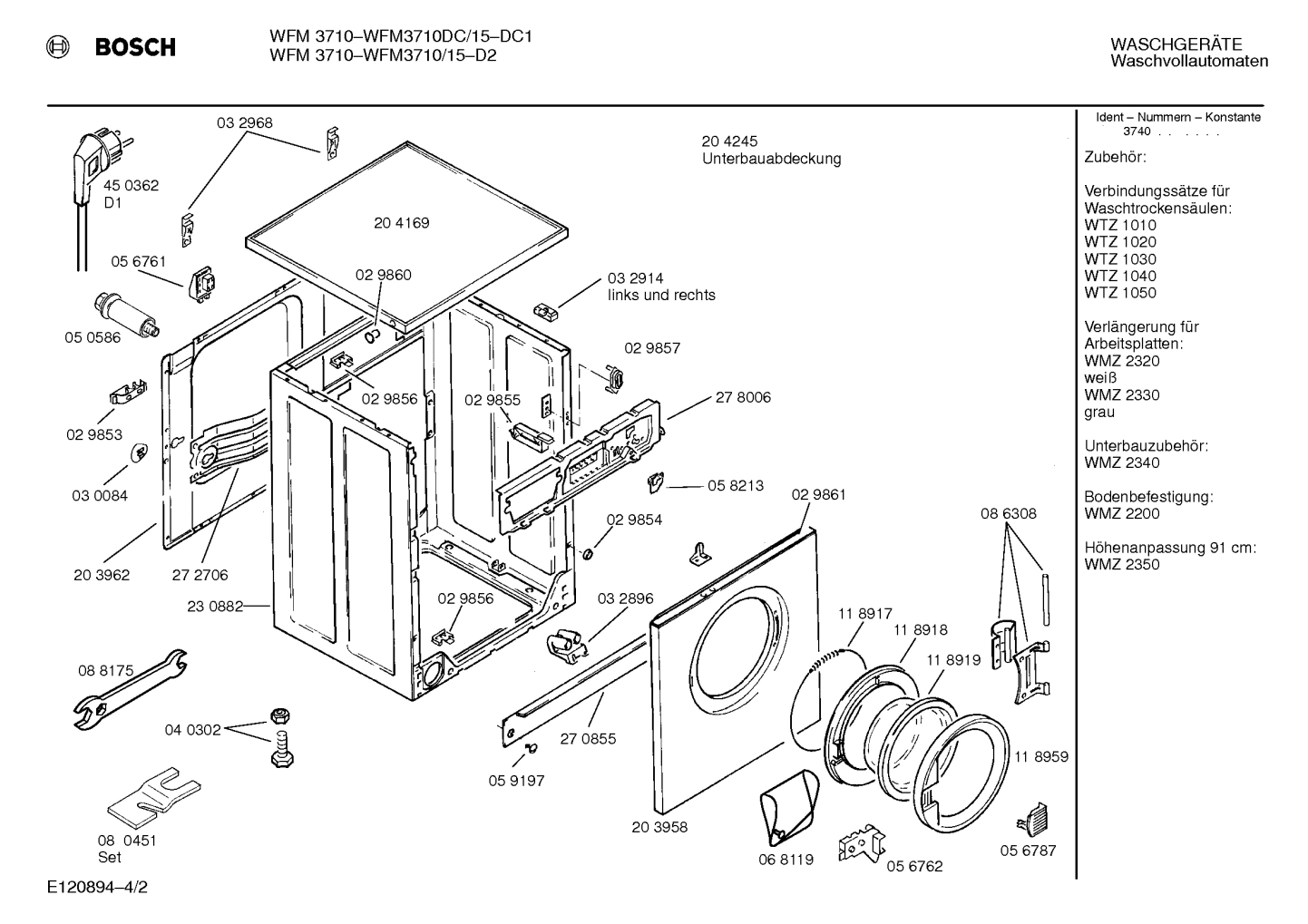

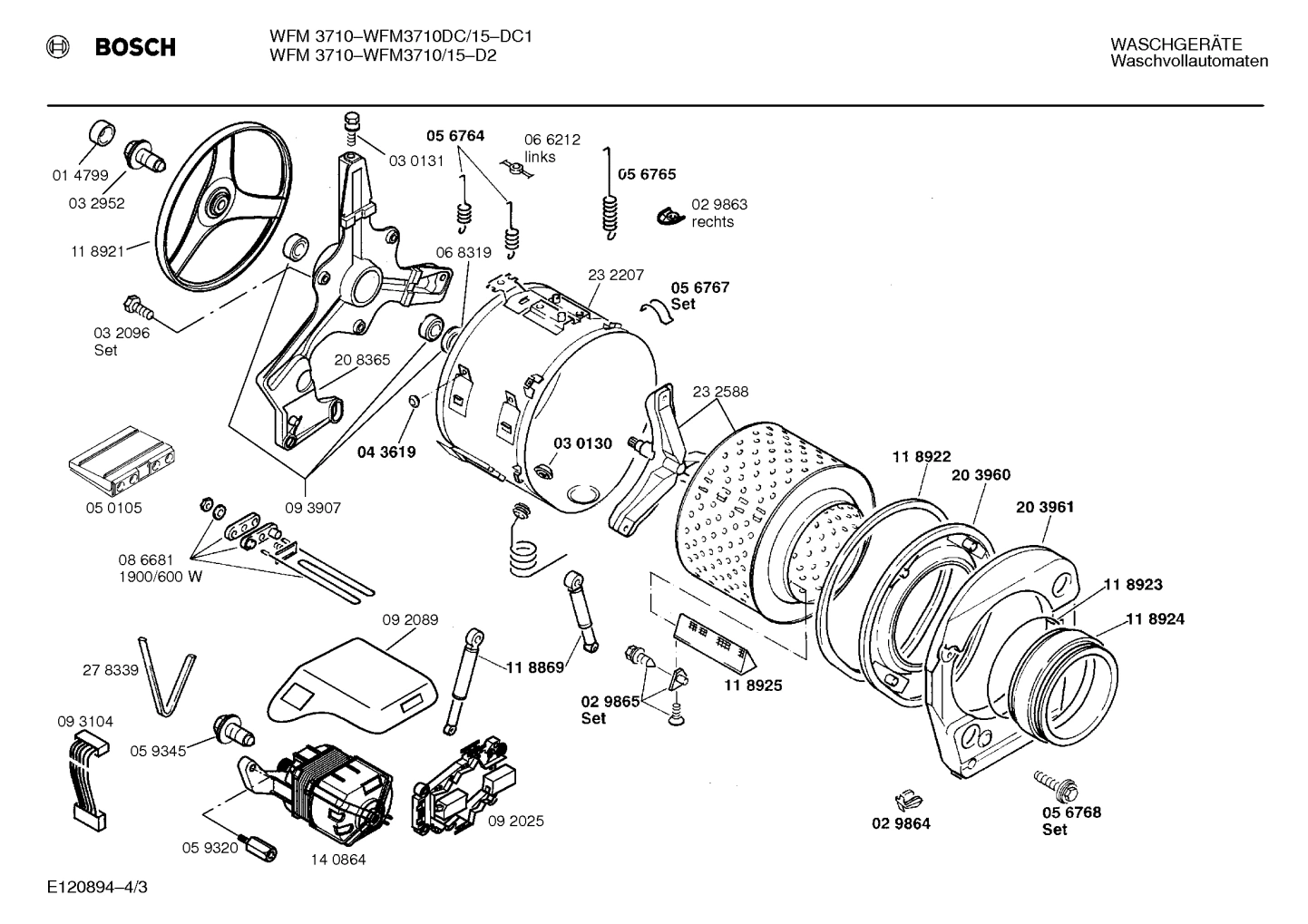

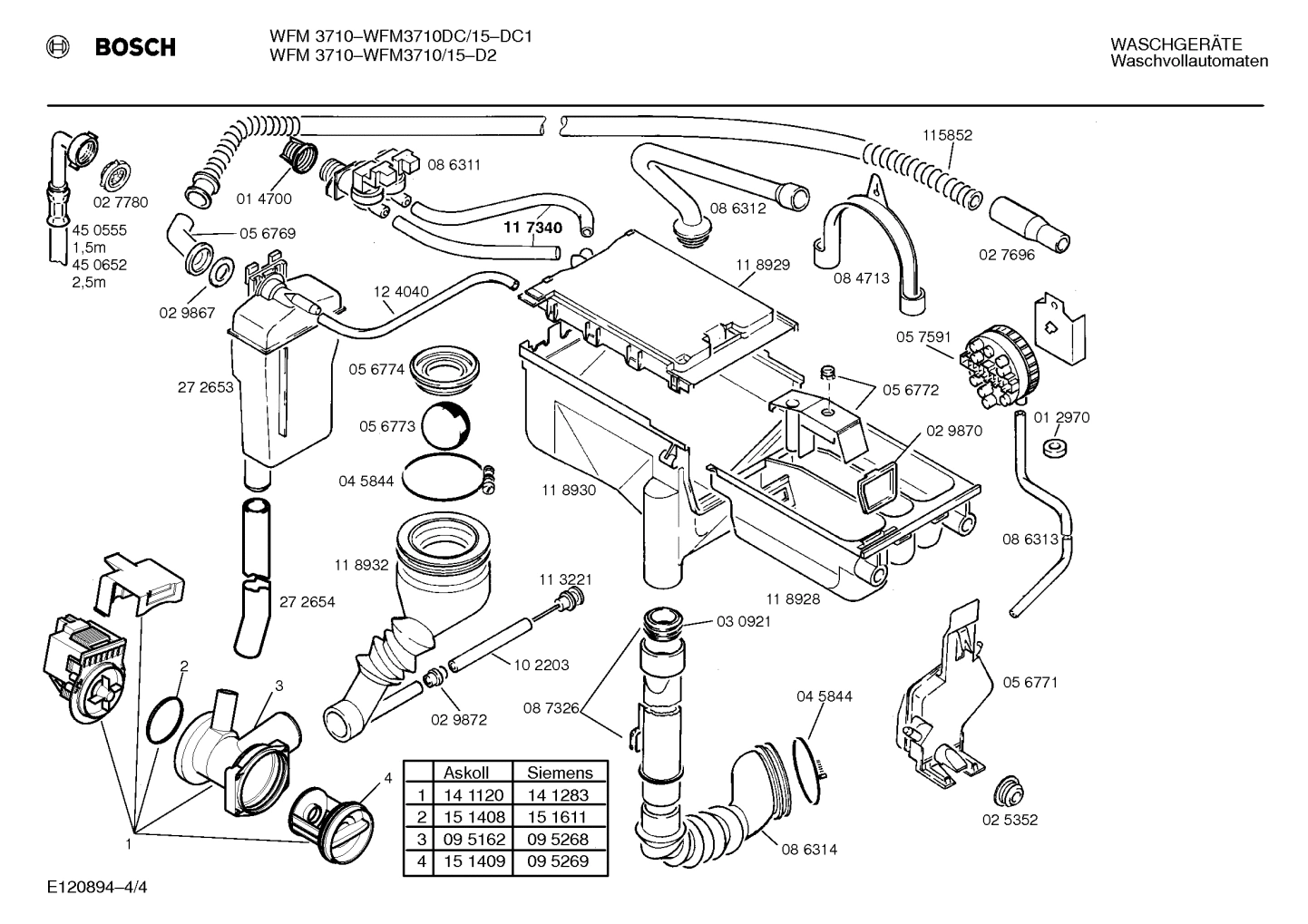

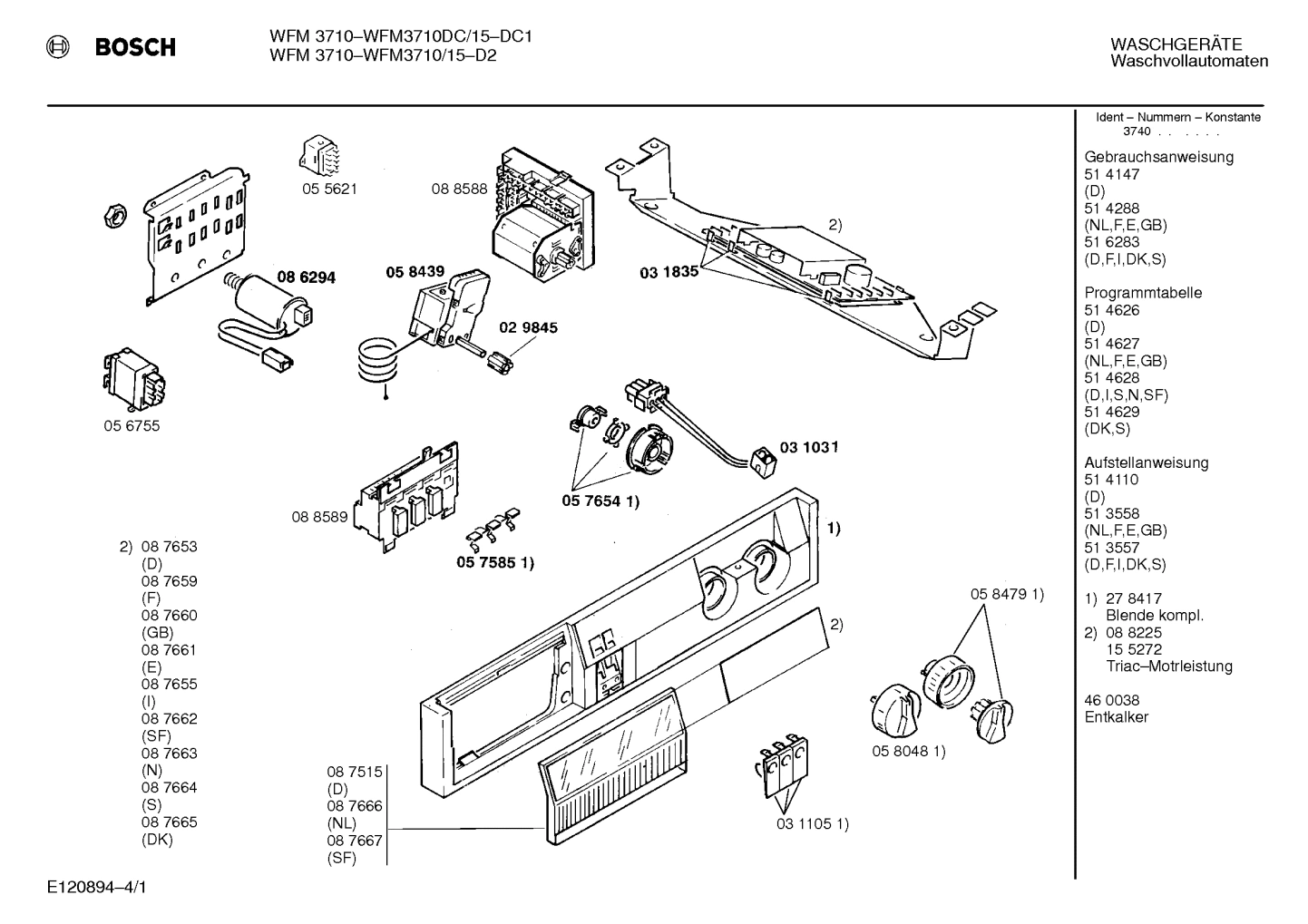

Diagram 1

Print

• This Diagram
• All Diagrams

0036

00032968 Bosch Laundry Holder Backorder BOS 00032968 View Details $36.57

View on Model

0038

00606923 Bosch Laundry Holder Backorder BOS 00606923 View Details $6.17

View on Model

0047

00040302 Bosch Laundry Foot Backorder BOS 00040302 View Details $12.35

View on Model

0051

Electric lock BOS 00056762 Contact Us For Availability

View on Model

0053

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 View Details $59.73

View on Model

0056

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 View Details $20.09

View on Model

0058

Window BOS 00118919 Contact Us For Availability

View on Model

0068

15000636 Bosch Power Cord Backorder BOS 15000636 View Details $26.77

View on Model

0071

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0077

00171270 Bosch Screw Backorder BOS 00171270 View Details $4.11

View on Model

0080

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 View Details $35.01

View on Model

0081

00056765 Bosch Laundry Spring Backorder BOS 00056765 View Details $25.74

View on Model

0084

Shaft seal BOS 00068319 Contact Us For Availability

View on Model

0085

00059320 Bosch Laundry Holder Backorder BOS 00059320 View Details $12.35

View on Model

0086

Screw BOS 00059345 Contact Us For Availability

View on Model

0092

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 View Details $83.42

View on Model

0093

Pulley BOS 00118921 Contact Us For Availability

View on Model

0094

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 View Details $40.16

View on Model

0105

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 View Details $40.16

View on Model

0109

00027696 Bosch Laundry Stud Backorder BOS 00027696 View Details $13.38

View on Model

0117

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $14.41

View on Model

0121

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0124

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $13.38

View on Model

0127

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $15.97

View on Model

0135

Latch BOS 00113221 Contact Us For Availability

View on Model

0136

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 View Details $46.34

View on Model

0144

00272654 Bosch Laundry Hose Backorder BOS 00272654 View Details $78.80

View on Model

0153

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 View Details $17.50

View on Model

×
