Model Bosch WFM3410FG/15 Washer – Common Parts & Diagrams

Common parts from model Bosch WFM3410FG/15 Washer

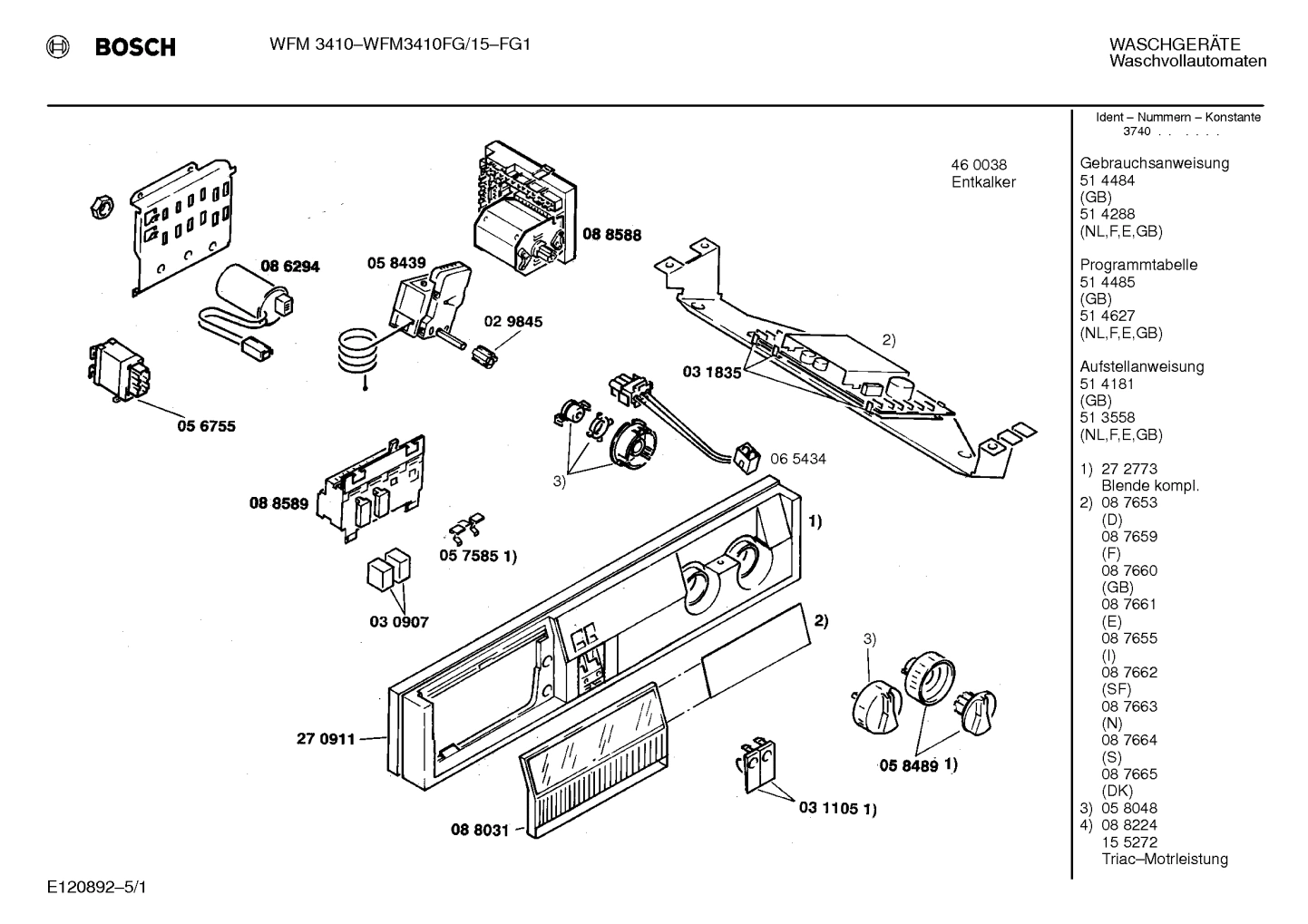

Diagram 1

Print

• This Diagram
• All Diagrams

0034

00606923 Bosch Laundry Holder Backorder BOS 00606923 View Details $6.17

View on Model

0050

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 View Details $59.73

View on Model

0053

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 View Details $20.09

View on Model

0083

00171270 Bosch Screw Backorder BOS 00171270 View Details $4.11

View on Model

0086

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 View Details $35.01

View on Model

0087

00056765 Bosch Laundry Spring Backorder BOS 00056765 View Details $25.74

View on Model

0097

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 View Details $83.42

View on Model

0098

Pulley BOS 00118921 Contact Us For Availability

View on Model

0099

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 View Details $40.16

View on Model

0109

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 View Details $40.16

View on Model

0114

00027696 Bosch Laundry Stud Backorder BOS 00027696 View Details $13.38

View on Model

0115

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 View Details $15.97

View on Model

0124

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $14.41

View on Model

0126

Sealing BOS 00051840 Contact Us For Availability

View on Model

0128

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0131

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $13.38

View on Model

0134

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $15.97

View on Model

0142

Latch BOS 00113221 Contact Us For Availability

View on Model

0143

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 View Details $46.34

View on Model

0152

00272654 Bosch Laundry Hose Backorder BOS 00272654 View Details $78.80

View on Model

0199

Electric lock BOS 00056762 Contact Us For Availability

View on Model

0202

15000636 Bosch Power Cord Backorder BOS 15000636 View Details $26.77

View on Model

×
