Bosch WFL2090MX/01 Washer Parts List

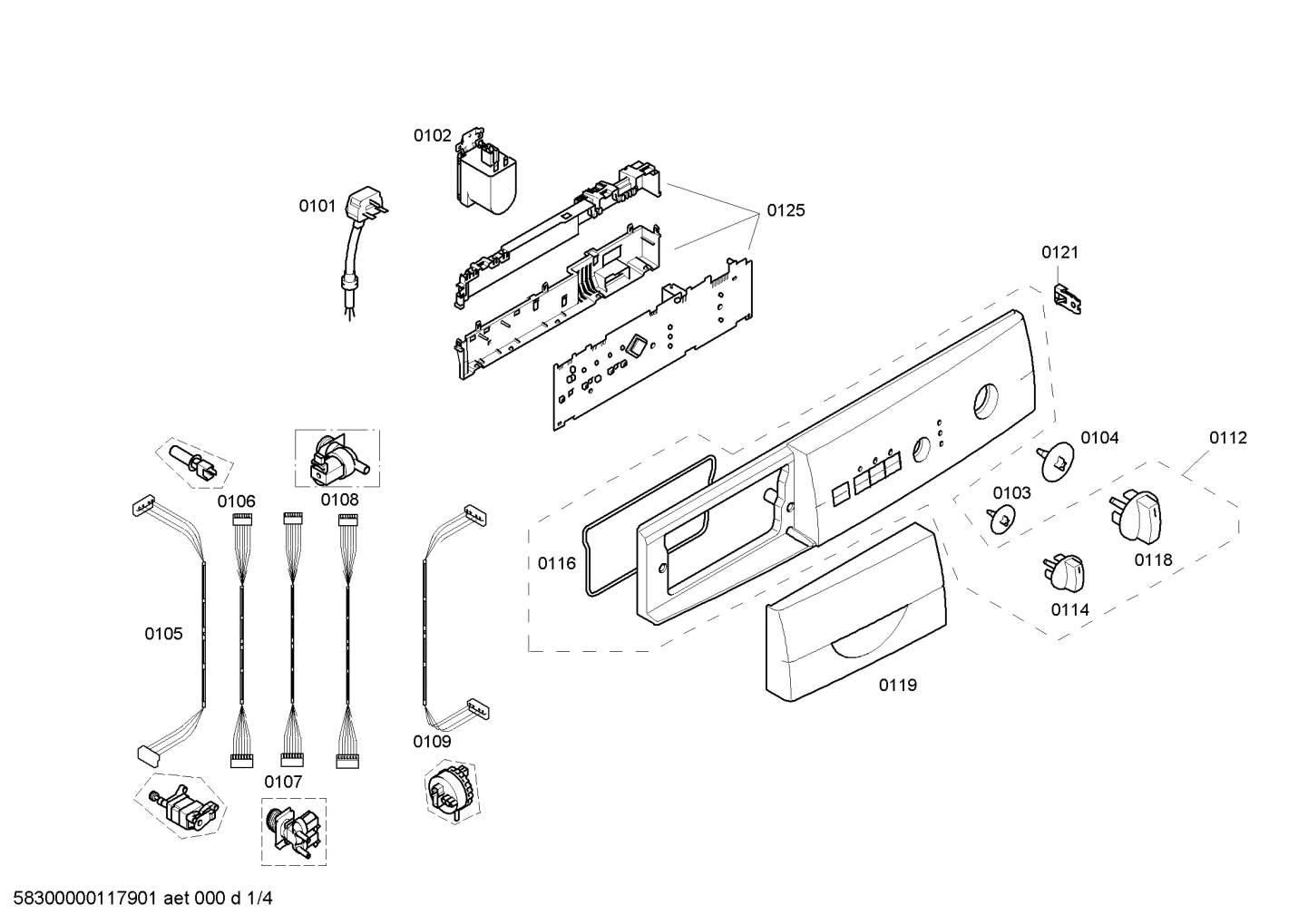

0101

Power cord BOS 00436477 Contact Us For Availability

View on Model

0102

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $55.61

View on Model

0103

00172698 Bosch Laundry Coupling Backorder BOS 00172698 $10.29

View on Model

0105

00607048 Bosch Laundry Cable Harness Backorder BOS 00607048 $29.36

View on Model

0119

Tray handle-dispenser BOS 00484011 Contact Us For Availability

View on Model

0125

Power module BOS 00663675 Contact Us For Availability

View on Model

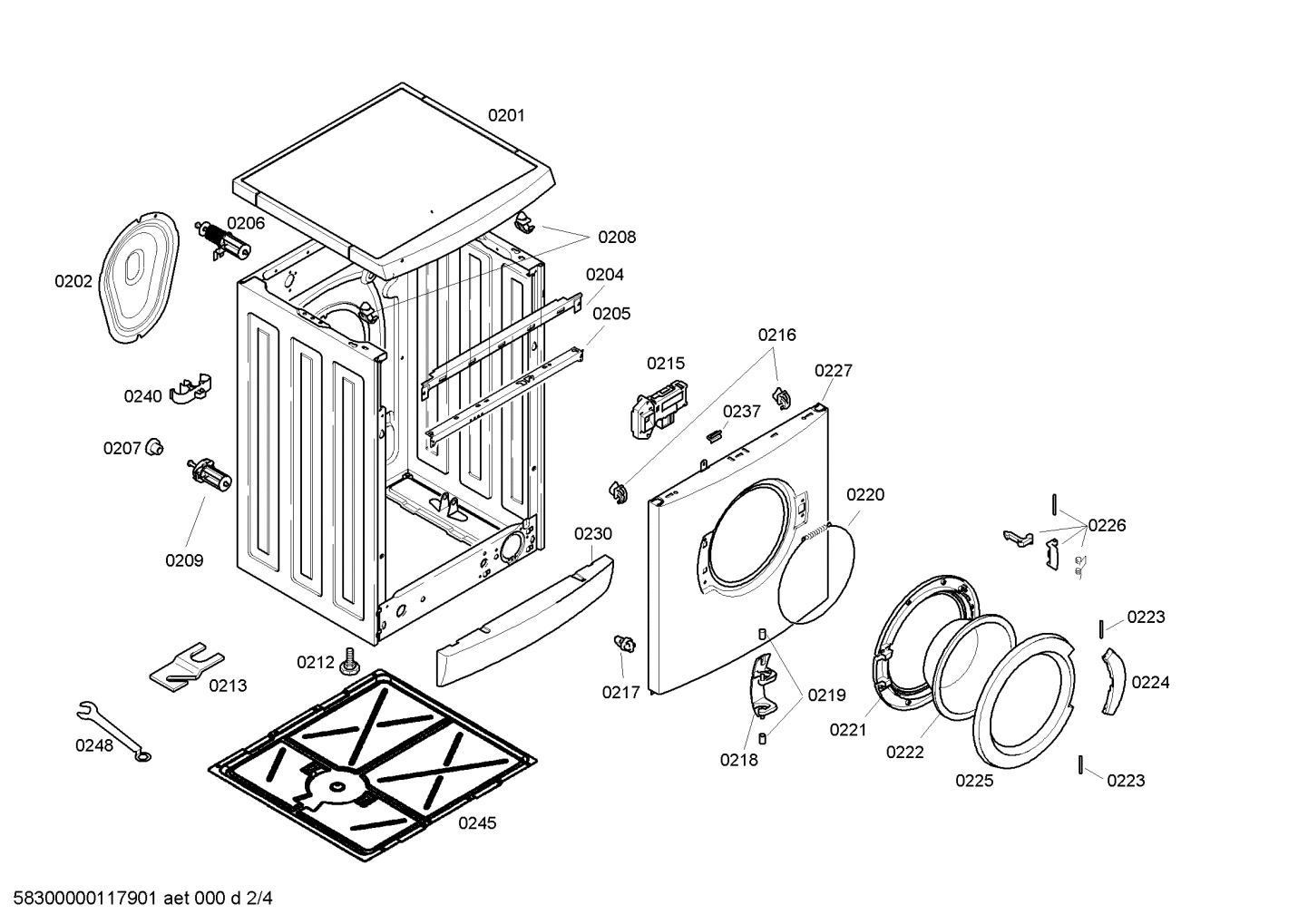

0201

Worktop BOS 00770353 Contact Us For Availability

View on Model

0206

Transit bolt BOS 00429205 Contact Us For Availability

View on Model

0207

00182194 Bosch Laundry Lid Backorder BOS 00182194 $6.17

View on Model

0209

00186870 Bosch Transit Bolt Backorder BOS 00186870 $23.18

View on Model

0213

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $59.73

View on Model

0215

00607383 Bosch Laundry Electric Lock In Stock BOS 00607383 $53.55

View on Model

0217

00606923 Bosch Laundry Holder Backorder BOS 00606923 $6.17

View on Model

0218

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $35.54

View on Model

0219

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $18.55

View on Model

0220

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $15.46

View on Model

0221

00358289 Bosch Laundry Window Frame Backorder BOS 00358289 $42.22

View on Model

0222

11020392 Bosch Laundry Window Backorder BOS 11020392 $53.55

View on Model

0223

00171255 Bosch Laundry Axis Backorder BOS 00171255 $15.44

View on Model

0224

12003957 Bosch Handle Backorder BOS 12003957 $56.64

View on Model

0225

00369605 Bosch Washer Window Frame Backorder BOS 00369605 $106.08

View on Model

0226

00634207 Bosch Washer Latch In Stock BOS 00634207 $58.70

View on Model

0227

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $222.47

View on Model

0248

00416875 Bosch Auxiliary Tool Backorder BOS 00416875 $3.08

View on Model

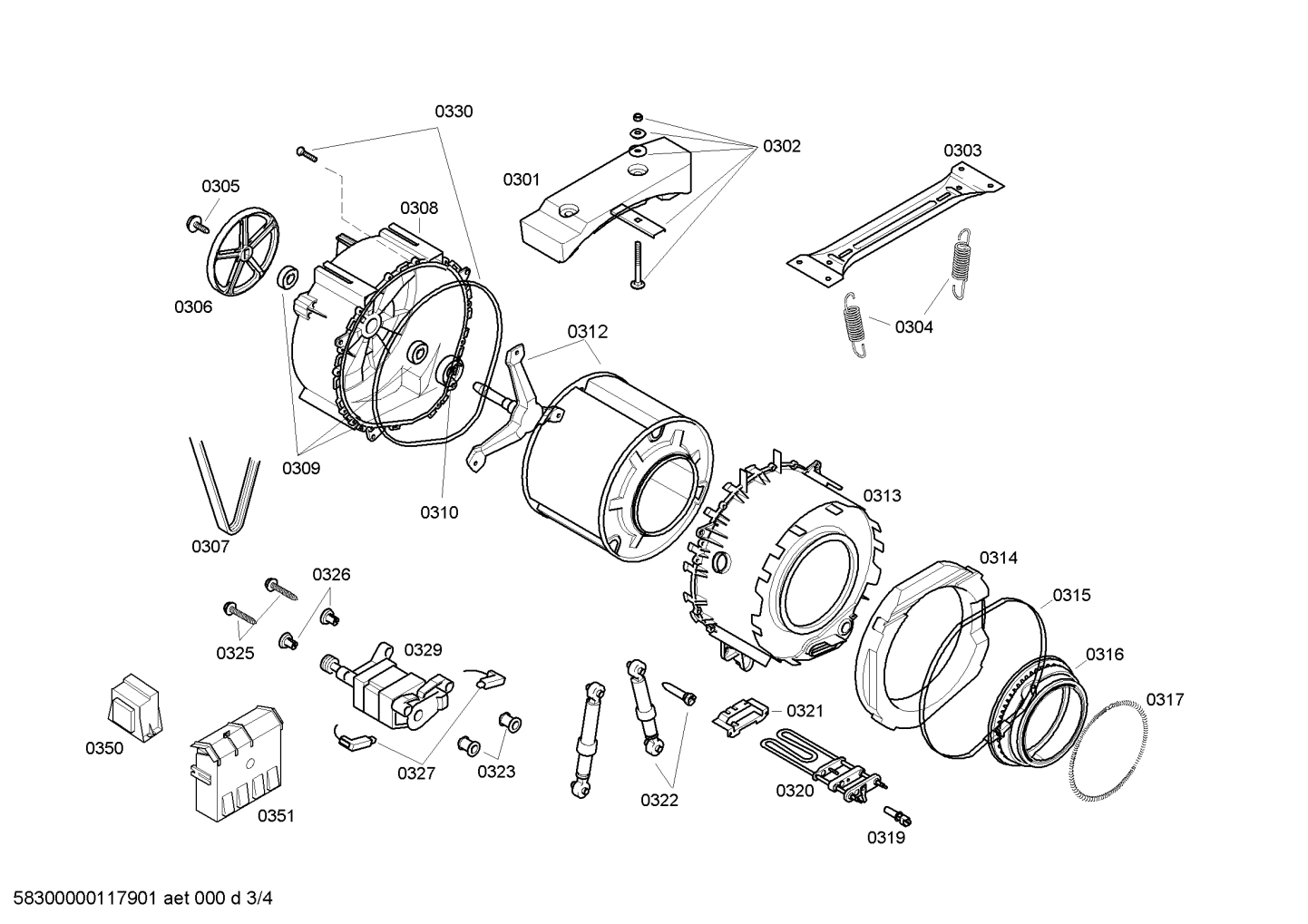

0302

00631639 Bosch Laundry Fixing Kit Backorder BOS 00631639 $30.39

View on Model

0304

00606818 Bosch Laundry Tank Spring Backorder BOS 00606818 $11.32

View on Model

0305

00171270 Bosch Screw Backorder BOS 00171270 $4.11

View on Model

0306

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $61.29

View on Model

0307

00439490 Bosch Washer Drive Belt In Stock BOS 00439490 $40.16

View on Model

0309

00172685 Bosch Laundry Bearing Set Backorder BOS 00172685 $66.44

View on Model

0310

00613083 Bosch Laundry Seal Shaft Backorder BOS 00613083 $20.59

View on Model

0312

00215117 Bosch Laundry Drum Backorder BOS 00215117 $303.34

View on Model

0315

00265965 Bosch Laundry Band Backorder BOS 00265965 $42.22

View on Model

0316

00354135 Bosch Washer Boot Gasket In Stock BOS 00354135 $105.55

View on Model

0317

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.79

View on Model

0320

00642097 Bosch Laundry Heating Element Backorder BOS 00642097 $94.25

View on Model

0321

Holder BOS 00171273 Contact Us For Availability

View on Model

0323

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.64

View on Model

0325

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.11

View on Model

0326

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0327

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 $75.73

View on Model

0329

00144610 Bosch Laundry Motor Backorder BOS 00144610 $339.01

View on Model

0330

00416886 Bosch Laundry Sealing Backorder BOS 00416886 $49.96

View on Model

0350

00418791 Bosch Laundry PCB Board Backorder BOS 00418791 $78.80

View on Model

0351

00644337 Bosch Laundry Motor Module Backorder BOS 00644337 $479.47

View on Model

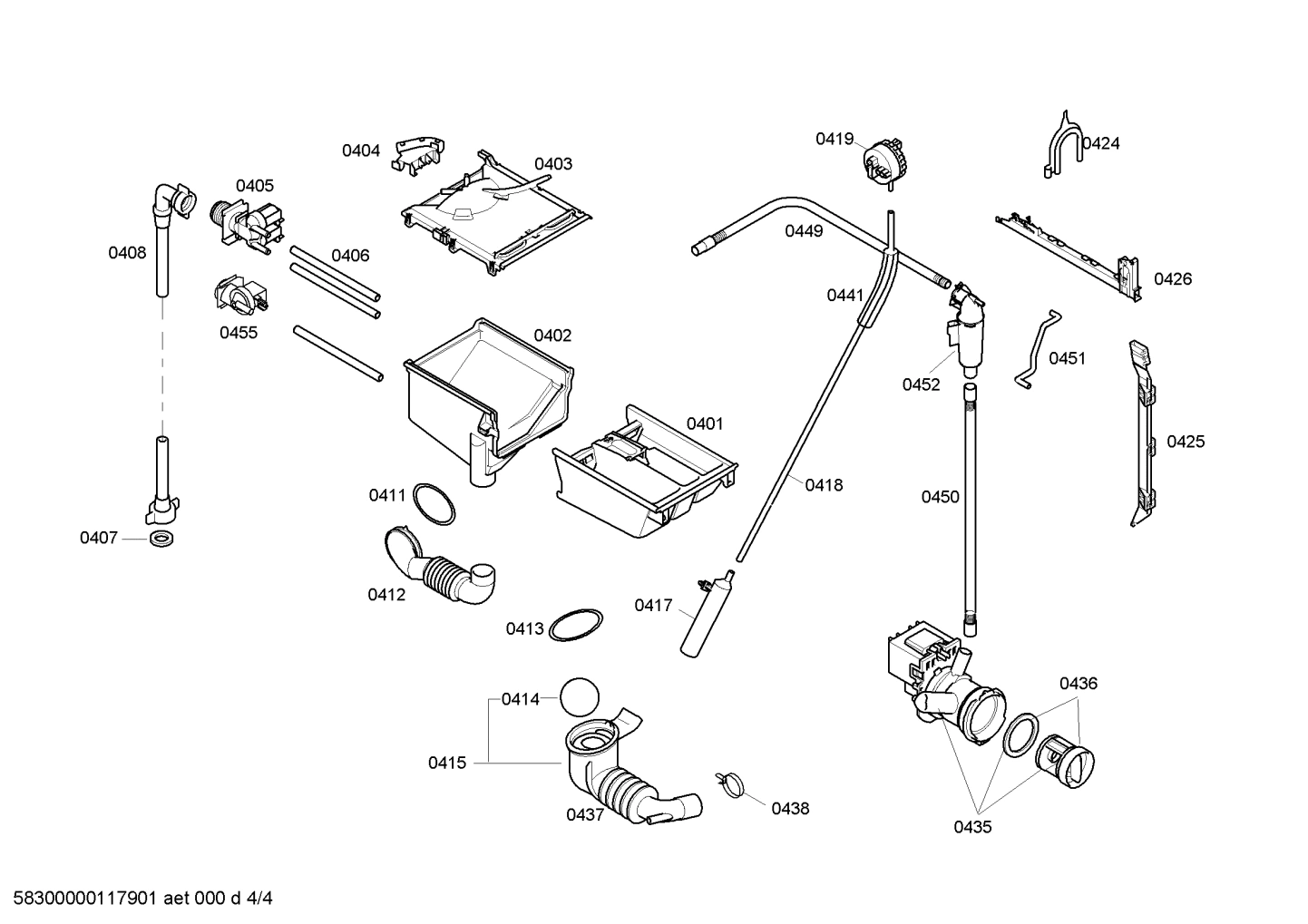

0401

00703270 Bosch Laundry Dispenser Tray Backorder BOS 00703270 $218.35

View on Model

0402

00363186 Bosch Laundry Lower Dispenser Tray Backorder BOS 00363186 $27.80

View on Model

0403

11035255 Bosch Laundry Dispenser Case Backorder BOS 11035255 $54.08

View on Model

0405

00607049 Bosch Laundry Magnet Valve Backorder BOS 00607049 $305.40

View on Model

0406

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $33.48

View on Model

0407

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $15.97

View on Model

0408

Hose-inlet BOS 00493766 No Longer Available

View on Model

0408

Hose-inlet BOS 00493765 Contact Us For Availability

View on Model

0411

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

View on Model

0412

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $25.24

View on Model

0413

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41

View on Model

0414

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

View on Model

0415

00483993 Bosch Laundry Eco Hose Backorder BOS 00483993 $28.33

View on Model

0417

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0418

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0419

00427040 Bosch Laundry Water Level Regulator Backorder BOS 00427040 $115.88

View on Model

0424

00655300 Bosch Laundry Holder Backorder BOS 00655300 $15.97

View on Model

0435

00144640 Bosch Laundry Drain Pump Backorder BOS 00144640 $111.23

View on Model

0436

00647920 Bosch Laundry Fluff Filter In Stock BOS 00647920 $33.27

View on Model

0437

00494561 Bosch Laundry Eco Hose Backorder BOS 00494561 $34.51

View on Model

0438

Hose clamp BOS 00422207 Contact Us For Availability

View on Model

0449

Drain Hose BOS 00358306 Contact Us For Availability

View on Model

0450

00358305 Bosch Laundry Hose In Stock BOS 00358305 $23.18

View on Model

0452

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $69.00

View on Model

0455

Valve-magnet BOS 00607050 Contact Us For Availability

View on Model
