Bosch WFL1662/03 Washer Parts List

0102

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $55.61

View on Model

0105

00172698 Bosch Laundry Coupling Backorder BOS 00172698 $10.29

View on Model

0206

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $33.48

View on Model

0207

11035255 Bosch Laundry Dispenser Case Backorder BOS 11035255 $54.08

View on Model

0208

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

View on Model

0209

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $25.24

View on Model

0211

Window BOS 00355529 Contact Us For Availability

View on Model

0213

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0214

00703270 Bosch Laundry Dispenser Tray Backorder BOS 00703270 $218.35

View on Model

0215

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41

View on Model

0216

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

View on Model

0217

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0220

Drain Hose BOS 00358306 Contact Us For Availability

View on Model

0228

00171270 Bosch Screw Backorder BOS 00171270 $4.11

View on Model

0231

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $61.29

View on Model

0235

00606818 Bosch Laundry Tank Spring Backorder BOS 00606818 $11.32

View on Model

0236

00172685 Bosch Laundry Bearing Set Backorder BOS 00172685 $66.44

View on Model

0237

00678914 Bosch Laundry Drive Belt Backorder BOS 00678914 $54.58

View on Model

0238

00613083 Bosch Laundry Seal Shaft Backorder BOS 00613083 $20.59

View on Model

0301

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.11

View on Model

0302

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0305

00265965 Bosch Laundry Band Backorder BOS 00265965 $42.22

View on Model

0306

00354135 Bosch Washer Boot Gasket In Stock BOS 00354135 $105.55

View on Model

0307

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 $75.73

View on Model

0308

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.64

View on Model

0310

Holder BOS 00171273 Contact Us For Availability

View on Model

0312

00170961 Bosch Laundry NTC Sensor Backorder BOS 00170961 $20.09

View on Model

0314

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.79

View on Model

0408

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $18.55

View on Model

0414

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $222.47

View on Model

0418

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $15.46

View on Model

0419

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $35.54

View on Model

0420

00715042 Bosch Laundry Ring Backorder BOS 00715042 $45.31

View on Model

0421

11020392 Bosch Laundry Window Backorder BOS 11020392 $53.55

View on Model

0423

00634207 Bosch Washer Latch In Stock BOS 00634207 $58.70

View on Model

0424

00171255 Bosch Laundry Axis Backorder BOS 00171255 $15.44

View on Model

0425

00266751 Bosch Laundry Handle Backorder BOS 00266751 $143.69

View on Model

0426

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $59.73

View on Model

0433

00215117 Bosch Laundry Drum Backorder BOS 00215117 $303.34

View on Model

0438

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $69.00

View on Model

0439

00358305 Bosch Laundry Hose In Stock BOS 00358305 $23.18

View on Model

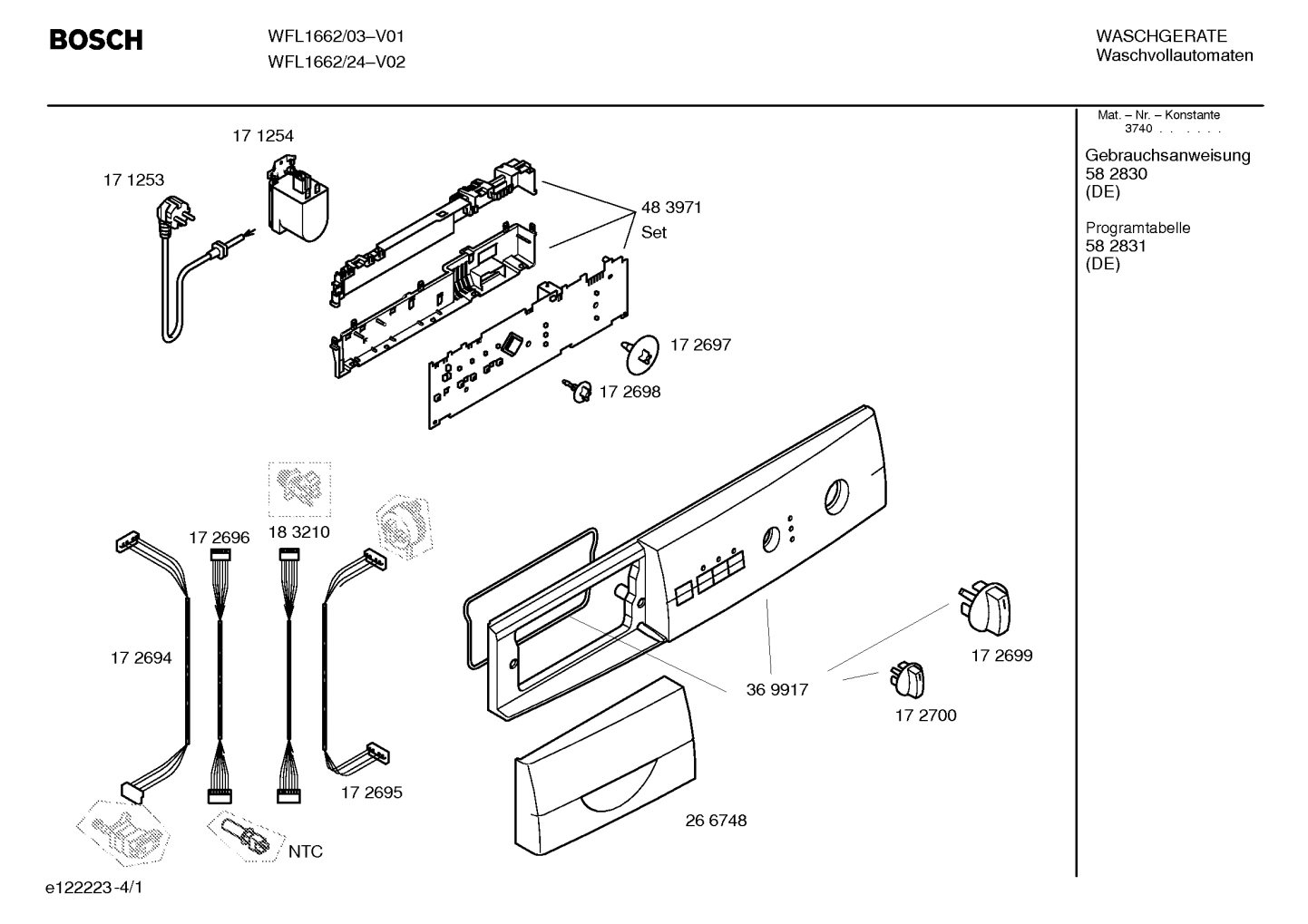

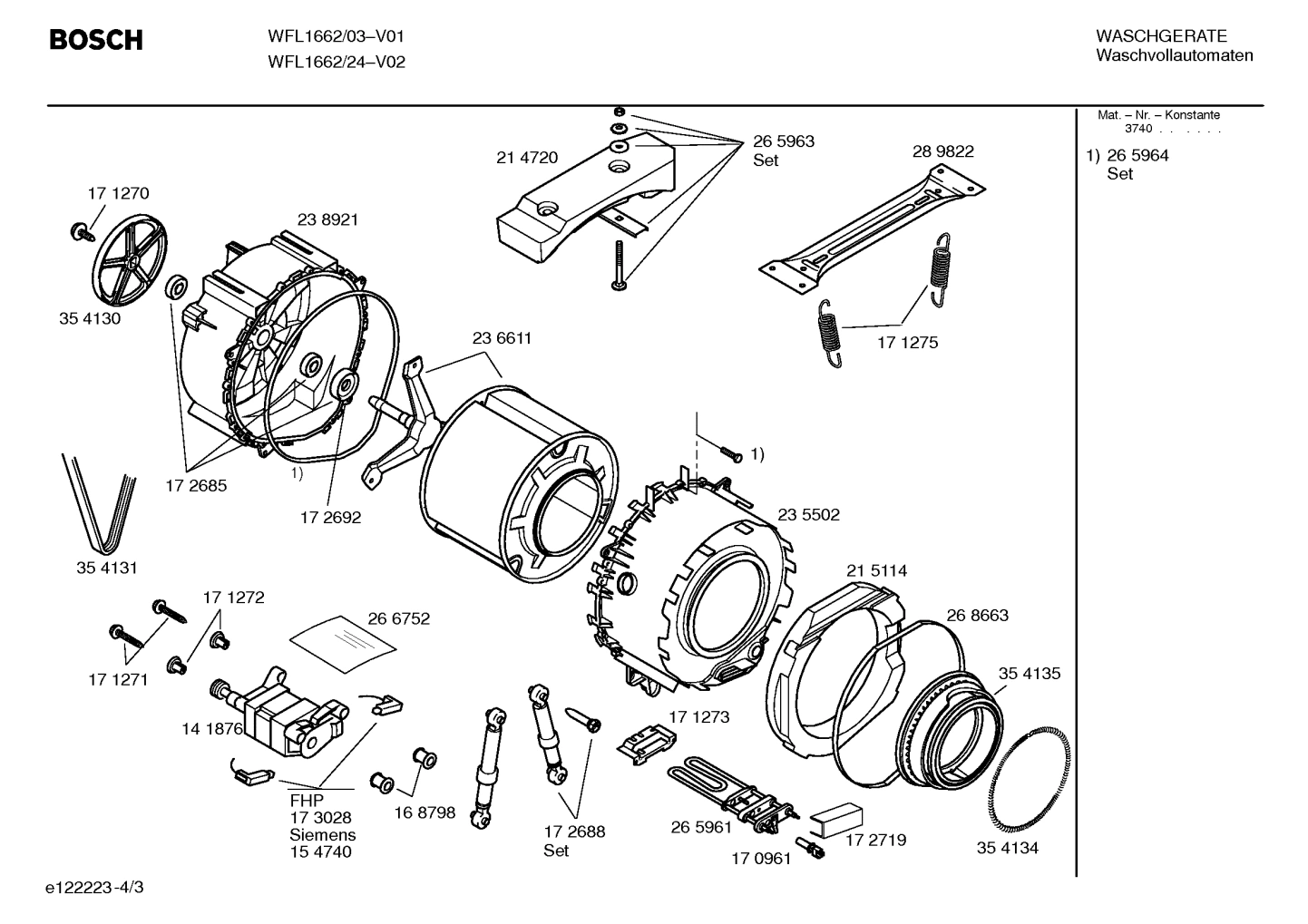

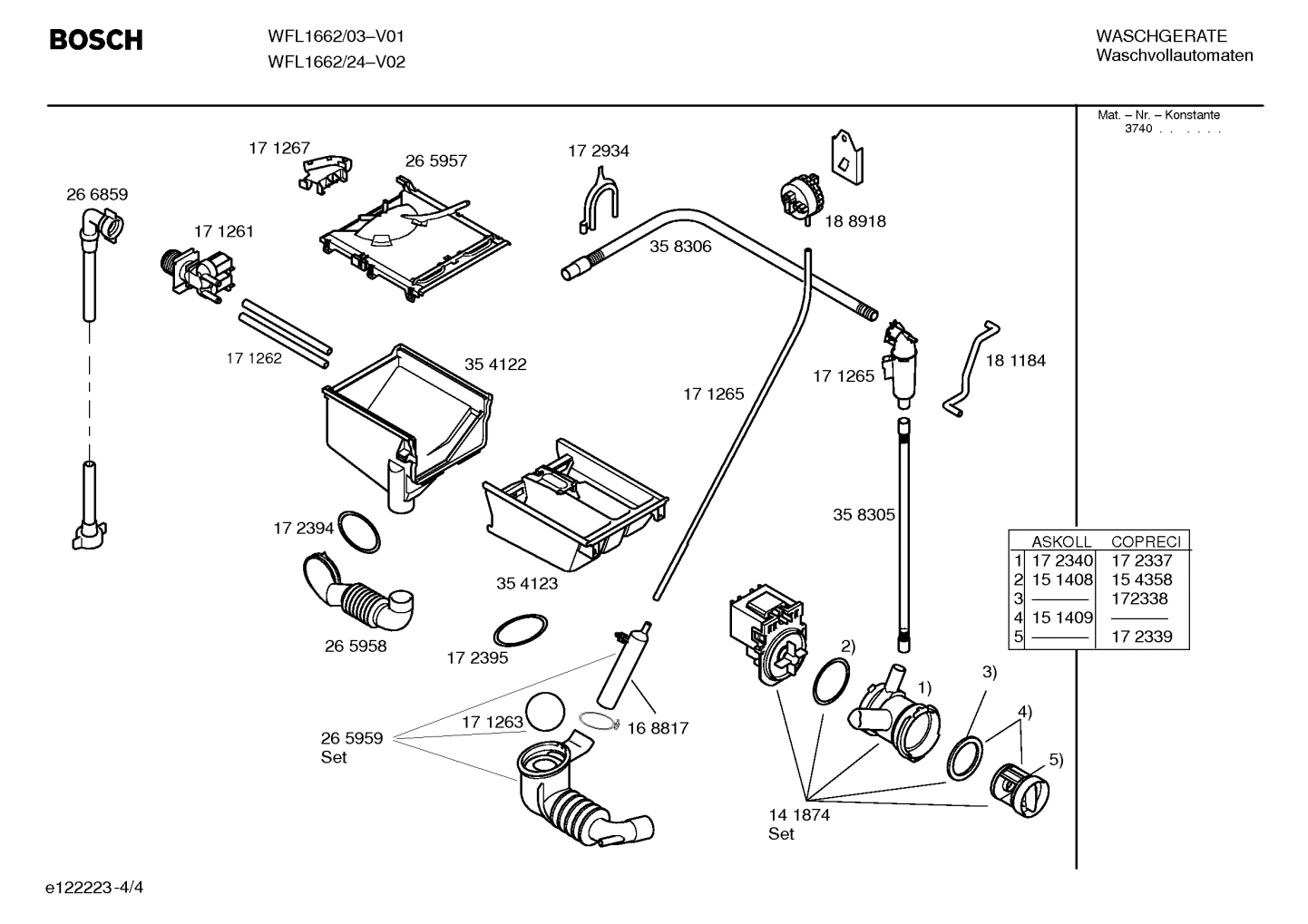

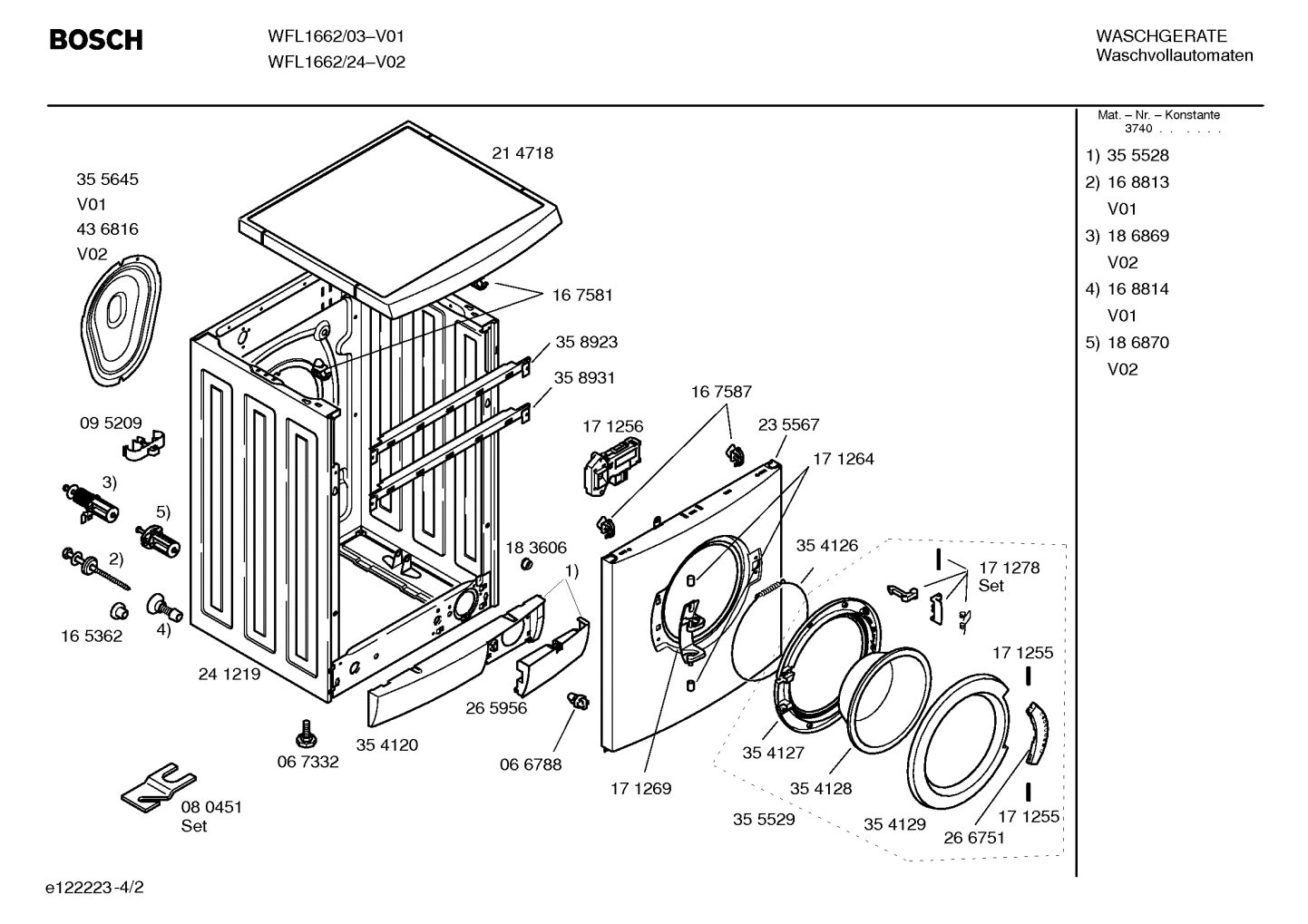

Model Bosch WFL1662/03 Washer – Common Parts & Diagrams

Common parts from model Bosch WFL1662/03 Washer
