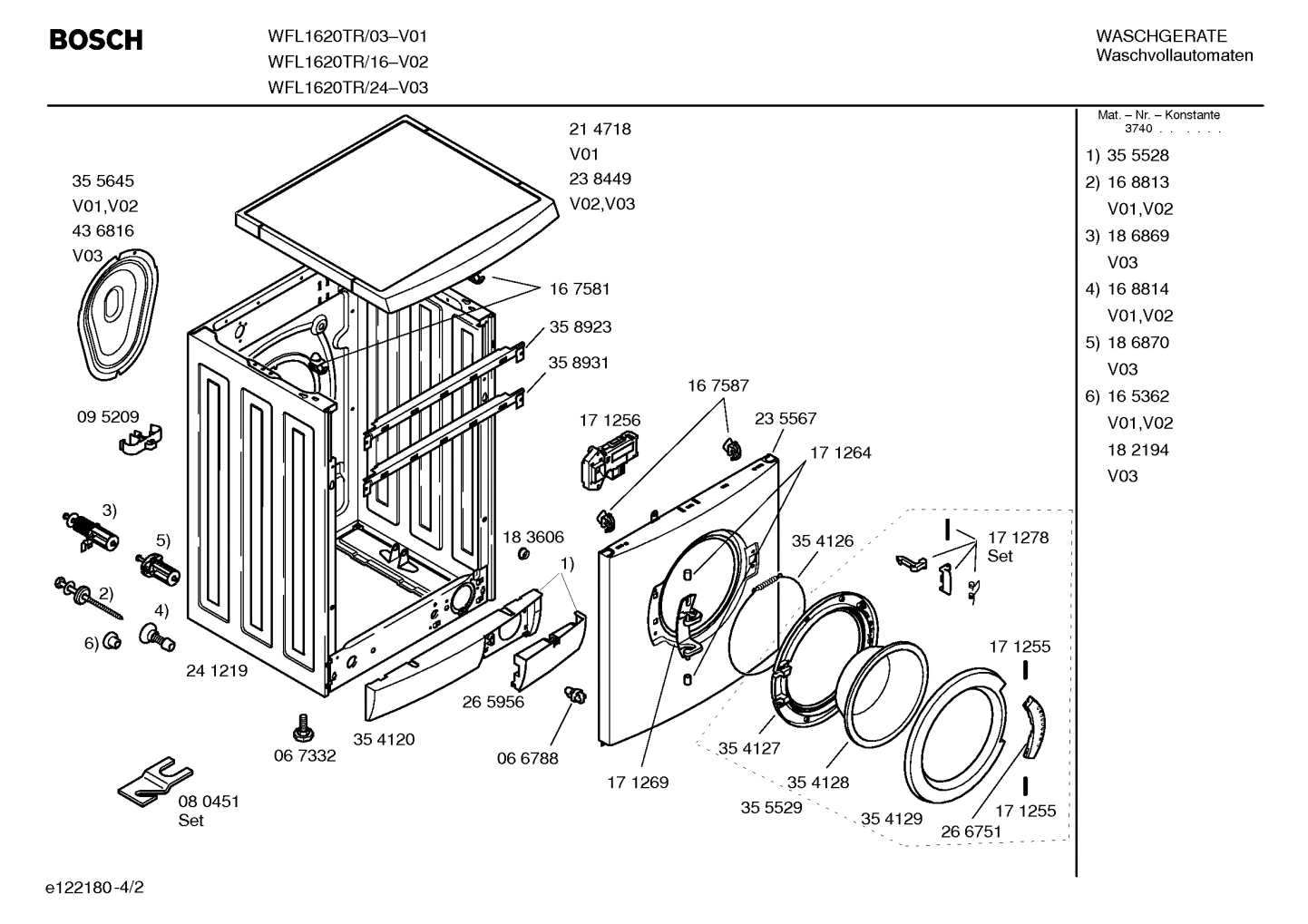

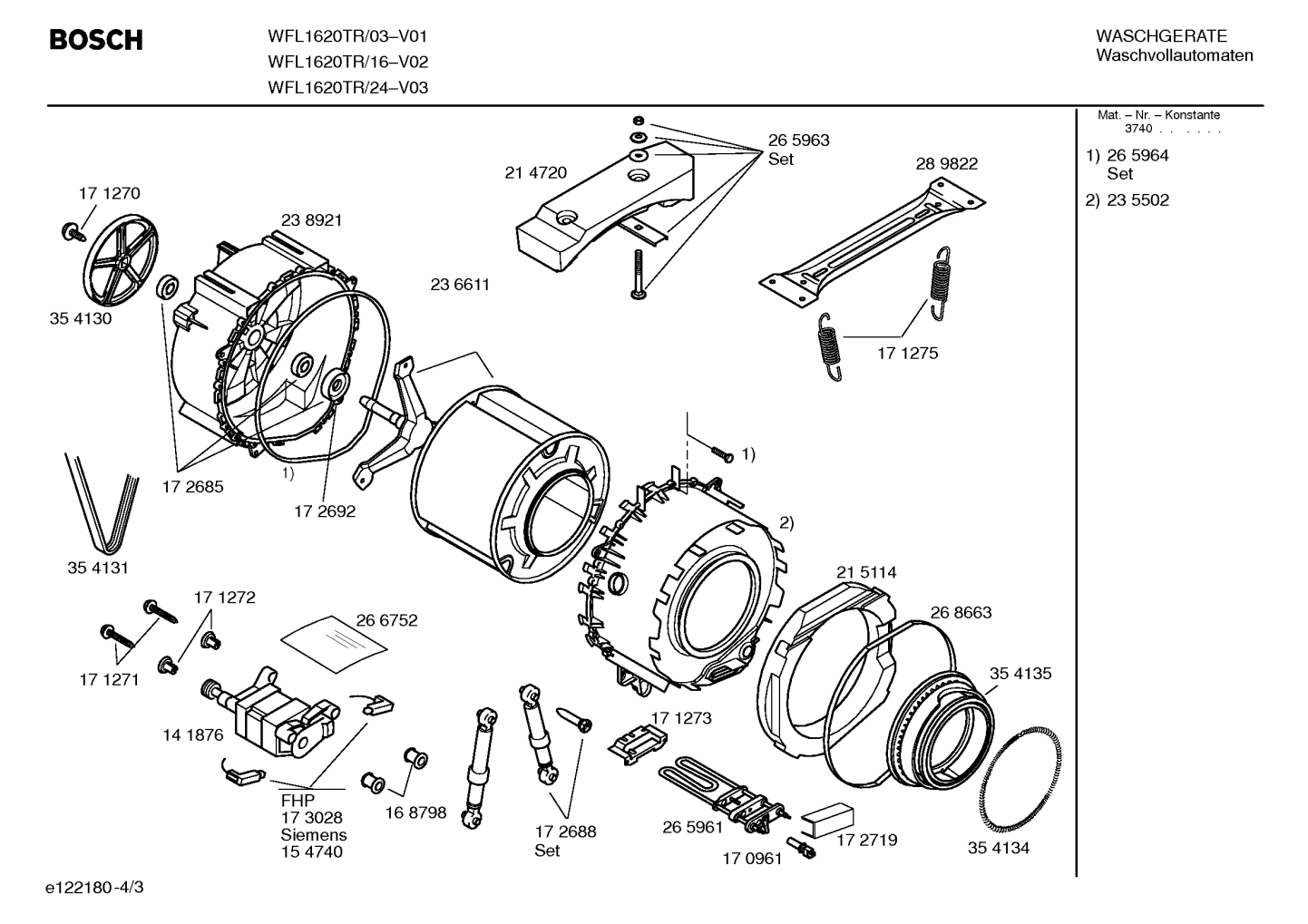

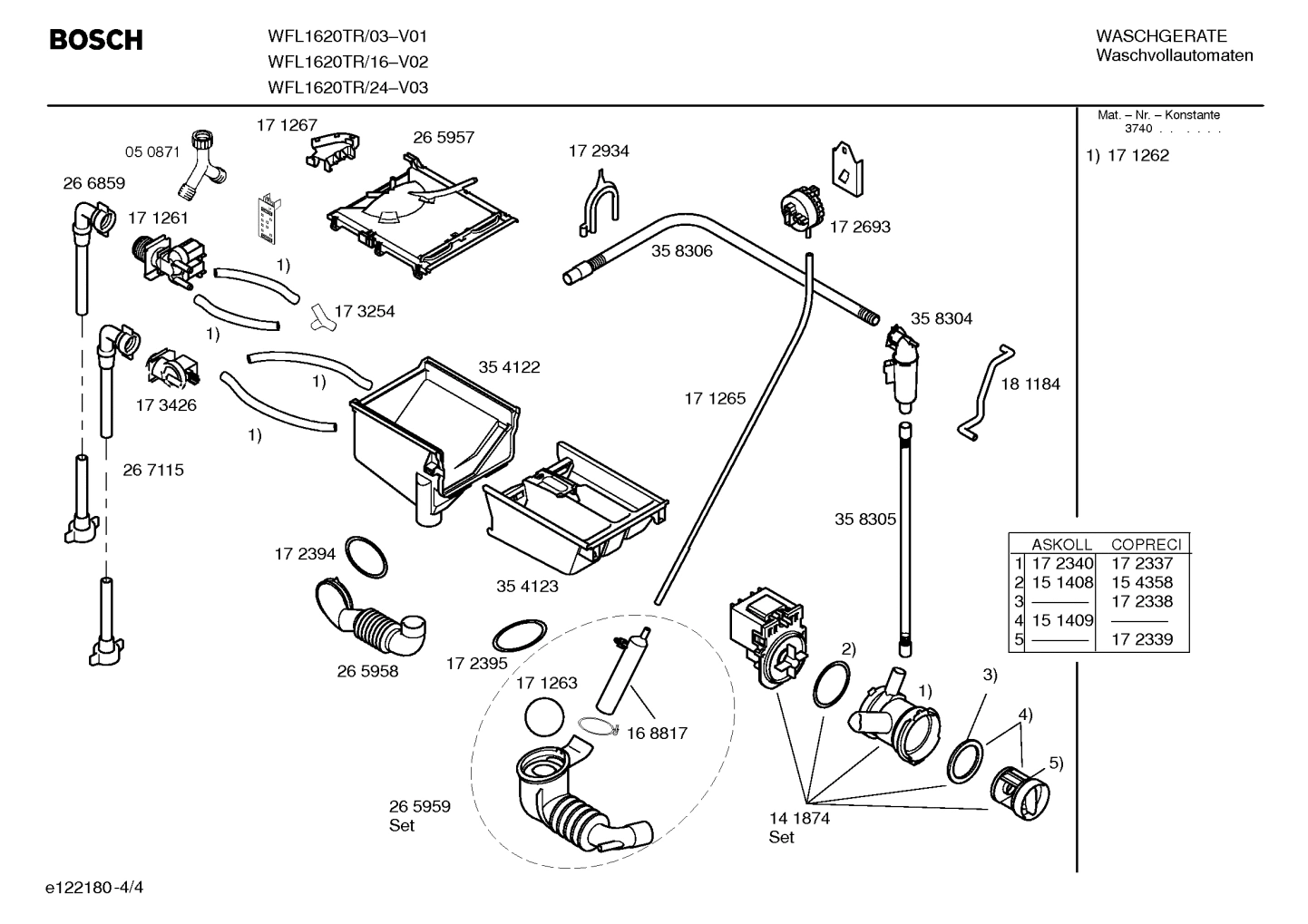

Bosch WFL1620TR/03 Washer Parts List

0101

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 $55.61

View on Model

0206

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $59.73

View on Model

0211

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $35.54

View on Model

0212

00715042 Bosch Laundry Ring Backorder BOS 00715042 $45.31

View on Model

0213

11020392 Bosch Laundry Window Backorder BOS 11020392 $53.55

View on Model

0215

00266751 Bosch Laundry Handle Backorder BOS 00266751 $143.69

View on Model

0216

00171255 Bosch Laundry Axis Backorder BOS 00171255 $15.44

View on Model

0217

00634207 Bosch Washer Latch In Stock BOS 00634207 $58.70

View on Model

0218

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $15.46

View on Model

0219

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $18.55

View on Model

0220

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $222.47

View on Model

0300

00171270 Bosch Screw Backorder BOS 00171270 $4.11

View on Model

0301

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $61.29

View on Model

0302

00678914 Bosch Laundry Drive Belt Backorder BOS 00678914 $54.58

View on Model

0303

00172685 Bosch Laundry Bearing Set Backorder BOS 00172685 $66.44

View on Model

0304

00613083 Bosch Laundry Seal Shaft Backorder BOS 00613083 $20.59

View on Model

0305

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.11

View on Model

0306

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0310

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 $75.73

View on Model

0311

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.64

View on Model

0313

Holder BOS 00171273 Contact Us For Availability

View on Model

0315

00170961 Bosch Laundry NTC Sensor Backorder BOS 00170961 $20.09

View on Model

0317

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.79

View on Model

0318

00354135 Bosch Washer Boot Gasket In Stock BOS 00354135 $105.55

View on Model

0319

00265965 Bosch Laundry Band Backorder BOS 00265965 $42.22

View on Model

0321

00715100 Bosch Laundry Tub Backorder BOS 00715100 $289.95

View on Model

0325

00606818 Bosch Laundry Tank Spring Backorder BOS 00606818 $11.32

View on Model

0402

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $33.48

View on Model

0404

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

View on Model

0405

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $25.24

View on Model

0406

00703270 Bosch Laundry Dispenser Tray Backorder BOS 00703270 $218.35

View on Model

0407

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41

View on Model

0408

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

View on Model

0410

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0419

Window BOS 00355529 Contact Us For Availability

View on Model

0421

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0422

00600925 Bosch Laundry Water Level Regulator Backorder BOS 00600925 $109.70

View on Model

0425

11035255 Bosch Laundry Dispenser Case Backorder BOS 11035255 $54.08

View on Model

0431

Connection piece BOS 00173254 Contact Us For Availability

View on Model

0453

00215117 Bosch Laundry Drum Backorder BOS 00215117 $303.34

View on Model

0459

Drain Hose BOS 00358306 Contact Us For Availability

View on Model

0460

00358305 Bosch Laundry Hose In Stock BOS 00358305 $23.18

View on Model

0461

00358304 Bosch Laundry Return Container Backorder BOS 00358304 $69.00

View on Model
