Model Bosch WFK6000/04 Washer – Common Parts & Diagrams

Common parts from model Bosch WFK6000/04 Washer

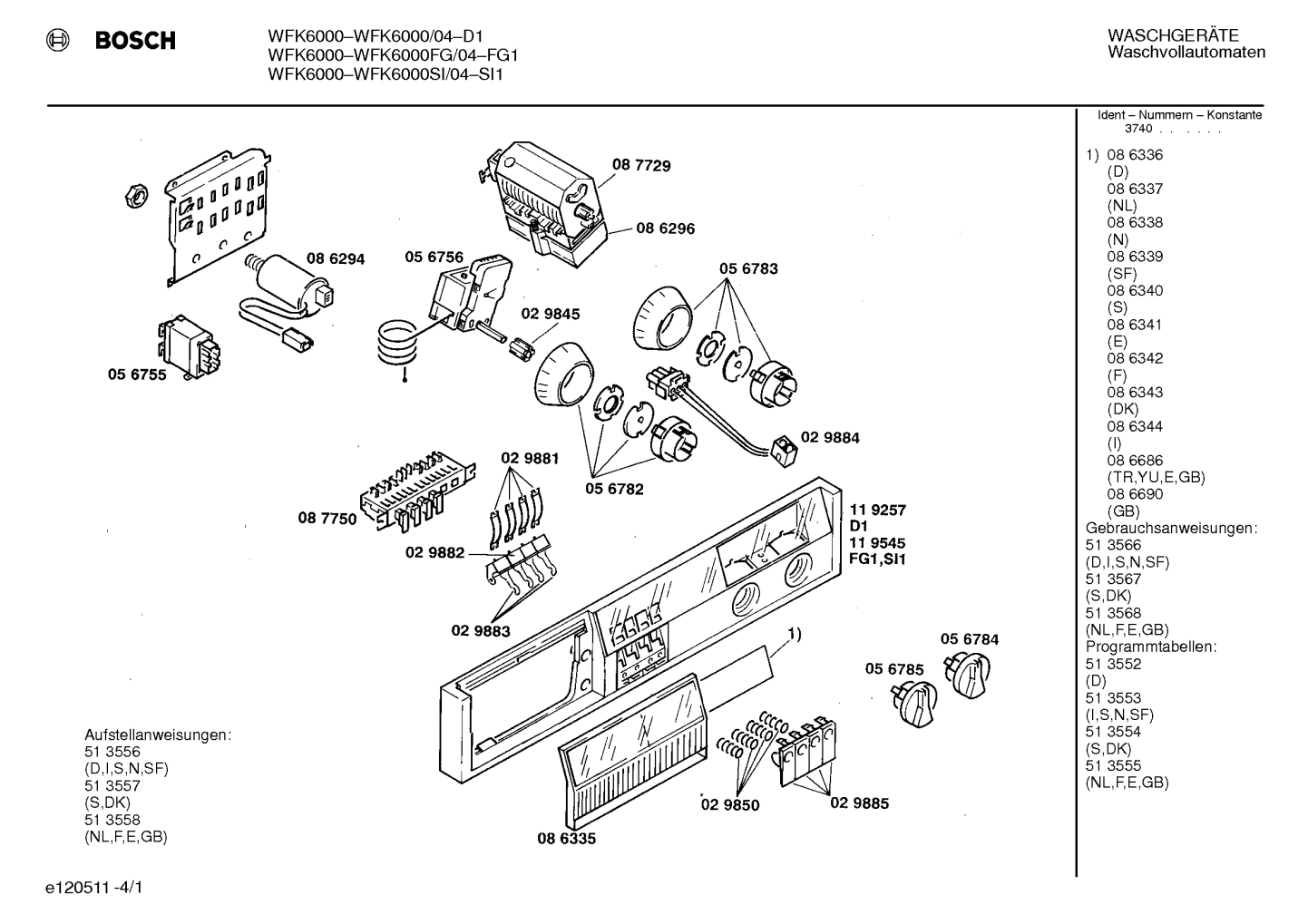

Diagram 1

Print

• This Diagram
• All Diagrams

0040

00606923 Bosch Laundry Holder Backorder BOS 00606923 View Details $6.17

View on Model

0050

00040302 Bosch Laundry Foot Backorder BOS 00040302 View Details $12.35

View on Model

0052

Electric lock BOS 00056762 Contact Us For Availability

View on Model

0058

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 View Details $20.09

View on Model

0060

Window BOS 00118919 Contact Us For Availability

View on Model

0071

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0077

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 View Details $35.01

View on Model

0078

00056765 Bosch Laundry Spring Backorder BOS 00056765 View Details $25.74

View on Model

0079

00056766 Bosch Laundry Shaft Seal Backorder BOS 00056766 View Details $49.96

View on Model

0082

00086309 Bosch Laundry Bearing Set Backorder BOS 00086309 View Details $154.49

View on Model

0086

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 View Details $83.42

View on Model

0087

Pulley BOS 00118921 Contact Us For Availability

View on Model

0088

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 View Details $40.16

View on Model

0093

Motor BOS 00140522 Contact Us For Availability

View on Model

0108

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $14.41

View on Model

0110

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0114

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $13.38

View on Model

0116

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $15.97

View on Model

0123

Latch BOS 00113221 Contact Us For Availability

View on Model

0124

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 View Details $46.34

View on Model

×
