Model Bosch WFK5610FG/08 Washer – Common Parts & Diagrams

Common parts from model Bosch WFK5610FG/08 Washer

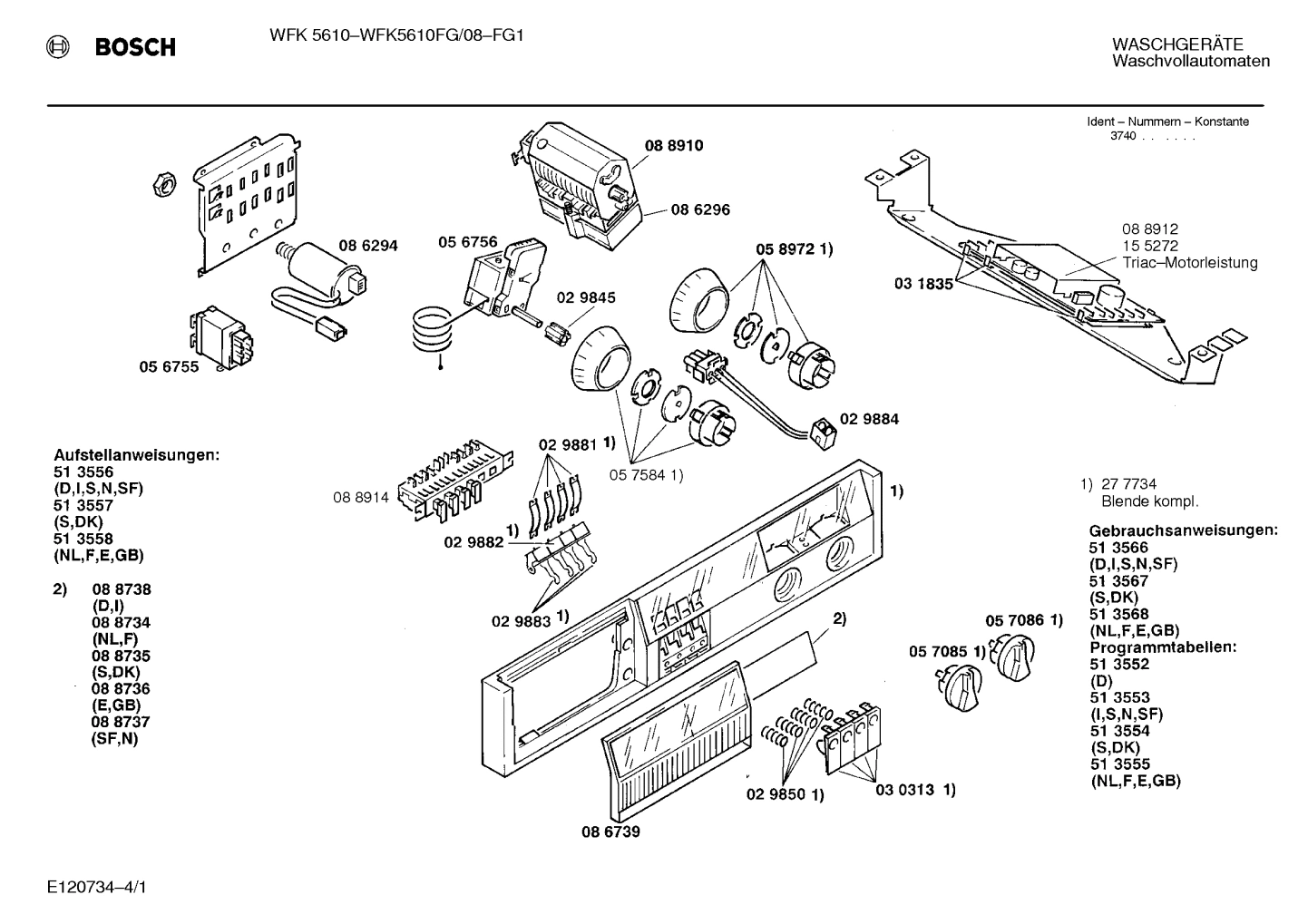

Diagram 1

Print

• This Diagram
• All Diagrams

0040

00606923 Bosch Laundry Holder Backorder BOS 00606923 View Details $6.17

View on Model

0056

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 View Details $59.73

View on Model

0059

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 View Details $20.09

View on Model

0073

Spring guide BOS 00029863 Contact Us For Availability

View on Model

0079

00171270 Bosch Screw Backorder BOS 00171270 View Details $4.11

View on Model

0082

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 View Details $35.01

View on Model

0083

00056765 Bosch Laundry Spring Backorder BOS 00056765 View Details $25.74

View on Model

0087

00059320 Bosch Laundry Holder Backorder BOS 00059320 View Details $12.35

View on Model

0092

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 View Details $83.42

View on Model

0093

Pulley BOS 00118921 Contact Us For Availability

View on Model

0094

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 View Details $40.16

View on Model

0104

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 View Details $40.16

View on Model

0108

00027696 Bosch Laundry Stud Backorder BOS 00027696 View Details $13.38

View on Model

0109

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 View Details $15.97

View on Model

0116

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $14.41

View on Model

0118

Sealing BOS 00051840 Contact Us For Availability

View on Model

0120

Hose connection inlet BOS 00056769 Contact Us For Availability

View on Model

0124

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $13.38

View on Model

0126

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $15.97

View on Model

0135

Latch BOS 00113221 Contact Us For Availability

View on Model

0136

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 View Details $46.34

View on Model

0146

00272654 Bosch Laundry Hose Backorder BOS 00272654 View Details $78.80

View on Model

×
