Bosch WFF2000/01

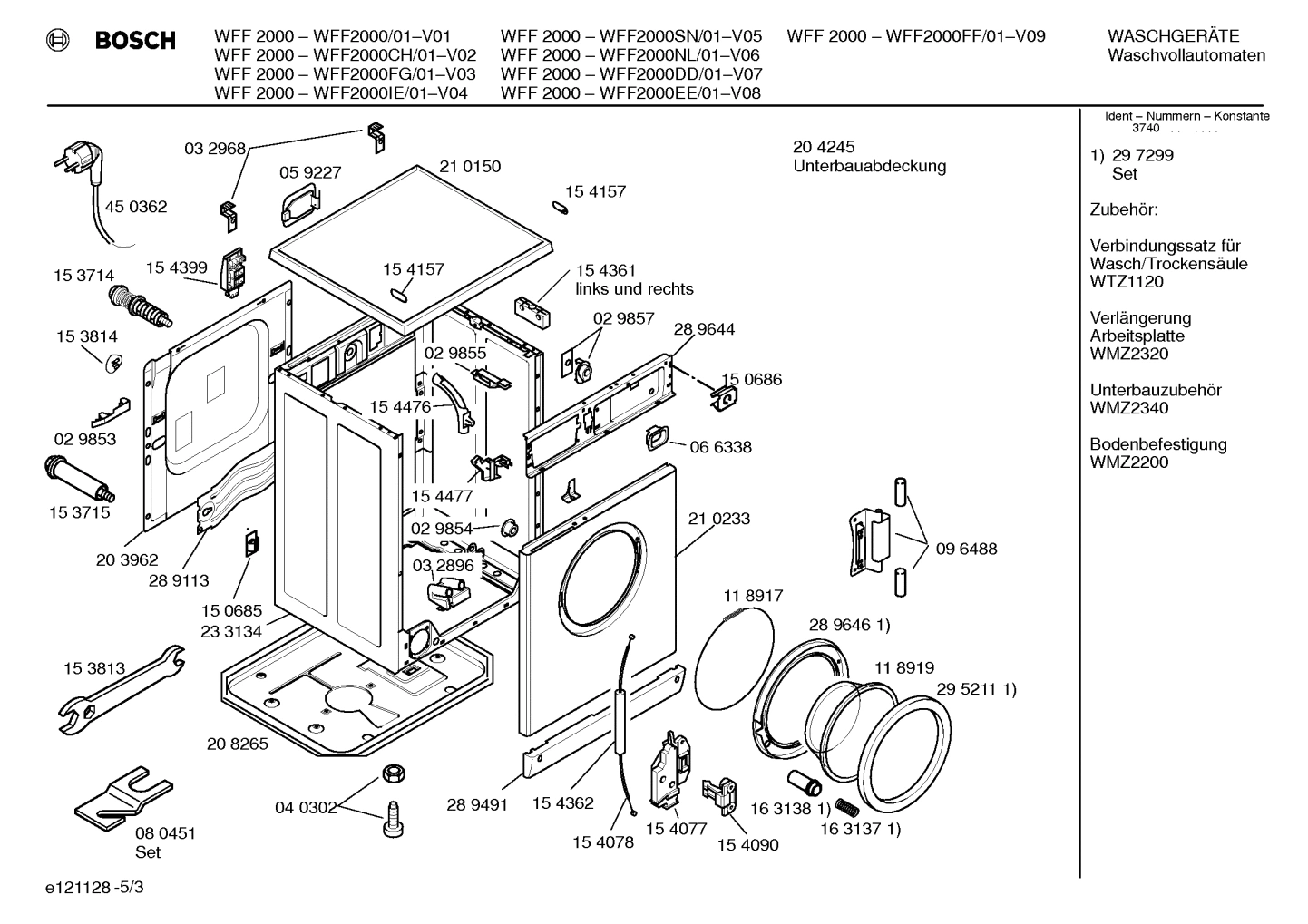

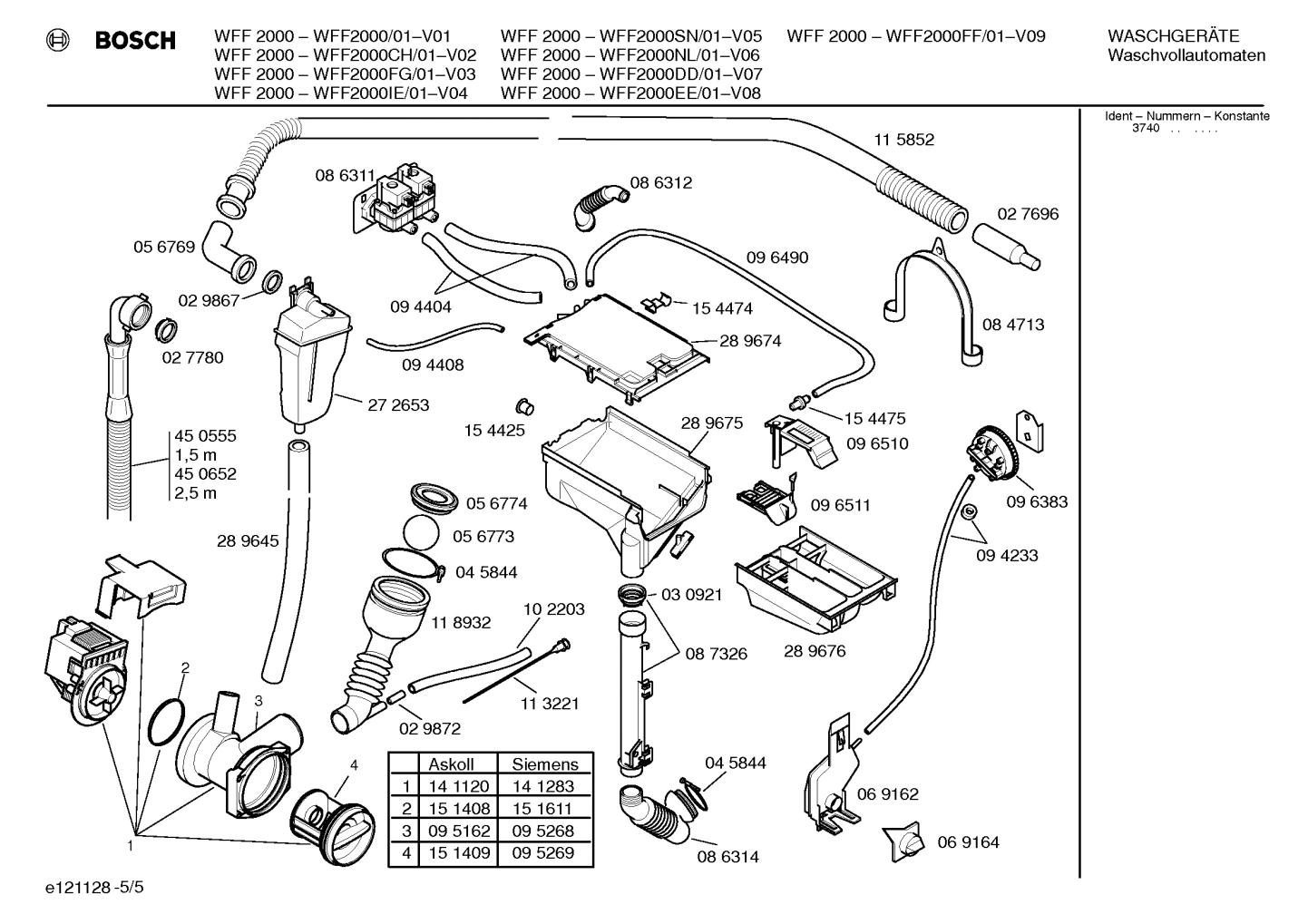

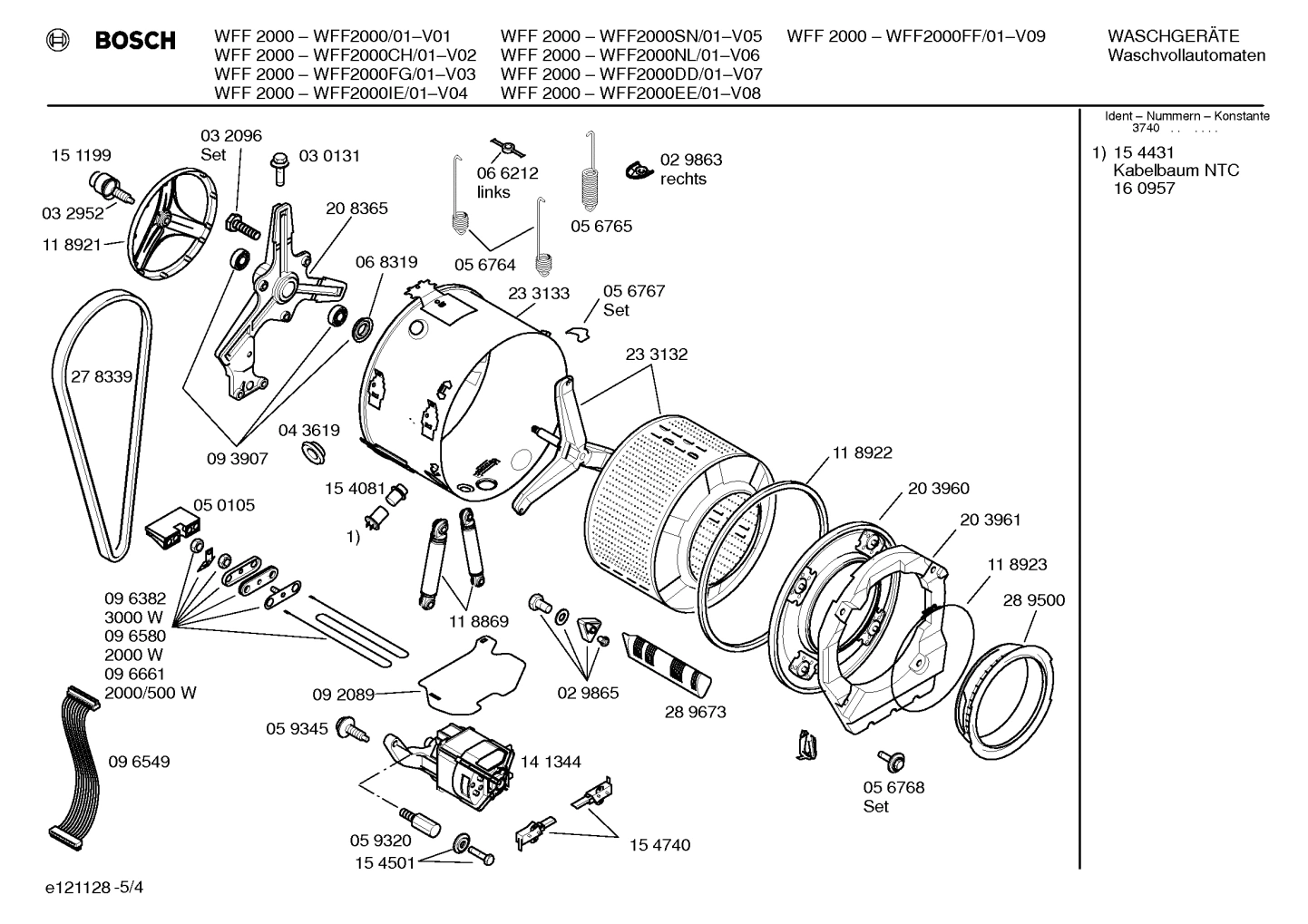

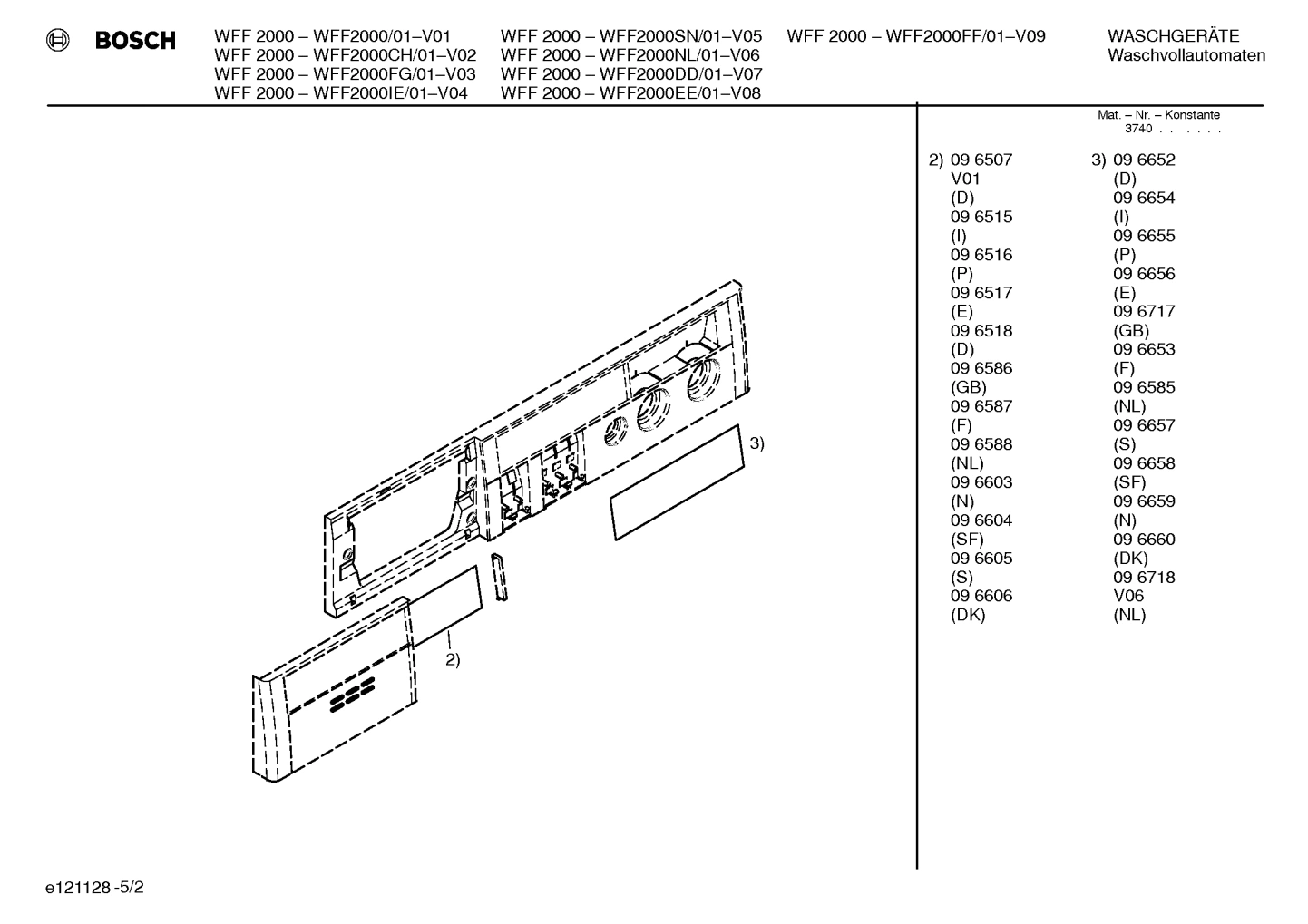

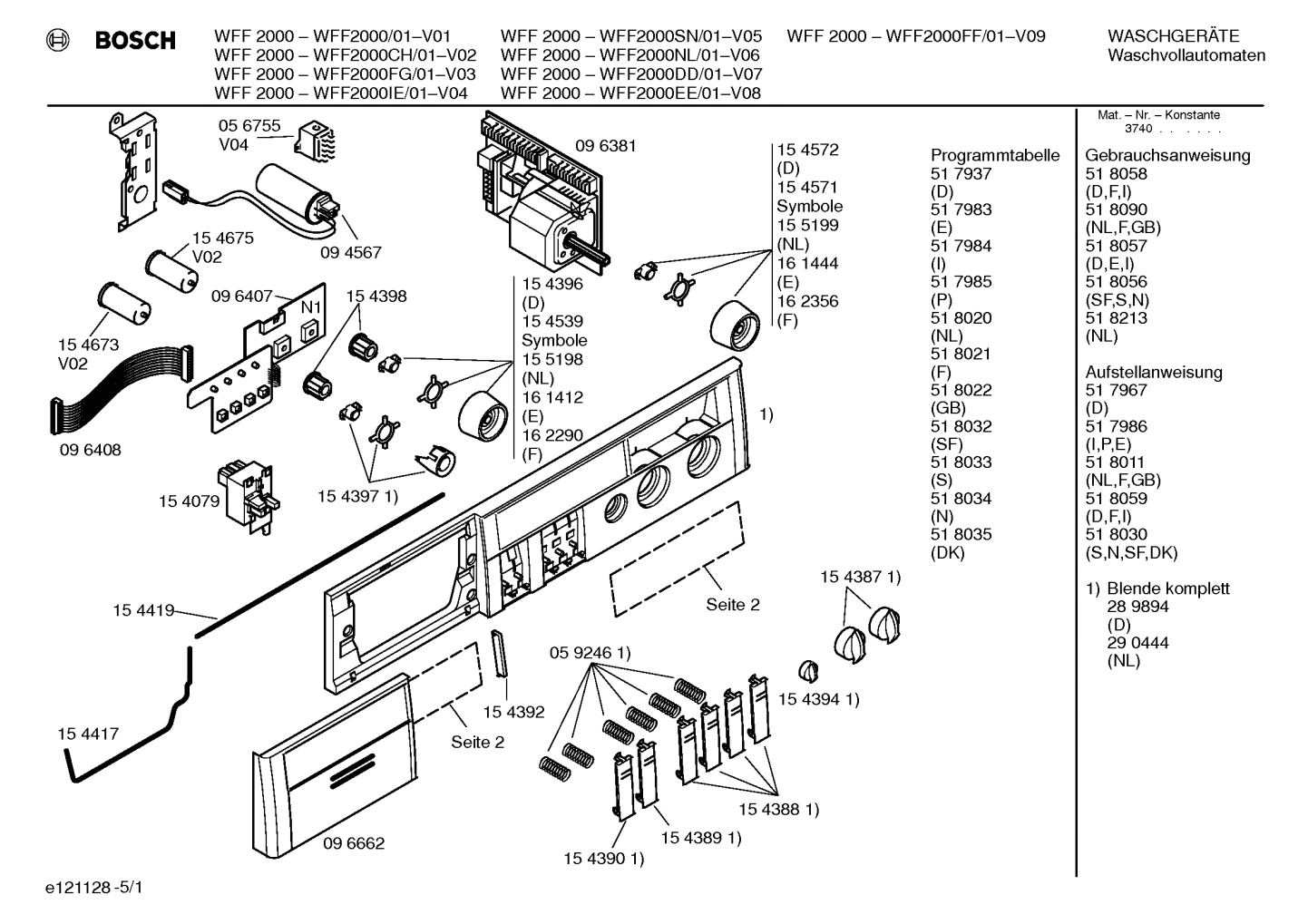

Model Bosch WFF2000/01 Washer – Common Parts & Diagrams

Common parts from model Bosch WFF2000/01 Washer

00153813 Bosch Laundry Auxiliary Tool

00153813 Bosch Laundry Auxiliary Tool Backorder BOS 00153813 $9.26

00493529 Bosch Laundry Fixing Kit

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $58.70

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $6.17

00118917 Bosch Laundry Lock Clamp

00118917 Bosch Laundry Lock Clamp Backorder BOS 00118917 $19.56

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $4.11

Shaft seal

Shaft seal BOS 00068319 Contact Us For Availability

00278339 Bosch Washer Drive Belt

00278339 Bosch Washer Drive Belt Backorder BOS 00278339 $39.13

00056764 Bosch Laundry Spring Tank

00056764 Bosch Laundry Spring Tank Backorder BOS 00056764 $33.98

00066212 Bosch Laundry Guide Spring

00066212 Bosch Laundry Guide Spring Backorder BOS 00066212 $17.50

00056765 Bosch Laundry Spring

00056765 Bosch Laundry Spring Backorder BOS 00056765 $24.71

Spring guide

Spring guide BOS 00029863 Contact Us For Availability

00118869 Bosch Laundry Shock Absorber

00118869 Bosch Laundry Shock Absorber Backorder BOS 00118869 $80.33

Motor

Motor BOS 00141344 Contact Us For Availability

00059320 Bosch Laundry Holder

00059320 Bosch Laundry Holder Backorder BOS 00059320 $12.35

SCREW

SCREW Backorder BOS 00059345 $8.23

00289673 Bosch Laundry Agitator Paddle

00289673 Bosch Laundry Agitator Paddle Backorder BOS 00289673 $9.26

00118922 Bosch Laundry Sealing Assembly

00118922 Bosch Laundry Sealing Assembly Backorder BOS 00118922 $39.13

00289500 Bosch Laundry Boot Gasket

00289500 Bosch Laundry Boot Gasket Backorder BOS 00289500 $79.30

00027780 Bosch Laundry Inlet Water Filter

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $15.44

Hose connection inlet

Hose connection inlet BOS 00056769 Contact Us For Availability

00432060 Bosch Laundry Outlet Hose

00432060 Bosch Laundry Outlet Hose Backorder BOS 00432060 $45.31

00027696 Bosch Laundry Stud

00027696 Bosch Laundry Stud Backorder BOS 00027696 $13.38

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $15.44

00272654 Bosch Laundry Hose

00272654 Bosch Laundry Hose Backorder BOS 00272654 $76.21

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41
