Model Bosch WFC1262BY/05 Washer – Common Parts & Diagrams

Common parts from model Bosch WFC1262BY/05 Washer

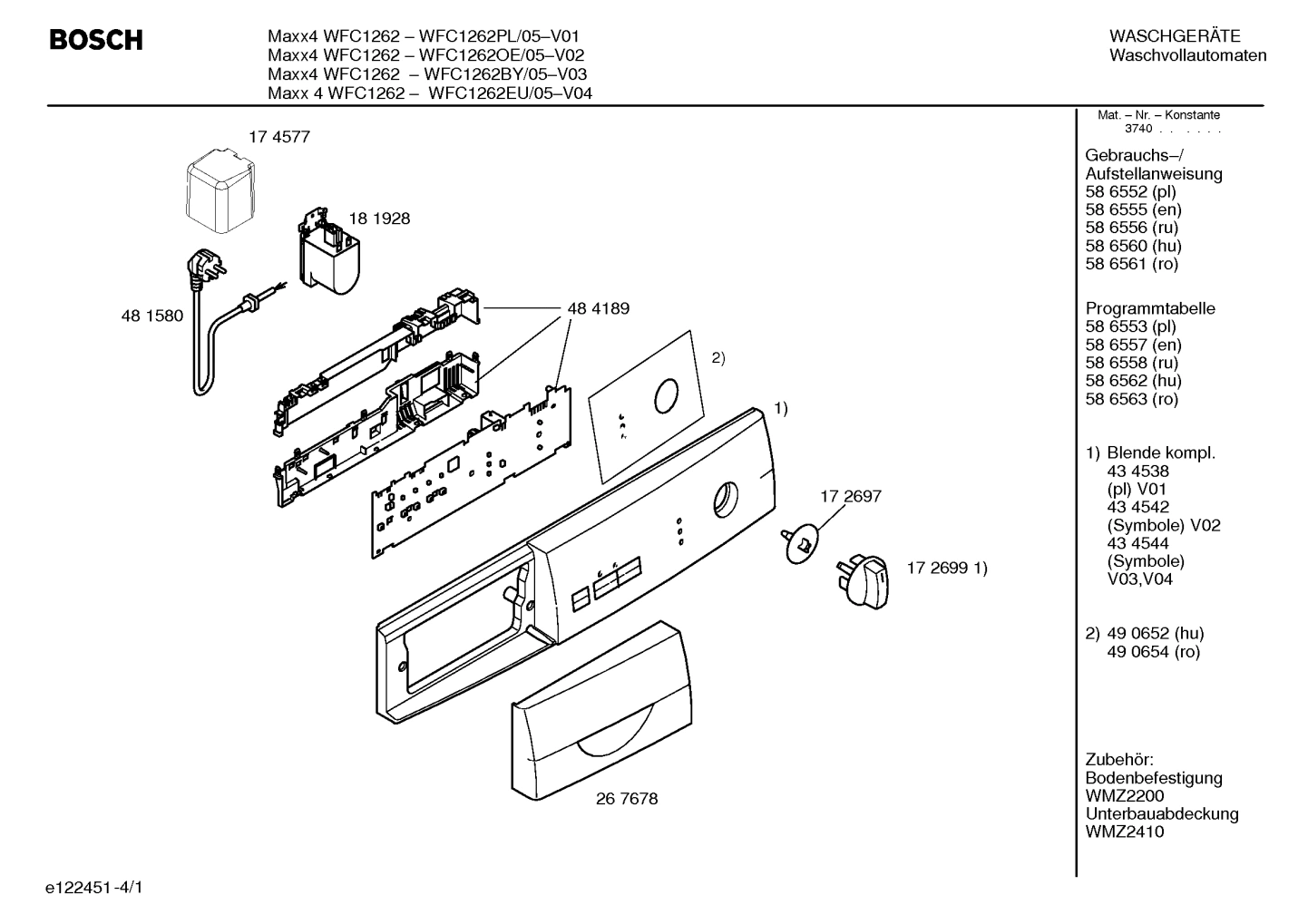

Diagram 1

Print

• This Diagram
• All Diagrams

0007

00623842 Bosch Laundry Suppression Capacitor Backorder BOS 00623842 View Details $55.61

View on Model

0204

00175724 Bosch Washer Spacer In Stock BOS 00175724 View Details $13.40

View on Model

0206

00416875 Bosch Auxiliary Tool Backorder BOS 00416875 View Details $3.08

View on Model

0210

00606923 Bosch Laundry Holder Backorder BOS 00606923 View Details $6.17

View on Model

0211

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 View Details $35.54

View on Model

0212

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 View Details $15.46

View on Model

0213

00432073 Bosch Laundry Ring Backorder BOS 00432073 View Details $45.31

View on Model

0216

00171255 Bosch Laundry Axis Backorder BOS 00171255 View Details $15.44

View on Model

0217

00266751 Bosch Laundry Handle Backorder BOS 00266751 View Details $143.69

View on Model

0218

00634207 Bosch Washer Latch In Stock BOS 00634207 View Details $58.70

View on Model

0219

00171264 Bosch Laundry Bushing In Stock BOS 00171264 View Details $18.55

View on Model

0220

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 View Details $222.47

View on Model

0300

00171270 Bosch Screw Backorder BOS 00171270 View Details $4.11

View on Model

0302

00678914 Bosch Laundry Drive Belt Backorder BOS 00678914 View Details $54.58

View on Model

0303

00174248 Bosch Laundry Bearing Set Backorder BOS 00174248 View Details $116.91

View on Model

0305

10007126 Bosch Laundry Screw Backorder BOS 10007126 View Details $4.11

View on Model

0306

00171272 Bosch Laundry Fixture Backorder BOS 00171272 View Details $7.20

View on Model

0308

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 View Details $75.73

View on Model

0309

00168798 Bosch Laundry Holder Backorder BOS 00168798 View Details $4.64

View on Model

0312

Holder BOS 00171273 Contact Us For Availability

View on Model

0314

00170961 Bosch Laundry NTC Sensor Backorder BOS 00170961 View Details $20.09

View on Model

0315

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 View Details $9.79

View on Model

0316

00354135 Bosch Washer Boot Gasket In Stock BOS 00354135 View Details $105.55

View on Model

0317

00265965 Bosch Laundry Band Backorder BOS 00265965 View Details $42.22

View on Model

0401

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 View Details $15.97

View on Model

0404

00655300 Bosch Laundry Holder Backorder BOS 00655300 View Details $15.97

View on Model

0405

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 View Details $7.20

View on Model

0408

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 View Details $13.38

View on Model

0409

00603523 Bosch Fastening Ring Backorder BOS 00603523 View Details $14.41

View on Model

0410

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0416

Drain Hose BOS 00358306 Contact Us For Availability

View on Model

0417

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0419

00358304 Bosch Laundry Return Container Backorder BOS 00358304 View Details $69.00

View on Model

×
