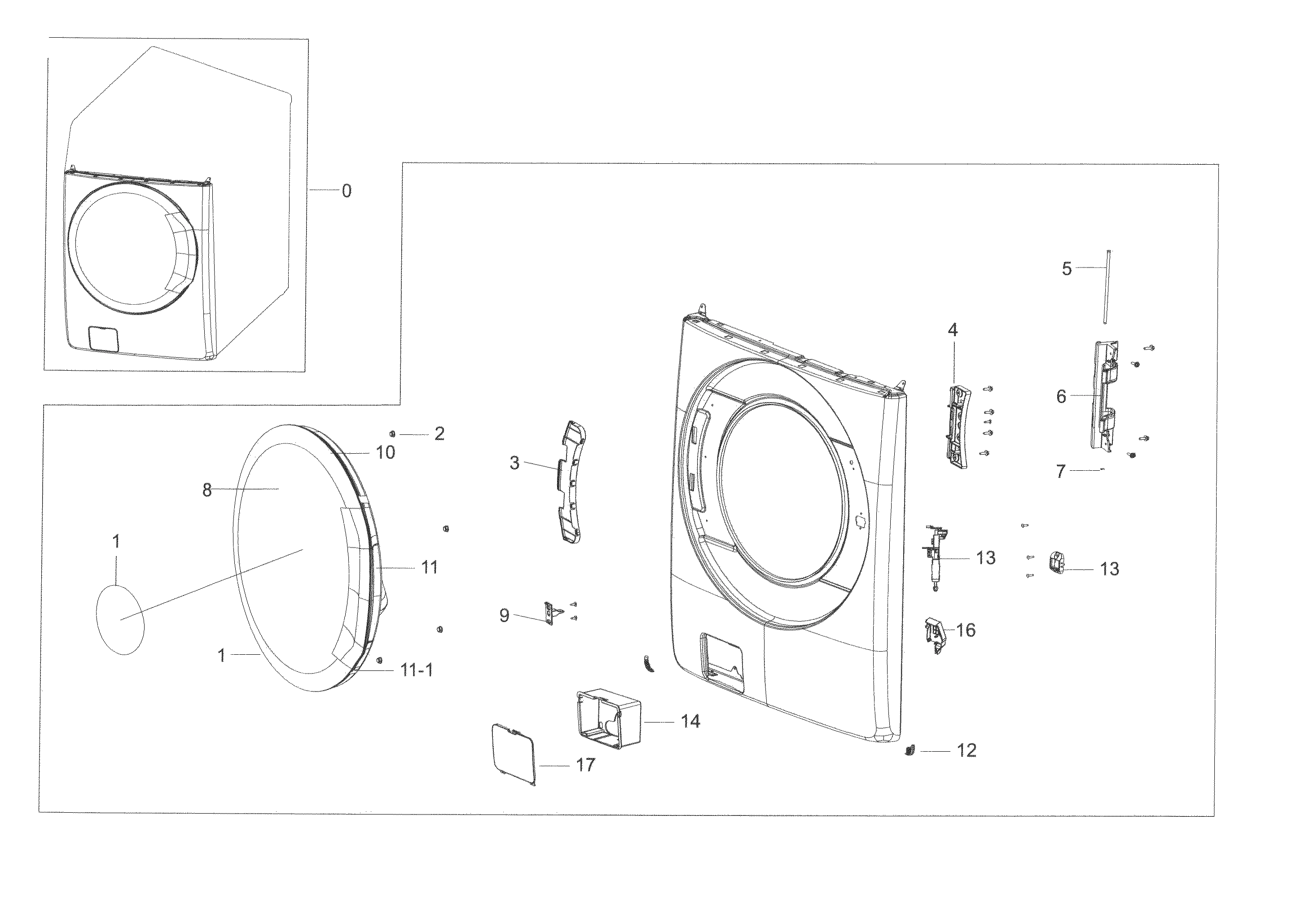

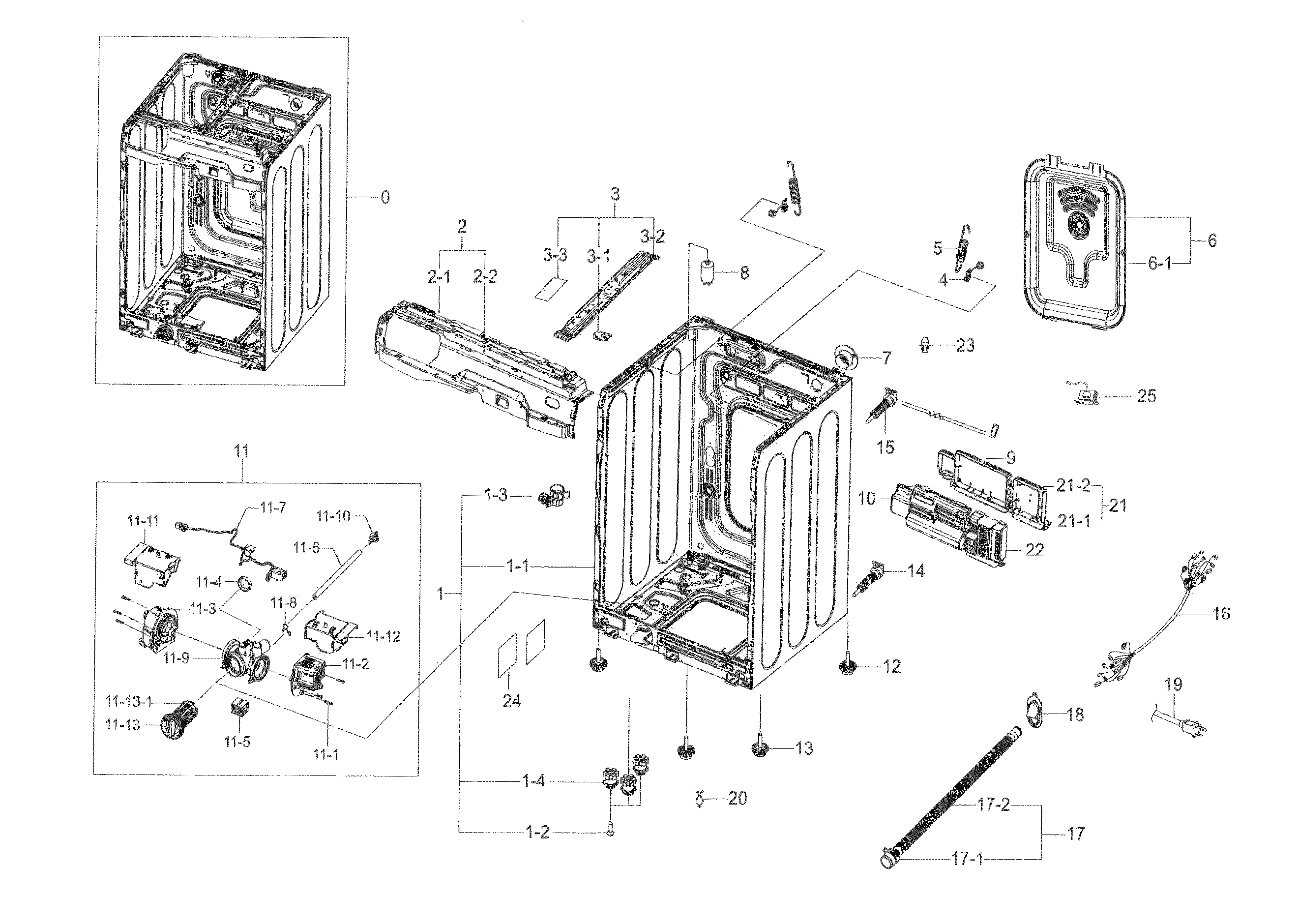

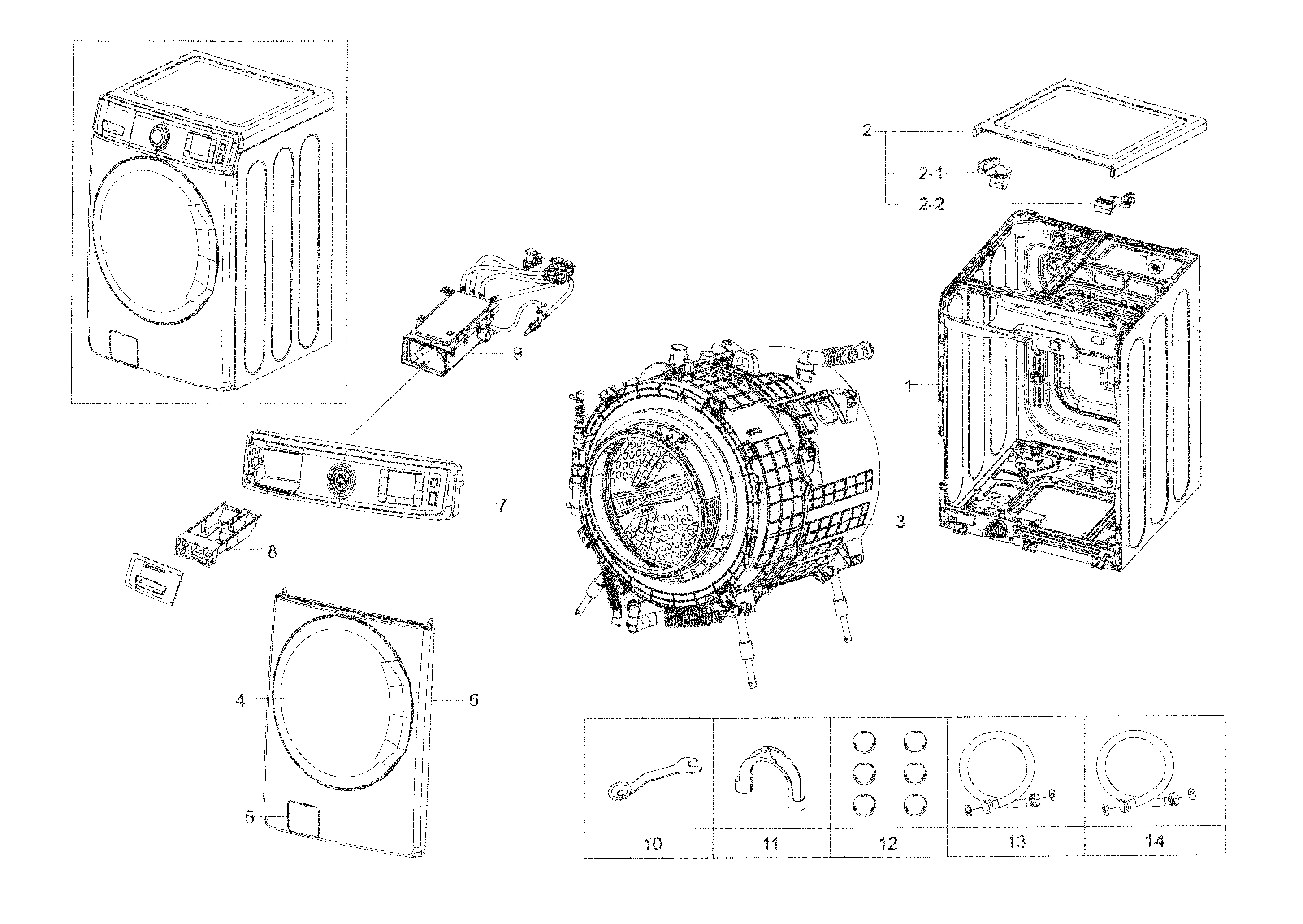

Model Samsung WF56H9110CW/A2-01 Washer – Common Parts &amp; Diagrams

1

DC62-00214M Samsung Washer Water Inlet Valve In Stock SMG DC62-00214M $188.71

1

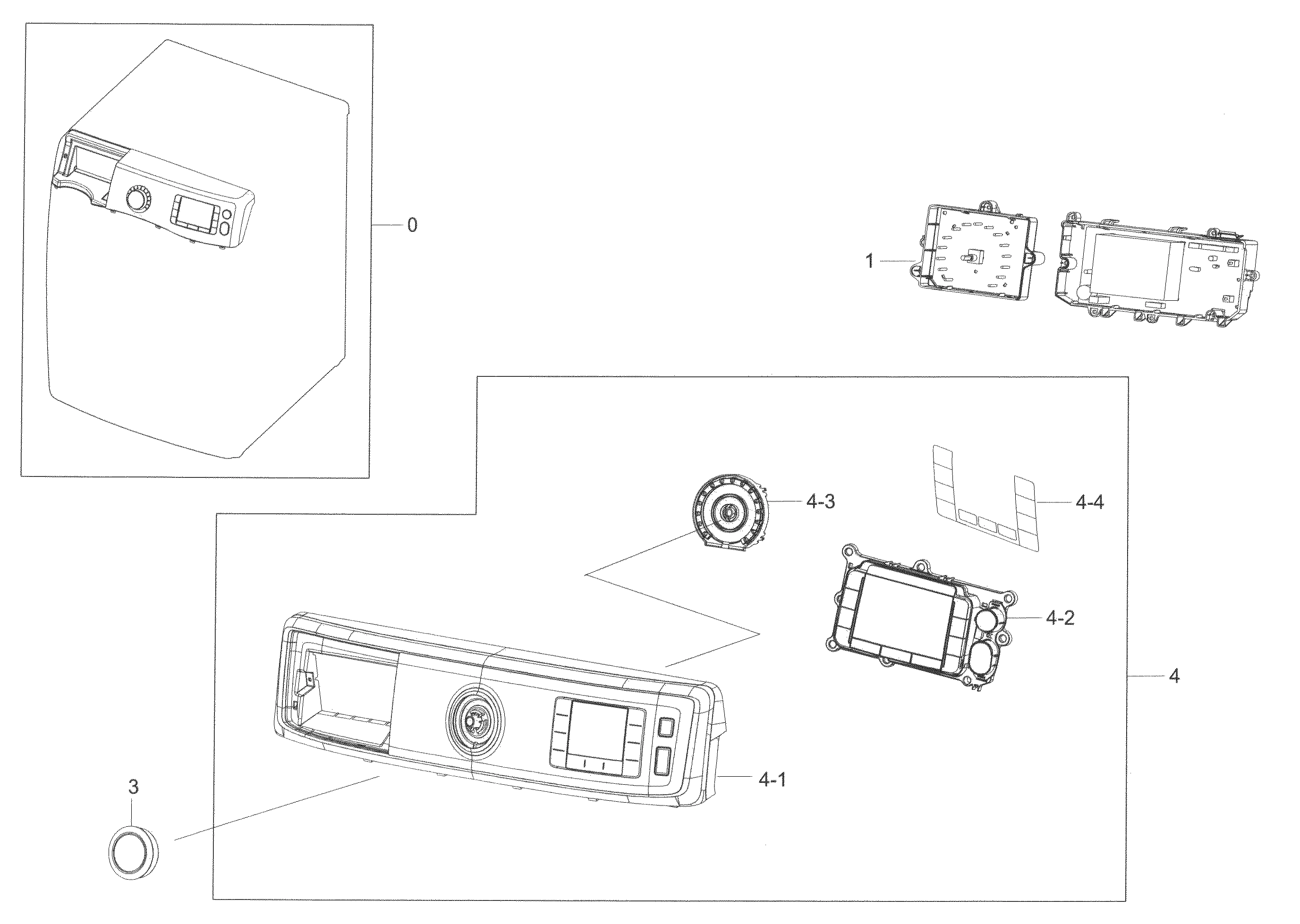

DC92-01646A Samsung Washer Printed Circuit Bo In Stock SMG DC92-01646A $296.22

1-2

6011-001565 Samsung Hex Bolt Backorder SMG 6011-001565 $6.46

1-4

DC99-00815A Samsung Washer Pump Cushion Assem In Stock SMG DC99-00815A $10.95

2

DC62-30314K Samsung Washer Hot Water Inlet Fi In Stock SMG DC62-30314K $92.17

2

Washer fabric softener dispenser cup SMG DC67-00793A Contact Us For Availability

2-1

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $22.89

3

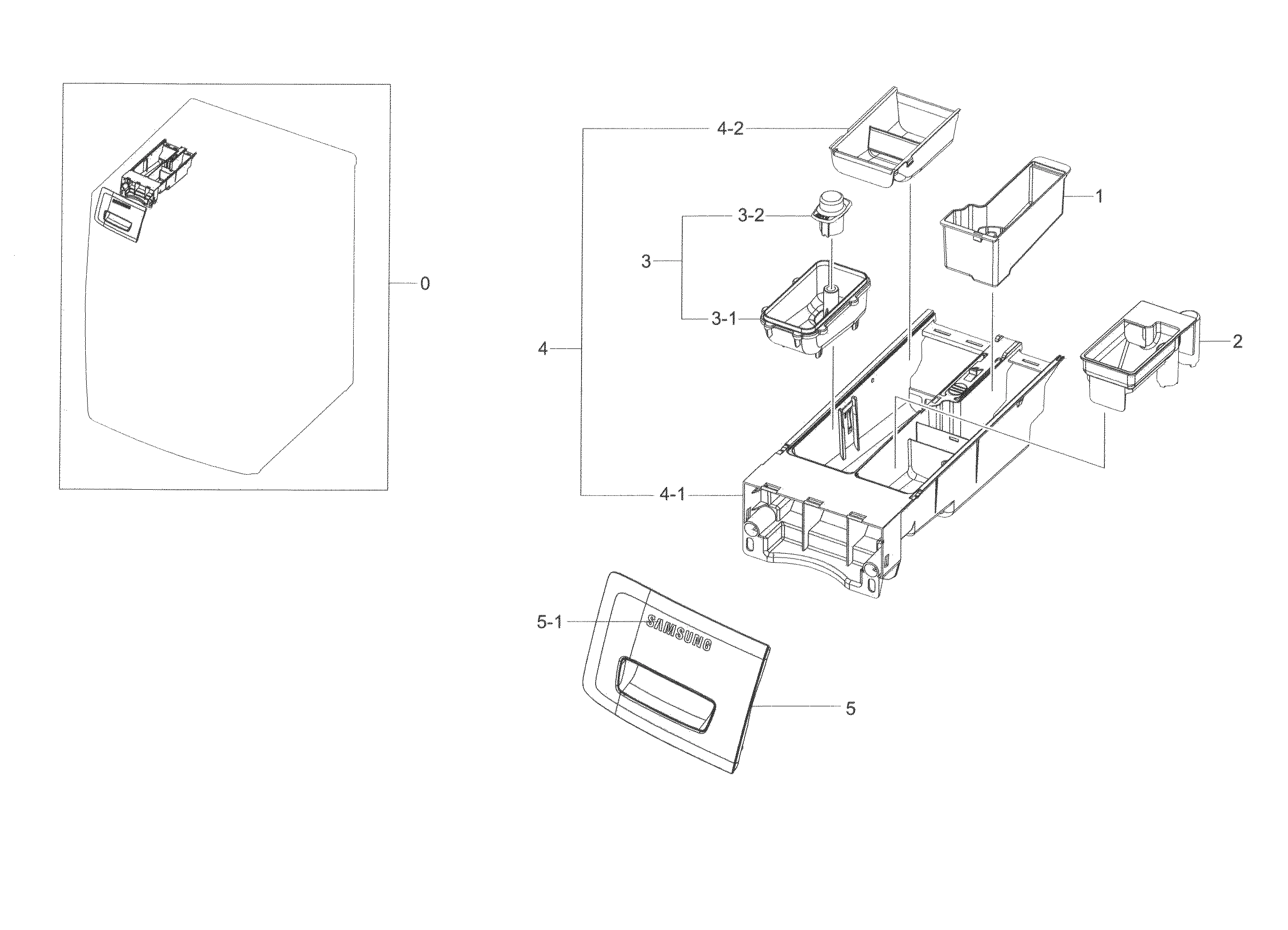

DC97-17022B Samsung Washer Detergent Dispense In Stock SMG DC97-17022B $16.43

3-1

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $80.84

3-1

DC61-02427D Samsung Washer Liquid Soap Tray In Stock SMG DC61-02427D $15.42

3-2

DC31-00124A Samsung Washer BLDC Motor Stator In Stock SMG DC31-00124A $296.71

3-2

DC67-00444A Samsung Washer Max Fill Cap Assem In Stock SMG DC67-00444A $3.48

3-3

DC31-00125D Samsung Motor Rotor Brushless Dir Backorder SMG DC31-00125D $200.16

4

DC47-00006P Samsung Washer Heater In Stock SMG DC47-00006P $176.81

4

DC61-02432A Samsung Guide Spring Assembly Backorder SMG DC61-02432A $2.98

4-1

DC61-03915A Samsung Body Drawer Assembly Backorder SMG DC61-03915A $68.62

4-1

DC63-00820A Samsung Cover Heater WF337AAW PC+ Backorder SMG DC63-00820A $10.46

4-2

DC47-00006Y Samsung Heater Wash Backorder SMG DC47-00006Y $133.83

4-2

DC61-02445A Samsung Pre-Wash Case Assembly Backorder SMG DC61-02445A $13.94

5

DC67-00467A Samsung Tub Hose In Stock SMG DC67-00467A $57.92

5

DC96-01703G Samsung Washer Water Level Pressu In Stock SMG DC96-01703G $73.09

6

DC97-02412A Samsung Washer Bolt Assembly Backorder SMG DC97-02412A $13.44

6

DC97-18200A Samsung Hinge Assembly Backorder SMG DC97-18200A $268.18

7

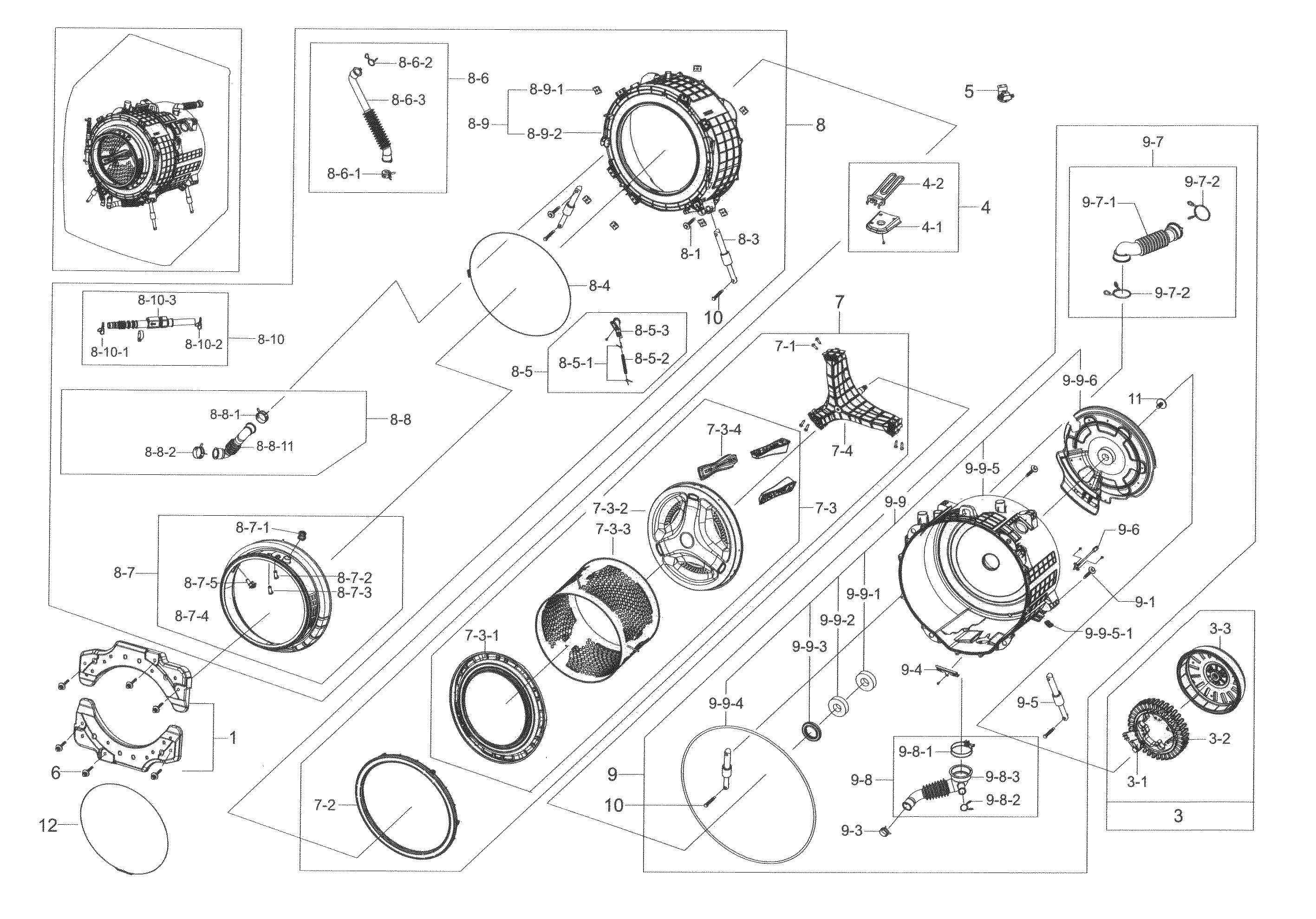

DC97-18235A Samsung Drum Assembly Backorder SMG DC97-18235A $540.50

7-1

DC60-40137A Samsung Washer Hex Bolt Spider In Stock SMG DC60-40137A $5.97

8

DC29-00015G Samsung Washer Noise Emission Fil Backorder SMG DC29-00015G $94.24

8

DC67-00089Q Samsung Water Hose Backorder SMG DC67-00089Q $30.97

8

Tub SMG DC97-18934A Contact Us For Availability

8-4

DC97-14618H Samsung Assembly Diaphragm Clamp In Stock SMG DC97-14618H $23.38

8-5

DC97-14545L Samsung Pressure Hose Backorder SMG DC97-14545L $64.67

8-6

DC97-16106A Samsung Assembly Air Hose Backorder SMG DC97-16106A $61.52

8-7

Diagram SMG DC97-18238A Contact Us For Availability

8-8

DC97-17389A Samsung Washer Dispenser Hose Ass Backorder SMG DC97-17389A $44.25

8-9

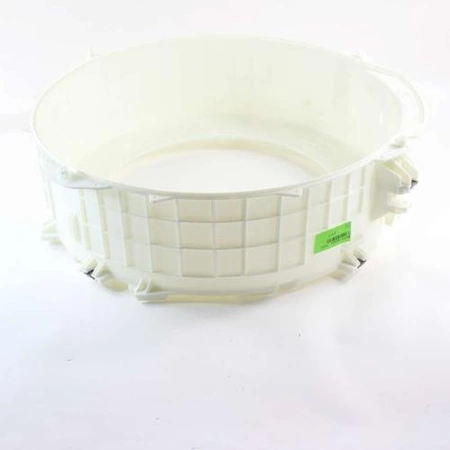

DC97-18249A Samsung Semi Tub Front Assembly Backorder SMG DC97-18249A $230.30

8-10

DC97-16810F Samsung Hose Assembly WF9100HA WF Backorder SMG DC97-16810F $152.70

8-51

DC61-70029C Samsung Clip Ring for SEW-HW125 H Backorder SMG DC61-70029C $1.18

8-52

Hose SMG DC67-00230G Contact Us For Availability

8-53

Hose joint SMG DC67-00492A Contact Us For Availability

8-61

DC61-00158A Samsung Hose Clamp Assembly Backorder SMG DC61-00158A $2.49

8-62

DC65-60118J Samsung Clip Ring Backorder SMG DC65-60118J $2.49

8-63

Air hose SMG DC67-00468A Contact Us For Availability

8-71

DC47-00027E Samsung Lamp Assembly Backorder SMG DC47-00027E $92.50

8-72

DC62-00330A Samsung Nozzle Diaphragm Assembly Backorder SMG DC62-00330A $5.48

8-73

DC62-00349A Samsung Nozzle Diaphragm Backorder SMG DC62-00349A $4.98

8-74

DC64-03067A Samsung Washer Door Diaphragm Ass In Stock SMG DC64-03067A $337.89

8-75

Nozzle SMG DC62-00229B Contact Us For Availability

8-81

DC61-00219F Samsung Clamper Hose Backorder SMG DC61-00219F $5.48

8-82

DC61-00219H Samsung Hose Clamping Assembly Backorder SMG DC61-00219H $4.98

8-91

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $3.48

8-92

Tub SMG DC61-03771A Contact Us For Availability

9

DC61-02636E Samsung Drawer Low Housing Backorder SMG DC61-02636E $83.40

9

DC66-00375A Samsung Washer Door Lock Strike L Backorder SMG DC66-00375A $40.28

9

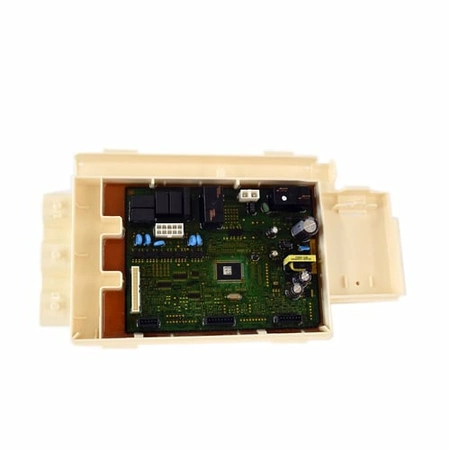

DC92-01803A Samsung PCB Main Assembly Backorder SMG DC92-01803A $268.79

9

Tub SMG DC97-18237A Contact Us For Availability

9-3

DC61-00219D Samsung Hose Clip Backorder SMG DC61-00219D $4.98

9-4

DC61-01482A Samsung Heater Bracket Assembly Backorder SMG DC61-01482A $5.48

9-6

DC32-00010C Samsung Washer Thermistor Backorder SMG DC32-00010C $32.31

9-7

DC97-16104A Samsung Washer Overflow Hose Asse Backorder SMG DC97-16104A $52.66

9-8

DC97-16105A Samsung Drain Hose Assembly Backorder SMG DC97-16105A $85.99

9-9

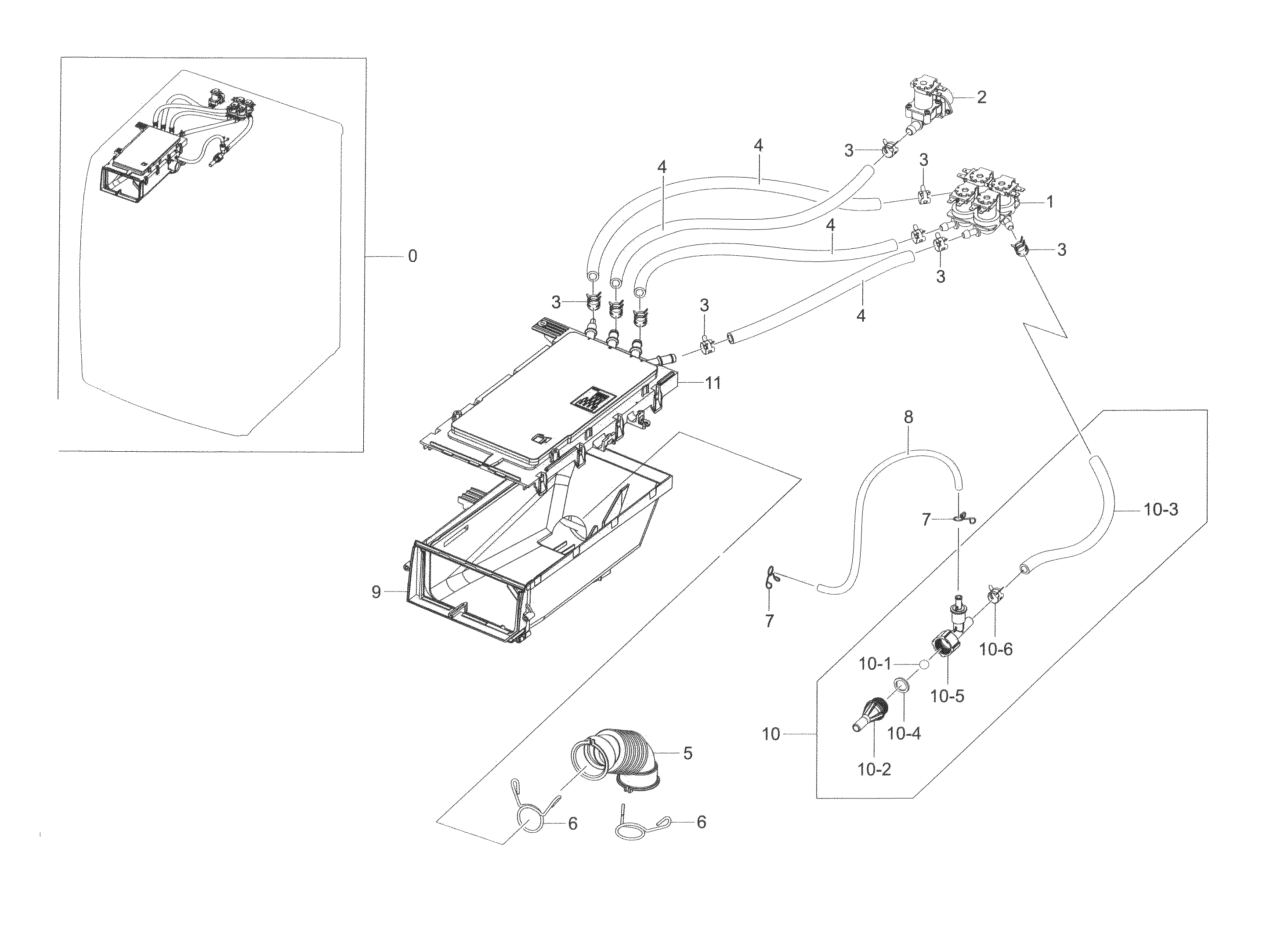

DC97-18247A Samsung Drawer Assembly Backorder SMG DC97-18247A $660.51

9-71

DC67-00466A Samsung Washer Exhaust Hose O.F. In Stock SMG DC67-00466A $63.87

9-72

DC72-00001F Samsung Heater Clip Ring Assembly Backorder SMG DC72-00001F $3.48

9-81

DC65-00014A Samsung Clamper Joint Hose Assemb Backorder SMG DC65-00014A $11.44

9-82

DC65-60125B Samsung Clip Ring Assembly Backorder SMG DC65-60125B $2.00

9-83

DC67-00465A Samsung Hose Filter Tub Backorder SMG DC67-00465A $103.99

9-91

6601-003008 Samsung Ball Bearing Backorder SMG 6601-003008 $73.84

9-92

6601-003009 Samsung Ball Bearing Backorder SMG 6601-003009 $58.75

9-93

DC62-00156A Samsung Washer Rear Tub Oil Seal In Stock SMG DC62-00156A $29.95

9-94

DC69-00804C Samsung Seal Tub Backorder SMG DC69-00804C $33.18

9-95

Tub SMG DC61-03772A Contact Us For Availability

9-96

DC61-03810A Samsung Tub Bracket Backorder SMG DC61-03810A $40.28

10

6011-001644 Samsung Bolt Hex In Stock SMG 6011-001644 $6.46

10

DC97-12578H Samsung Hose Assembly Backorder SMG DC97-12578H $67.05

10-1

DC62-00167A Samsung Washer Nozzle Ball Assemb In Stock SMG DC62-00167A $2.49

10-5

DC62-00310A Samsung Nozzle Connector In Stock SMG DC62-00310A $6.96

DC62-10278A Samsung Hose Hanger Assembly In Stock SMG DC62-10278A $5.97

DC97-06080C Samsung Washer Mercury PJT Bolt a Backorder SMG DC97-06080C $10.46

DC97-16141A Samsung Drawer Sub Housing Assemb Backorder SMG DC97-16141A $50.45

DC97-18202A Samsung Door Cover Assembly Backorder SMG DC97-18202A $425.96

11-2

DC31-00187A Samsung Washer AC Pump Motor Asse In Stock SMG DC31-00187A $207.53

11-3

DC31-00030J Samsung Washer Drain Pump Backorder SMG DC31-00030J $155.83

11-4

DC62-00299A Samsung Washer Check Valve In Stock SMG DC62-00299A $4.98

11-6

DC67-00244A Samsung Washer Drain Hose Assembl Backorder SMG DC67-00244A $8.46

11-7

DC93-00150C Samsung Pump Door Main Wire Harne Backorder SMG DC93-00150C $42.49

11-8

DD65-00001F Samsung Hose Clamper HSWR Backorder SMG DD65-00001F $1.50

11-9

DC61-02017D Samsung Pump Case Backorder SMG DC61-02017D $42.49

12

DC67-00307A Samsung Cap Fixer WF438AAC/XAA PP Backorder SMG DC67-00307A $1.18

12

DC97-00920S Samsung Washer Leg Leveling Assem Backorder SMG DC97-00920S $28.76

12

DC97-04973D Samsung Door Boot Bellows Spring Backorder SMG DC97-04973D $15.91

13

DC63-00960A Samsung Washer Switch Cover Assem In Stock SMG DC63-00960A $2.98

13

DC97-14293D Samsung Washer Leveling Leg Assem Backorder SMG DC97-14293D $27.42

14

DC61-02004D Samsung Filter Guide Cover 592-49 Backorder SMG DC61-02004D $29.35

14

DC97-14489A Samsung Bolt Backorder SMG DC97-14489A $28.32

15

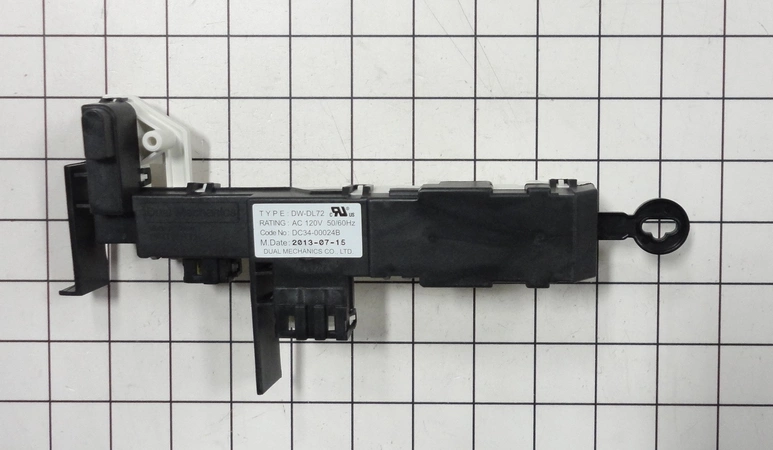

DC34-00024D Samsung Door Lock Switch In Stock SMG DC34-00024D $159.24

16

DC93-00583A Samsung Drum Main Assembly Wire H Backorder SMG DC93-00583A $265.10

17

DC97-17093A Samsung Assembly Washer Drain Hos Backorder SMG DC97-17093A $71.23

19

DC96-00757A Samsung Washer Power Cord Backorder SMG DC96-00757A $105.05

21

DC92-01531C Samsung Washer Inverter Board Kit In Stock SMG DC92-01531C $344.42

22

DC63-01571A Samsung Cover PBA Inverter Backorder SMG DC63-01571A $51.65

23

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $2.14

1110

DC61-10673A Samsung Washer Drain Cap Assembly Backorder SMG DC61-10673A $1.18

1111

DC63-01375A Samsung Cover Pump Assembly Backorder SMG DC63-01375A $15.42

1113

DC97-16991A Samsung Washer Drain Pump Filter In Stock SMG DC97-16991A $27.00

1131

DC63-00909A Samsung Washer Pump Filter Backorder SMG DC63-00909A $4.49

8101

DC61-00118A Samsung Cable Clamp Assembly Backorder SMG DC61-00118A $1.18

8102

DC61-03693A Samsung Spring Clip Assembly HSWR Backorder SMG DC61-03693A $2.49

8103

Hose SMG DC67-00790A Contact Us For Availability

8811

DC67-00645A Samsung Washer Air Tub Hose Backorder SMG DC67-00645A $29.21

9951

DC61-40348B Samsung Washer Nut Bracket Backorder SMG DC61-40348B $7.97

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.18

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $1.18

6009-001522 Samsung Washer Dryer Hex Screw M5 Backorder SMG 6009-001522 $3.48

DC60-00113A Samsung Hex Bolt Backorder SMG DC60-00113A $18.92

DC65-00008B Samsung Clamper Hose Assembly In Stock SMG DC65-00008B $3.97

DC66-00470A Samsung Washer Shock Absorber In Stock SMG DC66-00470A $67.16

DC67-00051F Samsung Washer Drawer Hose In Stock SMG DC67-00051F $37.62
