Samsung WF56H9100AW/A2-01 Washer Parts List

1

DC61-01995A Samsung Bleach Case Washer Backorder SMG DC61-01995A $8.10

View on Model

1

DC62-00214M Samsung Washer Water Inlet Valve In Stock SMG DC62-00214M $186.60

View on Model

1

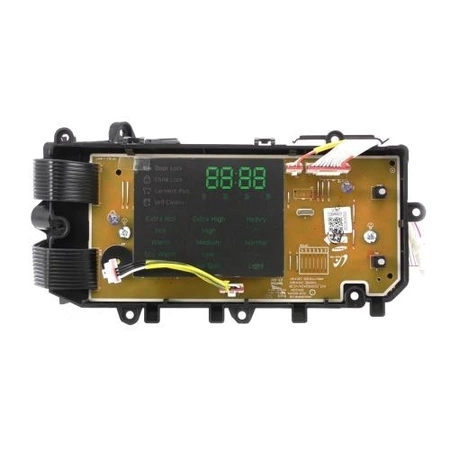

DC92-01646A Samsung Washer Printed Circuit Bo Backorder SMG DC92-01646A $323.18

View on Model

1-2

6011-001565 Samsung Hex Bolt Backorder SMG 6011-001565 $7.01

View on Model

1-4

DC99-00815A Samsung Washer Pump Cushion Assem Backorder SMG DC99-00815A $11.88

View on Model

2

DC62-30314K Samsung Washer Hot Water Inlet Fi In Stock SMG DC62-30314K $90.83

View on Model

2

Washer fabric softener dispenser cup SMG DC67-00793A Contact Us For Availability

View on Model

2-1

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $24.84

View on Model

3

DC97-17022B Samsung Washer Detergent Dispense In Stock SMG DC97-17022B $25.87

View on Model

3-1

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $81.03

View on Model

3-1

DC61-02427D Samsung Washer Liquid Soap Tray In Stock SMG DC61-02427D $16.75

View on Model

3-2

DC31-00124A Samsung Washer BLDC Motor Stator In Stock SMG DC31-00124A $291.68

View on Model

3-2

DC67-00444A Samsung Washer Max Fill Cap Assem In Stock SMG DC67-00444A $3.79

View on Model

3-3

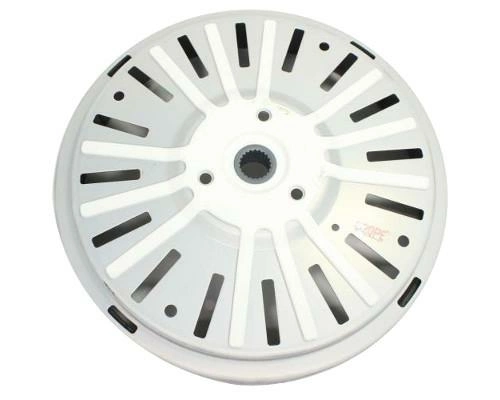

DC31-00125D Samsung Motor Rotor Brushless Dir Backorder SMG DC31-00125D $200.16

View on Model

4

DC47-00006P Samsung Washer Heater Backorder SMG DC47-00006P $192.81

View on Model

4

DC61-02432A Samsung Guide Spring Assembly Backorder SMG DC61-02432A $3.24

View on Model

4-1

DC61-03915A Samsung Body Drawer Assembly Backorder SMG DC61-03915A $74.51

View on Model

4-1

DC63-00820A Samsung Cover Heater WF337AAW PC+ Backorder SMG DC63-00820A $11.34

View on Model

4-2

DC47-00006Y Samsung Heater Wash Backorder SMG DC47-00006Y $145.49

View on Model

4-2

DC61-02445A Samsung Pre-Wash Case Assembly Backorder SMG DC61-02445A $15.13

View on Model

5

DC67-00467A Samsung Tub Hose In Stock SMG DC67-00467A $57.92

View on Model

5

DC96-01703G Samsung Washer Water Level Pressu In Stock SMG DC96-01703G $77.91

View on Model

6

DC97-02412A Samsung Washer Bolt Assembly In Stock SMG DC97-02412A $15.30

View on Model

6

DC97-18200A Samsung Hinge Assembly Backorder SMG DC97-18200A $292.91

View on Model

7

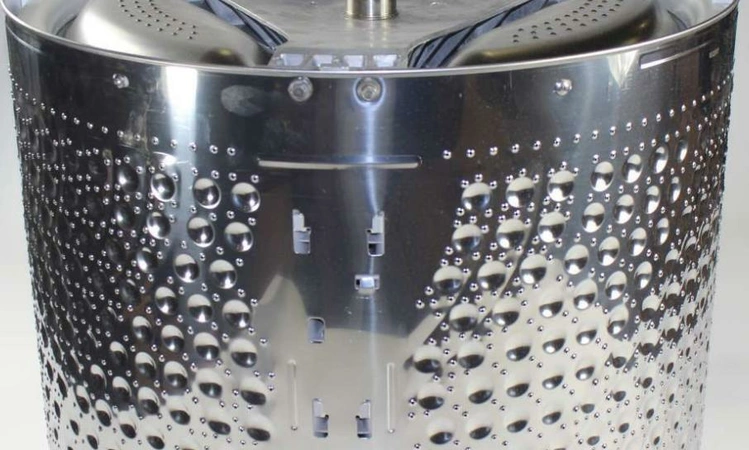

DC97-18235A Samsung Drum Assembly Backorder SMG DC97-18235A $456.30

View on Model

7-1

DC60-40137A Samsung Washer Hex Bolt Spider In Stock SMG DC60-40137A $11.26

View on Model

8

DC29-00015G Samsung Washer Noise Emission Fil Backorder SMG DC29-00015G $102.33

View on Model

8

DC67-00089Q Samsung Water Hose Backorder SMG DC67-00089Q $33.63

View on Model

8-4

DC97-14618H Samsung Assembly Diaphragm Clamp In Stock SMG DC97-14618H $32.36

View on Model

8-5

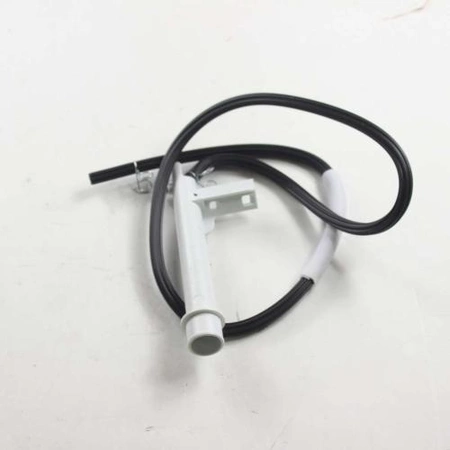

DC97-14545L Samsung Pressure Hose Backorder SMG DC97-14545L $70.22

View on Model

8-6

DC97-16106A Samsung Assembly Air Hose Backorder SMG DC97-16106A $66.81

View on Model

8-8

DC97-17389A Samsung Washer Dispenser Hose Ass Backorder SMG DC97-17389A $48.05

View on Model

8-10

DC97-16810F Samsung Hose Assembly WF9100HA WF Backorder SMG DC97-16810F $165.94

View on Model

8-51

DC61-70029C Samsung Clip Ring for SEW-HW125 H Backorder SMG DC61-70029C $1.69

View on Model

8-62

DC65-60118J Samsung Clip Ring Backorder SMG DC65-60118J $2.70

View on Model

8-63

Air hose SMG DC67-00468A Contact Us For Availability

View on Model

8-71

DC47-00027E Samsung Lamp Assembly Backorder SMG DC47-00027E $100.44

View on Model

8-72

DC62-00330A Samsung Nozzle Diaphragm Assembly Backorder SMG DC62-00330A $5.93

View on Model

8-73

DC62-00349A Samsung Nozzle Diaphragm Backorder SMG DC62-00349A $5.41

View on Model

8-74

DC64-03067A Samsung Washer Door Diaphragm Ass In Stock SMG DC64-03067A $283.30

View on Model

8-75

Nozzle SMG DC62-00229B Contact Us For Availability

View on Model

8-81

DC61-00219F Samsung Clamper Hose Backorder SMG DC61-00219F $5.93

View on Model

8-82

DC61-00219H Samsung Hose Clamping Assembly Backorder SMG DC61-00219H $5.41

View on Model

8-91

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $6.98

View on Model

8-92

Tub SMG DC61-03771A Contact Us For Availability

View on Model

9

DC61-02636E Samsung Drawer Low Housing Backorder SMG DC61-02636E $90.69

View on Model

9

DC66-00375A Samsung Washer Door Lock Strike L In Stock SMG DC66-00375A $43.72

View on Model

9

DC92-01803B Samsung Washer Main PCB Assembly In Stock SMG DC92-01803B $349.14

View on Model

9

Tub SMG DC97-18237A Contact Us For Availability

View on Model

9-3

DC61-00219D Samsung Hose Clip Backorder SMG DC61-00219D $5.41

View on Model

9-4

DC61-01482A Samsung Heater Bracket Assembly Backorder SMG DC61-01482A $5.93

View on Model

9-6

DC32-00010C Samsung Washer Thermistor Backorder SMG DC32-00010C $35.07

View on Model

9-7

DC97-16104A Samsung Washer Overflow Hose Asse Backorder SMG DC97-16104A $52.66

View on Model

9-8

DC97-16105A Samsung Drain Hose Assembly Backorder SMG DC97-16105A $85.99

View on Model

9-9

DC97-18247A Samsung Drawer Assembly Backorder SMG DC97-18247A $599.19

View on Model

9-71

DC67-00466A Samsung Washer Exhaust Hose O.F. Backorder SMG DC67-00466A $69.37

View on Model

9-72

DC72-00001F Samsung Heater Clip Ring Assembly Backorder SMG DC72-00001F $3.79

View on Model

9-81

DC65-00014A Samsung Clamper Joint Hose Assemb Backorder SMG DC65-00014A $12.42

View on Model

9-82

DC65-60125B Samsung Clip Ring Assembly Backorder SMG DC65-60125B $2.16

View on Model

9-83

DC67-00465A Samsung Hose Filter Tub Backorder SMG DC67-00465A $112.89

View on Model

9-91

6601-003008 Samsung Ball Bearing Backorder SMG 6601-003008 $80.26

View on Model

9-92

6601-003009 Samsung Ball Bearing Backorder SMG 6601-003009 $63.80

View on Model

9-93

DC62-00156A Samsung Washer Rear Tub Oil Seal In Stock SMG DC62-00156A $29.95

View on Model

9-94

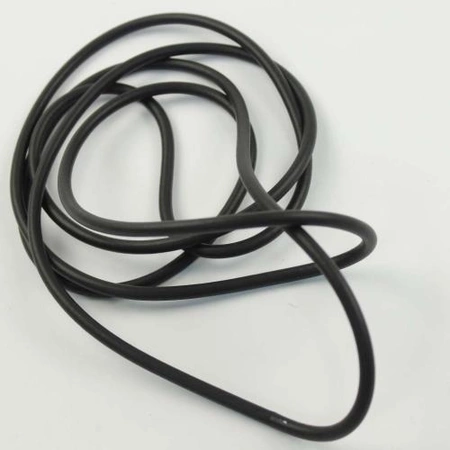

DC69-00804C Samsung Seal Tub Backorder SMG DC69-00804C $36.03

View on Model

9-95

Tub SMG DC61-03772A Contact Us For Availability

View on Model

9-96

DC61-03810A Samsung Tub Bracket Backorder SMG DC61-03810A $40.86

View on Model

10

6011-001644 Samsung Bolt Hex In Stock SMG 6011-001644 $7.01

View on Model

10

DC97-12578H Samsung Hose Assembly Backorder SMG DC97-12578H $72.79

View on Model

10-1

DC62-00167A Samsung Washer Nozzle Ball Assemb In Stock SMG DC62-00167A $2.70

View on Model

10-5

DC62-00310A Samsung Nozzle Connector In Stock SMG DC62-00310A $7.55

View on Model

11

DC62-10278A Samsung Hose Hanger Assembly In Stock SMG DC62-10278A $6.47

View on Model

11

DC97-06080C Samsung Washer Mercury PJT Bolt a Backorder SMG DC97-06080C $10.60

View on Model

11

DC97-16141A Samsung Drawer Sub Housing Assemb Backorder SMG DC97-16141A $54.77

View on Model

11

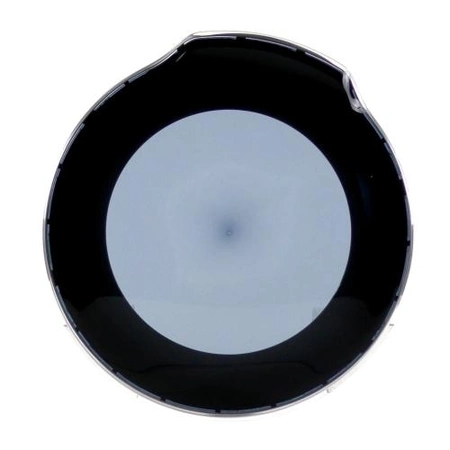

DC97-18202A Samsung Door Cover Assembly Backorder SMG DC97-18202A $425.96

View on Model

11-2

DC31-00187A Samsung Washer AC Pump Motor Asse In Stock SMG DC31-00187A $196.46

View on Model

11-3

DC31-00030J Samsung Washer Drain Pump Backorder SMG DC31-00030J $155.83

View on Model

11-4

DC62-00299A Samsung Washer Check Valve In Stock SMG DC62-00299A $8.54

View on Model

11-6

DC67-00244A Samsung Washer Drain Hose Assembl Backorder SMG DC67-00244A $9.18

View on Model

11-7

DC93-00150C Samsung Pump Door Main Wire Harne Backorder SMG DC93-00150C $46.12

View on Model

11-8

DD65-00001F Samsung Hose Clamper HSWR Backorder SMG DD65-00001F $1.69

View on Model

11-9

DC61-02017D Samsung Pump Case Backorder SMG DC61-02017D $46.12

View on Model

12

DC67-00307A Samsung Cap Fixer WF438AAC/XAA PP Backorder SMG DC67-00307A $1.69

View on Model

12

DC97-00920S Samsung Washer Leg Leveling Assem Backorder SMG DC97-00920S $31.23

View on Model

12

DC97-04973D Samsung Door Boot Bellows Spring Backorder SMG DC97-04973D $17.27

View on Model

13

DC63-00960A Samsung Washer Switch Cover Assem In Stock SMG DC63-00960A $3.24

View on Model

13

DC97-14293D Samsung Washer Leveling Leg Assem Backorder SMG DC97-14293D $29.79

View on Model

14

DC61-02004D Samsung Filter Guide Cover 592-49 Backorder SMG DC61-02004D $31.86

View on Model

14

DC97-14489A Samsung Bolt Backorder SMG DC97-14489A $28.32

View on Model

15

DC34-00024B Samsung Washer Assembly Door Lock In Stock SMG DC34-00024B $151.67

View on Model

15

Washer shipping bolt SMG DC97-14489B Contact Us For Availability

View on Model

16

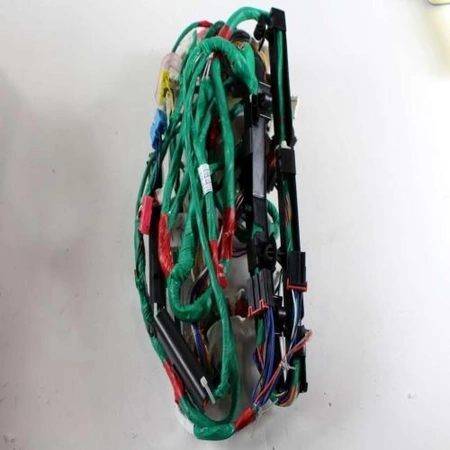

DC93-00583A Samsung Drum Main Assembly Wire H Backorder SMG DC93-00583A $289.80

View on Model

17

DC97-17093A Samsung Assembly Washer Drain Hos Backorder SMG DC97-17093A $70.30

View on Model

19

DC96-00757A Samsung Washer Power Cord Backorder SMG DC96-00757A $114.08

View on Model

21

DC92-01531C Samsung Washer Inverter Board Kit In Stock SMG DC92-01531C $344.03

View on Model

22

DC63-01571A Samsung Cover PBA Inverter Backorder SMG DC63-01571A $56.09

View on Model

23

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $2.16

View on Model

1110

DC61-10673A Samsung Washer Drain Cap Assembly Backorder SMG DC61-10673A $1.69

View on Model

1111

DC63-01375A Samsung Cover Pump Assembly Backorder SMG DC63-01375A $16.75

View on Model

1113

DC97-16991A Samsung Washer Drain Pump Filter In Stock SMG DC97-16991A $38.20

View on Model

1131

DC63-00909A Samsung Washer Pump Filter Backorder SMG DC63-00909A $4.87

View on Model

8101

DC61-00118A Samsung Cable Clamp Assembly Backorder SMG DC61-00118A $1.69

View on Model

8102

DC61-03693A Samsung Spring Clip Assembly HSWR Backorder SMG DC61-03693A $2.70

View on Model

8103

Hose SMG DC67-00790A Contact Us For Availability

View on Model

8811

DC67-00645A Samsung Washer Air Tub Hose Backorder SMG DC67-00645A $31.70

View on Model

9951

DC61-40348B Samsung Washer Nut Bracket Backorder SMG DC61-40348B $8.64

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

NI

DC60-00113A Samsung Hex Bolt Backorder SMG DC60-00113A $20.52

View on Model

NI

DC65-00008B Samsung Clamper Hose Assembly Backorder SMG DC65-00008B $4.33

View on Model

NI

DC66-00470A Samsung Washer Shock Absorber In Stock SMG DC66-00470A $71.06

View on Model

NI

DC67-00051F Samsung Washer Drawer Hose Backorder SMG DC67-00051F $40.85

View on Model

NI

DC67-00760A Samsung Hose Connector WF56H9100A Backorder SMG DC67-00760A $6.47

View on Model

NI

DC93-00278A Samsung Washer Vibration Sensor M In Stock SMG DC93-00278A $80.84

View on Model

Model Samsung WF56H9100AW/A2-01 Washer – Common Parts & Diagrams

Common parts from model Samsung WF56H9100AW/A2-01 Washer
