Model Samsung WF448AAP/XAA-07 Washer – Common Parts & Diagrams
Control Panel
Drawer

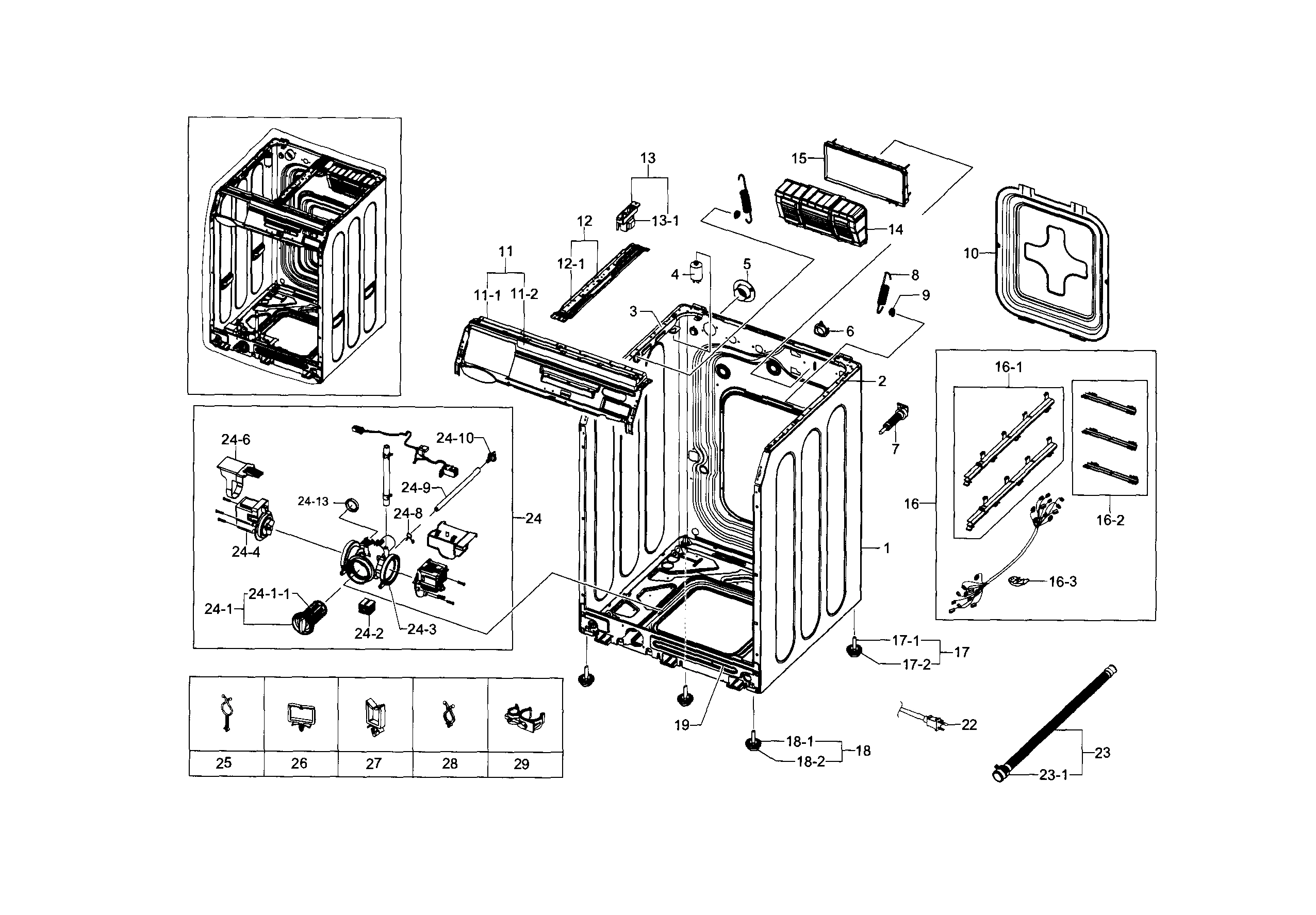

Frame & Cover Parts

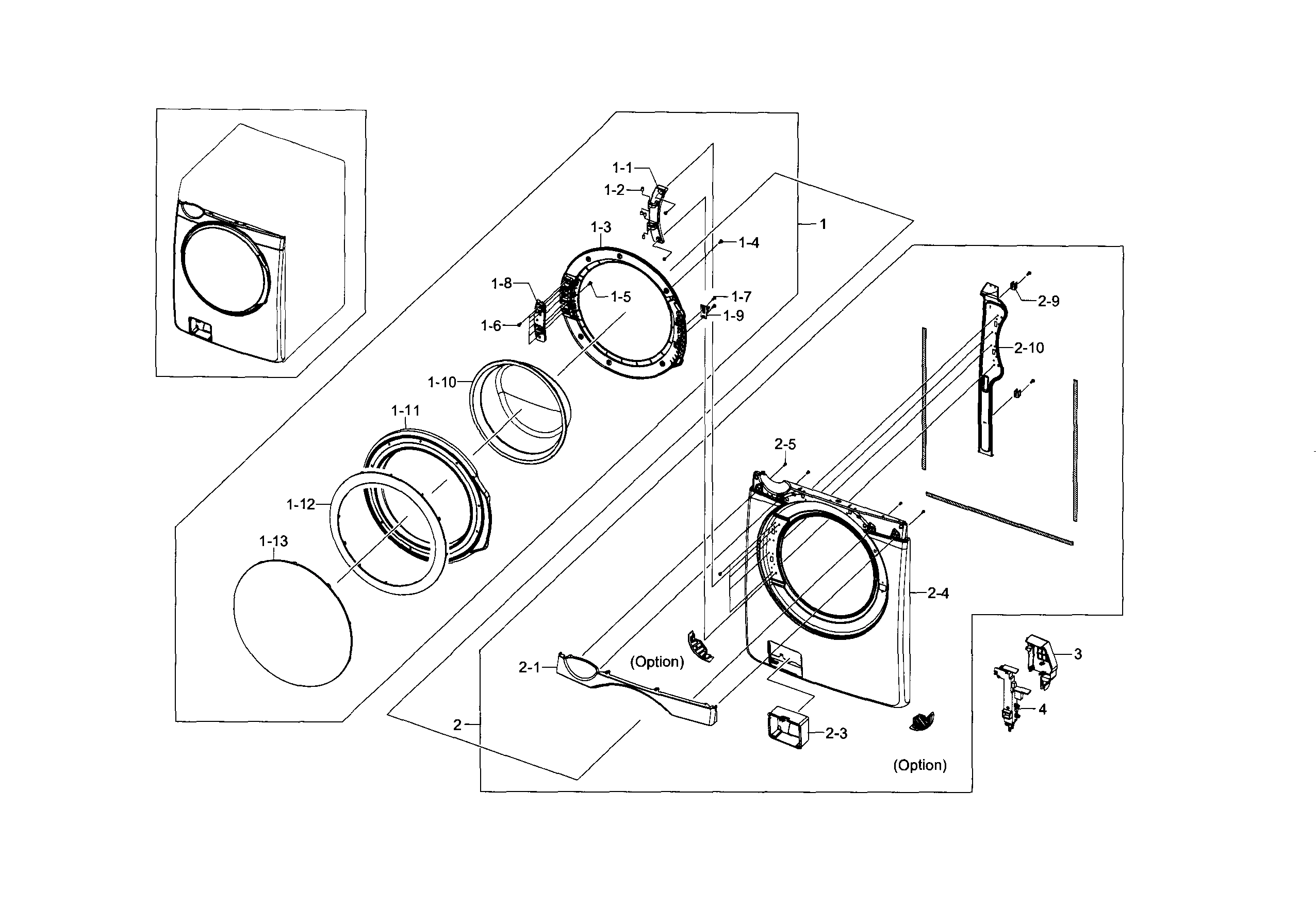

Frame Front & Door

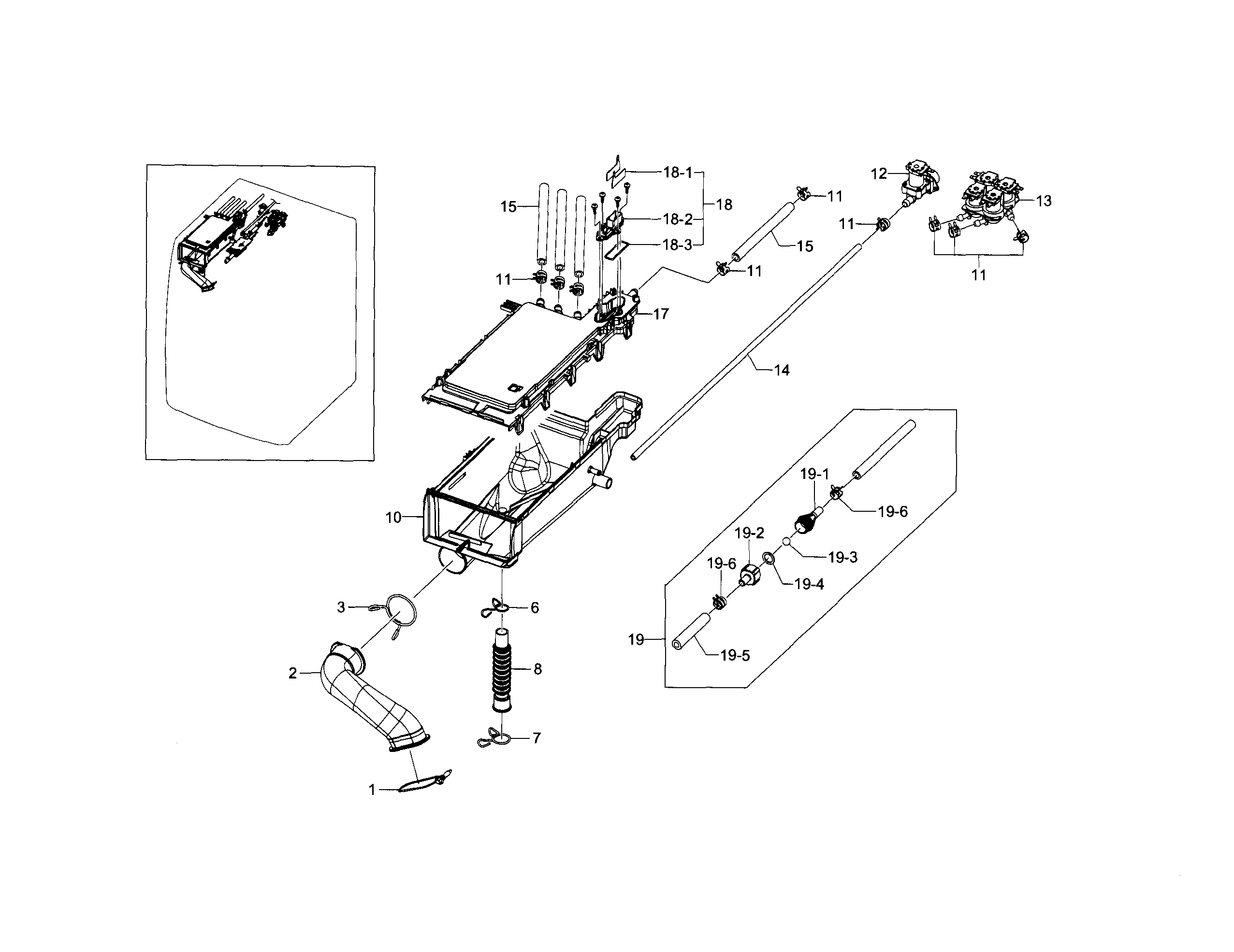

Housing-Drawer

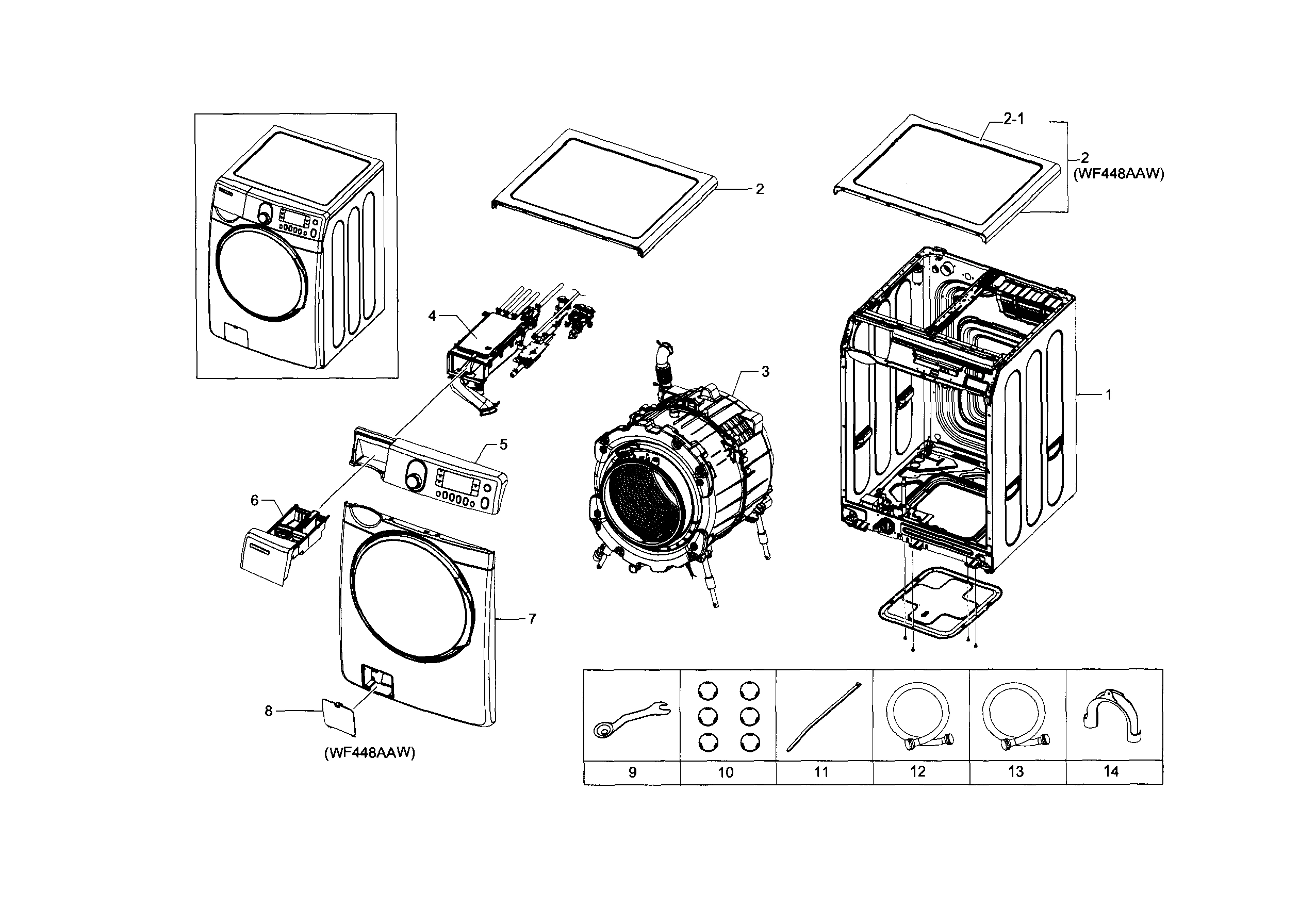

Main Assembly

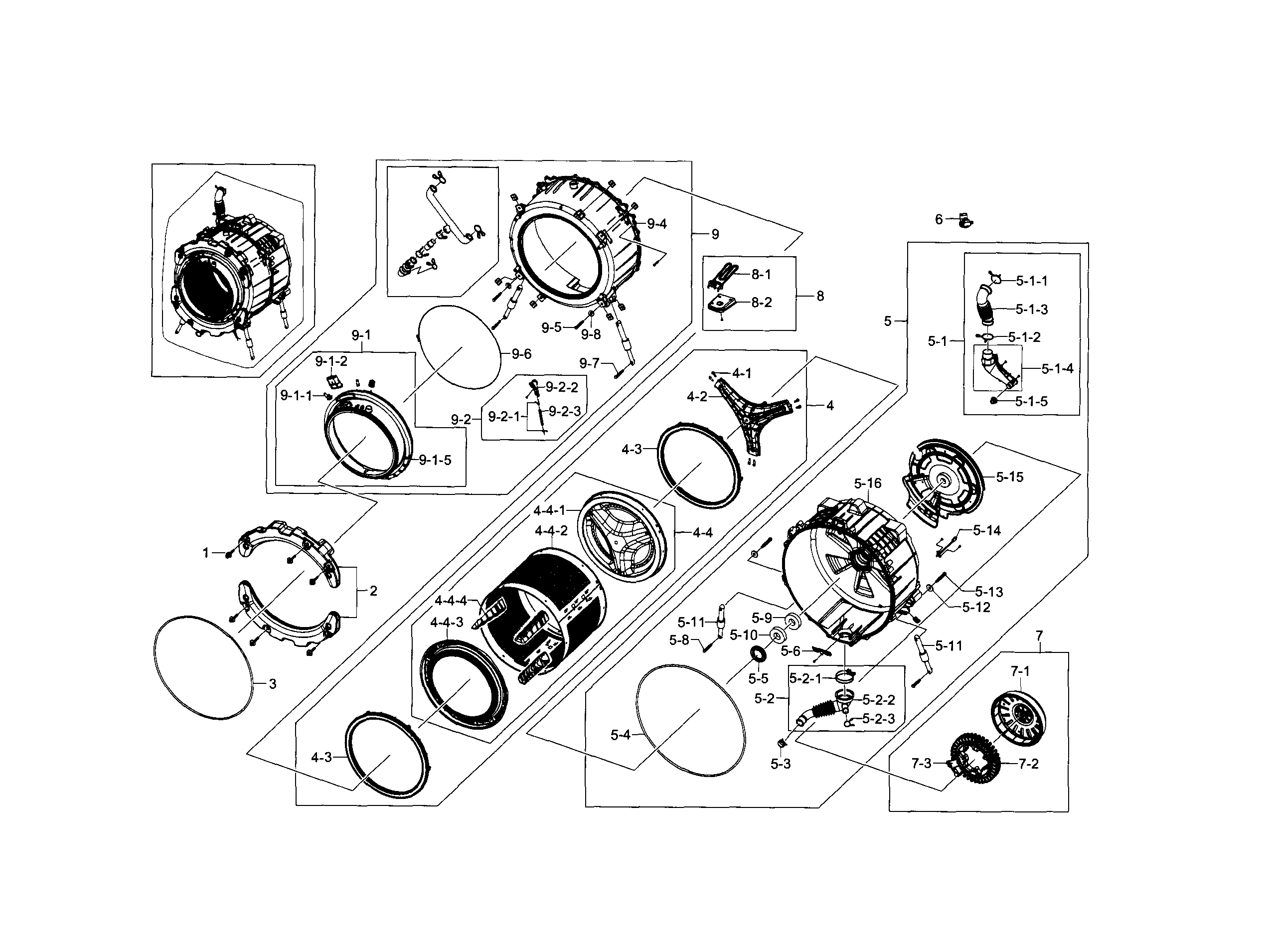

Tub & Drum
Common parts from model Samsung WF448AAP/XAA-07 Washer
1
Washer dispenser drawer assembly SMG DC97-14481E Contact Us For Availability
1
Washer bolt SMG DC97-02412A Contact Us For Availability
1
Clamper hose joint SMG DC65-00020A Contact Us For Availability
1-1
Washer door hinge SMG DC61-01971A Contact Us For Availability
1-1
Washer detergent dispenser reservoir SMG DC61-02445A Contact Us For Availability
1-2
Dryer door hinge guide SMG DC61-00891A Contact Us For Availability
1-2
Washer dispenser drawer SMG DC61-01992C Contact Us For Availability
1-3
Washer door inner frame SMG DC61-01972A Contact Us For Availability
1-5
Dryer screw SMG 6001-001668 Contact Us For Availability
1-8
Dryer door hinge support SMG DC61-01576A Contact Us For Availability
1-9
Door latch SMG DC66-00375A Contact Us For Availability
1-11
Washer door lock switch cover SMG DC63-00693A Contact Us For Availability
2
Washer dispenser hose SMG DC67-00317A Contact Us For Availability
2
Washer display control board SMG DC92-00125A Contact Us For Availability
2-5
Refrigerator screw, m4 x 0.8 SMG 6002-000239 Contact Us For Availability
3
Washer door boot spring clamp SMG DC97-04973B Contact Us For Availability
3
Washer detergent dispenser SMG DC61-02427D Contact Us For Availability
3
Band ring SMG DC72-00001A Contact Us For Availability
3
Washer user interface SMG DC92-00130A Contact Us For Availability
4
Washer door lock SMG DC64-00519B Contact Us For Availability
4
Washer noise filter SMG DC29-00013B Contact Us For Availability
4
Housing assembly SMG DC97-14522J Contact Us For Availability
4
Washer fabric softener dispenser cup SMG DC67-00305A Contact Us For Availability
4-1
Washer bolt SMG DC60-40137A Contact Us For Availability
4-2
Washer spinner support SMG DC97-16509B Contact Us For Availability
4-3
Washer basket balance ring SMG DC97-12135A Contact Us For Availability
4-44
Washer baffle SMG DC66-00508A Contact Us For Availability
5
Washer dispenser siphon cup SMG DC61-01995A Contact Us For Availability
5-2
Washer drain hose SMG DC97-15298A Contact Us For Availability
5-4
Washer outer tub gasket SMG DC69-00804A Contact Us For Availability
5-5
Washer rear tub gasket SMG DC62-00156A Contact Us For Availability
5-9
Washer tub bearing SMG 6601-002632 Contact Us For Availability
5-10
Bearing SMG 6601-002516 Contact Us For Availability
5-13
Washer tub vent hose SMG DC67-00308A Contact Us For Availability
5-15
Packing-du SMG DC69-01186A Contact Us For Availability
5-16
Tub SMG DC97-14604Q Contact Us For Availability
5-21
Washer hose clamp SMG DC65-00014A Contact Us For Availability
5-22
Washer drain hose SMG DC67-00312A Contact Us For Availability
6
Washer water-level pressure switch SMG DC96-01703B Contact Us For Availability
6
Washer dispenser drawer SMG DC97-14530J Contact Us For Availability
6
hose guide SMG DC61-02084A Contact Us For Availability
7
Washer shipping bolt SMG DC97-14489A Contact Us For Availability
7
Washer motor assembly SMG DC93-00168B Contact Us For Availability
7-1
washer motor rotor SMG DC31-00112A Contact Us For Availability
7-2
Washer motor stator SMG DC31-00111B Contact Us For Availability
7-3
Washer motor rotor position sensor SMG DC31-00098A Contact Us For Availability
8
Washer vent bellows SMG DC67-00275A Contact Us For Availability
8
Washer suspension spring SMG DC61-01257E Contact Us For Availability
8-1
Washer heating element SMG DC47-00006Y Contact Us For Availability
8-2
Washer heater cover SMG DC63-00820A Contact Us For Availability
9
washer suspension spring bracket SMG DC61-02432A Contact Us For Availability
9
Tub SMG DC97-17099A Contact Us For Availability
9-1
Washer door boot SMG DC97-14560K Contact Us For Availability
9-2
Washer water-level pressure switch hose SMG DC97-14545F Contact Us For Availability
9-4
Washer outer front tub SMG DC97-14541M Contact Us For Availability
9-6
Washer door boot spring clamp SMG DC97-04981F Contact Us For Availability
9-7
Washer bolt SMG 6011-001644 Contact Us For Availability
9-8
Laundry appliance washer SMG DC60-60044A Contact Us For Availability
9-11
Nozzle SMG DC62-00258A Contact Us For Availability
9-12
Water guide SMG DC61-01993A Contact Us For Availability
9-15
Washer door boot SMG DC64-01570A Contact Us For Availability
9-21
Washer hose clamp SMG DC61-70029C Contact Us For Availability
9-22
Hose joint SMG DC67-00492A Contact Us For Availability
9-23
Water hose SMG DC67-00089L Contact Us For Availability
10
Drive housing SMG DC61-01987B Contact Us For Availability
10
Washer cabinet hole plug SMG DC67-00307A Contact Us For Availability
11-2
Dryer guide panel SMG DC61-02008B Contact Us For Availability
12
Washer water inlet valve SMG DC62-30314K Contact Us For Availability
12-1
Washer control panel bracket SMG DC61-01200B Contact Us For Availability
13
Washer water inlet valve assembly SMG DC62-00142G Contact Us For Availability
13-1
Washer noise filter SMG DC26-00009H Contact Us For Availability
14
Washer drain hose u-bend bracket SMG DC62-10278A Contact Us For Availability
16
Washer wire harness SMG DC96-01687K Contact Us For Availability
17
Washer dispenser drawer housing, upper SMG DC97-14493A Contact Us For Availability
17-2
Washer leveling leg ring SMG DC61-01652A Contact Us For Availability
18
Washer leveling leg, front SMG DC97-14293A Contact Us For Availability
18
Washer silver care module SMG DC97-13059A Contact Us For Availability
18-2
Washer leveling leg SMG DC97-14294A Contact Us For Availability
19
washer dispenser inlet hose assembly SMG DC97-12578G Contact Us For Availability
19-1
Washer tub fill nozzle elbow SMG DC62-00182A Contact Us For Availability
19-2
washer tub fill nozzle elbow SMG DC62-00310A Contact Us For Availability
19-3
Washer dispenser hose check valve ball SMG DC62-00167A Contact Us For Availability
22
Washer power cord SMG DC96-00757A Contact Us For Availability
23
Washer drain hose SMG DC97-12534D Contact Us For Availability
23-1
Clamper SMG DD65-00001F Contact Us For Availability
24
Washer drain pump SMG DC96-01585C Contact Us For Availability
24-1
Washer drain pump filter SMG DC97-14976A Contact Us For Availability
24-3
Washer drain pump filter SMG DC61-02017E Contact Us For Availability
24-4
Samsung washer drain pump SMG DC31-00054A Contact Us For Availability
24-9
Washer pump drain hose SMG DC67-00244A Contact Us For Availability
2410
Washer drain pump filter drain hose plug SMG DC61-10673A Contact Us For Availability
2411
Washer drain pump filter SMG DC63-00909A Contact Us For Availability
NI
Washer dispenser inlet hose SMG DC67-00051B Contact Us For Availability
NI
Washer leveling leg SMG DC97-00920N Contact Us For Availability
NI
Ring clip SMG DC65-60125B Contact Us For Availability
NI
Dryer retainer clip SMG DC61-00133A Contact Us For Availability
NI
Washer bolt SMG DC60-40141A Contact Us For Availability
× ![]()
