Model Samsung WF203ANS/XAX Washer – Common Parts & Diagrams

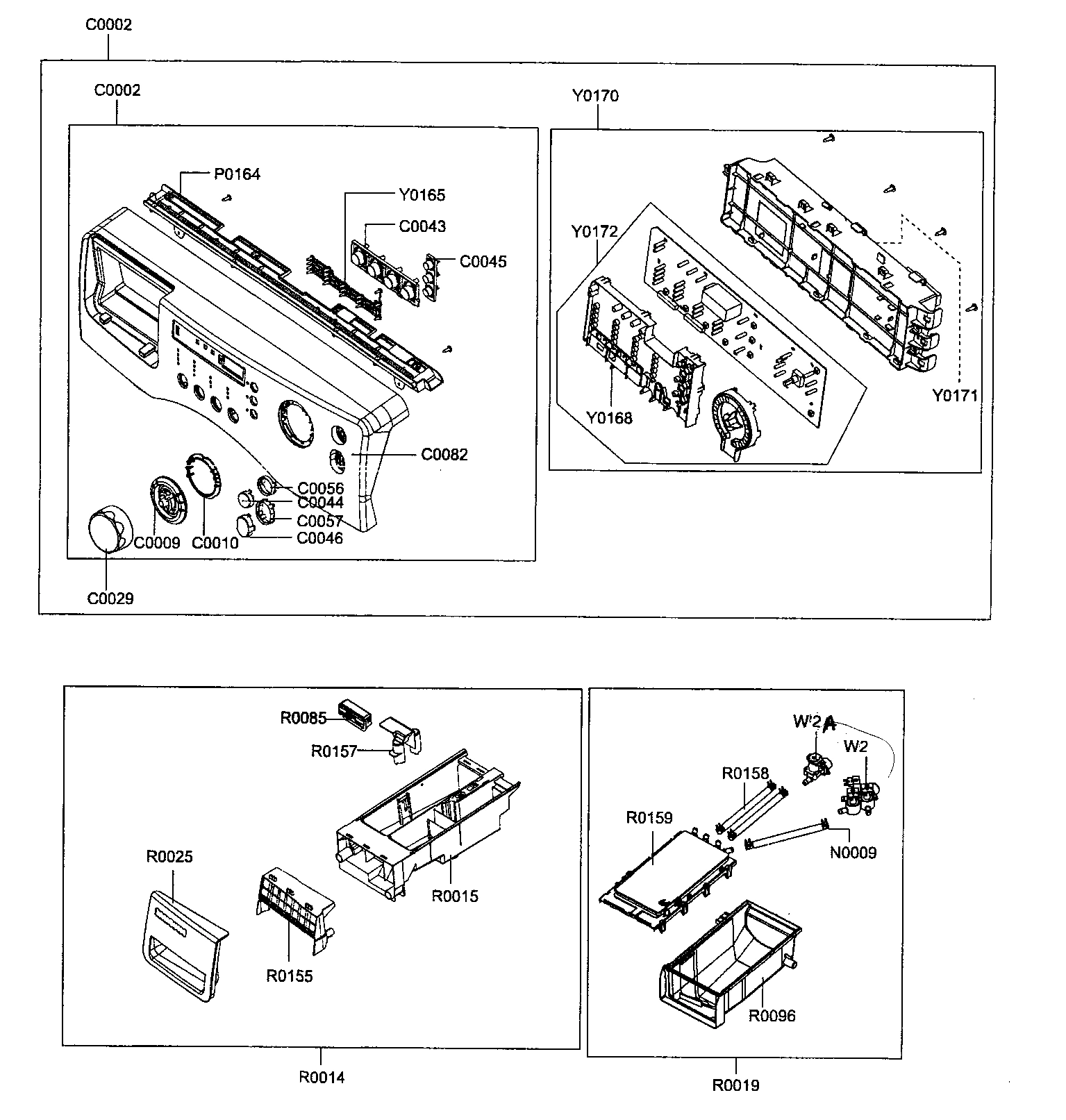

Control Panel

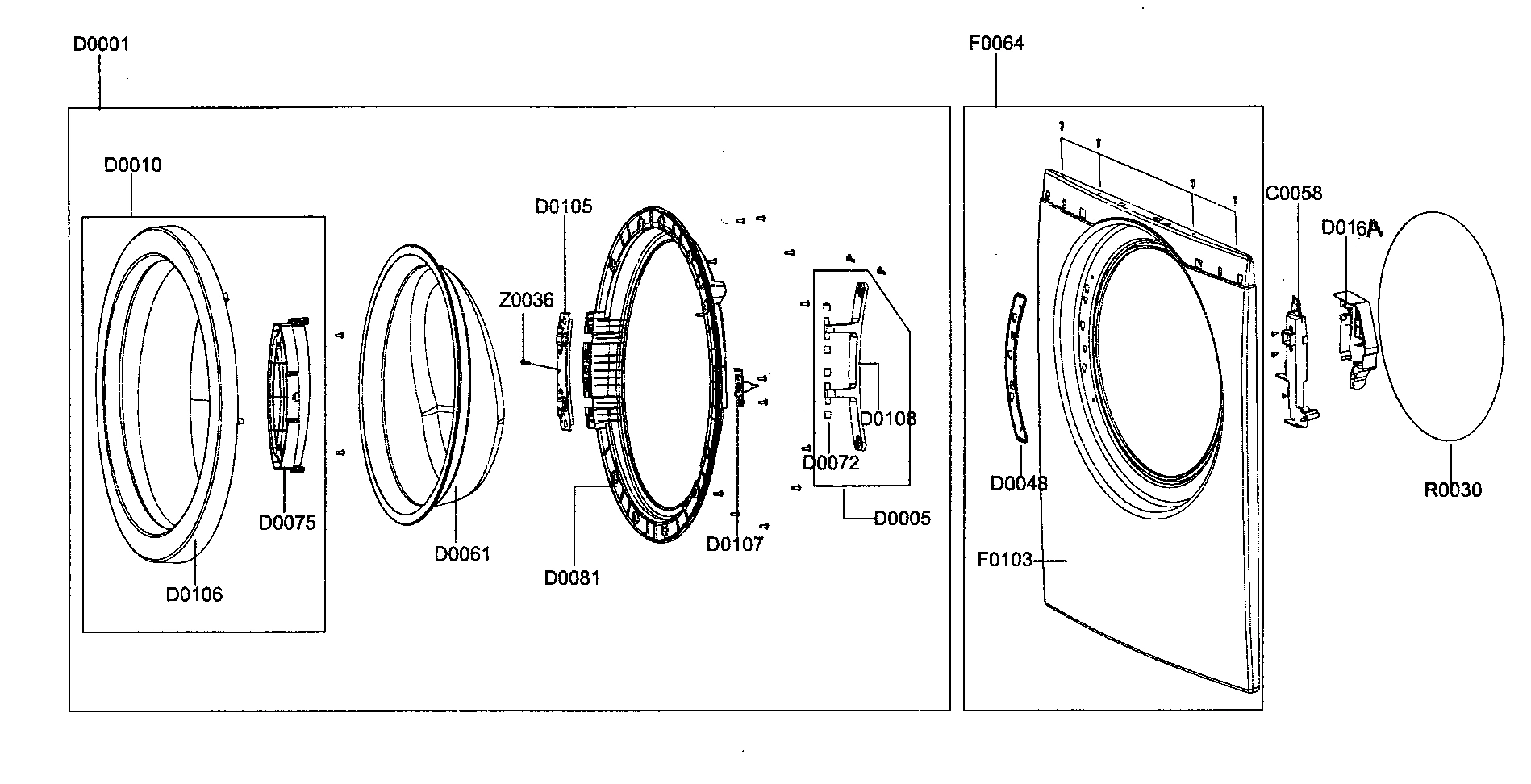

Door Assembly

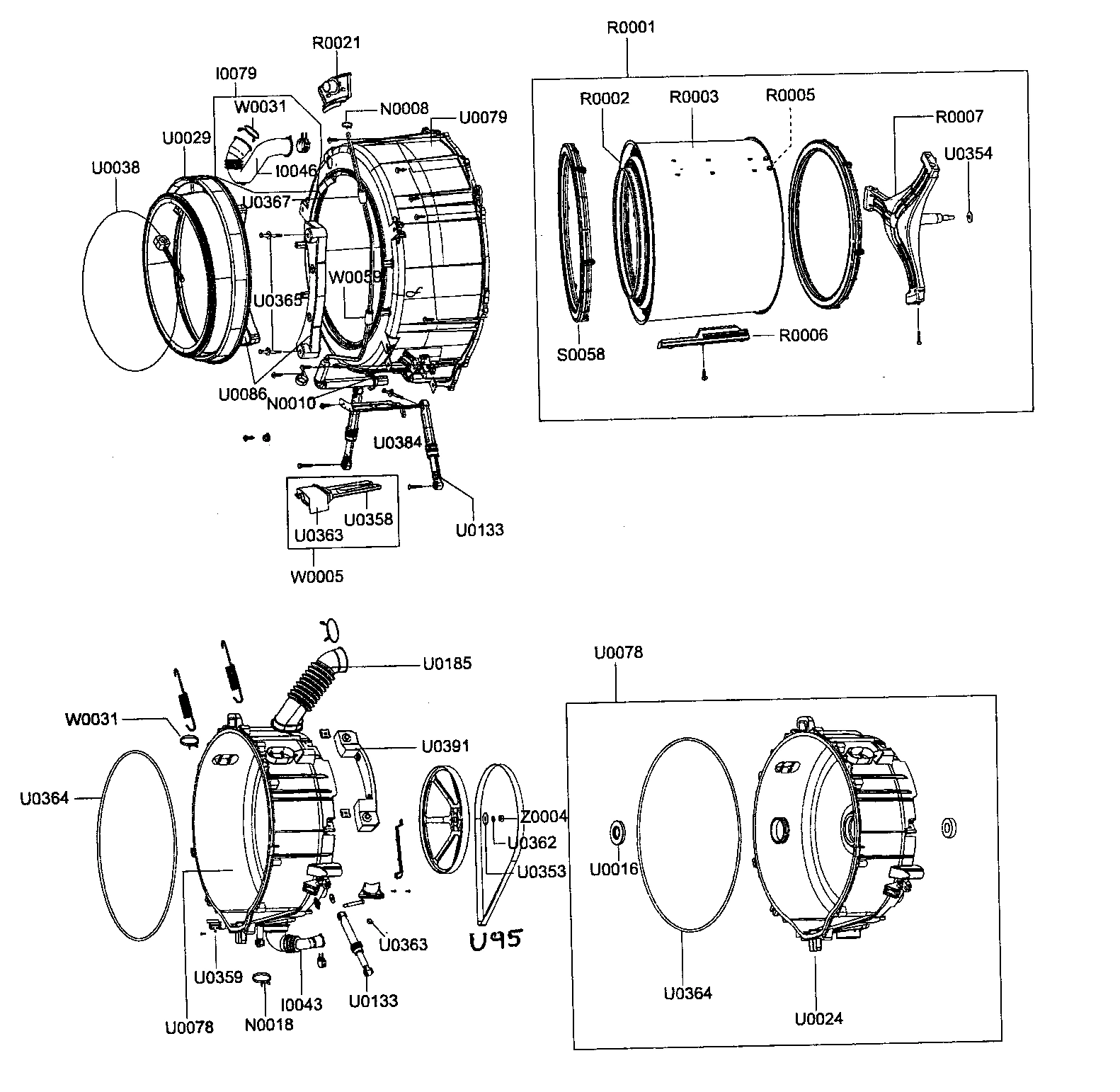

Drum Assembly

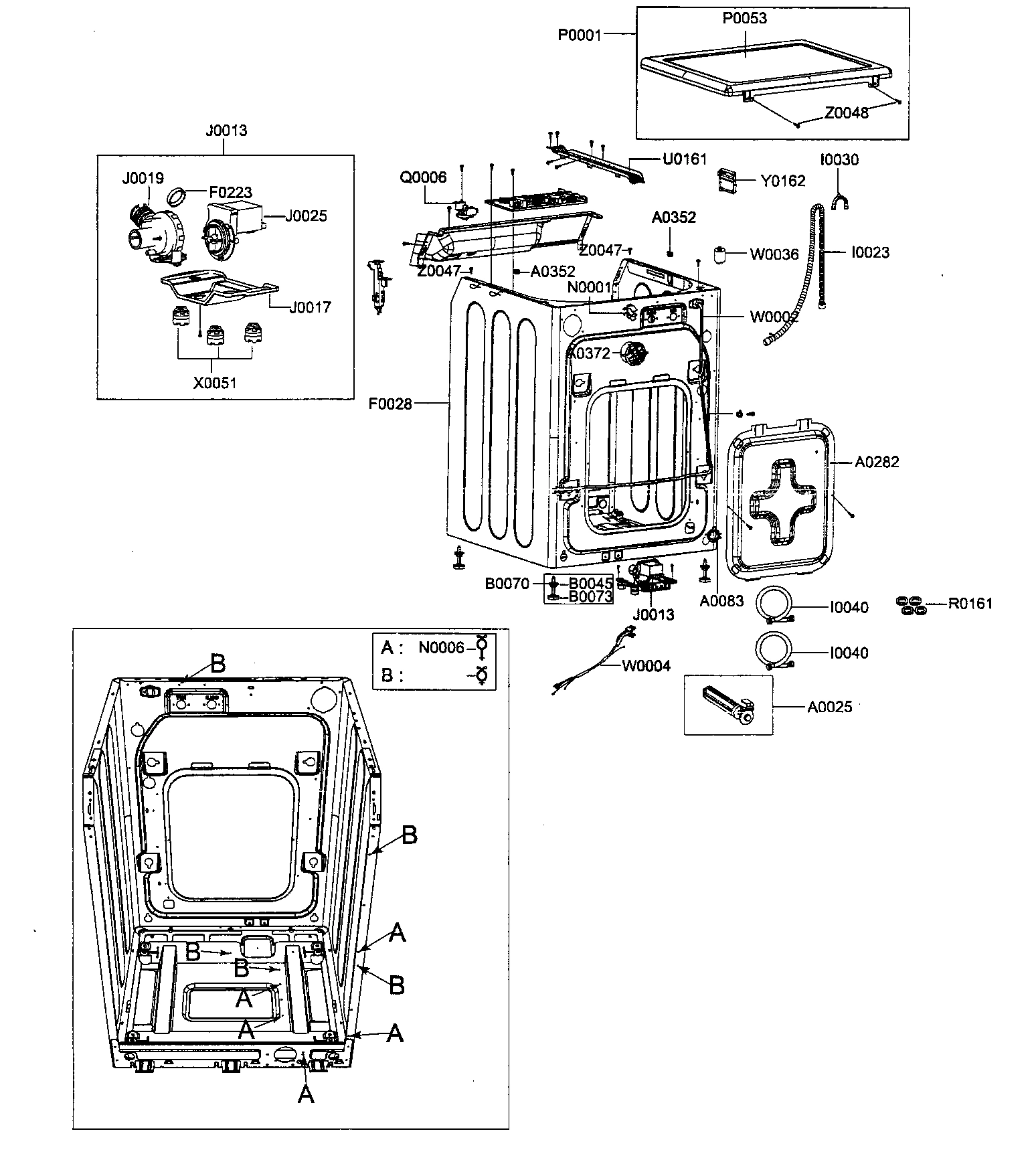

Main Cabinet Parts
Common parts from model Samsung WF203ANS/XAX Washer
A83
Hose guide SMG DC61-00274A Contact Us For Availability

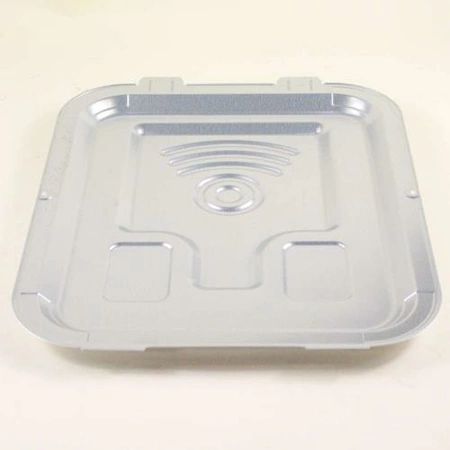

A282
Washer cabinet back panel SMG DC63-00522A Contact Us For Availability

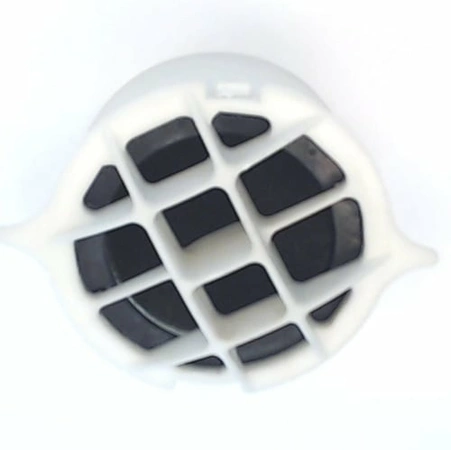

A372
Assy-cap o SMG DC97-08740D Contact Us For Availability
B45
Washer leveling leg ring SMG DC61-01652A Contact Us For Availability
B70
Leg assembly SMG DC97-12560A Contact Us For Availability
B73
Leg rubber SMG DC61-01747A Contact Us For Availability
C58
Washer door lock SMG DC64-00519B Contact Us For Availability
F28
Frame assembly SMG DC97-06995T Contact Us For Availability
F223
Washer drain pump check valve SMG DC62-00202A Contact Us For Availability

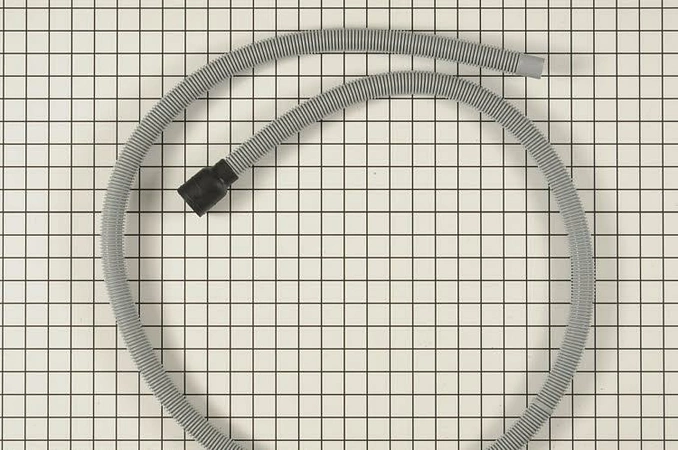

I23
Hose SMG DC97-12534B Contact Us For Availability
I30
Washer drain hose u-bend bracket SMG DC62-10278A Contact Us For Availability
I40
Water hose SMG DC62-00075A Contact Us For Availability

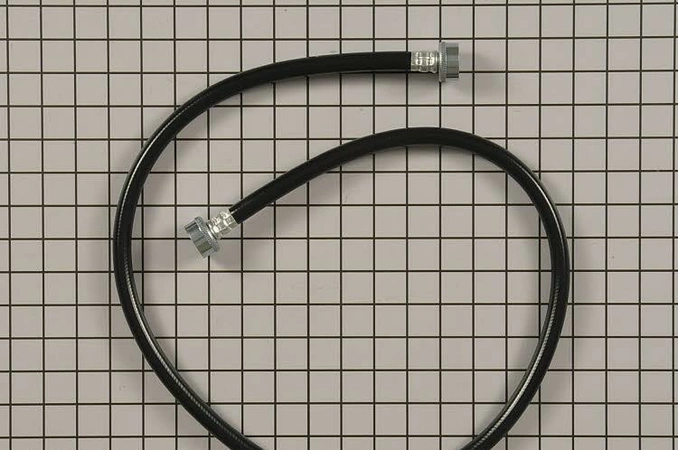

I40A
Water hose SMG DC62-00075B Contact Us For Availability
I46
Tube hose SMG DC67-00280A Contact Us For Availability
I79
Hose assembly SMG DC97-13072A Contact Us For Availability
J17
Bracket SMG DC61-01853A Contact Us For Availability
N08
Washer hose clamp SMG DC61-70029C Contact Us For Availability
N1
Dryer retainer clip SMG DC61-00133A Contact Us For Availability
N6
Laundry appliance wire harness retainer SMG DC61-40081A Contact Us For Availability

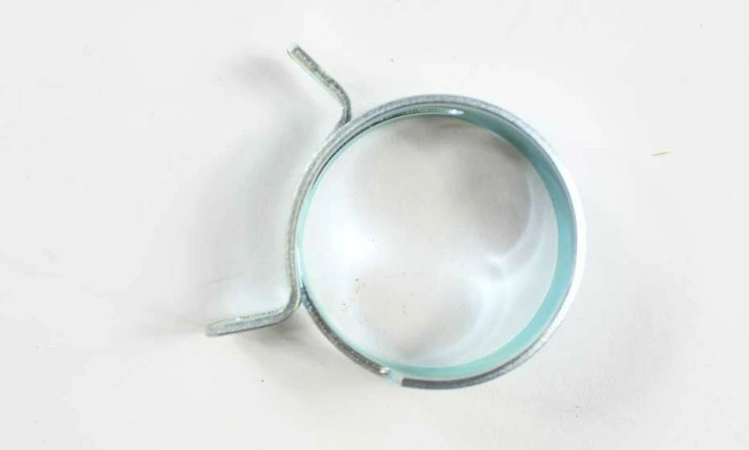

N10
Hose clip SMG DC61-01679A Contact Us For Availability
NI
Ic SMG 1202-000001 Contact Us For Availability
NI
Integrated circuit SMG 1203-002560 Contact Us For Availability
NI
Buzzer SMG 3002-001080 Contact Us For Availability
NI
Connector SMG 3711-004783 Contact Us For Availability
NI
Connector SMG 3711-004929 Contact Us For Availability
NI
Samsung washer motor SMG DC31-00045E Contact Us For Availability
NI
Wire SMG DC66-10003B Contact Us For Availability
NI
Absorber SMG DC67-00252A Contact Us For Availability
NI
Absorber SMG DC67-00253A Contact Us For Availability
NI
Absorber SMG DC67-00255A Contact Us For Availability
NI
Label SMG DC68-02344A Contact Us For Availability
NI
Label SMG DC68-20091B Contact Us For Availability
NI
Thermostat assembly SMG DC90-10128H Contact Us For Availability
NI
Samsung door hinge SMG DC97-13067A Contact Us For Availability
NI
Ic SMG DE13-20007A Contact Us For Availability
NI
Wire SMG DE39-60001A Contact Us For Availability
P01
Cover SMG DC97-12878D Contact Us For Availability
P53
Cover SMG DC63-00523H Contact Us For Availability
R01
Washer spin basket SMG DC97-13109A Contact Us For Availability
R06
Drum lifter SMG DC66-00477A Contact Us For Availability
R07
Washer spinner support SMG DC97-06987A Contact Us For Availability
R85
Washer detergent dispenser guide SMG DC61-01171A Contact Us For Availability

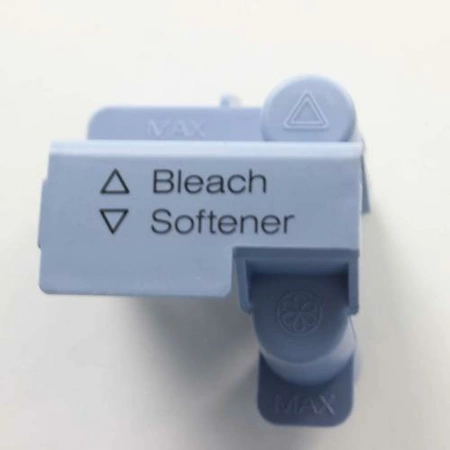

R157
Washer detergent dispenser reservoir cap SMG DC67-00121B Contact Us For Availability
R161
Washer fill hose seal SMG DC62-40178A Contact Us For Availability
S58
Balancer SMG DC97-12545A Contact Us For Availability

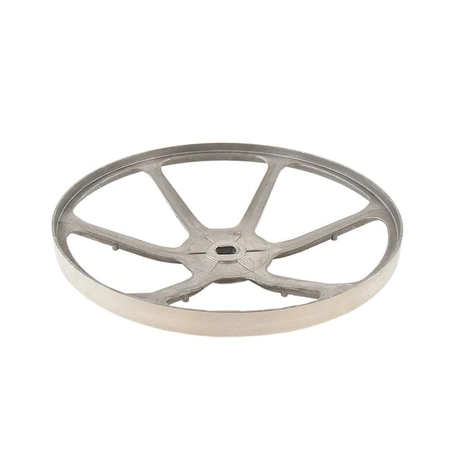

U10
Samsung pulley SMG DC66-00368A Contact Us For Availability
U53
Plate washer SMG 6031-001531 Contact Us For Availability
U53A
Laundry appliance washer SMG DC60-60044A Contact Us For Availability
U53B
Plate washer SMG DC60-60044B Contact Us For Availability
U63
Cable clamp SMG 6502-000168 Contact Us For Availability
U63A
Washer heater cover SMG DC63-00820A Contact Us For Availability
U63B
Clamp-cabl SMG DC65-20008C Contact Us For Availability
U67A
Sponge hose SMG DC63-10003E Contact Us For Availability
U79
Samsung semi tube SMG DC97-08760B Contact Us For Availability
U86
Balance weight SMG DC67-00139A Contact Us For Availability
U95
Belt SMG 6602-001216 Contact Us For Availability
U161
Washer control panel bracket SMG DC61-01200B Contact Us For Availability
U353
Washing machine washer SMG 6031-001482 Contact Us For Availability

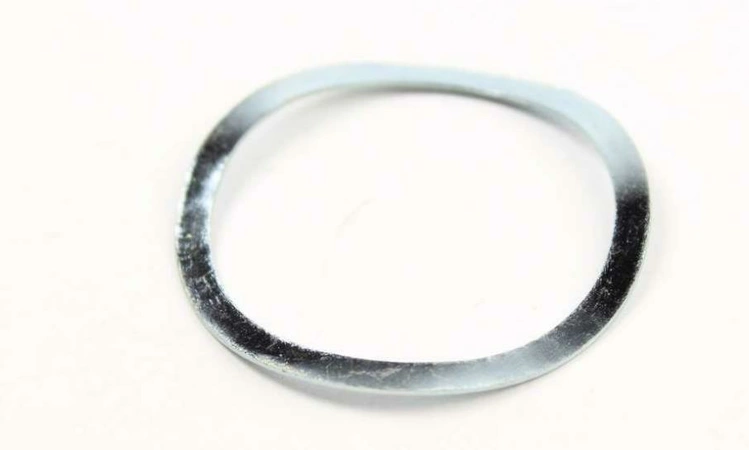

U354
Washer SMG 6031-001519 Contact Us For Availability
U359
Washer heating element bracket SMG DC61-01482A Contact Us For Availability
U362
Spring washer SMG DC60-60049A Contact Us For Availability
U363
Appliance wire harness retainer SMG 6502-000127 Contact Us For Availability
U367
Sponge SMG DC63-10003C Contact Us For Availability
U384
Samsung tube bracket SMG DC61-01438A Contact Us For Availability
U391
Balance weight SMG DC67-00140A Contact Us For Availability
W04
Harness SMG DC96-00758G Contact Us For Availability
W31
Band ring SMG DC72-00001D Contact Us For Availability
X51
Washer pump grommet SMG DC99-00815A Contact Us For Availability

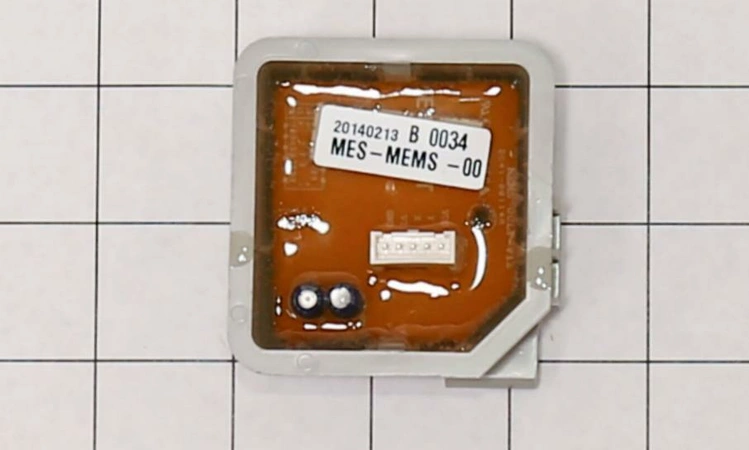

Y162
Washer vibration sensor SMG MFS-MEMS-00 Contact Us For Availability
Z04
Hex nut SMG DC60-50148B Contact Us For Availability
Z36
Dryer screw SMG 6001-001668 Contact Us For Availability
Z47
Screw SMG 6009-001317 Contact Us For Availability
× ![]()
