Model Samsung WB09H7300GW/A1-00 Washer – Common Parts & Diagrams

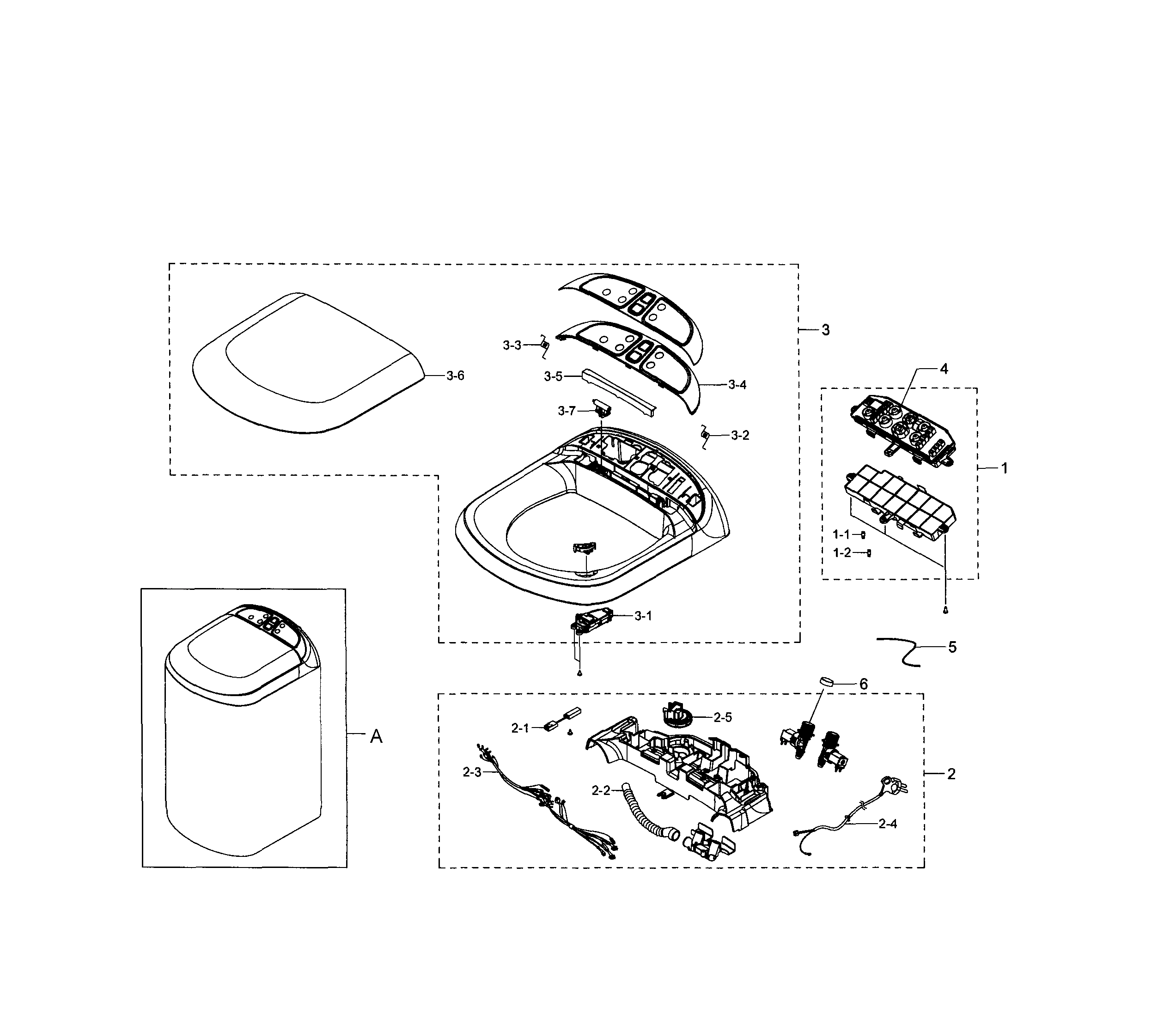

Cover Top

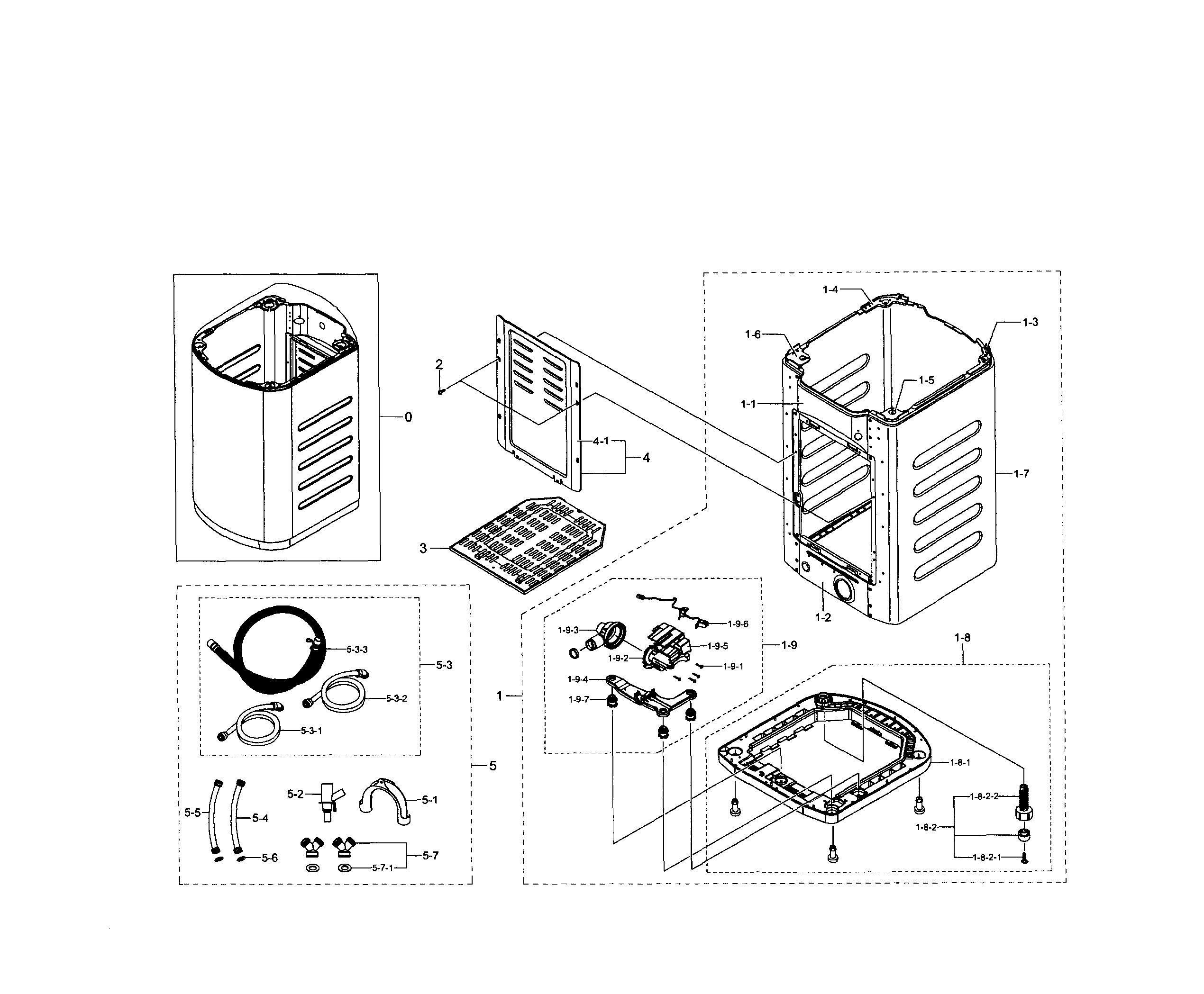

FRAME

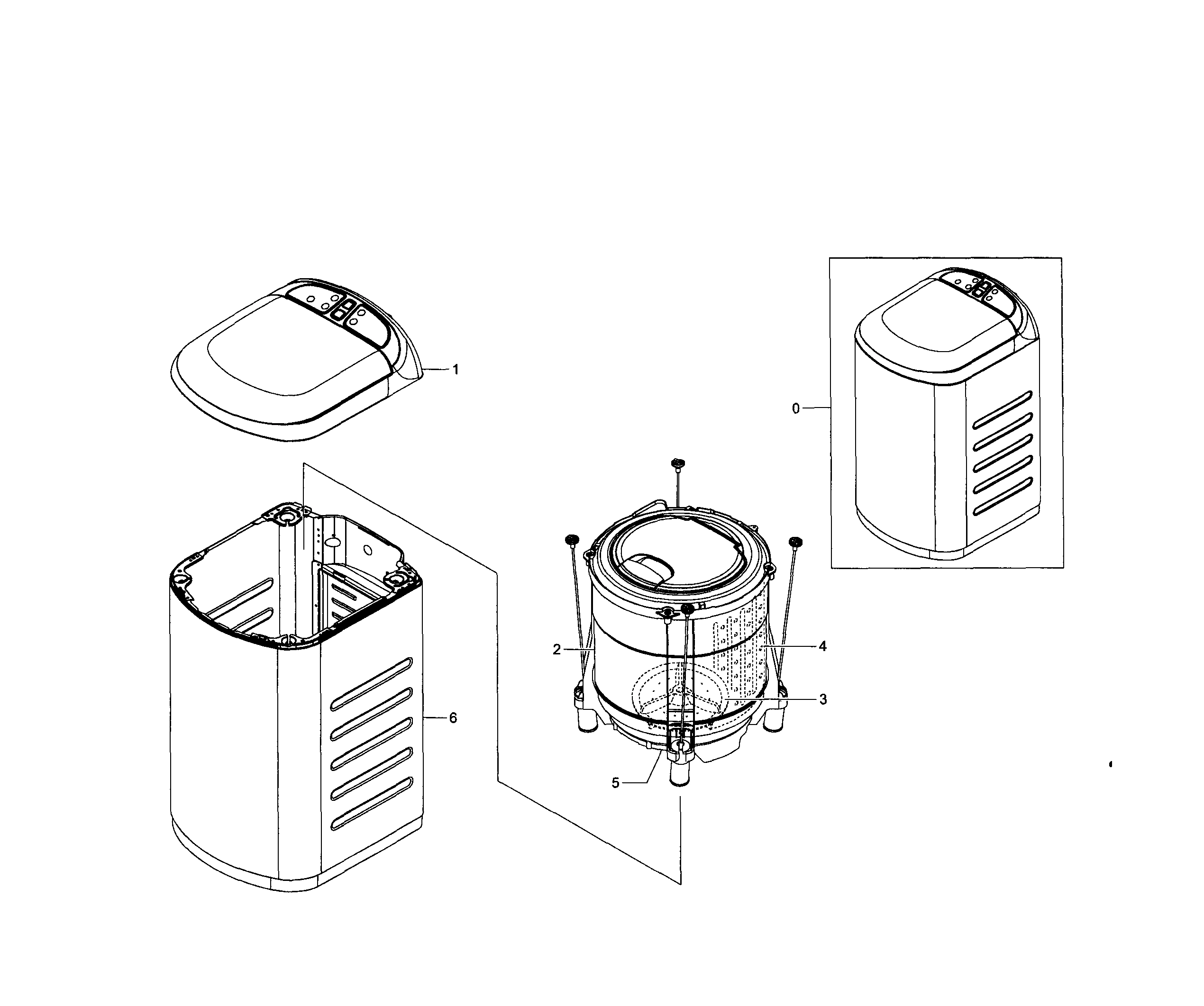

Main Assembly

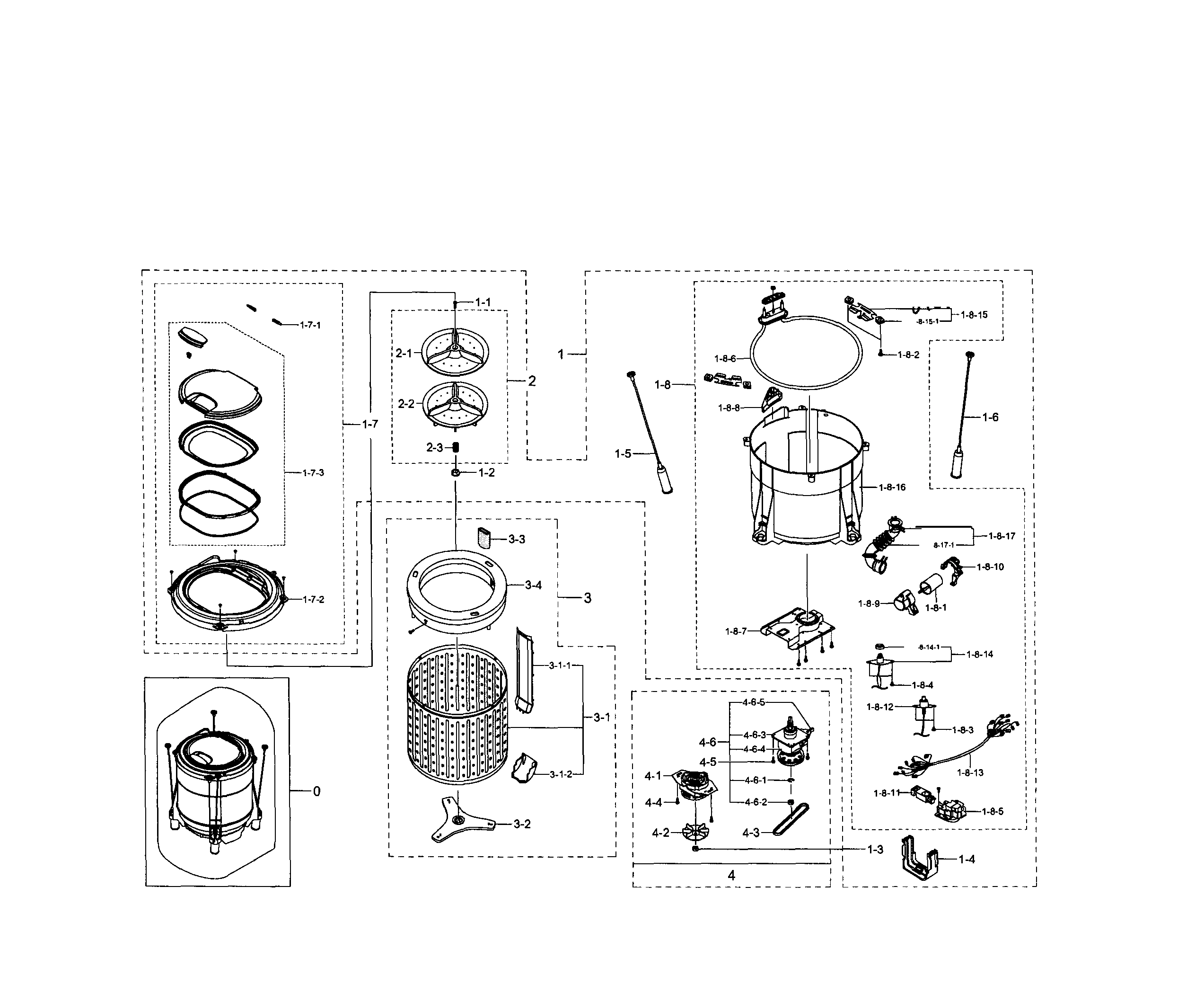

TUB PARTS
Common parts from model Samsung WB09H7300GW/A1-00 Washer
1
Cover SMG DC90-16567A Contact Us For Availability
1
Tub SMG DC90-16568A Contact Us For Availability
1-1
Frame Plate SMG DC61-00545D Contact Us For Availability
1-1
Bolt Pulsator SMG DC60-00004A Contact Us For Availability
1-2
Frame Plate SMG DC61-00678E Contact Us For Availability
1-2
Nut SMG DC60-50004B Contact Us For Availability
1-3
Corner Frame SMG DC61-03719A Contact Us For Availability
1-4
Corner Frame SMG DC61-03720A Contact Us For Availability
1-4
Cradle SMG DC61-40053B Contact Us For Availability
1-5
Corner Frame SMG DC61-03721A Contact Us For Availability
1-6
Corner Frame SMG DC61-03722A Contact Us For Availability
1-7
Frame SMG DC61-03724A Contact Us For Availability
1-7
Cover SMG DC97-17952B Contact Us For Availability
1-8
Assy Base Ub SMG DC97-03058E Contact Us For Availability
1-8
Semi Tub SMG DC97-17953C Contact Us For Availability
1-9
Drain Pump Assembly SMG DC97-18372A Contact Us For Availability
1-81
Base Pp,ebon SMG DC61-00539B Contact Us For Availability
1-81
Motor SMG 2504-000002 Contact Us For Availability
1-85
Drain Motor SMG DC31-20014T Contact Us For Availability
1-86
Heater SMG DC47-00029E Contact Us For Availability
1-87
Die-motor Ub SMG DC61-00547A Contact Us For Availability
1-88
Seal SMG DC62-00431A Contact Us For Availability
1-91
Dryer Screw SMG 6002-000524 Contact Us For Availability
1-93
Case SMG DC61-03898A Contact Us For Availability
1-95
Pump Cover SMG DC63-01780A Contact Us For Availability
2
Pulsator Assembly SMG DC97-03061E Contact Us For Availability
2-1
Pulsator SMG DC66-00228D Contact Us For Availability
2-2
Pulsator SMG DC66-00229A Contact Us For Availability
2-3
Bushing SMG DC66-20004A Contact Us For Availability
3
Shutter SMG DC64-00282A Contact Us For Availability
3-1
Basket SMG DC97-03074A Contact Us For Availability
3-3
Spring etc q SMG DC61-00146G Contact Us For Availability
3-3
Filter Assembly SMG DC91-10404X Contact Us For Availability
3-4
Assy Balance SMG DC97-02872A Contact Us For Availability
3-6
Samsung lid assembly SMG DC97-17947A Contact Us For Availability
3-7
Damper SMG DC97-18004A Contact Us For Availability
3-11
Guide SMG DC61-00549A Contact Us For Availability
3-12
Duct SMG DC67-00023A Contact Us For Availability
4
Guide panel SMG DC61-03718A Contact Us For Availability
4
Assy Cover B SMG DC97-18017B Contact Us For Availability
4
Drive Module SMG DC90-16297A Contact Us For Availability
4-1
Cover SMG DC63-00266A Contact Us For Availability
4-3
Belt V Rubbe SMG DC66-10045D Contact Us For Availability
4-5
Assy Screw S SMG DC97-04458C Contact Us For Availability
4-6
Clutch Assembly SMG DC97-14818C Contact Us For Availability
4-61
Ring SMG 6044-001029 Contact Us For Availability
4-64
Housing SMG DC97-04427A Contact Us For Availability
4-65
Lever SMG DC97-04698A Contact Us For Availability
5
Wire SMG DC66-10003B Contact Us For Availability
5
Accessory SMG DC90-16300A Contact Us For Availability
5-2
Connector SMG DC67-00783A Contact Us For Availability
5-3
Accessory SMG DC90-16471A Contact Us For Availability
5-33
Assy Hose Dr SMG DC97-17996C Contact Us For Availability
6
Frame SMG DC97-18380A Contact Us For Availability
1810
Holder SMG DC61-03914A Contact Us For Availability
1811
Link SMG DC66-00225A Contact Us For Availability
1814
Thermostat Assembly SMG DC96-00421E Contact Us For Availability
1815
Bracket Assembly SMG DC96-00491A Contact Us For Availability
1816
Assy Tub Out SMG DC97-08532B Contact Us For Availability
1817
Assy Hose Dr SMG DC97-18365A Contact Us For Availability
1822
Leg SMG DC61-50009B Contact Us For Availability
8141
Packing-ther SMG DC73-00007A Contact Us For Availability
8151
Spacer SMG DC61-60496A Contact Us For Availability
8171
Hose SMG DC67-00781A Contact Us For Availability
NI
Owner's manual SMG DC68-00815J Contact Us For Availability
× ![]()
