Bosch WAS20160UC/20 Washer Parts List

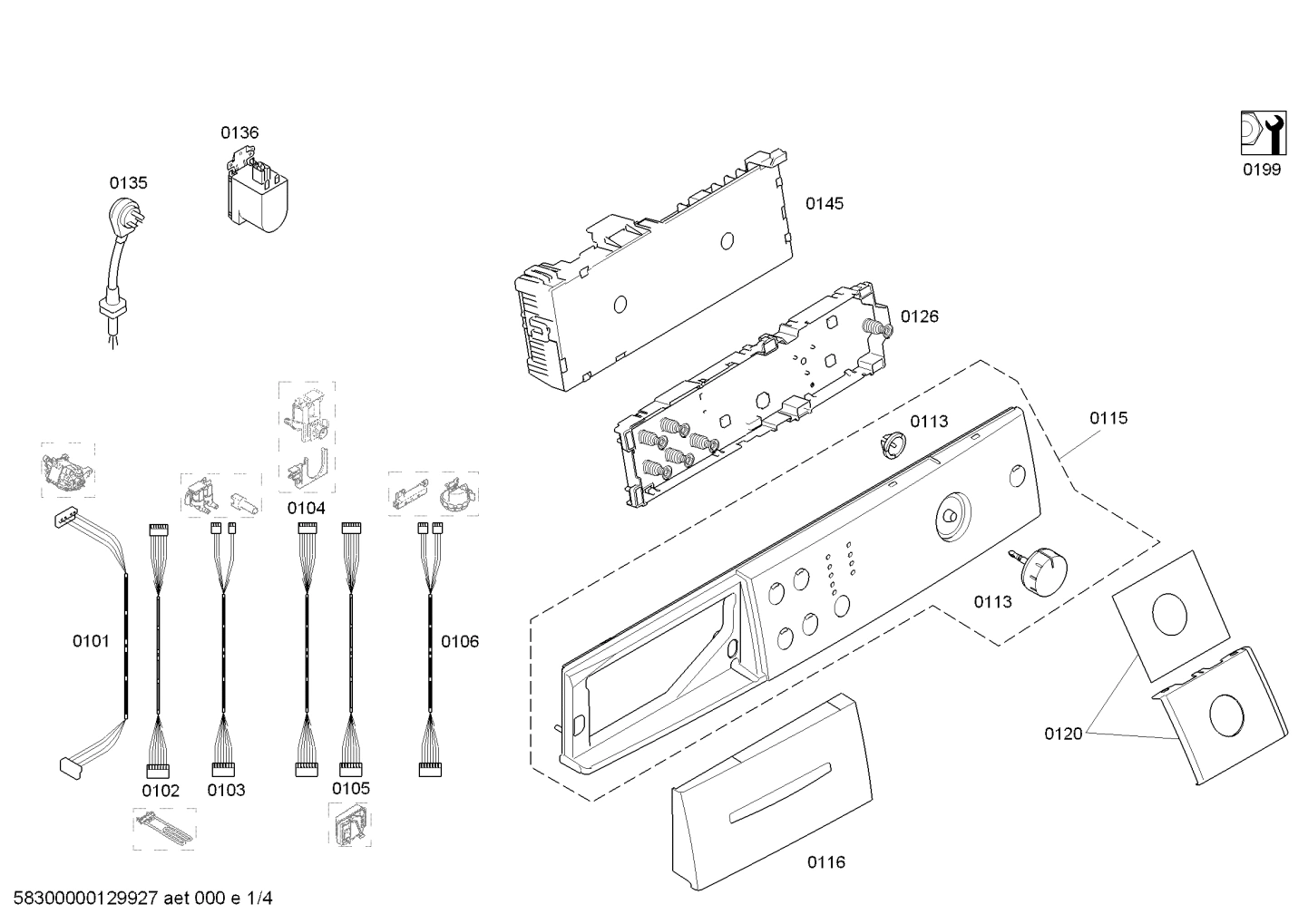

0101

00611056 Bosch Laundry Cable Harness Backorder BOS 00611056 $38.63

View on Model

0103

00611058 Bosch Laundry Cable Harness Backorder BOS 00611058 $13.91

View on Model

0105

00611054 Bosch Laundry Cable Harness Backorder BOS 00611054 $20.59

View on Model

0115

00667828 Bosch Laundry Facia Panel Backorder BOS 00667828 $187.01

View on Model

0116

00645399 Bosch Laundry Dispenser Tray Handle Backorder BOS 00645399 $92.69

View on Model

0126

00668402 Bosch Washer Operating Module In Stock BOS 00668402 $313.20

View on Model

0136

00429052 Bosch Laundry Capacitor Backorder BOS 00429052 $57.67

View on Model

0145

00705463 Bosch Laundry Power Module In Stock BOS 00705463 $326.39

View on Model

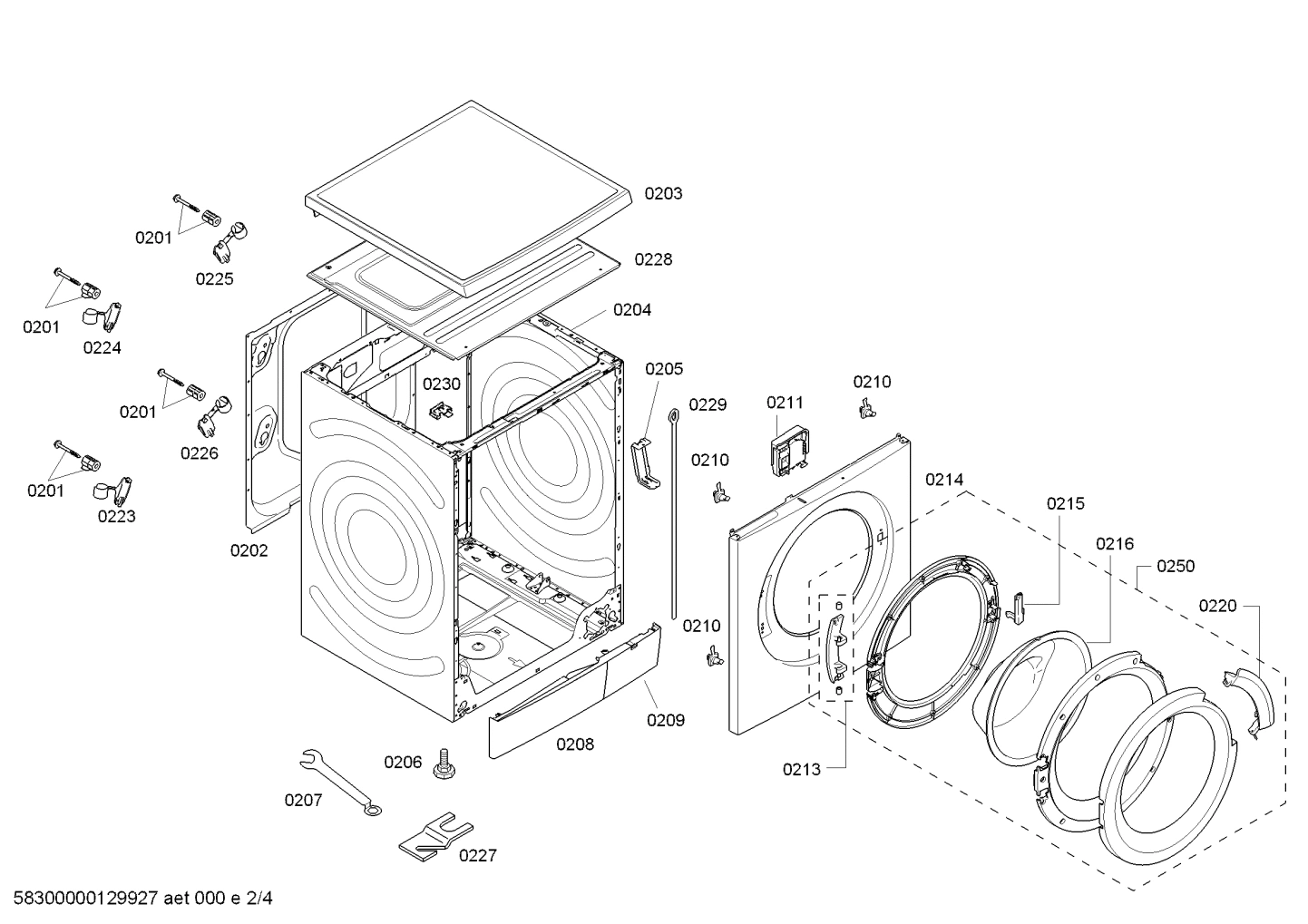

0201

10012244 Bosch Laundry Fixing Kit Backorder BOS 10012244 $23.69

View on Model

0202

00683880 Bosch Laundry Back Panel Backorder BOS 00683880 $207.02

View on Model

0203

Worktop BOS 00680189 Contact Us For Availability

View on Model

0206

00610643 Bosch Laundry Foot Assembly In Stock BOS 00610643 $12.62

View on Model

0207

00416875 Bosch Auxiliary Tool Backorder BOS 00416875 $3.08

View on Model

0208

00667820 Bosch Laundry Base Panel Backorder BOS 00667820 $62.82

View on Model

0209

00640711 Bosch Laundry Flap Backorder BOS 00640711 $57.17

View on Model

0211

00612148 Bosch Washer Electric Lock In Stock BOS 00612148 $114.73

View on Model

0213

00655117 Bosch Laundry Window Hinge Backorder BOS 00655117 $32.45

View on Model

0214

00771496 Bosch Laundry Front Panel Backorder BOS 00771496 $184.89

View on Model

0215

00623234 Bosch Laundry Hook In Stock BOS 00623234 $24.71

View on Model

0226

00618779 Bosch Laundry Holder Backorder BOS 00618779 $8.23

View on Model

0227

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $59.73

View on Model

0228

00478026 Bosch Laundry Built-In Kit Backorder BOS 00478026 $60.76

View on Model

0229

00705651 Bosch Laundry Band In Stock BOS 00705651 $17.50

View on Model

0250

00704287 Bosch Washer Window Assembly In Stock BOS 00704287 $446.85

View on Model

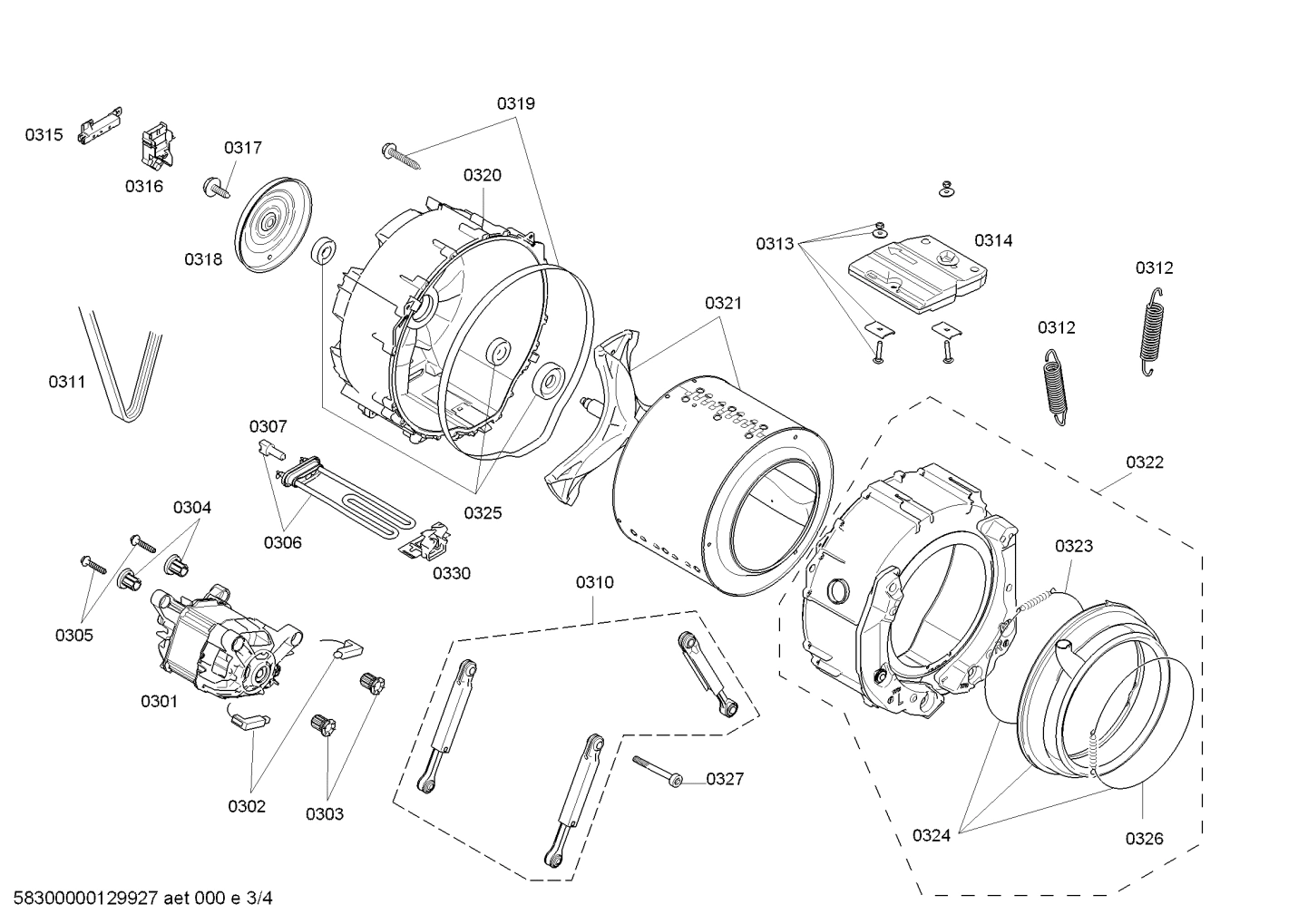

0301

00145327 Bosch Washer Motor In Stock BOS 00145327 $512.82

View on Model

0302

00605694 Bosch Laundry Carbon Brush In Stock BOS 00605694 $42.78

View on Model

0303

00605216 Bosch Laundry Bushing Backorder BOS 00605216 $5.14

View on Model

0304

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0305

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.11

View on Model

0306

00649360 Bosch Laundry Heating Element Backorder BOS 00649360 $74.15

View on Model

0307

Sensor-NTC BOS 00609240 No Longer Available

View on Model

0312

00605140 Bosch Laundry Spring Tank Backorder BOS 00605140 $89.10

View on Model

0314

00676200 Bosch Laundry Weight Backorder BOS 00676200 $174.06

View on Model

0315

00617804 Bosch Laundry Sensor Backorder BOS 00617804 $97.84

View on Model

0316

00615697 Bosch Laundry Holder Backorder BOS 00615697 $33.48

View on Model

0317

00605147 Bosch Laundry Nut In Stock BOS 00605147 $12.88

View on Model

0318

00668431 Bosch Laundry Pulley Assembly Backorder BOS 00668431 $118.97

View on Model

0319

00640433 Bosch Laundry Sealing Assembly Backorder BOS 00640433 $38.10

View on Model

0320

00249533 Bosch Laundry Tub Rear Backorder BOS 00249533 $455.78

View on Model

0322

00248667 Bosch Laundry Tub Front Backorder BOS 00248667 $461.96

View on Model

0323

00660868 Bosch Laundry Fastening Ring Backorder BOS 00660868 $21.64

View on Model

0325

00619808 Bosch Laundry Bearing Set Backorder BOS 00619808 $126.18

View on Model

0326

00670743 Bosch Laundry Fastening Ring Backorder BOS 00670743 $26.27

View on Model

0327

00621467 Bosch Laundry Screw Backorder BOS 00621467 $4.11

View on Model

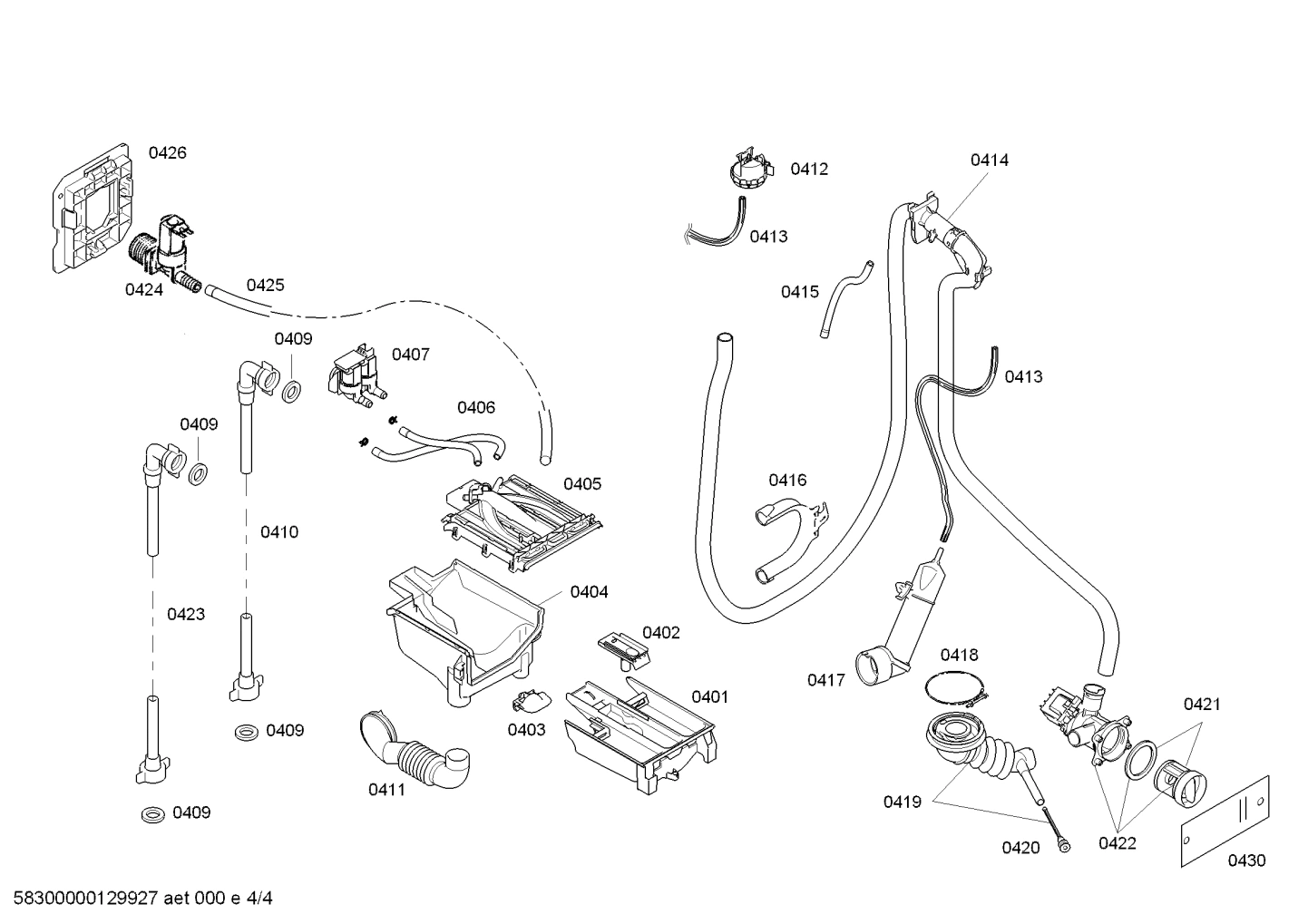

0401

00660683 Bosch Laundry Dispenser Tray Backorder BOS 00660683 $43.25

View on Model

0402

00605148 Bosch Laundry Siphon Device Backorder BOS 00605148 $10.82

View on Model

0403

00605740 Bosch Laundry Insert Backorder BOS 00605740 $10.29

View on Model

0404

00667824 Bosch Laundry Lower Dispenser Tray Backorder BOS 00667824 $65.41

View on Model

0405

Dispenser tray-upper part BOS 00667823 Contact Us For Availability

View on Model

0406

00661785 Bosch Laundry Hose Backorder BOS 00661785 $15.44

View on Model

0407

00611703 Bosch Washer Magnet Valve In Stock BOS 00611703 $74.57

View on Model

0409

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $15.97

View on Model

0410

Hose-inlet BOS 00493766 No Longer Available

View on Model

0413

00605209 Bosch Laundry Chamber Pressure Hose Backorder BOS 00605209 $47.90

View on Model

0414

11023391 Bosch Laundry Hose Outlet In Stock BOS 11023391 $66.55

View on Model

0415

00605215 Bosch Laundry Hose Backorder BOS 00605215 $36.04

View on Model

0416

00655300 Bosch Laundry Holder Backorder BOS 00655300 $15.97

View on Model

0417

00611633 Bosch Laundry Pressure Chamber Backorder BOS 00611633 $11.85

View on Model

0418

Hose clamp BOS 00422209 Contact Us For Availability

View on Model

0419

00757704 Bosch Laundry Sump Hose Backorder BOS 00757704 $20.59

View on Model

0420

00707751 Bosch Laundry Latch Backorder BOS 00707751 $19.06

View on Model

0421

00647920 Bosch Laundry Fluff Filter In Stock BOS 00647920 $33.27

View on Model

0422

00145753 Bosch Washer Drain Pump In Stock BOS 00145753 $162.92

View on Model

0423

Hose-inlet BOS 00493765 Contact Us For Availability

View on Model

0424

00611702 Bosch Laundry Magnet Valve In Stock BOS 00611702 $60.23

View on Model

0425

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $33.48

View on Model

0430

00611644 Bosch Laundry Cover Backorder BOS 00611644 $23.68

View on Model
