Model Bosch WAE24373EX/07 Washer – Common Parts & Diagrams

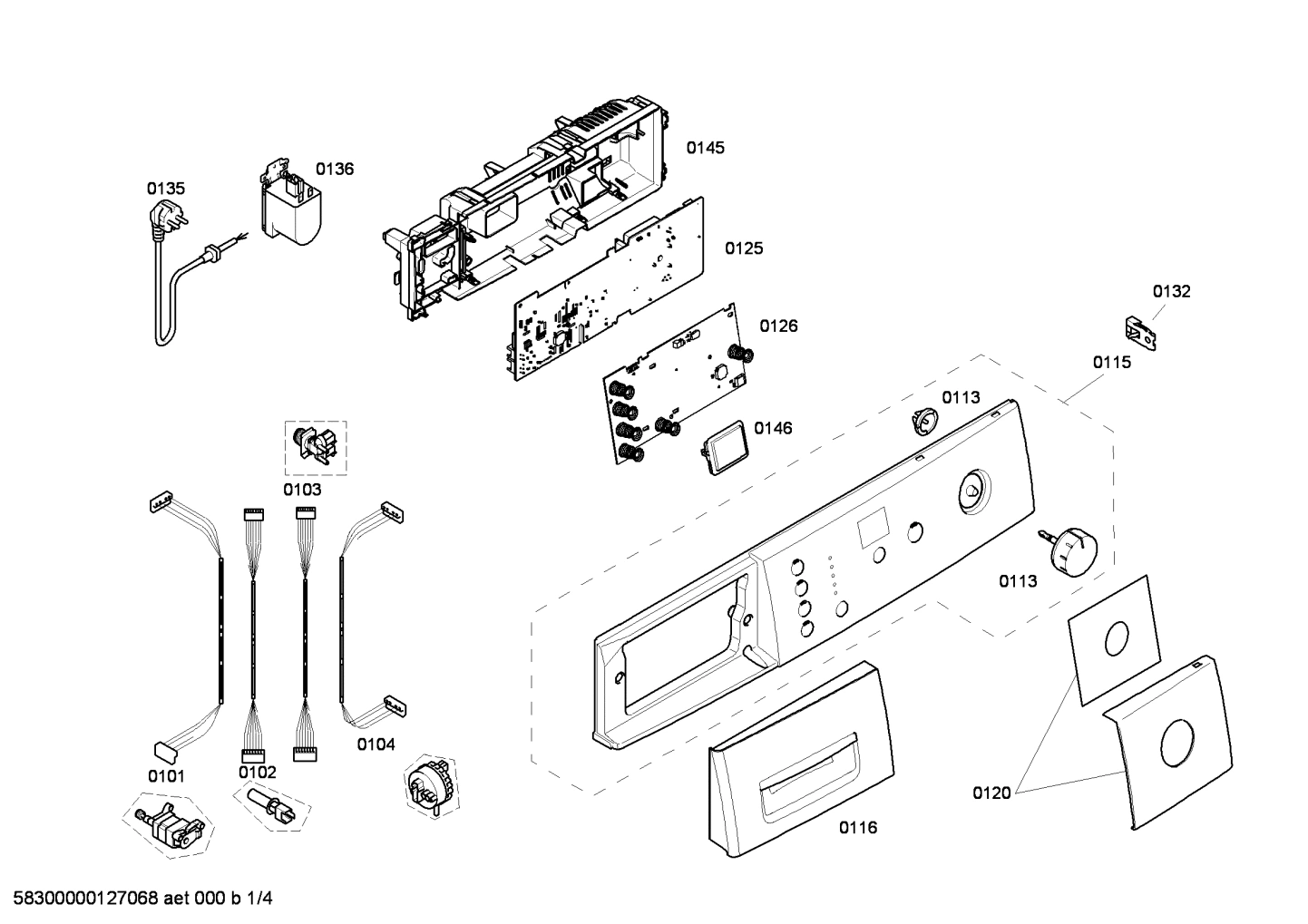

0136
Capacitor-interference suppre.
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
View on Model

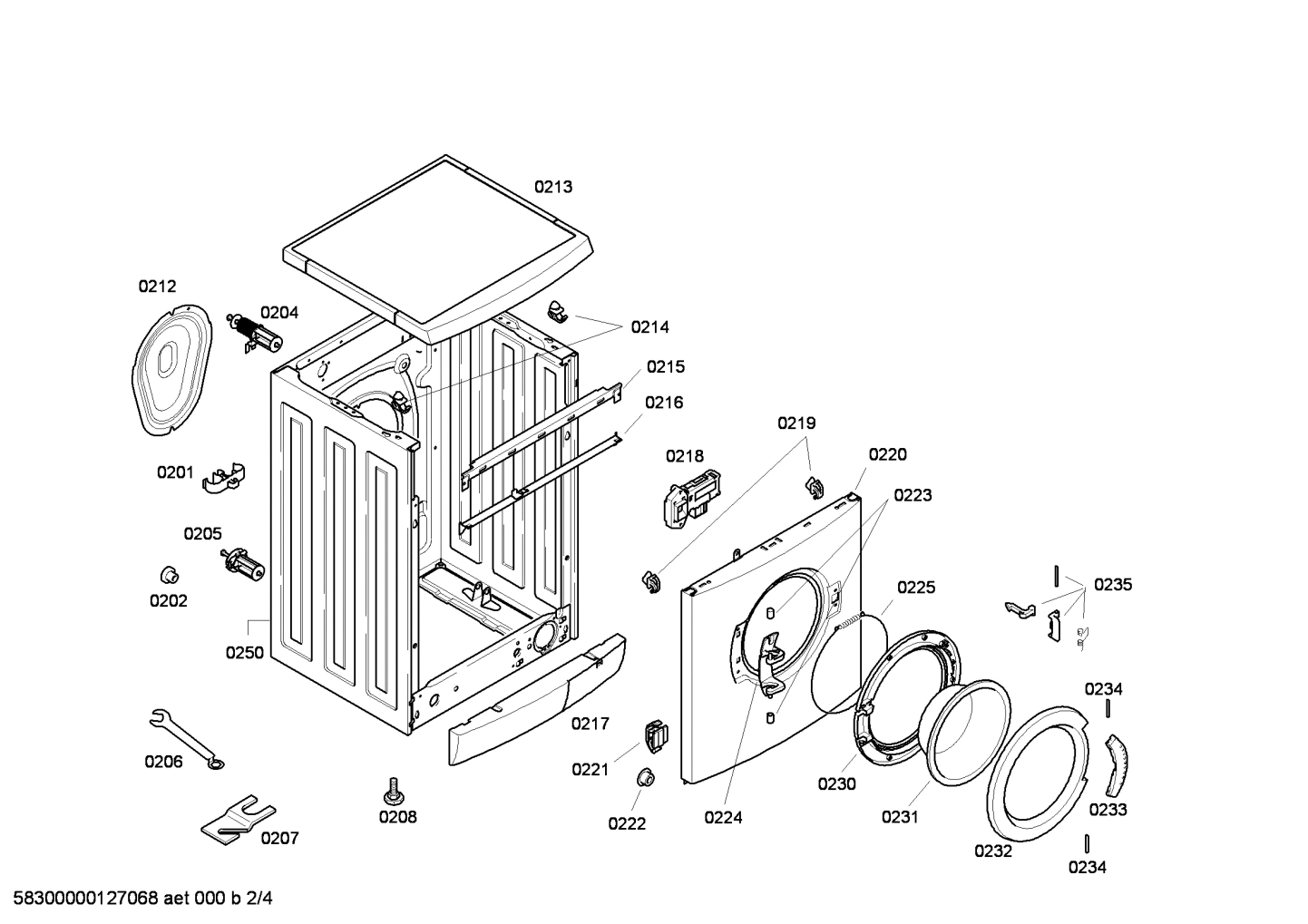

0222
Holder
Holder BOS 00606923 Contact Us For Availability
View on Model
0223
Bushing
Bushing BOS 00171264 Contact Us For Availability
View on Model
0225
fastening ring
fastening ring BOS 00439671 Contact Us For Availability
View on Model
0230
Ring
Ring BOS 00432073 Contact Us For Availability
View on Model
0233
Handle
Handle BOS 00266751 Contact Us For Availability
View on Model
0234
Axis
Axis BOS 00171255 Contact Us For Availability
View on Model
0303
Holder
Holder BOS 00168798 Contact Us For Availability
View on Model
0304
Fixture
Fixture BOS 00171272 Contact Us For Availability
View on Model
0307
Sensor-NTC
Sensor-NTC BOS 00170961 Contact Us For Availability
View on Model
0308
Holder
Holder BOS 00171273 Contact Us For Availability
View on Model

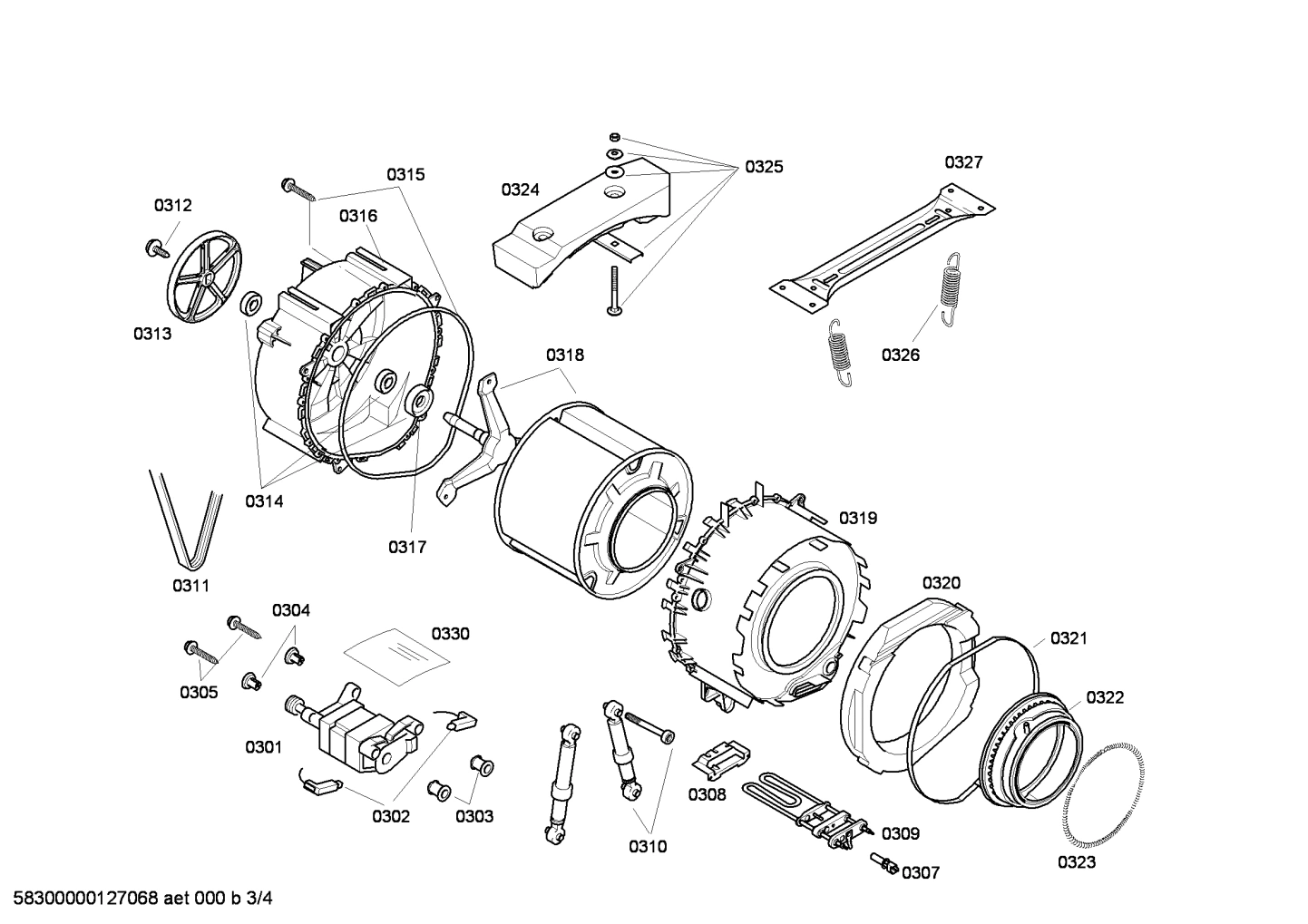

0314
Bearing set
Bearing set BOS 00172686 Contact Us For Availability
View on Model
0316
Tub
Tub BOS 00236013 Contact Us For Availability
View on Model
0319
Tub
Tub BOS 00715100 Contact Us For Availability
View on Model

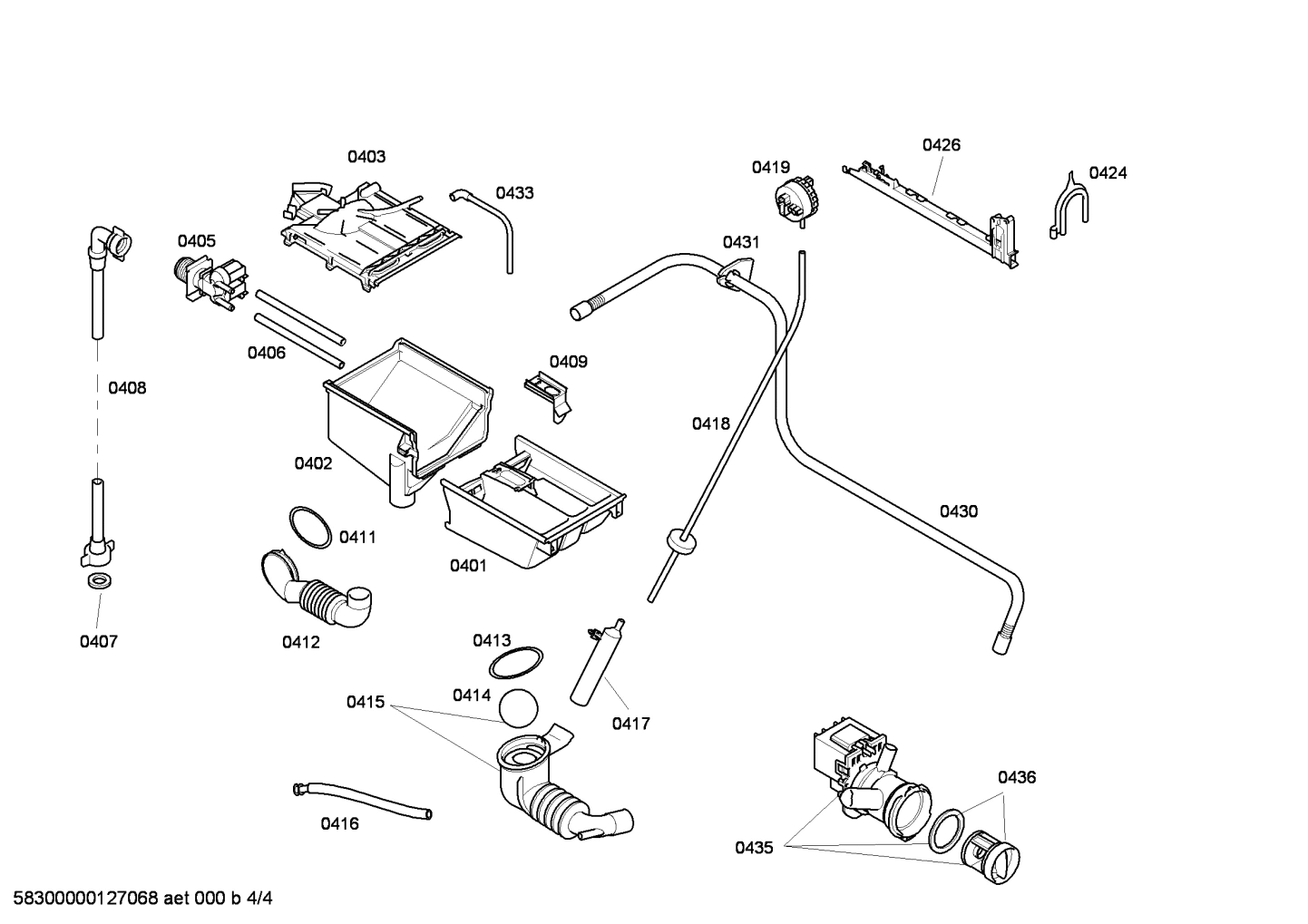

0401
Dispenser tray
Dispenser tray BOS 00361166 Contact Us For Availability
View on Model
0406
Hose-valve/soap box
Hose-valve/soap box BOS 00171262 Contact Us For Availability
View on Model
0407
Filter-water inlet
Filter-water inlet BOS 00027780 Contact Us For Availability
View on Model
0409
Siphon-device
Siphon-device BOS 00182245 Contact Us For Availability
View on Model
0413
fastening ring
fastening ring BOS 00603523 Contact Us For Availability
View on Model
0414
Ball-sump
Ball-sump BOS 00171263 Contact Us For Availability
View on Model
0417
Pressure chamber
Pressure chamber BOS 00424981 Contact Us For Availability
View on Model
0418
Hose-pressure chamber
Hose-pressure chamber BOS 00491919 Contact Us For Availability
View on Model
0430
Outlet hose
Outlet hose BOS 00354124 Contact Us For Availability
View on Model
