Bosch WAE24262FF/08 Parts List

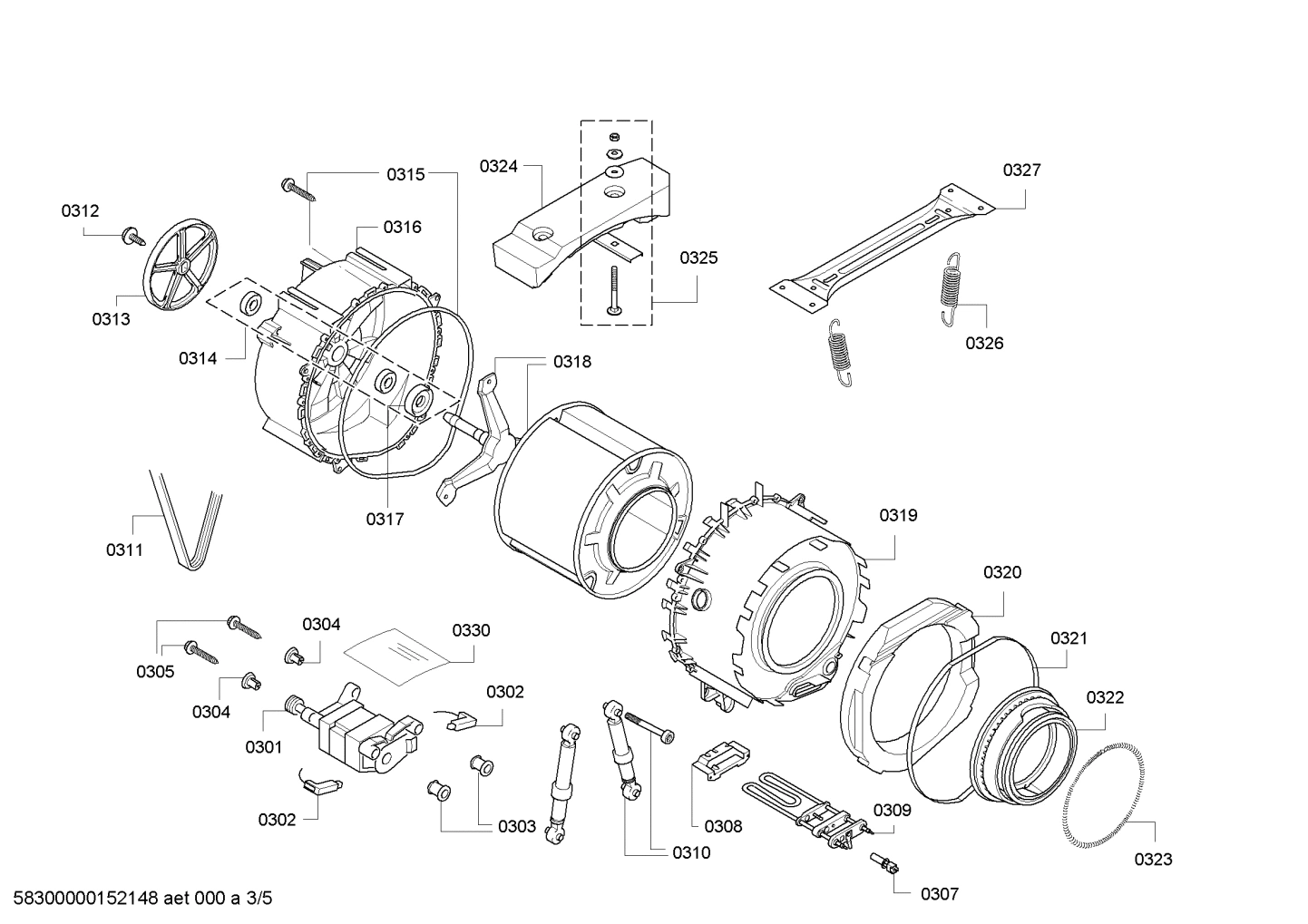

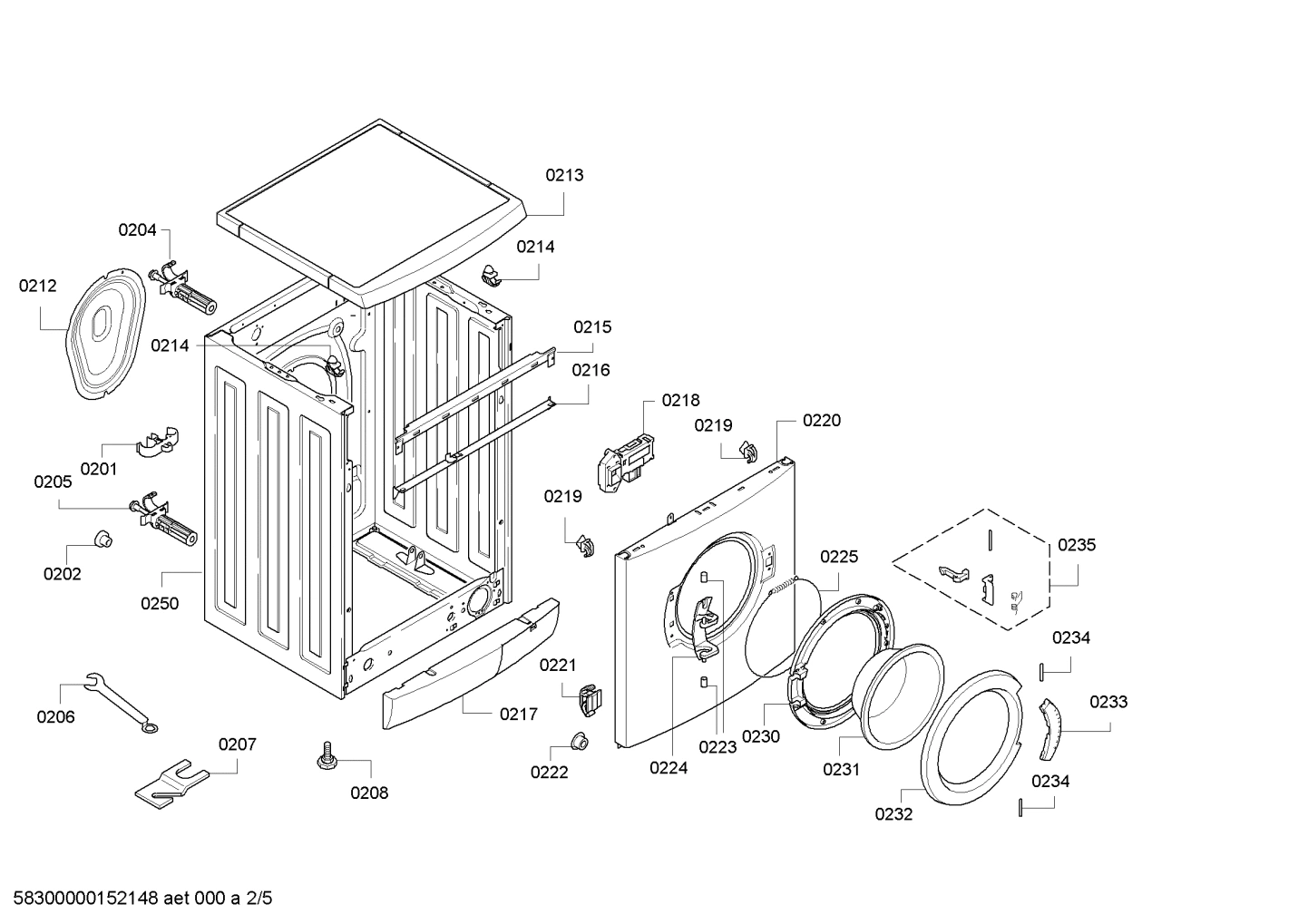

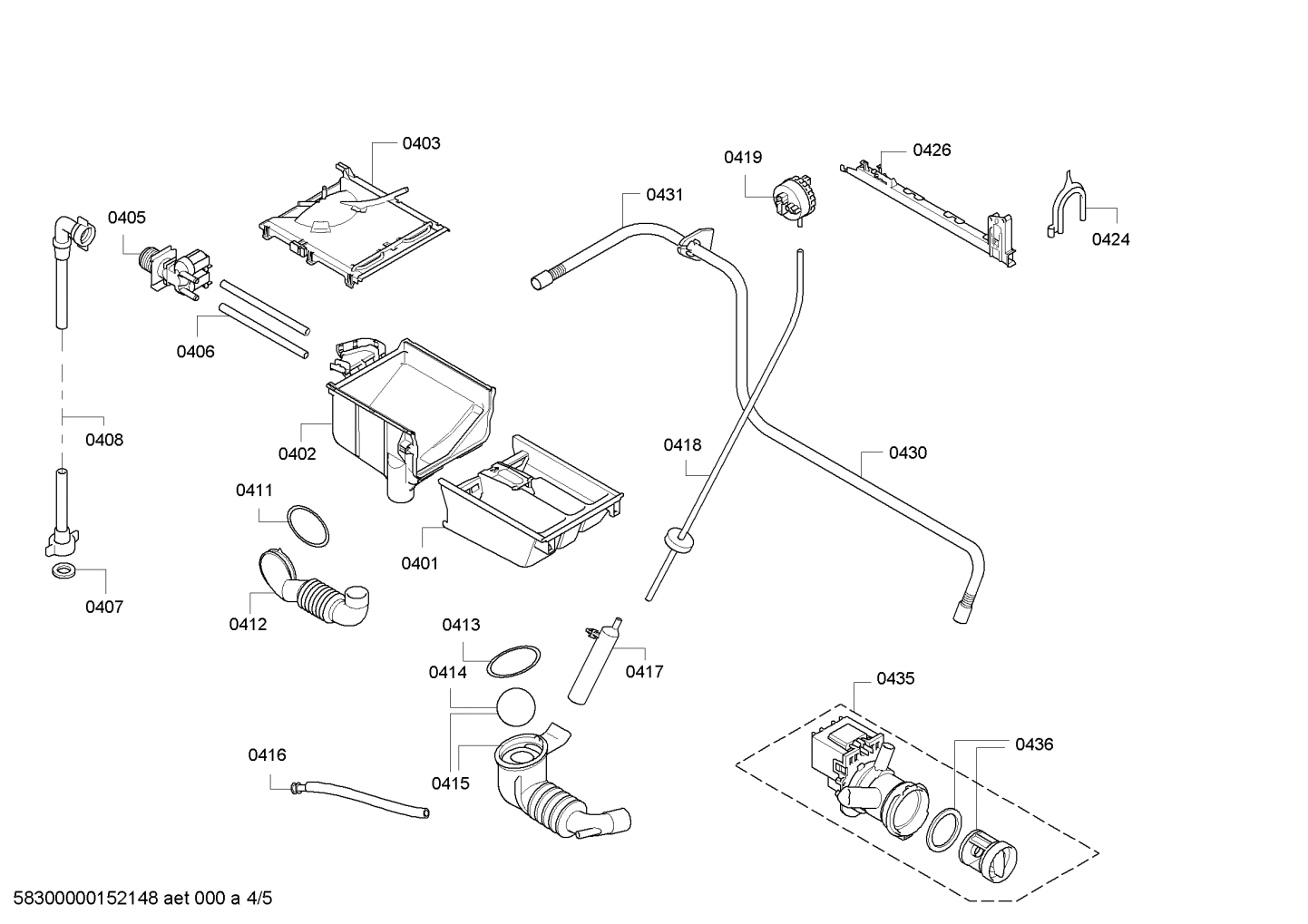

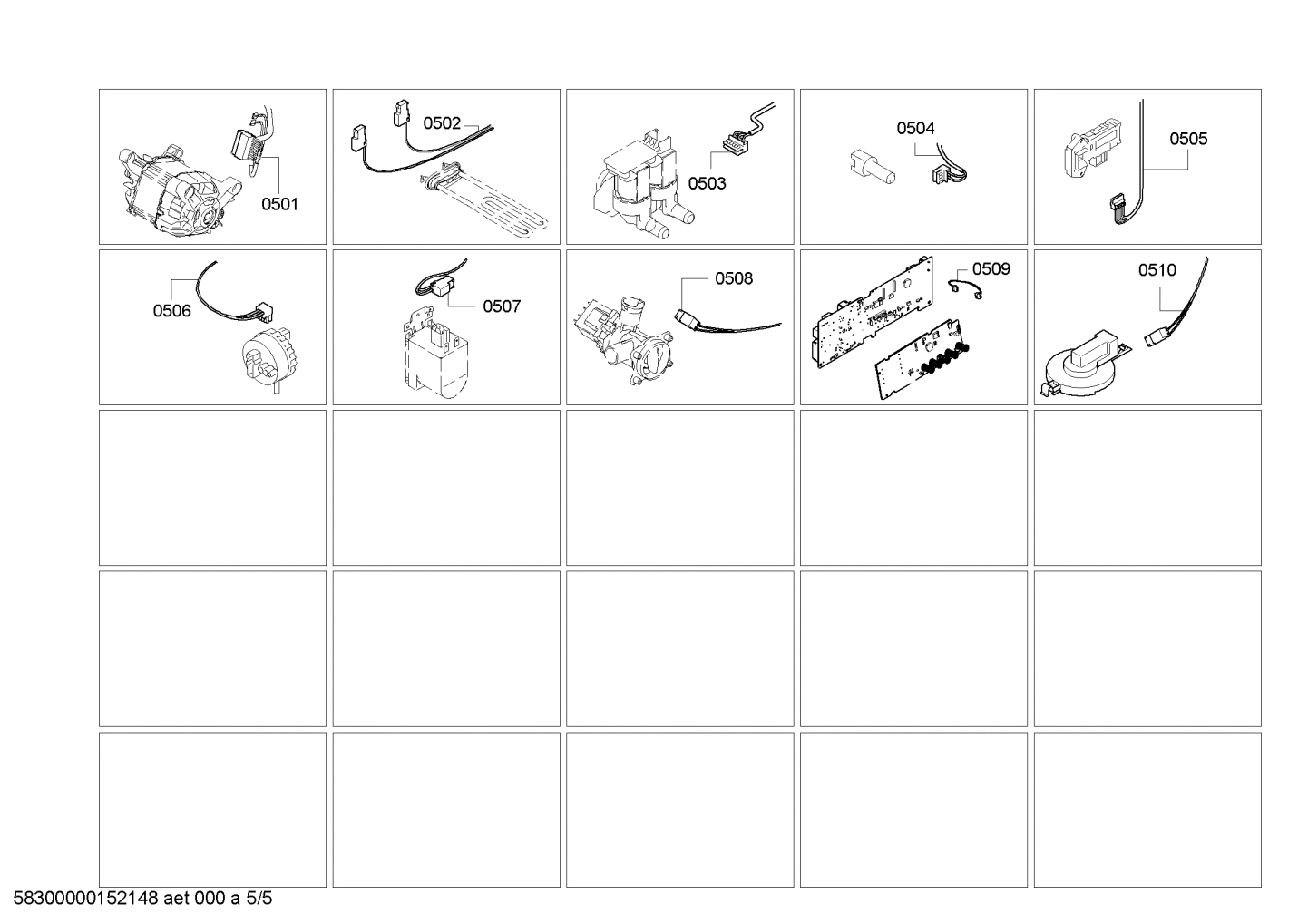

Model Bosch WAE24262FF/08 Washer – Common Parts & Diagrams

Common parts from model Bosch WAE24262FF/08 Washer

00493529 Bosch Laundry Fixing Kit

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $59.73

00610643 Bosch Laundry Foot Assembly

00610643 Bosch Laundry Foot Assembly In Stock BOS 00610643 $12.62

Worktop

Worktop BOS 00770353 Contact Us For Availability

00610147 Bosch Laundry Electric Lock

00610147 Bosch Laundry Electric Lock In Stock BOS 00610147 $53.55

00235567 Bosch Laundry Front Panel

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $222.47

00606923 Bosch Laundry Holder

00606923 Bosch Laundry Holder Backorder BOS 00606923 $6.17

00171264 Bosch Laundry Bushing

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $18.55

00171269 Bosch Laundry Hinge Window

00171269 Bosch Laundry Hinge Window Backorder BOS 00171269 $35.54

00439671 Bosch Laundry Fastening Ring

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $15.46

00432073 Bosch Laundry Ring

00432073 Bosch Laundry Ring Backorder BOS 00432073 $45.31

11020392 Bosch Laundry Window

11020392 Bosch Laundry Window Backorder BOS 11020392 $53.55

00266751 Bosch Laundry Handle

00266751 Bosch Laundry Handle Backorder BOS 00266751 $143.69

00171255 Bosch Laundry Axis

00171255 Bosch Laundry Axis Backorder BOS 00171255 $15.44

00634207 Bosch Washer Latch

00634207 Bosch Washer Latch In Stock BOS 00634207 $58.70

00168798 Bosch Laundry Holder

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.64

00171272 Bosch Laundry Fixture

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

10007126 Bosch Laundry Screw

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.11

Holder

Holder BOS 00171273 Contact Us For Availability

00439490 Bosch Washer Drive Belt

00439490 Bosch Washer Drive Belt In Stock BOS 00439490 $40.16

00171270 Bosch Screw

00171270 Bosch Screw Backorder BOS 00171270 $4.11

11002942 Bosch Laundry Pulley

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $61.29

00172686 Bosch Laundry Bearing Set

00172686 Bosch Laundry Bearing Set Backorder BOS 00172686 $137.00

Tub

Tub BOS 00236013 Contact Us For Availability

00773699 Bosch Laundry Drum

00773699 Bosch Laundry Drum Backorder BOS 00773699 $242.04

00715100 Bosch Laundry Tub

00715100 Bosch Laundry Tub Backorder BOS 00715100 $289.95

00265965 Bosch Laundry Band

00265965 Bosch Laundry Band Backorder BOS 00265965 $42.22

00354135 Bosch Washer Boot Gasket

00354135 Bosch Washer Boot Gasket In Stock BOS 00354135 $105.55

00354134 Bosch Laundry Fastening Ring

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.79

00606818 Bosch Laundry Tank Spring

00606818 Bosch Laundry Tank Spring Backorder BOS 00606818 $11.32

00703270 Bosch Laundry Dispenser Tray

00703270 Bosch Laundry Dispenser Tray Backorder BOS 00703270 $218.35

00171262 Bosch Laundry Valve Hose Soap Box

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $33.48

00027780 Bosch Laundry Inlet Water Filter

00027780 Bosch Laundry Inlet Water Filter Backorder BOS 00027780 $15.97

00421488 Bosch Laundry Fastening Ring

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

00265958 Bosch Laundry Fill Hose

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $25.24

00603523 Bosch Fastening Ring

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41

00171263 Bosch Laundry Sump Ball

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

Pressure chamber

Pressure chamber BOS 00424981 Contact Us For Availability

00655300 Bosch Laundry Holder

00655300 Bosch Laundry Holder Backorder BOS 00655300 $15.97

00354124 Bosch Laundry Outlet Hose

00354124 Bosch Laundry Outlet Hose Backorder BOS 00354124 $20.59
