Bosch WAE20411BC/09 Washer

0116

00604072 Bosch Laundry Coupling Backorder BOS 00604072 $4.11

View on Model

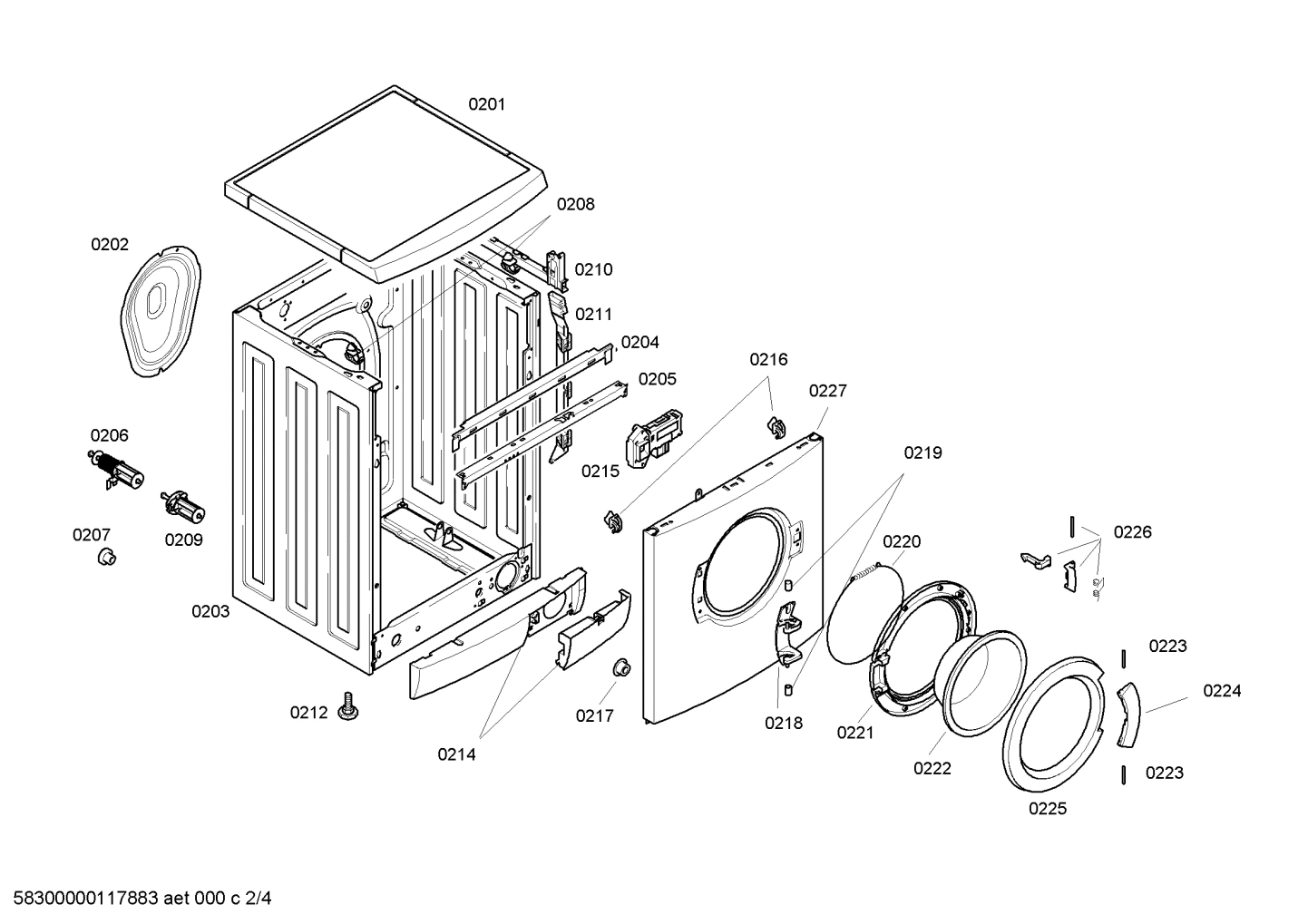

0206

00186870 Bosch Transit Bolt Backorder BOS 00186870 $22.65

View on Model

0207

00182194 Bosch Laundry Lid Backorder BOS 00182194 $6.17

View on Model

0209

Transit bolt BOS 00429205 Contact Us For Availability

View on Model

0215

00610147 Bosch Laundry Electric Lock In Stock BOS 00610147 $52.52

View on Model

0217

00606923 Bosch Laundry Holder Backorder BOS 00606923 $6.17

View on Model

0218

00171269 Bosch Laundry Hinge Window In Stock BOS 00171269 $35.01

View on Model

0219

00171264 Bosch Laundry Bushing In Stock BOS 00171264 $18.52

View on Model

0220

00439671 Bosch Laundry Fastening Ring In Stock BOS 00439671 $15.43

View on Model

0221

00715042 Bosch Laundry Ring Backorder BOS 00715042 $44.28

View on Model

0223

00171255 Bosch Laundry Axis Backorder BOS 00171255 $15.44

View on Model

0226

00634207 Bosch Washer Latch In Stock BOS 00634207 $57.67

View on Model

0227

00235567 Bosch Laundry Front Panel Backorder BOS 00235567 $216.29

View on Model

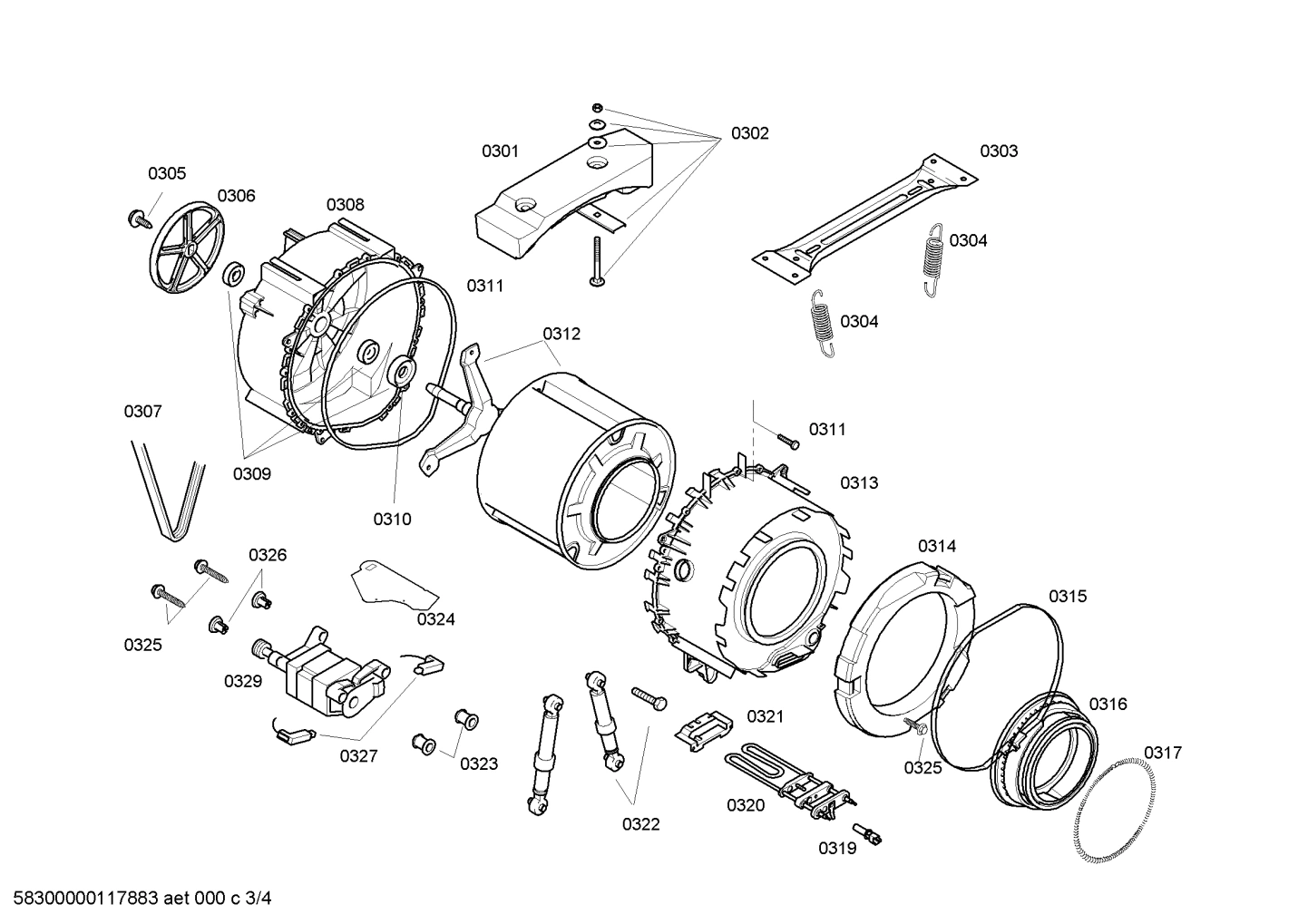

0302

00631639 Bosch Laundry Fixing Kit Backorder BOS 00631639 $29.86

View on Model

0304

00606818 Bosch Laundry Tank Spring Backorder BOS 00606818 $11.32

View on Model

0305

00171270 Bosch Screw Backorder BOS 00171270 $4.11

View on Model

0306

11002942 Bosch Laundry Pulley Backorder BOS 11002942 $59.73

View on Model

0307

00678914 Bosch Laundry Drive Belt Backorder BOS 00678914 $53.55

View on Model

0308

Tub BOS 00236013 Contact Us For Availability

View on Model

0309

00172685 Bosch Laundry Bearing Set In Stock BOS 00172685 $63.85

View on Model

0310

00613083 Bosch Laundry Seal Shaft Backorder BOS 00613083 $19.56

View on Model

0311

00416886 Bosch Laundry Sealing Backorder BOS 00416886 $48.40

View on Model

0312

00215117 Bosch Laundry Drum Backorder BOS 00215117 $294.57

View on Model

0313

00715100 Bosch Laundry Tub Backorder BOS 00715100 $282.21

View on Model

0315

00265965 Bosch Laundry Band Backorder BOS 00265965 $40.16

View on Model

0316

00361127 Bosch Washer Boot Gasket In Stock BOS 00361127 $79.30

View on Model

0317

00354134 Bosch Laundry Fastening Ring Backorder BOS 00354134 $9.26

View on Model

0319

00170961 Bosch Laundry NTC Sensor Backorder BOS 00170961 $19.56

View on Model

0321

Holder BOS 00171273 Contact Us For Availability

View on Model

0323

00168798 Bosch Laundry Holder Backorder BOS 00168798 $4.11

View on Model

0325

10007126 Bosch Laundry Screw Backorder BOS 10007126 $4.10

View on Model

0326

00171272 Bosch Laundry Fixture Backorder BOS 00171272 $7.20

View on Model

0327

00154740 Bosch Washer Carbon Brush In Stock BOS 00154740 $65.61

View on Model

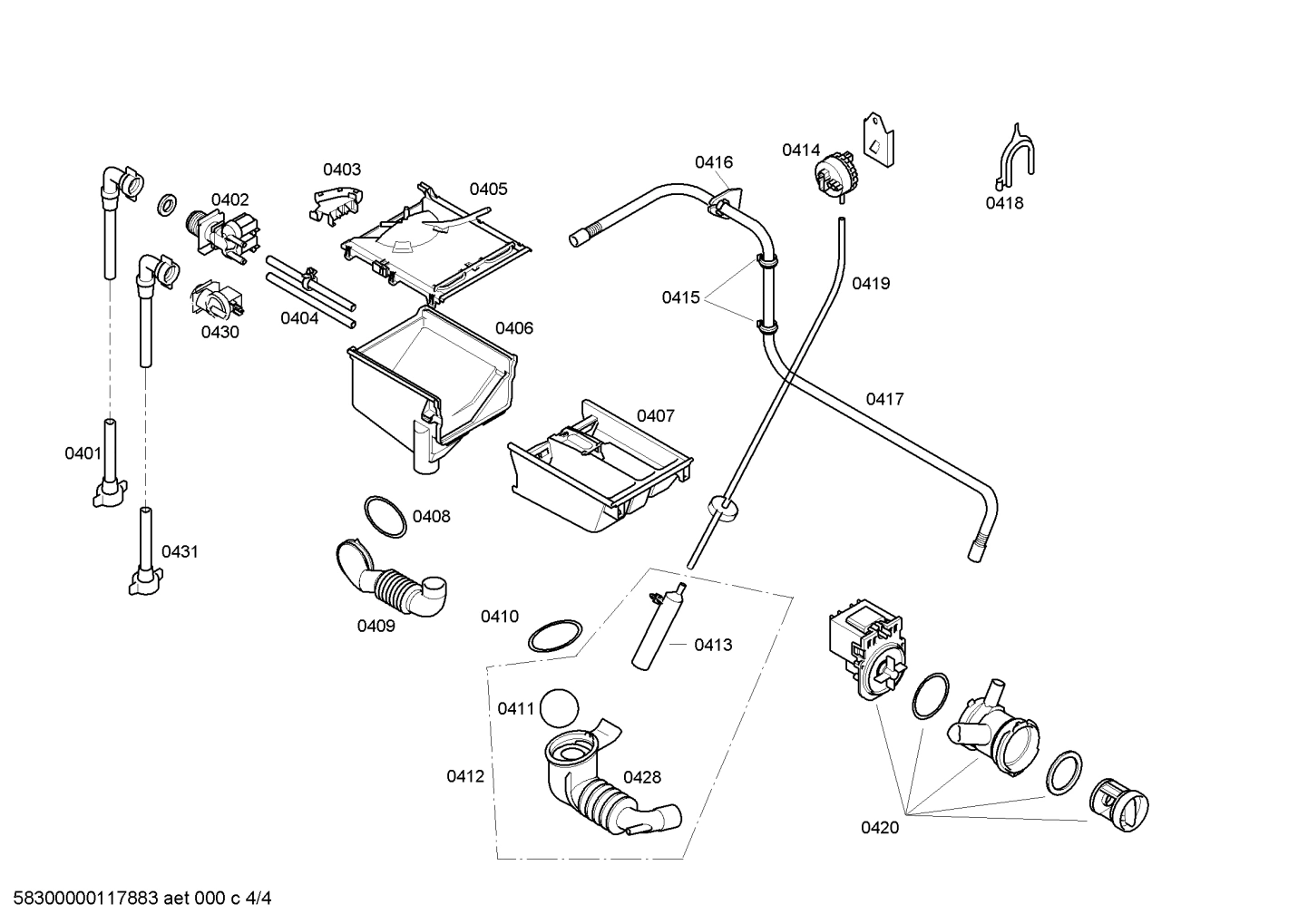

0404

00171262 Bosch Laundry Valve Hose Soap Box Backorder BOS 00171262 $32.95

View on Model

0405

11035255 Bosch Laundry Dispenser Case Backorder BOS 11035255 $52.52

View on Model

0407

00703270 Bosch Laundry Dispenser Tray Backorder BOS 00703270 $218.35

View on Model

0408

00421488 Bosch Laundry Fastening Ring Backorder BOS 00421488 $7.20

View on Model

0409

00265958 Bosch Laundry Fill Hose Backorder BOS 00265958 $24.71

View on Model

0410

00603523 Bosch Fastening Ring Backorder BOS 00603523 $14.41

View on Model

0411

00171263 Bosch Laundry Sump Ball Backorder BOS 00171263 $13.38

View on Model

0413

Pressure chamber BOS 00424981 Contact Us For Availability

View on Model

0414

00428683 Bosch Laundry Water Level Regulator Backorder BOS 00428683 $40.16

View on Model

0417

00354124 Bosch Laundry Outlet Hose Backorder BOS 00354124 $20.59

View on Model

0418

00655300 Bosch Laundry Holder Backorder BOS 00655300 $15.44

View on Model

0419

Hose-pressure chamber BOS 00491919 Contact Us For Availability

View on Model

0428

00494561 Bosch Laundry Eco Hose Backorder BOS 00494561 $33.98

View on Model

Model Bosch WAE20411BC/09 Washer – Common Parts & Diagrams

Common parts from model Bosch WAE20411BC/09 Washer
