Model Samsung WA52A5500AV/US-00 Washer – Common Parts & Diagrams

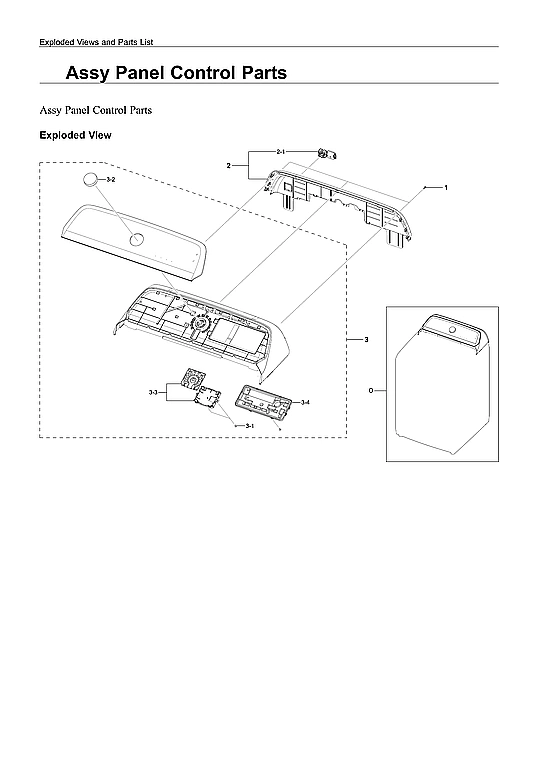

Control Panel Assembly

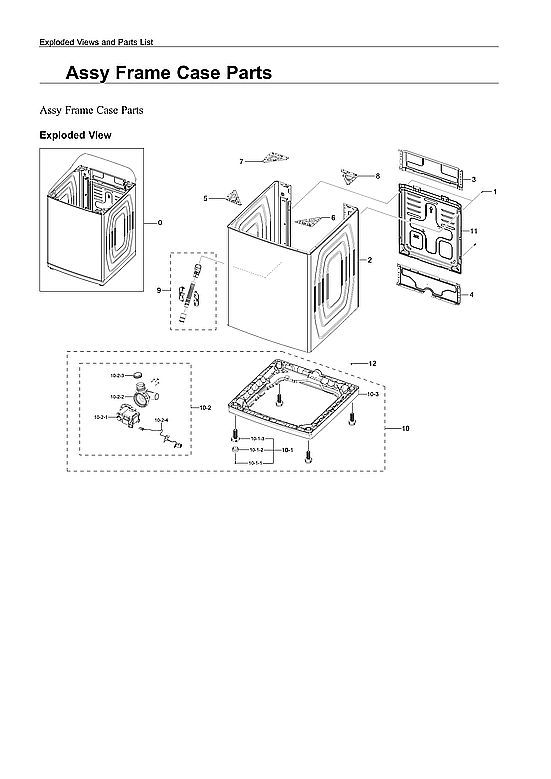

Frame Case Assembly

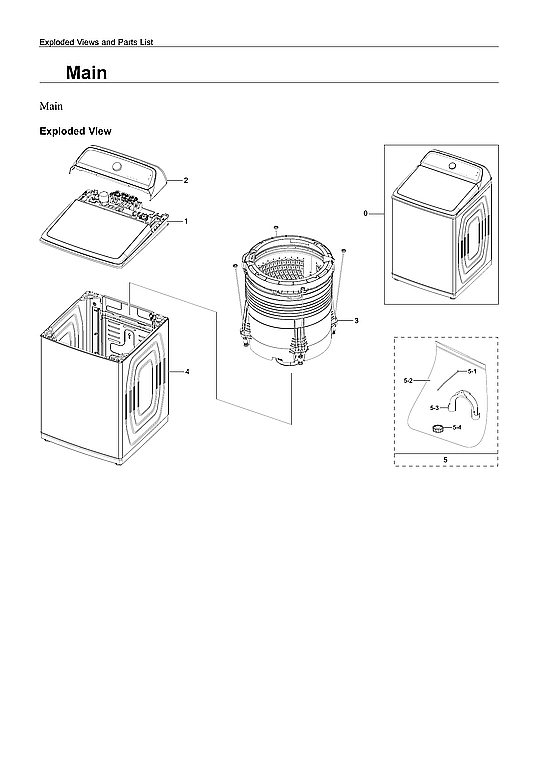

Main Assembly

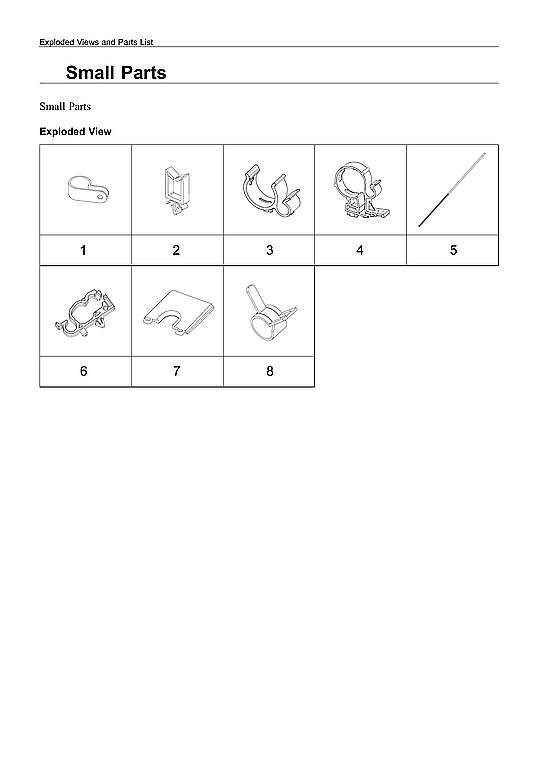

Small Parts

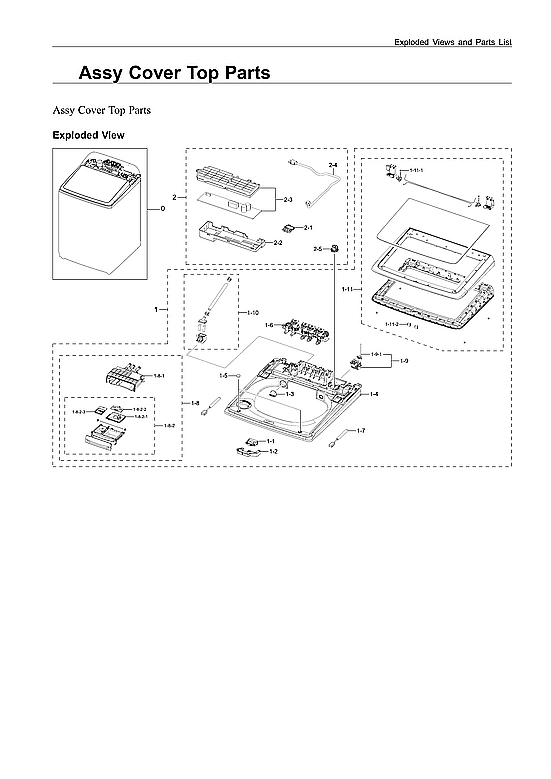

Top Cover Assembly

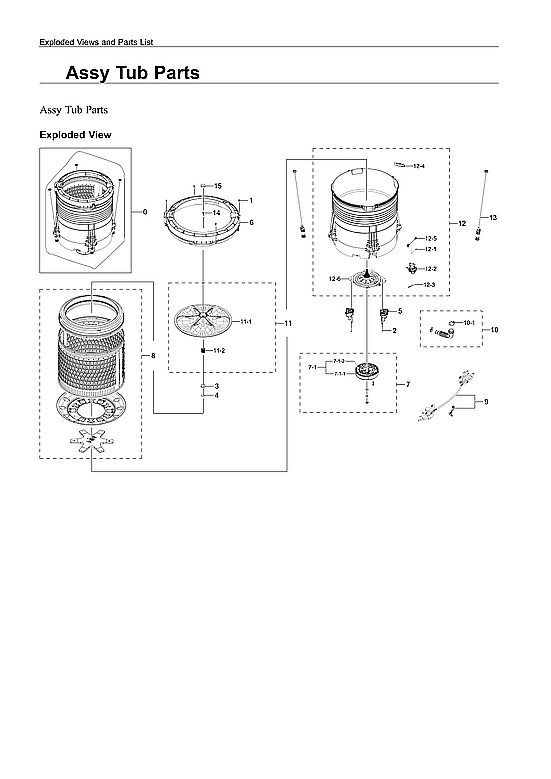

Tub Assembly
Common parts from model Samsung WA52A5500AV/US-00 Washer
1
Washer top panel assembly SMG DC90-29470B Contact Us For Availability
1-4
Washer top panel SMG DC63-02343A Contact Us For Availability
1-8
Samsung assy detergent-module SMG DC97-20589L Contact Us For Availability
1-8-2
Assy case detergent SMG DC97-21515Q Contact Us For Availability
1-8-2-1
Guide detergent SMG DC61-05396B Contact Us For Availability
1-8-2-2
Cap detergent SMG DC67-01156B Contact Us For Availability
1-8-2-3
Cap rinse SMG DC67-01157B Contact Us For Availability
2
Assy panel control parts SMG DC90-29464D Contact Us For Availability
2
Assy electrical parts SMG DC90-29469B Contact Us For Availability
2-3
Washer electronic control board SMG DC92-02965B Contact Us For Availability
3
Assy tub outer parts SMG DC90-29466C Contact Us For Availability
5
Support saddle (2) SMG DC61-04843A Contact Us For Availability
5-2
Bag pe SMG 6902-000286 Contact Us For Availability
5-3
Hanger clamper SMG DC61-00224B Contact Us For Availability
6
Hose holder SMG DC61-03268A Contact Us For Availability
7
Assy driving module parts SMG DC90-00115S Contact Us For Availability
7-1-2
Assy stator SMG DC97-20946A Contact Us For Availability
11-1
Pulsator SMG DC66-01013A Contact Us For Availability
11-2
Bushing SMG DC66-20042A Contact Us For Availability
× ![]()
