Samsung WA50T5300AC/US-01 Washer Parts List

1

6009-001780 Samsung Hex Bolt Backorder SMG 6009-001780 $3.35

View on Model

1

DC34-00025G Samsung Switch Door Lock DC12V 0. In Stock SMG DC34-00025G $182.14

View on Model

1

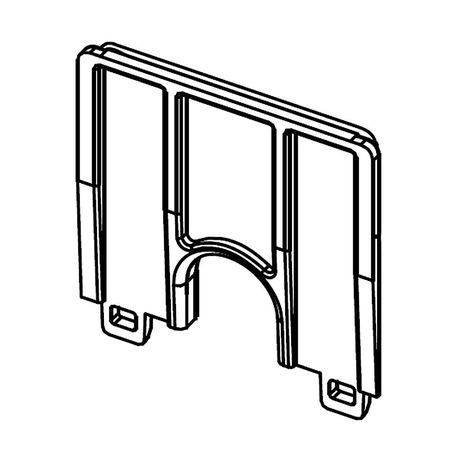

DC63-01579A Samsung COVER GUIDE Wire;W3050,PP Backorder SMG DC63-01579A $2.52

View on Model

2

6021-001573 Samsung Washer Hexagon Nut In Stock SMG 6021-001573 $49.36

View on Model

2

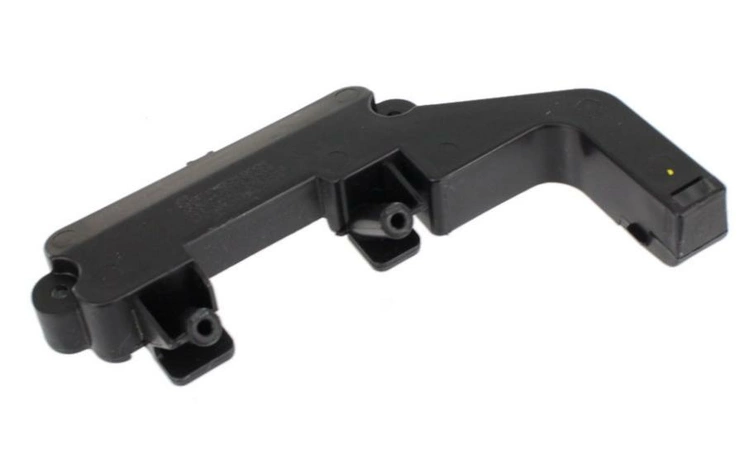

DC61-04892B Samsung Washing Machine Case Door Backorder SMG DC61-04892B $8.38

View on Model

2

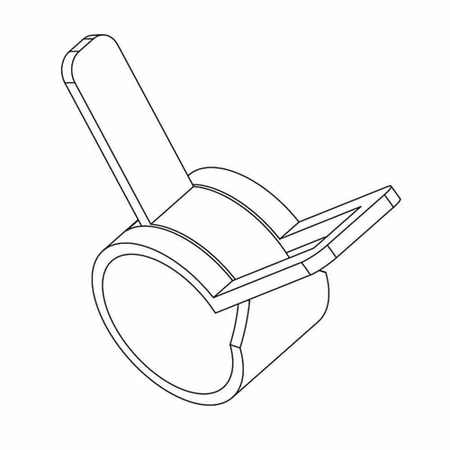

DC65-00051A Samsung Clamper Hose Assembly A2 Backorder SMG DC65-00051A $49.23

View on Model

3

6031-002240 Samsung Washer Wave Backorder SMG 6031-002240 $10.61

View on Model

3

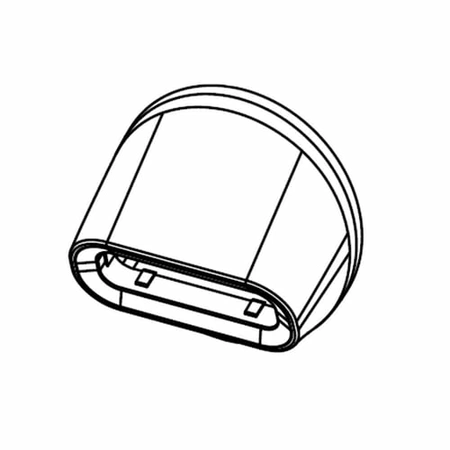

DC62-00647A Samsung Nozzle Assembly Backorder SMG DC62-00647A $5.33

View on Model

3

DC65-20010A Samsung Cable Clamp Backorder SMG DC65-20010A $1.18

View on Model

4

DC60-40133A Samsung Washer Pulsator Bolt Backorder SMG DC60-40133A $6.71

View on Model

4

DC61-00553B Samsung Cable Clamp Assembly Backorder SMG DC61-00553B $1.69

View on Model

4

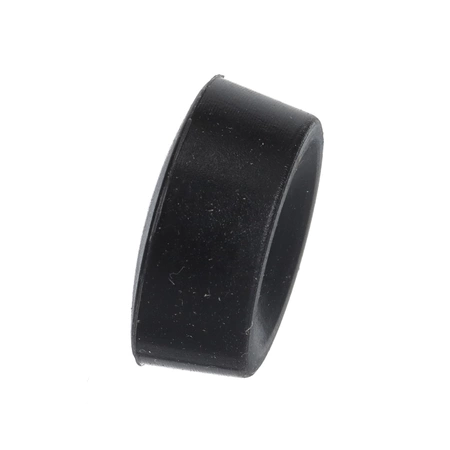

DC67-01038A Samsung Screw Cap Assembly WA54P7 Backorder SMG DC67-01038A $3.35

View on Model

5

DC65-00038A Samsung Clamper Hose Fix Assembly In Stock SMG DC65-00038A $2.74

View on Model

5

DC97-15459H Samsung Washer Water Valve Assemb In Stock SMG DC97-15459H $175.36

View on Model

5

SUPPORT SADDLE (2) SMG DC61-04843A Contact Us For Availability

View on Model

5-2

CABLE TIE SMG DC61-00224B Contact Us For Availability

View on Model

5-3

DC97-18313A Samsung Assembly Cap V.W UBS2 US Backorder SMG DC97-18313A $11.70

View on Model

6

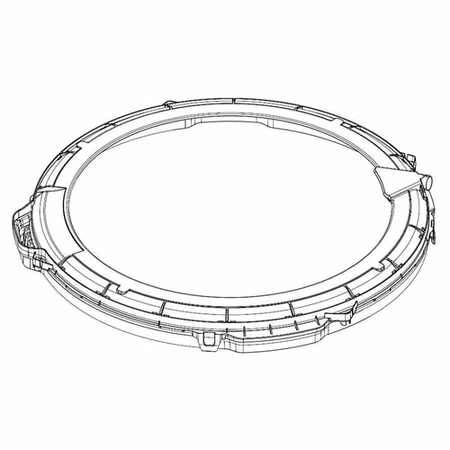

DC63-02416A Samsung Cover Tub Module WA50R540 Backorder SMG DC63-02416A $120.48

View on Model

6

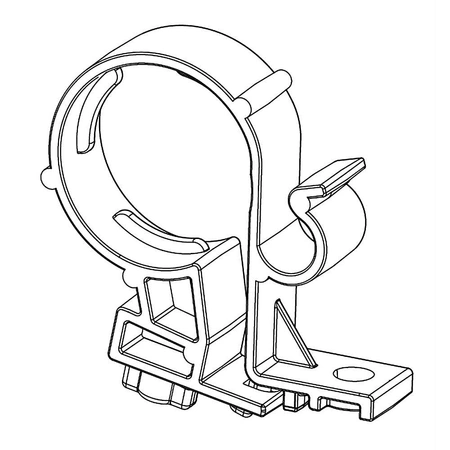

DC65-00047A Samsung Clamper Hose Assembly Backorder SMG DC65-00047A $52.22

View on Model

6

DC97-19221A Samsung Assembly Inner Hinge WA87 Backorder SMG DC97-19221A $74.46

View on Model

7

DC66-00032G Samsung Washer Pulsator Cap Hudso Backorder SMG DC66-00032G $44.75

View on Model

7

DC66-10003A Samsung Wire Vinyl Backorder SMG DC66-10003A $2.14

View on Model

7

DC92-03567L Samsung PCB Kit Assembly In Stock SMG DC92-03567L $293.96

View on Model

7-1

GUIDE COVER PCB SMG DC61-04874A Contact Us For Availability

View on Model

7-2

ASSY PCB MANUAL SMG DC94-10073A Contact Us For Availability

View on Model

7-2-1

ASSY PCB AUTO SMG DC94-10072A Contact Us For Availability

View on Model

7-2-1-1

ASSY PCB SMD SMG DC94-10074A Contact Us For Availability

View on Model

8

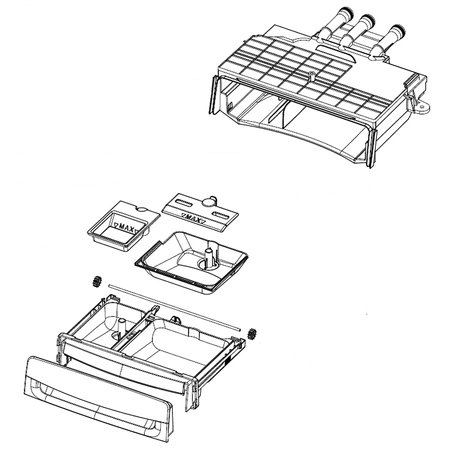

DC97-20589E Samsung Assembly Detergent Backorder SMG DC97-20589E $143.30

View on Model

8

ASSY DRIVING MODULE PARTS SMG DC90-00115S Contact Us For Availability

View on Model

8-1

DC93-00309D Samsung Assembly SDM700 BLDC Moto Backorder SMG DC93-00309D $145.06

View on Model

8-1

DC97-19312A Samsung Detergent Body Assembly W Backorder SMG DC97-19312A $83.49

View on Model

8-1-1

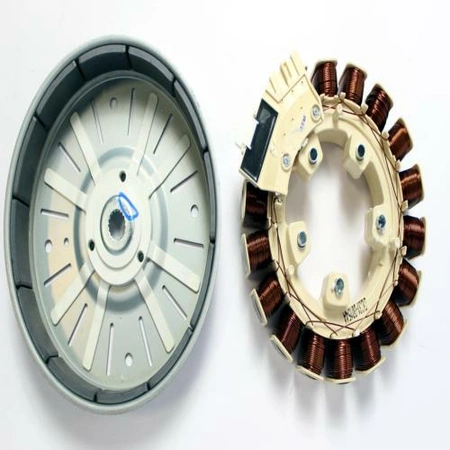

DC31-00155B Samsung Motor Direct Current Brus Backorder SMG DC31-00155B $173.03

View on Model

8-1-2

ASSY STATOR SMG DC97-20946A Contact Us For Availability

View on Model

8-2

6011-004528 Samsung Bolt In Stock SMG 6011-004528 $7.09

View on Model

8-2

ASSY CASE DETERGENT SMG DC97-21515B Contact Us For Availability

View on Model

8-2-1

BODY DRAWER SMG DC61-04930B Contact Us For Availability

View on Model

8-2-2

Detergent Guide SMG DC61-03267C Contact Us For Availability

View on Model

8-2-3

Cap SMG DC67-00634B Contact Us For Availability

View on Model

8-2-4

DC67-00635B Samsung Washer Rinse Cap Assembly Backorder SMG DC67-00635B $10.61

View on Model

8-3

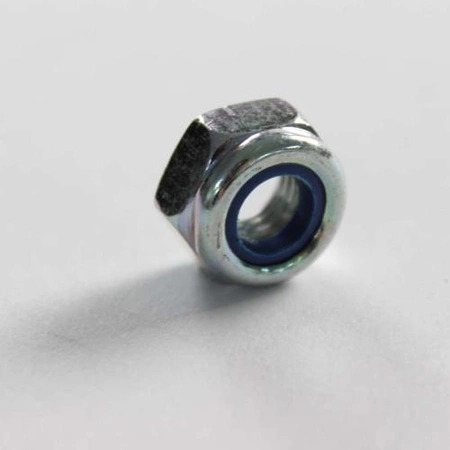

6021-001253 Samsung Nut Hexagon 1c M10x1 In Stock SMG 6021-001253 $5.57

View on Model

8-4

WASHER-PLAIN SMG 6031-003108 Contact Us For Availability

View on Model

8-5

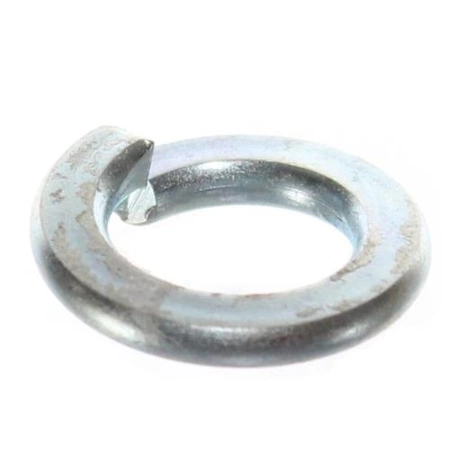

DC60-60046A Samsung Washer Spring Backorder SMG DC60-60046A $1.69

View on Model

9

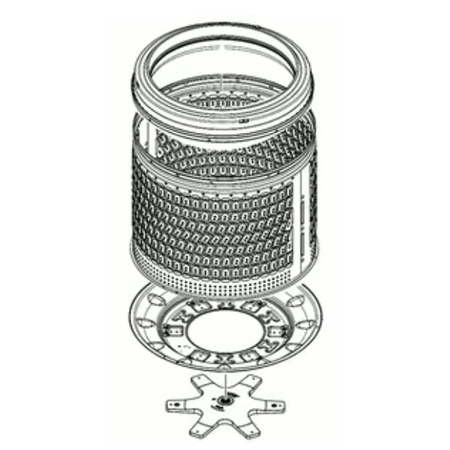

DC90-27205D Samsung Spin Basket Assembly Part Backorder SMG DC90-27205D $486.53

View on Model

9

DC97-18682B Samsung Assembly Drain Hose WA870 Backorder SMG DC97-18682B $111.63

View on Model

9

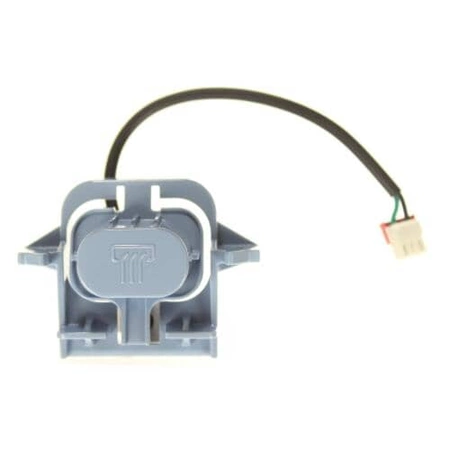

DC97-20596C Samsung Assembly Button Tact Backorder SMG DC97-20596C $29.25

View on Model

9-1

DC93-00694B Samsung Switch Assembly Tact A2 P Backorder SMG DC93-00694B $31.30

View on Model

9-1

BASKET WRAPPER SMG DC61-05059A Contact Us For Availability

View on Model

9-2

ASSY BALANCER SMG DC97-21552A Contact Us For Availability

View on Model

9-3

ASSY BOWL SMG DC97-21438A Contact Us For Availability

View on Model

9-3-1

Flange Shaft SMG DC60-00067D Contact Us For Availability

View on Model

9-3-2

BASKET BOWL SMG DC61-04728A Contact Us For Availability

View on Model

10

DC93-00808B Samsung Main Auto Wire Harness As Backorder SMG DC93-00808B $192.93

View on Model

10

DC97-19289H Samsung Assembly Drain Pump A2 PJ In Stock SMG DC97-19289H $123.20

View on Model

10

DC97-21509A Samsung Assembly Nozzle Backorder SMG DC97-21509A $40.27

View on Model

10-1

GUIDE WIRE SMG DC61-04832A Contact Us For Availability

View on Model

10-2

DC31-00187A Samsung Washer AC Pump Motor Asse In Stock SMG DC31-00187A $161.50

View on Model

10-3

DC61-03385A Samsung Washer Pump Case Backorder SMG DC61-03385A $40.73

View on Model

10-4

DC62-00328A Samsung Washer Drain Check Valve Backorder SMG DC62-00328A $99.66

View on Model

10-7

DC98-01438A Samsung F900 Pump Cushion Assembl Backorder SMG DC98-01438A $7.99

View on Model

11

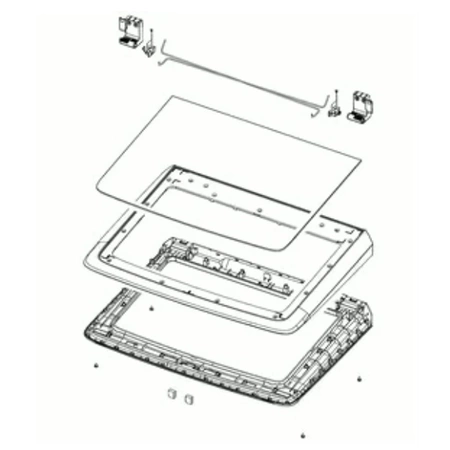

DC97-21510F Samsung Lid Assembly T.C WA7000R Backorder SMG DC97-21510F $356.17

View on Model

11

DC97-21786A Samsung Assembly - Pulsator A2 PJ Backorder SMG DC97-21786A $124.95

View on Model

11-1

DC61-03184A Samsung Washer/Dishwasher R.S. Ma Backorder SMG DC61-03184A $7.27

View on Model

11-1

PULSATOR SMG DC66-01013A Contact Us For Availability

View on Model

11-2

SPRING HINGE SMG DC61-04129E Contact Us For Availability

View on Model

11-2

Bushing SMG DC66-20042A Contact Us For Availability

View on Model

11-2-2

DC61-01722B Samsung Washer Adjustable Levelin In Stock SMG DC61-01722B $7.38

View on Model

11-3

SPRING HINGE SMG DC61-04129F Contact Us For Availability

View on Model

11-4

HINGE-RIGHT SMG DC61-04872C Contact Us For Availability

View on Model

11-5

HINGE-LEFT SMG DC61-04876C Contact Us For Availability

View on Model

11-6

HINGE DOOR (2) SMG DC61-04873A Contact Us For Availability

View on Model

11-7

DOOR LID COVER SMG DC64-03819C Contact Us For Availability

View on Model

11-8

DOOR LID T.C SMG DC64-03821C Contact Us For Availability

View on Model

11-9

DOOR GLASS SMG DC64-03823B Contact Us For Availability

View on Model

11-10

DC63-01577B Samsung Cushion Lid Backorder SMG DC63-01577B $2.14

View on Model

12

DC63-02502A Samsung Cover Top Assembly Backorder SMG DC63-02502A $263.34

View on Model

12

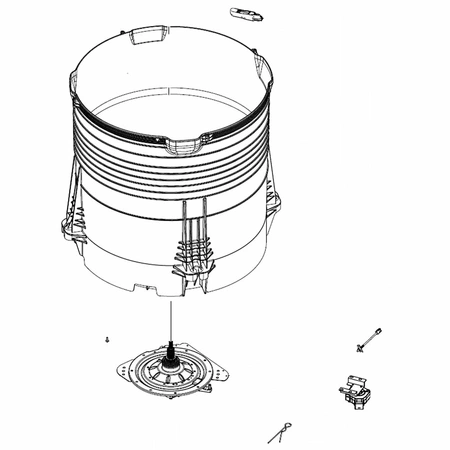

DC97-21556A Samsung Assembly Semi Tub Outer W Backorder SMG DC97-21556A $441.44

View on Model

12-2

DC31-20014C Samsung Washer Shift Actuator In Stock SMG DC31-20014C $165.92

View on Model

12-3

DC66-00978A Samsung Drain Link Backorder SMG DC66-00978A $4.48

View on Model

12-4

DC90-10128N Samsung Washer Water Temperature In Stock SMG DC90-10128N $38.30

View on Model

12-5

DC97-18439B Samsung FDDM 30F Clutch Module As Backorder SMG DC97-18439B $172.80

View on Model

12-6

ASSY TUB SUB SMG DC97-21559A Contact Us For Availability

View on Model

12-7

DC60-80169A Samsung MSWR L45 Link Pin Assembl Backorder SMG DC60-80169A $2.14

View on Model

13

DC63-01432B Samsung Filter Cover Backorder SMG DC63-01432B $20.23

View on Model

13

DC97-21561A Samsung Drain Hose Assembly In Stock SMG DC97-21561A $82.97

View on Model

13-1

DC65-00014C Samsung Clamp Hose Joint Backorder SMG DC65-00014C $14.90

View on Model

13-2

HOSE DRAIN-IN SMG DC67-01057A Contact Us For Availability

View on Model

13-3

CLAMPER HOSE SMG DC61-00219P Contact Us For Availability

View on Model

14

DC96-00757C Samsung Washer Power Cord Assembl Backorder SMG DC96-00757C $91.78

View on Model

14

DC97-16350U Samsung Washer Replacement Damper In Stock SMG DC97-16350U $73.13

View on Model

15

DC96-01703N Samsung Sensor Air Pressure 5V L7 Backorder SMG DC96-01703N $90.33

View on Model

16

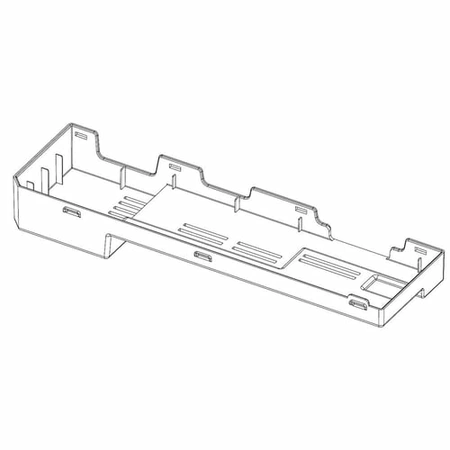

DC97-21551A Samsung Assembly Cover PCB 7000R Backorder SMG DC97-21551A $51.91

View on Model
