Model Samsung WA50R5200AV/A4-00 Washer – Common Parts & Diagrams

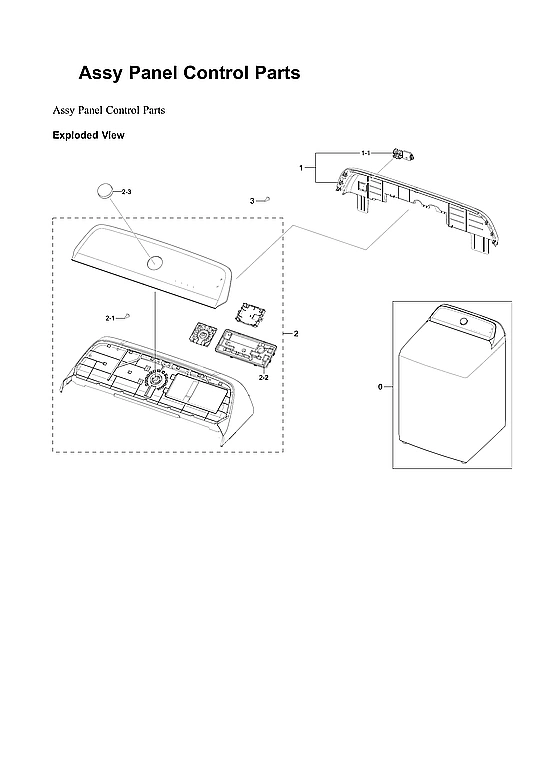

Control Panel Assembly

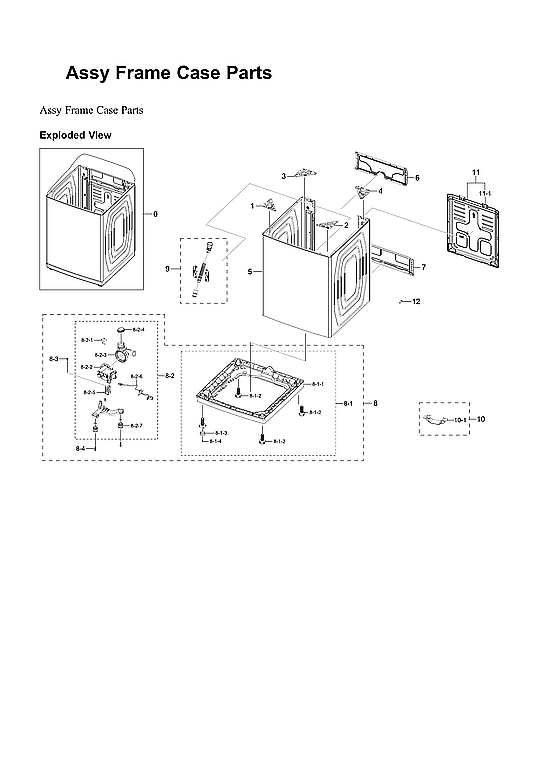

Frame Case Assembly

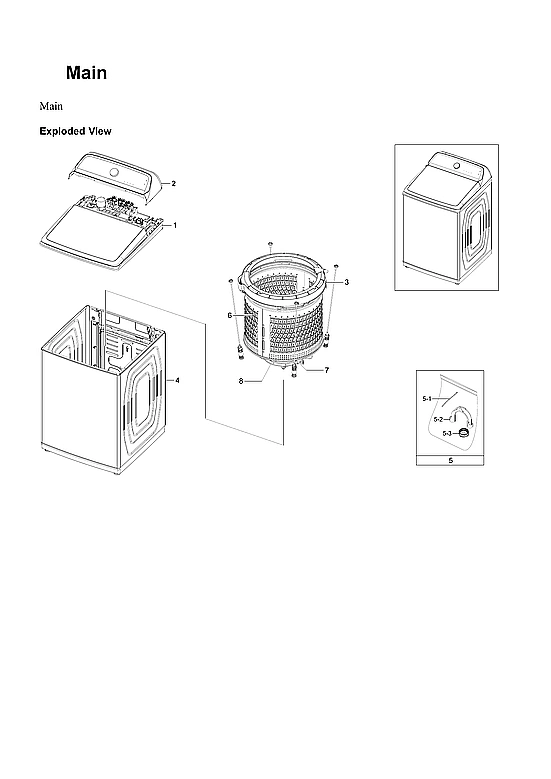

Main Assembly

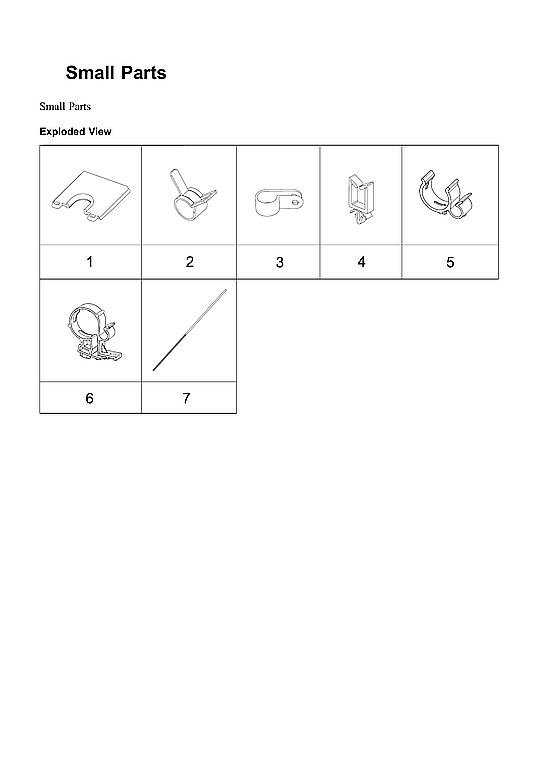

Small Parts

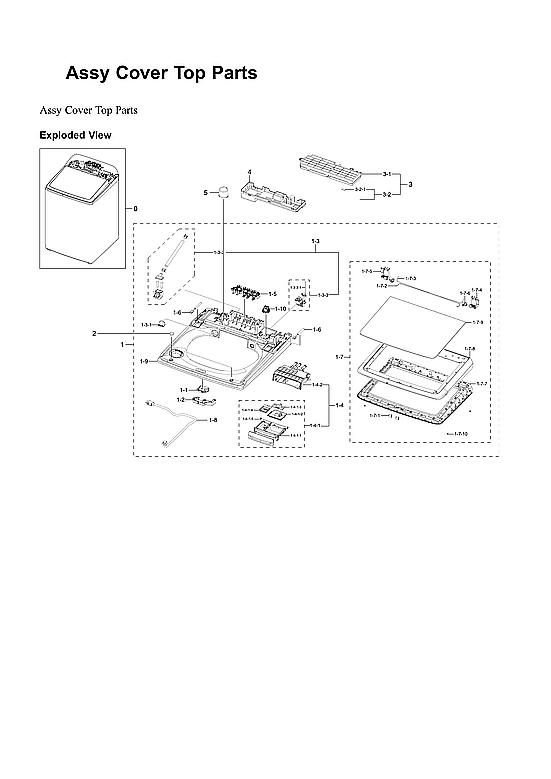

Top Cover Assembly

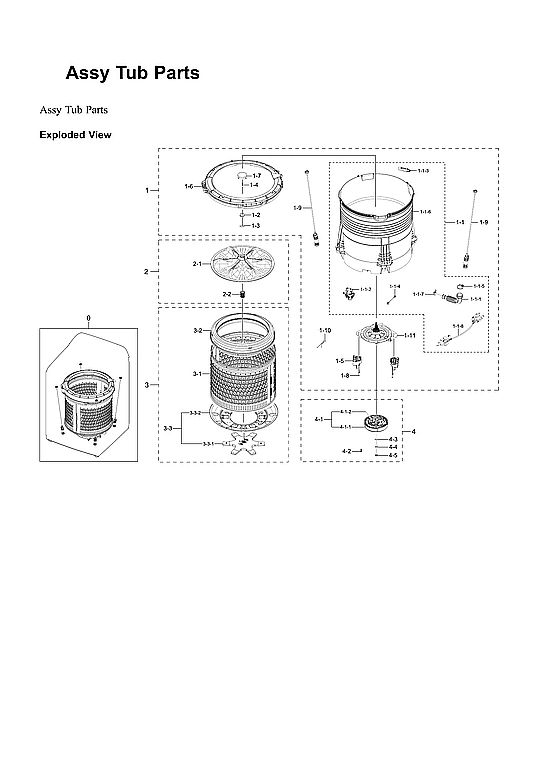

Tub Assembly
Common parts from model Samsung WA50R5200AV/A4-00 Washer
Assy cover top parts SMG DC90-27871R Contact Us For Availability
1-3
Assy cover top-module SMG DC97-22515Y Contact Us For Availability
1-4
Assy detergent-module SMG DC97-22514M Contact Us For Availability
1-4-1
Assy case detergent SMG DC97-21515A Contact Us For Availability
1-4-1-3
Cap SMG DC67-00634B Contact Us For Availability
1-7-2
Spring hinge SMG DC61-04129E Contact Us For Availability
1-7-3
Spring hinge SMG DC61-04129F Contact Us For Availability
1-7-4
Hinge-right SMG DC61-04872A Contact Us For Availability
1-7-5
Hinge-left SMG DC61-04876A Contact Us For Availability
1-7-6
Hinge door (2) SMG DC61-04873A Contact Us For Availability
1-7-7
Door lid cover SMG DC64-03819E Contact Us For Availability
1-7-8
Door lid t.c SMG DC64-03821A Contact Us For Availability
1-7-9
Door glass SMG DC64-03823B Contact Us For Availability
1-9
Washer top panel SMG DC63-02343A Contact Us For Availability
2
Assy control SMG DC90-27228V Contact Us For Availability
3
Assy tub parts SMG DC90-27206D Contact Us For Availability
3-1
Guide cover pcb SMG DC61-04874A Contact Us For Availability
3-2
Assy pcb manual SMG DC94-10073A Contact Us For Availability
4
Assy frame case parts SMG DC90-27225E Contact Us For Availability
5-2
Hanger clamper SMG DC61-00224C Contact Us For Availability
7
Assy driving module parts SMG DC90-22716B Contact Us For Availability
8-2-6
Assy wire harness-pump SMG DC93-00809A Contact Us For Availability
10
Assy cushion bottom SMG DC98-04027B Contact Us For Availability
10-1
Guide saddle SMG DC61-04841B Contact Us For Availability
× ![]()
