Samsung WA48J7770AP/A2-01 Washer Parts List

1

DC29-00021A Samsung Washer Noise Filter Assem Backorder SMG DC29-00021A $163.11

View on Model

1

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $5.04

View on Model

1

Outer tub SMG DC90-18581A Contact Us For Availability

View on Model

1-1

6021-001573 Samsung Washer Hexagon Nut In Stock SMG 6021-001573 $49.36

View on Model

1-2

DC60-60011B Samsung Washer Wave Assembly Backorder SMG DC60-60011B $5.04

View on Model

1-3

DC31-00090B Samsung Washer Drain Clutch Motor In Stock SMG DC31-00090B $99.87

View on Model

1-4

DC60-40133A Samsung Washer Pulsator Bolt Backorder SMG DC60-40133A $6.71

View on Model

1-5

DC61-02329A Samsung Cushion Support Backorder SMG DC61-02329A $32.33

View on Model

1-6

DC61-03556A Samsung Cover Tub Holder F900 PP Backorder SMG DC61-03556A $162.44

View on Model

1-7

DC66-00777A Samsung Washer Pulsator Cap In Stock SMG DC66-00777A $19.69

View on Model

1-8

DC90-10128N Samsung Washer Water Temperature In Stock SMG DC90-10128N $38.30

View on Model

1-9

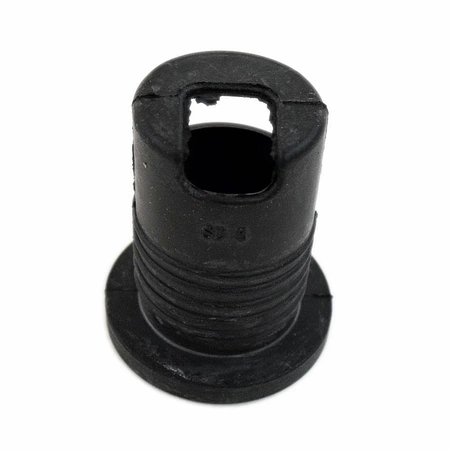

DC69-01846A Samsung Packing Rubber Assembly Backorder SMG DC69-01846A $21.29

View on Model

1-11

DC97-05280S Samsung Washer Damper Assembly In Stock SMG DC97-05280S $40.30

View on Model

1-12

DC97-17423B Samsung Assy Semi Tub Outer Backorder SMG DC97-17423B $540.50

View on Model

1-13

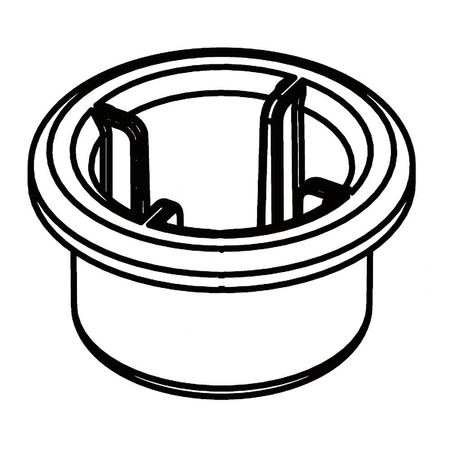

DC61-10533B Samsung Cap Trap Assembly Backorder SMG DC61-10533B $5.85

View on Model

2

DC92-01089A Samsung Assembly PCB Cover (M) Backorder SMG DC92-01089A $64.55

View on Model

2

Washer Door Lock Assembly SMG DC34-00025A Contact Us For Availability

View on Model

2

Motor assembly SMG DC90-15327A Contact Us For Availability

View on Model

2-1

6011-001627 Samsung Appliance Bolt, Etc In Stock SMG 6011-001627 $5.59

View on Model

2-2

6021-001588 Samsung Washer Hexagon Nut Backorder SMG 6021-001588 $5.04

View on Model

2-3

DC60-60046A Samsung Washer Spring Backorder SMG DC60-60046A $1.69

View on Model

2-4

6031-002269 Samsung Washer Plain Backorder SMG 6031-002269 $2.98

View on Model

2-5

6002-001313 Samsung Washer Hex Head Screw Backorder SMG 6002-001313 $1.60

View on Model

2-6

DC93-00236C Samsung Assembly DD BLDC Motor F9 In Stock SMG DC93-00236C $303.82

View on Model

2-7

DC97-15494E Samsung Clutch Assembly Backorder SMG DC97-15494E $353.38

View on Model

2-8

DC63-01069A Samsung Cushion Clutch Assembly Backorder SMG DC63-01069A $17.32

View on Model

2-61

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $81.34

View on Model

2-62

DC31-00097B Samsung Motor Brushless Direct Cu Backorder SMG DC31-00097B $302.49

View on Model

2-63

DC31-00125C Samsung Washer BLDC Motor Rotor A Backorder SMG DC31-00125C $248.58

View on Model

3

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $29.82

View on Model

3

DC63-01430A Samsung Washer Switch Cover Backorder SMG DC63-01430A $4.25

View on Model

3

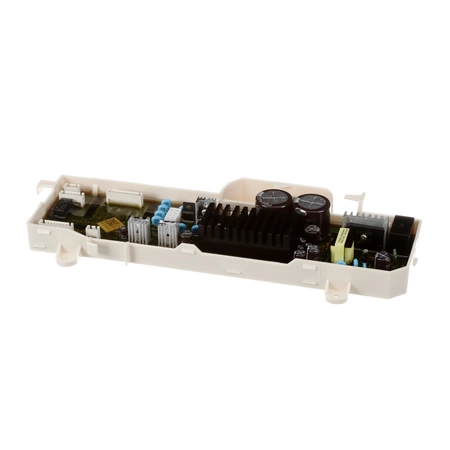

DC92-01021V Samsung Assembly Main Printed Cir In Stock SMG DC92-01021V $373.14

View on Model

3

DC97-17374A Samsung Washer Pulsator Assembly Backorder SMG DC97-17374A $188.18

View on Model

4

DC90-12733A Samsung Assembly Semi Base F900 Backorder SMG DC90-12733A $196.15

View on Model

4

DC92-01624K Samsung Washer PCB Display Assemb Backorder SMG DC92-01624K $313.11

View on Model

4

Washer spin basket SMG DC97-17360A Contact Us For Availability

View on Model

4-1

6011-004242 Samsung Washer Hex Bolt M6.0 L40. Backorder SMG 6011-004242 $11.70

View on Model

4-1

Basket SMG DC61-03551A Contact Us For Availability

View on Model

4-2

DC61-01722B Samsung Washer Adjustable Levelin In Stock SMG DC61-01722B $7.38

View on Model

4-2

DC97-15567A Samsung Balancer Assembly Backorder SMG DC97-15567A $204.19

View on Model

4-3

DC61-03191B Samsung Washer Rubber Leveling Le In Stock SMG DC61-03191B $29.58

View on Model

4-4

Balancer up SMG DC63-01019A Contact Us For Availability

View on Model

4-5

Balancer-low SMG DC63-01014A Contact Us For Availability

View on Model

4-7

DC97-19289F Samsung Washer Drain Pump Assembl In Stock SMG DC97-19289F $108.28

View on Model

4-31

Washer drum shaft assembly SMG DC60-00067A Contact Us For Availability

View on Model

4-32

Basket bowl SMG DC61-03178B Contact Us For Availability

View on Model

4-71

DC98-01438A Samsung F900 Pump Cushion Assembl Backorder SMG DC98-01438A $7.99

View on Model

4-74

DC61-03550A Samsung Washer Pump Bracket Assem Backorder SMG DC61-03550A $25.54

View on Model

4-75

DC61-03385A Samsung Washer Pump Case Backorder SMG DC61-03385A $40.73

View on Model

4-76

DC62-00328A Samsung Washer Drain Check Valve Backorder SMG DC62-00328A $99.66

View on Model

4-77

DC31-00187A Samsung Washer AC Pump Motor Asse In Stock SMG DC31-00187A $161.50

View on Model

5

DC90-11705A Samsung Bleach Decoration Assembl Backorder SMG DC90-11705A $40.73

View on Model

5

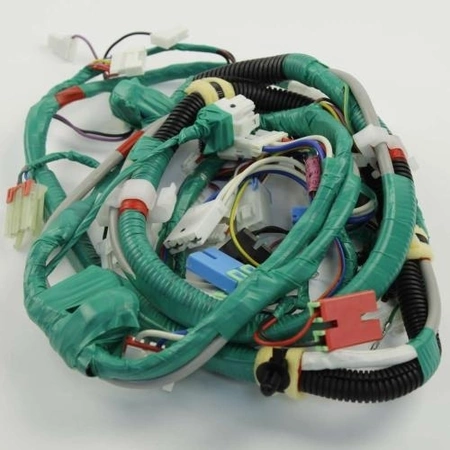

DC93-00579B Samsung Wire Harness Main Backorder SMG DC93-00579B $344.42

View on Model

5-1

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $1.86

View on Model

5-1

DC61-03185A Samsung Case Pump Assembly F900 Backorder SMG DC61-03185A $16.50

View on Model

5-1

DC64-02762A Samsung Decoration Bleach Backorder SMG DC64-02762A $31.30

View on Model

5-2

DC61-03426A Samsung Guide Pin Assembly In Stock SMG DC61-03426A $96.53

View on Model

5-2

DC63-01377A Samsung Pump Cover Assembly Backorder SMG DC63-01377A $25.54

View on Model

5-3

DC31-00030E Samsung Washer Drain Pump Assembl Backorder SMG DC31-00030E $157.69

View on Model

6

DC97-16778A Samsung Assembly Pump Drain Circu Backorder SMG DC97-16778A $145.39

View on Model

6

DC97-18682A Samsung Drain Hose Assembly Backorder SMG DC97-18682A $139.52

View on Model

6

Washer recirculation pump hose SMG DC97-17354A Contact Us For Availability

View on Model

7

DC97-17345A Samsung Assembly Hose Backorder SMG DC97-17345A $105.15

View on Model

9

DC96-01703H Samsung Washer Pressure Sensor In Stock SMG DC96-01703H $97.14

View on Model

10

DC97-15459G Samsung Washer Inlet Valve Water In Stock SMG DC97-15459G $127.38

View on Model

10

DC97-16931A Samsung Encoder Knob Assembly Backorder SMG DC97-16931A $51.77

View on Model

11

DC92-00544A Samsung Assembly Bracket PCB Main Backorder SMG DC92-00544A $113.72

View on Model

11

DC97-16923C Samsung Washing Machine Hinge Ass Backorder SMG DC97-16923C $66.43

View on Model

12

DC93-00278B Samsung Washer Vibration MEMS Sen In Stock SMG DC93-00278B $98.42

View on Model

13

DC97-18845P Samsung Washer Lid Assembly T.C. Backorder SMG DC97-18845P $318.24

View on Model

13-4

DC97-18004B Samsung Assembly Hinge WA8000 870 Backorder SMG DC97-18004B $118.02

View on Model

14

Detergent Body SMG DC97-18830A Contact Us For Availability

View on Model

15

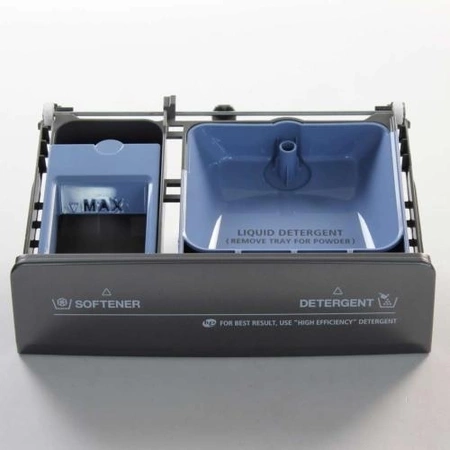

DC97-18120A Samsung Assembly Case Detergent W Backorder SMG DC97-18120A $165.70

View on Model

15-4

DC67-00635B Samsung Washer Rinse Cap Assembly Backorder SMG DC67-00635B $10.61

View on Model

16

DC97-18820A Samsung Assembly Nozzle WA8700J Backorder SMG DC97-18820A $101.97

View on Model

16-1

Low Nozzle SMG DC62-00452A Contact Us For Availability

View on Model

16-2

Nozzle SMG DC62-00454A Contact Us For Availability

View on Model

16-3

DC65-00027C Samsung Clamper Hose F900A SK5 Bl Backorder SMG DC65-00027C $13.42

View on Model

16-4

DC67-00051B Samsung Drawer Hose Assembly Backorder SMG DC67-00051B $32.33

View on Model

17

DC97-17057W Samsung Top Semi-Cover Backorder SMG DC97-17057W $282.75

View on Model

17-1

Cover SMG DC63-01418H Contact Us For Availability

View on Model

17-2

DC63-01431A Samsung Cover Plate Assembly Backorder SMG DC63-01431A $118.81

View on Model

18

DC96-00757A Samsung Washer Power Cord Backorder SMG DC96-00757A $97.70

View on Model

19

DC97-18850A Samsung Cover Button Assembly Backorder SMG DC97-18850A $33.23

View on Model

20

DC63-01862A Samsung Cover PCB Assembly Backorder SMG DC63-01862A $7.82

View on Model

21

DC92-01417B Samsung TACT Switch Assembly Backorder SMG DC92-01417B $65.59

View on Model

1121

Outer tub SMG DC61-03557B Contact Us For Availability

View on Model

1122

DC97-15606A Samsung Clutch Lever Assembly Backorder SMG DC97-15606A $76.83

View on Model

1310

DC61-03184A Samsung Washer/Dishwasher R.S. Ma Backorder SMG DC61-03184A $7.27

View on Model

1311

Handle SMG DC64-03242A Contact Us For Availability

View on Model

1312

DC64-03244A Samsung Door Handle Backorder SMG DC64-03244A $15.09

View on Model

1314

DC64-03241A Samsung Washer Door Lid Assembly Backorder SMG DC64-03241A $169.08

View on Model

1315

DC61-60044W Samsung Cushion Lid Backorder SMG DC61-60044W $1.69

View on Model

1316

DC67-00700B Samsung Cap Screw Backorder SMG DC67-00700B $2.66

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

NI

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $1.18

View on Model

NI

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $1.69

View on Model

NI

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

View on Model

NI

DC61-70184A Samsung Spring Clip Assembly Backorder SMG DC61-70184A $1.50

View on Model

NI

DC65-00038A Samsung Clamper Hose Fix Assembly In Stock SMG DC65-00038A $2.74

View on Model
