Model Samsung WA40J3000AW/A2-12 Washer – Common Parts & Diagrams
Control Panel

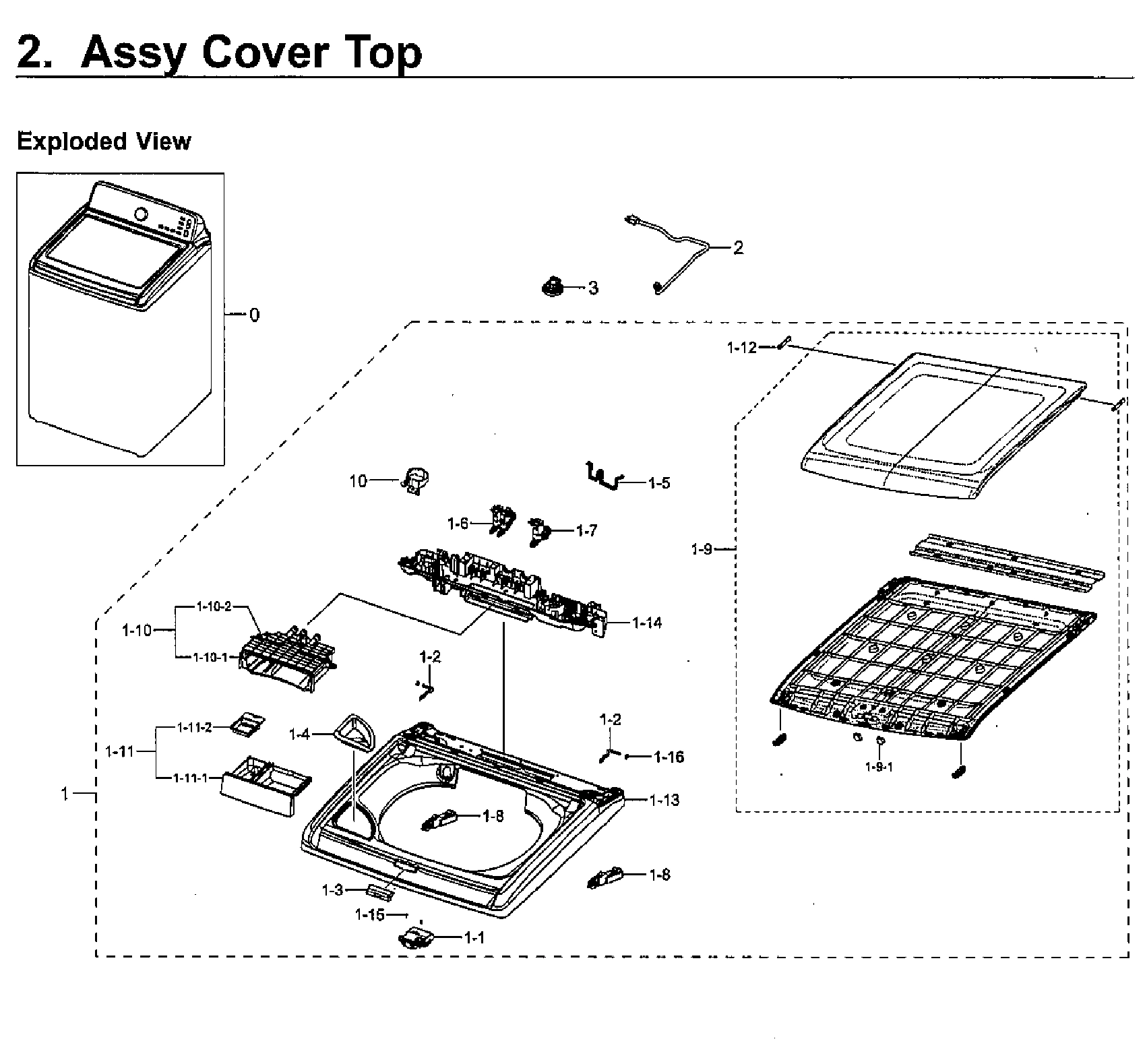

Cover Top

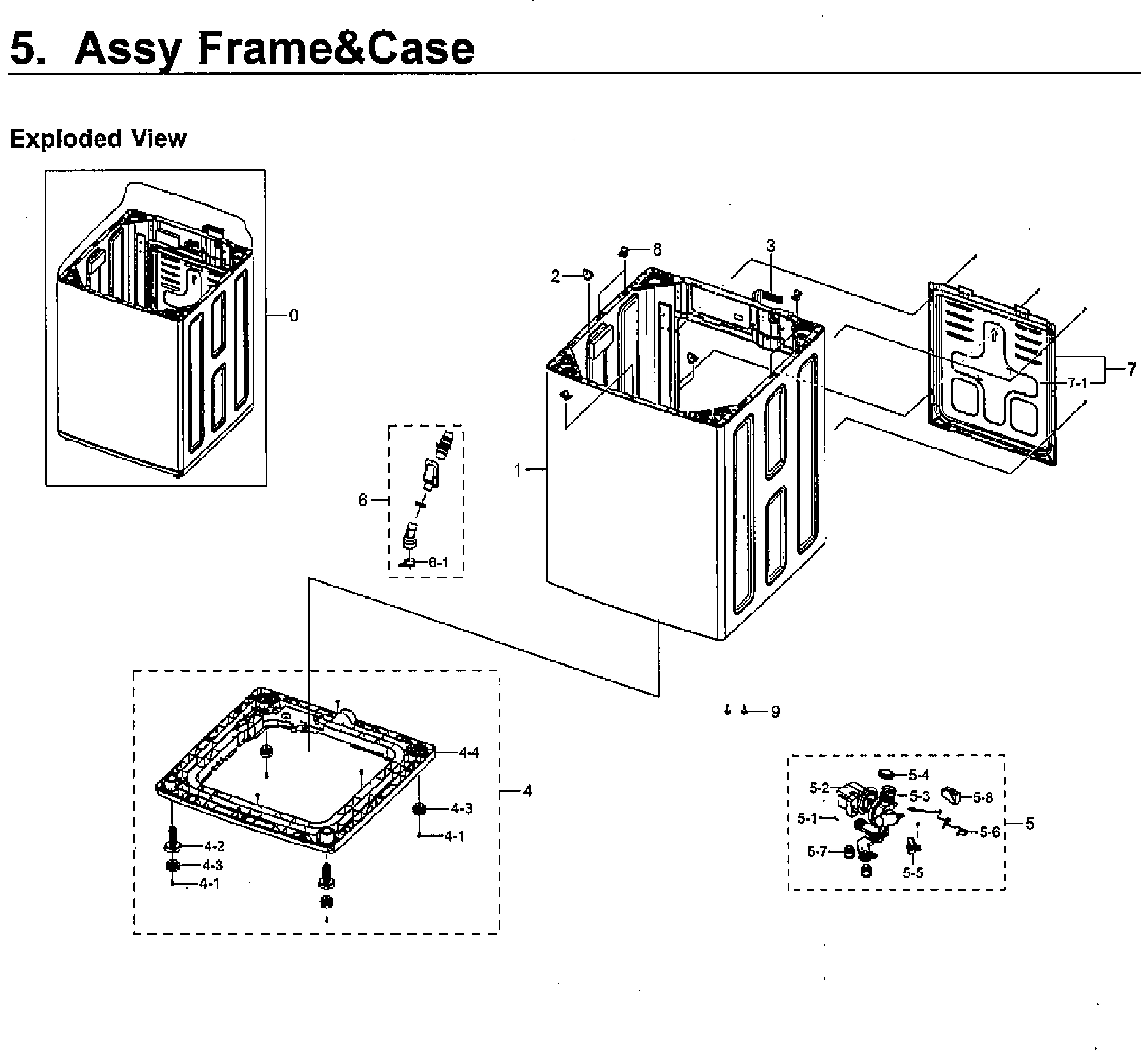

Frame & Case

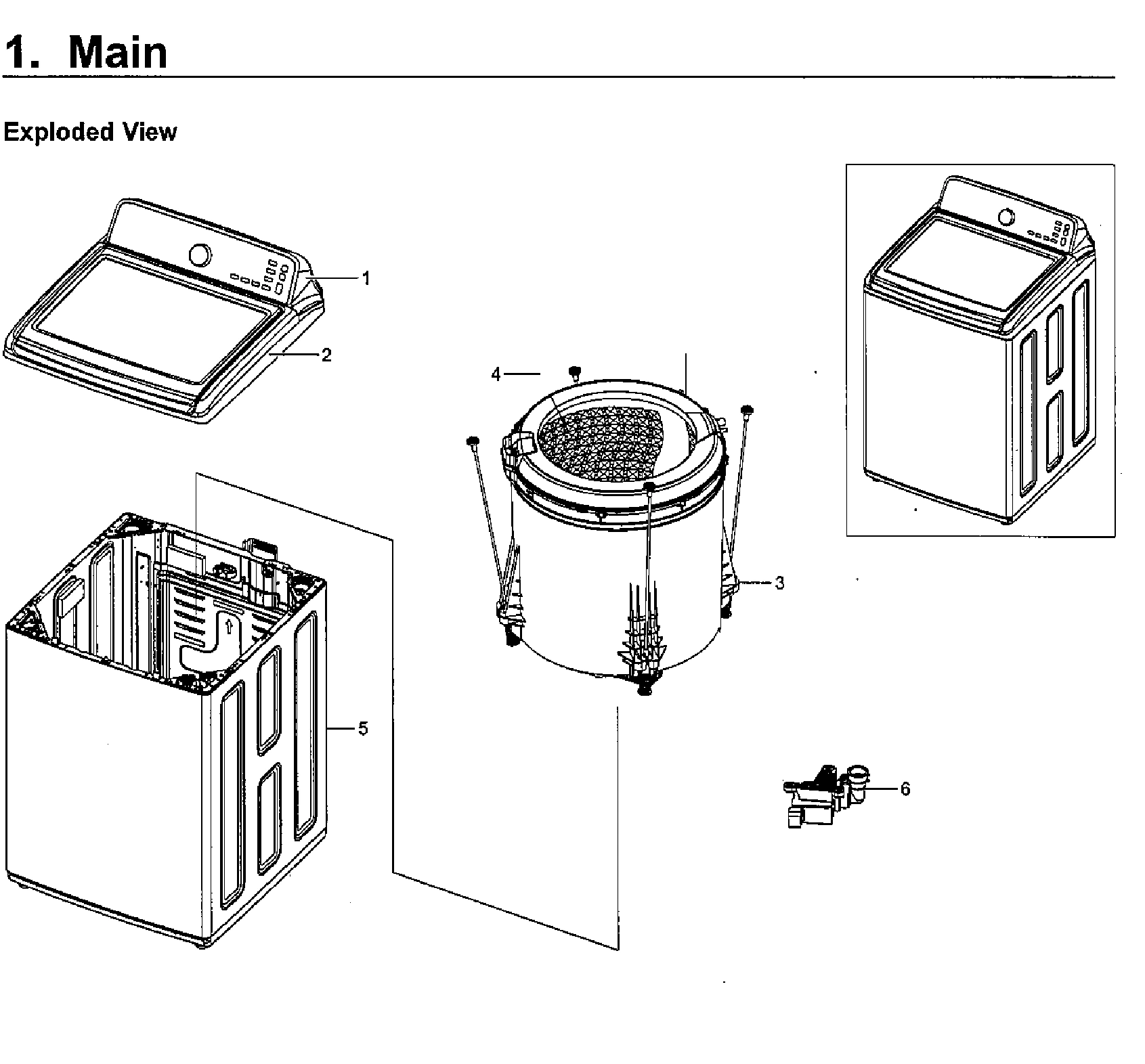

Main Assembly

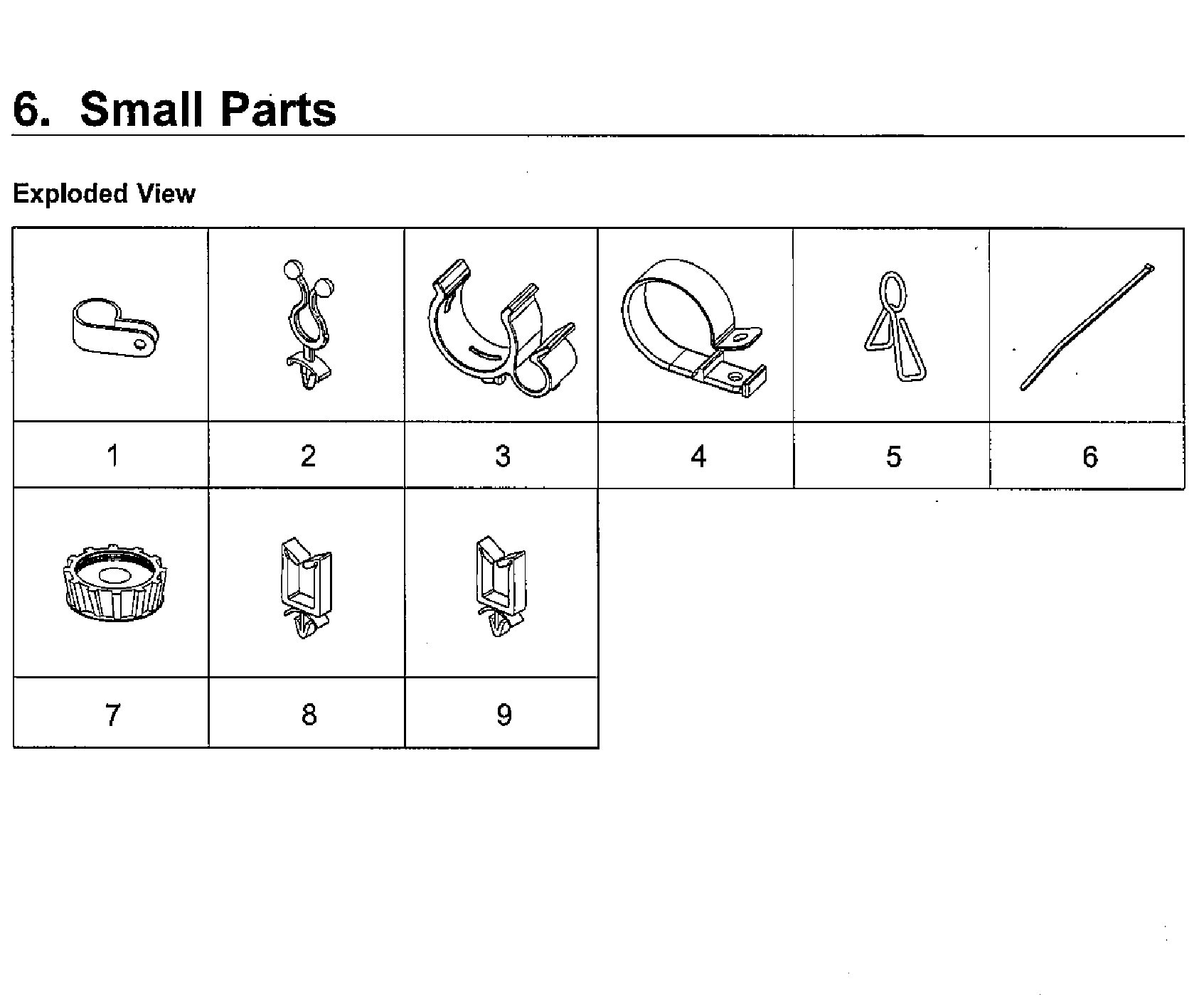

Small Parts

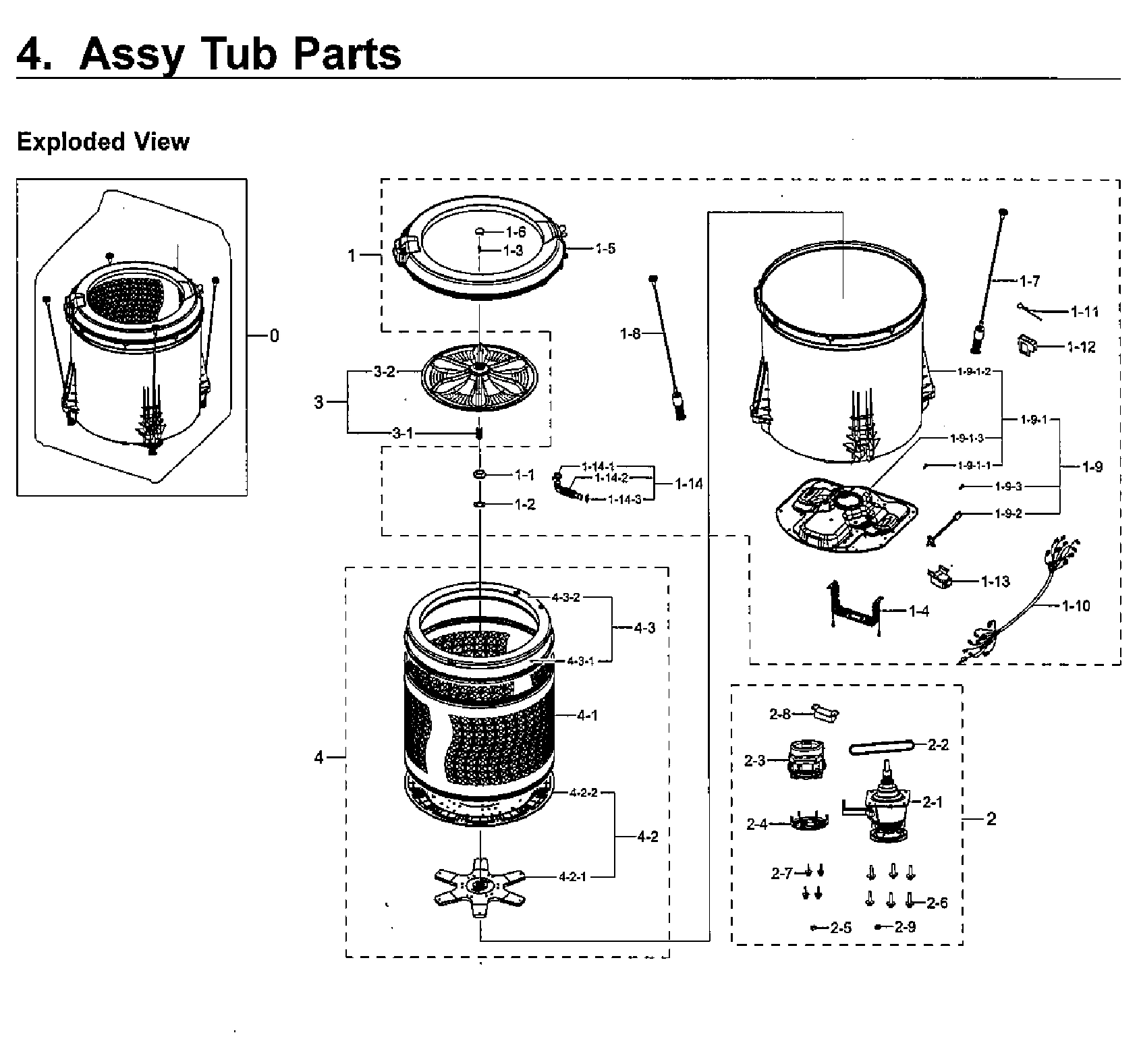

Tub Parts
Common parts from model Samsung WA40J3000AW/A2-12 Washer
1-1
Washer lid lock assembly SMG DC34-00025E Contact Us For Availability
1-2
Washer lid hinge SMG DC61-03426A Contact Us For Availability
1-4
Washer drive motor and clutch support SMG DC61-03280A Contact Us For Availability
1-6
Washer water inlet valve assembly SMG DC62-00311F Contact Us For Availability
1-6
Washer washplate cap SMG DC66-00032G Contact Us For Availability
1-7
Washer cold water inlet valve SMG DC62-30314V Contact Us For Availability
1-9
Washer lid assembly SMG DC97-17133D Contact Us For Availability
1-10
Washer wire harness SMG DC93-00702A Contact Us For Availability
1-15
Laundry appliance screw, m4-18 x 22 SMG 6002-000445 Contact Us For Availability
1-91
Washer lid switch magnet SMG DC61-03184A Contact Us For Availability
2
Washer power cord SMG DC96-00757C Contact Us For Availability
2-2
Washer drive belt SMG DC66-10170B Contact Us For Availability
2-5
Dryer roller wheel nut SMG DC60-50145A Contact Us For Availability
2-8
Washer run capacitor SMG DC75-00010F Contact Us For Availability
3
Washer electronic control board assembly SMG DC92-01737A Contact Us For Availability
3
Clamper SMG DC65-00038A Contact Us For Availability
3-2
Washer electronic control board SMG DC92-01738A Contact Us For Availability
4
Assy basket spin SMG DC97-16990K Contact Us For Availability
4
Base assembly SMG DC90-17907C Contact Us For Availability
4-1
Basket wrap SMG DC61-03272F Contact Us For Availability
4-2
Assy bowl SMG DC97-18187B Contact Us For Availability
4-21
Washer spinner support SMG DC60-00101A Contact Us For Availability
4-22
Basket SMG DC61-03649A Contact Us For Availability
4-31
Assembly frame front & door SMG N/P Contact Us For Availability
4-32
Balancer-u SMG DC63-01428A Contact Us For Availability
5-4
Washer drain pump check valve SMG DC62-00328A Contact Us For Availability
5-7
Washer pump grommet SMG DC98-01438A Contact Us For Availability
6
Samsung washer drain hose SMG DC97-18682C Contact Us For Availability
6
Washer drain pump assembly SMG DC97-17366J Contact Us For Availability
1141
Hose clamp SMG DC61-00219N Contact Us For Availability
1142
Hose SMG DC67-00692A Contact Us For Availability
1143
Clamper hood SMG DC65-00014D Contact Us For Availability
1912
Washer outer tub SMG DC61-03278A Contact Us For Availability
1913
Washer support motor bracket SMG DC61-03307A Contact Us For Availability
NI
Screw-hex hw SMG 6009-001780 Contact Us For Availability
× ![]()
