Model Bosch SMW272YB/01 Range Oven – Common Parts & Diagrams

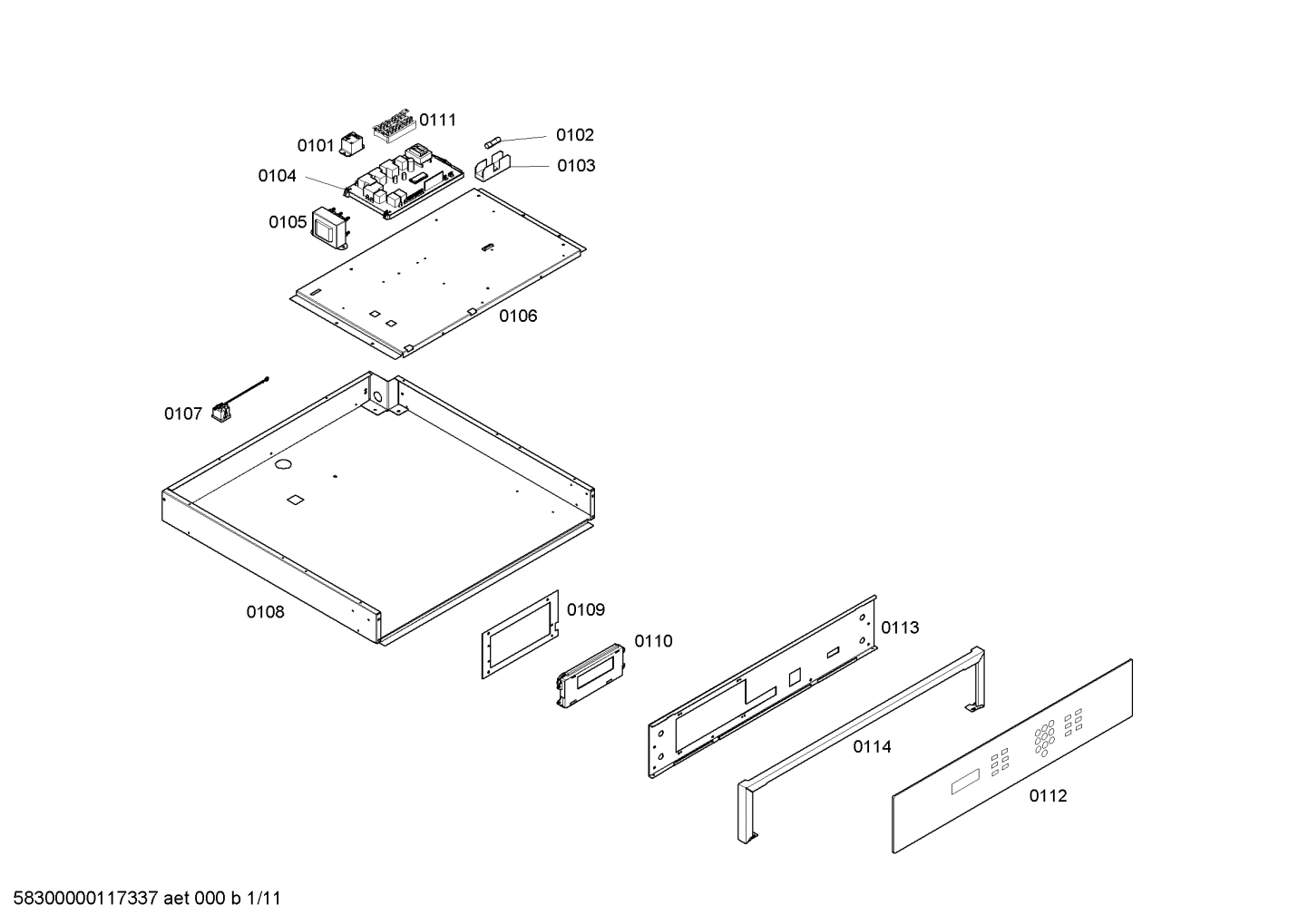

Diagram 1

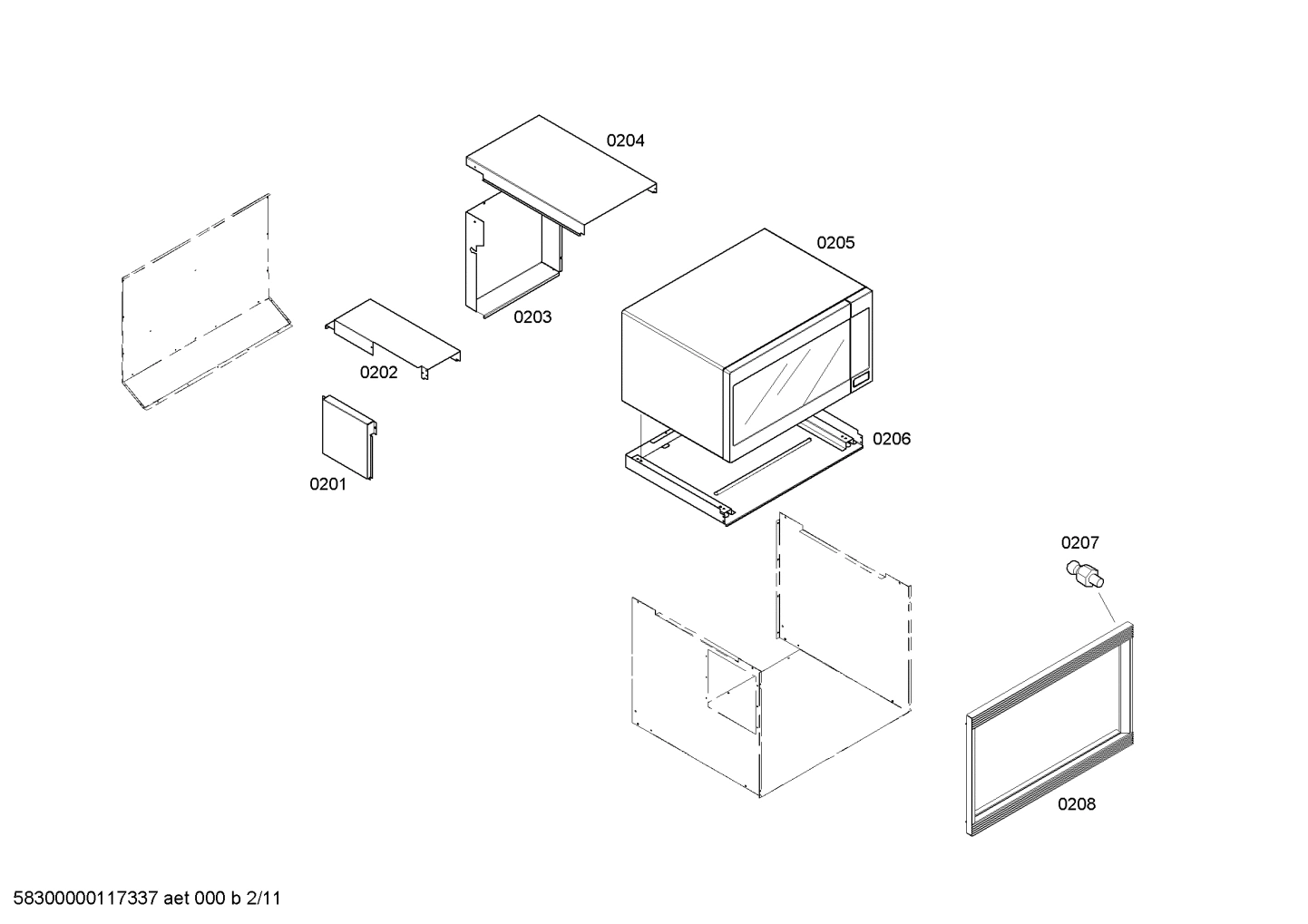

Diagram 2

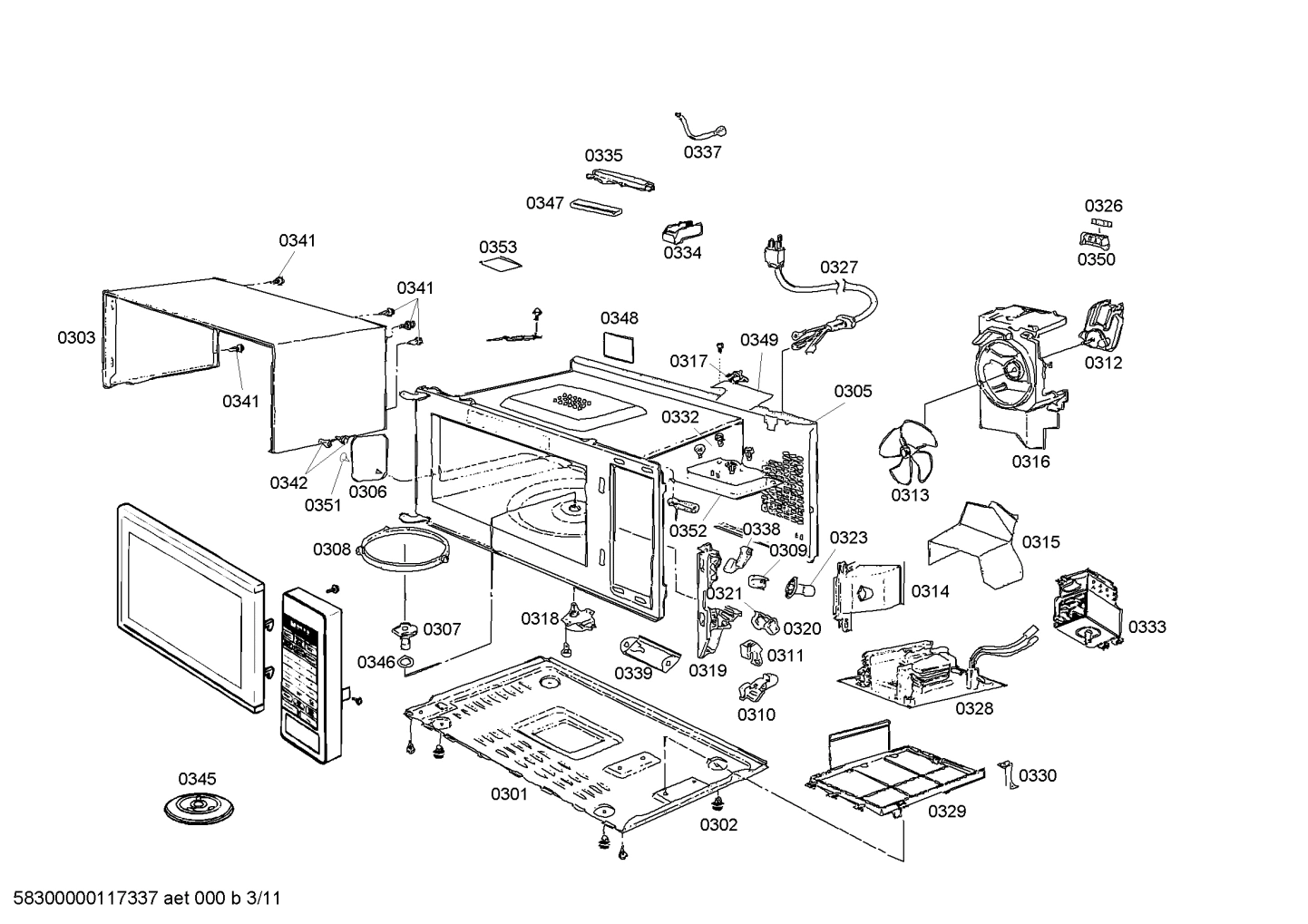

Diagram 3

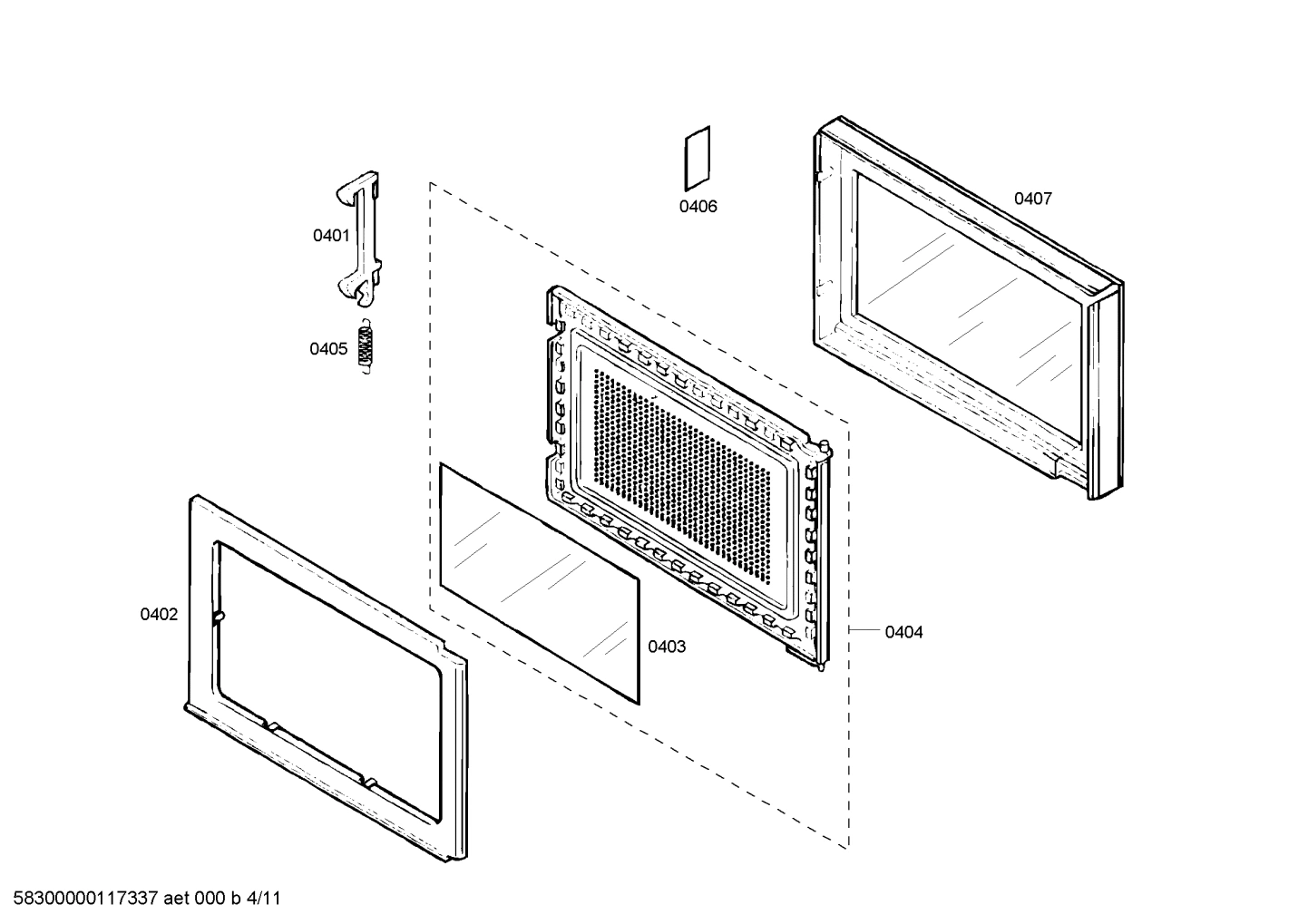

Diagram 4

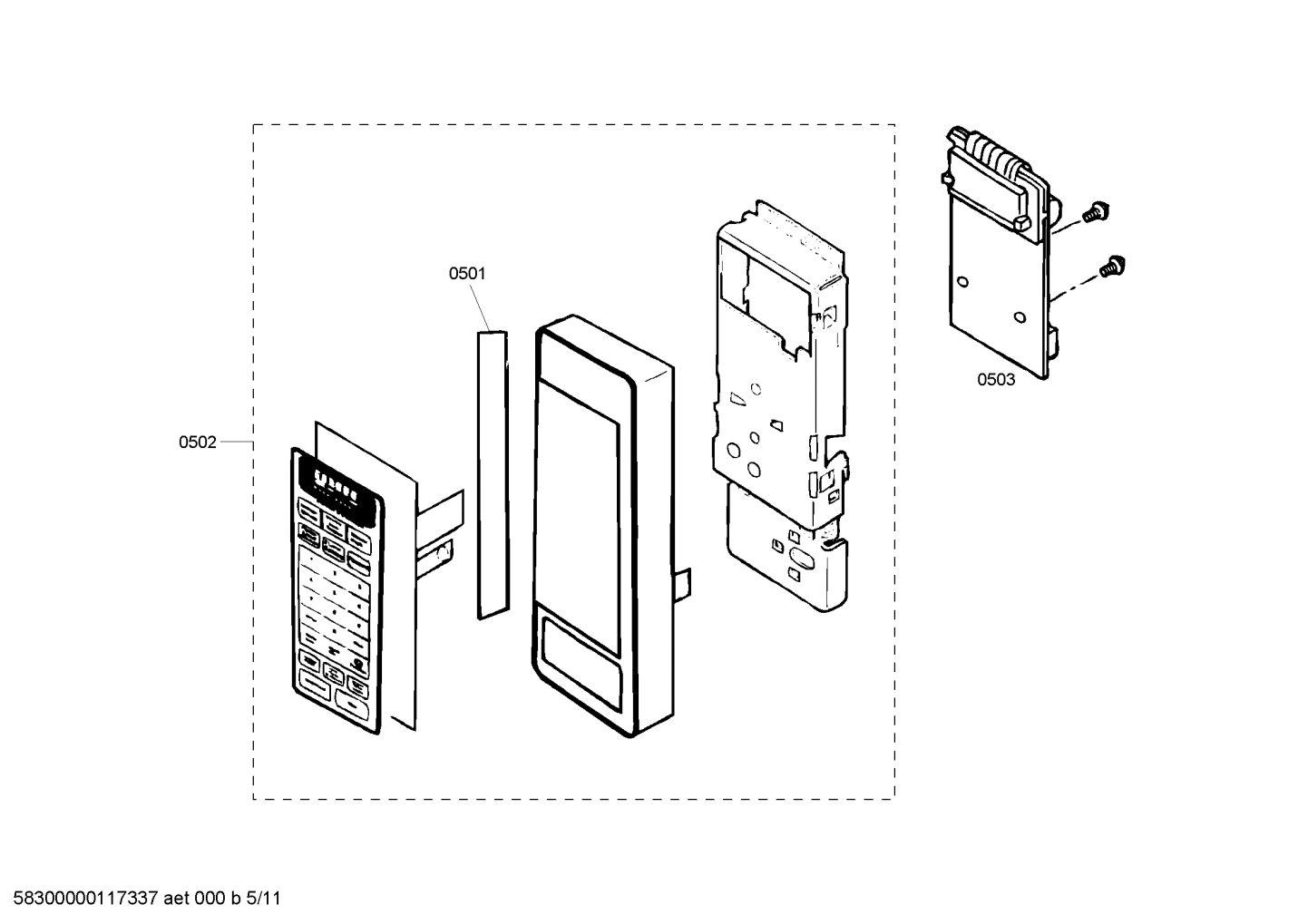

Diagram 5

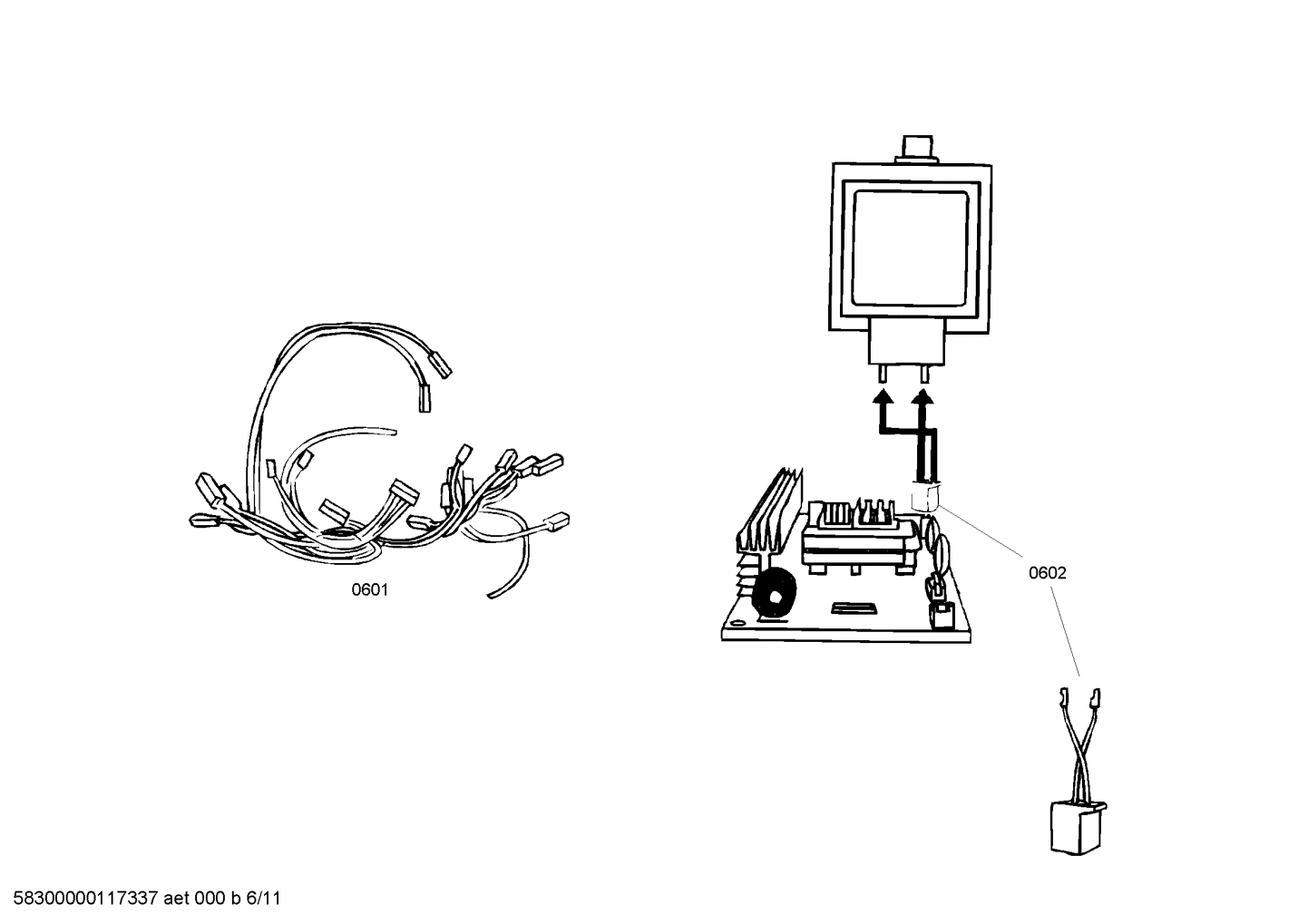

Diagram 6

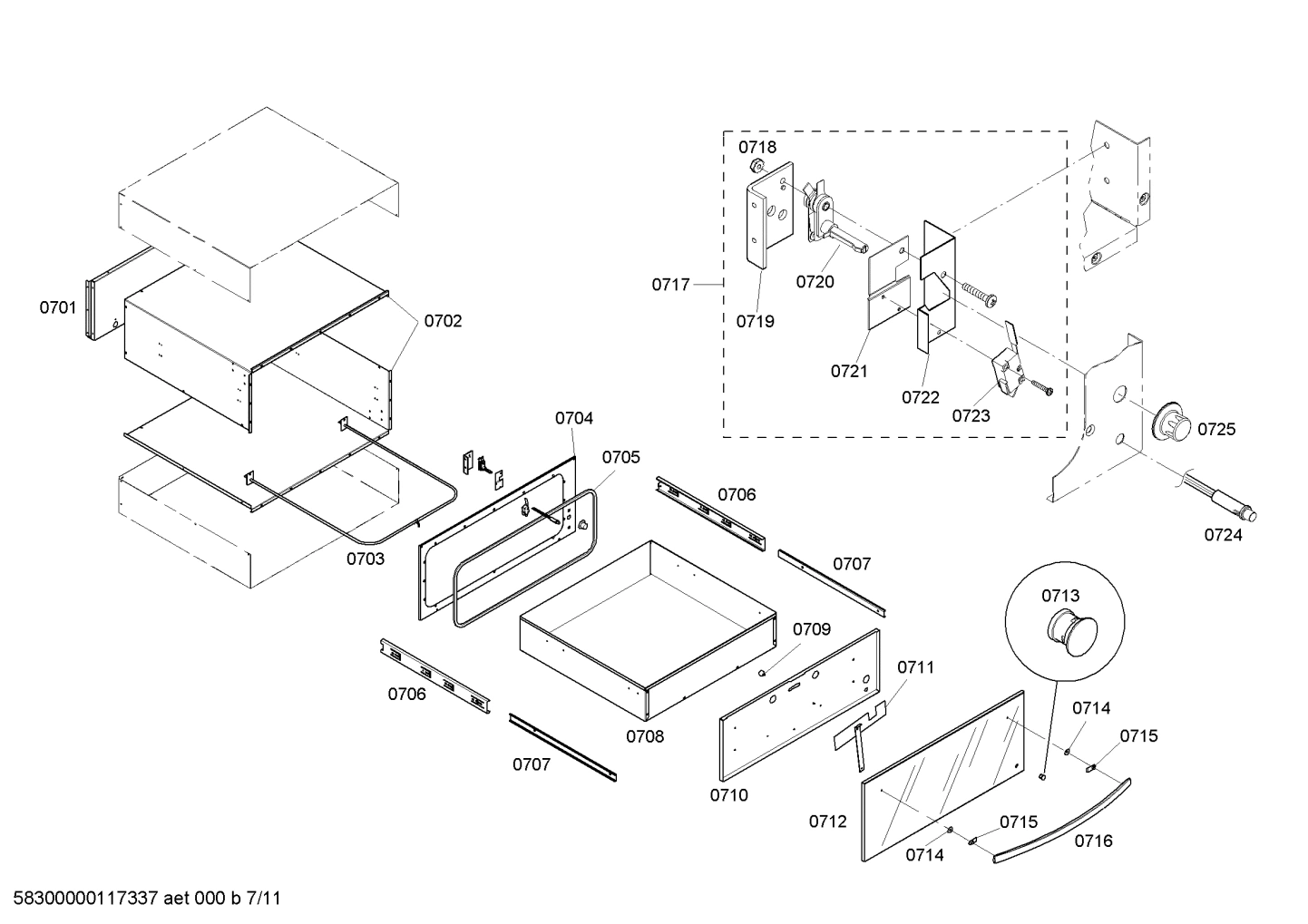

Diagram 7

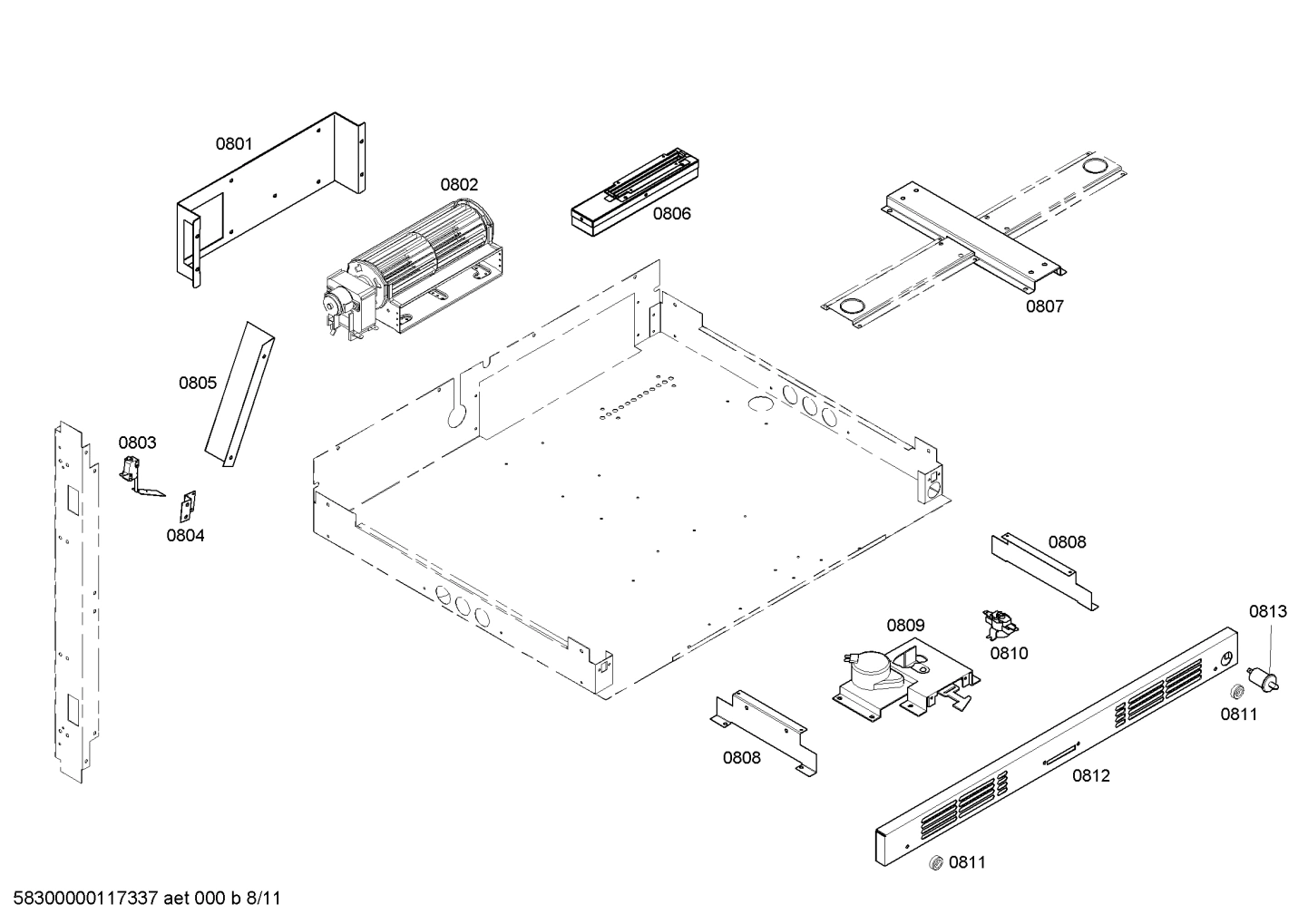

Diagram 8

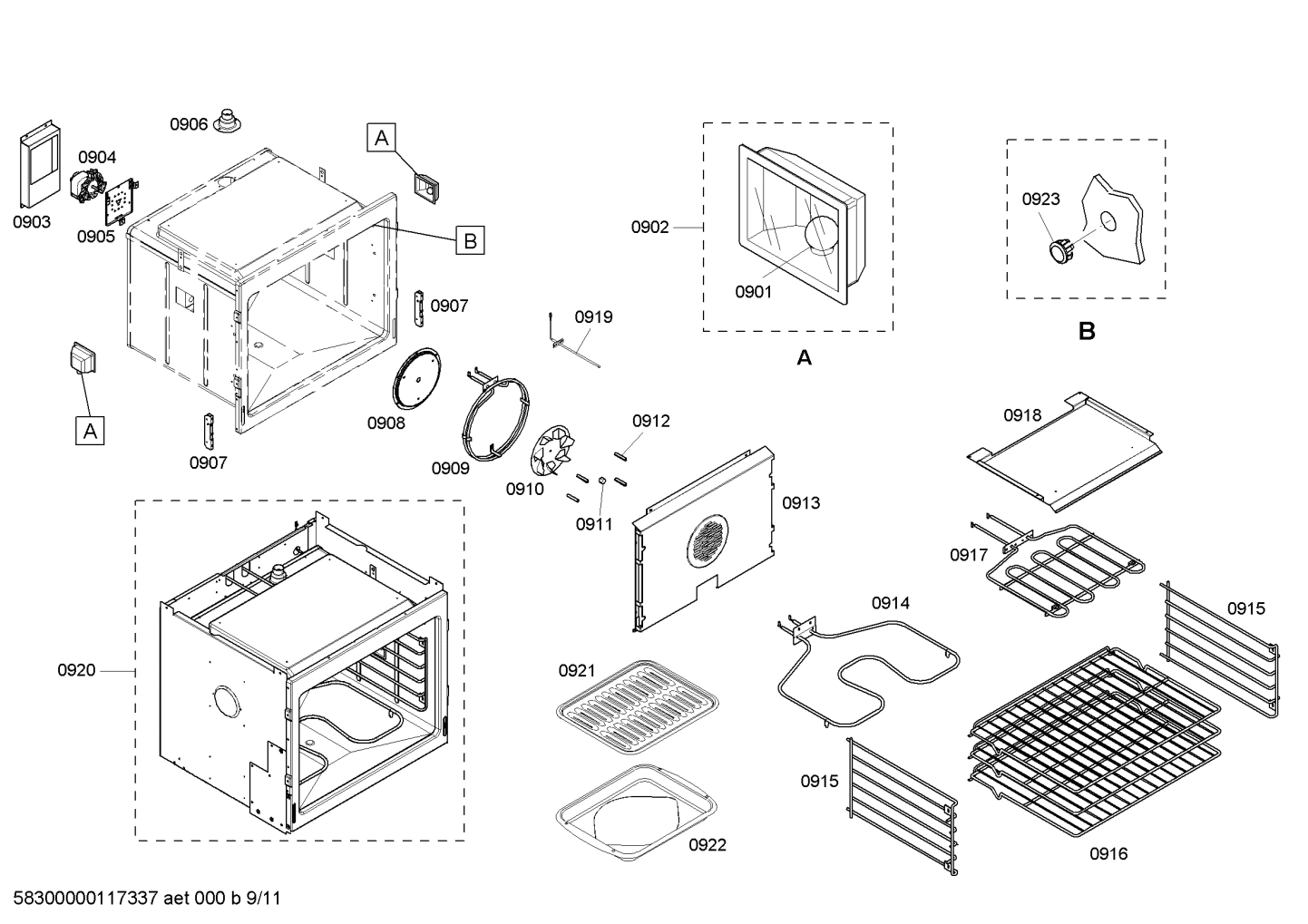

Diagram 9

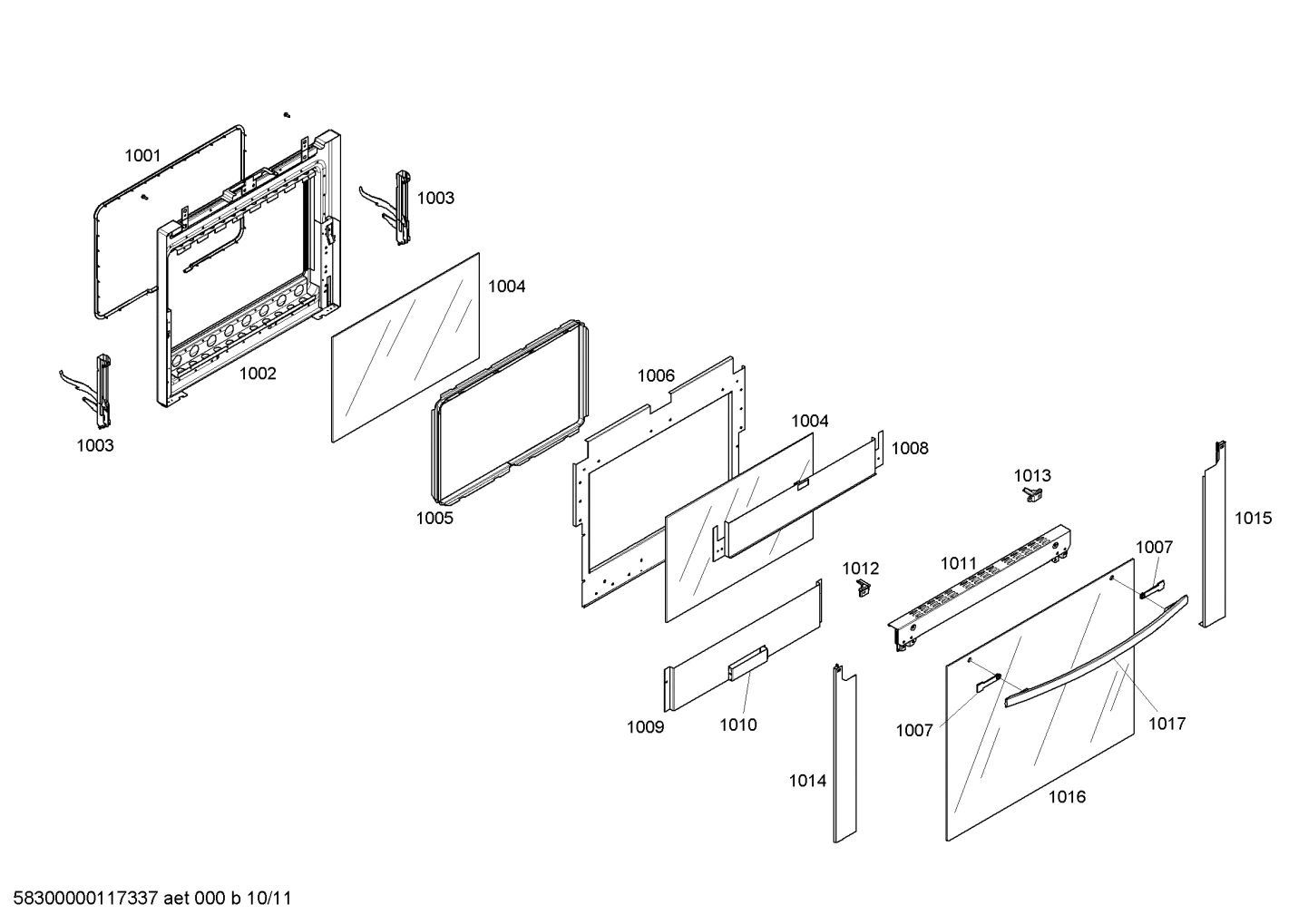

Diagram 10

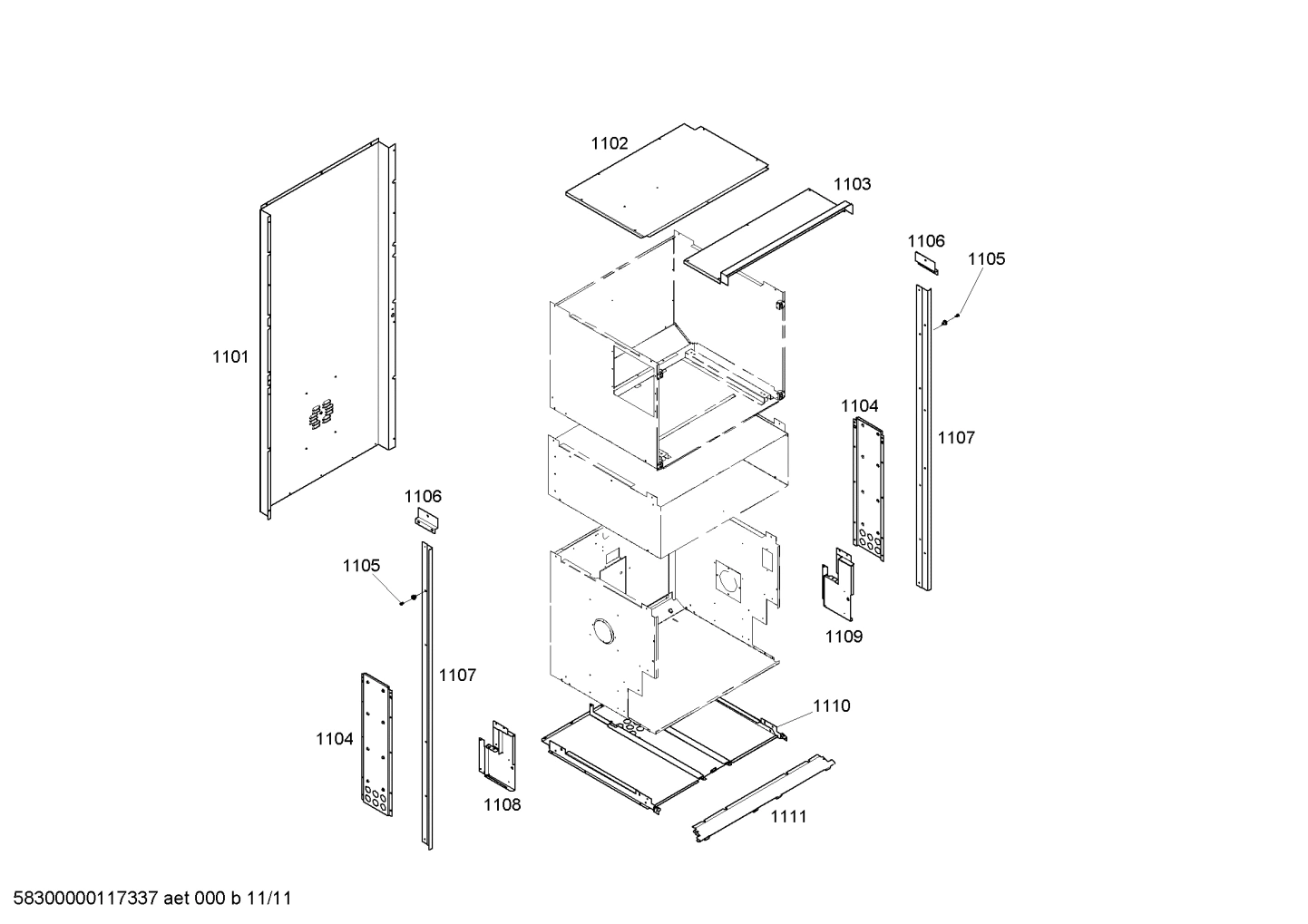

Diagram 11
Common parts from model Bosch SMW272YB/01 Range Oven
0101
Relay BOS 00415761 Contact Us For Availability
0110
Repair-set BOS 00702450 Contact Us For Availability
0111
Terminal BOS 00484615 Contact Us For Availability
0112
Operating module BOS 00368765 Contact Us For Availability
0157
Cable harness BOS 00189936 Contact Us For Availability
0328
Transformer-high voltage BOS 00489089 Contact Us For Availability
0333
Magnetron BOS 00489090 Contact Us For Availability
0403
Screening BOS 00487759 Contact Us For Availability
0706
Slide BOS 00367216 Contact Us For Availability
0707
Rail BOS 00367225 Contact Us For Availability
0714
Washer BOS 00189327 Contact Us For Availability
0717
Regulator-temperature BOS 00413590 Contact Us For Availability
0719
Bracket BOS 00486315 Contact Us For Availability
0720
Temperature sensor BOS 00189428 Contact Us For Availability
0721
Bracket BOS 00413595 Contact Us For Availability
0722
Cover BOS 00425369 Contact Us For Availability
0723
Switch BOS 00189432 Contact Us For Availability
0724
Lamp-control BOS 00413592 Contact Us For Availability
0725
Knob BOS 00414378 Contact Us For Availability
0751
Screw BOS 00189433 Contact Us For Availability
0752
Screw BOS 00189431 Contact Us For Availability
0754
Screw BOS 00188676 Contact Us For Availability
0755
Covering BOS 00368479 Contact Us For Availability
0757
Screw BOS 00189417 Contact Us For Availability
0758
Support BOS 00411048 Contact Us For Availability
0759
Screw BOS 00189244 Contact Us For Availability
0760
Nut BOS 00189434 Contact Us For Availability
0801
Bracket BOS 00485978 Contact Us For Availability
0802
Installation set BOS 00431492 Contact Us For Availability
0803
Switch BOS 00488400 Contact Us For Availability
0804
Bracket BOS 00416807 Contact Us For Availability
0805
Heat shield BOS 00432354 Contact Us For Availability
0806
Duct BOS 00413567 Contact Us For Availability
0807
Covering BOS 00368285 Contact Us For Availability
0808
Sign BOS 00413118 Contact Us For Availability
0809
Electric lock BOS 00489102 Contact Us For Availability
0811
Spacer BOS 00425279 Contact Us For Availability
0812
Fixing kit BOS 00490781 Contact Us For Availability
0850
Insulating part BOS 00486004 Contact Us For Availability
0902
Lamp housing BOS 00414512 Contact Us For Availability
0903
Cover BOS 00485982 Contact Us For Availability
0904
Motor BOS 00494266 Contact Us For Availability
0906
Catalyzer BOS 00411220 Contact Us For Availability
0907
Holder BOS 00414510 Contact Us For Availability
0908
Plate BOS 00412840 Contact Us For Availability
0910
Fan blade BOS 00487019 Contact Us For Availability
0912
Spacer BOS 00413128 Contact Us For Availability
0913
Ventilation duct BOS 00368282 Contact Us For Availability
0916
Grill grid BOS 00368827 Contact Us For Availability
0917
Heating element BOS 00367647 Contact Us For Availability
0918
Reflector BOS 00368265 Contact Us For Availability
0919
Temperature sensor BOS 00414152 Contact Us For Availability
0920
Oven cavity BOS 00238831 Contact Us For Availability
0921
Grid BOS 00484627 Contact Us For Availability
0922
Universal pan BOS 00449757 Contact Us For Availability
0950
Screw BOS 00413466 Contact Us For Availability
1002
Door-inner BOS 00470537 Contact Us For Availability
1003
Hinge BOS 00487747 Contact Us For Availability
1005
Spacer BOS 00369152 Contact Us For Availability
1006
Insulating part BOS 00368287 Contact Us For Availability
1007
Spacer BOS 00414817 Contact Us For Availability
1008
Ventilation duct BOS 00485992 Contact Us For Availability
1009
Ventilation duct BOS 00486000 Contact Us For Availability
1010
Bracket BOS 00413120 Contact Us For Availability
1011
Seating BOS 00369984 Contact Us For Availability
1012
Handle-cap shaped BOS 00414391 Contact Us For Availability
1013
Handle-cap shaped BOS 00414390 Contact Us For Availability
1014
Bracket BOS 00434159 Contact Us For Availability
1015
Bracket BOS 00434160 Contact Us For Availability
1017
Handle BOS 00661716 Contact Us For Availability
1051
Glass panel BOS 00142830 Contact Us For Availability
1101
Covering BOS 00368483 Contact Us For Availability
1102
Cover BOS 00485975 Contact Us For Availability
1103
Covering BOS 00142733 Contact Us For Availability
1104
Duct BOS 00368450 Contact Us For Availability
1106
Bracket BOS 00413600 Contact Us For Availability
1107
Frame BOS 00432582 Contact Us For Availability
1108
Bracket BOS 00416432 Contact Us For Availability
1109
Bracket BOS 00416431 Contact Us For Availability
1110
Base BOS 00219354 Contact Us For Availability
1111
Frame BOS 00486325 Contact Us For Availability
1153
Screw BOS 00411122 Contact Us For Availability
× ![]()
