Bosch SM272YW/01 Range Oven Parts List

0101

Relay BOS 00415761 Contact Us For Availability

View on Model

0102

00413608 Bosch Oven Fuse In Stock BOS 00413608 $45.89

View on Model

0103

00627939 Bosch Oven Holder Backorder BOS 00627939 $71.59

View on Model

0105

00440252 Bosch Oven Transformer Backorder BOS 00440252 $166.35

View on Model

0110

Repair-set BOS 00702450 Contact Us For Availability

View on Model

0111

Terminal BOS 00484615 Contact Us For Availability

View on Model

0157

Cable harness BOS 00189936 Contact Us For Availability

View on Model

0161

00414692 Bosch Oven Connection Backorder BOS 00414692 $47.37

View on Model

0302

00417992 Bosch Oven Foot Backorder BOS 00417992 $20.09

View on Model

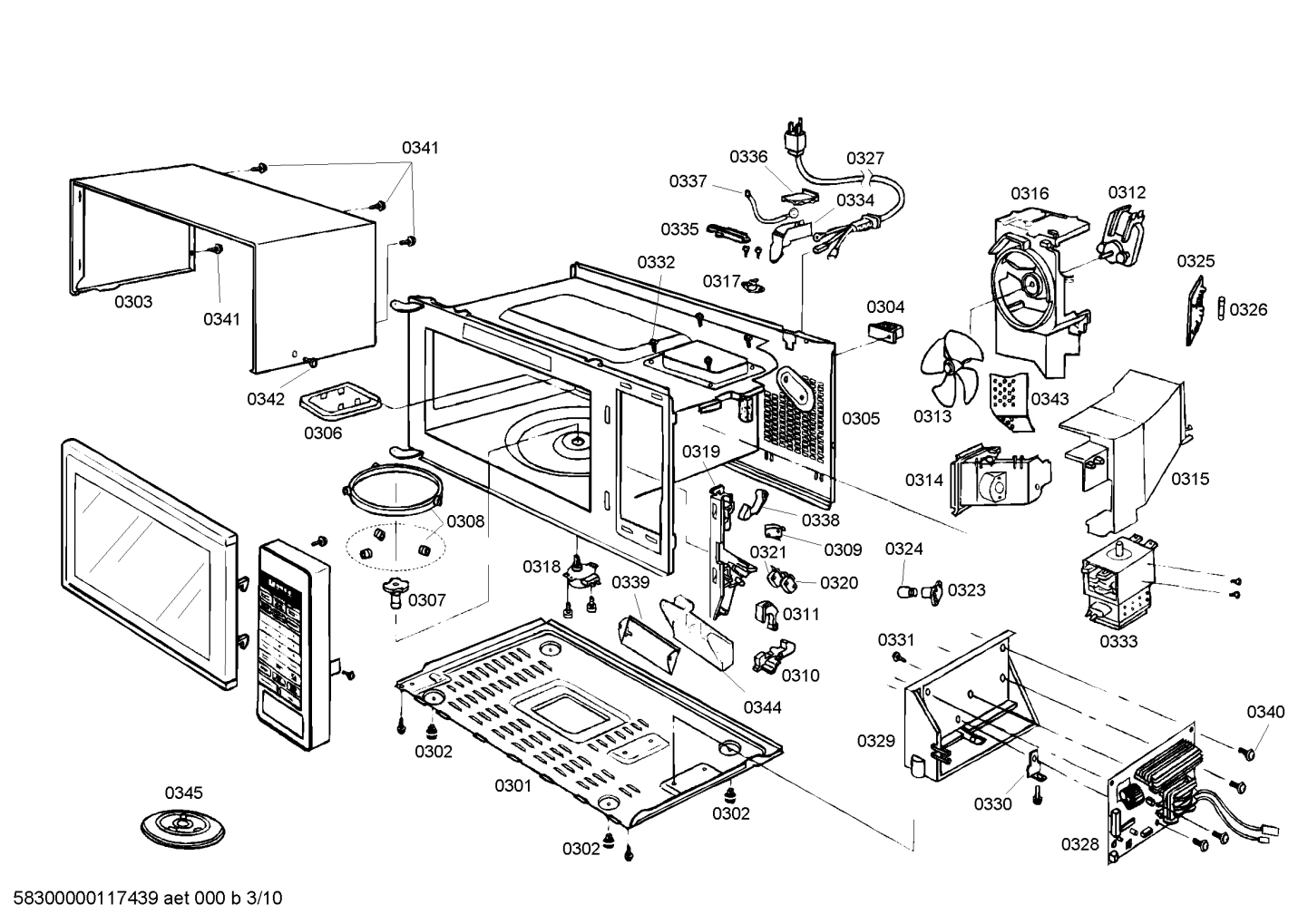

0306

00612102 Bosch Oven Cover Backorder BOS 00612102 $35.54

View on Model

0308

00641855 Bosch Oven Turntable Ring Backorder BOS 00641855 $34.51

View on Model

0318

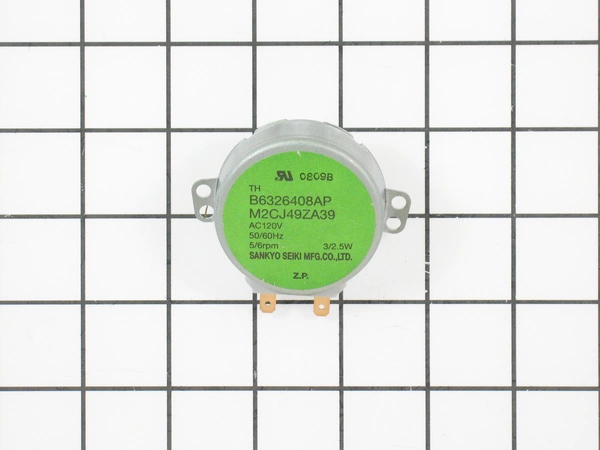

00415823 Bosch Range Motor Backorder BOS 00415823 $97.84

View on Model

0319

00606693 Bosch Oven Switch In Stock BOS 00606693 $67.69

View on Model

0320

00633795 Bosch Oven Switch In Stock BOS 00633795 $39.59

View on Model

0321

00415826 Bosch Oven Switch Backorder BOS 00415826 $41.87

View on Model

0324

00415829 Bosch Oven Lamp Backorder BOS 00415829 $34.51

View on Model

0326

00415830 Bosch Range Fuse Backorder BOS 00415830 $38.63

View on Model

0333

Magnetron BOS 00487757 Contact Us For Availability

View on Model

0336

Covering BOS 00415838 Contact Us For Availability

View on Model

0337

00415839 Bosch Oven Sensor Backorder BOS 00415839 $86.53

View on Model

0339

00415841 Bosch Oven Bracket Backorder BOS 00415841 $30.39

View on Model

0340

Screw BOS 00415842 Contact Us For Availability

View on Model

0341

Screw BOS 00415843 Contact Us For Availability

View on Model

0342

00415844 Bosch 01: Screw Backorder BOS 00415844 $3.09

View on Model

0343

Screening BOS 00487758 Contact Us For Availability

View on Model

0344

00415845 Bosch Oven Lever Backorder BOS 00415845 $36.04

View on Model

0345

00487763 Bosch Oven Tray Backorder BOS 00487763 $189.51

View on Model

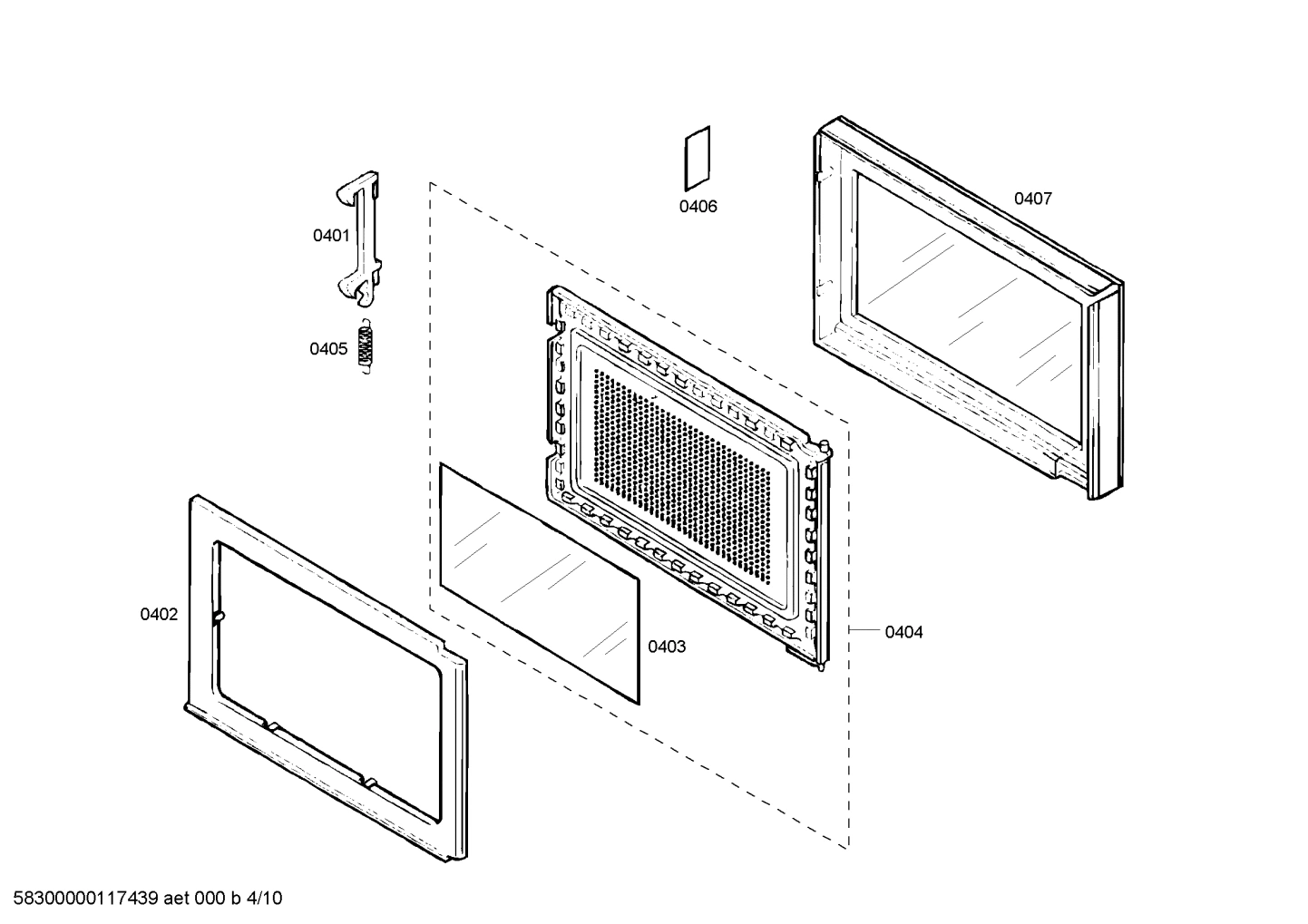

0401

11018656 Bosch Oven Door Latch In Stock BOS 11018656 $145.70

View on Model

0402

00487760 Bosch Oven Inner Door Backorder BOS 00487760 $70.03

View on Model

0403

Screening BOS 00487759 Contact Us For Availability

View on Model

0404

00143258 Bosch Range Door Backorder BOS 00143258 $183.33

View on Model

0405

00415847 Bosch Oven Spring Backorder BOS 00415847 $123.09

View on Model

0406

Sticker BOS 00582369 Contact Us For Availability

View on Model

0407

Door BOS 00143259 Contact Us For Availability

View on Model

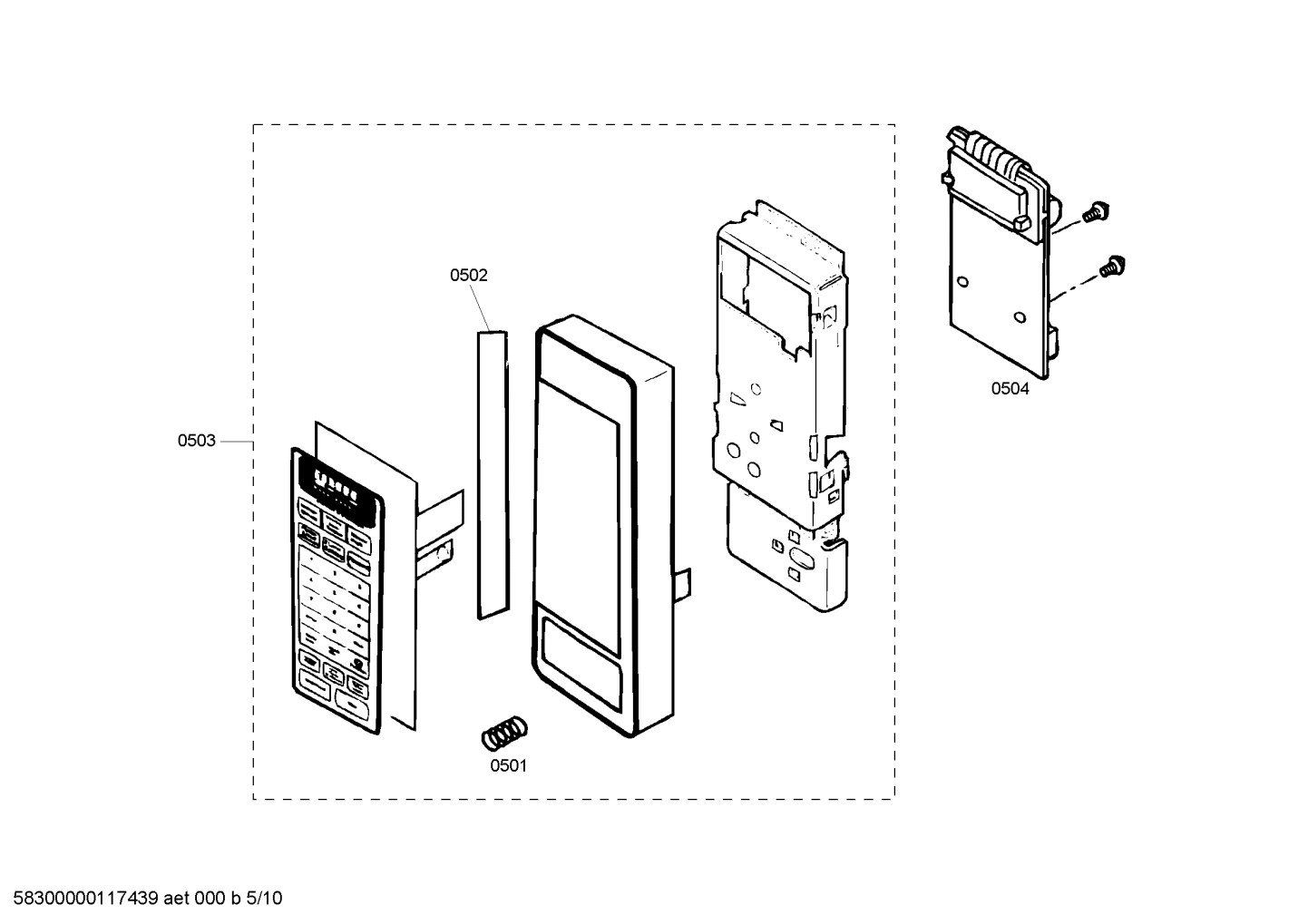

0501

Spring BOS 00429386 Contact Us For Availability

View on Model

0502

Sign BOS 00415848 Contact Us For Availability

View on Model

0503

Panel-facia BOS 00487765 Contact Us For Availability

View on Model

0504

PC board BOS 00487762 Contact Us For Availability

View on Model

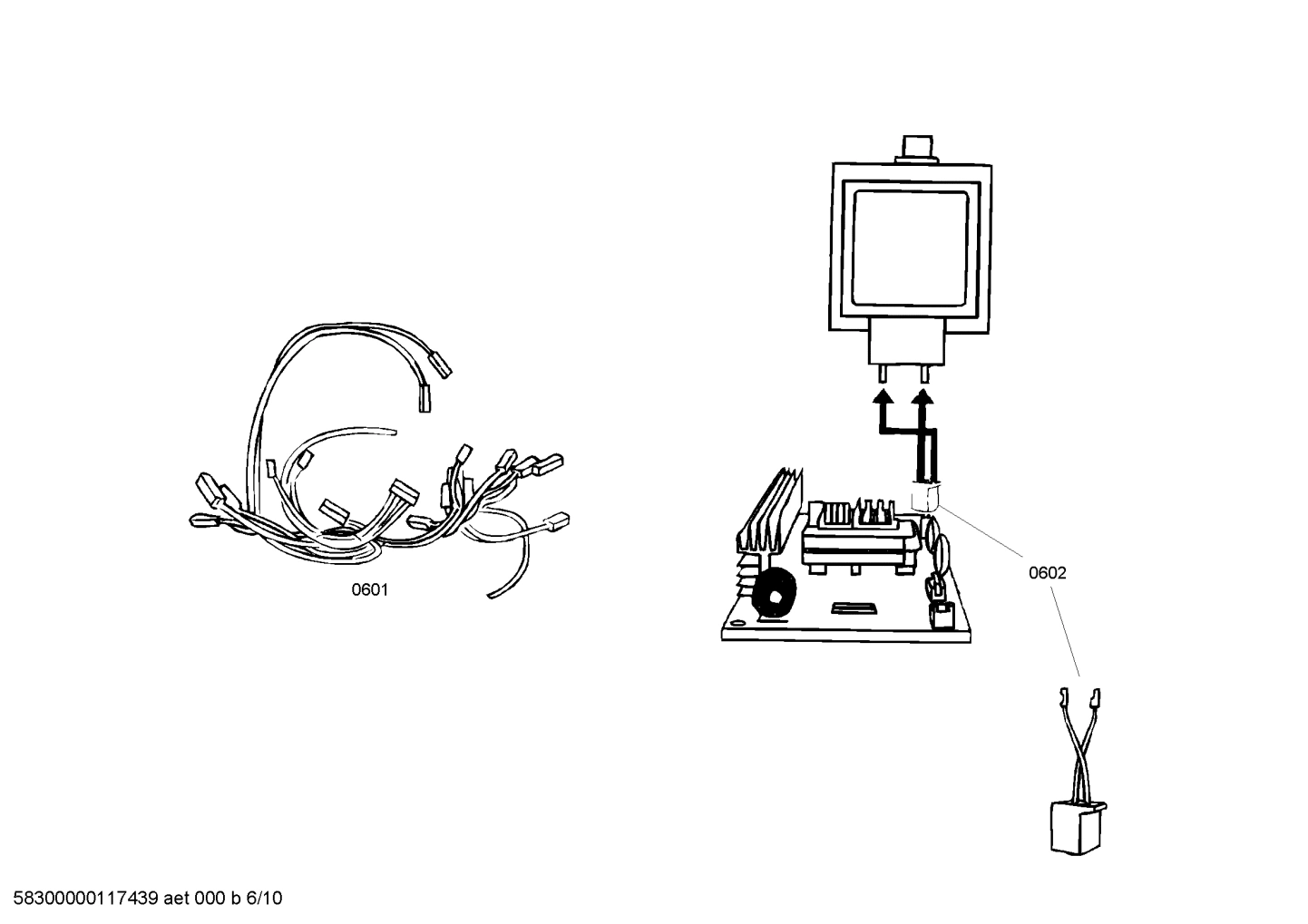

0601

Cable harness BOS 00415850 Contact Us For Availability

View on Model

0602

00415851 Bosch Range Wire Backorder BOS 00415851 $25.74

View on Model

0651

Wire BOS 00415853 Contact Us For Availability

View on Model

0652

Wire BOS 00415854 Contact Us For Availability

View on Model

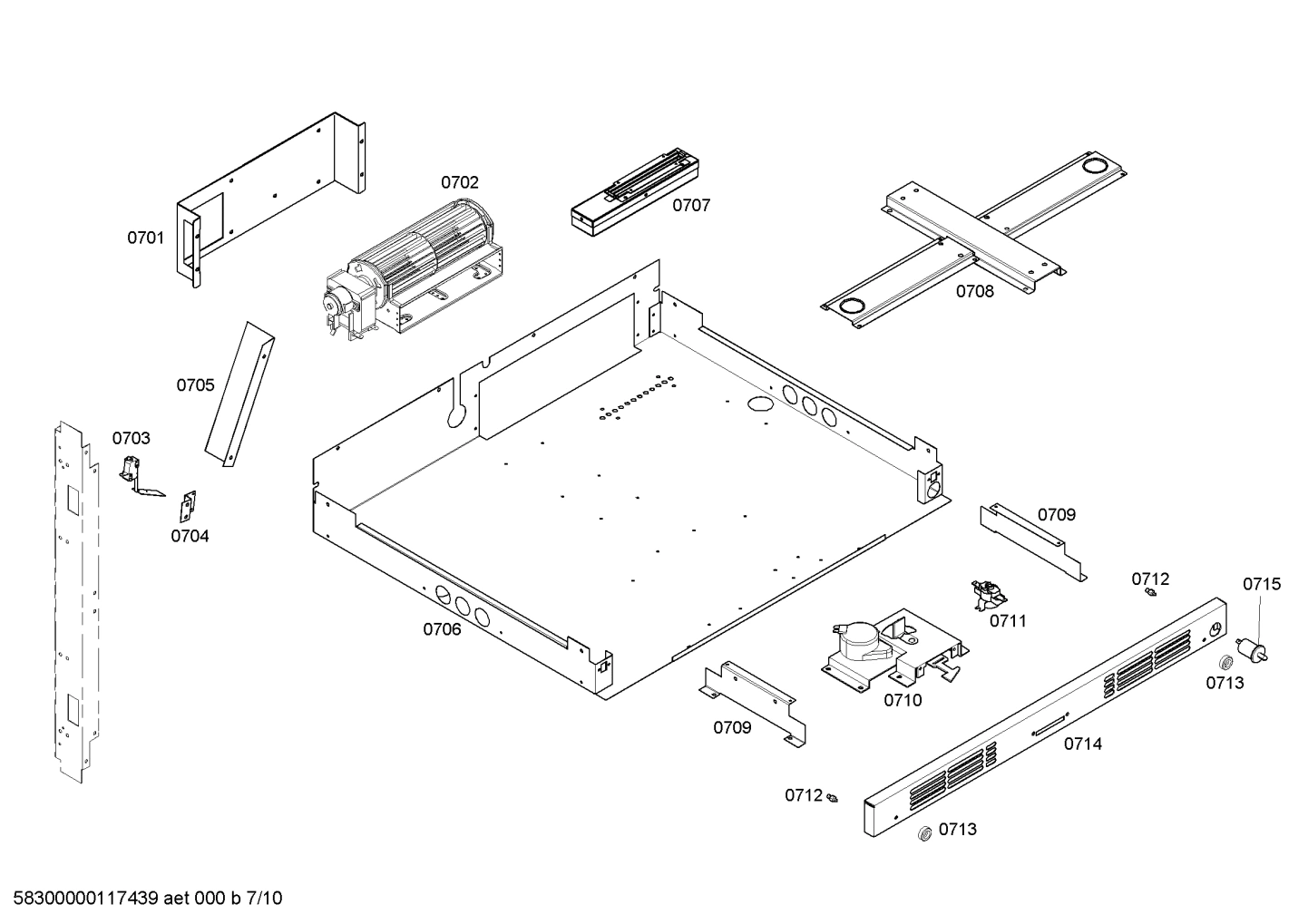

0701

Bracket BOS 00485978 Contact Us For Availability

View on Model

0702

Installation set BOS 00431492 Contact Us For Availability

View on Model

0703

Switch BOS 00488400 Contact Us For Availability

View on Model

0704

Bracket BOS 00416807 Contact Us For Availability

View on Model

0705

Heat shield BOS 00432354 Contact Us For Availability

View on Model

0706

Frame BOS 00368495 Contact Us For Availability

View on Model

0707

Duct BOS 00413567 Contact Us For Availability

View on Model

0708

Covering BOS 00368285 Contact Us For Availability

View on Model

0709

Sign BOS 00368496 Contact Us For Availability

View on Model

0710

Electric lock BOS 00489102 Contact Us For Availability

View on Model

0711

00414633 Bosch Thermal Fuse Backorder BOS 00414633 $47.03

View on Model

0712

Damper BOS 00411059 Contact Us For Availability

View on Model

0713

Spacer BOS 00425279 Contact Us For Availability

View on Model

0714

Plate BOS 00486330 Contact Us For Availability

View on Model

0715

00622858 Bosch Microwave Oven Door Switch In Stock BOS 00622858 $28.33

View on Model

0750

Insulating part BOS 00486004 Contact Us For Availability

View on Model

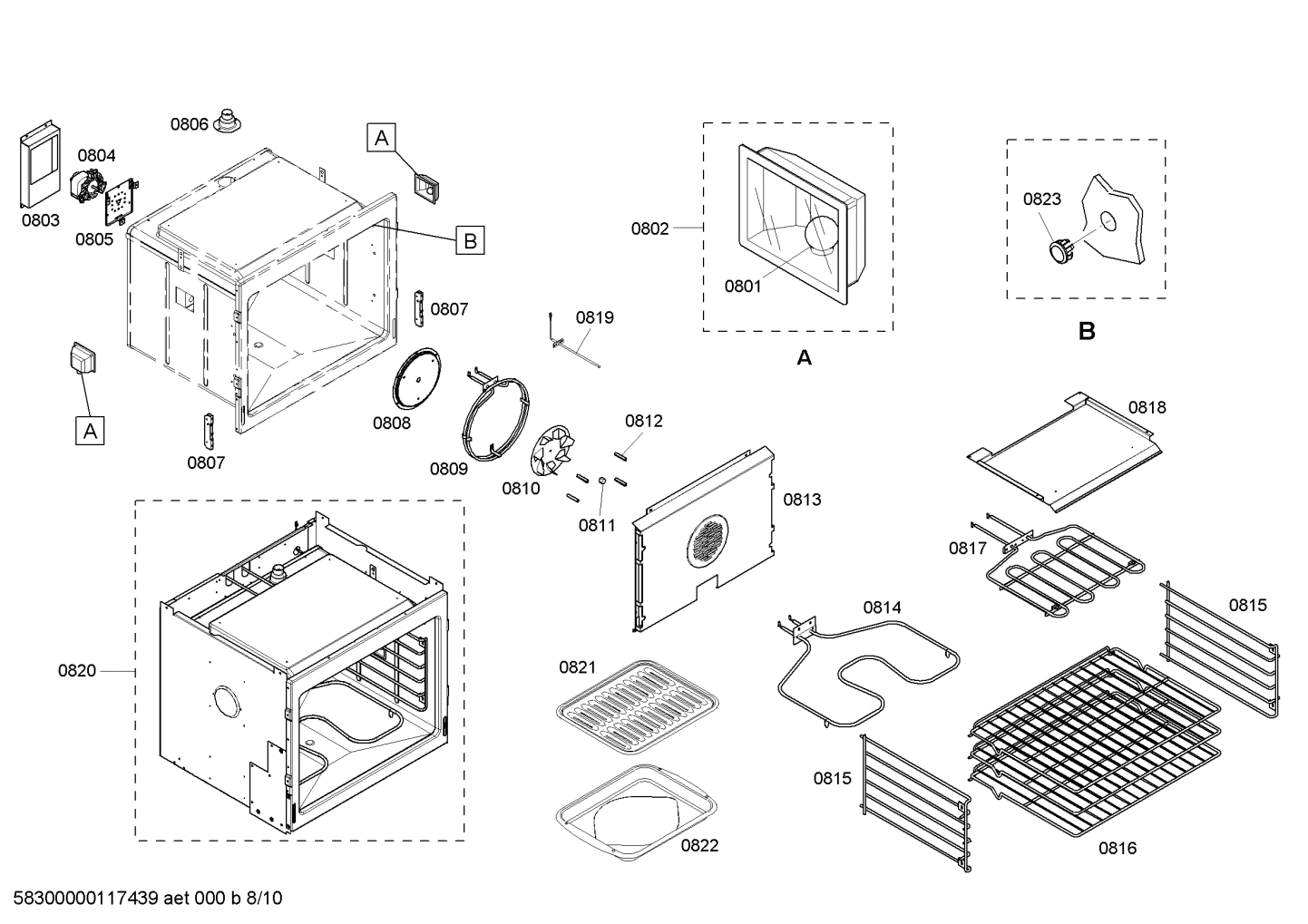

0801

00157311 Bosch Halogen Lamp In Stock BOS 00157311 $38.40

View on Model

0802

Lamp housing BOS 00414512 Contact Us For Availability

View on Model

0803

Cover BOS 00485982 Contact Us For Availability

View on Model

0804

Motor BOS 00494266 Contact Us For Availability

View on Model

0805

00486323 Bosch Oven Bracket Backorder BOS 00486323 $73.12

View on Model

0806

Catalyzer BOS 00411220 Contact Us For Availability

View on Model

0807

Holder BOS 00414510 Contact Us For Availability

View on Model

0808

Plate BOS 00412840 Contact Us For Availability

View on Model

0809

00484787 Bosch Oven Heating Element Backorder BOS 00484787 $139.39

View on Model

0810

Fan blade BOS 00487019 Contact Us For Availability

View on Model

0811

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0812

Spacer BOS 00413128 Contact Us For Availability

View on Model

0813

Ventilation duct BOS 00368282 Contact Us For Availability

View on Model

0814

00367649 Bosch Oven Heating Element In Stock BOS 00367649 $89.49

View on Model

0815

00485998 Bosch Oven Support Backorder BOS 00485998 $110.20

View on Model

0816

Grill grid BOS 00368827 Contact Us For Availability

View on Model

0817

Heating element BOS 00367647 Contact Us For Availability

View on Model

0818

Reflector BOS 00368265 Contact Us For Availability

View on Model

0819

Temperature sensor BOS 00414152 Contact Us For Availability

View on Model

0820

Oven cavity BOS 00238831 Contact Us For Availability

View on Model

0821

Grid BOS 00484627 Contact Us For Availability

View on Model

0822

Universal pan BOS 00449757 Contact Us For Availability

View on Model

0823

00413573 Bosch Oven Plug Backorder BOS 00413573 $16.47

View on Model

0851

Screw BOS 00413466 Contact Us For Availability

View on Model

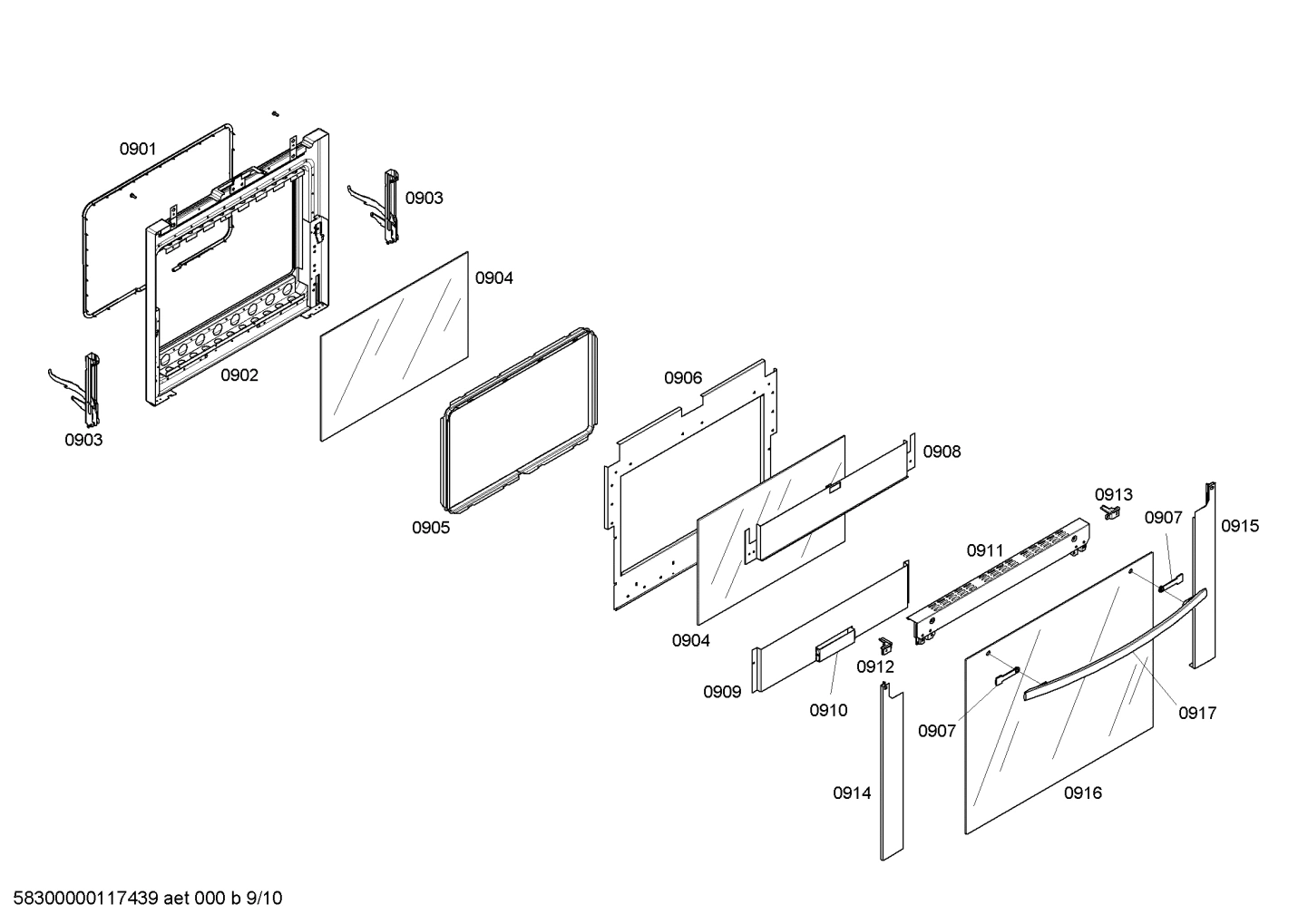

0901

00486768 Bosch Oven Door Seal In Stock BOS 00486768 $73.50

View on Model

0902

Door-inner BOS 00470537 Contact Us For Availability

View on Model

0903

Hinge BOS 00487746 Contact Us For Availability

View on Model

0904

00219357 Bosch Oven Glass Panel Backorder BOS 00219357 $93.22

View on Model

0905

Spacer BOS 00369152 Contact Us For Availability

View on Model

0906

Insulating part BOS 00368287 Contact Us For Availability

View on Model

0907

Spacer BOS 00414817 Contact Us For Availability

View on Model

0908

Ventilation duct BOS 00485992 Contact Us For Availability

View on Model

0909

Ventilation duct BOS 00486000 Contact Us For Availability

View on Model

0910

Bracket BOS 00413120 Contact Us For Availability

View on Model

0911

Seating BOS 00369984 Contact Us For Availability

View on Model

0912

Handle-cap shaped BOS 00414391 Contact Us For Availability

View on Model

0913

Handle-cap shaped BOS 00414390 Contact Us For Availability

View on Model

0914

Bracket BOS 00434159 Contact Us For Availability

View on Model

0915

Bracket BOS 00434160 Contact Us For Availability

View on Model

0916

Glass panel BOS 00142738 Contact Us For Availability

View on Model

0917

Handle BOS 00641345 Contact Us For Availability

View on Model

0950

00412838 Bosch Oven Lock Backorder BOS 00412838 $77.77

View on Model

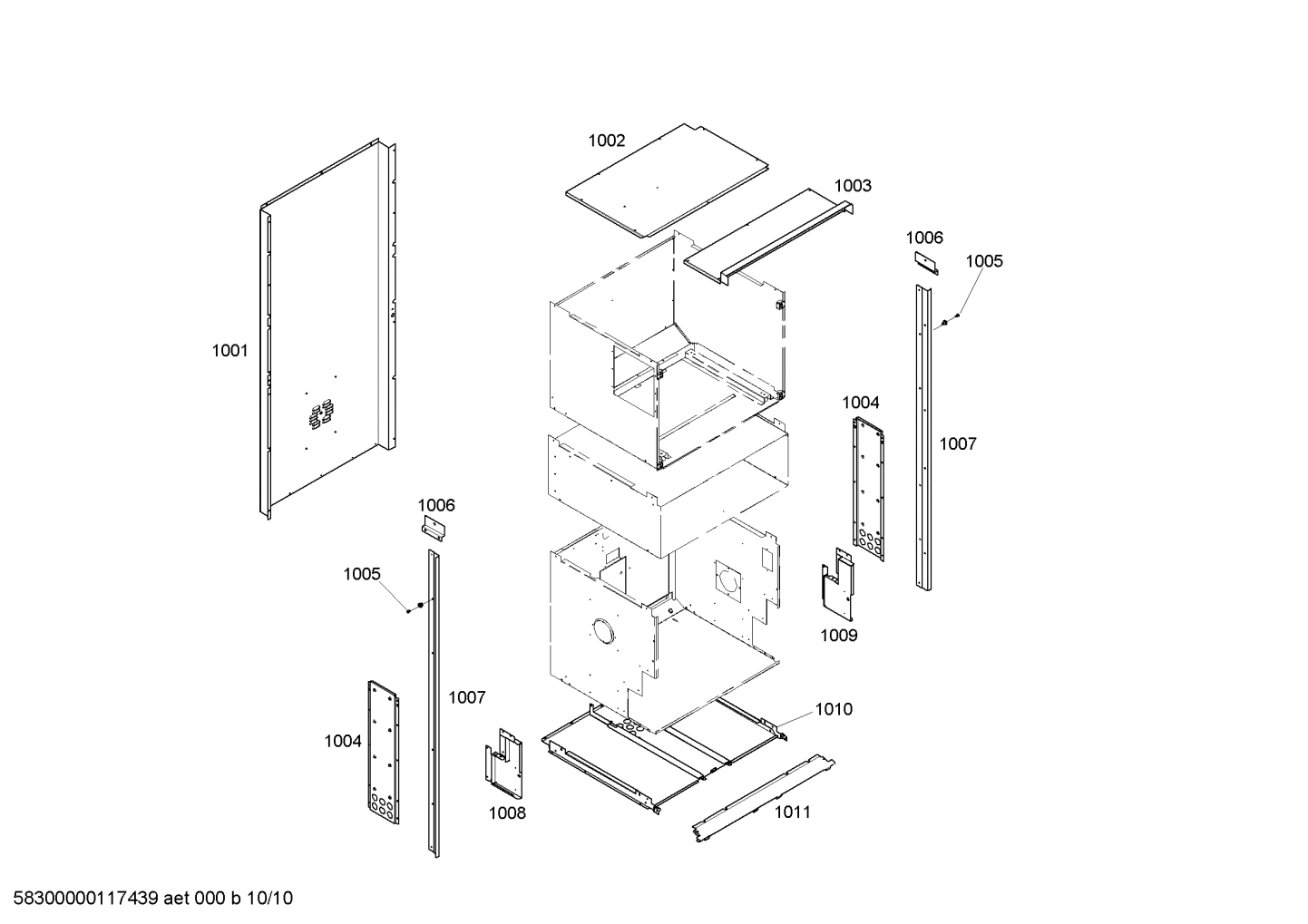

1001

Covering BOS 00368492 Contact Us For Availability

View on Model

1002

Cover BOS 00485975 Contact Us For Availability

View on Model

1003

Covering BOS 00142733 Contact Us For Availability

View on Model

1004

Duct BOS 00368450 Contact Us For Availability

View on Model

1006

Bracket BOS 00413600 Contact Us For Availability

View on Model

1007

Frame BOS 00432583 Contact Us For Availability

View on Model

1007

Frame BOS 00432581 Contact Us For Availability

View on Model

1008

Bracket BOS 00416432 Contact Us For Availability

View on Model

1009

Bracket BOS 00416431 Contact Us For Availability

View on Model

1010

Base BOS 00219354 Contact Us For Availability

View on Model

1011

Frame BOS 00368502 Contact Us For Availability

View on Model

1050

00189250 Bosch Oven Screw Backorder BOS 00189250 $10.29

View on Model

1051

00189345 Bosch Oven Screw In Stock BOS 00189345 $22.65

View on Model
