Bosch SHX3AR76UC/06 Dishwasher Parts List

0101

Operating module BOS 00705441 Contact Us For Availability

View on Model

0103

00611295 Bosch Dishwasher Switch In Stock BOS 00611295 $26.27

View on Model

0104

00648135 Bosch Dishwasher Cable In Stock BOS 00648135 $86.05

View on Model

0105

00654762 Bosch Dishwasher Cable Harness Backorder BOS 00654762 $108.14

View on Model

0106

00668073 Bosch Dishwasher Seal Backorder BOS 00668073 $19.56

View on Model

0107

Panel-facia BOS 00686830 Contact Us For Availability

View on Model

0108

00611885 Bosch Dishwasher Key Backorder BOS 00611885 $10.29

View on Model

0109

00611881 Bosch Dishwasher Key In Stock BOS 00611881 $5.16

View on Model

0111

00616600 Bosch Dishwasher Key Backorder BOS 00616600 $11.85

View on Model

0112

00616831 Bosch Dishwasher Key Backorder BOS 00616831 $4.11

View on Model

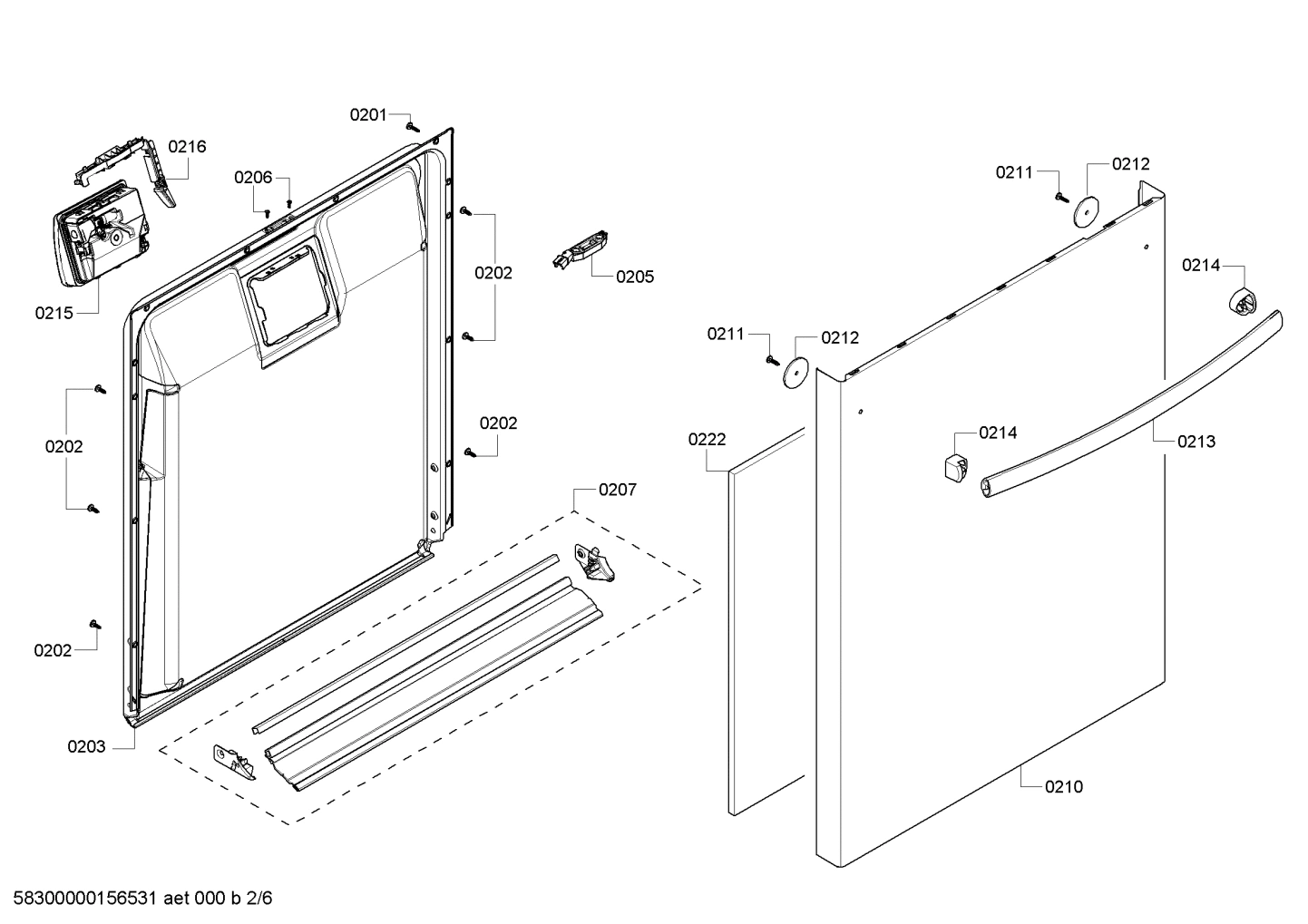

0201

00611311 Bosch Dishwasher Screw In Stock BOS 00611311 $11.32

View on Model

0202

00151703 Bosch Screw In Stock BOS 00151703 $9.18

View on Model

0203

00688501 Bosch Dishwasher Inner Door In Stock BOS 00688501 $149.15

View on Model

0205

00611312 Bosch Dishwasher Door Sensor In Stock BOS 00611312 $29.12

View on Model

0206

00611659 Bosch Dishwasher Screw In Stock BOS 00611659 $4.13

View on Model

0207

00669221 Bosch Dishwasher Door Seal In Stock BOS 00669221 $28.11

View on Model

0210

00683610 Bosch Dishwasher Outer Door Backorder BOS 00683610 $114.33

View on Model

0211

Screw BOS 00427940 Contact Us For Availability

View on Model

0212

00611862 Bosch Dishwasher Washer Backorder BOS 00611862 $5.16

View on Model

0213

00432117 Bosch Dishwasher Door Handle Backorder BOS 00432117 $83.95

View on Model

0214

00615353 Bosch Dishwasher Handle Cap In Stock BOS 00615353 $5.53

View on Model

0215

00645208 Bosch Dishwasher Dispenser In Stock BOS 00645208 $75.40

View on Model

0216

Guide BOS 00645374 Contact Us For Availability

View on Model

0222

Insulating part BOS 00702635 Contact Us For Availability

View on Model

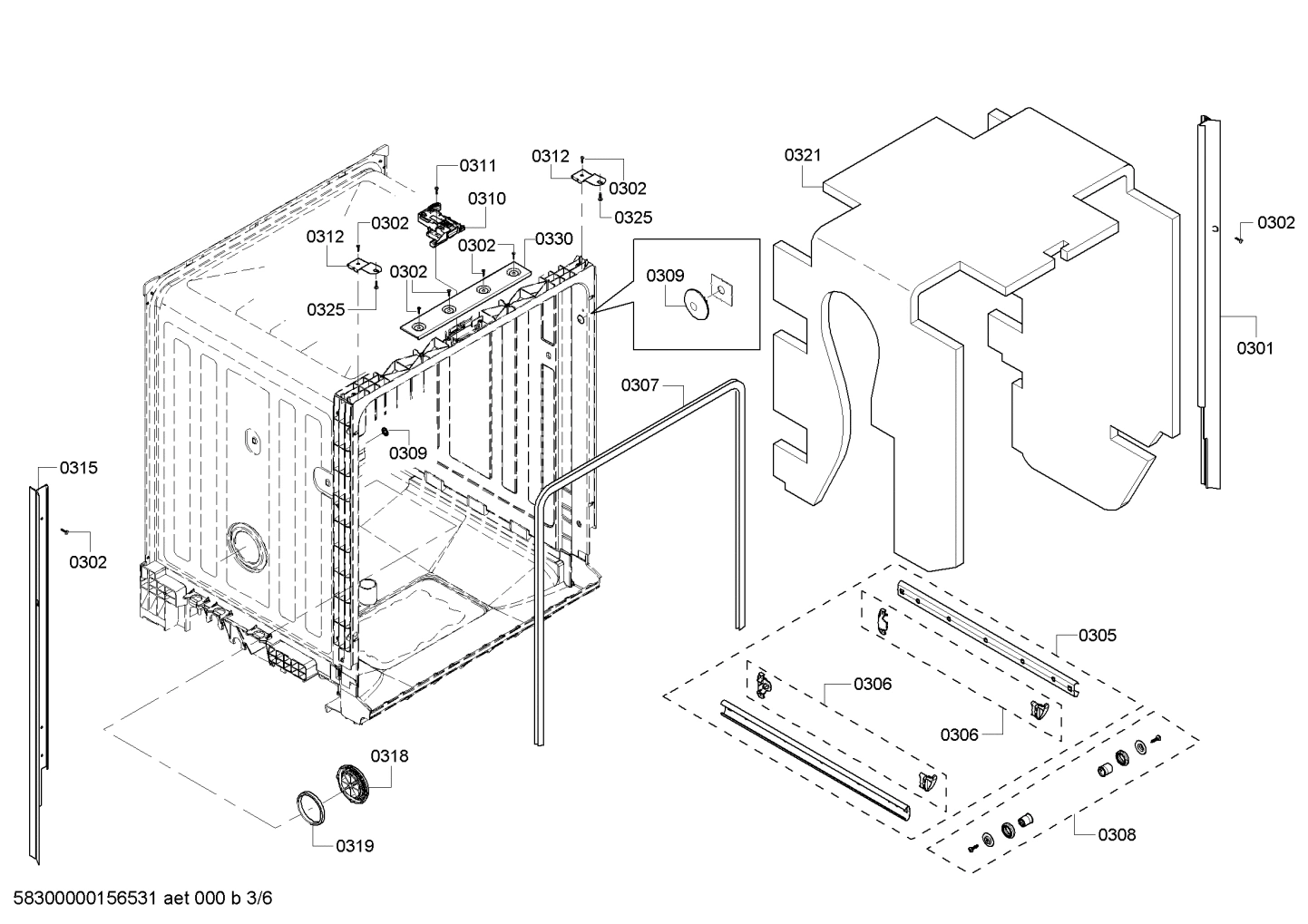

0306

00165254 Bosch Dishwasher Holder In Stock BOS 00165254 $13.20

View on Model

0307

00645141 Bosch Dishwasher Sealing Assembly In Stock BOS 00645141 $31.55

View on Model

0308

00645743 Bosch Dishwasher Repair Set Backorder BOS 00645743 $13.91

View on Model

0309

00611863 Bosch Dishwasher Cap Backorder BOS 00611863 $5.14

View on Model

0310

10006917 Bosch Dishwasher Lock In Stock BOS 10006917 $38.43

View on Model

0311

00611658 Bosch Dishwasher Screw Backorder BOS 00611658 $4.11

View on Model

0312

00611955 Bosch Dishwasher Mounting Bracket In Stock BOS 00611955 $4.64

View on Model

0315

00749684 Bosch Dishwasher Strip In Stock BOS 00749684 $17.21

View on Model

0318

00420585 Bosch Dishwasher Cover Backorder BOS 00420585 $5.14

View on Model

0319

00420586 Bosch Dishwasher Sealing Backorder BOS 00420586 $30.39

View on Model

0321

00675106 Bosch Dishwasher Insulation Part Backorder BOS 00675106 $66.94

View on Model

0325

00189670 Bosch Dishwasher Screw In Stock BOS 00189670 $5.73

View on Model

0330

00678930 Bosch Dishwasher Bracket In Stock BOS 00678930 $20.59

View on Model

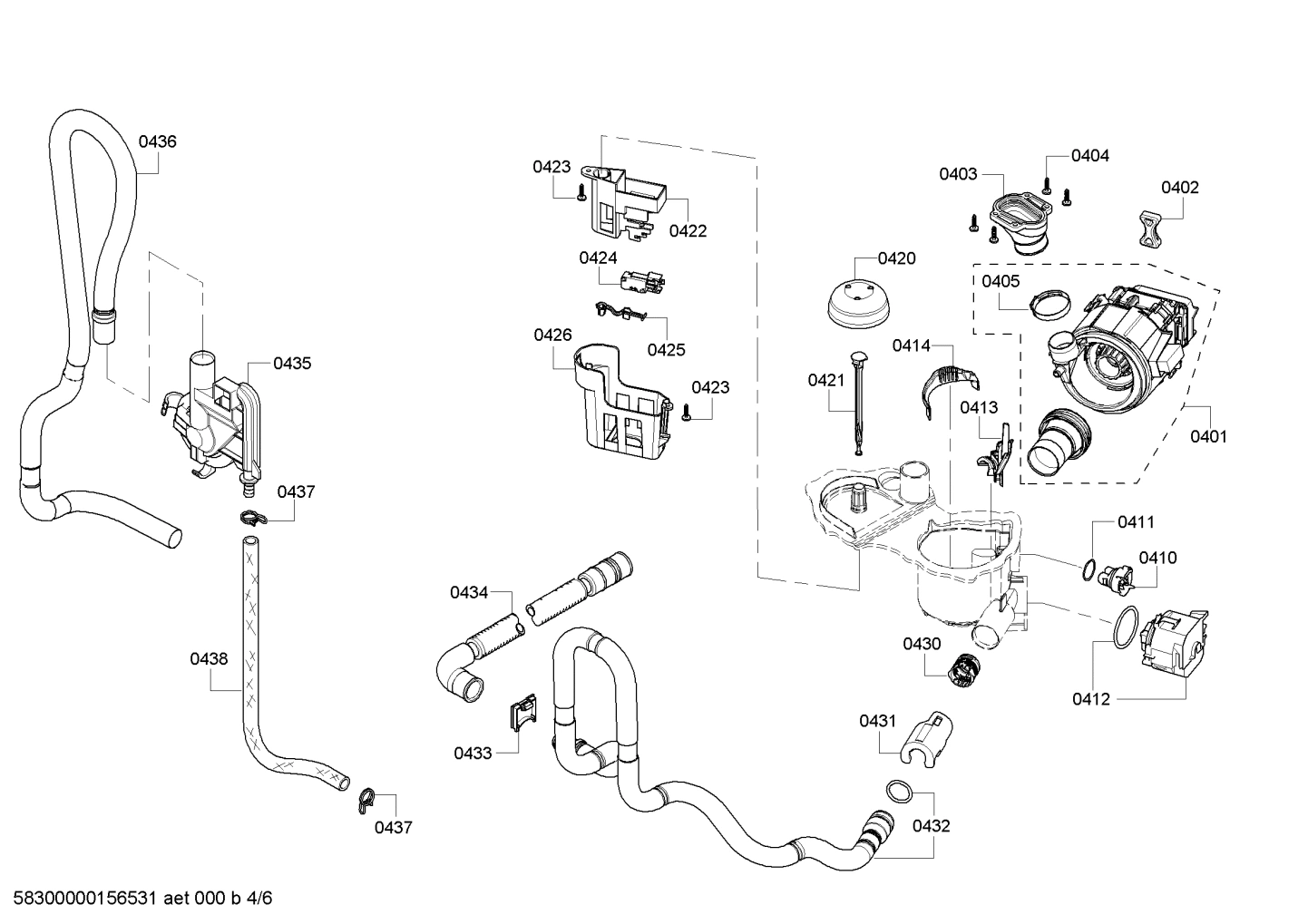

0401

00705174 Bosch Dishwasher Heat Pump In Stock BOS 00705174 $347.05

View on Model

0402

00611330 Bosch Dishwasher Suspension Backorder BOS 00611330 $5.14

View on Model

0403

00611569 Bosch Dishwasher Adapter In Stock BOS 00611569 $24.21

View on Model

0405

00172272 Bosch Dishwasher Hose Clamp In Stock BOS 00172272 $19.66

View on Model

0411

00611323 Bosch Dishwasher Sensor In Stock BOS 00611323 $43.02

View on Model

0412

00611332 Bosch Dishwasher Drain Pump In Stock BOS 00611332 $63.67

View on Model

0413

00611322 Bosch Dishwasher Lid In Stock BOS 00611322 $21.23

View on Model

0414

00611321 Bosch Dishwasher Cover In Stock BOS 00611321 $17.50

View on Model

0421

12006522 Bosch Dishwasher Hood Backorder BOS 12006522 $8.76

View on Model

0424

00611665 Bosch Dishwasher Switch In Stock BOS 00611665 $15.48

View on Model

0426

12006523 Bosch Dishwasher Housing Backorder BOS 12006523 $23.18

View on Model

0430

00611320 Bosch Dishwasher Non-Valve Return In Stock BOS 00611320 $20.66

View on Model

0431

00611566 Bosch Dishwasher Clamp Lock Backorder BOS 00611566 $6.17

View on Model

0432

00645149 Bosch Dishwasher Drain Hose In Stock BOS 00645149 $19.50

View on Model

0433

Stress-relief BOS 00611325 Contact Us For Availability

View on Model

0434

00668108 Bosch Dishwasher Drain Hose In Stock BOS 00668108 $32.12

View on Model

0435

00645147 Bosch Dishwasher Water Inlet In Stock BOS 00645147 $18.03

View on Model

0436

00645148 Bosch Dishwasher Vent Hose In Stock BOS 00645148 $12.88

View on Model

0437

00625999 Bosch Dishwasher Hose Clamp Backorder BOS 00625999 $12.35

View on Model

0438

00496099 Bosch Dishwasher Hose In Stock BOS 00496099 $20.59

View on Model

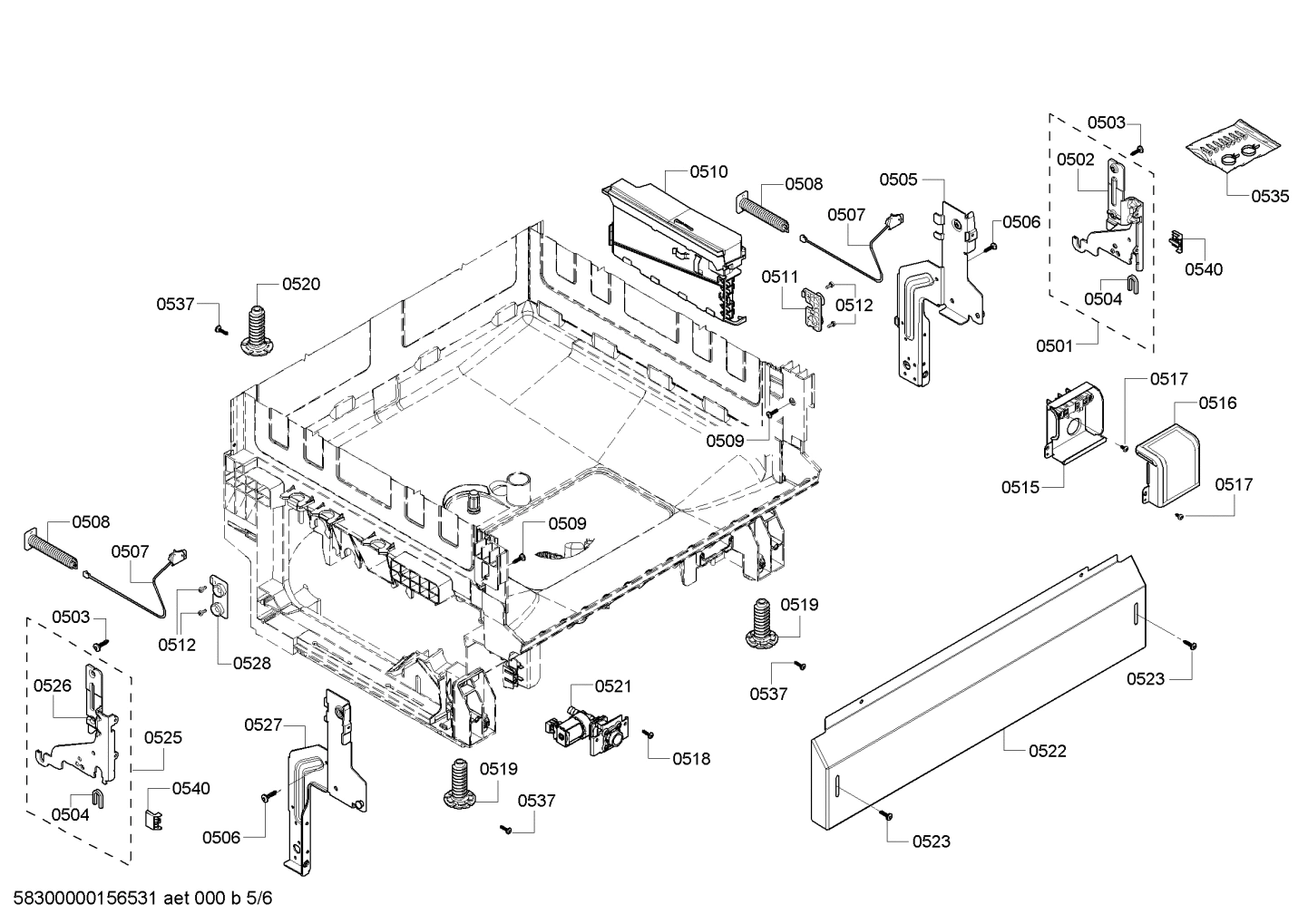

0502

00498927 Bosch Dishwasher Lever In Stock BOS 00498927 $22.65

View on Model

0503

00633945 Bosch Dishwasher Screw Backorder BOS 00633945 $6.70

View on Model

0504

00165296 Bosch Dishwasher Bearing In Stock BOS 00165296 $13.45

View on Model

0506

00623707 Bosch Dishwasher Screw Backorder BOS 00623707 $3.08

View on Model

0507

00610087 Bosch Dishwasher Rope In Stock BOS 00610087 $8.03

View on Model

0508

00654854 Bosch Dishwasher Spring In Stock BOS 00654854 $9.26

View on Model

0509

00611649 Bosch Dishwasher Screw In Stock BOS 00611649 $5.16

View on Model

0510

00705047 Bosch Dishwasher Power Module In Stock BOS 00705047 $463.49

View on Model

0511

Adjusting device BOS 00610085 Contact Us For Availability

View on Model

0512

00420262 Bosch Laundry Screw Backorder BOS 00420262 $3.08

View on Model

0515

00640476 Bosch Dishwasher Terminal Box In Stock BOS 00640476 $28.68

View on Model

0516

00640477 Bosch Dishwasher Cover In Stock BOS 00640477 $11.34

View on Model

0517

00605743 Bosch Dishwasher Screw In Stock BOS 00605743 $5.16

View on Model

0518

00617588 Bosch Dishwasher Screw In Stock BOS 00617588 $5.14

View on Model

0519

00617586 Bosch Dishwasher Foot In Stock BOS 00617586 $14.14

View on Model

0520

00617585 Bosch Dishwasher Foot In Stock BOS 00617585 $5.73

View on Model

0521

00622058 Bosch Dishwasher Valve Access In Stock BOS 00622058 $42.74

View on Model

0522

00668687 Bosch Dishwasher Base Panel In Stock BOS 00668687 $68.84

View on Model

0523

00603934 Bosch Dishwasher Screw In Stock BOS 00603934 $6.89

View on Model

0526

00498928 Bosch Dishwasher Lever In Stock BOS 00498928 $23.68

View on Model

0527

11012606 Bosch Dishwasher Hinge Backorder BOS 11012606 $31.94

View on Model

0528

00634766 Bosch Dishwasher Adjusting Device Backorder BOS 00634766 $10.29

View on Model

0537

00188670 Bosch Dishwasher Screw In Stock BOS 00188670 $10.89

View on Model

0540

00652654 Bosch Dishwasher Support Backorder BOS 00652654 $6.17

View on Model

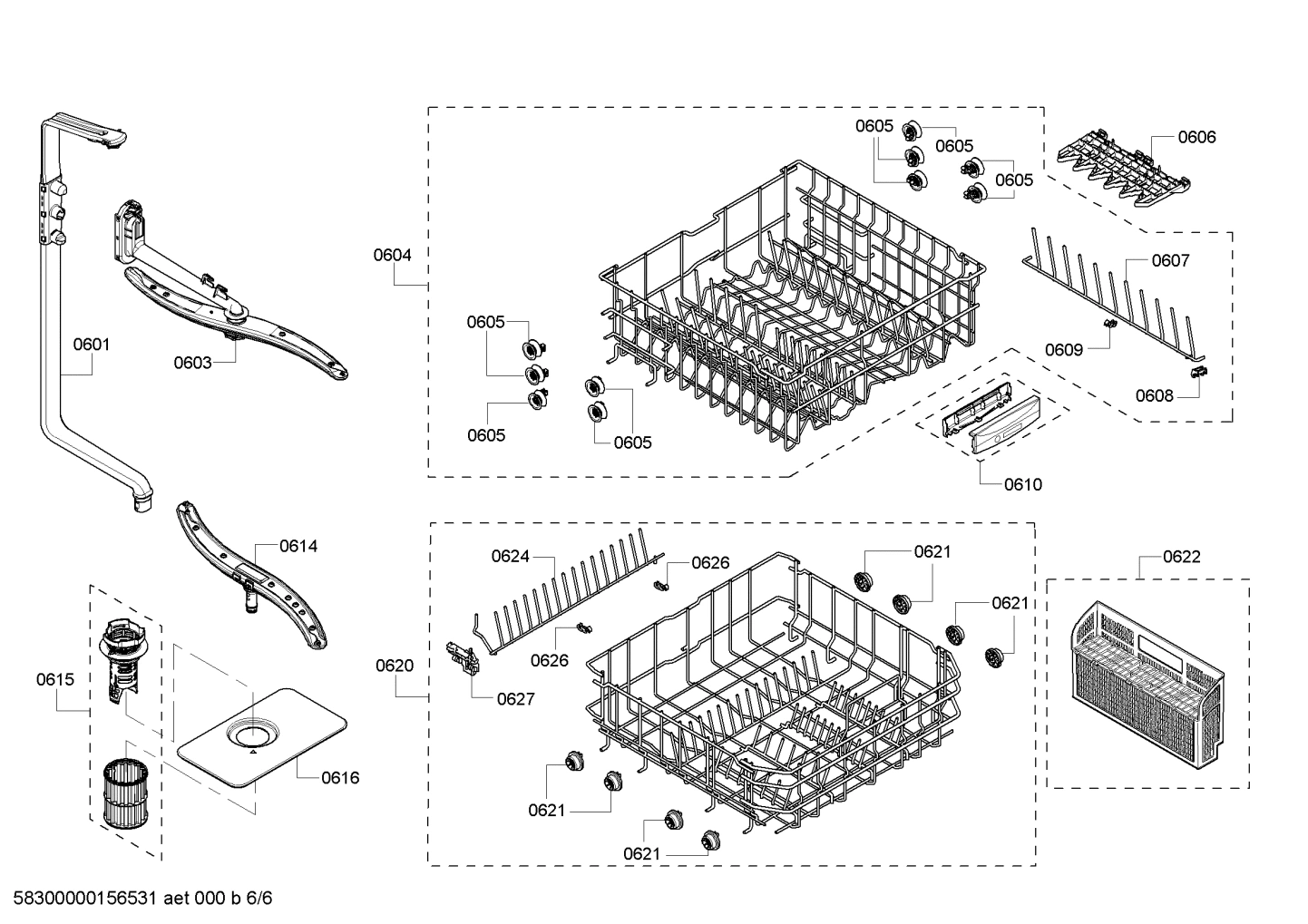

0601

00668347 Bosch Dishwasher Tube Backorder BOS 00668347 $44.28

View on Model

0603

00668385 Bosch Dishwasher Spray Arm In Stock BOS 00668385 $42.45

View on Model

0604

00248820 Bosch Dishwasher Crockery Basket In Stock BOS 00248820 $308.49

View on Model

0606

Cup rack BOS 00676468 Contact Us For Availability

View on Model

0607

Insert BOS 00752981 Contact Us For Availability

View on Model

0608

00616990 Bosch Dishwasher Holder In Stock BOS 00616990 $4.59

View on Model

0609

00616989 Bosch Dishwasher Holder In Stock BOS 00616989 $4.59

View on Model

0610

00622917 Bosch Dishwasher Handle Backorder BOS 00622917 $40.16

View on Model

0614

00668384 Bosch Dishwasher Spray Arm In Stock BOS 00668384 $22.65

View on Model

0615

00645038 Bosch Dishwasher Microfilter In Stock BOS 00645038 $41.30

View on Model

0616

Filter-fine BOS 00703698 Contact Us For Availability

View on Model

0622

11026683 Bosch Dishwasher Cutlery Basket In Stock BOS 11026683 $41.19

View on Model

0624

Insert BOS 00651435 Contact Us For Availability

View on Model

0626

00611981 Bosch Dishwasher Holder In Stock BOS 00611981 $4.59

View on Model

0627

00611980 Bosch Dishwasher Holder In Stock BOS 00611980 $6.89

View on Model

Model Bosch SHX3AR76UC/06 Dishwasher – Common Parts & Diagrams

Common parts from model Bosch SHX3AR76UC/06 Dishwasher
