Bosch SHU3336UC/10 Dishwasher Parts List

0001

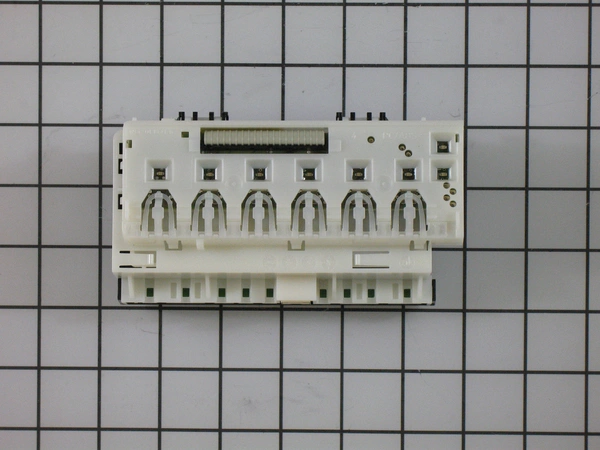

00647474 Bosch Dishwasher Control Unit Backorder BOS 00647474 $630.99

View on Model

0004

Switch BOS 00165242 Contact Us For Availability

View on Model

0006

00165243 Bosch Dishwasher Lock Backorder BOS 00165243 $92.19

View on Model

0007

00298518 Bosch Dishwasher Frame Backorder BOS 00298518 $34.51

View on Model

0011

00165769 Bosch Dishwasher Cover Backorder BOS 00165769 $13.38

View on Model

0020

Dispenser BOS 00263088 Contact Us For Availability

View on Model

0021

00166637 Bosch Dishwasher Sealing Backorder BOS 00166637 $11.32

View on Model

0022

00166621 Bosch Dishwasher Lid In Stock BOS 00166621 $53.92

View on Model

0023

00166623 Bosch Dishwasher Lid In Stock BOS 00166623 $9.53

View on Model

0024

00166628 Bosch Dishwasher Repair Set In Stock BOS 00166628 $11.85

View on Model

0025

00166626 Bosch Dishwasher Adjustment Device Backorder BOS 00166626 $14.94

View on Model

0026

00166630 Bosch Dishwasher Tripping Device In Stock BOS 00166630 $16.07

View on Model

0027

00166627 Bosch Dishwasher Plunger Backorder BOS 00166627 $11.32

View on Model

0028

00166625 Bosch Dishwasher Sealing In Stock BOS 00166625 $10.29

View on Model

0030

00166635 Bosch Dishwasher Actuator Backorder BOS 00166635 $26.27

View on Model

0031

00166632 Bosch Dishwasher Repair Set Backorder BOS 00166632 $6.17

View on Model

0032

00166633 Bosch Dishwasher Switch Backorder BOS 00166633 $25.74

View on Model

0033

Door-inner BOS 00212902 Contact Us For Availability

View on Model

0034

Repair-set BOS 00352246 Contact Us For Availability

View on Model

0035

00298534 Bosch Dishwasher Door Seal Backorder BOS 00298534 $76.87

View on Model

0038

Door-outer BOS 00680002 Contact Us For Availability

View on Model

0039

00151703 Bosch Screw In Stock BOS 00151703 $9.18

View on Model

0047

00170664 Bosch Dishwasher Fixing Kit In Stock BOS 00170664 $21.23

View on Model

0052

Holder BOS 00268587 Contact Us For Availability

View on Model

0057

Latch BOS 00165253 Contact Us For Availability

View on Model

0058

00263096 Bosch Dishwasher Door Seal In Stock BOS 00263096 $91.21

View on Model

0059

00668097 Bosch Dishwasher Rack Guide Rail Backorder BOS 00668097 $31.42

View on Model

0060

00165254 Bosch Dishwasher Holder In Stock BOS 00165254 $13.20

View on Model

0063

00740617 Bosch Dishwasher Strip Backorder BOS 00740617 $53.05

View on Model

0064

00298550 Bosch Dishwasher Strip Backorder BOS 00298550 $22.65

View on Model

0065

Cover sheet BOS 00350318 Contact Us For Availability

View on Model

0066

00165329 Bosch Dishwasher Bushing Backorder BOS 00165329 $7.20

View on Model

0068

Foot BOS 00165330 Contact Us For Availability

View on Model

0069

00622193 Bosch Dishwasher Repair Role Set Backorder BOS 00622193 $71.59

View on Model

0070

Water inlet BOS 00263833 No Longer Available

View on Model

0071

Regulator-water level BOS 00263185 Contact Us For Availability

View on Model

0072

00499500 Bosch Dishwasher Pressure Chamber Backorder BOS 00499500 $64.25

View on Model

0073

00165256 Bosch Dishwasher Switch In Stock BOS 00165256 $28.11

View on Model

0076

00298556 Bosch Dishwasher Hose Backorder BOS 00298556 $9.26

View on Model

0079

00167028 Bosch Dishwasher Fixture Backorder BOS 00167028 $6.17

View on Model

0080

00263099 Bosch Dishwasher Hose In Stock BOS 00263099 $12.88

View on Model

0086

00086373 Bosch Dishwasher Hose Backorder BOS 00086373 $20.59

View on Model

0087

00167082 Bosch Dishwasher Drain Pump In Stock BOS 00167082 $109.27

View on Model

0088

00165262 Bosch Dishwasher Non-Valve Return In Stock BOS 00165262 $10.32

View on Model

0090

00167241 Bosch Screw In Stock BOS 00167241 $2.05

View on Model

0092

Holder BOS 00165265 Contact Us For Availability

View on Model

0093

Sealing BOS 00263102 No Longer Available

View on Model

0096

00165268 Bosch Dishwasher Seal Backorder BOS 00165268 $5.67

View on Model

0097

Case-upper part BOS 00263838 Contact Us For Availability

View on Model

0098

Sealing BOS 00165269 Contact Us For Availability

View on Model

0099

Sealing kit BOS 00167085 Contact Us For Availability

View on Model

0100

00263314 Bosch Dishwasher Pump Housing Backorder BOS 00263314 $38.10

View on Model

0101

00263835 Bosch Dishwasher Motor Backorder BOS 00263835 $397.53

View on Model

0103

Capacitor BOS 00167235 Contact Us For Availability

View on Model

0109

00165280 Bosch Dishwasher Seal In Stock BOS 00165280 $10.31

View on Model

0110

00165281 Bosch Dishwasher NTC Sensor In Stock BOS 00165281 $128.49

View on Model

0111

00151866 Bosch Dishwasher Seal In Stock BOS 00151866 $10.82

View on Model

0112

00069796 Bosch Dishwasher Switch Backorder BOS 00069796 $20.59

View on Model

0115

00165284 Bosch Dishwasher Cover Backorder BOS 00165284 $5.14

View on Model

0116

00263113 Bosch Dishwasher Cover Backorder BOS 00263113 $16.47

View on Model

0120

00088403 Bosch Dishwasher Mounting Set In Stock BOS 00088403 $15.97

View on Model

0128

00425458 Bosch Dishwasher Access Valve In Stock BOS 00425458 $53.51

View on Model

0129

00298564 Bosch Dishwasher Outlet Hose In Stock BOS 00298564 $28.53

View on Model

0130

00165331 Bosch Dishwasher Sealing In Stock BOS 00165331 $9.49

View on Model

0131

00165286 Bosch Dishwasher Stress Relief Valve Backorder BOS 00165286 $12.35

View on Model

0136

00263115 Bosch Dishwasher Hinge Backorder BOS 00263115 $45.84

View on Model

0137

00298567 Bosch Dishwasher Hinge Backorder BOS 00298567 $51.49

View on Model

0139

00165296 Bosch Dishwasher Bearing In Stock BOS 00165296 $13.45

View on Model

0140

Spring BOS 00168568 Contact Us For Availability

View on Model

0143

Tube BOS 00263122 Contact Us For Availability

View on Model

0144

Hood BOS 00167243 Contact Us For Availability

View on Model

0145

Lever BOS 00263123 Contact Us For Availability

View on Model

0146

00165301 Bosch Dishwasher Float In Stock BOS 00165301 $6.70

View on Model

0148

Panel-base BOS 00446633 Contact Us For Availability

View on Model

0149

00165295 Bosch Dishwasher Plate Backorder BOS 00165295 $17.50

View on Model

0150

00298570 Bosch Dishwasher Hinge In Stock BOS 00298570 $53.05

View on Model

0151

00263119 Bosch Dishwasher Hinge Backorder BOS 00263119 $45.84

View on Model

0155

00176121 Bosch Dishwasher Screw In Stock BOS 00176121 $3.59

View on Model

0156

Bracket BOS 00167079 Contact Us For Availability

View on Model

0169

Insulating part BOS 00167078 Contact Us For Availability

View on Model

0170

00350321 Bosch Dishwasher Tube Backorder BOS 00350321 $79.83

View on Model

0171

00369656 Bosch Dishwasher Spray Arm Backorder BOS 00369656 $35.54

View on Model

0172

00298594 Bosch Dishwasher Spray Arm In Stock BOS 00298594 $74.00

View on Model

0173

00615079 Bosch Dishwasher Micro Filter In Stock BOS 00615079 $47.67

View on Model

0174

Filter-fine BOS 00353507 Contact Us For Availability

View on Model

0177

Crockery basket BOS 00249277 Contact Us For Availability

View on Model

0178

00249276 Bosch Dishwasher Crockery Basket In Stock BOS 00249276 $363.68

View on Model

0180

00093046 Bosch Dishwasher Cutlery Basket In Stock BOS 00093046 $52.78

View on Model

0181

REEL In Stock BOS 10032849 $10.29

View on Model

0182

00165314 Bosch Dishwasher Wheel In Stock BOS 00165314 $11.48

View on Model

0183

00432377 Bosch Dishwasher Silverware Basket Backorder BOS 00432377 $46.35

View on Model

0184

00167301 Bosch Dishwasher Spray Head Backorder BOS 00167301 $11.85

View on Model

0188

00167273 Bosch Dishwasher Holder Backorder BOS 00167273 $13.38

View on Model

0190

Cutlery basket BOS 00264484 Contact Us For Availability

View on Model

0192

00167291 Bosch Dishwasher Bearing In Stock BOS 00167291 $9.75

View on Model
