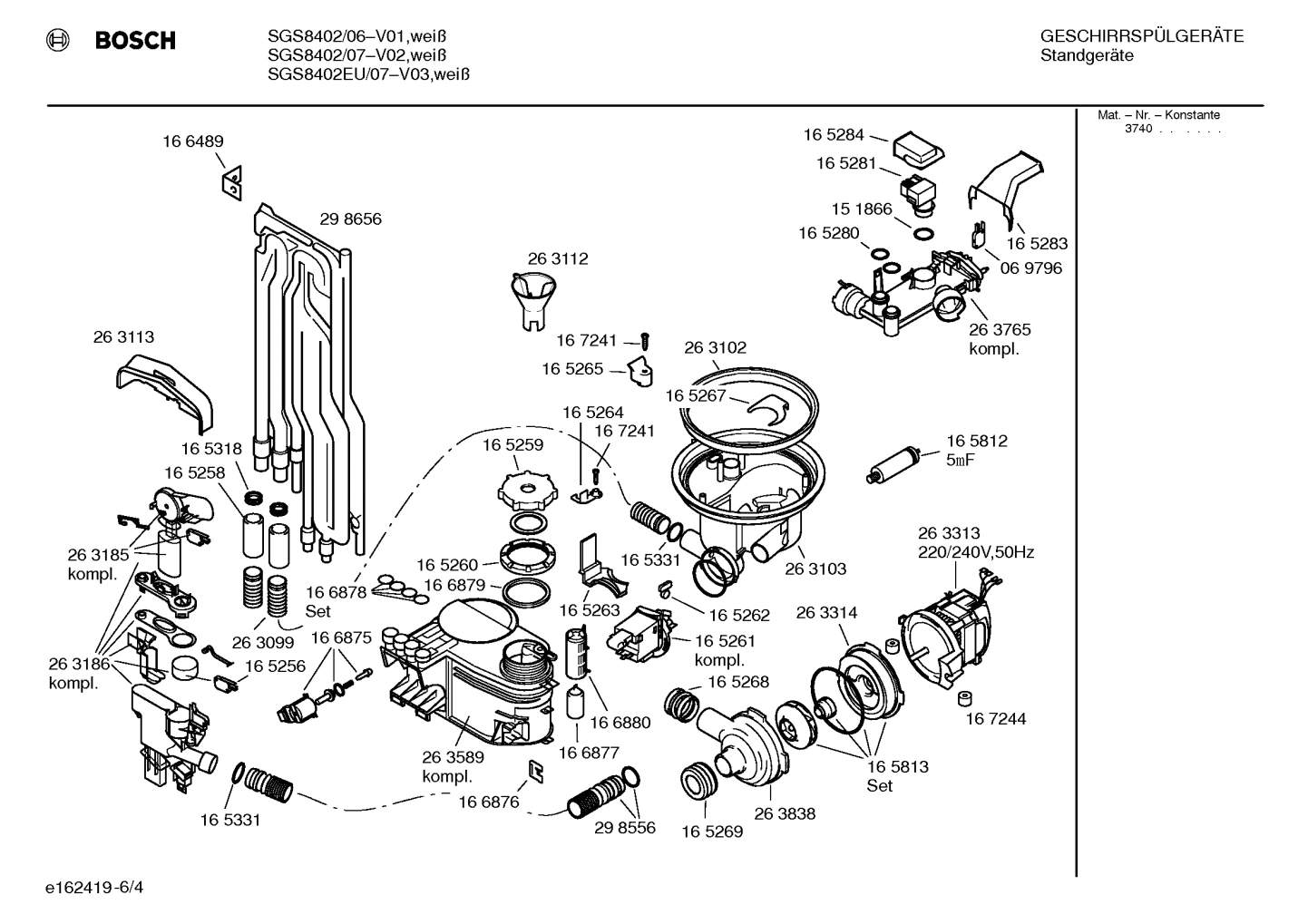

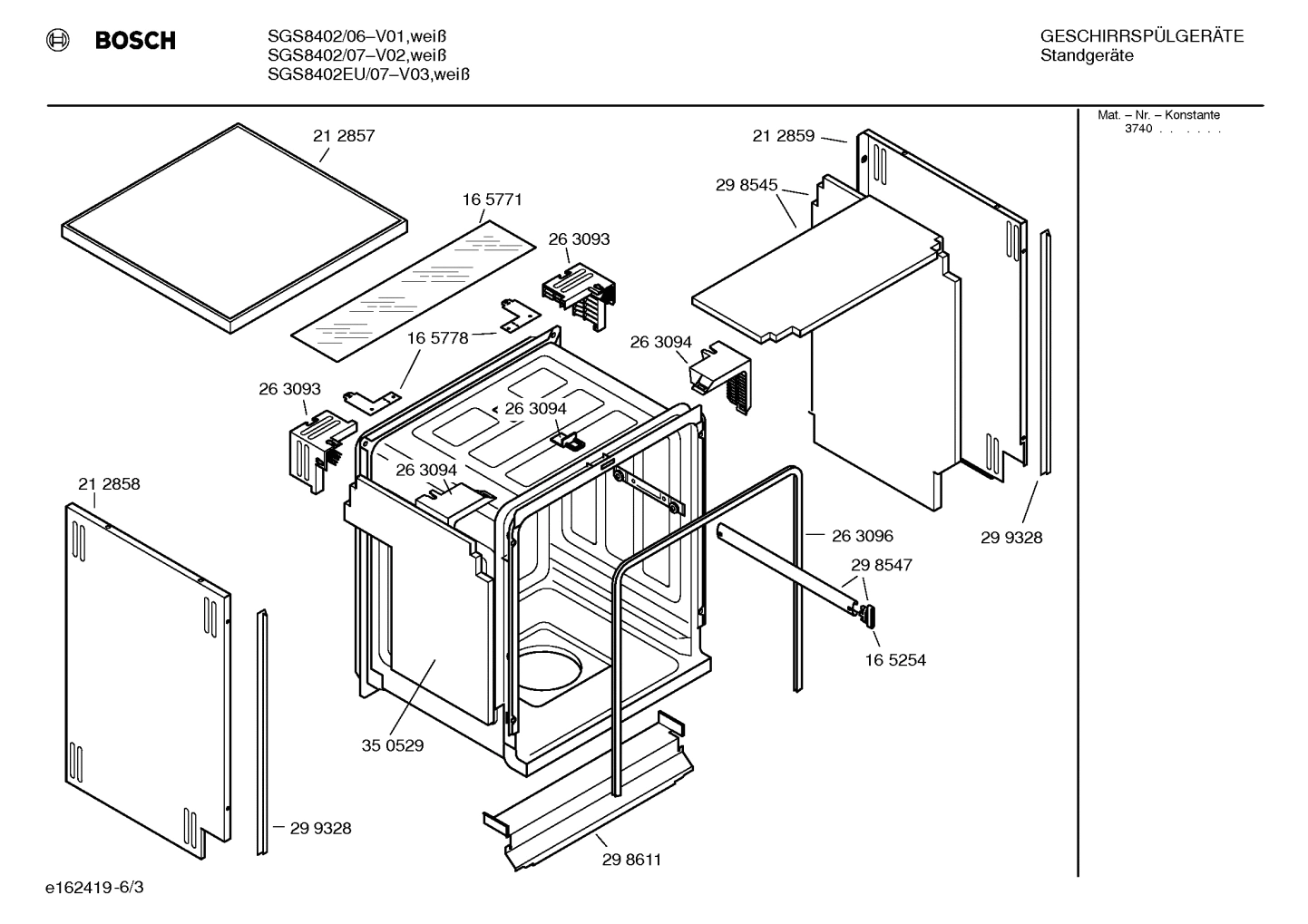

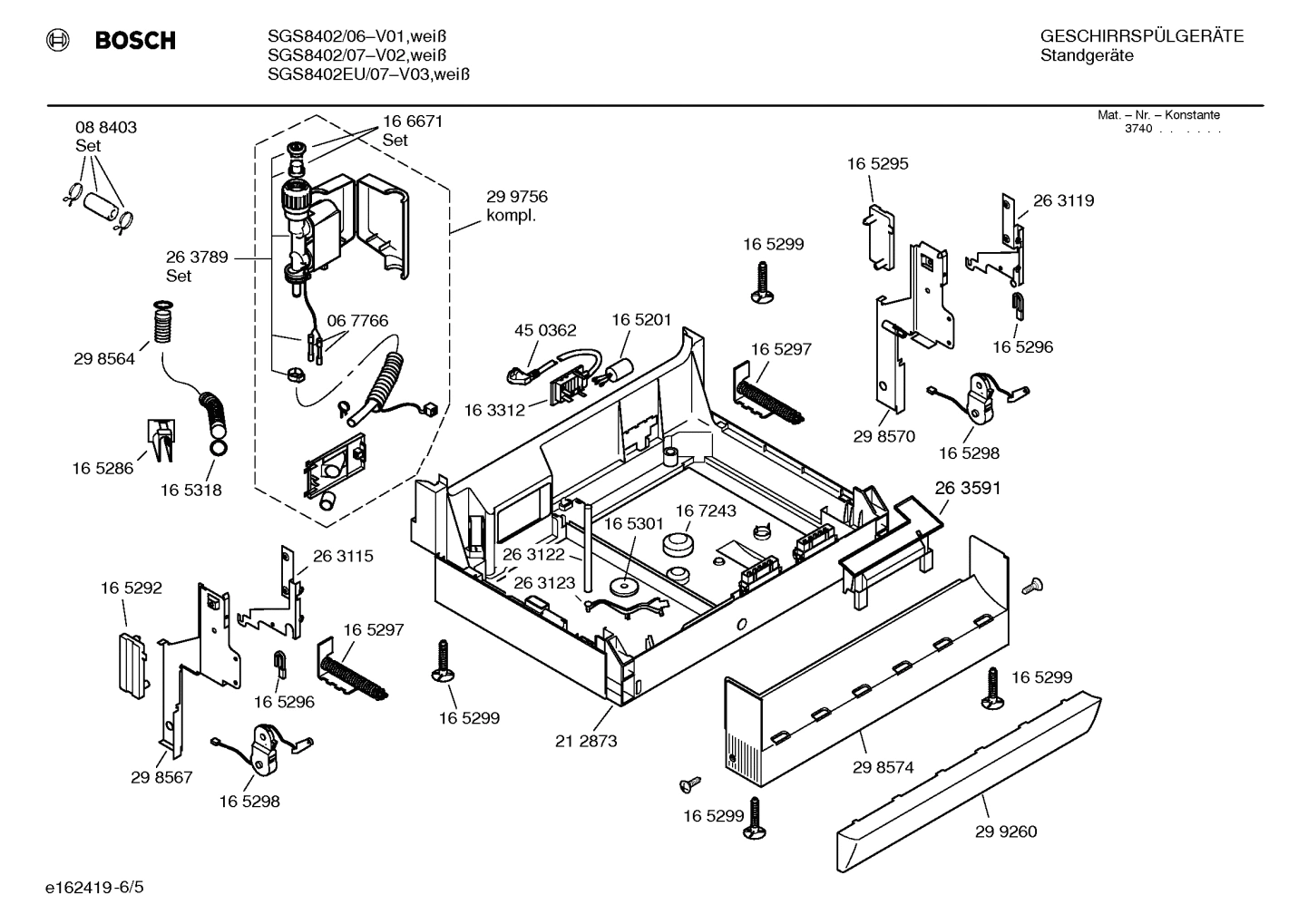

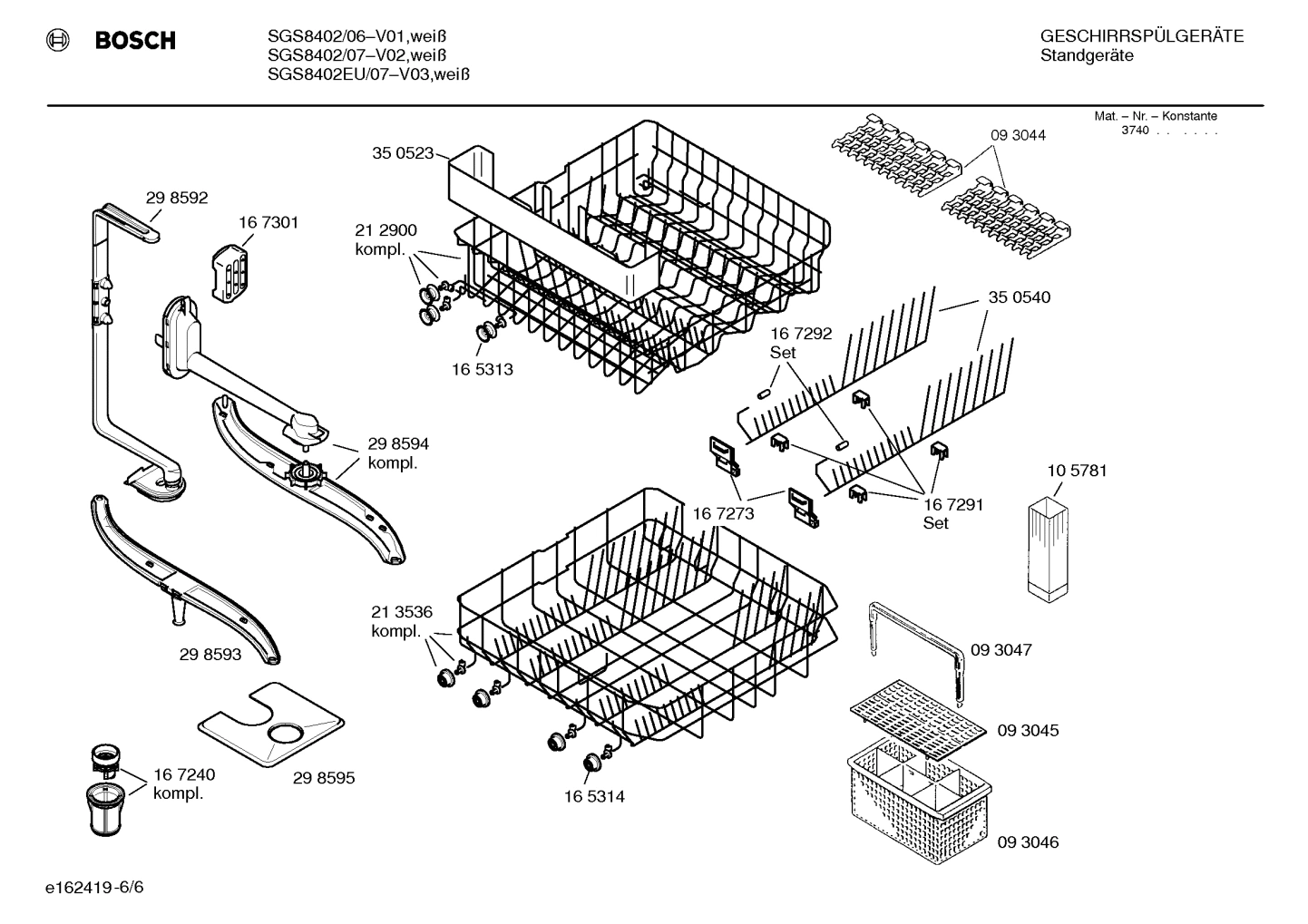

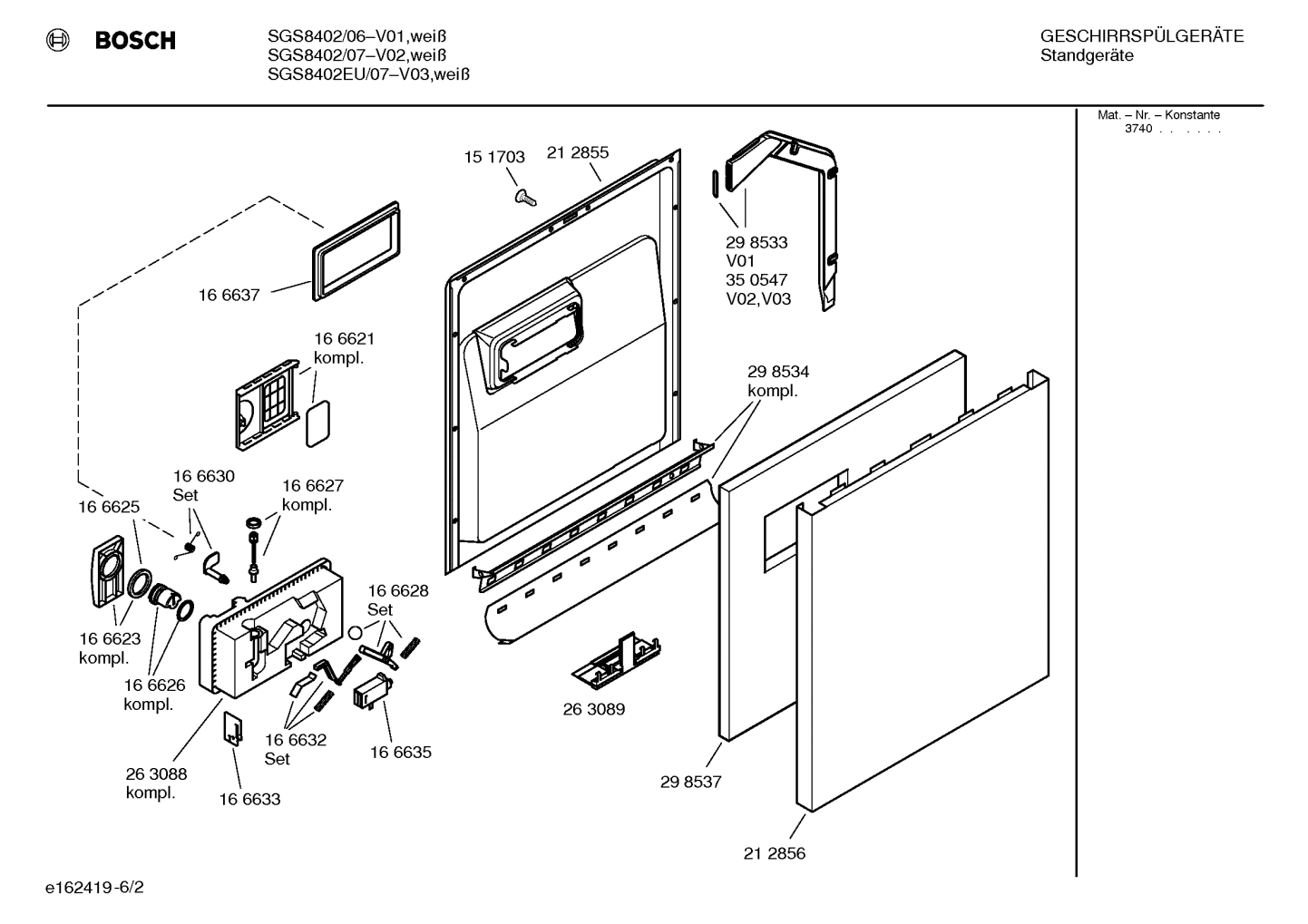

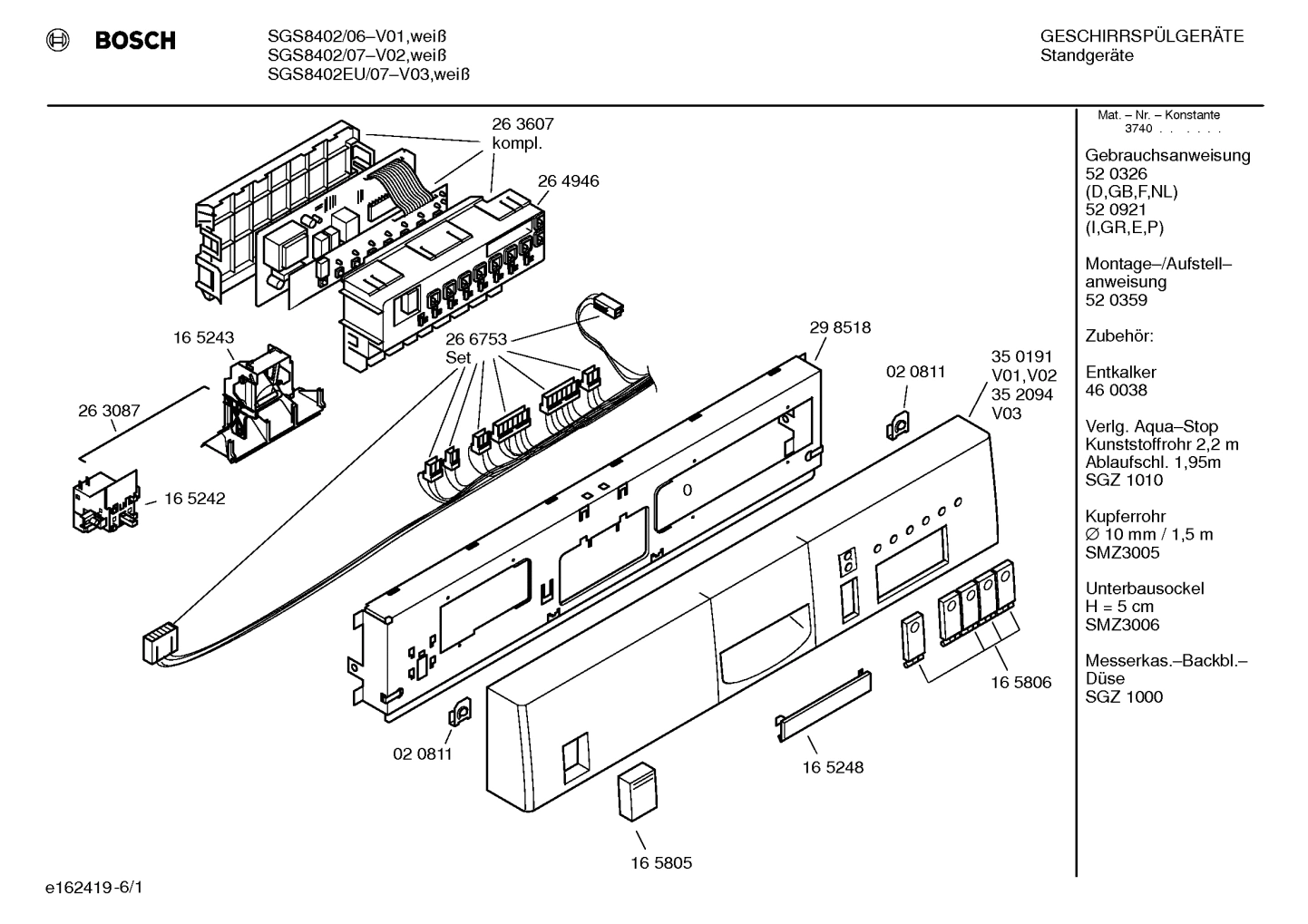

Model Bosch SGS8402/07 Dishwasher – Common Parts & Diagrams

Common parts from model Bosch SGS8402/07 Dishwasher

00264946 Bosch Dishwasher Housing

00264946 Bosch Dishwasher Housing Backorder BOS 00264946 $81.36

Plug

Plug BOS 00266753 Contact Us For Availability

00165243 Bosch Dishwasher Lock

00165243 Bosch Dishwasher Lock In Stock BOS 00165243 $88.57

00298518 Bosch Dishwasher Frame

00298518 Bosch Dishwasher Frame Backorder BOS 00298518 $33.98

Key

Key BOS 00165806 Contact Us For Availability

Worktop

Worktop BOS 00165248 Contact Us For Availability

00263088 Bosch Dishwasher Dispenser

00263088 Bosch Dishwasher Dispenser In Stock BOS 00263088 $204.84

00166637 Bosch Dishwasher Sealing

00166637 Bosch Dishwasher Sealing In Stock BOS 00166637 $11.31

00166621 Bosch Dishwasher Lid

00166621 Bosch Dishwasher Lid In Stock BOS 00166621 $45.98

00166623 Bosch Dishwasher Lid

00166623 Bosch Dishwasher Lid In Stock BOS 00166623 $12.64

00166628 Bosch Dishwasher Repair Set

00166628 Bosch Dishwasher Repair Set In Stock BOS 00166628 $11.32

00166626 Bosch Dishwasher Adjustment Device

00166626 Bosch Dishwasher Adjustment Device Backorder BOS 00166626 $14.41

00166630 Bosch Dishwasher Tripping Device

00166630 Bosch Dishwasher Tripping Device In Stock BOS 00166630 $16.02

00166627 Bosch Dishwasher Plunger

00166627 Bosch Dishwasher Plunger Backorder BOS 00166627 $11.32

00166635 Bosch Dishwasher Actuator

00166635 Bosch Dishwasher Actuator Backorder BOS 00166635 $25.74

00166632 Bosch Dishwasher Repair Set

00166632 Bosch Dishwasher Repair Set Backorder BOS 00166632 $6.17

00166633 Bosch Dishwasher Switch

00166633 Bosch Dishwasher Switch In Stock BOS 00166633 $25.74

00298534 Bosch Dishwasher Door Seal

00298534 Bosch Dishwasher Door Seal Backorder BOS 00298534 $66.61

00151703 Bosch Screw

00151703 Bosch Screw In Stock BOS 00151703 $8.85

Latch

Latch BOS 00165253 Contact Us For Availability

00263096 Bosch Dishwasher Door Seal

00263096 Bosch Dishwasher Door Seal In Stock BOS 00263096 $77.55

00298547 Bosch Dishwasher Rack Guide

00298547 Bosch Dishwasher Rack Guide In Stock BOS 00298547 $33.98

00165254 Bosch Dishwasher Holder

00165254 Bosch Dishwasher Holder In Stock BOS 00165254 $9.89

00165256 Bosch Dishwasher Switch

00165256 Bosch Dishwasher Switch In Stock BOS 00165256 $23.84

00298556 Bosch Dishwasher Hose

00298556 Bosch Dishwasher Hose Backorder BOS 00298556 $9.26

00165258 Bosch Dishwasher Inlet Hose Connecti

00165258 Bosch Dishwasher Inlet Hose Connecti Backorder BOS 00165258 $5.14

00263099 Bosch Dishwasher Hose

00263099 Bosch Dishwasher Hose In Stock BOS 00263099 $12.35

00165261 Bosch Dishwasher Drain Pump

00165261 Bosch Dishwasher Drain Pump Backorder BOS 00165261 $122.56

00165262 Bosch Dishwasher Non-Valve Return

00165262 Bosch Dishwasher Non-Valve Return In Stock BOS 00165262 $12.08

00165263 Bosch Dishwasher Cover

00165263 Bosch Dishwasher Cover Backorder BOS 00165263 $9.26

00165331 Bosch Dishwasher Sealing

00165331 Bosch Dishwasher Sealing In Stock BOS 00165331 $9.46

00167241 Bosch Screw

00167241 Bosch Screw In Stock BOS 00167241 $2.05

Holder

Holder BOS 00165265 Contact Us For Availability

Sealing

Sealing BOS 00263102 No Longer Available

00165268 Bosch Dishwasher Seal

00165268 Bosch Dishwasher Seal Backorder BOS 00165268 $5.14

00263838 Bosch Dishwasher Upper Case Assembly

00263838 Bosch Dishwasher Upper Case Assembly In Stock BOS 00263838 $423.23

00165278 Bosch Dishwasher Sealing

00165278 Bosch Dishwasher Sealing In Stock BOS 00165278 $11.31

00165280 Bosch Dishwasher Seal

00165280 Bosch Dishwasher Seal In Stock BOS 00165280 $10.28

00165281 Bosch Dishwasher NTC Sensor

00165281 Bosch Dishwasher NTC Sensor In Stock BOS 00165281 $52.69

00151866 Bosch Dishwasher Seal

00151866 Bosch Dishwasher Seal In Stock BOS 00151866 $10.29

00069796 Bosch Dishwasher Switch

00069796 Bosch Dishwasher Switch Backorder BOS 00069796 $19.56

00165284 Bosch Dishwasher Cover

00165284 Bosch Dishwasher Cover Backorder BOS 00165284 $5.14

00263113 Bosch Dishwasher Cover

00263113 Bosch Dishwasher Cover Backorder BOS 00263113 $16.47

00088403 Bosch Dishwasher Mounting Set

00088403 Bosch Dishwasher Mounting Set In Stock BOS 00088403 $15.44

00298564 Bosch Dishwasher Outlet Hose

00298564 Bosch Dishwasher Outlet Hose In Stock BOS 00298564 $31.19

00165286 Bosch Dishwasher Stress Relief Valve

00165286 Bosch Dishwasher Stress Relief Valve Backorder BOS 00165286 $12.35

00263115 Bosch Dishwasher Hinge

00263115 Bosch Dishwasher Hinge In Stock BOS 00263115 $44.28

00298567 Bosch Dishwasher Hinge

00298567 Bosch Dishwasher Hinge In Stock BOS 00298567 $49.43

00165296 Bosch Dishwasher Bearing

00165296 Bosch Dishwasher Bearing In Stock BOS 00165296 $15.08

00165299 Bosch Dishwasher Foot

00165299 Bosch Dishwasher Foot In Stock BOS 00165299 $9.26

Tube

Tube BOS 00263122 No Longer Available

Hood

Hood BOS 00167243 Contact Us For Availability

Lever

Lever BOS 00263123 No Longer Available

00165301 Bosch Dishwasher Float

00165301 Bosch Dishwasher Float In Stock BOS 00165301 $6.17

00165295 Bosch Dishwasher Plate

00165295 Bosch Dishwasher Plate Backorder BOS 00165295 $17.50

00298570 Bosch Dishwasher Hinge

00298570 Bosch Dishwasher Hinge In Stock BOS 00298570 $51.49

00263119 Bosch Dishwasher Hinge

00263119 Bosch Dishwasher Hinge In Stock BOS 00263119 $41.18

00114294 Bosch Dishwasher Door Sheet

00114294 Bosch Dishwasher Door Sheet Backorder BOS 00114294 $30.89

00170664 Bosch Dishwasher Fixing Kit

00170664 Bosch Dishwasher Fixing Kit In Stock BOS 00170664 $17.88

00369656 Bosch Dishwasher Spray Arm

00369656 Bosch Dishwasher Spray Arm Backorder BOS 00369656 $33.98

00298594 Bosch Dishwasher Spray Arm

00298594 Bosch Dishwasher Spray Arm In Stock BOS 00298594 $62.63

00480934 Bosch Dishwasher Sieve

00480934 Bosch Dishwasher Sieve Backorder BOS 00480934 $114.32

00770441 Bosch Dishwasher Upper Crockery Bask

00770441 Bosch Dishwasher Upper Crockery Bask Backorder BOS 00770441 $144.18

00093046 Bosch Dishwasher Cutlery Basket

00093046 Bosch Dishwasher Cutlery Basket In Stock BOS 00093046 $45.72

00432377 Bosch Dishwasher Silverware Basket

00432377 Bosch Dishwasher Silverware Basket Backorder BOS 00432377 $46.34

REEL

REEL In Stock BOS 10032849 $10.29

00165314 Bosch Dishwasher Wheel

00165314 Bosch Dishwasher Wheel In Stock BOS 00165314 $12.24

00167301 Bosch Dishwasher Spray Head

00167301 Bosch Dishwasher Spray Head In Stock BOS 00167301 $10.18

00167291 Bosch Dishwasher Bearing

00167291 Bosch Dishwasher Bearing In Stock BOS 00167291 $9.72

00167273 Bosch Dishwasher Holder

00167273 Bosch Dishwasher Holder Backorder BOS 00167273 $13.38
