Bosch SGS43A52EU/01

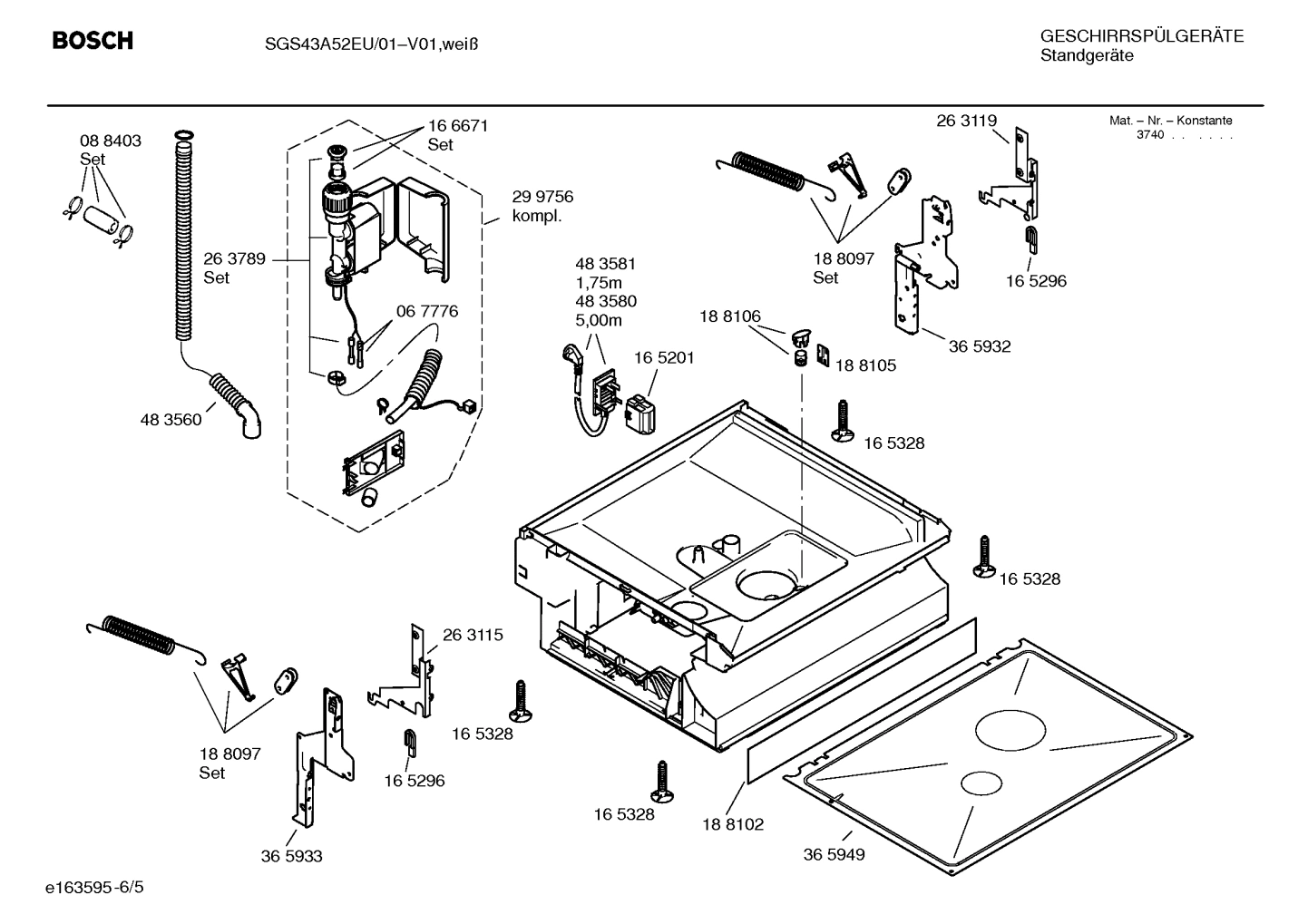

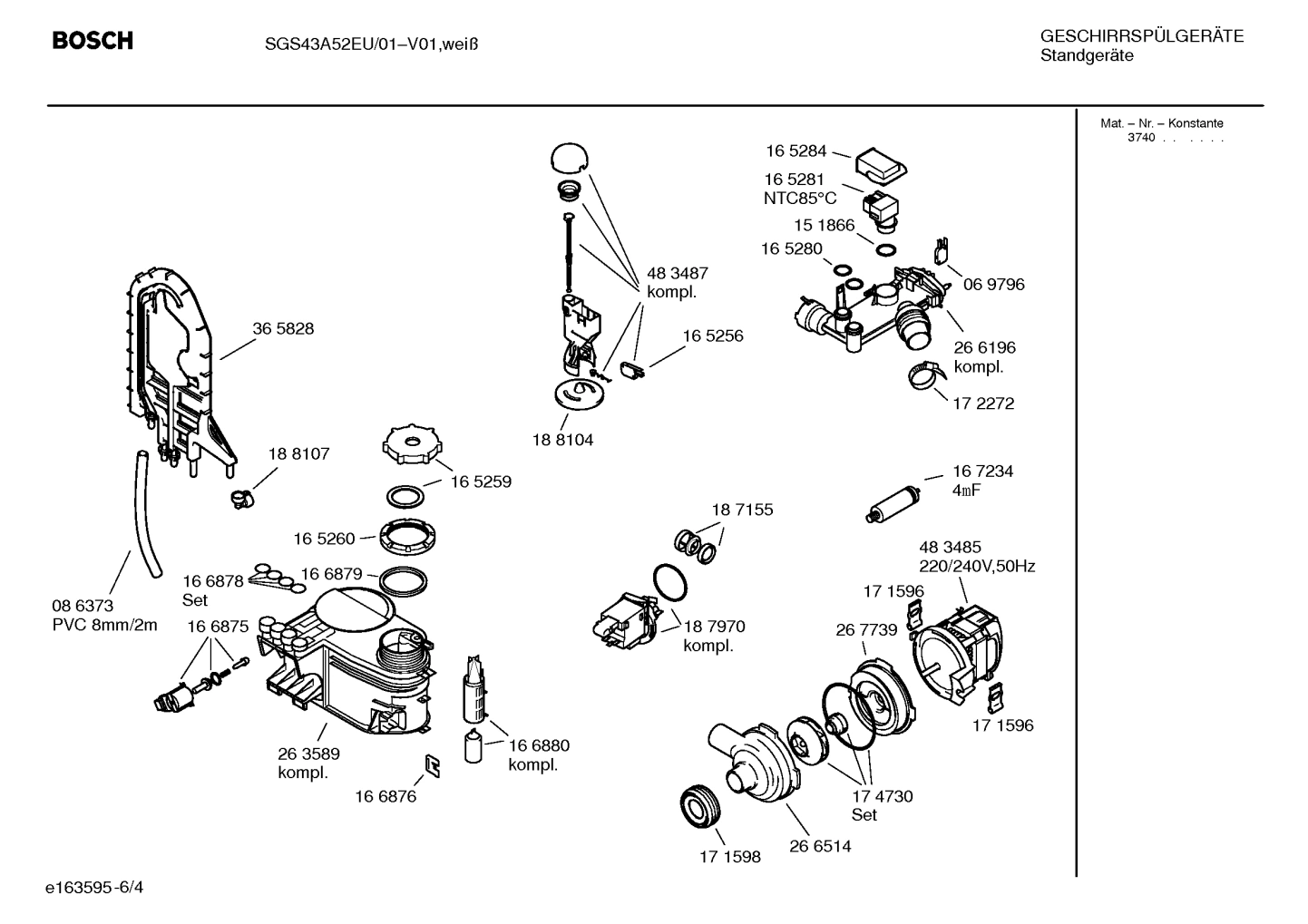

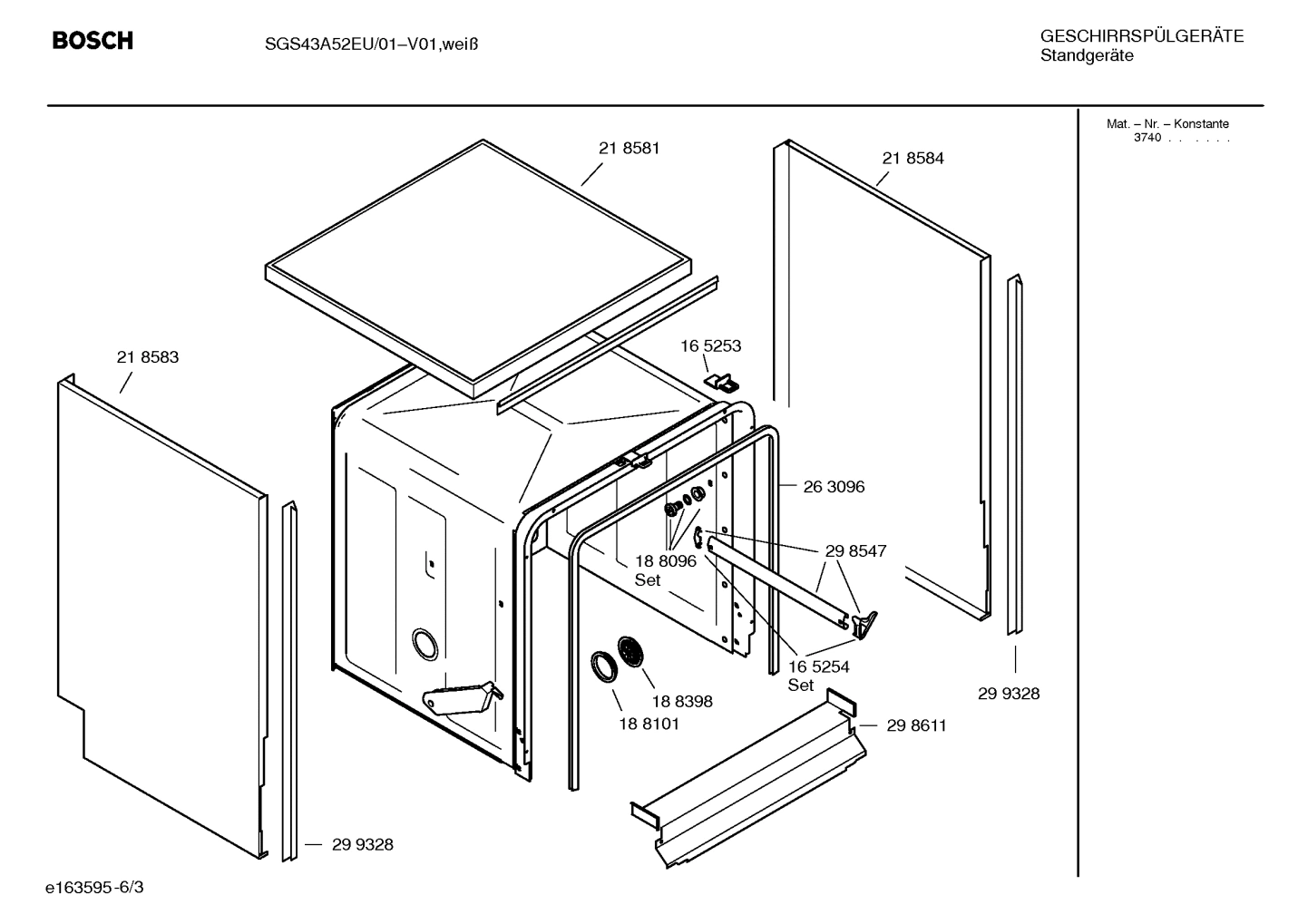

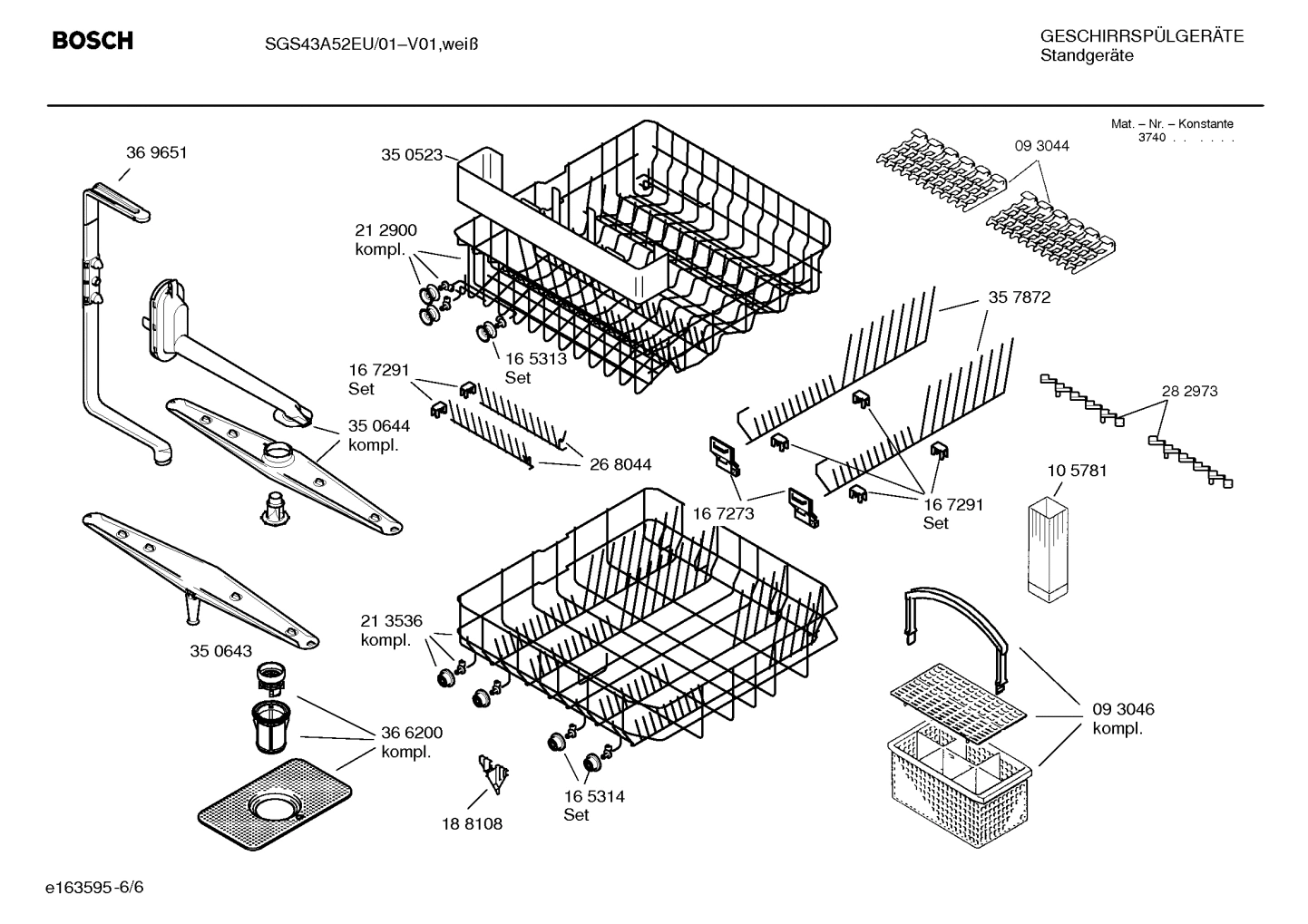

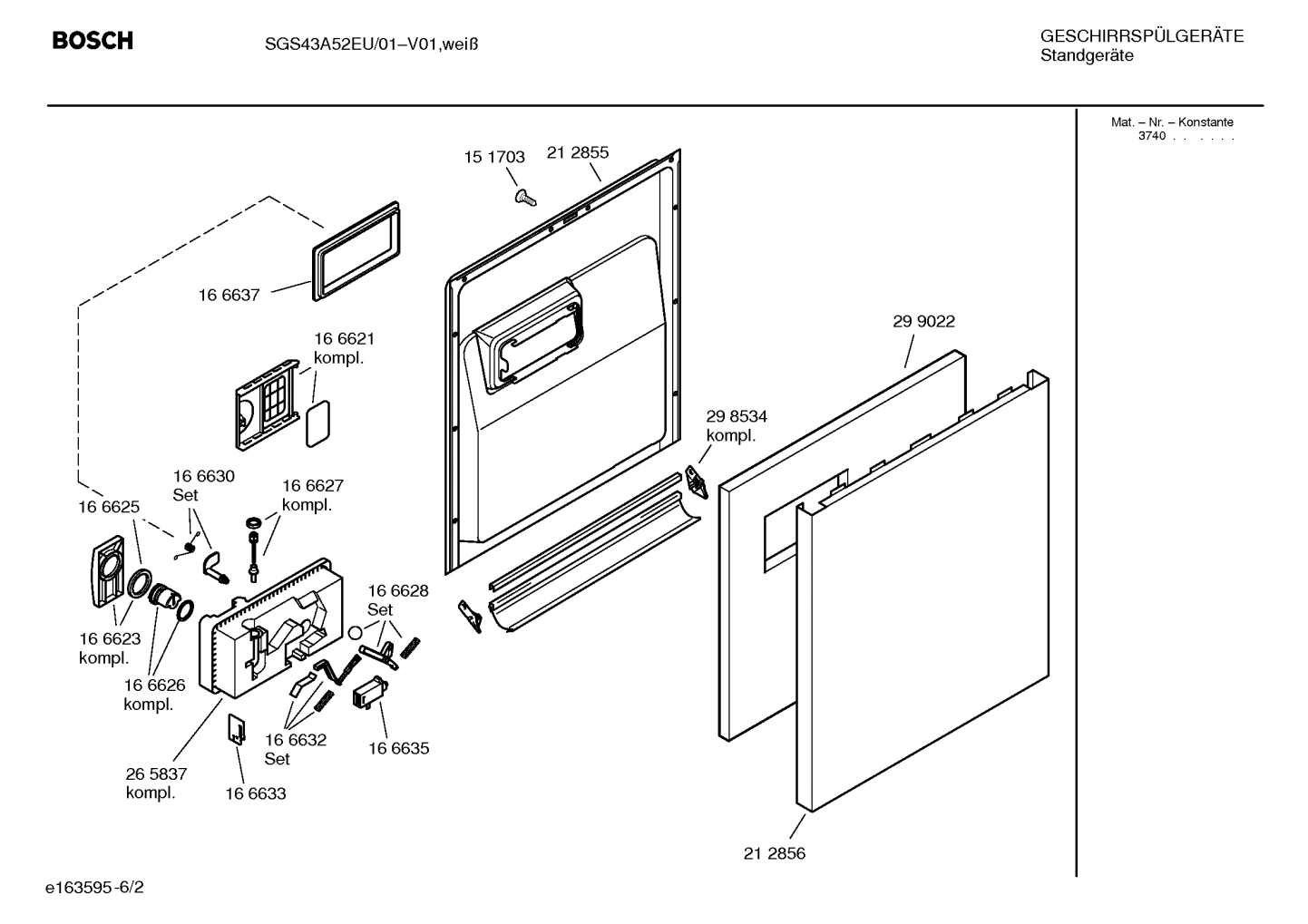

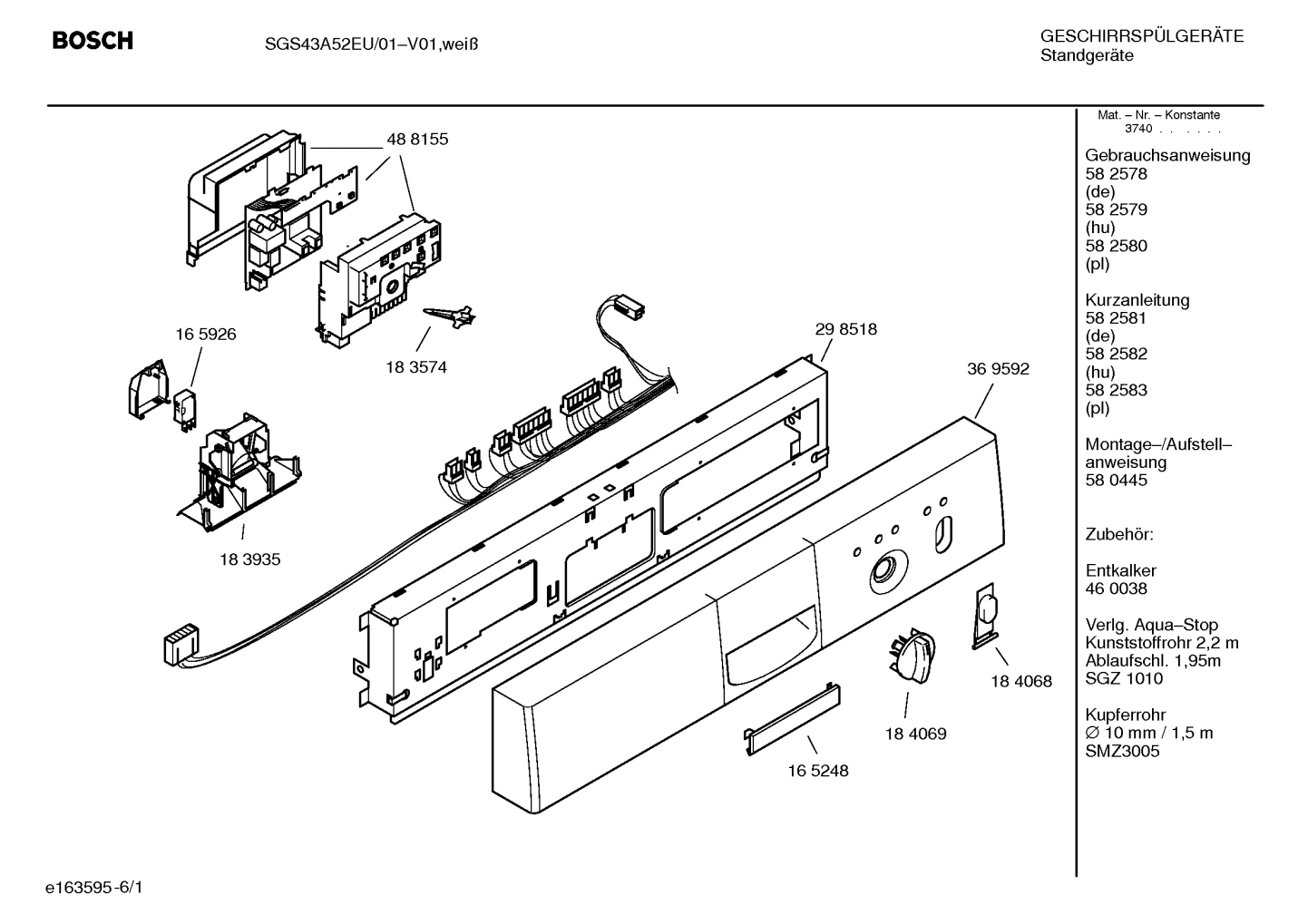

Model Bosch SGS43A52EU/01 Dishwasher – Common Parts & Diagrams

Common parts from model Bosch SGS43A52EU/01 Dishwasher

00298518 Bosch Dishwasher Frame

00298518 Bosch Dishwasher Frame Backorder BOS 00298518 $33.98

Worktop

Worktop BOS 00165248 Contact Us For Availability

Dispenser

Dispenser BOS 00490467 Contact Us For Availability

00166637 Bosch Dishwasher Sealing

00166637 Bosch Dishwasher Sealing In Stock BOS 00166637 $11.31

00166621 Bosch Dishwasher Lid

00166621 Bosch Dishwasher Lid In Stock BOS 00166621 $45.98

00166630 Bosch Dishwasher Tripping Device

00166630 Bosch Dishwasher Tripping Device In Stock BOS 00166630 $16.02

00166627 Bosch Dishwasher Plunger

00166627 Bosch Dishwasher Plunger Backorder BOS 00166627 $11.32

00166628 Bosch Dishwasher Repair Set

00166628 Bosch Dishwasher Repair Set In Stock BOS 00166628 $11.32

00166635 Bosch Dishwasher Actuator

00166635 Bosch Dishwasher Actuator Backorder BOS 00166635 $25.74

00166632 Bosch Dishwasher Repair Set

00166632 Bosch Dishwasher Repair Set Backorder BOS 00166632 $6.17

00166633 Bosch Dishwasher Switch

00166633 Bosch Dishwasher Switch In Stock BOS 00166633 $25.74

00166626 Bosch Dishwasher Adjustment Device

00166626 Bosch Dishwasher Adjustment Device Backorder BOS 00166626 $14.41

00166623 Bosch Dishwasher Lid

00166623 Bosch Dishwasher Lid In Stock BOS 00166623 $12.64

00166625 Bosch Dishwasher Sealing

00166625 Bosch Dishwasher Sealing In Stock BOS 00166625 $10.29

00151703 Bosch Screw

00151703 Bosch Screw In Stock BOS 00151703 $8.85

00298534 Bosch Dishwasher Door Seal

00298534 Bosch Dishwasher Door Seal Backorder BOS 00298534 $66.61

00165254 Bosch Dishwasher Holder

00165254 Bosch Dishwasher Holder In Stock BOS 00165254 $9.89

00298547 Bosch Dishwasher Rack Guide

00298547 Bosch Dishwasher Rack Guide In Stock BOS 00298547 $33.98

Latch

Latch BOS 00165253 Contact Us For Availability

00267739 Bosch Dishwasher Pump Housing

00267739 Bosch Dishwasher Pump Housing Backorder BOS 00267739 $33.98

00266514 Bosch Dishwasher Upper Case Part

00266514 Bosch Dishwasher Upper Case Part Backorder BOS 00266514 $39.13

00171598 Bosch Dishwasher Seal

00171598 Bosch Dishwasher Seal In Stock BOS 00171598 $25.83

Suspension

Suspension BOS 00171596 No Longer Available

00069796 Bosch Dishwasher Switch

00069796 Bosch Dishwasher Switch Backorder BOS 00069796 $19.56

00165284 Bosch Dishwasher Cover

00165284 Bosch Dishwasher Cover Backorder BOS 00165284 $5.14

00165281 Bosch Dishwasher NTC Sensor

00165281 Bosch Dishwasher NTC Sensor In Stock BOS 00165281 $52.69

00151866 Bosch Dishwasher Seal

00151866 Bosch Dishwasher Seal In Stock BOS 00151866 $10.29

00165280 Bosch Dishwasher Seal

00165280 Bosch Dishwasher Seal In Stock BOS 00165280 $10.28

00172272 Bosch Dishwasher Hose Clamp

00172272 Bosch Dishwasher Hose Clamp In Stock BOS 00172272 $23.13

00165256 Bosch Dishwasher Switch

00165256 Bosch Dishwasher Switch In Stock BOS 00165256 $23.84

00086373 Bosch Dishwasher Hose

00086373 Bosch Dishwasher Hose Backorder BOS 00086373 $20.59

00263115 Bosch Dishwasher Hinge

00263115 Bosch Dishwasher Hinge In Stock BOS 00263115 $44.28

00067776 Bosch Cable Connector

00067776 Bosch Cable Connector Backorder BOS 00067776 $17.50

00166671 Bosch Dishwasher Seal

00166671 Bosch Dishwasher Seal Backorder BOS 00166671 $24.71

00088403 Bosch Dishwasher Mounting Set

00088403 Bosch Dishwasher Mounting Set In Stock BOS 00088403 $15.44

00165296 Bosch Dishwasher Bearing

00165296 Bosch Dishwasher Bearing In Stock BOS 00165296 $15.08

00263119 Bosch Dishwasher Hinge

00263119 Bosch Dishwasher Hinge In Stock BOS 00263119 $41.18

00298594 Bosch Dishwasher Spray Arm

00298594 Bosch Dishwasher Spray Arm In Stock BOS 00298594 $62.63

00369656 Bosch Dishwasher Spray Arm

00369656 Bosch Dishwasher Spray Arm Backorder BOS 00369656 $33.98

00165314 Bosch Dishwasher Wheel

00165314 Bosch Dishwasher Wheel In Stock BOS 00165314 $12.24

00167273 Bosch Dishwasher Holder

00167273 Bosch Dishwasher Holder Backorder BOS 00167273 $13.38

00093046 Bosch Dishwasher Cutlery Basket

00093046 Bosch Dishwasher Cutlery Basket In Stock BOS 00093046 $45.72

00770441 Bosch Dishwasher Upper Crockery Bask

00770441 Bosch Dishwasher Upper Crockery Bask Backorder BOS 00770441 $144.18

REEL

REEL In Stock BOS 10032849 $10.29

00167291 Bosch Dishwasher Bearing

00167291 Bosch Dishwasher Bearing In Stock BOS 00167291 $9.72

Cup rack

Cup rack BOS 00093044 Contact Us For Availability

00432377 Bosch Dishwasher Silverware Basket

00432377 Bosch Dishwasher Silverware Basket Backorder BOS 00432377 $46.34
