Model Samsung RS2630W/XAA-00 Refrigerator – Common Parts & Diagrams

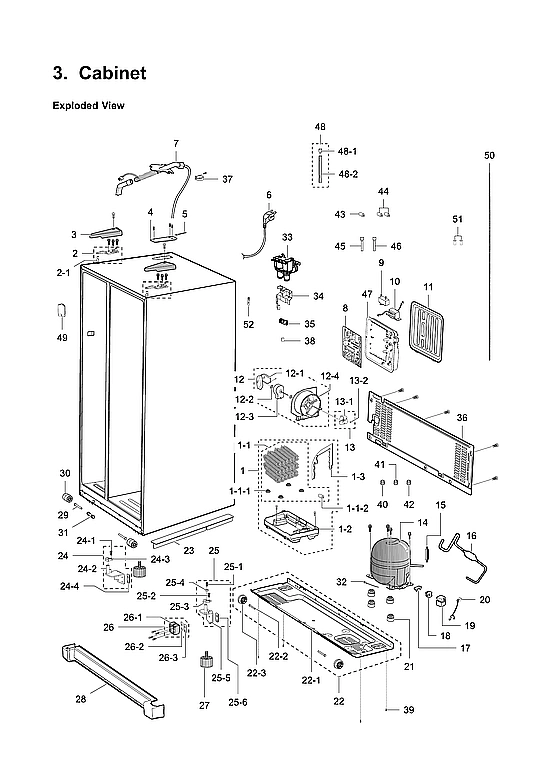

Cabinet Parts

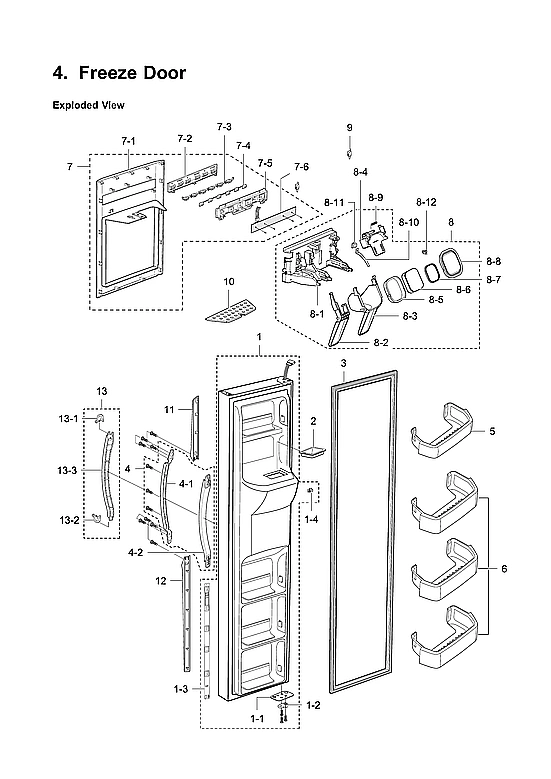

Freezer Door Parts

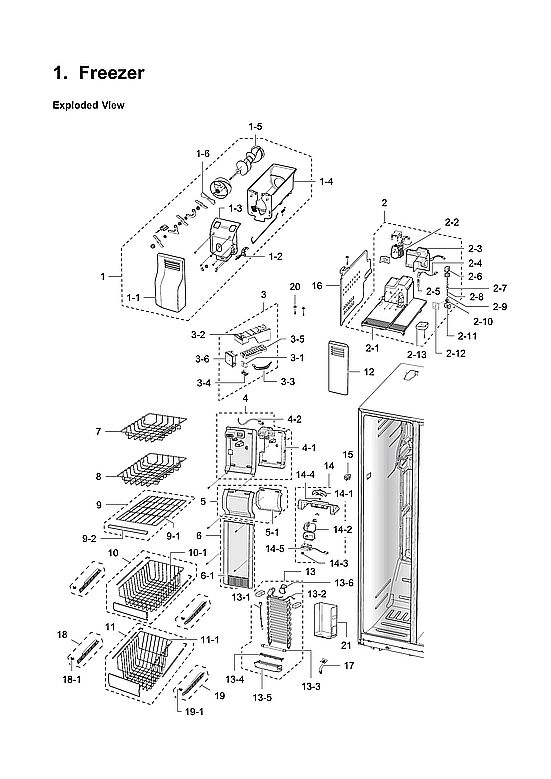

Freezer Parts

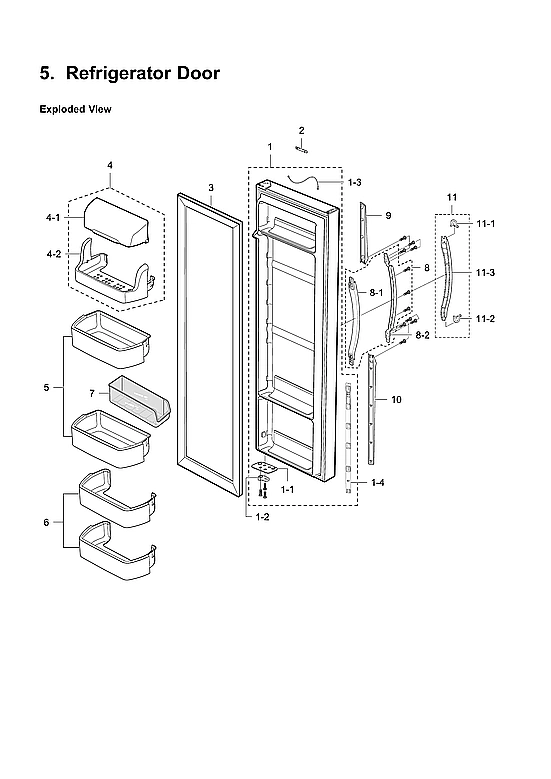

Refrigerator Door Parts

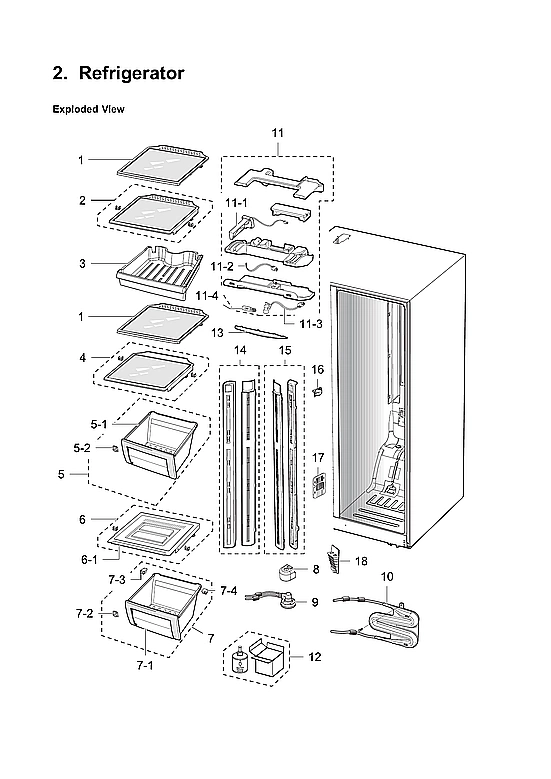

Refrigerator Parts
Common parts from model Samsung RS2630W/XAA-00 Refrigerator
1
Refrigerator freezer ice bucket assembly SMG DA97-02058L Contact Us For Availability
1
Refrigerator door assembly SMG DA91-01840C Contact Us For Availability
1-1
Refrigerator door stopper SMG DA61-00430A Contact Us For Availability
1-2
Refrigerator guide SMG DA61-01657B Contact Us For Availability
1-3
Crusher cover SMG DA63-02007B Contact Us For Availability
1-4
Refrigerator ice tray SMG DA63-03507A Contact Us For Availability
1-4
Hand reinforcement SMG DA61-00311B Contact Us For Availability
1-5
Complete clamper SMG DA65-00043A Contact Us For Availability
1-6
Refrigerator ice blade SMG DA61-01929A Contact Us For Availability
2
Refrigerator nameplate SMG DA64-01985A Contact Us For Availability
2
Refrigerator shelf assembly SMG DA97-02051B Contact Us For Availability
2-1
Case auger SMG DA61-01655A Contact Us For Availability
2-3
Cover-auge SMG DA63-02006A Contact Us For Availability
2-13
Refrigerator lamp cover SMG DA63-00785A Contact Us For Availability
3
Refrigerator chiller tray SMG DA63-03324A Contact Us For Availability
3-3
Refrigerator ice guide SMG DA61-01805A Contact Us For Availability
3-6
Refrigerator ice maker assembly SMG DA97-00258E Contact Us For Availability
4
Refrigerator guard assembly SMG DA97-02041A Contact Us For Availability
4-1
Cover-dairy SMG DA63-01998A Contact Us For Availability
4-2
Guard-dairy SMG DA63-01999A Contact Us For Availability
5-1
Refrigerator freezer fan motor support insula SMG DA62-00703B Contact Us For Availability
5-1
Refrigerator vegetable case SMG DA61-01718C Contact Us For Availability
5-2
Moisture knob SMG DA64-00085B Contact Us For Availability
6
Refrigerator power cord SMG DA39-10165E Contact Us For Availability
6-1
Refrigerator evaporator cover SMG DA63-02013A Contact Us For Availability
6-1
Refrigerator crisper drawer cover SMG DA63-02298A Contact Us For Availability
7
Refrigerator ice maker water fill tube assemb SMG DA97-04501S Contact Us For Availability
7
Refrigerator shelf wire SMG DA67-01024A Contact Us For Availability
7
Refrigerator case assembly SMG DA97-02063C Contact Us For Availability
7-1
Refrigerator crisper drawer SMG DA61-01717B Contact Us For Availability
7-2
Knob-moisture control(et) SMG DA64-00085C Contact Us For Availability
7-3
Cap-tray,f SMG DA67-00949C Contact Us For Availability
7-4
Cap-tray,f SMG DA67-00949D Contact Us For Availability
8
Refrigerator electronic control board SMG DA41-00219C Contact Us For Availability
8
Refrigerator electronic control board cover SMG DA97-04950G Contact Us For Availability
8
Refrigerator shelf wire SMG DA67-01025A Contact Us For Availability
8-1
Cover pcb-panel rear SMG DA63-01969A Contact Us For Availability
8-1
Refrigerator handle SMG DA64-00414B Contact Us For Availability
8-3
Refrigerator dispenser lever SMG DA66-00294A Contact Us For Availability
9
Refrigerator run capacitor SMG 2501-001045 Contact Us For Availability
9
Handle-tri SMG DA64-00418B Contact Us For Availability
9
Refrigerator shelf assembly SMG DA97-02037B Contact Us For Availability
9-1
Refrigerator shelf wire SMG DA67-01023B Contact Us For Availability
9-2
Refrigerator shelf trim SMG DA64-01180A Contact Us For Availability
10
Refrigerator transformer SMG DA26-00022B Contact Us For Availability
10
Handle-tri SMG DA64-00417B Contact Us For Availability
10
Assy case-wire basket upp SMG DA97-02049D Contact Us For Availability
10
Refrigerator water reservoir assembly SMG DA97-02094E Contact Us For Availability
10-1
Case wire SMG DA61-01653B Contact Us For Availability
11
Refrigerator door handle insert SMG DA97-00704E Contact Us For Availability
11
Assy case-wire basket low SMG DA97-02527B Contact Us For Availability
11-1
Refrigerator damper motor SMG DA31-00101B Contact Us For Availability
11-1
Handle-tri SMG DA64-00416D Contact Us For Availability
11-1
Case wire SMG DA61-02021A Contact Us For Availability
11-2
Handle-tri SMG DA64-00415D Contact Us For Availability
11-3
Refrigerator handle SMG DA64-00413F Contact Us For Availability
11-3
Refrigerator lamp holder SMG DA47-00025S Contact Us For Availability
12
Samsung refrigerator water filter SMG DA29-00003G Contact Us For Availability
13
Refrigerator evaporator SMG DA96-00136N Contact Us For Availability
13
Refrigerator lamp cover SMG DA63-01980A Contact Us For Availability
13-4
Refrigerator heater cover SMG DA63-03339A Contact Us For Availability
13-5
Refrigerator heater cover SMG DA63-03338A Contact Us For Availability
14
Refrigerator condenser fan motor assembly SMG DA97-01948A Contact Us For Availability
14
Refrigerator cover assembly SMG DA97-02013A Contact Us For Availability
14-1
Refrigerator condenser fan blade SMG DA31-00095A Contact Us For Availability
14-5
Refrigerator condenser fan SMG DA31-00003W Contact Us For Availability
15
Refrigerator cover assembly SMG DA97-02013B Contact Us For Availability
17
Purifier cover SMG DA63-01077A Contact Us For Availability
18
Assy cover-lamp housing SMG DA97-02017A Contact Us For Availability
20
Fixer grommet SMG DA71-20252A Contact Us For Availability
21
Refrigerator drain plate SMG DA67-01018B Contact Us For Availability
NI
Grommet SMG DA63-00202B Contact Us For Availability
× ![]()
