Model Samsung RS2578SH/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

Refrigerator Ice Maker Support SMG DA61-02205A Contact Us For Availability

1

Refrigerator Water Dispenser Water Tube Brack SMG DA61-00319A Contact Us For Availability

1

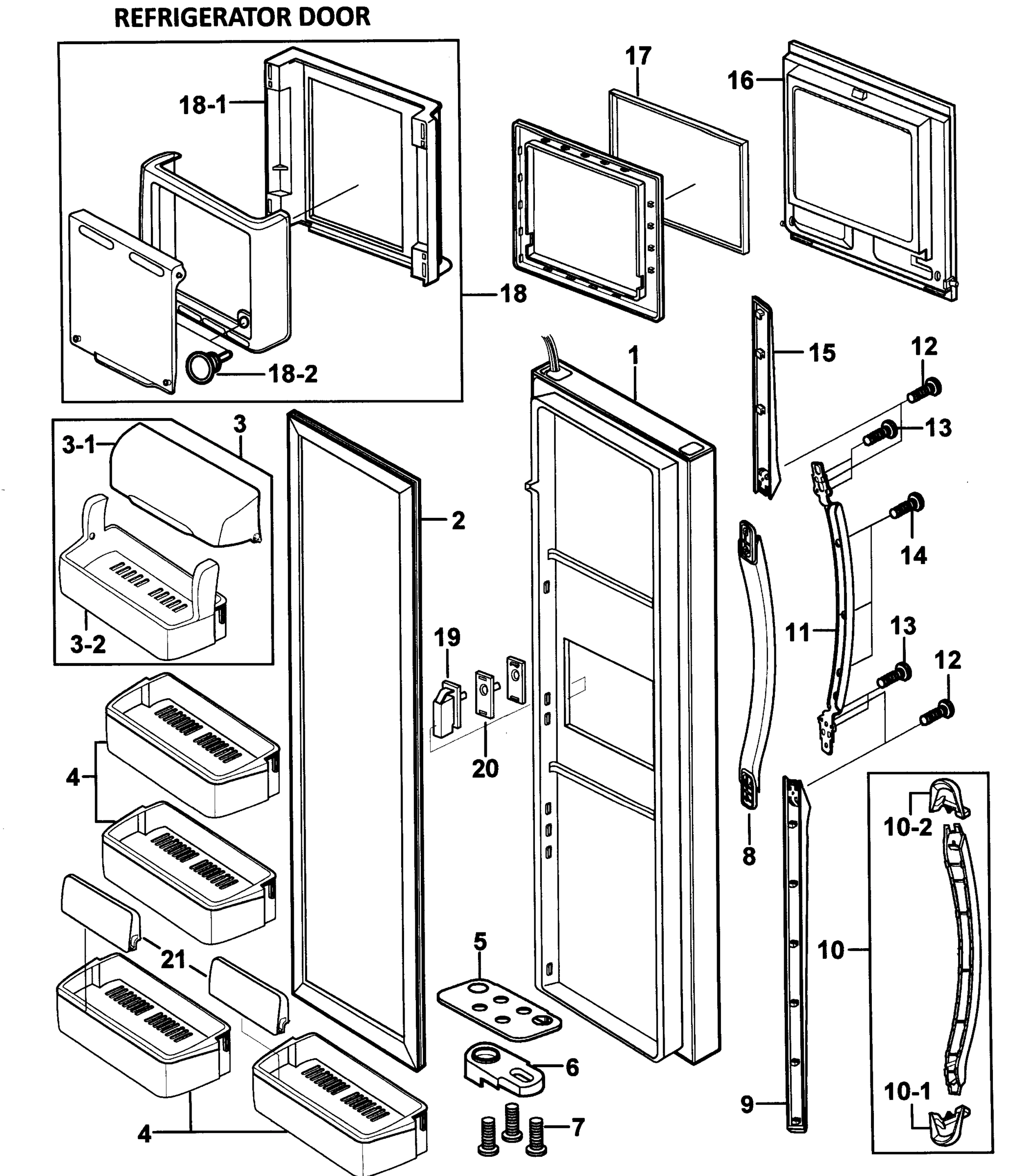

Refrigerator door assembly SMG DA91-01606Q Contact Us For Availability

1-1

DA62-00565A Samsung Refrigerator Multi Seal Backorder SMG DA62-00565A $3.53

1-2

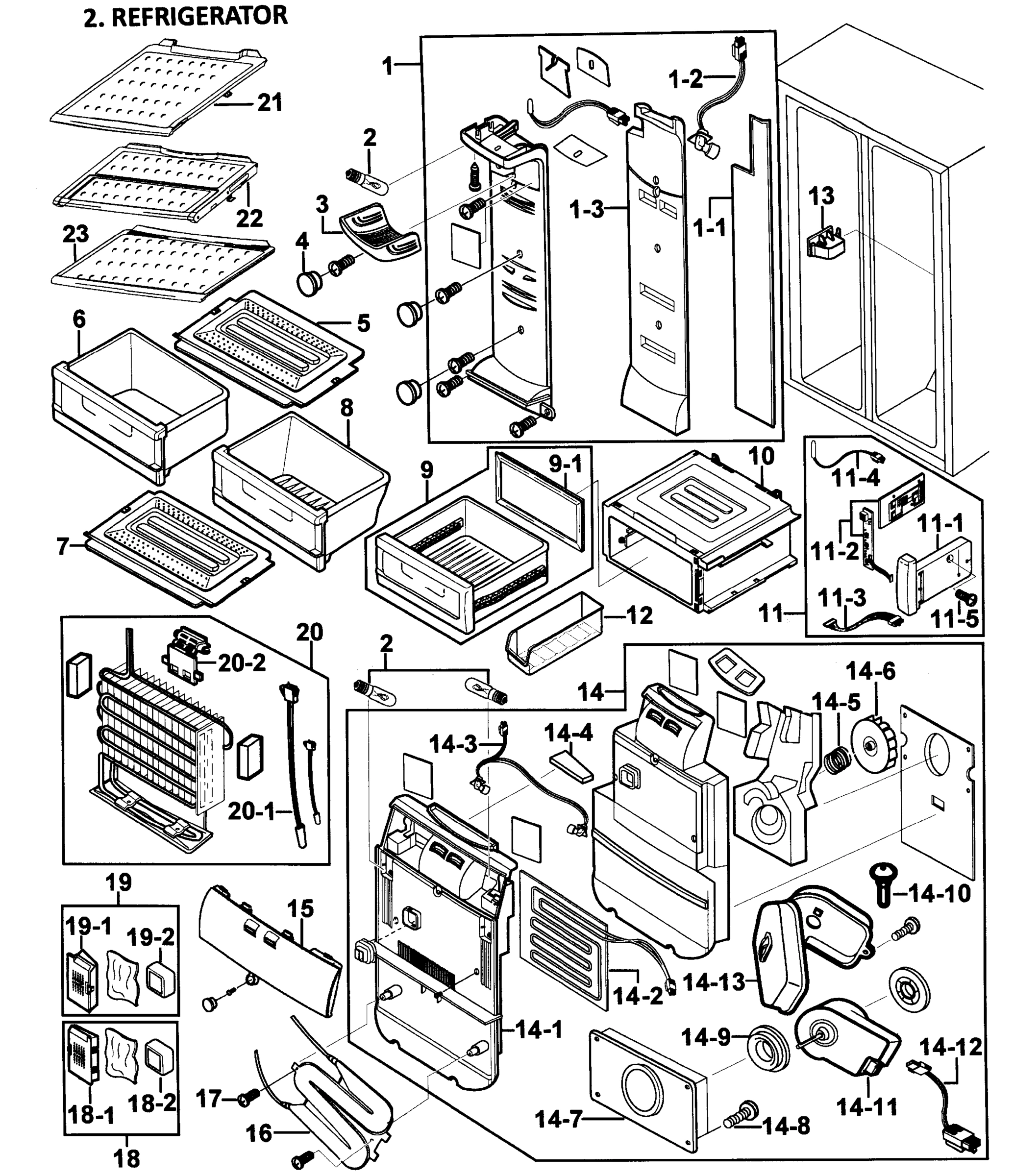

Refrigerator Lamp Holder SMG DA47-00112A Contact Us For Availability

1-3

DA62-00517A Samsung Refrigerator Multi Insula Backorder SMG DA62-00517A $12.43

2

DA74-40154F Samsung Refrigerator Solenoid Val Backorder SMG DA74-40154F $85.31

2

DA97-04567D Samsung Refrigerator Door Gasket Backorder SMG DA97-04567D $135.85

2

Refrigerator Ice Maker Water Fill Tube Assemb SMG DA97-04501R Contact Us For Availability

2

Refrigerator Incandescent Lamp SMG 4713-001197 Contact Us For Availability

3

DA61-00316A Samsung Refrigerator Time Delay S Backorder SMG DA61-00316A $2.49

3

DA63-00813B Samsung Refrigerator Lamp Cover U Backorder SMG DA63-00813B $9.94

3

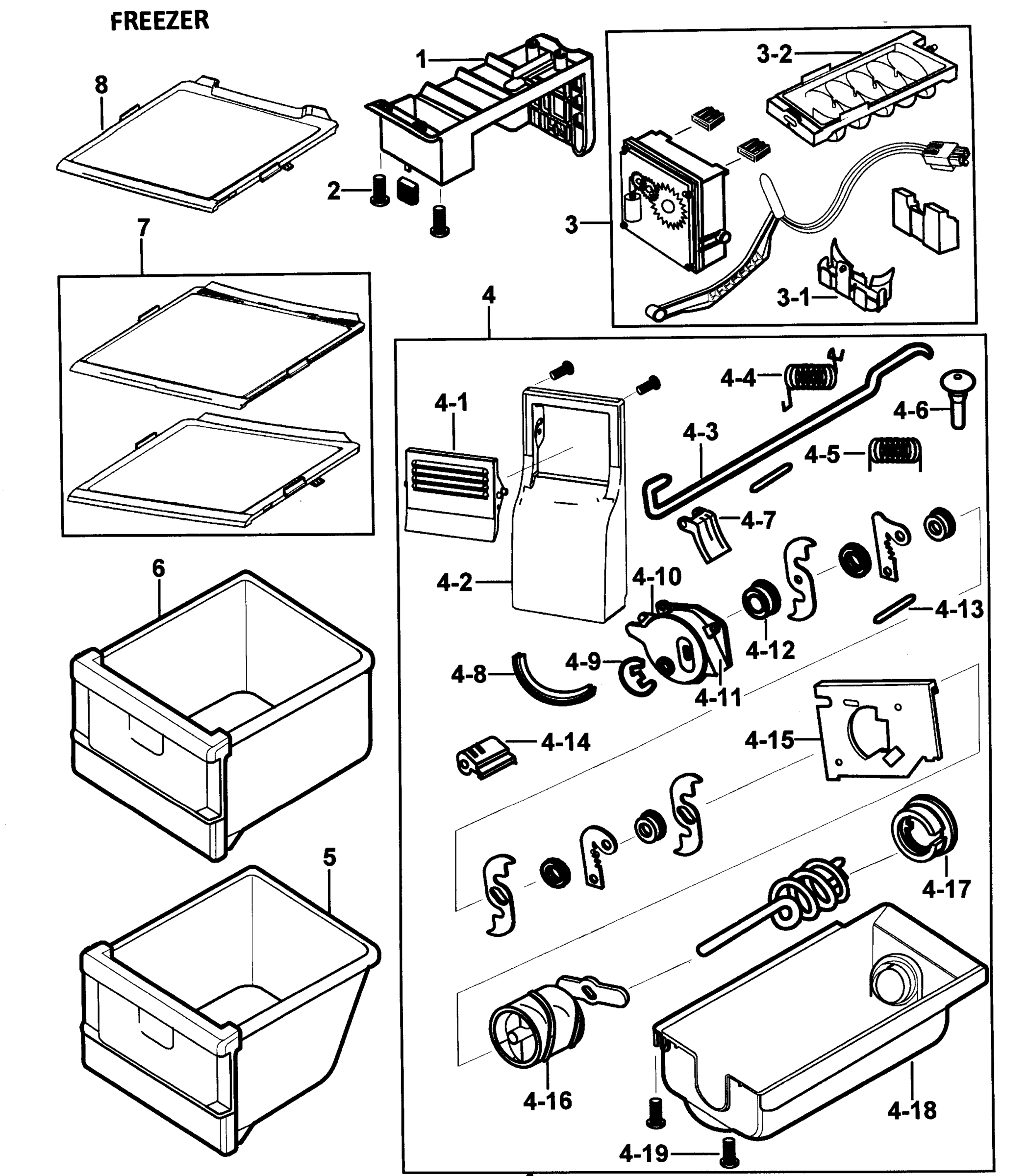

DA97-00258J Samsung Refrigerator Icemaker Ass Backorder SMG DA97-00258J $215.39

3

Refrigerator guard assembly SMG DA97-00697E Contact Us For Availability

3-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $3.07

3-1

Refrigerator cover SMG DA63-00825B Contact Us For Availability

3-2

DA63-00836D Samsung Refrigerator Dairy Guard Backorder SMG DA63-00836D $56.54

3-2

DA63-01453B Samsung Refrigerator Ice Tray Ass In Stock SMG DA63-01453B $9.50

4

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $1.18

4

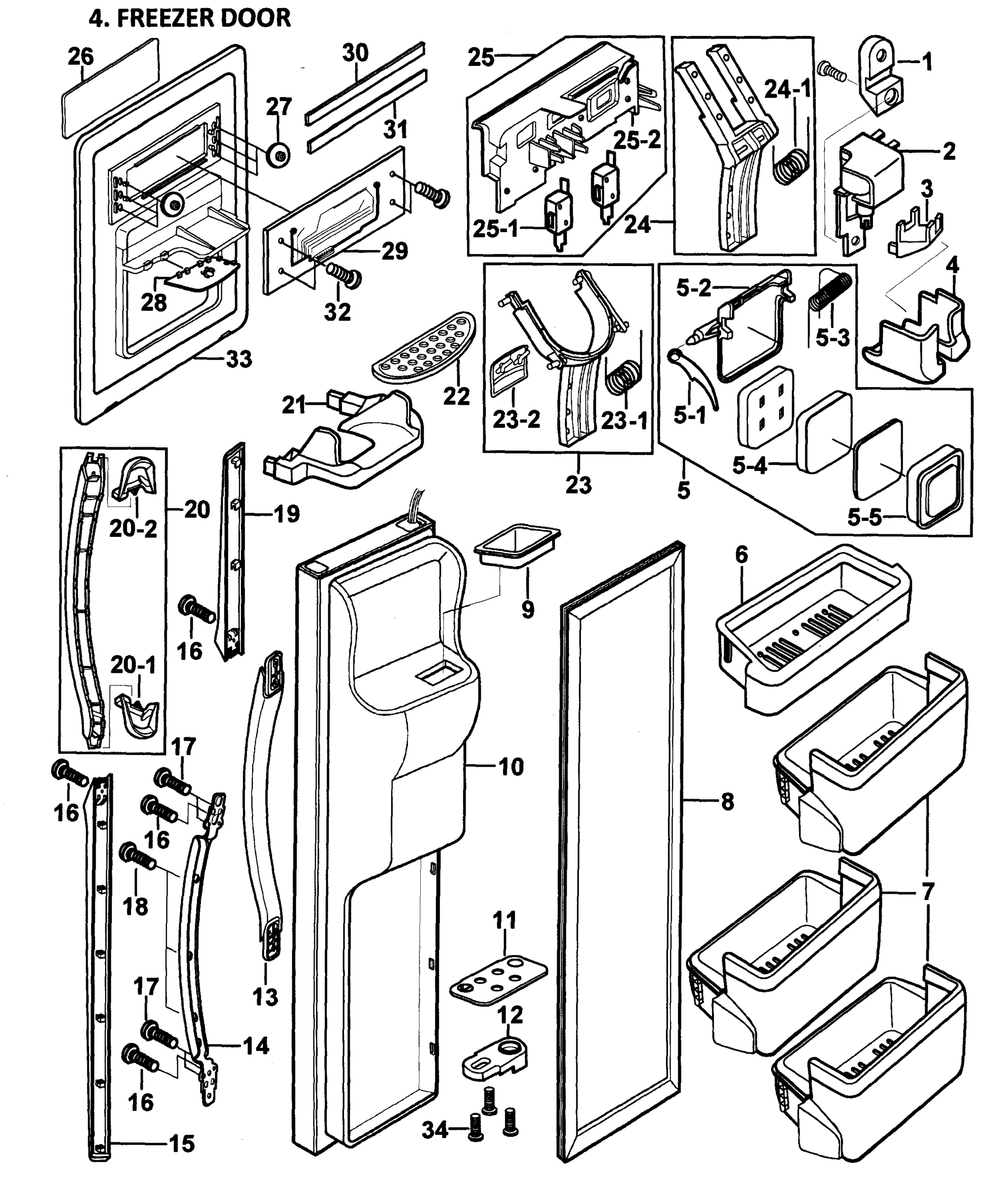

Refrigerator door bin SMG DA97-01824A Contact Us For Availability

4

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

4

Refrigerator Dispenser Switch Cover SMG DA63-01047A Contact Us For Availability

4-12

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $4.48

4-17

DA66-30138A Samsung Refrigerator Dispenser Le Backorder SMG DA66-30138A $10.80

4-19

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $1.18

5

Refrigerator Ice Route Cover Assembly SMG DA97-01437C Contact Us For Availability

5

Refrigerator Lower Basket SMG DA97-05840B Contact Us For Availability

5

Refrigerator door stopper SMG DA61-00430A Contact Us For Availability

5

Refrigerator Crisper Drawer Cover SMG DA63-03057A Contact Us For Availability

5-1

DA61-00775A Samsung Refrigerator Dispenser St Backorder SMG DA61-00775A $1.18

5-2

DA63-00844A Samsung Refrigerator Ice Route Co Backorder SMG DA63-00844A $4.98

5-3

DA61-00565A Samsung Refrigerator Ice Route Co Backorder SMG DA61-00565A $2.66

5-4

Refrigerator Ice Cover SMG DA63-00846A Contact Us For Availability

5-5

Refrigerator Dispenser Door Gasket SMG DA63-01823A Contact Us For Availability

6

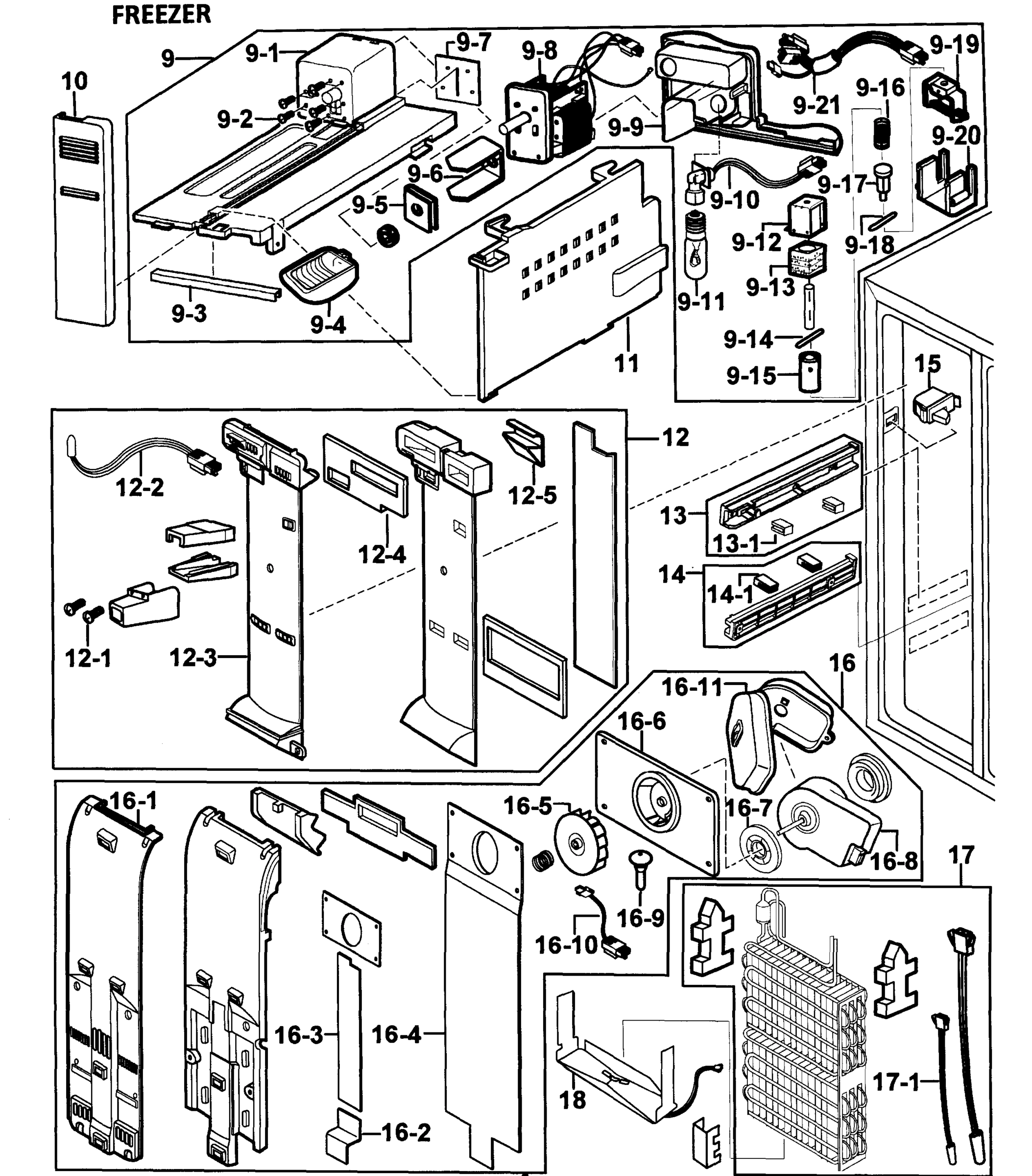

Refrigerator Run Capacitor SMG 2501-001045 Contact Us For Availability

6

Refrigerator Crisper Drawer Assembly SMG DA97-00144P Contact Us For Availability

6

Refrigerator Freezer Drawer, Upper SMG DA97-00142P Contact Us For Availability

6

Refrigerator Guard Assembly SMG DA97-01825A Contact Us For Availability

7

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $1.18

7

DA63-00865C Samsung Refrigerator Low Veg Cove Backorder SMG DA63-00865C $38.05

7

Low Shelf SMG DA97-03231B Contact Us For Availability

7

Refrigerator Guard Assembly SMG DA97-01823A Contact Us For Availability

8

DA97-04567C Samsung Refrigerator Freezer Door Backorder SMG DA97-04567C $145.22

8

DA97-05837C Samsung Refrigerator Low Vegetabl Backorder SMG DA97-05837C $101.90

8

Refrigerator Shelf SMG DA97-03230B Contact Us For Availability

8

Refrigerator handle SMG DA64-00414J Contact Us For Availability

9

DA64-00417J Samsung Refrigerator Low Trim Han Backorder SMG DA64-00417J $48.90

9

DA97-04117C Samsung Refrigerator Convertible Backorder SMG DA97-04117C $109.65

9

Chute Cap SMG DA67-00513B Contact Us For Availability

9-1

DA63-01783C Samsung Convertible Gasket Backorder SMG DA63-01783C $43.55

9-1

Refrigerator Ice Maker Auger Motor Assembly SMG DA61-00262E Contact Us For Availability

9-8

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $208.93

9-13

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

9-18

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $1.18

9-21

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $1.18

10

DA97-04519P Samsung Refrigerator Convertible Backorder SMG DA97-04519P $238.45

10

Refrigerator Door Assembly SMG DA91-01605H Contact Us For Availability

10

Assy-handl SMG DA97-00704Q Contact Us For Availability

10-1

Handle-tri SMG DA64-00415D Contact Us For Availability

10-2

Handle-tri SMG DA64-00416D Contact Us For Availability

11

DA61-00309A Samsung Reinforcement Handle Mid Backorder SMG DA61-00309A $25.74

11

DA97-00370K Samsung Refrigerator Convertible Backorder SMG DA97-00370K $162.64

11-1

Refrigerator Control Cover SMG DA63-00800F Contact Us For Availability

11-2

Refrigerator Pantry Power Control Board SMG DA41-00108A Contact Us For Availability

11-3

Refrigerator Wire Harness SMG DA39-00215A Contact Us For Availability

11-4

DA32-10109X Samsung Refrigerator Temperature Backorder SMG DA32-10109X $28.61

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.76

DA66-01666A Samsung Cam Riser-Up;rr7000, Pa66 In Stock SMG DA66-01666A $5.59

DA67-40250E Samsung Refrigerator Utility Tray Backorder SMG DA67-40250E $38.49

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $311.21

12-2

DA32-10109W Samsung Refrigerator Temperature In Stock SMG DA32-10109W $23.71

13

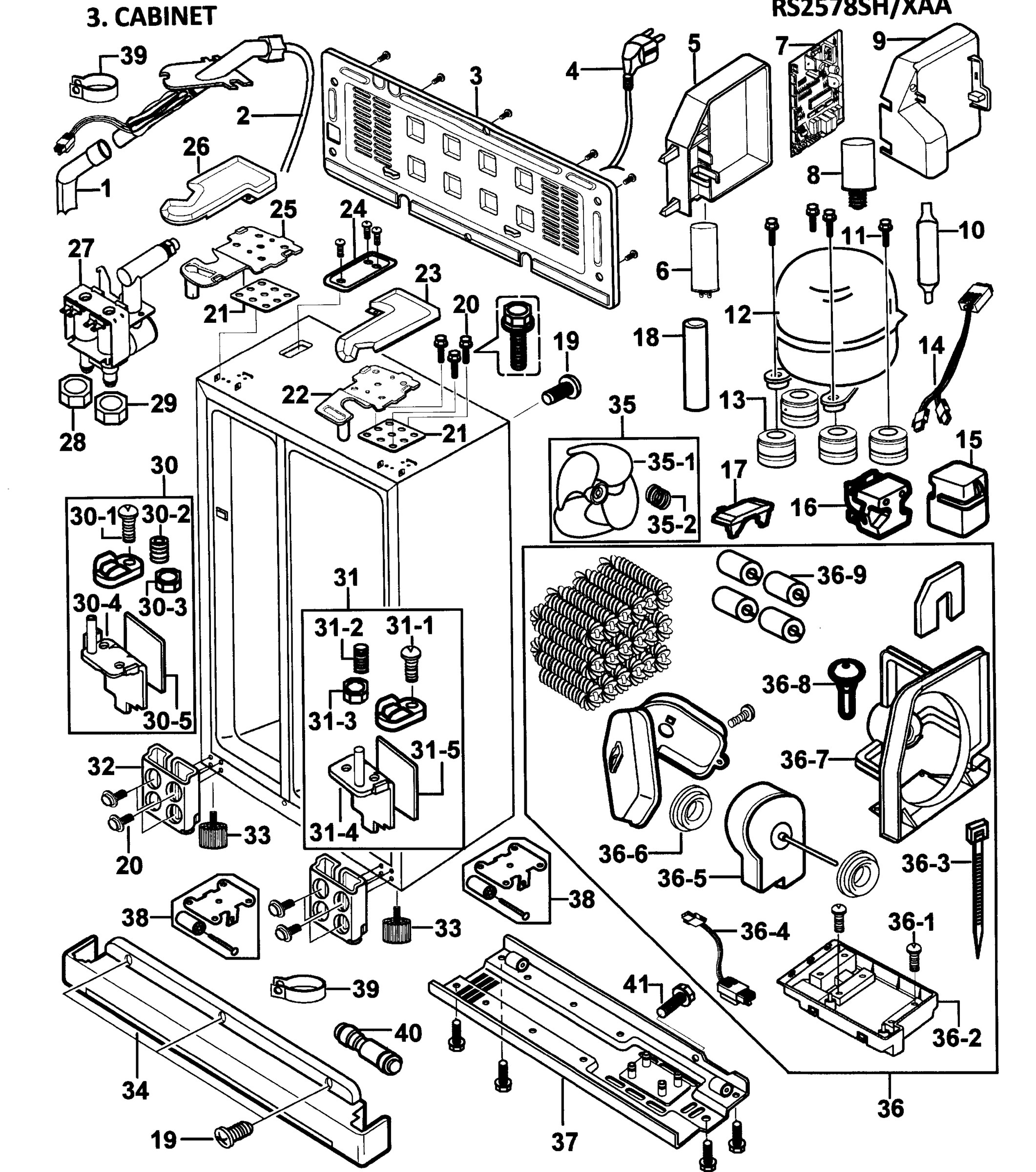

DA34-10110E Samsung Refrigerator Door Light S Backorder SMG DA34-10110E $43.80

13

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $4.25

14

6002-000227 Samsung Tapping Screw Backorder SMG 6002-000227 $1.18

14

DA39-00084D Samsung Refrigerator Relay Wire H Backorder SMG DA39-00084D $17.04

14

Refrigerator Fresh Food Evaporator Cover Asse SMG DA97-05369E Contact Us For Availability

14-1

Refrigerator Freezer Evaporator Cover SMG DA63-00812B Contact Us For Availability

14-2

DA47-00200C Samsung Refrigerator Water Tank H Backorder SMG DA47-00200C $56.12

14-3

Refrigerator Lamp Holder SMG DA47-00112C Contact Us For Availability

14-4

DA62-00158A Samsung Evaporator Cover Seal Backorder SMG DA62-00158A $1.69

14-5

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $1.18

14-6

DA31-00016A Samsung Evaporator Circuit Fan Bl Backorder SMG DA31-00016A $12.78

14-8

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

Refrigerator handle trim SMG DA64-00418J Contact Us For Availability

Refrigerator Lamp Cover SMG DA63-00814G Contact Us For Availability

16

DA35-00099G Samsung Refrigerator PTC Relay In Stock SMG DA35-00099G $24.61

16

DA97-00670F Samsung Water Tank Assembly Refri Backorder SMG DA97-00670F $129.88

16

Home bar SMG DA97-00547K Contact Us For Availability

16-5

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $25.15

16-6

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $27.68

16-8

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $157.81

17

DA34-10003S Samsung Refrigerator Compressor O Backorder SMG DA34-10003S $44.51

17

DA63-00850C Samsung Refrigerator Home Bar Gas Backorder SMG DA63-00850C $50.48

17

DA96-00627G Samsung Refrigerator Evaporator A Backorder SMG DA96-00627G $298.05

18

DA97-01484F Samsung Refrigerator Cover Purifi Backorder SMG DA97-01484F $21.29

18

Refrigerator Evaporator Drip Pan Heater SMG DA97-00111C Contact Us For Availability

18

Refrigerator case assembly SMG DA97-00801H Contact Us For Availability

18-1

Refrigerator Cover SMG DA63-00855G Contact Us For Availability

18-1

Refrigerator door case SMG DA61-00306B Contact Us For Availability

18-2

DA63-00991A Samsung Refrigerator Door Recess Backorder SMG DA63-00991A $1.18

18-2

Refrigerator Air Freshener Filter SMG DA02-90106K Contact Us For Availability

19

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

19

DA34-10121A Samsung Refrigerator Home Bar Doo Backorder SMG DA34-10121A $20.18

19

DA63-00996A Samsung Refrigerator Purifier Cov Backorder SMG DA63-00996A $52.85

19-1

DA63-00856A Samsung Refrigerator Purifier Cov Backorder SMG DA63-00856A $6.46

20

DA96-00626H Samsung Refrigerator Evaporator A Backorder SMG DA96-00626H $268.23

20

Gasket SMG DA63-01100C Contact Us For Availability

20-1

DA47-00301F Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301F $29.50

20-2

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

DA61-01587A Samsung Refrigerator Dispenser Gu Backorder SMG DA61-01587A $9.09

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

DA67-01311B Samsung Refrigerator Shelf GlassU Backorder SMG DA67-01311B $109.60

Refrigerator bottle guide SMG DA61-01588A Contact Us For Availability

22

DA63-00843K Samsung Refrigerator Dispenser Tr In Stock SMG DA63-00843K $9.61

22

DA97-01396F Samsung Fold Shelf Assembly Backorder SMG DA97-01396F $138.41

22

DA97-03811B Samsung Refrigerator Upper Right Backorder SMG DA97-03811B $28.73

23

DA67-00687B Samsung Refrigerator Low Shelf Backorder SMG DA67-00687B $70.12

23

Refrigerator Ice Dispenser Lever SMG DA97-00545J Contact Us For Availability

23-1

Ice Spring SMG DA61-00337A Contact Us For Availability

23-2

DA66-00156B Samsung Refrigerator Dispensing L Backorder SMG DA66-00156B $16.43

24

DA97-00546J Samsung Refrigerator Water Dispen Backorder SMG DA97-00546J $9.94

24-1

DA61-00338A Samsung Refrigerator Water Dispen Backorder SMG DA61-00338A $2.01

25

DA97-00409D Samsung Refrigerator Rear PCB Pan Backorder SMG DA97-00409D $46.46

25

DA97-03808B Samsung Refrigerator Upper Left H Backorder SMG DA97-03808B $27.83

25-1

DA34-00011A Samsung Refrigerator Micro Switch Backorder SMG DA34-00011A $10.46

25-2

DA63-00816C Samsung Refrigerator Rear PCB Pan Backorder SMG DA63-00816C $15.42

26

Refrigerator Dispenser Control Overlay SMG DA63-01169T Contact Us For Availability

27

DA64-40144A Samsung Touch Knob Backorder SMG DA64-40144A $2.01

27

Refrigerator Water Inlet Valve SMG DA74-40150H Contact Us For Availability

28

Refrigerator Lamp Cover SMG DA63-00994A Contact Us For Availability

29

Refrigerator Dispenser Display Control Board SMG DA41-00204B Contact Us For Availability

30

Seal Cutt SMG DA62-01132U Contact Us For Availability

30-1

6003-001435 Samsung Refrigerator Screw, Tap T Backorder SMG 6003-001435 $1.69

30-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.69

31

Tape Foil SMG DA02-10016A Contact Us For Availability

31-4

DA61-01608B Samsung Refrigerator Low Right Hi Backorder SMG DA61-01608B $34.57

32

6002-000466 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000466 $1.69

33

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.45

34

Refrigerator Leveling Leg Cover SMG DA63-01968G Contact Us For Availability

36

DA97-01285R Samsung Refrigerator Drain Water Backorder SMG DA97-01285R $159.33

36-4

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $14.90

36-5

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $137.35

36-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

40

DA62-01628A Samsung Refrigerator Check Valve Backorder SMG DA62-01628A $67.09

1410

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.60

1610

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $157.57

1611

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.53

NI

Samsung Refrigerator Water Filter SMG DA29-00003G Contact Us For Availability
