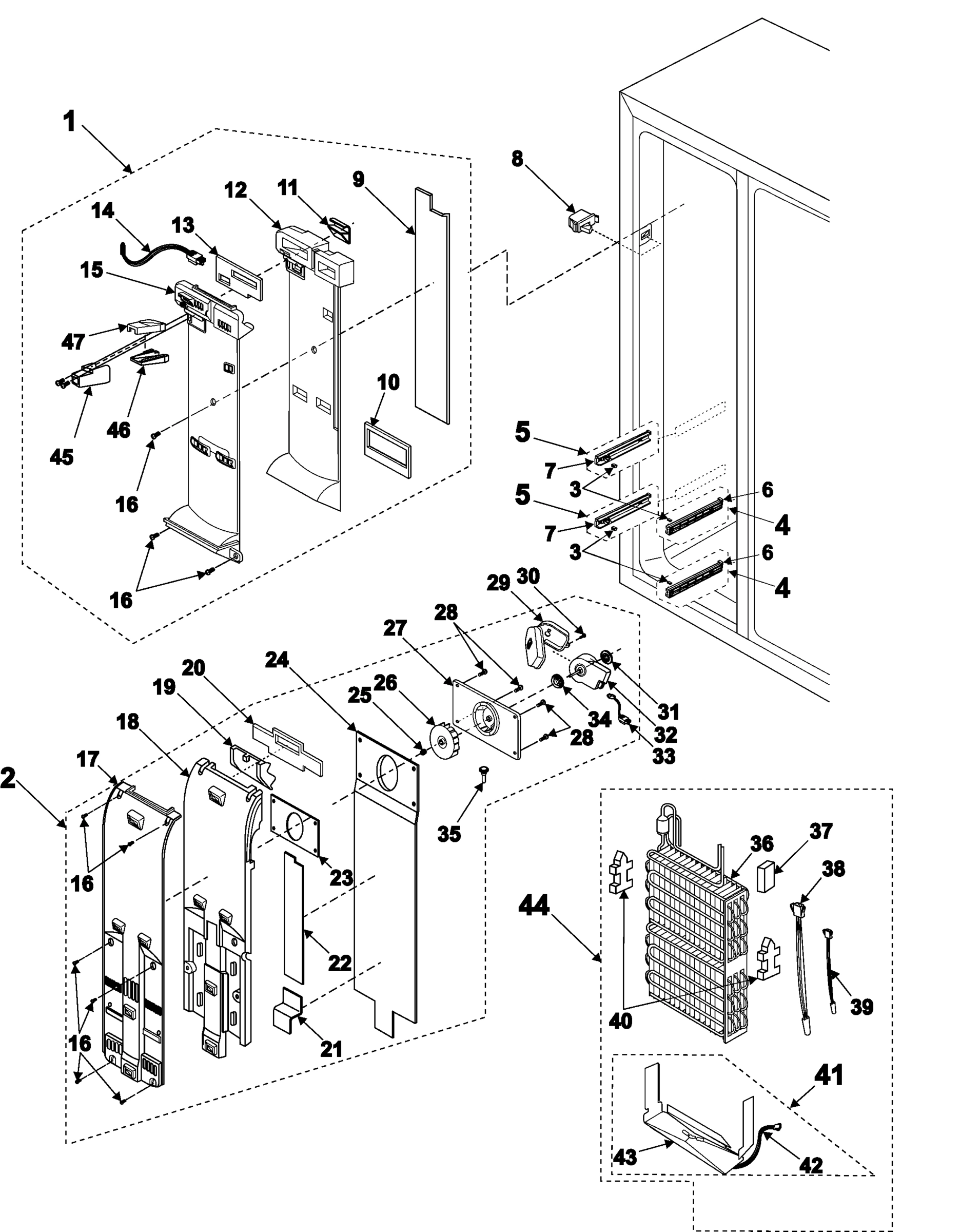

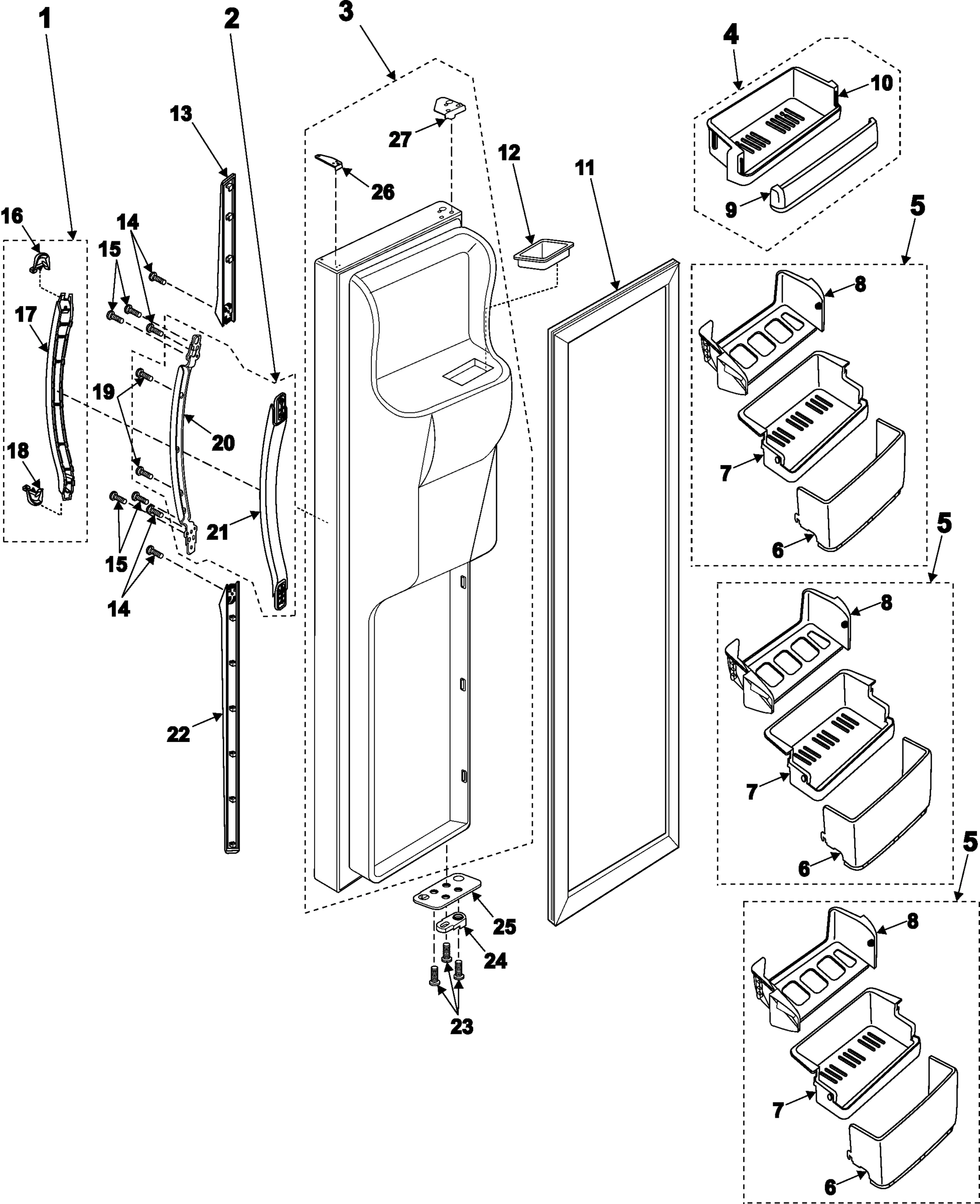

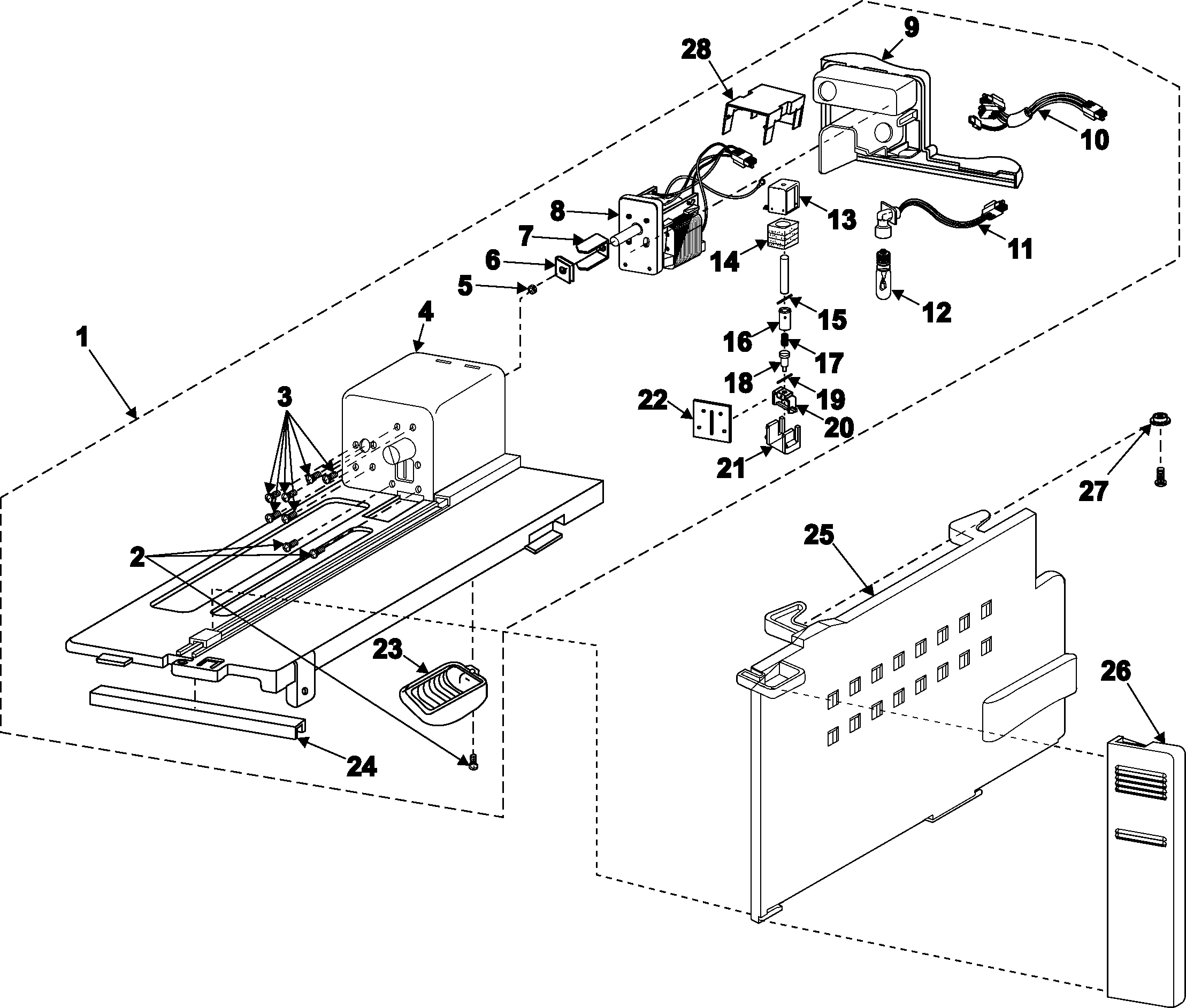

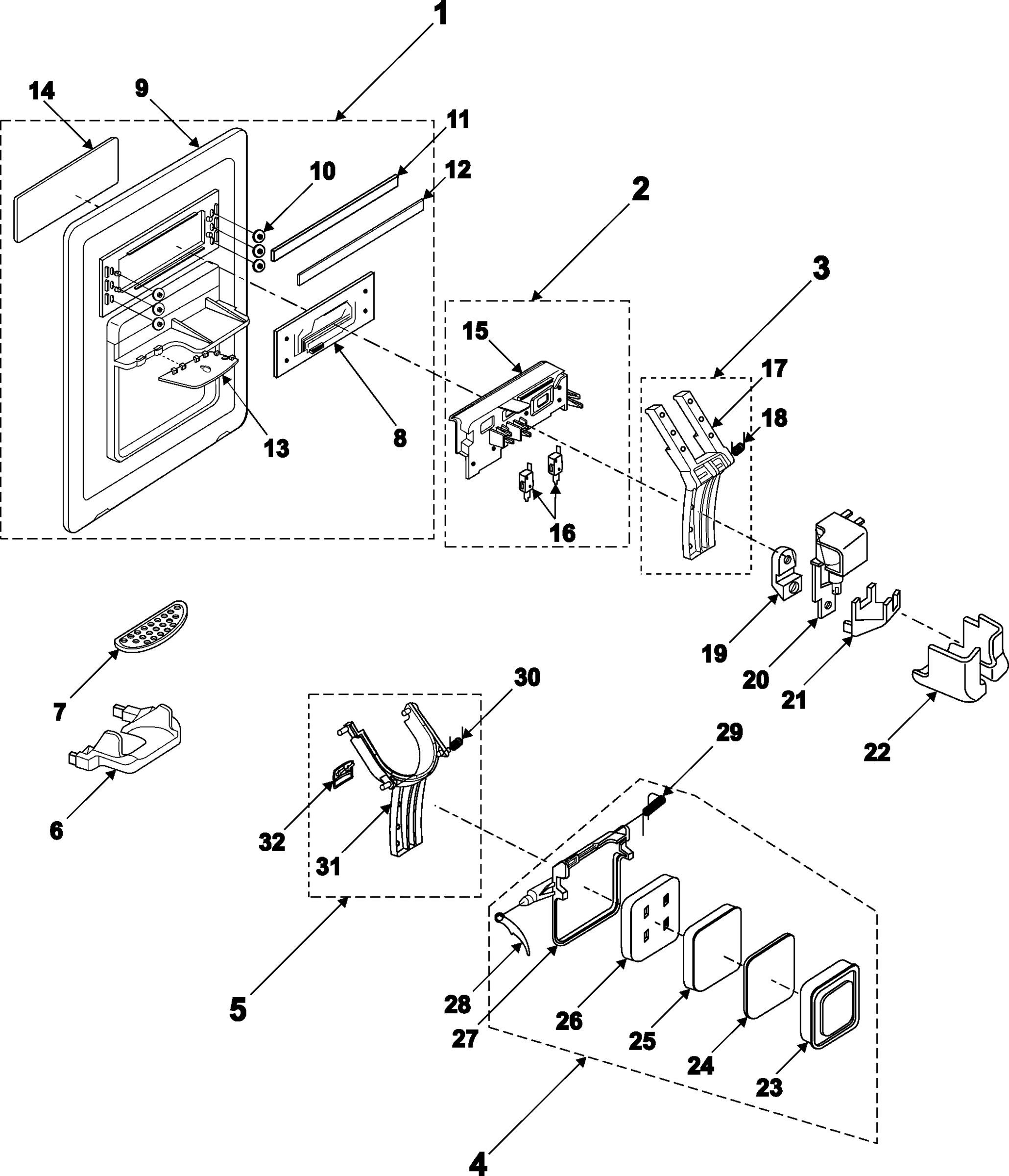

Model Samsung RS2577BB/XAA Refrigerator – Common Parts &amp; Diagrams

1

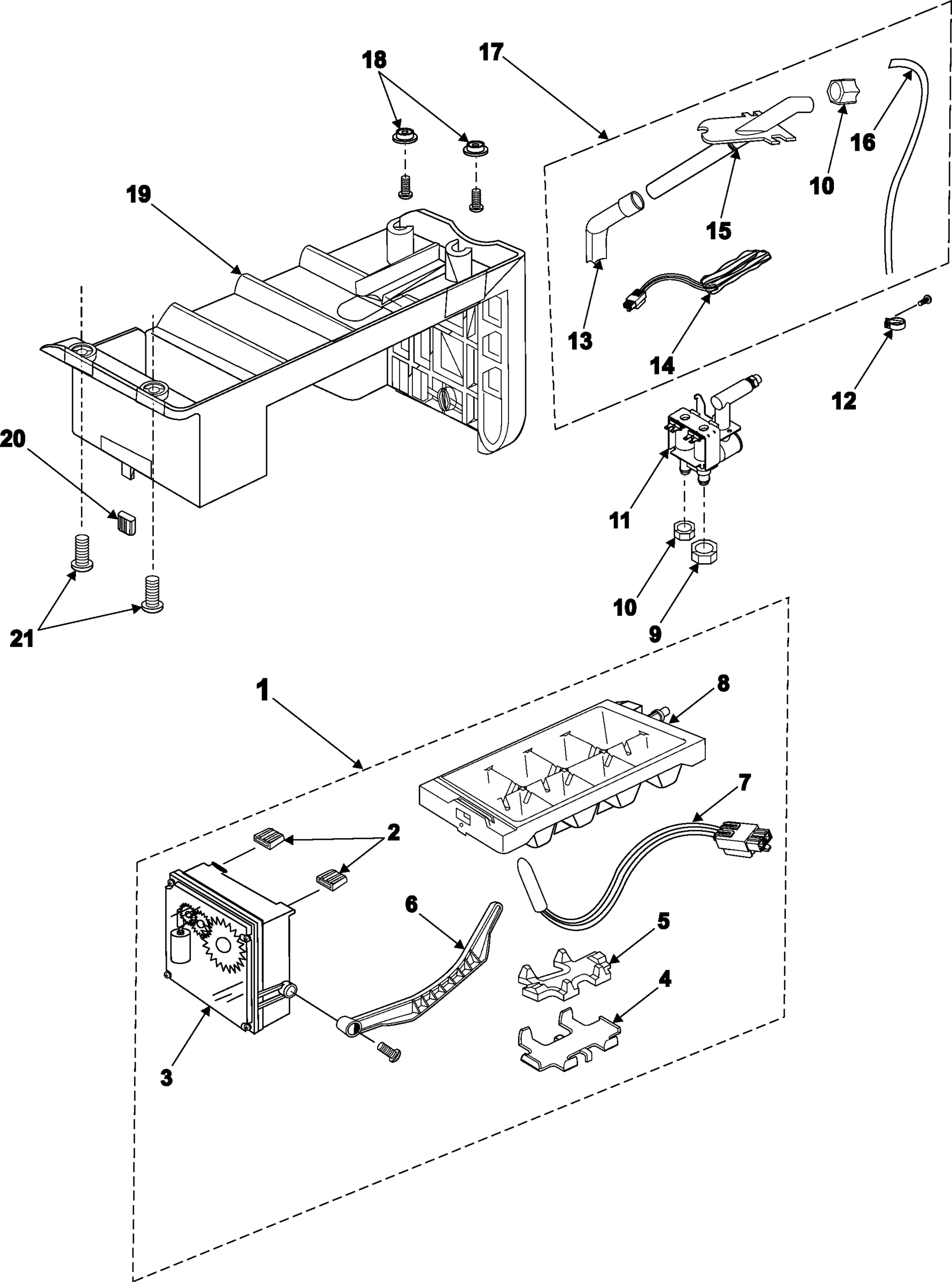

DA97-00258C Samsung Refrigerator Ice Maker As In Stock SMG DA97-00258C $205.36

1

DA97-00704B Samsung Refrigerator Handle Assem Backorder SMG DA97-00704B $83.80

1

DA97-01293D Samsung Refrigerator Multi Cover Backorder SMG DA97-01293D $97.38

1

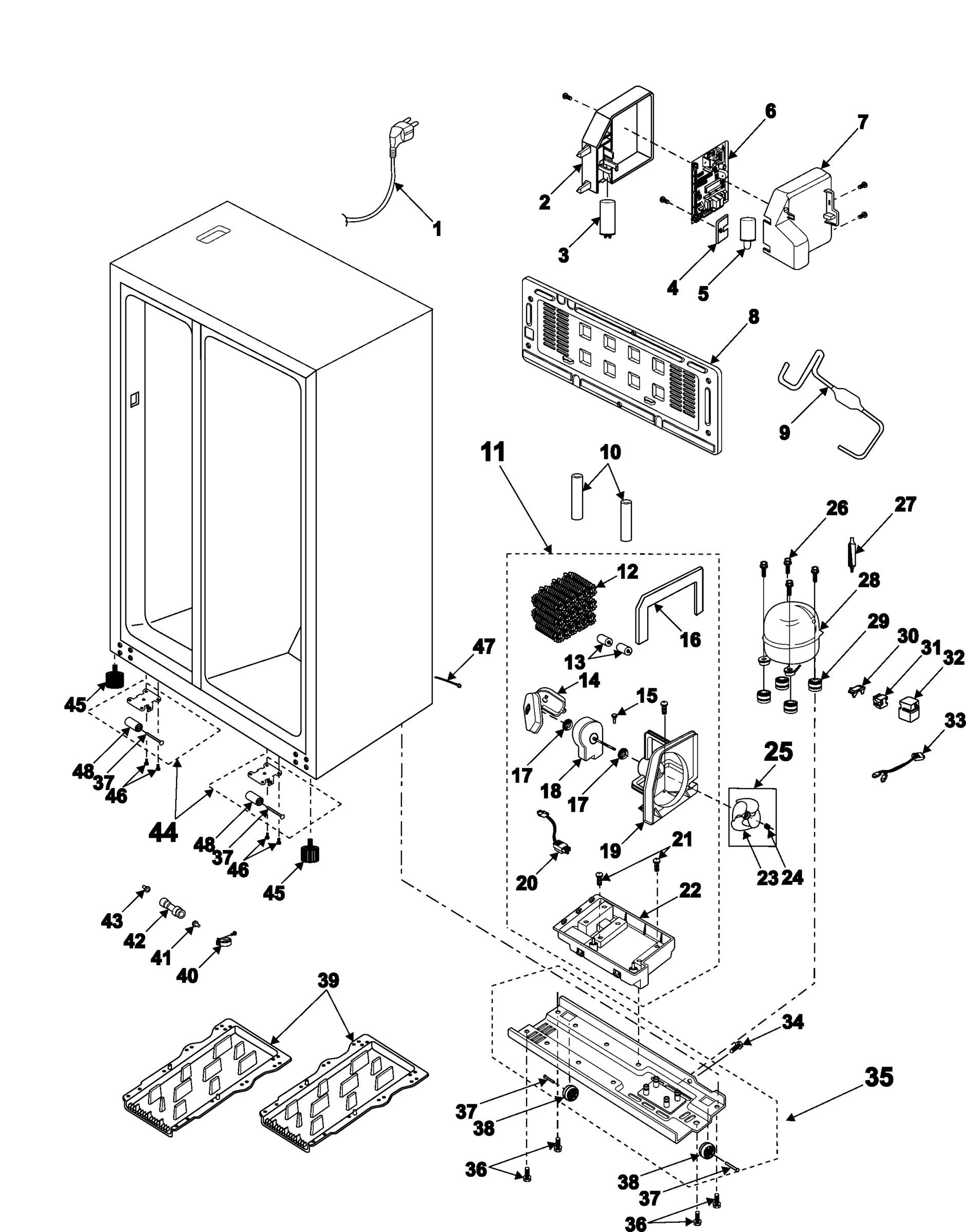

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

1

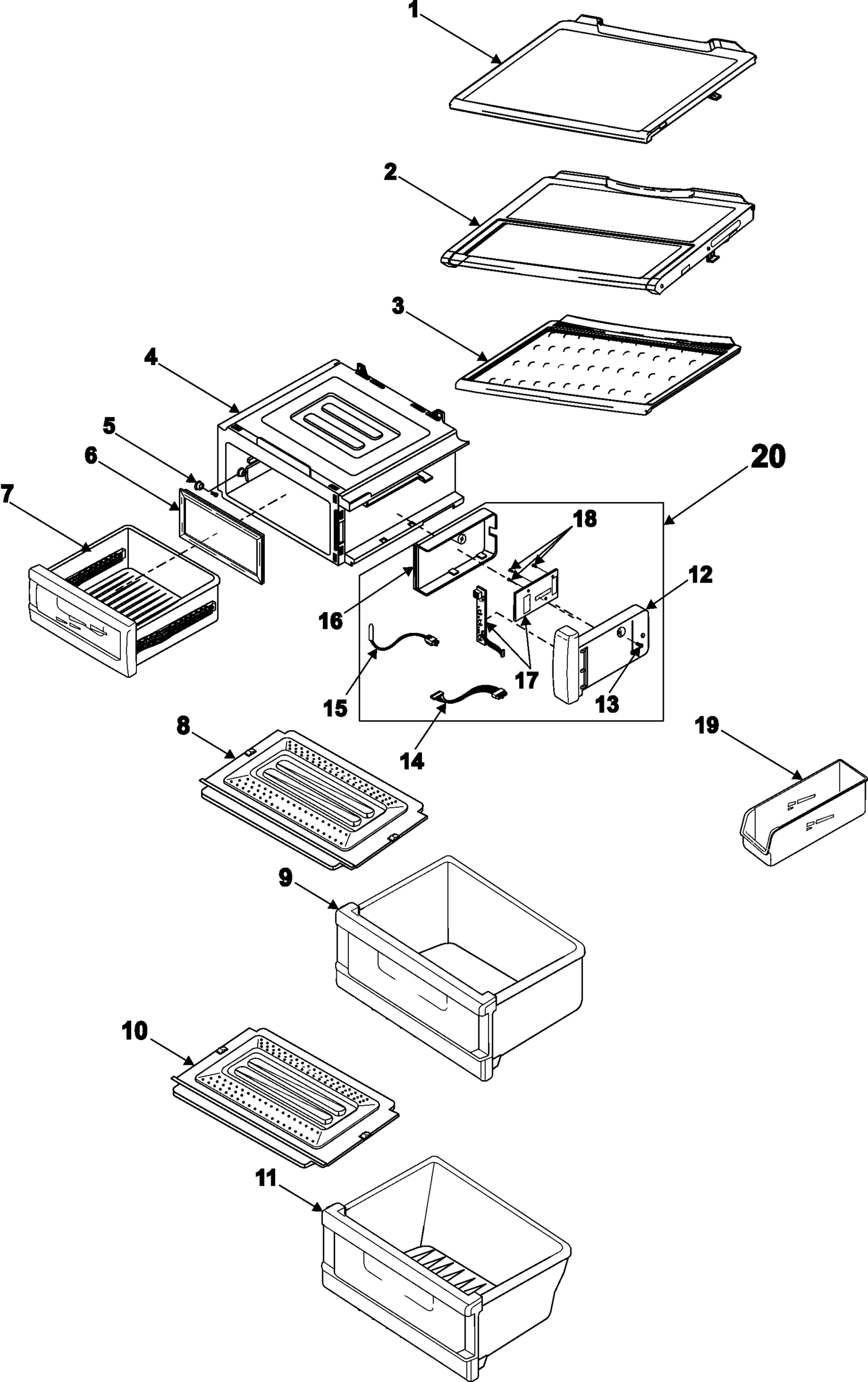

Refrigerator shelf assembly SMG DA97-00157H Contact Us For Availability

1

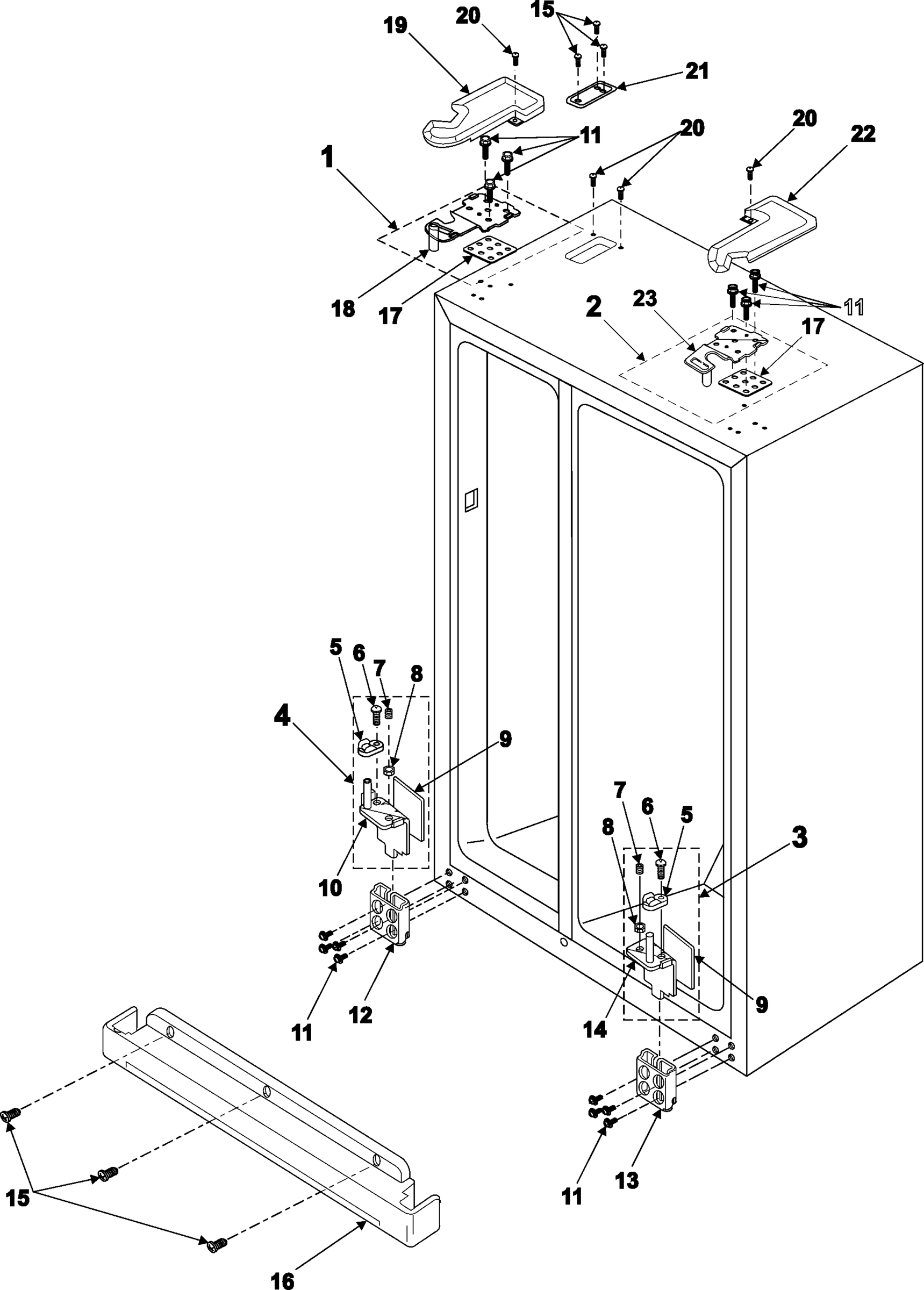

Refrigerator hinge assembly SMG DA97-02337B Contact Us For Availability

1

Refrigerator bucket SMG DA97-00685N Contact Us For Availability

1A

Handle assembly SMG DA97-00704H Contact Us For Availability

1B

DA97-00704M Samsung Assembly Handle Mid Front Backorder SMG DA97-00704M $70.85

2

DA61-70254A Samsung Refrigerator Gasket Suppo Backorder SMG DA61-70254A $94.22

2

DA63-02236A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-02236A $7.47

2

DA97-00703A Samsung Refrigerator Rear Handle Backorder SMG DA97-00703A $47.80

2

Refrigerator shelf assembly SMG DA97-00158L Contact Us For Availability

2

Refrigerator hinge assembly SMG DA97-02338B Contact Us For Availability

2

Pcb case SMG DA61-00261C Contact Us For Availability

2

Refrigerator filter housing SMG DA97-01666A Contact Us For Availability

2

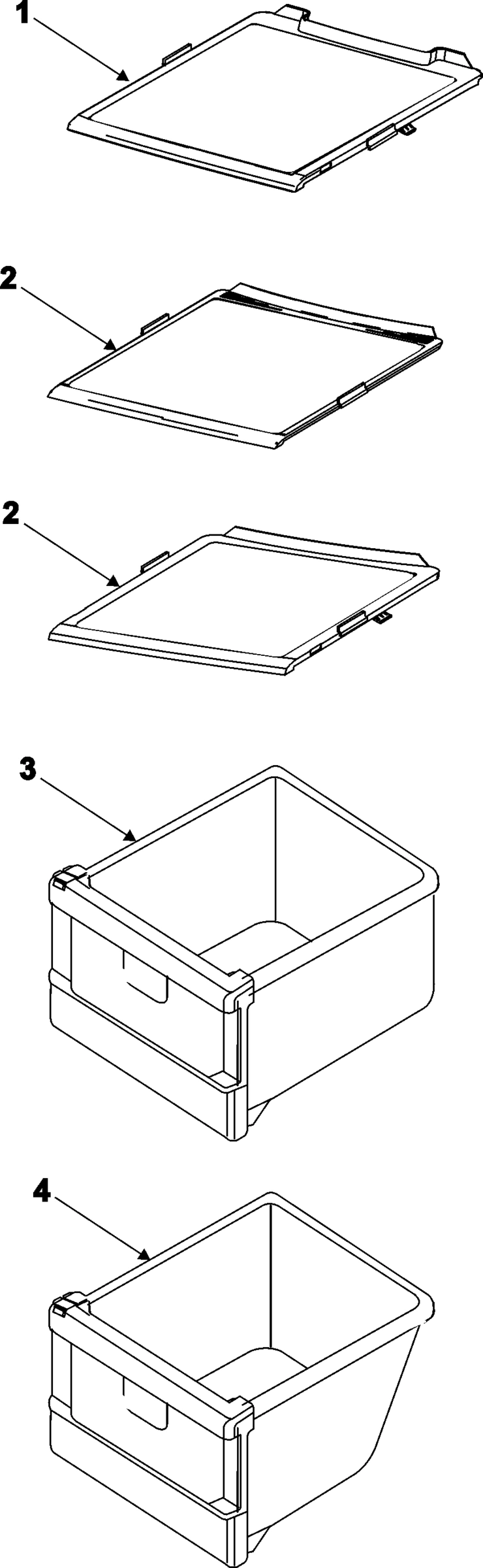

Refrigerator shelf SMG DA97-00199M Contact Us For Availability

2A

Refrigerator handle SMG DA97-00703B Contact Us For Availability

2B

DA97-00703G Samsung Refrigerator Rear Handle Backorder SMG DA97-00703G $70.50

3

Refrigerator run capacitor SMG 2501-001045 Contact Us For Availability

3

Refrigerator fresh food evaporator cover asse SMG DA97-02427E Contact Us For Availability

3

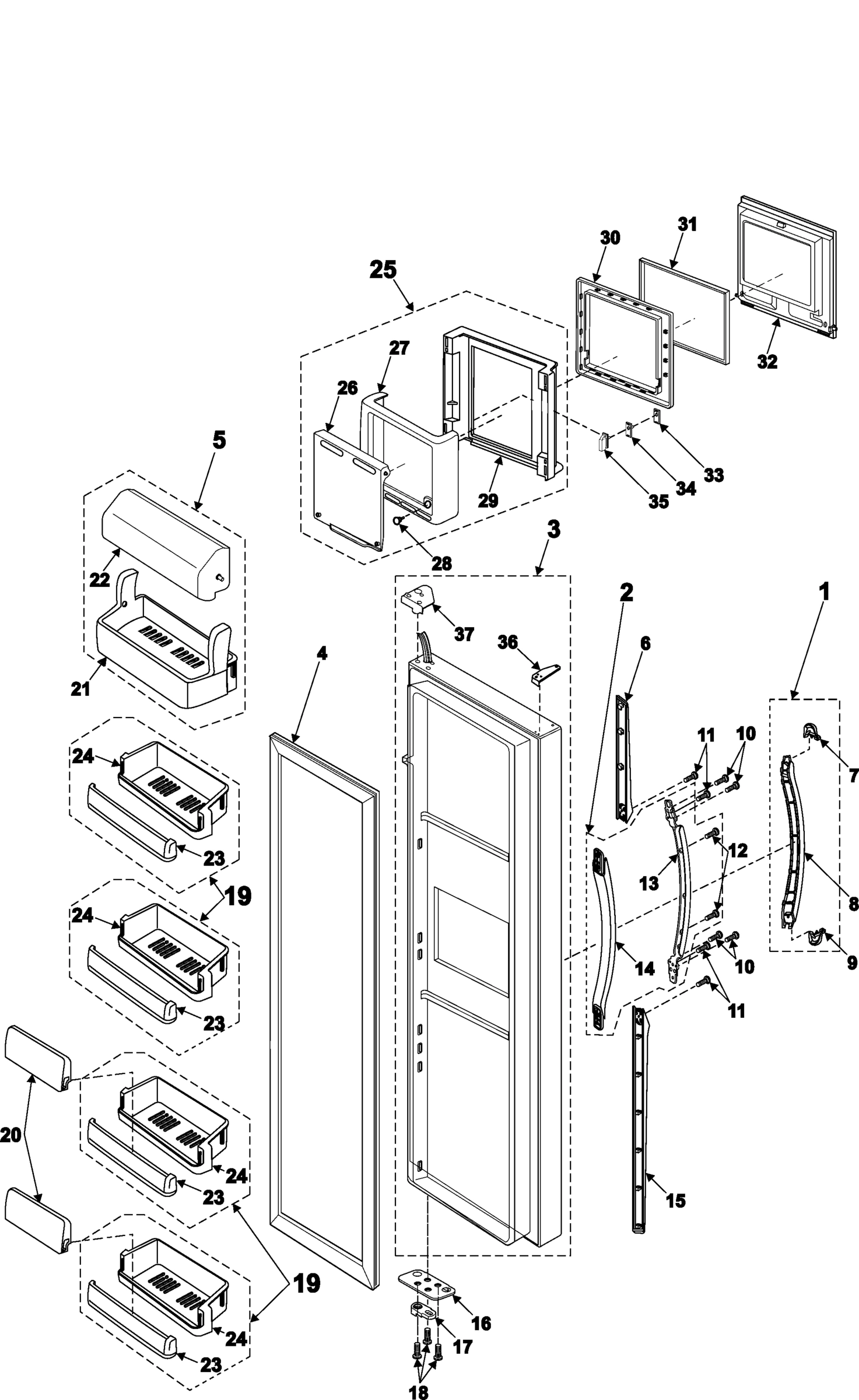

Refrigerator door assembly SMG DA91-01605A Contact Us For Availability

3

Refrigerator freezer drawer, upper SMG DA97-00142P Contact Us For Availability

3

Refrigerator hinge SMG DA97-01763A Contact Us For Availability

3

Refrigerator ice cover SMG DA63-00777E Contact Us For Availability

3

Refrigerator door assembly SMG DA91-01606A Contact Us For Availability

3

Refrigerator shelf SMG DA67-00687A Contact Us For Availability

3A

Refrigerator door assembly SMG DA91-01605B Contact Us For Availability

3A

Refrigerator door assembly SMG DA91-01606B Contact Us For Availability

3B

DA97-00546J Samsung Refrigerator Water Dispen Backorder SMG DA97-00546J $9.94

3B

Freezer door SMG DA91-01766A Contact Us For Availability

3B

Refrigerator door assembly SMG DA91-01765C Contact Us For Availability

4

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $5.93

4

DA97-01760A Samsung Refrigerator Hinge Assemb Backorder SMG DA97-01760A $29.85

4

Refrigerator ice route cover assembly SMG DA97-01437C Contact Us For Availability

4

Refrigerator door gasket SMG DA97-01800D Contact Us For Availability

4

Refrigerator ice maker auger motor assembly SMG DA61-00262E Contact Us For Availability

4

Refrigerator guard assembly SMG DA97-00695D Contact Us For Availability

4

Refrigerator freezer drawer, lower SMG DA97-00143P Contact Us For Availability

4

Fixer main SMG DA71-00155B Contact Us For Availability

4

Refrigerator water tank SMG DA97-00670D Contact Us For Availability

4

Refrigerator case assembly SMG DA97-00320U Contact Us For Availability

4A

DA97-01800K Samsung Refrigerator Door Gasket Backorder SMG DA97-01800K $230.30

5

DA27-00002A Samsung Refrigerator Coil Assembl Backorder SMG DA27-00002A $100.44

5

ROLLER-FRONT;A-TOP,POM,?16,NAT Backorder SMG DA66-00151A $1.69

5

DA66-00268A Samsung Refrigerator Cam Riser As Backorder SMG DA66-00268A $2.70

5

DA97-00697D Samsung Refrigerator Dairy Guard Backorder SMG DA97-00697D $78.65

5

Refrigerator guard assembly SMG DA97-00694E Contact Us For Availability

5

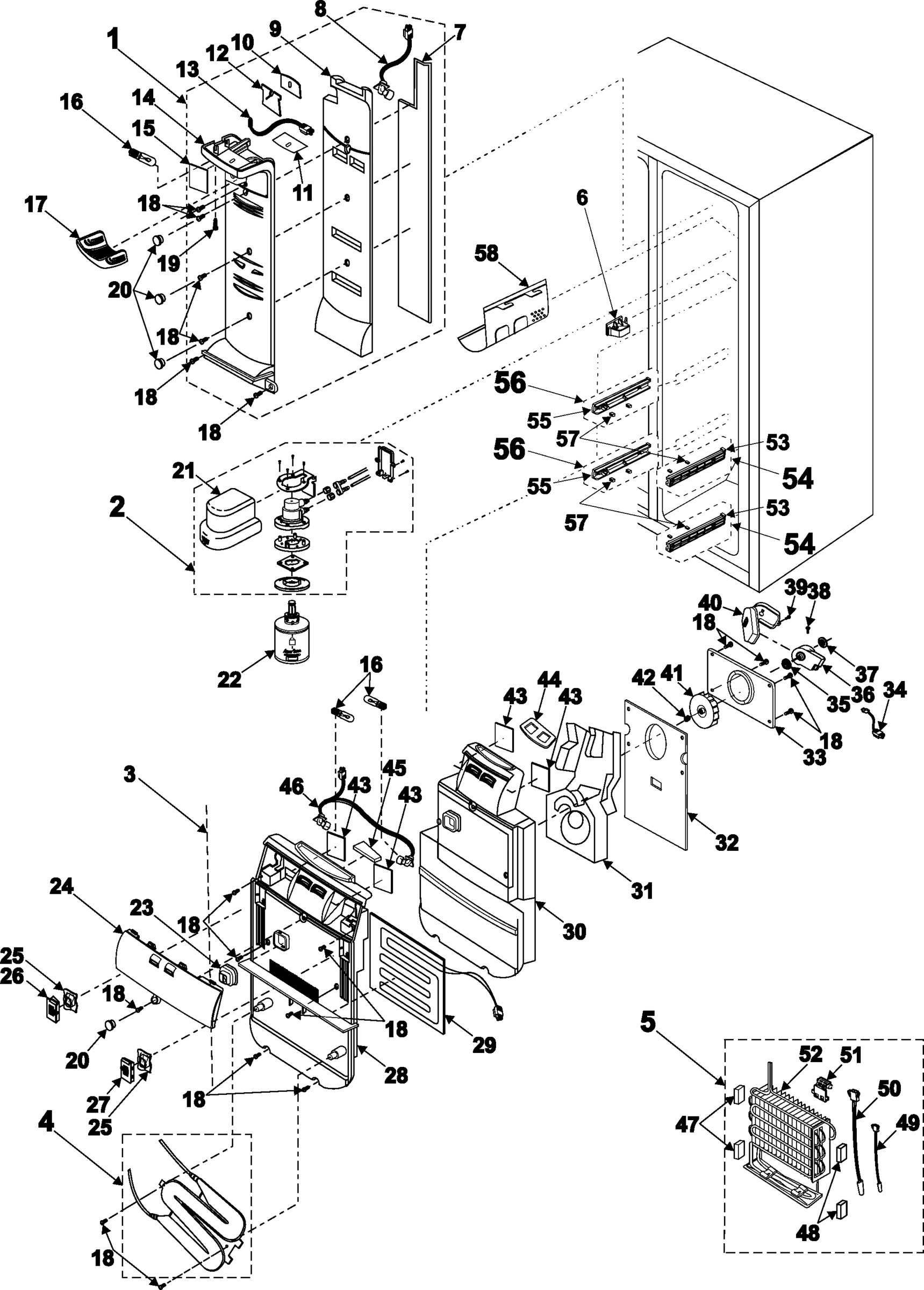

Refrigerator evaporator assembly SMG DA96-00020G Contact Us For Availability

5A

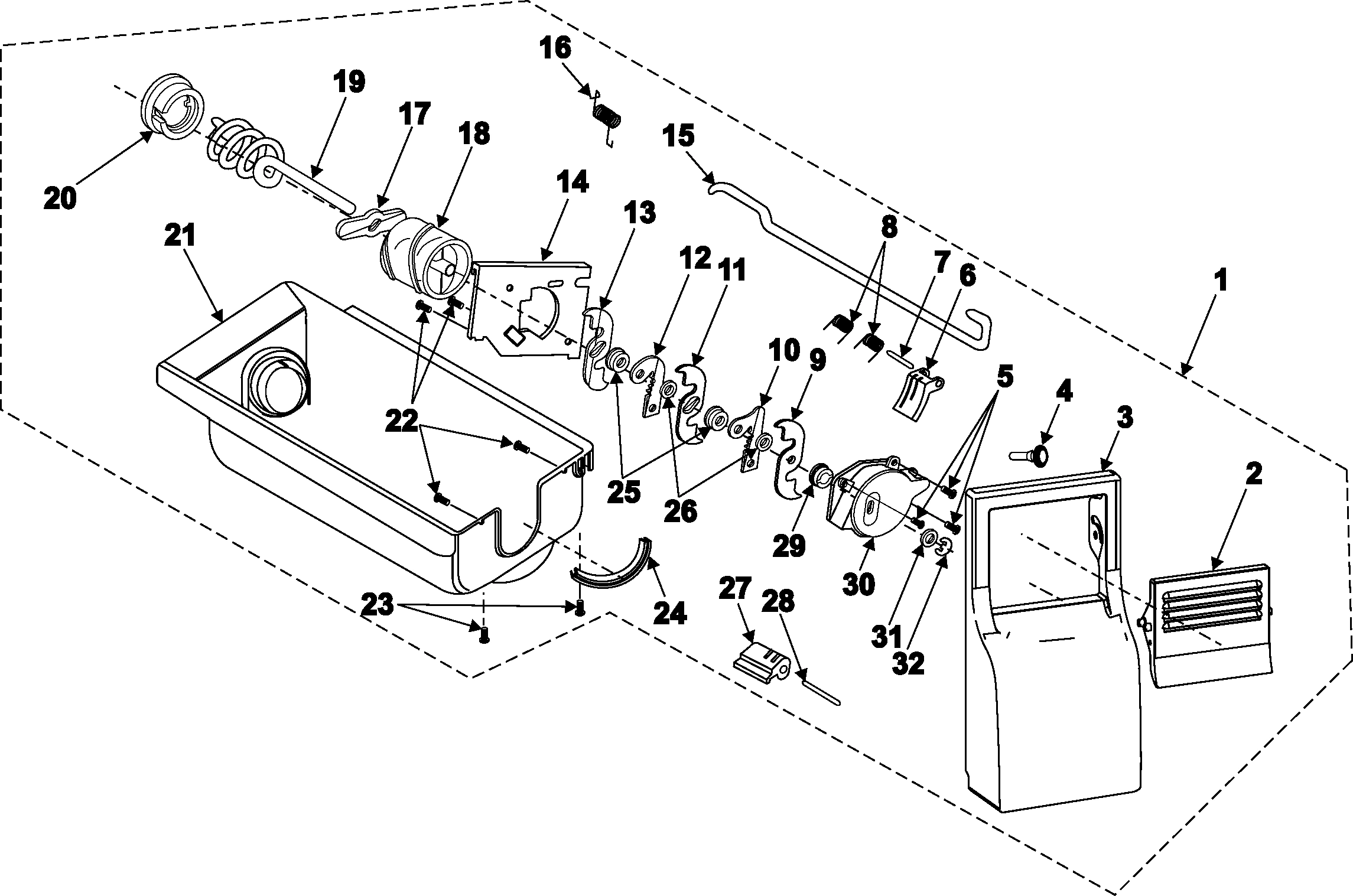

DA97-00545D Samsung Refrigerator Ice Dispensi Backorder SMG DA97-00545D $29.15

5B

Refrigerator ice dispenser lever SMG DA97-00545J Contact Us For Availability

6

6003-001435 Samsung Refrigerator Screw, Tap T Backorder SMG 6003-001435 $1.69

6

DA34-10110E Samsung Refrigerator Door Light S Backorder SMG DA34-10110E $43.80

6

DA41-00104M Samsung Refrigerator Main Power C In Stock SMG DA41-00104M $312.50

6

DA61-00524A Samsung Refrigerator Ice Full Gui Backorder SMG DA61-00524A $7.55

6

DA61-01587A Samsung Refrigerator Dispenser Gu Backorder SMG DA61-01587A $9.09

6

Refrigerator freezer guard SMG DA63-00834B Contact Us For Availability

6

Handle-tri SMG DA64-00418B Contact Us For Availability

6

Refrigerator ice guide SMG DA71-70003A Contact Us For Availability

6

Refrigerator gasket control SMG DA63-00820B Contact Us For Availability

6A

Handle-tri SMG DA64-00418C Contact Us For Availability

6B

Handle-tri SMG DA64-00418H Contact Us For Availability

7

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.69

7

DA62-00565A Samsung Refrigerator Multi Seal Backorder SMG DA62-00565A $3.53

7

DA63-00833D Samsung Refrigerator Low Guard As Backorder SMG DA63-00833D $36.28

7

DA63-00843E Samsung Refrigerator Dispenser Tr Backorder SMG DA63-00843E $6.47

7

Handle-tri SMG DA64-00416B Contact Us For Availability

7

Refrigerator pcb cover SMG DA63-00783C Contact Us For Availability

7

Refrigerator temperature-controlled drawer SMG DA97-00371K Contact Us For Availability

7A

DA64-00416C Samsung Handle Upper Trim Connect Backorder SMG DA64-00416C $25.38

7B

Handle-tri SMG DA64-00416F Contact Us For Availability

8

6021-001125 Samsung Refrigerator Hexagon Nut Backorder SMG 6021-001125 $3.79

8

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $36.52

8

DA61-20124A Samsung Dispenser Spring Assembly Backorder SMG DA61-20124A $5.41

8

DA63-01453B Samsung Refrigerator Ice Tray Ass In Stock SMG DA63-01453B $9.18

8

Guard support SMG DA63-00835A Contact Us For Availability

8

Refrigerator handle SMG DA64-00413C Contact Us For Availability

8

Refrigerator machine compartment cover SMG DA63-01135A Contact Us For Availability

8

Refrigerator lamp holder SMG DA47-00112A Contact Us For Availability

8

Refrigerator crisper drawer cover SMG DA63-00864C Contact Us For Availability

8A

Refrigerator handle SMG DA64-00413F Contact Us For Availability

8B

Refrigerator handle SMG DA64-00413K Contact Us For Availability

9

DA60-30105A Samsung Refrigerator Water Line N Backorder SMG DA60-30105A $1.69

9

DA62-00517A Samsung Refrigerator Multi Insula Backorder SMG DA62-00517A $12.43

9

DA63-50207C Samsung Hinge Shim - Lower Backorder SMG DA63-50207C $2.00

9

DA97-00918A Samsung Refrigerator Pipe Connect Backorder SMG DA97-00918A $67.65

9

Refrigerator crisper drawer assembly SMG DA97-00144P Contact Us For Availability

9

Refrigerator freezer guard SMG DA63-00832A Contact Us For Availability

9

Handle-tri SMG DA64-00415B Contact Us For Availability

9

Blade-movi SMG DA31-20120D Contact Us For Availability

9A

DA64-00415C Samsung Handle-TRIM CONNECT,LOW;A Backorder SMG DA64-00415C $18.67

9B

Handle-tri SMG DA64-00415F Contact Us For Availability

DA60-30104A Samsung Refrigerator Water Line N Backorder SMG DA60-30104A $2.16

DA61-01607A Samsung Hinge Low Backorder SMG DA61-01607A $33.63

DA62-20001P Samsung Refrigerator PVC Zipel Tu Backorder SMG DA62-20001P $4.04

DA63-00865C Samsung Refrigerator Low Veg Cove Backorder SMG DA63-00865C $38.05

Refrigerator freezer guard SMG DA63-00831C Contact Us For Availability

Thermostat blade SMG DA31-20121B Contact Us For Availability

Refrigerator seal cover SMG DA62-00225A Contact Us For Availability

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.69

DA74-40149D Samsung Refrigerator Water Inlet Backorder SMG DA74-40149D $116.07

DA97-00148P Samsung Refrigerator Vegetable Ca Backorder SMG DA97-00148P $114.23

Refrigerator gasket SMG DA97-01800C Contact Us For Availability

Refrigerator hex screw SMG 6009-001255 Contact Us For Availability

Blade-movi SMG DA31-20120E Contact Us For Availability

Refrigerator tray assembly SMG DA97-01285C Contact Us For Availability

Air plate SMG DA61-00527A Contact Us For Availability

11A

DA97-01800J Samsung Refrigerator Door Assembl Backorder SMG DA97-01800J $133.34

6002-000227 Samsung Tapping Screw Backorder SMG 6002-000227 $1.69

DA97-00259G Samsung Refrigerator Spiral Conde Backorder SMG DA97-00259G $154.14

Chute cap SMG DA67-00513A Contact Us For Availability

Refrigerator bracket SMG DA97-02243A Contact Us For Availability

Refrigerator blade SMG DA31-20122B Contact Us For Availability

Refrigerator seal cover SMG DA62-00074A Contact Us For Availability

Refrigerator control cover SMG DA63-00800F Contact Us For Availability

DA31-20120F Samsung Blade Moving Dispense Ass Backorder SMG DA31-20120F $11.94

DA32-10105U Samsung Refrigerator Temperature Backorder SMG DA32-10105U $19.98

DA61-00309A Samsung Reinforcement Handle Mid Backorder SMG DA61-00309A $25.74

DA63-01291A Samsung Refrigerator Water Fill P Backorder SMG DA63-01291A $19.41

DA63-40171B Samsung Refrigerator Suction Pipe Backorder SMG DA63-40171B $3.24

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $114.88

DA97-02244A Samsung Refrigerator Hinge Bracke Backorder SMG DA97-02244A $38.43

Refrigerator tapping screw SMG 6002-001335 Contact Us For Availability

DA32-10109W Samsung Refrigerator Temperature In Stock SMG DA32-10109W $34.28

DA47-00110C Samsung Refrigerator Water Pipe H Backorder SMG DA47-00110C $23.88

DA61-01608A Samsung Refrigerator Low Hinge Backorder SMG DA61-01608A $59.52

DA63-00821B Samsung Refrigerator Cover Multi Backorder SMG DA63-00821B $37.18

Refrigerator handle SMG DA64-00414B Contact Us For Availability

Bucket plate SMG DA70-00394A Contact Us For Availability

Refrigerator wire harness SMG DA39-00215A Contact Us For Availability

14A

Refrigerator handle SMG DA64-00414C Contact Us For Availability

14B

DA64-00414H Samsung Rear Mid Refrigerator Han Backorder SMG DA64-00414H $59.55

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

DA32-10109X Samsung Refrigerator Temperature Backorder SMG DA32-10109X $28.61

DA97-00707A Samsung Refrigerator Water Pipe A Backorder SMG DA97-00707A $28.32

Handle-tri SMG DA64-00417B Contact Us For Availability

Refrigerator tapping screw SMG 6002-001197 Contact Us For Availability

Seal-al fo SMG DA62-00133B Contact Us For Availability

15A

Handle-tri SMG DA64-00417C Contact Us For Availability

15B

Handle-tri SMG DA64-00417H Contact Us For Availability

4713-001172 Samsung Refrigerator Incandescent Backorder SMG 4713-001172 $12.93

DA61-00277B Samsung Refrigerator Control Case Backorder SMG DA61-00277B $22.40

DA61-20139A Samsung Ice Maker Spring Assembly Backorder SMG DA61-20139A $5.93

DA72-60040D Samsung Seal Cut Rubber Backorder SMG DA72-60040D $4.04

DA73-00070K Samsung Refrigerator Water Line P In Stock SMG DA73-00070K $24.30

Refrigerator toe grille SMG DA63-00822F Contact Us For Availability

Refrigerator door stopper SMG DA61-00430A Contact Us For Availability

16A

DA63-00822L Samsung Refrigerator Front Leg Co Backorder SMG DA63-00822L $46.01

16B

Refrigerator leg cover SMG DA63-00822R Contact Us For Availability

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA97-00708B Samsung Water Pipe Assembly Backorder SMG DA97-00708B $80.46

Refrigerator pantry power control board SMG DA41-00108A Contact Us For Availability

Refrigerator hinge cam SMG DA66-90112C Contact Us For Availability

Refrigerator lamp cover SMG DA63-00813A Contact Us For Availability

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $1.69

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $1.69

DA31-00020H Samsung Refrigerator BLDC Compres Backorder SMG DA31-00020H $139.26

DA61-01603B Samsung Hinge Up Left Assembly Backorder SMG DA61-01603B $33.63

DA61-01797A Samsung Fixer Grommet Door Assemb Backorder SMG DA61-01797A $1.69

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $1.69

Refrigerator ice bin auger drum SMG DA31-20009A Contact Us For Availability

DA67-40250E Samsung Refrigerator Utility Tray Backorder SMG DA67-40250E $38.49

DA97-00696D Samsung Refrigerator Lower Door B Backorder SMG DA97-00696D $70.19

Refrigerator hinge cover SMG DA63-02261E Contact Us For Availability

Clamp-heli SMG DA65-00023A Contact Us For Availability

Refrigerator support SMG DA61-00244B Contact Us For Availability

Support-ci SMG DA61-00415A Contact Us For Availability

Refrigerator tapping screw SMG 6002-000601 Contact Us For Availability

19A

Refrigerator door hinge cover SMG DA63-02261M Contact Us For Availability

19B

Refrigerator door hinge cover SMG DA63-02261N Contact Us For Availability

DA66-30138A Samsung Refrigerator Dispenser Le Backorder SMG DA66-30138A $10.80

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $1.69

DA71-00090A Samsung Refrigerator Bottle Guide Backorder SMG DA71-00090A $7.55

DA74-40154F Samsung Refrigerator Solenoid Val Backorder SMG DA74-40154F $81.00

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $15.13

Fixer case SMG DA71-20270A Contact Us For Availability

Refrigerator case assembly SMG DA97-00370D Contact Us For Availability

6009-001252 Samsung Refrigerator Special Scre Backorder SMG 6009-001252 $1.69

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $1.69

DA63-00836D Samsung Refrigerator Dairy Guard Backorder SMG DA63-00836D $53.62

Refrigerator water supply tube cover SMG DA63-01275A Contact Us For Availability

Refrigerator ice container SMG DA63-00775D Contact Us For Availability

Amana refrigerator screw SMG 6002-001204 Contact Us For Availability

Refrigerator cover assembly SMG DA97-00724C Contact Us For Availability

21A

Refrigerator cover tube SMG DA63-01275B Contact Us For Availability

21B

Refrigerator cover tube SMG DA63-01275C Contact Us For Availability

DA63-00825A Samsung Refrigerator Dairy Bin Co Backorder SMG DA63-00825A $32.40

DA63-02262E Samsung Refrigerator Right Hinge Backorder SMG DA63-02262E $23.38

DA66-00034A Samsung Refrigerator Drain Water Backorder SMG DA66-00034A $25.38

Refrigerator water filter SMG DA29-00003A Contact Us For Availability

22A

DA63-02262M Samsung Refrigerator Hinge Cover Backorder SMG DA63-02262M $23.38

22B

Refrigerator door hinge cover SMG DA63-02262N Contact Us For Availability

DA63-00838B Samsung Refrigerator Low Guard B In Stock SMG DA63-00838B $19.90

Refrigerator door hinge SMG DA61-01604B Contact Us For Availability

Refrigerator turbo fan SMG DA31-00015C Contact Us For Availability

Fixer-air SMG DA61-00413A Contact Us For Availability

24

DA63-00837B Samsung Refrigerator Low Guard As Backorder SMG DA63-00837B $70.19

24

Refrigerator ice dispenser bucket seal SMG DA72-60315A Contact Us For Availability

24

Refrigerator lamp cover SMG DA63-00814B Contact Us For Availability

25

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $26.93

25

Refrigerator air freshener filter SMG DA02-90106K Contact Us For Availability

25

Refrigerator door case SMG DA97-00801J Contact Us For Availability

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $24.30

DA60-20008A Samsung Hex Bolt Backorder SMG DA60-20008A $3.97

DA63-00826A Samsung Refrigerator Door Recess Backorder SMG DA63-00826A $31.42

DA63-00855D Samsung Purifier Cover Assembly Backorder SMG DA63-00855D $7.55

Seal-pom SMG DA72-60313A Contact Us For Availability

DA61-00308A Samsung Refrigerator Case Door Re Backorder SMG DA61-00308A $52.22

DA71-20231A Samsung Refrigerator Fixer Guard Backorder SMG DA71-20231A $3.48

Backorder SMG DA73-30102B $22.40

Refrigerator air filter cover SMG DA63-00856C Contact Us For Availability

DA61-00775A Samsung Refrigerator Dispenser St Backorder SMG DA61-00775A $1.18

DA63-00991A Samsung Refrigerator Door Recess Backorder SMG DA63-00991A $1.69

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $311.21

Refrigerator freezer evaporator cover SMG DA63-00812B Contact Us For Availability

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $4.33

DA61-00565A Samsung Refrigerator Ice Route Co Backorder SMG DA61-00565A $2.70

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.04

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $4.33

Refrigerator water reservoir heater SMG DA47-00094C Contact Us For Availability

Refrigerator door case SMG DA61-00306B Contact Us For Availability

30

DA34-10003S Samsung Refrigerator Compressor O Backorder SMG DA34-10003S $45.16

30

DA63-10016A Samsung Refrigerator Dispenser Cr Backorder SMG DA63-10016A $33.63

30

Refrigerator cover bracket SMG DA63-00851B Contact Us For Availability

30A

DA63-00851C Samsung Refrigerator Cover Bracke Backorder SMG DA63-00851C $35.84

31

Refrigerator compressor start relay SMG DA35-10013Q Contact Us For Availability

31

Plate washer SMG DA60-40116A Contact Us For Availability

31

Gasket SMG DA63-00850B Contact Us For Availability

31A

DA63-00850C Samsung Refrigerator Home Bar Gas Backorder SMG DA63-00850C $50.48

31B

Gasket SMG DA63-00850D Contact Us For Availability

32

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $15.13

32

Home assembly SMG DA97-00547B Contact Us For Availability

32A

Home assembly SMG DA97-00547C Contact Us For Availability

32B

Home assembly SMG DA97-00547J Contact Us For Availability

33

DA39-00084D Samsung Refrigerator Relay Wire H Backorder SMG DA39-00084D $17.27

33

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $28.09

33

Refrigerator door switch cover SMG DA63-00219F Contact Us For Availability

34

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $160.09

34

DA60-10107A Samsung Screw Machine Backorder SMG DA60-10107A $2.70

34

Gasket SMG DA63-01100A Contact Us For Availability

34A

Gasket SMG DA63-01100C Contact Us For Availability

35

DA34-10121A Samsung Refrigerator Home Bar Doo Backorder SMG DA34-10121A $20.18

35

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

35

DA97-00555D Samsung Refrigerator Compressor C Backorder SMG DA97-00555D $126.64

36

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $152.48

36

DA60-10004A Samsung Hex Bolt Backorder SMG DA60-10004A $1.69

36

Refrigerator evaporator assembly SMG DA59-00233H Contact Us For Availability

37

DA60-90146A Samsung Refrigerator Caster Pin M Backorder SMG DA60-90146A $2.16

37

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

37

Refrigerator door foam assembly SMG NLA Contact Us For Availability

38

Refrigerator defrost bi-metal thermostat SMG DA47-10160H No Longer Available

38

DA61-40126B Samsung Refrigerator Rear Caster Backorder SMG DA61-40126B $3.24

38

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.69

39

Refrigerator tapping screw SMG 6002-000480 Contact Us For Availability

40

DA63-00713A Samsung Refrigerator Motor Cover Backorder SMG DA63-00713A $5.93

40

DA65-20110B Samsung Refrigerator Cable Clamp Backorder SMG DA65-20110B $4.55

41

DA31-00016A Samsung Evaporator Circuit Fan Bl Backorder SMG DA31-00016A $12.96

41

DA71-20208A Samsung Refrigerator Water Valve Backorder SMG DA71-20208A $1.69

41

Refrigerator evaporator drip pan heater SMG DA97-00111C Contact Us For Availability

42

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $1.18

42

DA62-00224B Samsung Refrigerator Check Valve Backorder SMG DA62-00224B $85.07

42

Refrigerator defrost drain trough heater SMG DA47-00090C Contact Us For Availability

43

DA61-00477A Samsung Refrigerator Drain Plate Backorder SMG DA61-00477A $31.42

43

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $1.69

44

Refrigerator freezer evaporator assembly SMG DA96-00021N Contact Us For Availability

44

Caster, front SMG DA61-00056A Contact Us For Availability

44

Seal-air r SMG DA62-00083A Contact Us For Availability

45

DA61-30102A Samsung Refrigerator Front Foot Backorder SMG DA61-30102A $13.62

45

DA62-00158A Samsung Evaporator Cover Seal Backorder SMG DA62-00158A $1.69

45

Multi-cover SMG DA63-02179A Contact Us For Availability

46

DA60-10122C Samsung Screw-HEX;HH,-,-,-,M5,L16 Backorder SMG DA60-10122C $1.69

46

Refrigerator insulation SMG DA62-00761A Contact Us For Availability

46

Refrigerator lamp holder SMG DA47-00112B Contact Us For Availability

47

DA60-90124A Samsung Rivet Backorder SMG DA60-90124A $1.69

47

Refrigerator insulation SMG DA62-00762A Contact Us For Availability

48

Caster, front SMG DA61-40115A Contact Us For Availability

48

Refrigerator spacer evaporator SMG DA60-00041A Contact Us For Availability

49

DA32-10105R Samsung Refrigerator Defrost Temp In Stock SMG DA32-10105R $36.44

49

DA39-20389E Samsung Refrigerator Earth Wire H Backorder SMG DA39-20389E $1.69

50

DA47-00095E Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00095E $30.02

51

DA61-00453A Samsung Refrigerator Ice Maker Se Backorder SMG DA61-00453A $1.69

52

Refrigerator evaporator SMG DA59-00234H Contact Us For Availability

53

DA61-00299C Samsung Refrigerator Basket Rail Backorder SMG DA61-00299C $9.94

54

Refrigerator crisper drawer slide rail SMG DA97-00730G Contact Us For Availability

55

Refrigerator basket rail assembly SMG DA61-00298C Contact Us For Availability

56

Refrigerator crisper drawer slide rail SMG DA97-00731G Contact Us For Availability

57

Grommet SMG DA63-00202A Contact Us For Availability

58

Refrigerator wine rack SMG DA67-00145B Contact Us For Availability

NI

See note (qty 12) screw-tapping currently SMG 00000000 Contact Us For Availability
