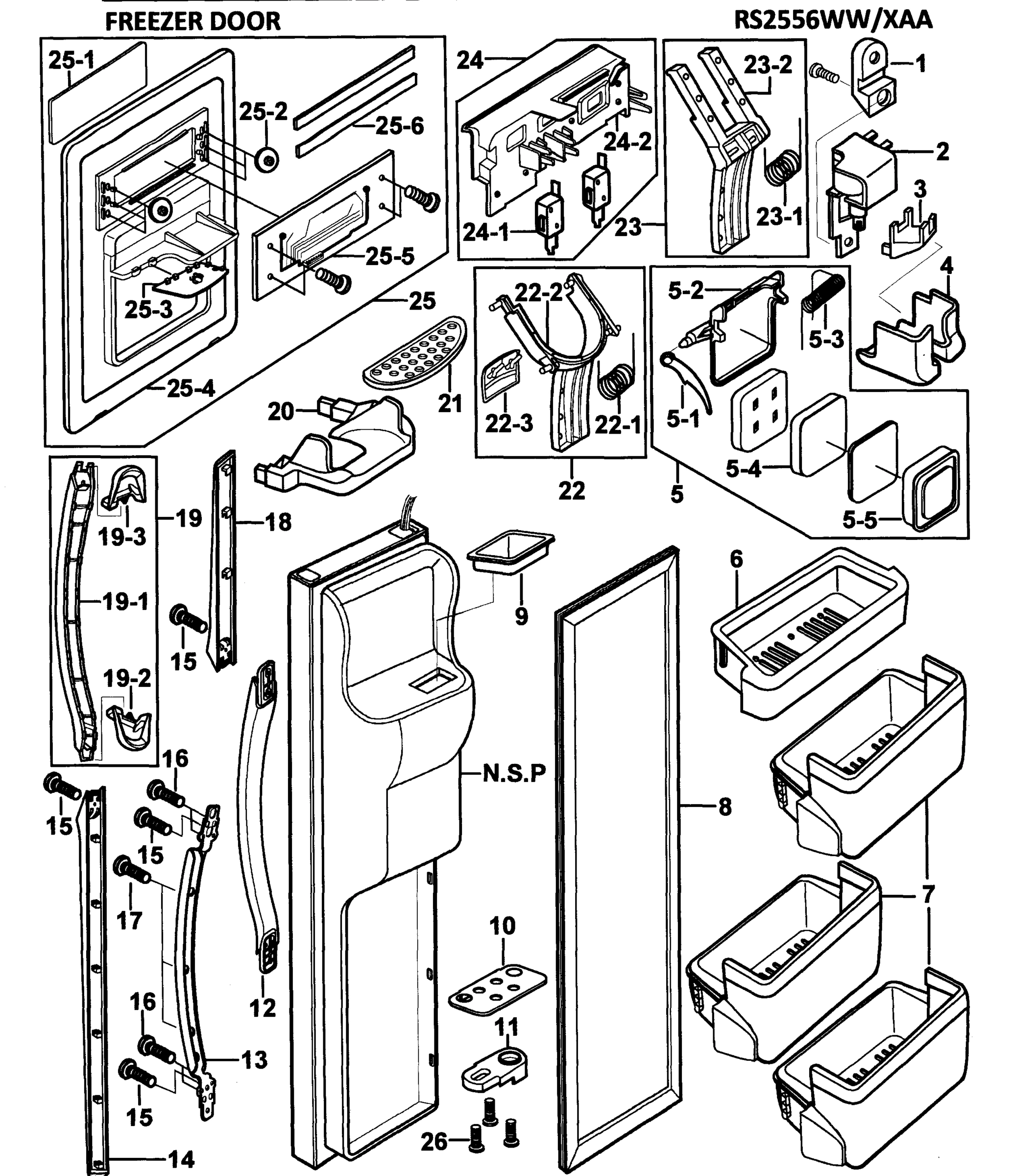

Samsung RS2556WW/XAA-00 Refrigerator Parts List

1

Refrigerator Ice Maker Support SMG DA61-02205A Contact Us For Availability

View on Model

1

Refrigerator Water Inlet Valve Grommet SMG DA63-02928A Contact Us For Availability

View on Model

2

DA74-40154F Samsung Refrigerator Solenoid Val Backorder SMG DA74-40154F $85.31

View on Model

2

Refrigerator door bin SMG DA97-01824A Contact Us For Availability

View on Model

2

Refrigerator Ice Maker Water Fill Tube Assemb SMG DA97-04501R Contact Us For Availability

View on Model

3

DA97-00258J Samsung Refrigerator Icemaker Ass Backorder SMG DA97-00258J $215.39

View on Model

3

Refrigerator Machine Compartment Cover SMG DA63-01135A Contact Us For Availability

View on Model

3-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $3.07

View on Model

3-2

DA63-01453B Samsung Refrigerator Ice Tray Ass In Stock SMG DA63-01453B $9.50

View on Model

4

DA97-04567D Samsung Refrigerator Door Gasket Backorder SMG DA97-04567D $135.85

View on Model

4

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

View on Model

4

Refrigerator Ice Bucket SMG DA97-00685S Contact Us For Availability

View on Model

4-1

DA63-02236A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-02236A $7.47

View on Model

4-2

Refrigerator Ice Cover SMG DA63-00777E Contact Us For Availability

View on Model

4-3

Refrigerator Cube Lever SMG DA66-00140E Contact Us For Availability

View on Model

4-4

DA61-20139A Samsung Ice Maker Spring Assembly Backorder SMG DA61-20139A $5.85

View on Model

4-5

DA61-20124A Samsung Dispenser Spring Assembly Backorder SMG DA61-20124A $5.33

View on Model

4-7

DA71-70003B Samsung Ice Dispenser Guide Backorder SMG DA71-70003B $6.96

View on Model

4-8

Refrigerator Ice Dispenser Bucket Seal SMG DA72-60315A Contact Us For Availability

View on Model

4-9

DA60-00231A Samsung Refrigerator Fastener Rin Backorder SMG DA60-00231A $8.38

View on Model

4-10

6031-002007 Samsung Refrigerator Plain Backorder SMG 6031-002007 $94.78

View on Model

4-11

Refrigerator Ice Dispenser Blade Cover SMG DA63-10016B Contact Us For Availability

View on Model

4-12

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $4.48

View on Model

4-13

DA60-90136A Samsung Refrigerator Spiral Pin Backorder SMG DA60-90136A $4.98

View on Model

4-14

DA71-20231A Samsung Refrigerator Fixer Guard Backorder SMG DA71-20231A $3.48

View on Model

4-15

Bucket Plate SMG DA70-00394A Contact Us For Availability

View on Model

4-16

Refrigerator Ice Bin Auger Drum SMG DA31-20009B Contact Us For Availability

View on Model

4-17

DA66-30138A Samsung Refrigerator Dispenser Le Backorder SMG DA66-30138A $10.80

View on Model

4-18

Refrigerator Ice Container SMG DA63-00775D Contact Us For Availability

View on Model

4-19

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $1.18

View on Model

5

Refrigerator ice route cover assembly SMG DA97-01437C Contact Us For Availability

View on Model

5

Refrigerator Shelf Assembly SMG DA97-00698F Contact Us For Availability

View on Model

5

PCB Case SMG DA61-00261C Contact Us For Availability

View on Model

5-1

DA61-00775A Samsung Refrigerator Dispenser St Backorder SMG DA61-00775A $1.18

View on Model

5-1

DA67-00766D Samsung Refrigerator Mid Wire She Backorder SMG DA67-00766D $51.32

View on Model

5-3

DA61-00565A Samsung Refrigerator Ice Route Co Backorder SMG DA61-00565A $2.66

View on Model

6

Refrigerator Run Capacitor SMG 2501-001045 Contact Us For Availability

View on Model

6

Refrigerator Crisper Drawer Assembly SMG DA97-00144P Contact Us For Availability

View on Model

6

Refrigerator Basket SMG DA97-05969B Contact Us For Availability

View on Model

6-1

Refrigerator Freezer Basket Trim SMG DA63-01290C Contact Us For Availability

View on Model

6-2

Refrigerator Freezer Wire Basket, Upper SMG DA61-00777D Contact Us For Availability

View on Model

7

DA63-00865C Samsung Refrigerator Low Veg Cove Backorder SMG DA63-00865C $38.05

View on Model

7

Refrigerator Lower Basket SMG DA97-05967B Contact Us For Availability

View on Model

7

Refrigerator Power Control Board Assembly SMG DA41-00104V Contact Us For Availability

View on Model

8

DA27-00002A Samsung Refrigerator Coil Assembl Backorder SMG DA27-00002A $98.98

View on Model

8

DA97-04567C Samsung Refrigerator Freezer Door Backorder SMG DA97-04567C $145.22

View on Model

8

Cool Cover SMG DA63-00784D Contact Us For Availability

View on Model

9

DA63-00783A Samsung Refrigerator Cover PCB Pa Backorder SMG DA63-00783A $106.78

View on Model

9

Refrigerator Auger Motor SMG DA97-02134P Contact Us For Availability

View on Model

9-1

Refrigerator Ice Maker Auger Motor Assembly SMG DA61-00262E Contact Us For Availability

View on Model

9-2

Refrigerator Special Screw SMG DA60-00001A Contact Us For Availability

View on Model

9-3

DA61-00239A Samsung Auger Motor Case Support Backorder SMG DA61-00239A $21.39

View on Model

9-4

Refrigerator Lamp Cover SMG DA63-00785A Contact Us For Availability

View on Model

9-5

DA71-00163A Samsung Refrigerator Nut Fixer Backorder SMG DA71-00163A $14.90

View on Model

9-6

DA70-20017A Samsung Refrigerator Auger Dispen Backorder SMG DA70-20017A $26.63

View on Model

9-7

DA73-00168A Samsung Refrigerator Solenoid Rub Backorder SMG DA73-00168A $8.08

View on Model

9-8

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $208.93

View on Model

9-9

Refrigerator Motor Cover SMG DA63-00793B Contact Us For Availability

View on Model

9-10

Refrigerator Lamp Holder SMG DA47-00112A Contact Us For Availability

View on Model

9-11

Refrigerator Incandescent Lamp SMG 4713-001197 Contact Us For Availability

View on Model

9-12

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

View on Model

9-13

DA72-60348A Samsung Foam Seal PE Backorder SMG DA72-60348A $1.69

View on Model

9-14

Refrigerator Spring Pin SMG DA60-90137A Contact Us For Availability

View on Model

9-15

DA63-90008A Samsung Refrigerator Solenoid Bus Backorder SMG DA63-90008A $4.25

View on Model

9-16

DA61-20140A Samsung Refrigerator Solenoid Spr Backorder SMG DA61-20140A $2.14

View on Model

9-17

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $1.18

View on Model

9-18

DA60-90137B Samsung Refrigerator Spring Pin A Backorder SMG DA60-90137B $2.01

View on Model

9-19

DA65-20107A Samsung Refrigerator Solenoid Sad Backorder SMG DA65-20107A $2.49

View on Model

9-20

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $1.18

View on Model

9-21

DA96-00036A Samsung Assembly Harness Em Backorder SMG DA96-00036A $39.39

View on Model

10

DA67-00763B Samsung Refrigerator Top Cool Par Backorder SMG DA67-00763B $49.68

View on Model

10

Refrigerator Dryer SMG DA62-01514A Contact Us For Availability

View on Model

11

DA60-20008A Samsung Hex Bolt Backorder SMG DA60-20008A $3.97

View on Model

11

DA66-01666A Samsung Cam Riser-Up;rr7000, Pa66 In Stock SMG DA66-01666A $5.59

View on Model

11

DA97-02006A Samsung Refrigerator Multi Dispen Backorder SMG DA97-02006A $103.07

View on Model

11-2

DA32-10109W Samsung Refrigerator Temperature In Stock SMG DA32-10109W $23.71

View on Model

11-2

Refrigerator Pantry Power Control Board SMG DA41-00108A Contact Us For Availability

View on Model

11-3

DA63-02181A Samsung Refrigerator Multi-Fre Di Backorder SMG DA63-02181A $40.70

View on Model

11-4

DA32-10109X Samsung Refrigerator Temperature Backorder SMG DA32-10109X $28.61

View on Model

11-4

DA62-00168A Samsung Sensor Seal - Dispenser Backorder SMG DA62-00168A $2.00

View on Model

11-5

Refrigerator Guide SMG DA61-00495D Contact Us For Availability

View on Model

12

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

View on Model

12

DA67-40250E Samsung Refrigerator Utility Tray Backorder SMG DA67-40250E $38.49

View on Model

12

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $311.21

View on Model

13

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $4.25

View on Model

13

Refrigerator Crisper Drawer Slide Rail SMG DA97-00731K Contact Us For Availability

View on Model

13-1

DA63-02079A Samsung Refrigerator Top Rail Gro Backorder SMG DA63-02079A $1.18

View on Model

14

DA39-00084D Samsung Refrigerator Relay Wire H Backorder SMG DA39-00084D $17.04

View on Model

14

DA97-00730K Samsung Refrigerator Top Basket R Backorder SMG DA97-00730K $28.32

View on Model

14

Refrigerator Fresh Food Evaporator Cover Asse SMG DA97-05369E Contact Us For Availability

View on Model

14-1

Refrigerator Freezer Evaporator Cover SMG DA63-00812B Contact Us For Availability

View on Model

14-2

DA47-00200C Samsung Refrigerator Water Tank H Backorder SMG DA47-00200C $56.12

View on Model

14-6

DA31-00016A Samsung Evaporator Circuit Fan Bl Backorder SMG DA31-00016A $12.78

View on Model

15

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

View on Model

15

Refrigerator Evaporator Cover SMG DA97-05040D Contact Us For Availability

View on Model

15-1

DA63-00797D Samsung Refrigerator Evaporator C Backorder SMG DA63-00797D $52.24

View on Model

15-2

DA61-00412B Samsung Guide Air Filter Assembly Backorder SMG DA61-00412B $3.53

View on Model

15-3

Air Plate SMG DA61-00410A Contact Us For Availability

View on Model

15-4

DA62-00077C Samsung Refrigerator Duct Seal Backorder SMG DA62-00077C $28.36

View on Model

15-5

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $25.15

View on Model

15-6

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $27.68

View on Model

15-8

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $157.81

View on Model

16

DA35-00099G Samsung Refrigerator PTC Relay In Stock SMG DA35-00099G $24.61

View on Model

16

DA96-00627G Samsung Refrigerator Evaporator A Backorder SMG DA96-00627G $298.05

View on Model

16

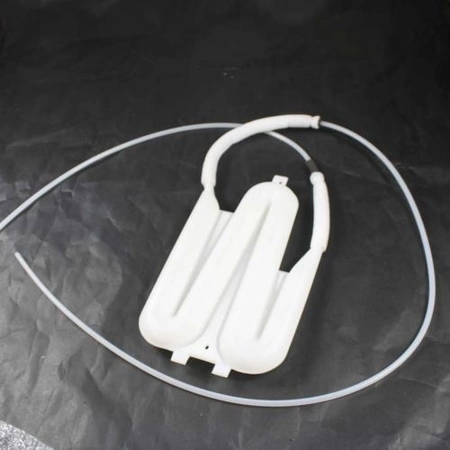

DA97-00670F Samsung Water Tank Assembly Refri Backorder SMG DA97-00670F $129.88

View on Model

17

DA34-10003S Samsung Refrigerator Compressor O Backorder SMG DA34-10003S $44.51

View on Model

17

Refrigerator Evaporator Drip Pan Heater SMG DA97-00111C Contact Us For Availability

View on Model

18

DA62-01269A Samsung Tube PVC Backorder SMG DA62-01269A $3.20

View on Model

18

Plate Evaporator SMG DA61-00827A Contact Us For Availability

View on Model

18-2

DA02-90106R Samsung Refrigerator Catalyst LTC Backorder SMG DA02-90106R $28.74

View on Model

19

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

20

DA61-01587A Samsung Refrigerator Dispenser Gu Backorder SMG DA61-01587A $9.09

View on Model

20

DA96-00626H Samsung Refrigerator Evaporator A Backorder SMG DA96-00626H $268.23

View on Model

20

Refrigerator Hex Screw SMG 6009-001255 Contact Us For Availability

View on Model

20-1

DA47-00301F Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301F $29.50

View on Model

20-2

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

View on Model

21

DA63-00843E Samsung Refrigerator Dispenser Tr Backorder SMG DA63-00843E $6.39

View on Model

21

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

View on Model

21

DA67-01311B Samsung Refrigerator Shelf GlassU Backorder SMG DA67-01311B $109.60

View on Model

22

DA97-01396F Samsung Fold Shelf Assembly Backorder SMG DA97-01396F $138.41

View on Model

22

DA97-03811B Samsung Refrigerator Upper Right Backorder SMG DA97-03811B $28.73

View on Model

23

DA67-00687B Samsung Refrigerator Low Shelf Backorder SMG DA67-00687B $70.12

View on Model

23

Refrigerator Hinge Cover SMG DA63-02995E Contact Us For Availability

View on Model

24

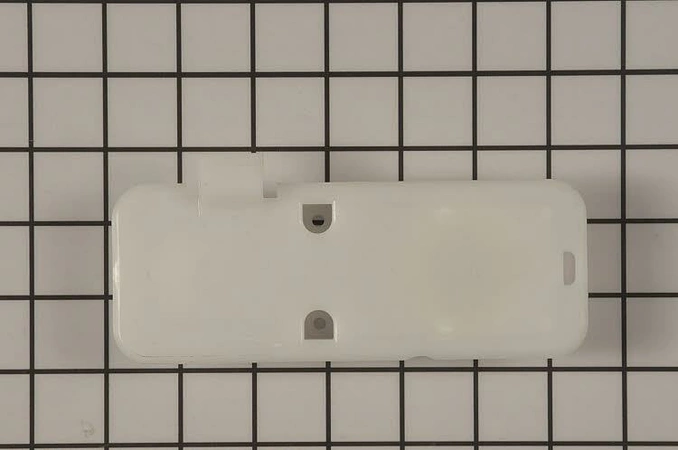

DA63-01275E Samsung Cover Tube Water Backorder SMG DA63-01275E $3.53

View on Model

25

DA97-03808B Samsung Refrigerator Upper Left H Backorder SMG DA97-03808B $27.83

View on Model

26

Refrigerator Hinge Cover SMG DA63-02994Y Contact Us For Availability

View on Model

27

Refrigerator Water Inlet Valve SMG DA74-40150H Contact Us For Availability

View on Model

28

DA60-30104A Samsung Refrigerator Water Line N Backorder SMG DA60-30104A $2.14

View on Model

29

DA60-30105A Samsung Refrigerator Water Line N Backorder SMG DA60-30105A $1.60

View on Model

30

DA97-01760G Samsung Refrigerator Low Hinge As Backorder SMG DA97-01760G $64.98

View on Model

30-1

6003-001435 Samsung Refrigerator Screw, Tap T Backorder SMG 6003-001435 $1.69

View on Model

30-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.69

View on Model

30-3

6021-001125 Samsung Refrigerator Hexagon Nut Backorder SMG 6021-001125 $3.74

View on Model

30-4

Refrigerator Low Hinge SMG DA61-01607C Contact Us For Availability

View on Model

30-5

Refrigerator Hinge Shim SMG DA63-50207D Contact Us For Availability

View on Model

31

DA97-01763D Samsung Refrigerator Low Hinge As Backorder SMG DA97-01763D $30.53

View on Model

32

Refrigerator Hinge Bracket SMG DA61-00419E Contact Us For Availability

View on Model

33

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.45

View on Model

34

Refrigerator Leg Cover SMG DA63-01968Q Contact Us For Availability

View on Model

35

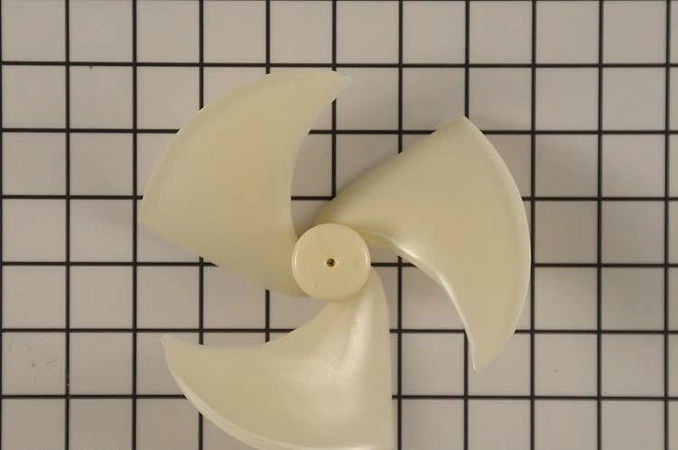

DA31-00010F Samsung Refrigerator 3-Wing Fan A Backorder SMG DA31-00010F $8.95

View on Model

35-1

Refrigerator Turbo Fan SMG DA31-00015C Contact Us For Availability

View on Model

35-2

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $1.18

View on Model

36

DA97-01285R Samsung Refrigerator Drain Water Backorder SMG DA97-01285R $159.33

View on Model

36-1

6009-001252 Samsung Refrigerator Special Scre Backorder SMG 6009-001252 $1.60

View on Model

36-2

DA66-00034B Samsung Water Drain Tray Backorder SMG DA66-00034B $20.18

View on Model

36-3

Refrigerator Cable Tie SMG 6501-000122 Contact Us For Availability

View on Model

36-4

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $14.90

View on Model

36-5

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $137.35

View on Model

36-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

View on Model

36-7

Support-ci SMG DA61-00415A Contact Us For Availability

View on Model

36-8

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.60

View on Model

36-9

DA63-40171B Samsung Refrigerator Suction Pipe Backorder SMG DA63-40171B $3.20

View on Model

37

DA97-00555D Samsung Refrigerator Compressor C Backorder SMG DA97-00555D $126.64

View on Model

38

Refrigerator Roller SMG DA61-40115B Contact Us For Availability

View on Model

39

Clamp-cabl SMG 6502-000112 Contact Us For Availability

View on Model

40

DA62-01628A Samsung Refrigerator Check Valve Backorder SMG DA62-01628A $67.09

View on Model

1510

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $157.57

View on Model

3610

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.53

View on Model

NI

Samsung Refrigerator Water Filter SMG DA29-00003G Contact Us For Availability

View on Model

Model Samsung RS2556WW/XAA-00 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RS2556WW/XAA-00 Refrigerator

Search result for :

Help

Customer Service

Company

Model Samsung RS2556WW/XAA-00 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RS2556WW/XAA-00 Refrigerator

Search result for :

Be the First to Know

Help

Customer Service

Company
