Model Samsung RM257ACBP/XAA-00 Refrigerator – Common Parts &amp; Diagrams

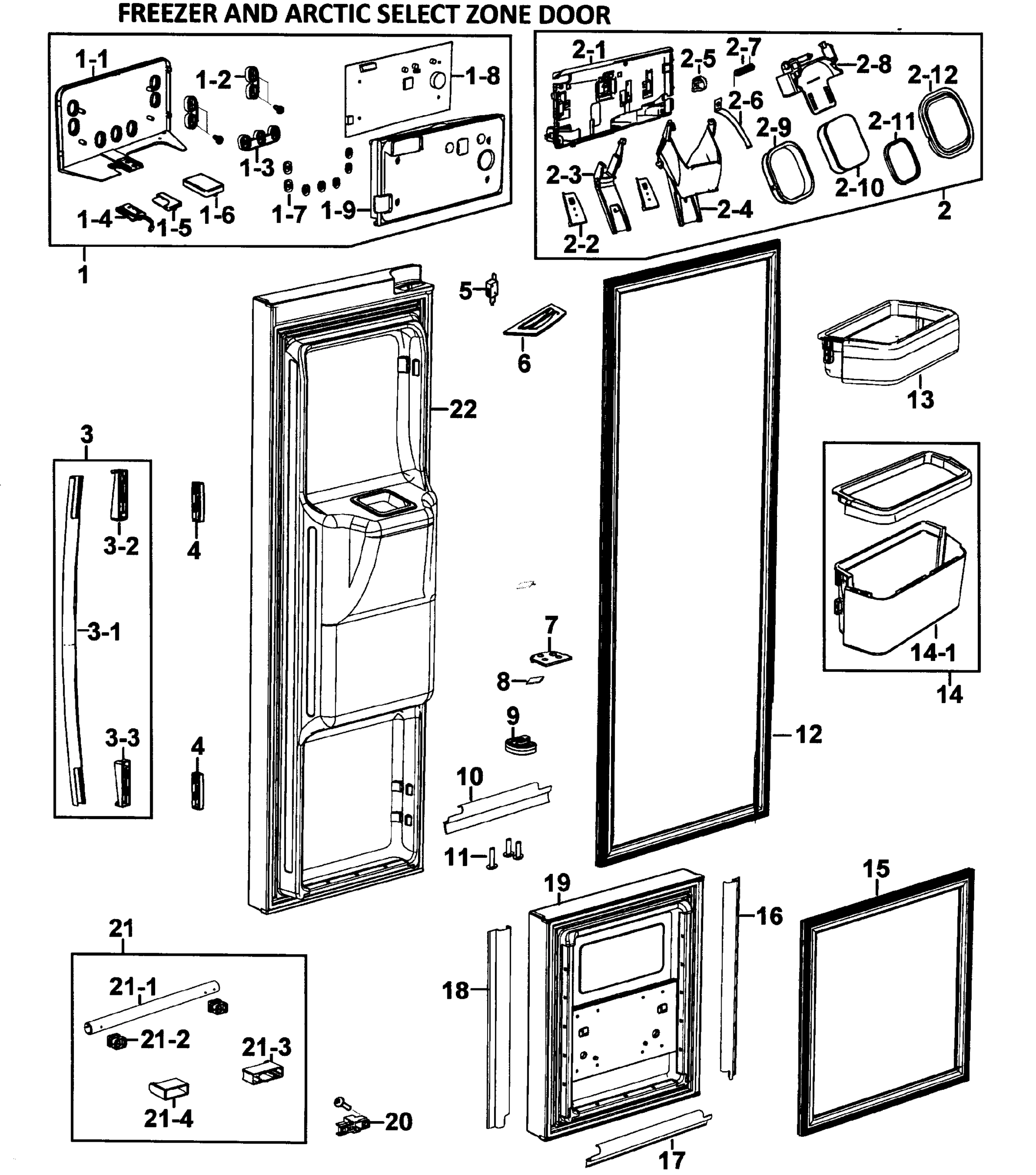

1

Refrigerator dispenser cover SMG DA97-05115F Contact Us For Availability

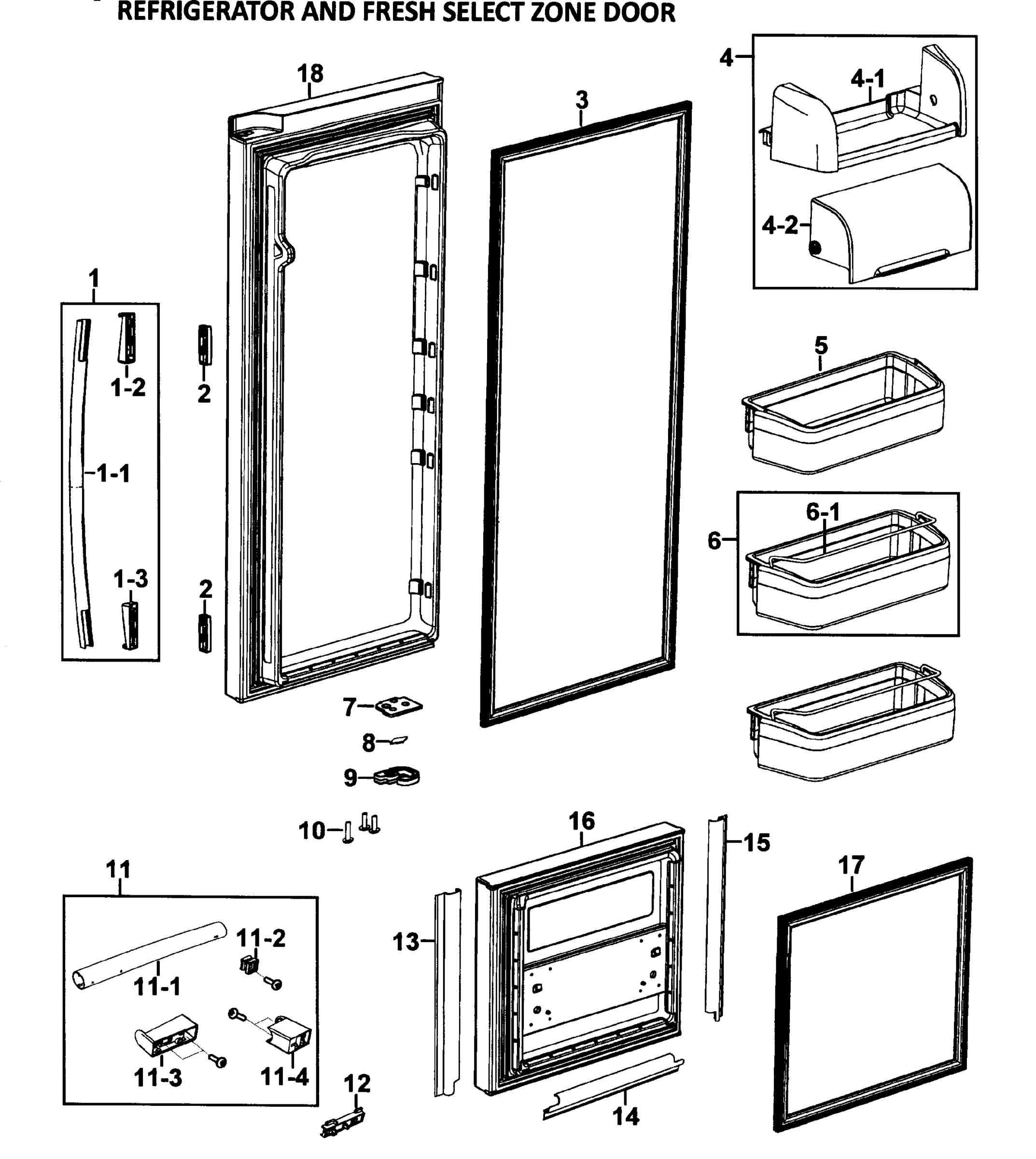

1

Refrigerator handle bar SMG DA97-04417H Contact Us For Availability

1-1

DA64-01979A Samsung Refrigerator Bar Handle Backorder SMG DA64-01979A $93.91

1-1

Refrigerator cover SMG DA63-03671A Contact Us For Availability

1-2

Refrigerator grommet SMG DA63-03675A Contact Us For Availability

1-2

Refrigerator handle cap SMG DA67-01527G Contact Us For Availability

1-3

Refrigerator grommet SMG DA63-03674A Contact Us For Availability

1-3

Refrigerator handle cap SMG DA67-01528G Contact Us For Availability

1-4

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $46.41

1-5

DA63-03914A Samsung Gasket-Lamp PCB;AD,SILICO Backorder SMG DA63-03914A $3.53

1-6

Refrigerator lamp cap SMG DA67-01706A Contact Us For Availability

1-7

Refrigerator button SMG DA64-02038A Contact Us For Availability

1-8

Refrigerator dispenser control board and pane SMG DA41-00447A Contact Us For Availability

1-9

DA63-03670A Samsung Refrigerator Cover PCB Pa Backorder SMG DA63-03670A $8.46

2

Pcb panel cover assembly, rear SMG DA97-05114J Contact Us For Availability

2

Refrigerator Shelf SMG DA67-01372A Contact Us For Availability

2-1

Refrigerator dispenser electronic control boa SMG DA63-03668A Contact Us For Availability

2-2

DA66-00352A Samsung Refrigerator Dispenser Le Backorder SMG DA66-00352A $13.44

2-3

Refrigerator dispenser lever SMG DA66-00354A Contact Us For Availability

2-4

DA63-02284B Samsung Refrigerator Ice Cube Tra Backorder SMG DA63-02284B $30.17

2-4

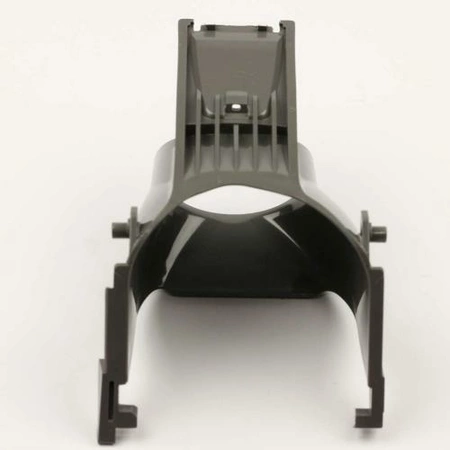

DA66-00365A Samsung Refrigerator Ice Dispense Backorder SMG DA66-00365A $8.46

2-5

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $35.66

2-5

DA61-01869A Samsung Refrigerator Oil Damper Backorder SMG DA61-01869A $15.98

2-6

DA61-01616A Samsung SPRING ETC-LEVER DISP WAT Backorder SMG DA61-01616A $2.14

2-6

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $3.07

2-7

DA61-00954B Samsung Refrigerator Full Ice Gui In Stock SMG DA61-00954B $2.79

2-7

DA61-01651A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01651A $4.79

2-8

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $181.86

2-8

DA63-01970A Samsung Refrigerator Ice Route Co Backorder SMG DA63-01970A $5.85

2-9

DA63-01971B Samsung Ice Route Cover Assembly Backorder SMG DA63-01971B $4.25

2-10

DA62-00058E Samsung Seal Cover Ice Route Backorder SMG DA62-00058E $2.01

2-11

DA62-00058F Samsung Refrigerator Ice Route Co Backorder SMG DA62-00058F $1.69

2-12

DA63-01972A Samsung Refrigerator Gasket Cover Backorder SMG DA63-01972A $17.81

3

DA71-20267A Samsung Refrigerator Upper Hinge Backorder SMG DA71-20267A $10.09

3

DA97-04567R Samsung Assembly-Gasket DOOR REF; Backorder SMG DA97-04567R $92.17

3

Refrigerator Shelf Assembly SMG DA97-03645A Contact Us For Availability

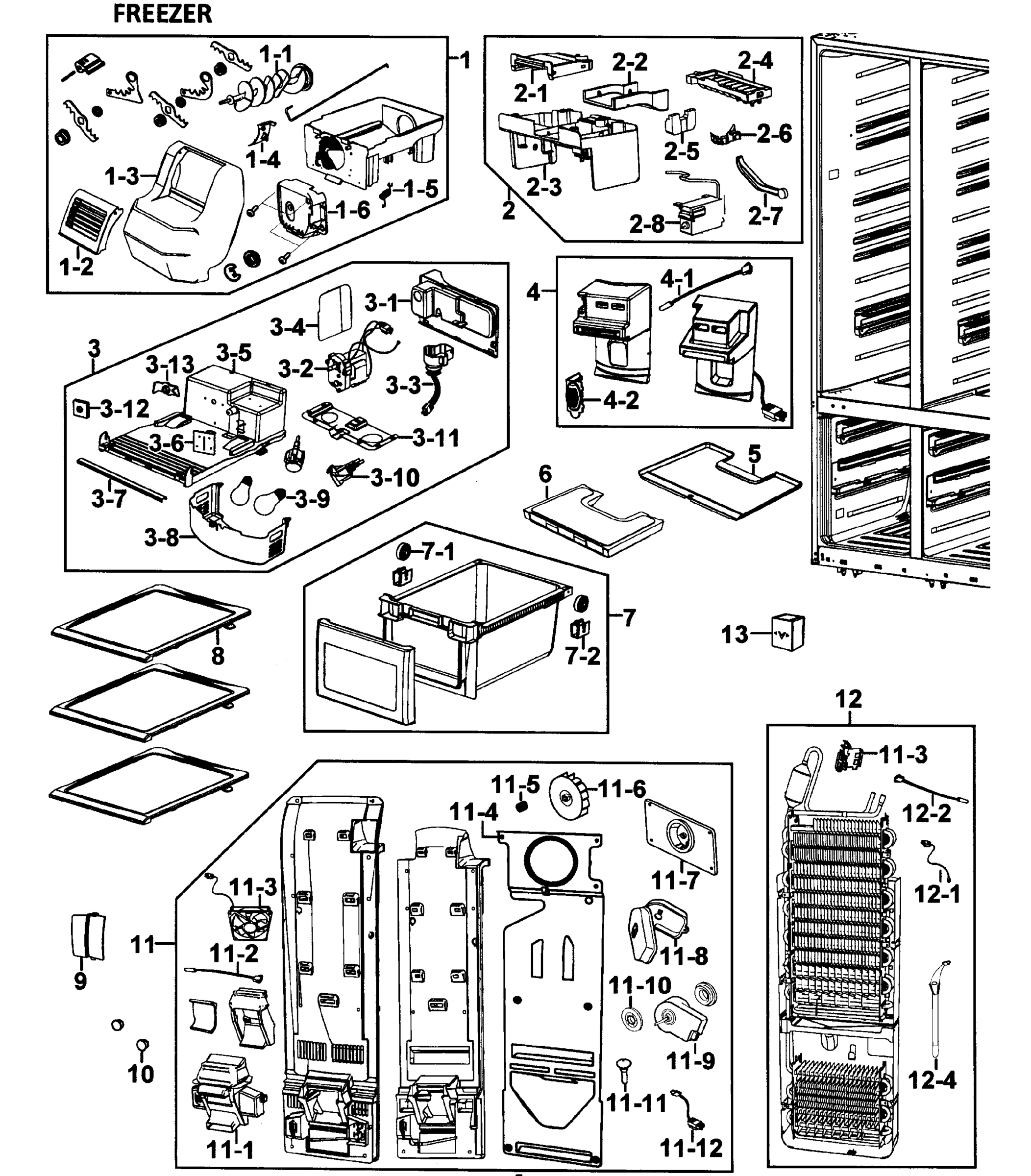

3-1

Cover-auge SMG DA63-02736A Contact Us For Availability

3-2

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $208.93

3-3

Refrigerator Cover Assembly SMG DA97-02120B Contact Us For Availability

3-4

Refrigerator Partition SMG DA67-01305A Contact Us For Availability

3-5

Case Auger SMG DA61-02412A Contact Us For Availability

3-6

DA73-00168A Samsung Refrigerator Solenoid Rub Backorder SMG DA73-00168A $8.08

3-7

DA61-00239A Samsung Auger Motor Case Support Backorder SMG DA61-00239A $21.39

3-8

DA63-02735A Samsung Refrigerator Lamp Cover D Backorder SMG DA63-02735A $16.92

3-9

Refrigerator Light Bulb SMG 4713-001172 Contact Us For Availability

3-11

DA61-02409A Samsung Lamp Plate Assembly Backorder SMG DA61-02409A $7.97

3-12

DA71-00163A Samsung Refrigerator Nut Fixer Backorder SMG DA71-00163A $14.90

4

DA61-02984A Samsung Refrigerator Handle Fixer In Stock SMG DA61-02984A $6.08

4

DA97-03130B Samsung Assembly Multi Cover, Backorder SMG DA97-03130B $90.08

4

Refrigerator freezer door bin SMG DA97-03100A Contact Us For Availability

4

Low Shelf SMG DA67-01283B Contact Us For Availability

4-1

DA32-10105C Samsung Refrigerator Temperature Backorder SMG DA32-10105C $17.41

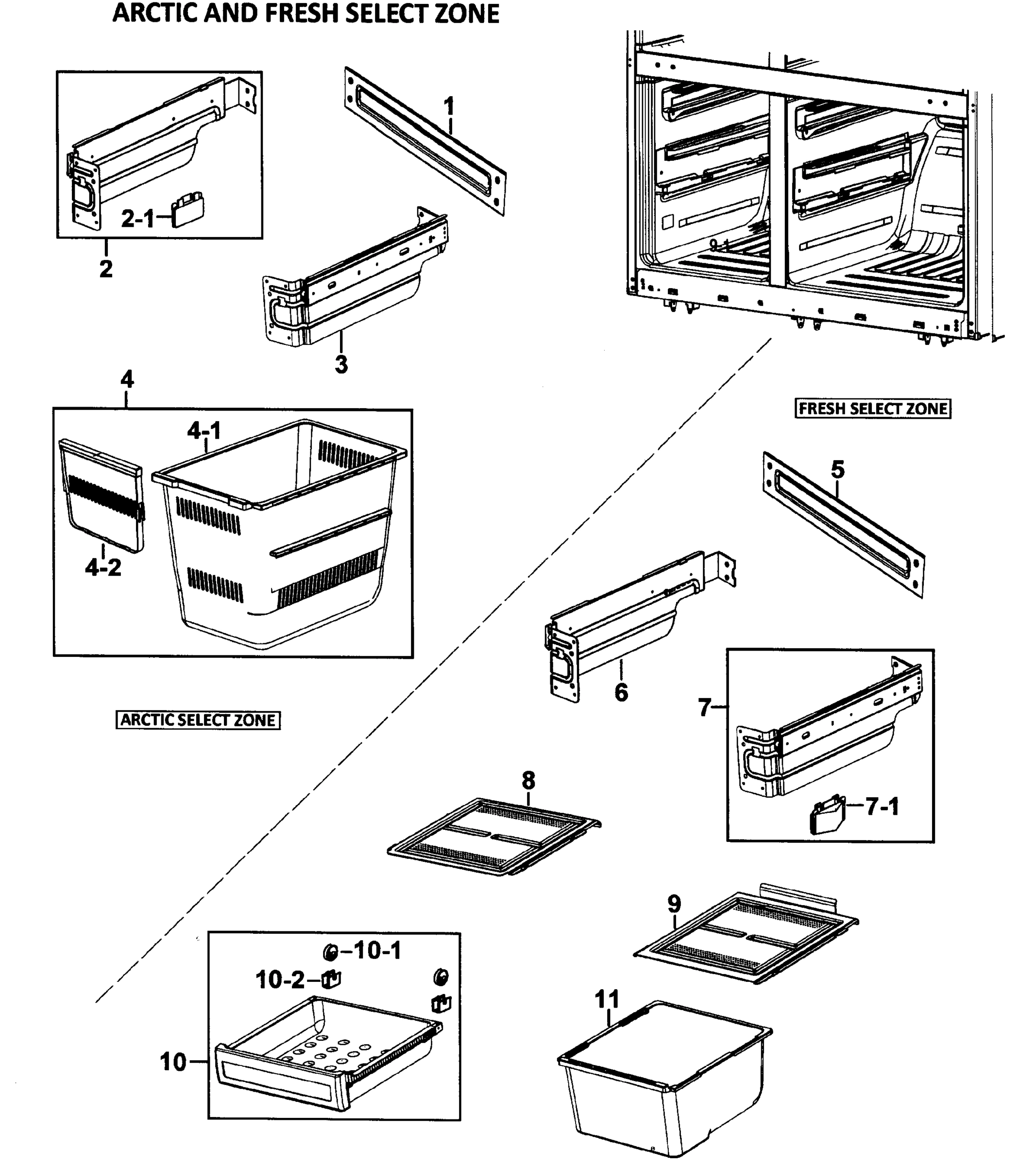

4-1

Guard-dair SMG DA63-02689A Contact Us For Availability

4-2

Cover-sens SMG DA63-02714B Contact Us For Availability

4-2

Refrigerator dairy bin cover SMG DA63-02690A Contact Us For Availability

5

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $17.88

5

DA97-03098A Samsung Refrigerator Guard Assemb Backorder SMG DA97-03098A $71.49

5

Cover Part SMG DA63-02708A Contact Us For Availability

5

Refrigerator Lamp Cover SMG DA63-02710A Contact Us For Availability

6

Refrigerator Partition SMG DA97-03135C Contact Us For Availability

6

Tray-dispe SMG DA63-03669C Contact Us For Availability

6

Refrigerator Lamp Cover SMG DA63-02711A Contact Us For Availability

6

Refrigerator guard assembly SMG DA97-03562B Contact Us For Availability

6-1

Refrigerator bottle guide SMG DA61-02537B Contact Us For Availability

7

DA97-03149A Samsung Refrigerator Upper Hinge Backorder SMG DA97-03149A $35.04

7

Refrigerator Freezer Drawer Assembly SMG DA97-02944A Contact Us For Availability

7

Refrigerator door stopper SMG DA61-02373B Contact Us For Availability

7

Refrigerator Incandescent Lamp SMG 4713-001206 Contact Us For Availability

7-2

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.60

8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

8

Refrigerator Shelf Assembly SMG DA97-02955A Contact Us For Availability

8

Multi-Cover SMG DA97-03131C Contact Us For Availability

8-1

Refrigerator Lamp Holder SMG DA47-40001D Contact Us For Availability

8-2

Refrigerator Lamp Plate SMG DA61-02375A Contact Us For Availability

9

DA61-15273A Samsung Refrigerator Door Close S Backorder SMG DA61-15273A $8.38

9

Refrigerator Freezer Diffuser Panel Cover SMG DA63-02701A Contact Us For Availability

9

Refrigerator Cover Assembly SMG DA97-03116A Contact Us For Availability

9-1

DA32-10105U Samsung Refrigerator Temperature In Stock SMG DA32-10105U $19.00

9-2

Cover Sensor SMG DA63-02713A Contact Us For Availability

10

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $1.18

10

Gasket-sub SMG DA63-02724B Contact Us For Availability

10

Refrigerator Cover Assembly SMG DA97-03134B Contact Us For Availability

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.69

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

DA97-03114M Samsung Refrigerator Evaporator C Backorder SMG DA97-03114M $331.35

Assy Parti SMG DA97-03136B Contact Us For Availability

Refrigerator handle bar SMG DA97-05123C Contact Us For Availability

11-1

Cover-evap SMG DA63-02911B Contact Us For Availability

11-1

Refrigerator handle bar SMG DA64-02174C Contact Us For Availability

11-3

Refrigerator Evaporator Fan Motor Assembly SMG DA31-00125A Contact Us For Availability

11-3

Refrigerator freezer door handle end cap, rig SMG DA67-01710C Contact Us For Availability

11-4

Plate Insert SMG DA61-02369A Contact Us For Availability

11-4

Refrigerator handle cap SMG DA67-01708C Contact Us For Availability

11-6

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $25.15

DA97-02432E Samsung Refrigerator Water Tank A Backorder SMG DA97-02432E $116.54

DA97-04567Q Samsung Refrigerator Door Gasket Backorder SMG DA97-04567Q $100.51

Refrigerator Evaporator Assembly SMG DA97-03153W Contact Us For Availability

Refrigerator handle SMG DA61-03485A Contact Us For Availability

12-4

Refrigerator Drain Tube SMG DA97-03241A Contact Us For Availability

13

DA63-02727A Samsung Refrigerator Gasket Sub-C Backorder SMG DA63-02727A $19.90

13

DA97-02943B Samsung Vegetable Case Assembly Backorder SMG DA97-02943B $147.72

13

DA97-03099A Samsung Refrigerator Upper Guard Backorder SMG DA97-03099A $49.56

13-1

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $6.71

13-3

DA64-00817A Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817A $12.78

13-4

Case-veg,r SMG DA61-02326B Contact Us For Availability

14

DA63-02707A Samsung Purifier Cover Assembly Backorder SMG DA63-02707A $2.00

14

DA63-02725A Samsung Low Subconventional Gaske Backorder SMG DA63-02725A $17.41

14

Refrigerator low guard SMG DA97-05116A Contact Us For Availability

14-1

DA63-03672A Samsung Refrigerator Lower Freeze Backorder SMG DA63-03672A $48.50

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

DA97-04567S Samsung Door Gasket Assembly Backorder SMG DA97-04567S $64.83

Gasket-sub SMG DA63-02726A Contact Us For Availability

Refrigerator Evaporator Cover Assembly SMG DA97-03113D Contact Us For Availability

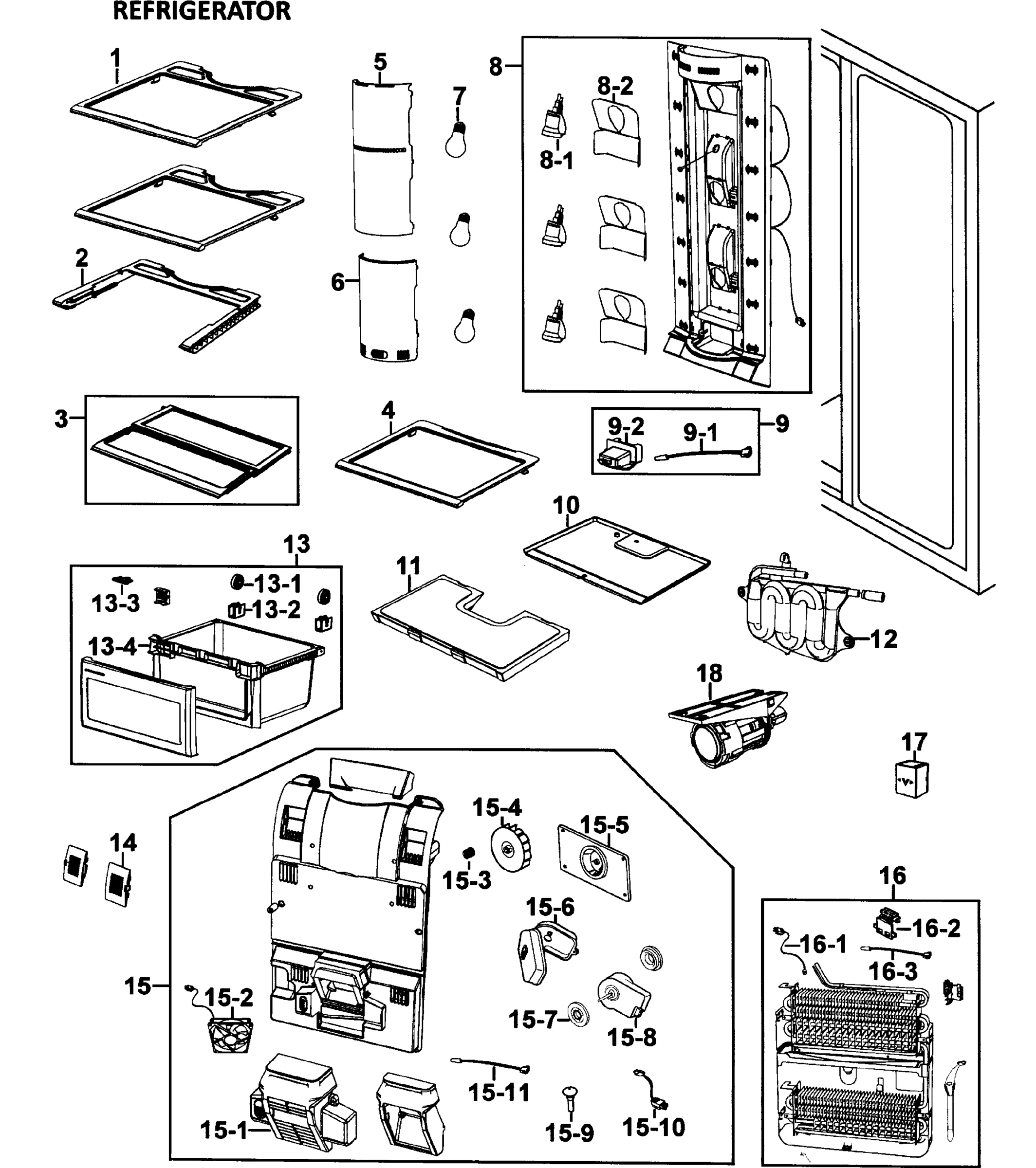

15-1

Refrigerator Evaporator Cover, Front SMG DA63-02704B Contact Us For Availability

15-3

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $1.18

15-4

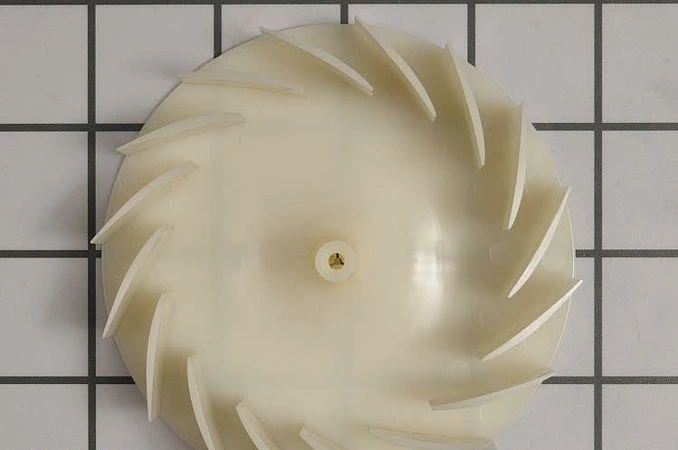

DA31-00123A Samsung Refrigerator Backward Fan Backorder SMG DA31-00123A $10.46

15-5

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $27.68

15-6

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.53

15-9

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.60

16

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

16

Refrigerator Evaporator SMG DA97-03154G Contact Us For Availability

16

Door refr SMG DA91-02756B Contact Us For Availability

16-1

DA47-00133E Samsung Refrigerator Bimetal Ther Backorder SMG DA47-00133E $50.48

16-2

DA61-00453A Samsung Refrigerator Ice Maker Se Backorder SMG DA61-00453A $1.18

16-3

DA32-00006F Samsung Refrigerator Temperature Backorder SMG DA32-00006F $22.92

17

DA63-02902B Samsung Refrigerator Housing Fixe Backorder SMG DA63-02902B $7.99

17

Refrigerator door gasket SMG DA97-04567T Contact Us For Availability

18

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $97.67

18

Door refr SMG DA91-02755B Contact Us For Availability

19

Door frez SMG DA91-02754B Contact Us For Availability

21

DA97-05124C Samsung Refrigerator CF Handle As Backorder SMG DA97-05124C $103.64

21-1

Refrigerator handle bar SMG DA64-02175C Contact Us For Availability

21-2

DA63-02552A Samsung Grommet-Fixer Refrigerato Backorder SMG DA63-02552A $1.18

21-4

Refrigerator handle cap SMG DA67-01709C Contact Us For Availability

22

Door freze SMG DA91-02753B Contact Us For Availability

23-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

23-2

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.97

24

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $19.08

25-6

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $14.90

25-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

25-8

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $157.81

26

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

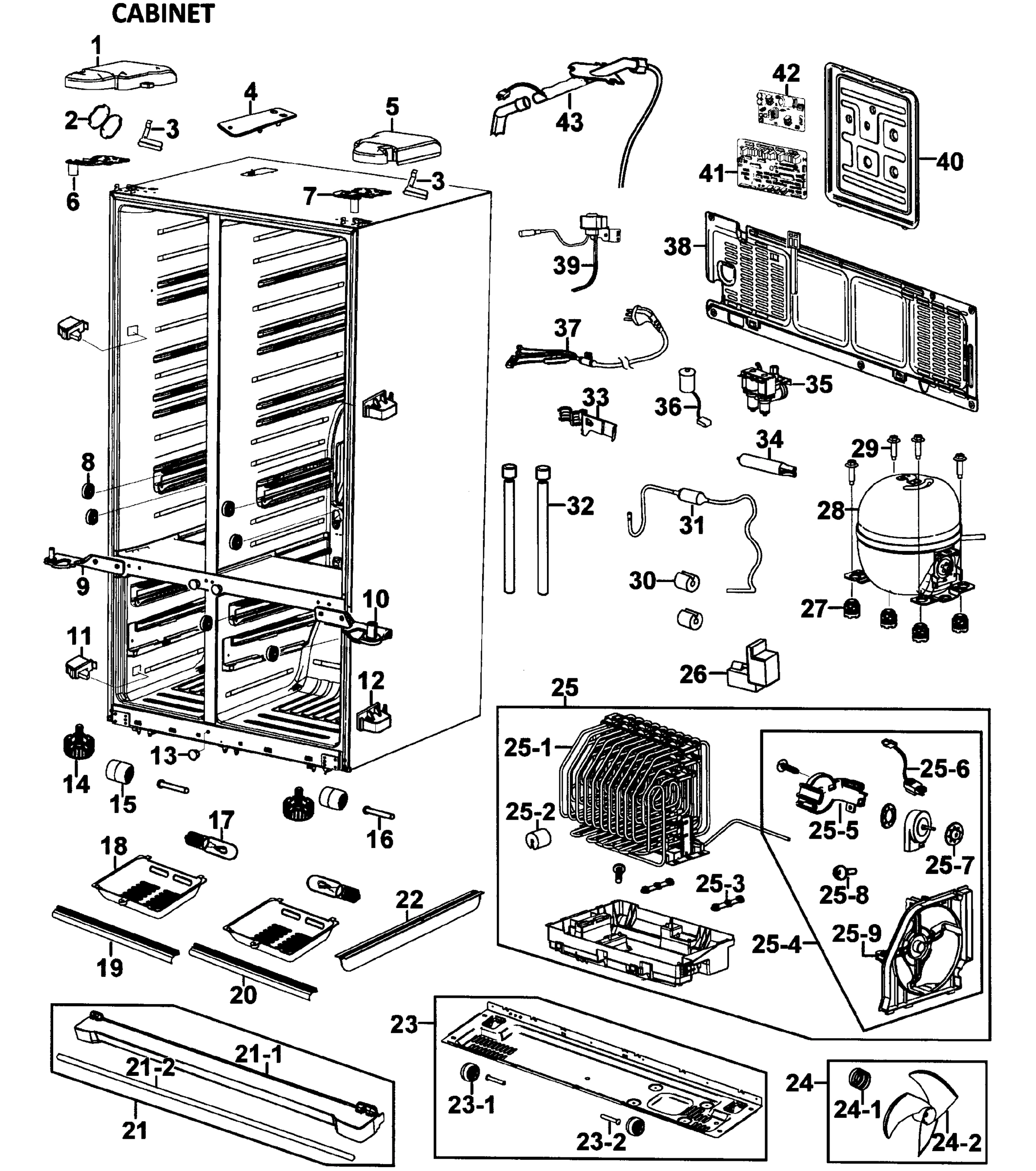

28

Refrigerator Compressor SMG BK190CL2C/E02 Contact Us For Availability

35

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $130.45

37

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

39

DA97-06506A Samsung Refrigerator Assembly Mot Backorder SMG DA97-06506A $196.41

41

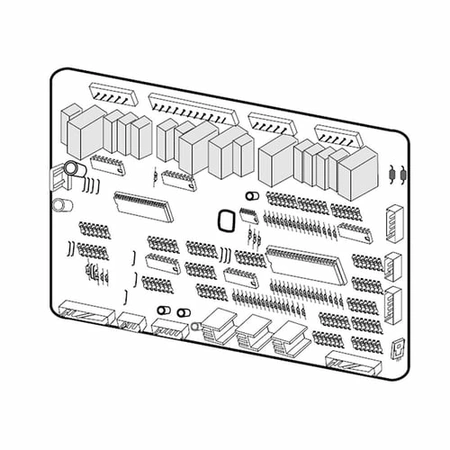

DA41-00359E Samsung Refrigerator Main PCB Nex Backorder SMG DA41-00359E $216.18

1510

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $157.57

1511

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $14.76
