Model Samsung RM255LAWP/XAA-00 Refrigerator – Common Parts &amp; Diagrams

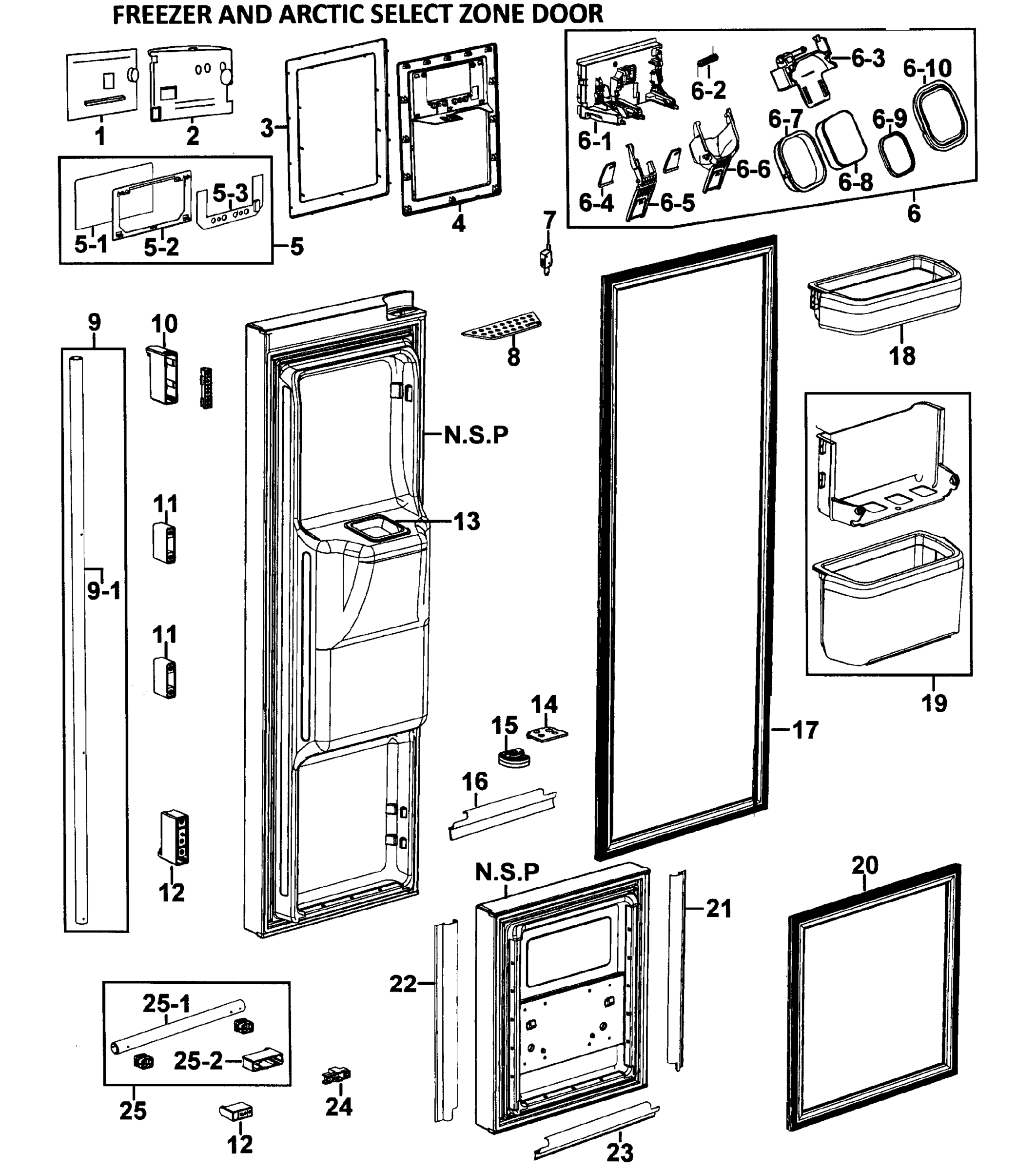

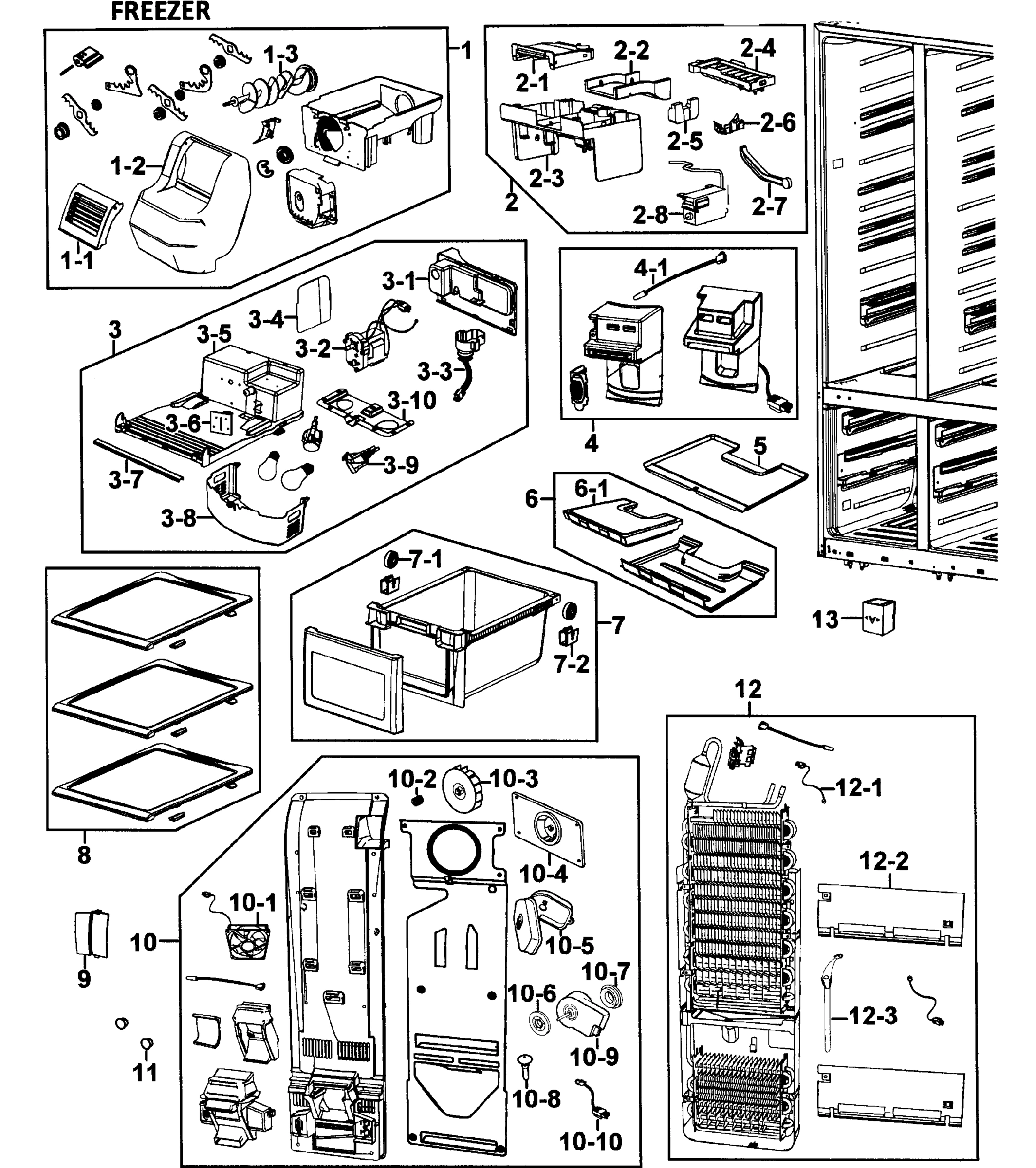

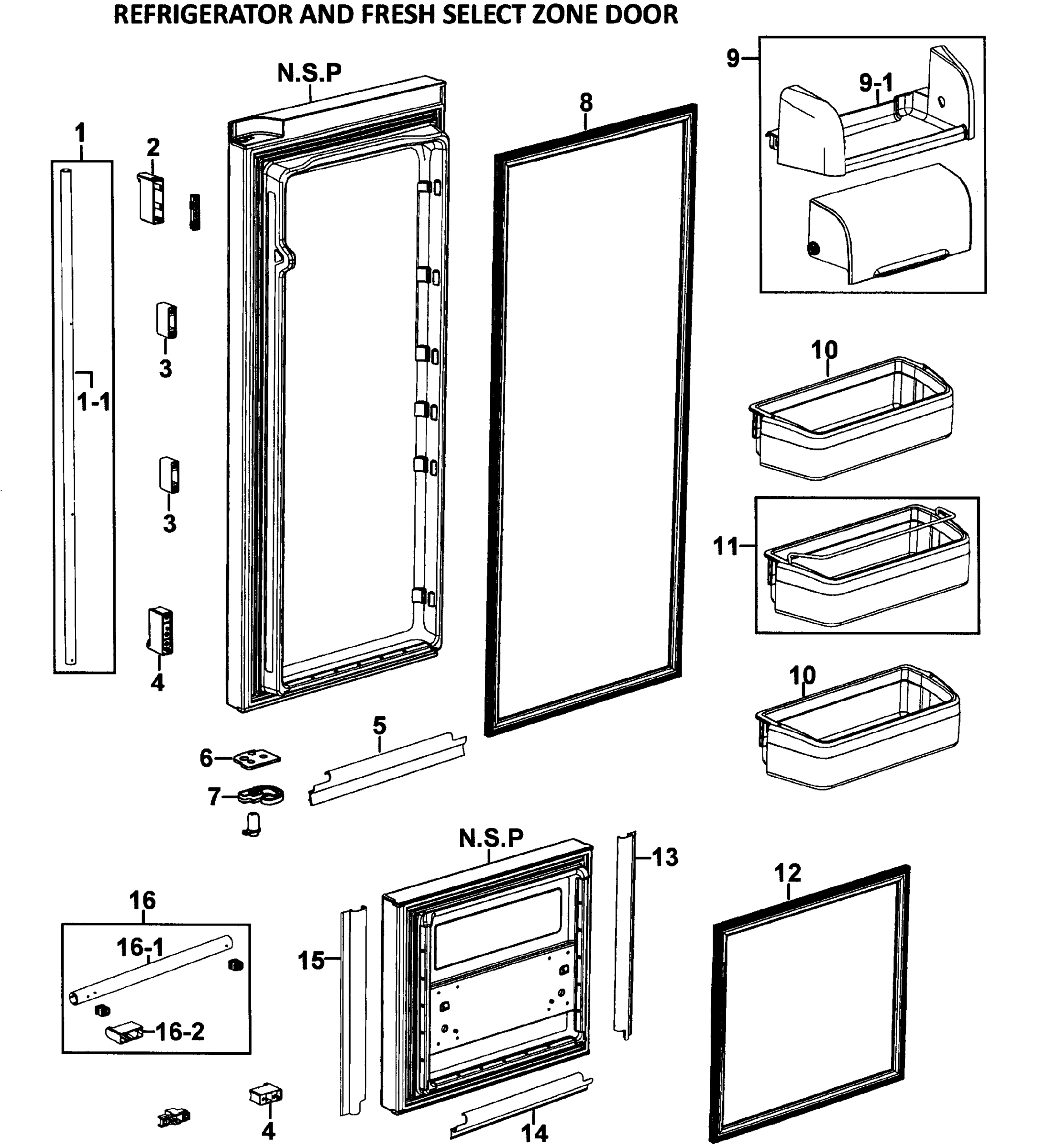

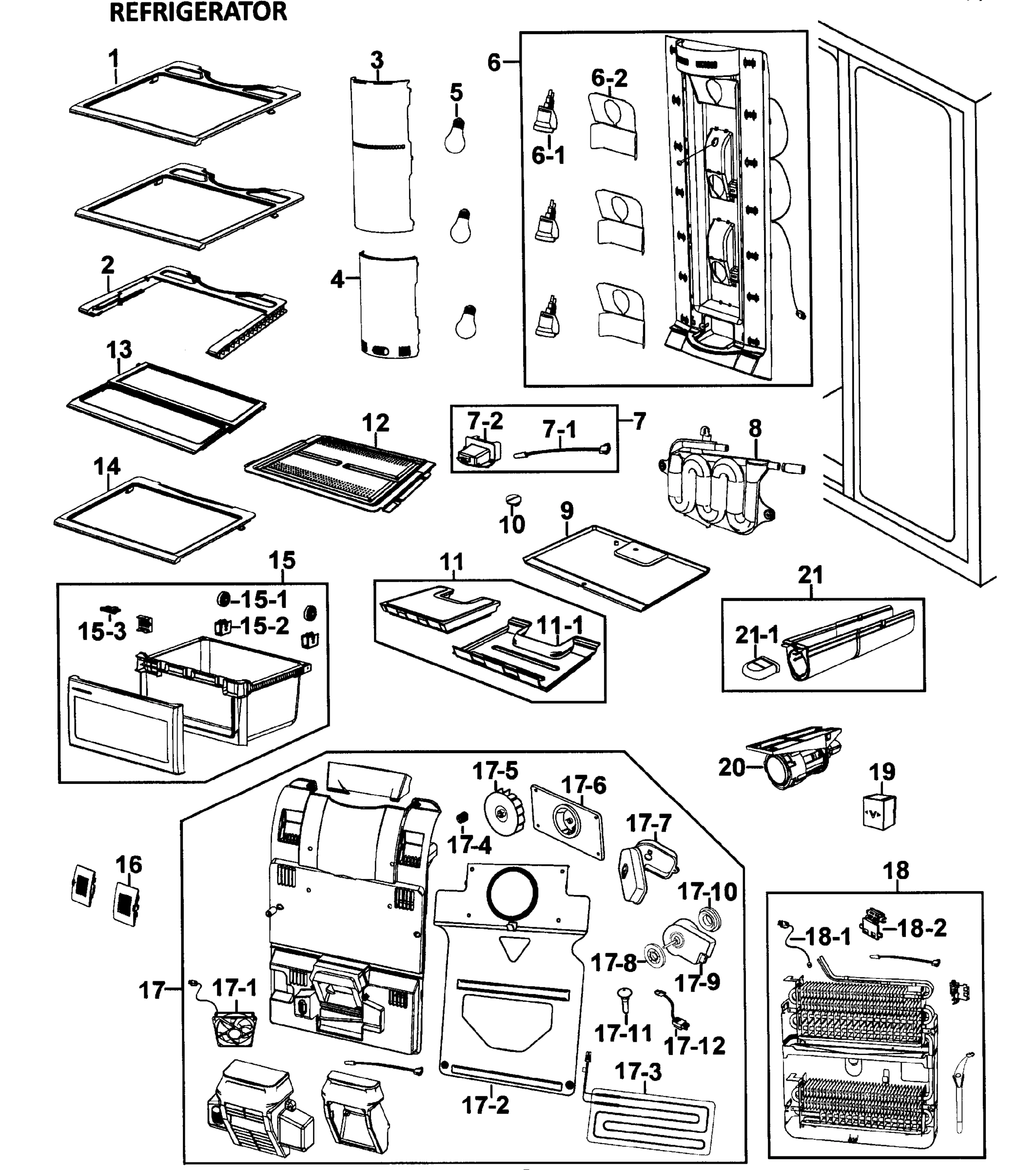

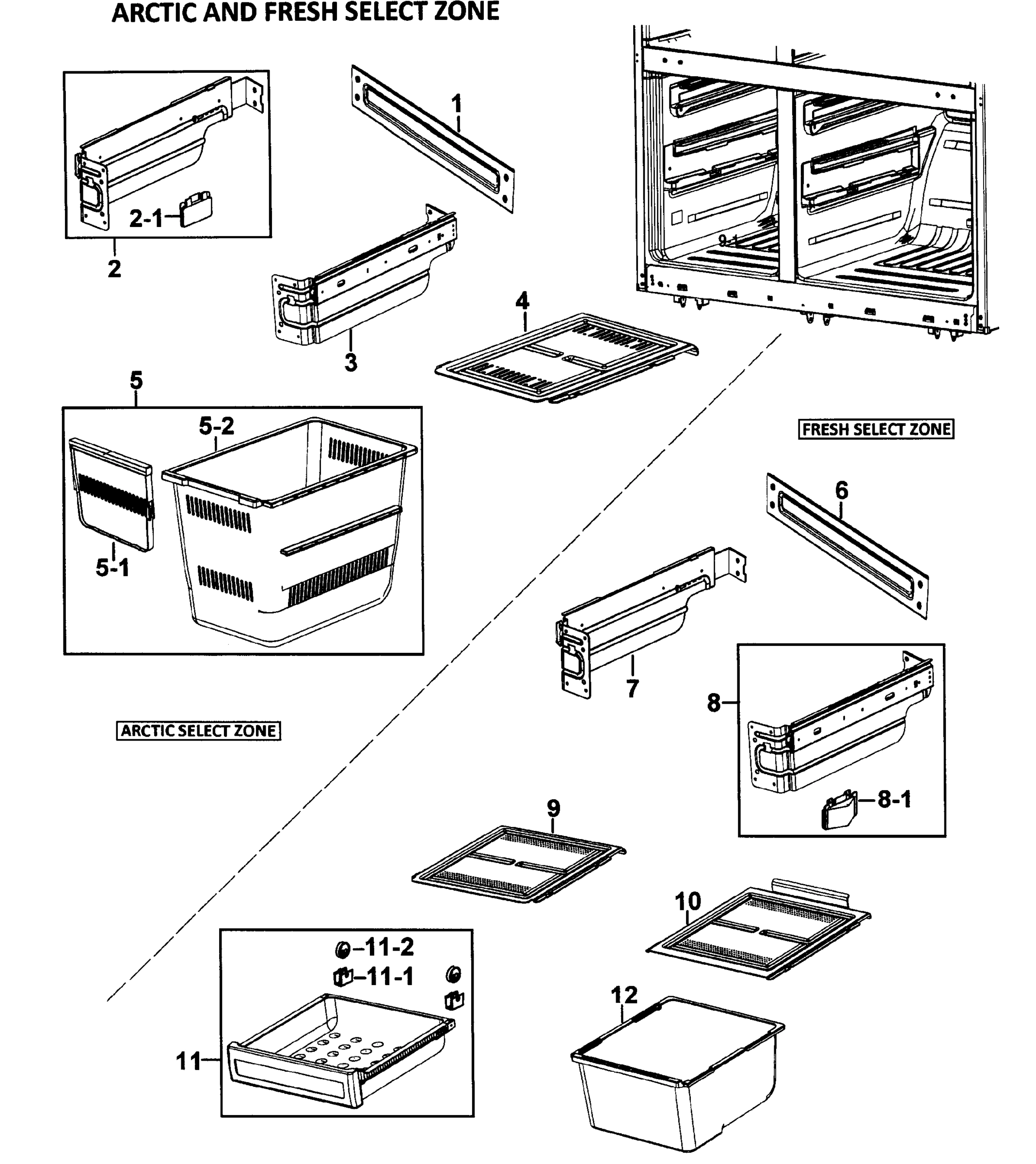

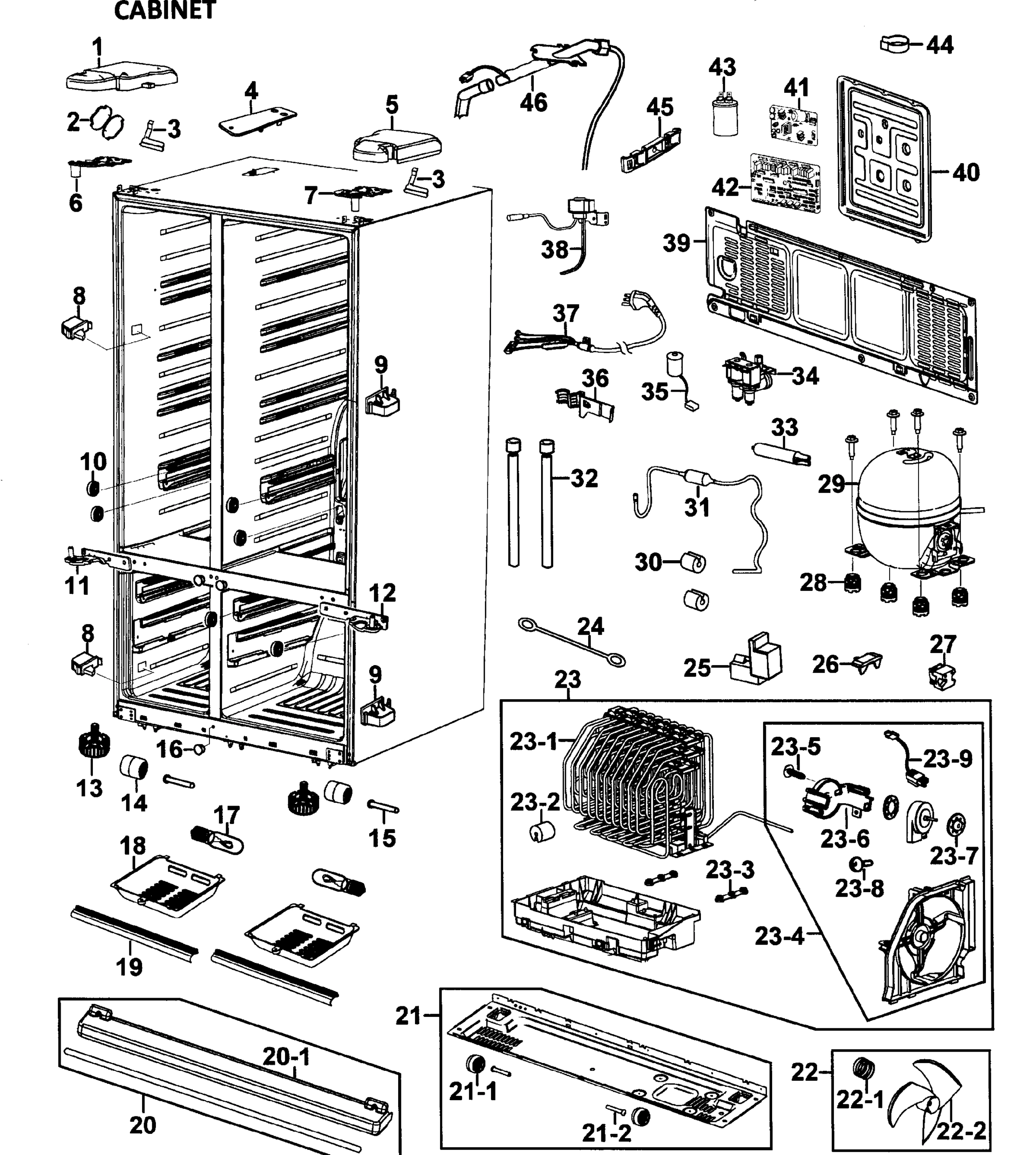

1

Pba panel SMG DA41-00312A Contact Us For Availability

1

Refrigerator handle bar SMG DA97-03123D Contact Us For Availability

1-1

Refrigerator handle bar SMG DA64-01588N Contact Us For Availability

2

Refrigerator ice maker assembly SMG DA97-03172A Contact Us For Availability

2

Refrigerator cover panel SMG DA63-02810A Contact Us For Availability

2

Refrigerator handle cap SMG DA67-00773K Contact Us For Availability

2

Refrigerator shelf SMG DA67-01372A Contact Us For Availability

2-1

Support cover SMG DA63-02820A Contact Us For Availability

2-2

Refrigerator insulation SMG DA62-01059A Contact Us For Availability

2-3

DA61-02542A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-02542A $48.05

2-4

Refrigerator ice bin SMG DA63-02284A Contact Us For Availability

2-5

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $33.68

2-6

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.52

2-7

Refrigerator ice guide SMG DA61-00954A Contact Us For Availability

2-8

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $222.29

3

DA71-20267A Samsung Refrigerator Upper Hinge Backorder SMG DA71-20267A $10.09

3

Refrigerator case assembly SMG DA97-03167A Contact Us For Availability

3

Samsung refrigerator cover plate SMG DA61-02356D Contact Us For Availability

3

Handle support SMG DA61-00264K Contact Us For Availability

3

Refrigerator lamp cover SMG DA63-02710A Contact Us For Availability

3-1

Cover-auge SMG DA63-02736A Contact Us For Availability

3-2

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $188.67

3-3

Refrigerator cover assembly SMG DA97-02120B Contact Us For Availability

3-4

Refrigerator partition SMG DA67-01305A Contact Us For Availability

3-5

Case auger SMG DA61-02412A Contact Us For Availability

3-6

DA73-00168A Samsung Refrigerator Solenoid Rub Backorder SMG DA73-00168A $8.08

3-7

DA61-00239A Samsung Auger Motor Case Support Backorder SMG DA61-00239A $21.39

3-8

DA63-02735A Samsung Refrigerator Lamp Cover D Backorder SMG DA63-02735A $16.92

3-10

DA61-02409A Samsung Lamp Plate Assembly Backorder SMG DA61-02409A $7.97

4

DA97-03130A Samsung Refrigerator Multi Cover Backorder SMG DA97-03130A $90.43

4

Cover dispenser SMG DA63-02692D Contact Us For Availability

4

Refrigerator handle cap SMG DA67-01267G Contact Us For Availability

4

Refrigerator lamp cover SMG DA63-02711A Contact Us For Availability

4-1

DA32-10105C Samsung Refrigerator Temperature Backorder SMG DA32-10105C $17.41

5

DA97-03132A Samsung Cover Partition Assembly Backorder SMG DA97-03132A $50.88

5

Samsung refrigerator control cover SMG DA97-03632C Contact Us For Availability

5

Refrigerator incandescent lamp SMG 4713-001206 Contact Us For Availability

5

Gasket-sub SMG DA63-02724B Contact Us For Availability

5-1

Samsung refrigerator control cover SMG DA63-02698C Contact Us For Availability

5-2

Samsung refrigerator control cover SMG DA63-02694C Contact Us For Availability

5-3

DA41-00319A Samsung Refrigerator Touch Panel Backorder SMG DA41-00319A $161.73

6

Refrigerator partition SMG DA97-03135C Contact Us For Availability

6

Samsung refrigerator pcb cover SMG DA97-05584C Contact Us For Availability

6

Refrigerator cover assembly SMG DA97-03131A Contact Us For Availability

6

Refrigerator door stopper SMG DA61-02374B Contact Us For Availability

6-1

DA47-40001C Samsung Lamp Holder-Assy Backorder SMG DA47-40001C $15.91

6-1

Refrigerator insulation SMG DA62-01010A Contact Us For Availability

6-1

Refrigerator pcb cover SMG DA63-02699A Contact Us For Availability

6-2

DA61-01616A Samsung SPRING ETC-LEVER DISP WAT Backorder SMG DA61-01616A $2.01

6-2

Refrigerator lamp plate SMG DA61-02375A Contact Us For Availability

6-3

DA63-01970A Samsung Refrigerator Ice Route Co In Stock SMG DA63-01970A $5.54

6-4

Samsung refrigerator dispenser lever SMG DA66-00352C Contact Us For Availability

6-5

Samsung refrigerator dispenser lever SMG DA66-00354C Contact Us For Availability

6-6

Refrigerator dispenser lever SMG DA66-00365C Contact Us For Availability

6-7

DA63-01971B Samsung Ice Route Cover Assembly Backorder SMG DA63-01971B $4.04

6-8

DA62-00058E Samsung Seal Cover Ice Route Backorder SMG DA62-00058E $2.01

6-9

DA62-00058F Samsung Refrigerator Ice Route Co Backorder SMG DA62-00058F $1.69

6-10

DA63-01972A Samsung Refrigerator Gasket Cover Backorder SMG DA63-01972A $16.43

7

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $14.64

7

DA97-03149A Samsung Refrigerator Upper Hinge Backorder SMG DA97-03149A $33.23

7

Refrigerator freezer drawer assembly SMG DA97-02944A Contact Us For Availability

7

Refrigerator cover assembly SMG DA97-03116A Contact Us For Availability

7-1

DA32-10105U Samsung Refrigerator Temperature Backorder SMG DA32-10105U $18.67

7-2

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.69

7-2

Cover sensor SMG DA63-02713A Contact Us For Availability

8

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.12

8

DA63-02990A Samsung Refrigerator Sapphire Tra Backorder SMG DA63-02990A $6.46

8

DA97-02432C Samsung Refrigerator Water Tank A Backorder SMG DA97-02432C $124.48

8

Shelf fre SMG DA97-02955B Contact Us For Availability

8

Refrigerator door gasket, right SMG DA97-04567H Contact Us For Availability

9

Refrigerator freezer door bin SMG DA97-03100A Contact Us For Availability

9

Refrigerator freezer diffuser panel cover SMG DA63-02701A Contact Us For Availability

9

Refrigerator cover assembly SMG DA97-03134B Contact Us For Availability

9-1

Guard-dair SMG DA63-02689A Contact Us For Availability

10

DA67-01009A Samsung Refrigerator Screw Cap As Backorder SMG DA67-01009A $1.69

10

DA97-03098A Samsung Refrigerator Guard Assemb Backorder SMG DA97-03098A $66.81

10

Refrigerator cover assembly SMG DA97-03114A Contact Us For Availability

11

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $1.69

11

Assy parti SMG DA97-03136A Contact Us For Availability

11

Refrigerator guard assembly SMG DA97-03562A Contact Us For Availability

11-1

Refrigerator partition SMG DA67-01278A Contact Us For Availability

12

Refrigerator evaporator assembly SMG DA97-03153W Contact Us For Availability

12

Refrigerator crisper drawer cover SMG DA63-02678A Contact Us For Availability

12

Refrigerator door gasket SMG DA97-04567T Contact Us For Availability

12-2

Heat cover SMG DA63-02728A Contact Us For Availability

12-3

Refrigerator drain tube SMG DA97-03241A Contact Us For Availability

13

Refrigerator dispenser ice chute cap SMG DA67-01268A Contact Us For Availability

13

Gasket-sub SMG DA63-02726A Contact Us For Availability

13

Refrigerator shelf assembly SMG DA97-03645A Contact Us For Availability

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $8.59

DA63-02725A Samsung Low Subconventional Gaske Backorder SMG DA63-02725A $17.41

DA67-01283C Samsung Lower Shelf Backorder SMG DA67-01283C $96.68

Refrigerator door stopper SMG DA61-02373B Contact Us For Availability

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $4.04

DA61-15273A Samsung Refrigerator Door Close S In Stock SMG DA61-15273A $9.58

DA63-02727A Samsung Refrigerator Gasket Sub-C Backorder SMG DA63-02727A $19.90

DA97-02943A Samsung Refrigerator Ref Veg Case Backorder SMG DA97-02943A $151.03

15-1

DA97-22036A Samsung Refrigerator Roller Assem In Stock SMG DA97-22036A $6.05

15-3

DA64-00817A Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817A $12.12

16

DA63-02707A Samsung Purifier Cover Assembly Backorder SMG DA63-02707A $2.00

16

Gasket-sub SMG DA63-02724A Contact Us For Availability

16

Samsung refrigerator handle bar SMG DA97-03124V Contact Us For Availability

16-1

Samsung refrigerator handle bar SMG DA64-01588Q Contact Us For Availability

16-2

Refrigerator handle cap SMG DA67-01266G Contact Us For Availability

17

4713-001172 Samsung Refrigerator Incandescent Backorder SMG 4713-001172 $12.93

17

DA97-03113A Samsung Refrigerator Evaporator C Backorder SMG DA97-03113A $244.61

17

DA97-04567G Samsung Refrigerator Freezer Door Backorder SMG DA97-04567G $141.00

17-1

Refrigerator evaporator fan motor assembly SMG DA31-00125A Contact Us For Availability

17-2

Refrigerator fresh food evaporator cover plat SMG DA61-02368A Contact Us For Availability

17-3

DA47-00205A Samsung Refrigerator Heater Water Backorder SMG DA47-00205A $45.36

17-4

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $1.18

17-5

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $22.71

17-6

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $26.25

17-7

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $13.11

17-9

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $156.98

18

DA97-03099A Samsung Refrigerator Upper Guard Backorder SMG DA97-03099A $49.56

18

DA97-03154B Samsung Refrigerator Evaporator A Backorder SMG DA97-03154B $272.79

18-1

Refrigerator defrost bi-metal thermostat SMG DA47-00133F Contact Us For Availability

18-2

DA61-00453A Samsung Refrigerator Ice Maker Se Backorder SMG DA61-00453A $1.69

19

DA63-02902B Samsung Refrigerator Housing Fixe In Stock SMG DA63-02902B $7.57

19

Refrigerator guard assembly SMG DA97-03141A Contact Us For Availability

20

DA97-03301A Samsung Refrigerator Water Filter Backorder SMG DA97-03301A $175.84

20

Refrigerator convenience door gasket SMG DA97-04567J Contact Us For Availability

21

DA97-03191B Samsung Water Filter Cover Assemb Backorder SMG DA97-03191B $33.18

21-1

DA67-01304A Samsung Water Filter Cap Backorder SMG DA67-01304A $3.53

21-2

DA60-90146A Samsung Refrigerator Caster Pin M Backorder SMG DA60-90146A $2.01

22

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $17.15

23

DA63-02725B Samsung Low Conventional Gasket Backorder SMG DA63-02725B $16.92

23-4

Refrigerator condenser fan motor assembly SMG DA97-03145A Contact Us For Availability

23-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.04

23-9

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $14.13

24

DA61-02363A Samsung Refrigerator Low Handle S Backorder SMG DA61-02363A $5.05

25

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $13.94

25

Samsung refrigerator handle bar SMG DA97-03124U Contact Us For Availability

25-1

Samsung refrigerator handle bar SMG DA64-01588P Contact Us For Availability

26

DA34-10003S Samsung Refrigerator Compressor O In Stock SMG DA34-10003S $29.21

27

Refrigerator compressor start relay SMG DA35-10013Q Contact Us For Availability

29

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $311.21

34

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $153.96

37

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

38

DA97-03125C Samsung Refrigerator Step Valve M Backorder SMG DA97-03125C $217.13

41

Refrigerator power control board SMG DA41-00320A Contact Us For Availability

42

Refrigerator power control board SMG DA41-00318A Contact Us For Availability

43

Refrigerator run capacitor SMG 2501-001045 Contact Us For Availability

1710

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.55

1711

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.69

1712

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $149.63

NI

Refrigerator filter assembly SMG DA29-00012B Contact Us For Availability
