Model Samsung RH269LBSH/XAA-00 Refrigerator – Common Parts & Diagrams
Accessories
Cabinet

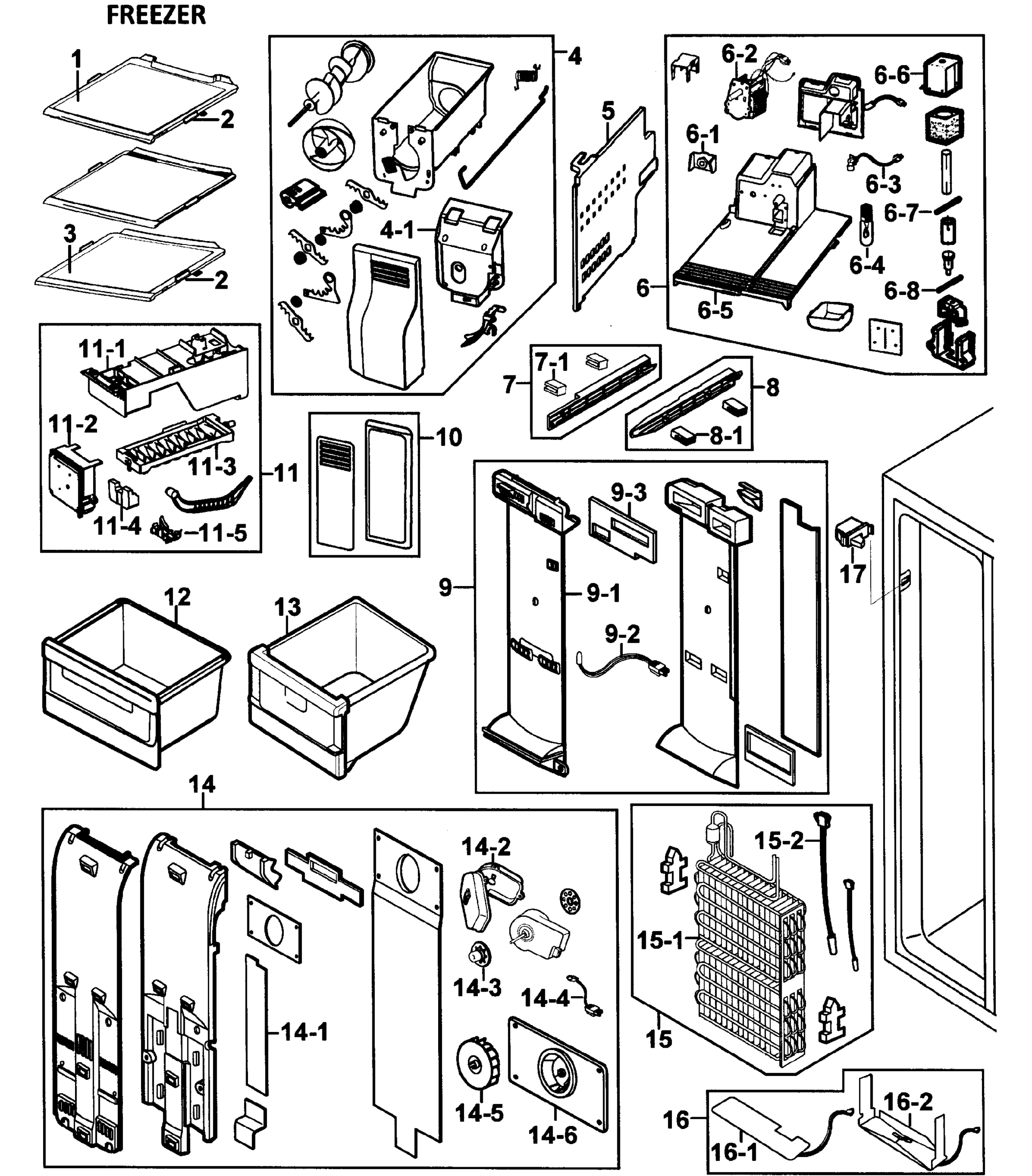

Freezer

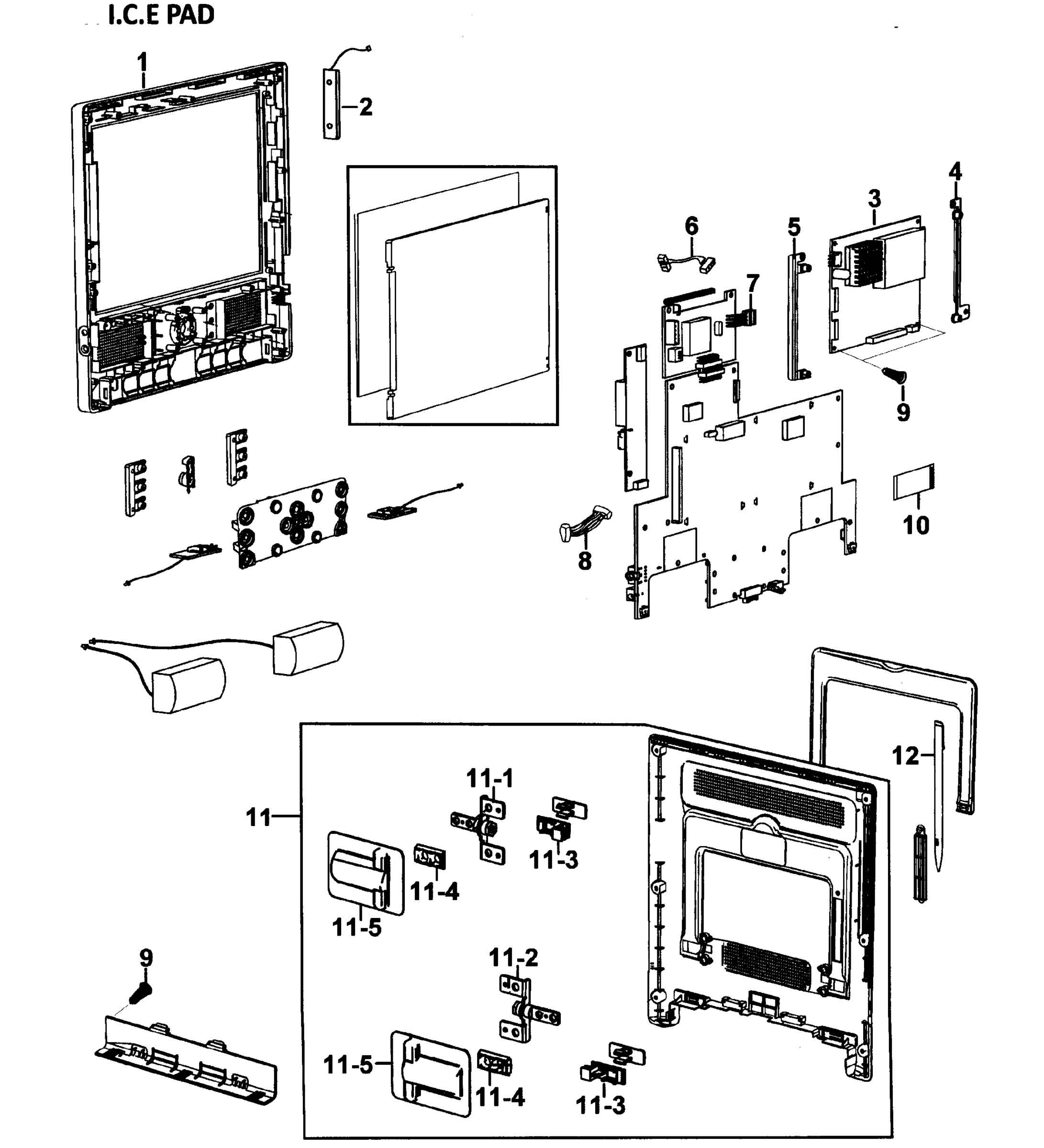

I.C.E Pad

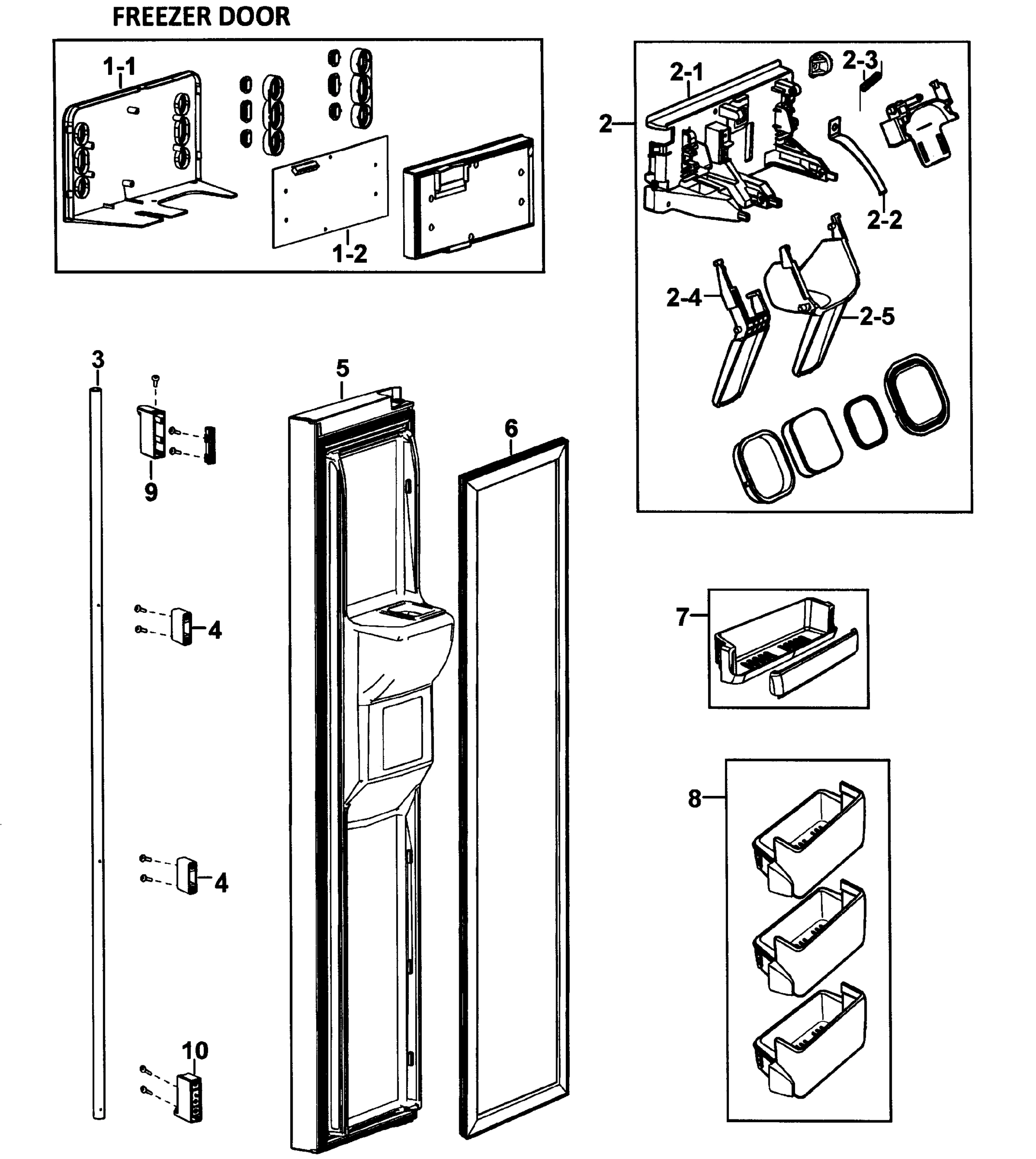

Left Door

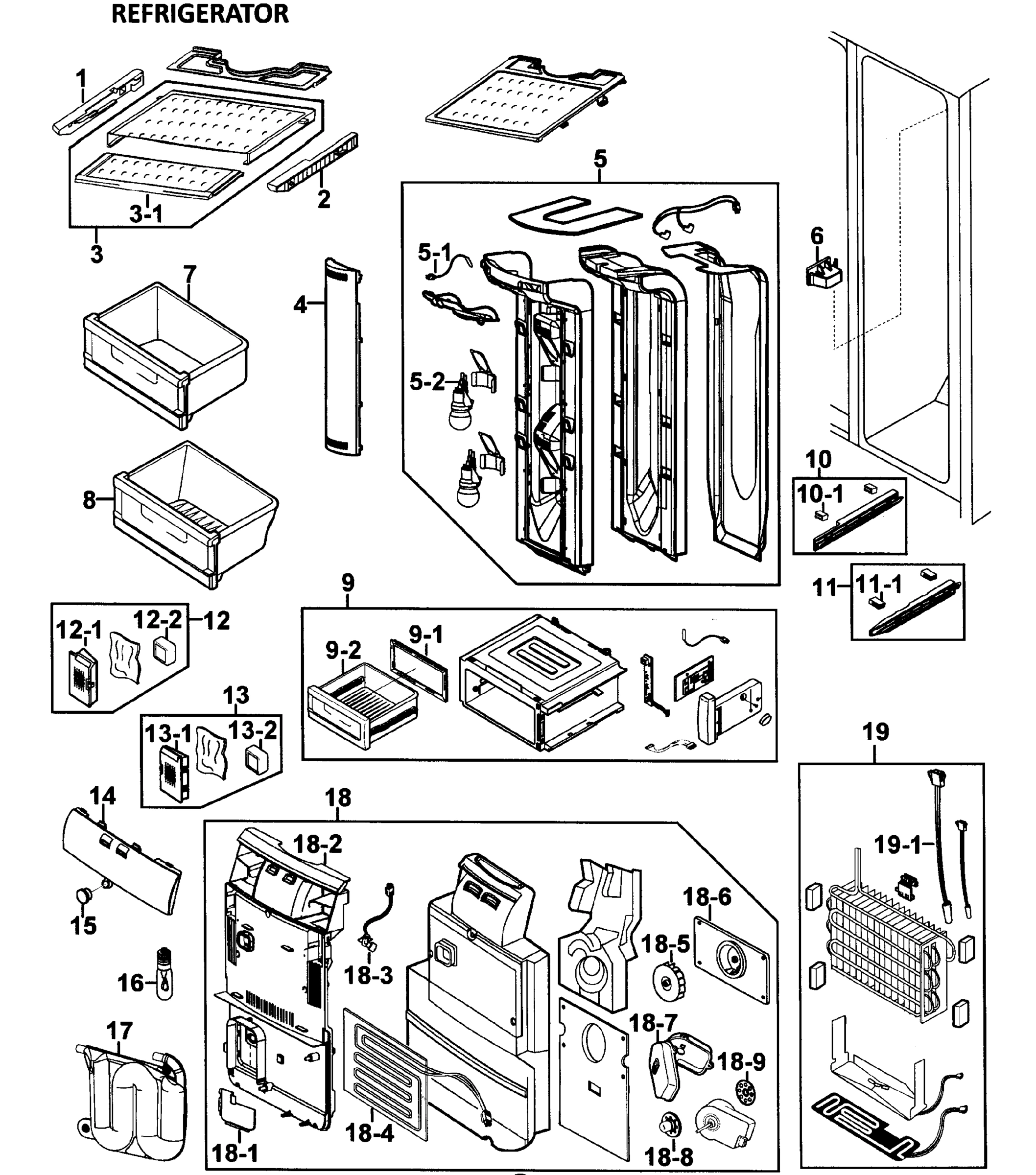

Rerigerator

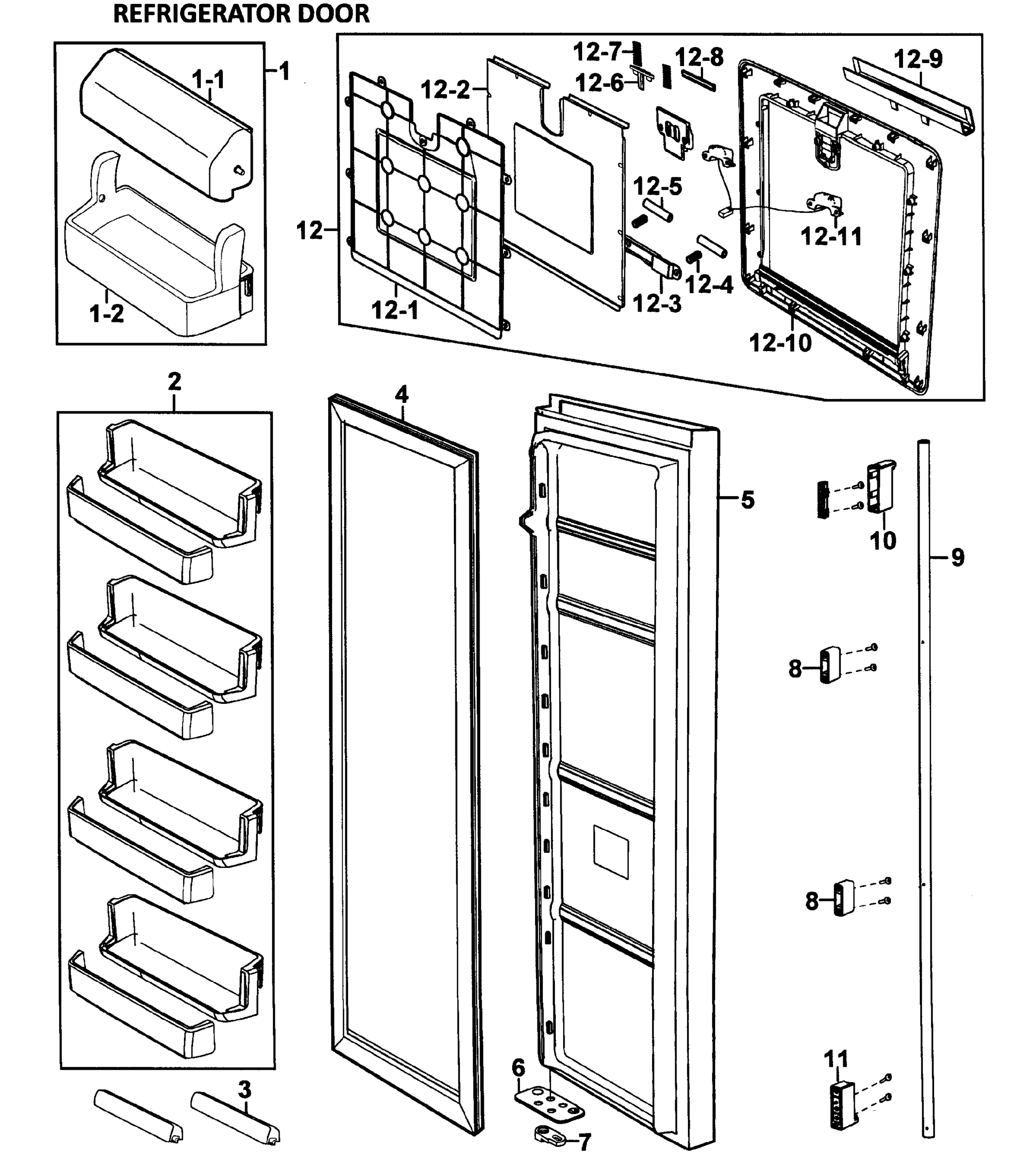

Right Door
Common parts from model Samsung RH269LBSH/XAA-00 Refrigerator
1
Refrigerator ice maker water fill tube assemb SMG DA97-04501R Contact Us For Availability
1
Refrigerator case SMG DA97-03370D Contact Us For Availability
1
Cover dispenser SMG DA97-04321H Contact Us For Availability
1
Shelf rail SMG DA61-01245B Contact Us For Availability
1
Refrigerator door bin SMG DA97-00160D Contact Us For Availability
1-1
Refrigerator dispenser cover SMG DA63-03255C Contact Us For Availability
1-2
Refrigerator dispenser display control board SMG DA41-00395A Contact Us For Availability
1-2
Refrigerator dairy bin SMG DA63-00852D Contact Us For Availability
2
Refrigerator service antenna SMG DA81-01247B Contact Us For Availability
2
Refrigerator pcb cover SMG DA97-02050L Contact Us For Availability
2-1
Refrigerator pcb cover SMG DA63-03259A Contact Us For Availability
2-5
Refrigerator dispenser lever SMG DA66-00294A Contact Us For Availability
3
Adimos mdl SMG DA81-01247A Contact Us For Availability
3-1
Refrigerator shelf SMG DA67-01400B Contact Us For Availability
4
Refrigerator run capacitor SMG 2501-001045 Contact Us For Availability
4
Refrigerator ice container assembly SMG DA97-05443K Contact Us For Availability
4
Refrigerator door gasket SMG DA97-01800D Contact Us For Availability
4
Samsung refrigerator plate SMG DA61-02511A Contact Us For Availability
4
Refrigerator lamp cover SMG DA63-02953A Contact Us For Availability
5
Refrigerator power control board SMG DA41-00396G Contact Us For Availability
5
Samsung refrigerator plate SMG DA61-02510A Contact Us For Availability
5
Refrigerator door assembly SMG DA91-02333E Contact Us For Availability
5
Refrigerator door foam assembly SMG DA91-02334E Contact Us For Availability
6
Refrigerator harness SMG DA81-01247E Contact Us For Availability
6
Refrigerator gasket SMG DA97-01800C Contact Us For Availability
6-1
Refrigerator ice dispenser auger drive plate SMG DA61-01659B Contact Us For Availability
7
Refrigerator cable SMG DA81-01247J Contact Us For Availability
7
Vegetable cover SMG DA97-04350B Contact Us For Availability
8
Samsung refrigerator harness SMG DA81-01247L Contact Us For Availability
8
Refrigerator crisper drawer SMG DA97-00148N Contact Us For Availability
9
Refrigerator screw SMG 6001-000559 Contact Us For Availability
9
Refrigerator handle bar SMG DA97-03397H Contact Us For Availability
9
Refrigerator case assembly SMG DA97-04520J Contact Us For Availability
9-2
Refrigerator temperature-controlled drawer SMG DA97-00371J Contact Us For Availability
10
Samsung refrigerator service coaxial cable SMG DA81-01247F Contact Us For Availability
10
Refrigerator handle cap SMG DA67-00773G Contact Us For Availability
10
Refrigerator rail assembly SMG DA97-00731E Contact Us For Availability
11
Samsung refrigerator case SMG DA97-03369D Contact Us For Availability
11
Refrigerator door handle end cap, lower SMG DA67-00796H Contact Us For Availability
11
Refrigerator rail assembly SMG DA97-00730E Contact Us For Availability
11-1
Samsung hinge pd r SMG DA97-03393A Contact Us For Availability
11-2
Refrigerator ice maker assembly SMG DA97-00258E Contact Us For Availability
11-2
Samsung hinge pd l SMG DA97-03394A Contact Us For Availability
11-3
Samsung refrigerator bracket SMG DA61-02489A Contact Us For Availability
11-5
Samsung refrigerator grommet SMG DA63-02791A Contact Us For Availability
12
Refrigerator cover panel SMG DA97-04651A Contact Us For Availability
12-1
Refrigerator cover SMG DA63-00855G Contact Us For Availability
12-1
Samsung refrigerator plate SMG DA61-02496A Contact Us For Availability
12-2
Samsung cool plate SMG DA61-03065A Contact Us For Availability
12-3
Samsung refrigerator cover SMG DA63-02789A Contact Us For Availability
12-4
Samsung refrigerator spring SMG DA61-02617B Contact Us For Availability
12-5
Samsung refrigerator shaft SMG DA66-00359A Contact Us For Availability
12-6
Samsung fixer pad SMG DA61-02497A Contact Us For Availability
12-8
Samsung refrigerator shaft SMG DA66-00357A Contact Us For Availability
12-9
Samsung fixer pad SMG DA61-02504D Contact Us For Availability
13-1
Refrigerator air filter cover SMG DA63-00856F Contact Us For Availability
13-2
Refrigerator air freshener filter SMG DA02-90106P Contact Us For Availability
15
Refrigerator freezer evaporator assembly SMG DA96-00021N Contact Us For Availability
15-1
Refrigerator evaporator assembly SMG DA59-00233H Contact Us For Availability
15-2
Refrigerator defrost bi-metal thermostat SMG DA47-10160H No Longer Available
16
Refrigerator evaporator drip pan heater SMG DA97-00111C Contact Us For Availability
16
Refrigerator incandescent lamp SMG 4713-001206 Contact Us For Availability
16-1
Refrigerator defrost drain trough heater SMG DA47-00090C Contact Us For Availability
18
Refrigerator fresh food evaporator cover asse SMG DA97-05255P Contact Us For Availability
18-1
Refrigerator lamp plate SMG DA61-02034A Contact Us For Availability
18-2
Refrigerator evaporator fan cover, front SMG DA63-02962A Contact Us For Availability
19
Refrigerator evaporator SMG DA96-00020Q Contact Us For Availability
1210
Samsung drive cover panel SMG DA63-03332A Contact Us For Availability
1211
Samsung cvr,chg pc SMG DA97-03530D Contact Us For Availability
NI
Touch pncl SMG DA97-03372D Contact Us For Availability
× ![]()
