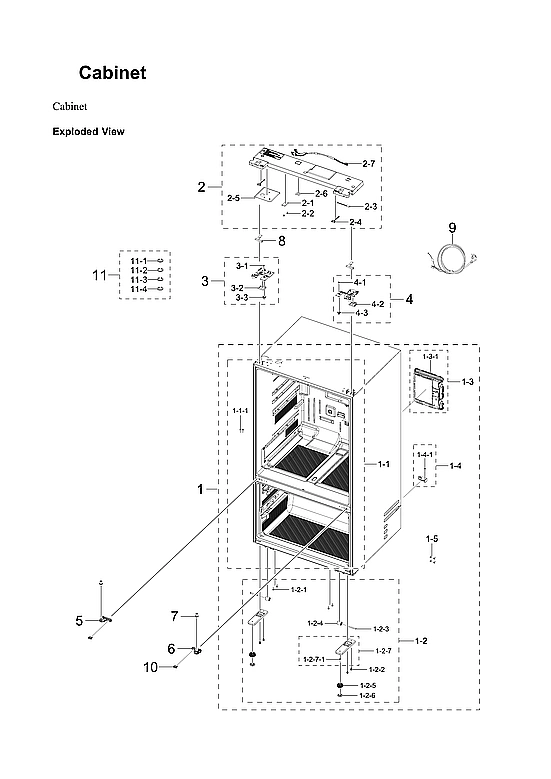

Model Samsung RF30BB6200QL/AA-00 Refrigerator – Common Parts &amp; Diagrams

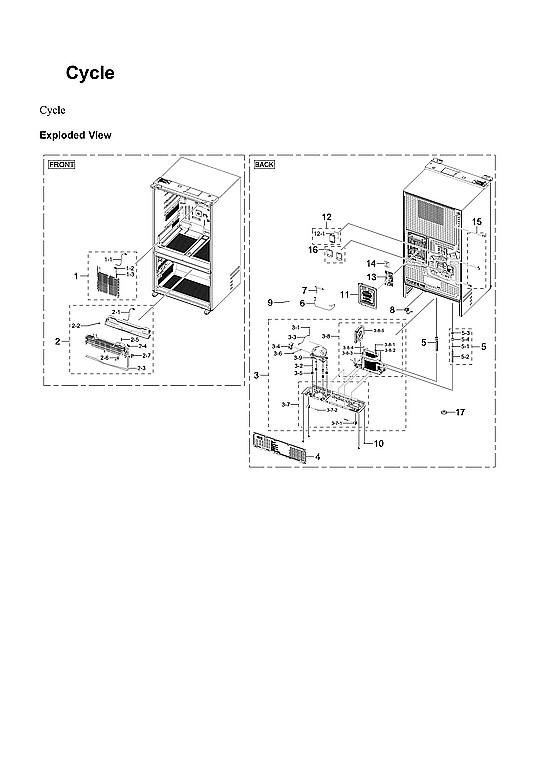

1

DA97-22973B Samsung Refrigerator Evaporator C Backorder SMG DA97-22973B $265.45

1

DA97-22974B Samsung Refrigerator Evaporator C Backorder SMG DA97-22974B $195.60

1

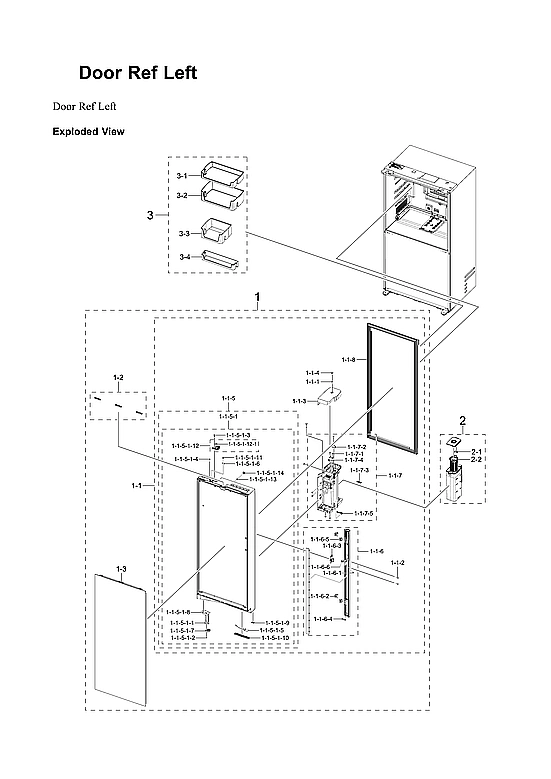

ASSY DOOR SUB-REF LEFT SMG DA93-01249A Contact Us For Availability

1

Assy door sub-ref right SMG DA93-01248A Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $147.82

DA32-00070M Samsung Refrigerator Temperature Backorder SMG DA32-00070M $31.86

ASSY DOOR SUB-REF LEFT DOOR MODULE SMG DA93-01239A Contact Us For Availability

Assy door sub-ref right door module SMG DA93-01241A Contact Us For Availability

1-1-1

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

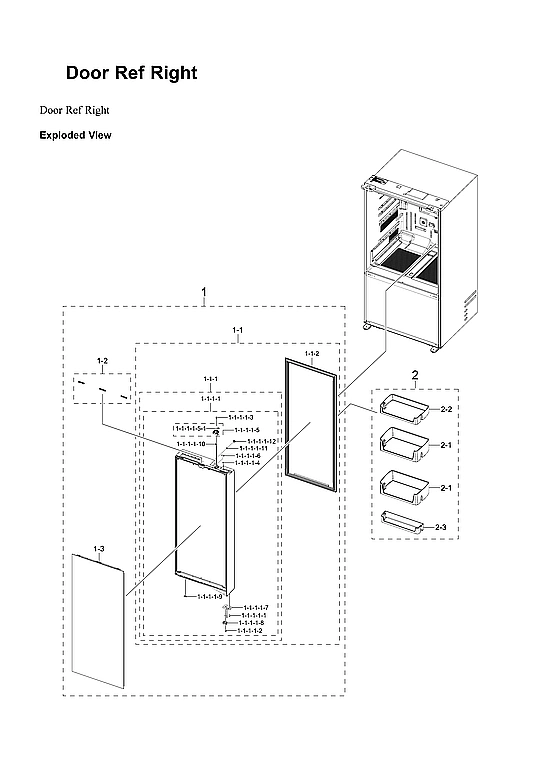

1-1-1

DA91-06114A Samsung Refrigerator Right Foam D Backorder SMG DA91-06114A $290.44

1-1-1-1

Assy plate door-ref right SMG DA97-23032A Contact Us For Availability

1-1-2

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $1.18

1-1-2

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

1-1-2

DA97-23013A Samsung Refrigerator Gasket Assem Backorder SMG DA97-23013A $214.48

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

1-1-3

DA63-11213A Samsung Refrigerator Autofill Cov Backorder SMG DA63-11213A $136.47

1-1-4

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $75.44

1-1-5

DA91-06115A Samsung Left Door Foam Assembly Backorder SMG DA91-06115A $286.35

1-1-5

DA97-23012A Samsung Refrigerator Gasket Assem Backorder SMG DA97-23012A $216.05

1-1-5-1

ASSY PLATE DOOR-REF LEFT SMG DA97-23033A Contact Us For Availability

1-1-6

DA97-23074A Samsung Refrigerator French Assem Backorder SMG DA97-23074A $262.05

1-1-6-2

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

1-1-6-3

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

1-1-6-4

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $6.91

1-1-6-5

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

1-1-6-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

1-1-7

DA97-17399F Samsung Refrigerator Inner Case Backorder SMG DA97-17399F $245.13

1-1-7-2

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $33.53

1-1-7-3

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $7.45

1-1-7-4

DA62-03914C Samsung Fitting Tube;Pom,Id1/4,1/ Backorder SMG DA62-03914C $71.30

1-1-7-5

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $8.51

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $17.88

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $14.77

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $5.54

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $67.94

1-2-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 Backorder SMG DA60-10123E $2.23

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.22

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.79

1-3

FIXER;RT5000K,PA66,-,WHITE,-,K Backorder SMG DA61-11034A $22.36

1-3

DA99-05086A Samsung Accessory Custom Panel As Backorder SMG DA99-05086A $192.79

1-3

Custom panel SMG DA99-05085A Contact Us For Availability

1-4

DA61-14455B Samsung Middle Angle Shelf Backorder SMG DA61-14455B $49.73

2

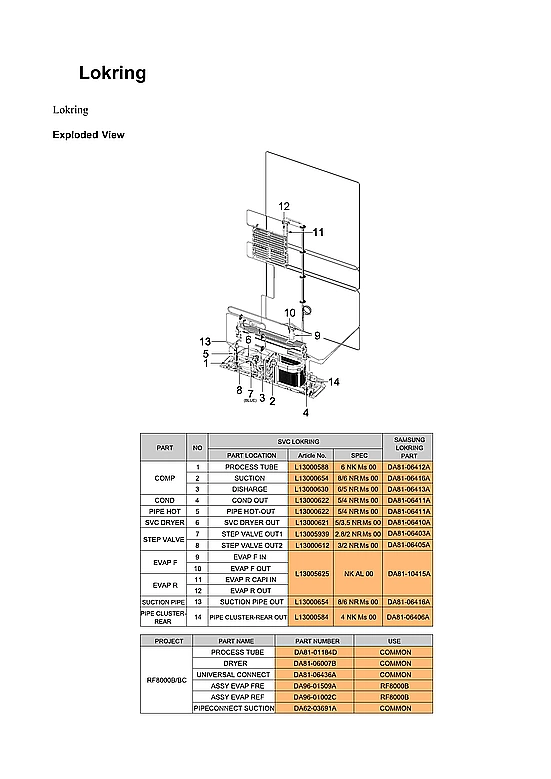

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $5.87

2

6011-001656 Samsung Refrigerator Hex Bolt Backorder SMG 6011-001656 $1.69

2

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $274.74

2

ASSY ICE MAKER SMG DA97-21804C Contact Us For Availability

2

Assy tray drawer-drawer module SMG DA97-23246F Contact Us For Availability

2

CASE VEG-LOW SMG DA97-21873K Contact Us For Availability

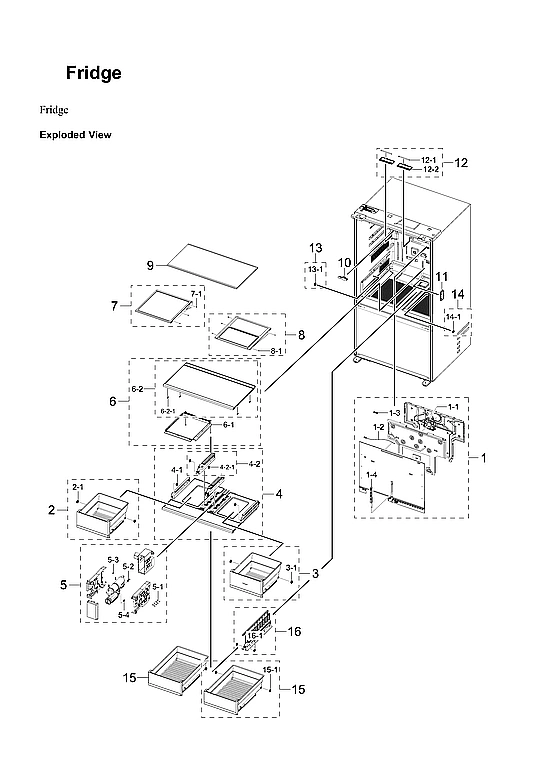

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

DA61-14435A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-14435A $119.92

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $98.02

DA97-21912E Samsung Refrigerator Guard Top As Backorder SMG DA97-21912E $85.55

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $29.65

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $44.04

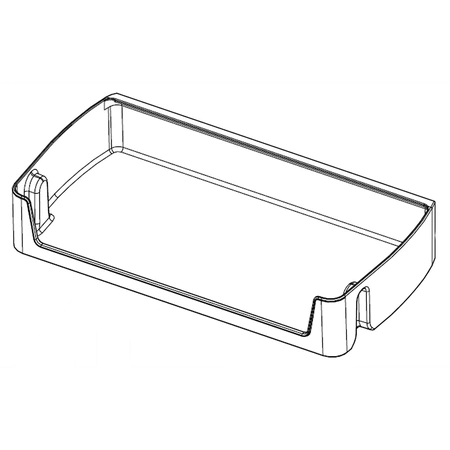

DA97-21916B Samsung Refrigerator Guard Upper Backorder SMG DA97-21916B $79.77

DA97-22160A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22160A $179.45

2-2-1

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $73.57

2-3

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $78.50

2-3

DA97-22162A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22162A $176.01

2-3

DA97-23268A Samsung Assembly GUARD-REF LOW;RF Backorder SMG DA97-23268A $54.71

2-6

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $34.31

3

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $5.87

3

DA97-21256C Samsung Refrigerator Water Ice Pi Backorder SMG DA97-21256C $144.87

3

DA97-21873B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21873B $217.71

3

DA97-23024A Samsung Refrigerator Stopper Asse Backorder SMG DA97-23024A $95.52

3-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.69

3-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

3-3

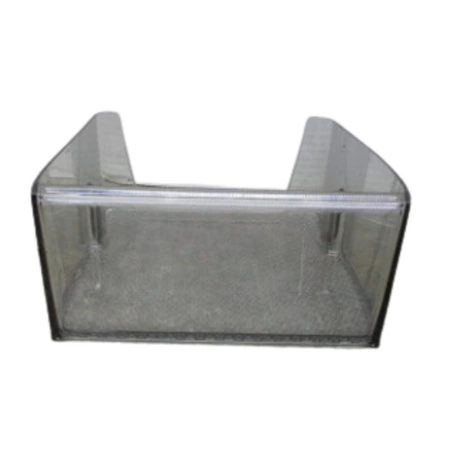

DA97-21913B Samsung Refrigerator Guard Assemb Backorder SMG DA97-21913B $106.78

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

4

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $7.26

4

DA97-21256B Samsung Refrigerator Water Pipe I Backorder SMG DA97-21256B $171.54

4

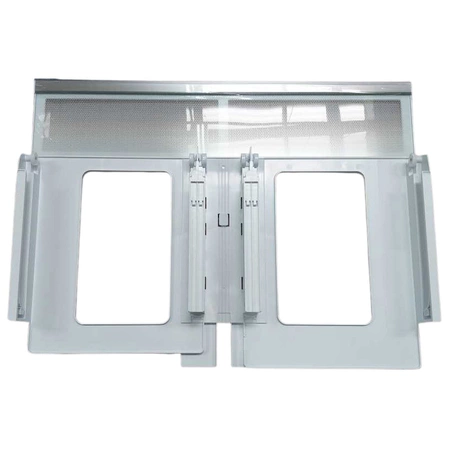

DA97-23049A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-23049A $324.41

4-2

DA97-21871A Samsung Assembly Left Middle Rail Backorder SMG DA97-21871A $48.76

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $22.92

5

COVER COMP SMG DA97-04049E No Longer Available

5

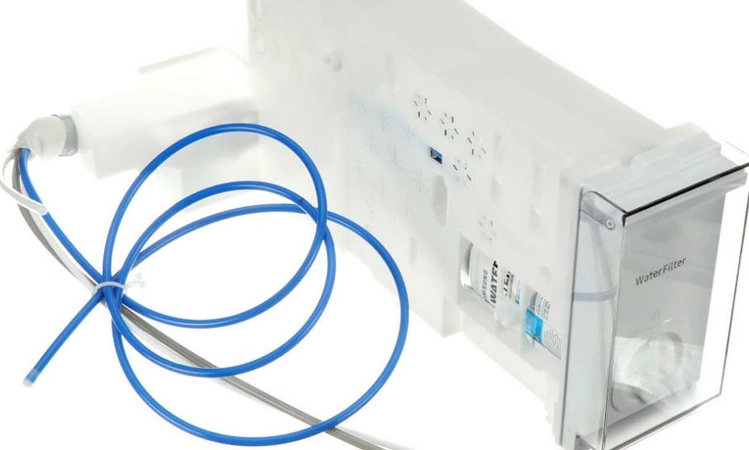

DA97-23062A Samsung Refrigerator Assembly Cas Backorder SMG DA97-23062A $325.92

5-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $33.82

5-3

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

5-4

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $21.29

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $6.37

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

6

ASSY SHELF VEG-LOW SMG DA97-21901M Contact Us For Availability

6-1

DA63-11226A Samsung Refrigerator Vegetable Dr Backorder SMG DA63-11226A $171.26

6-2

DA97-21901C Samsung Refrigerator Low Shelf Mo Backorder SMG DA97-21901C $202.34

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $53.16

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $7.69

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

7

DA97-22971A Samsung Shelf Insert Assembly Backorder SMG DA97-22971A $158.94

7-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $1.18

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $15.65

8

DA97-20047B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20047B $259.77

8-1

DA97-23029A Samsung Refrigerator Drawer Tray Backorder SMG DA97-23029A $298.34

8-1-1

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $1.18

8-1-2

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $6.71

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

9

DA81-10415A Samsung Refrigerator Lock Ring As In Stock SMG DA81-10415A $157.88

9

DA97-21897A Samsung Refrigerator Assembly She Backorder SMG DA97-21897A $192.51

9

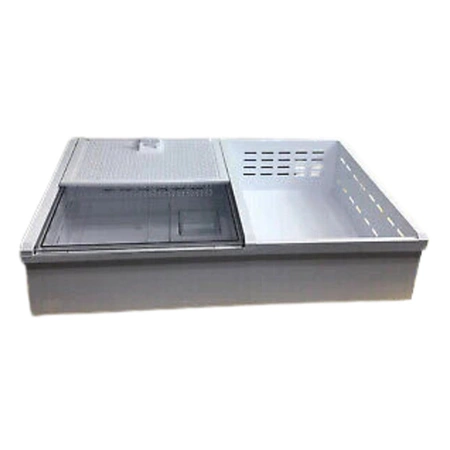

DA97-22997A Samsung Refrigerator Tray Upper A Backorder SMG DA97-22997A $334.60

9-1

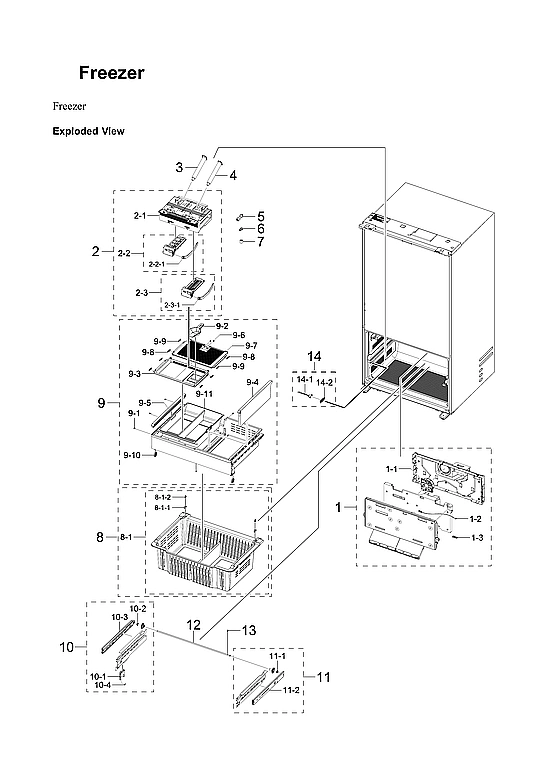

6002-000473 Samsung Tapping Screw Backorder SMG 6002-000473 $1.69

9-2

DA61-14309A Samsung Refrigerator Ice Scoop Ca Backorder SMG DA61-14309A $99.25

9-3

DA61-15175A Samsung Refrigerator Basket Assem Backorder SMG DA61-15175A $79.78

9-4

DA61-15177A Samsung Guide Tray-Fre;rf8000b, H Backorder SMG DA61-15177A $89.25

9-5

DA61-15179A Samsung Left Rail Assembly Backorder SMG DA61-15179A $39.29

9-6

DA63-11374A Samsung Refrigerator Door Grommet Backorder SMG DA63-11374A $6.91

9-7

DA63-11588A Samsung Refrigerator Upper Front Backorder SMG DA63-11588A $64.27

9-8

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $2.14

9-9

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $2.14

9-10

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

9-11

DA97-23081B Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081B $156.61

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $2.23

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

10

DA97-21688A Samsung Refrigerator Left Slide R Backorder SMG DA97-21688A $249.34

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

10-2

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

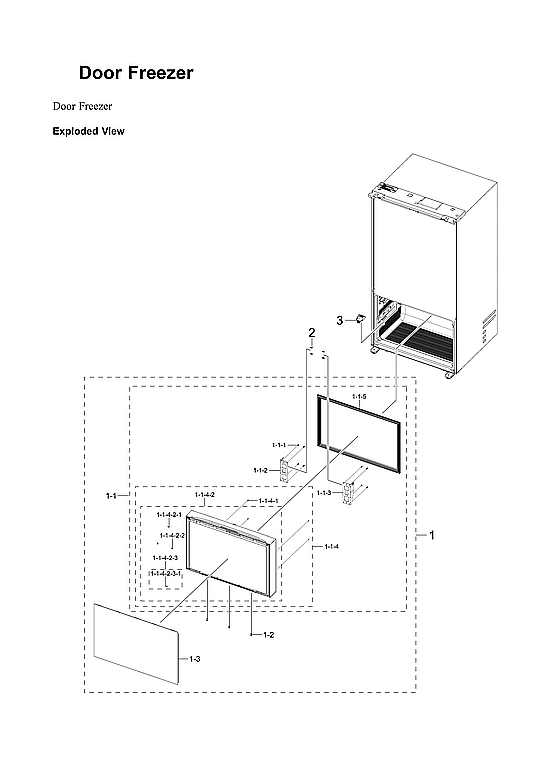

10-3

DA61-03156A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03156A $121.19

10-4

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $3.35

11

DA97-21005W Samsung Refrigerator Control Cove In Stock SMG DA97-21005W $188.35

11

DA97-21686A Samsung Refrigerator Low Right Sl Backorder SMG DA97-21686A $241.35

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $82.29

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.69

11-2

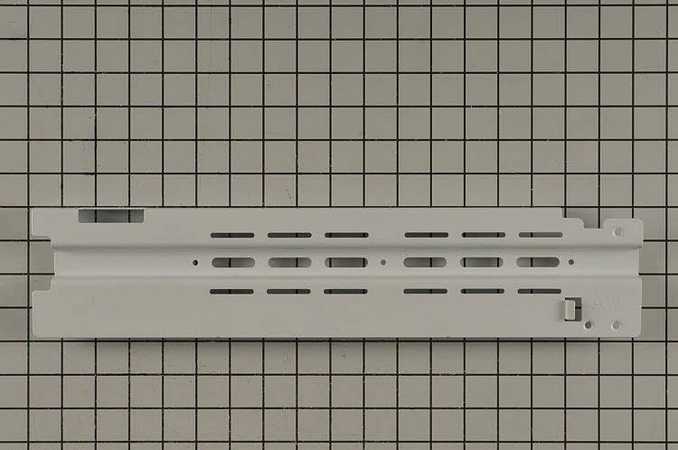

DA61-03157A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03157A $90.43

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $34.81

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

12

DA97-21951B Samsung Lamp Cover Assembly Backorder SMG DA97-21951B $135.06

12-1

DA96-01119E Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119E $137.52

12-2

DA63-11686A Samsung Cover Lamp;rf8000b, Gpps, Backorder SMG DA63-11686A $18.10

13

DA97-23044A Samsung Assy Cover Rail-Left;rf80 Backorder SMG DA97-23044A $100.84

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $4.43

14

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $29.07

14

COVER RAIL-R SMG DA97-23045A Contact Us For Availability

14-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

14-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $6.39

15

DA97-23040A Samsung Refrigerator Low Vega Cas Backorder SMG DA97-23040A $209.26

16

SUPPORT-MIDD SMG DA97-23042A Contact Us For Availability

11111

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $1.69

11112

Screw SMG 6002-000538 Contact Us For Availability

11113

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.76

11117

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $11.19

11118

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $5.04

11119

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $2.79

11423

Assy lever handle SMG DA97-23030A Contact Us For Availability

11514

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

11515

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $21.17

11516

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

11518

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $67.80

111111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $1.18

111112

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $9.05

114231

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $1.69

115110

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

115111

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

115112

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

1151121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

NI

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
