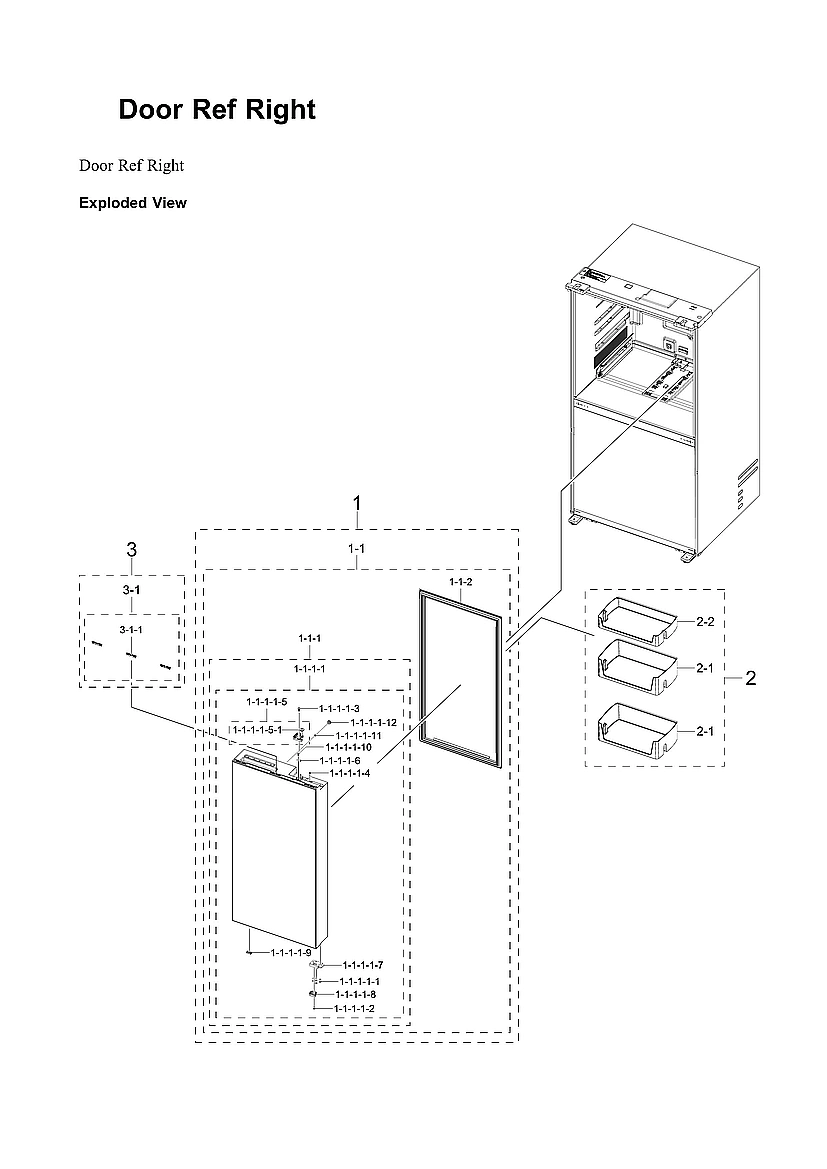

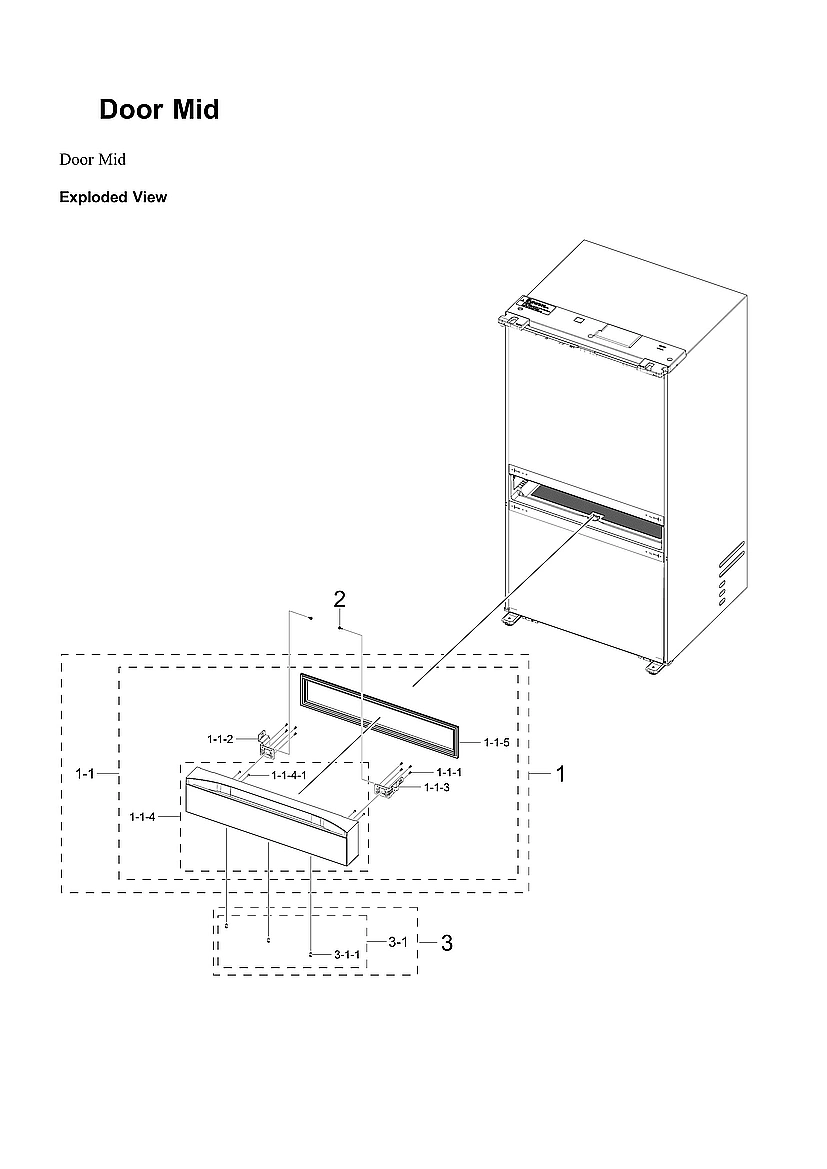

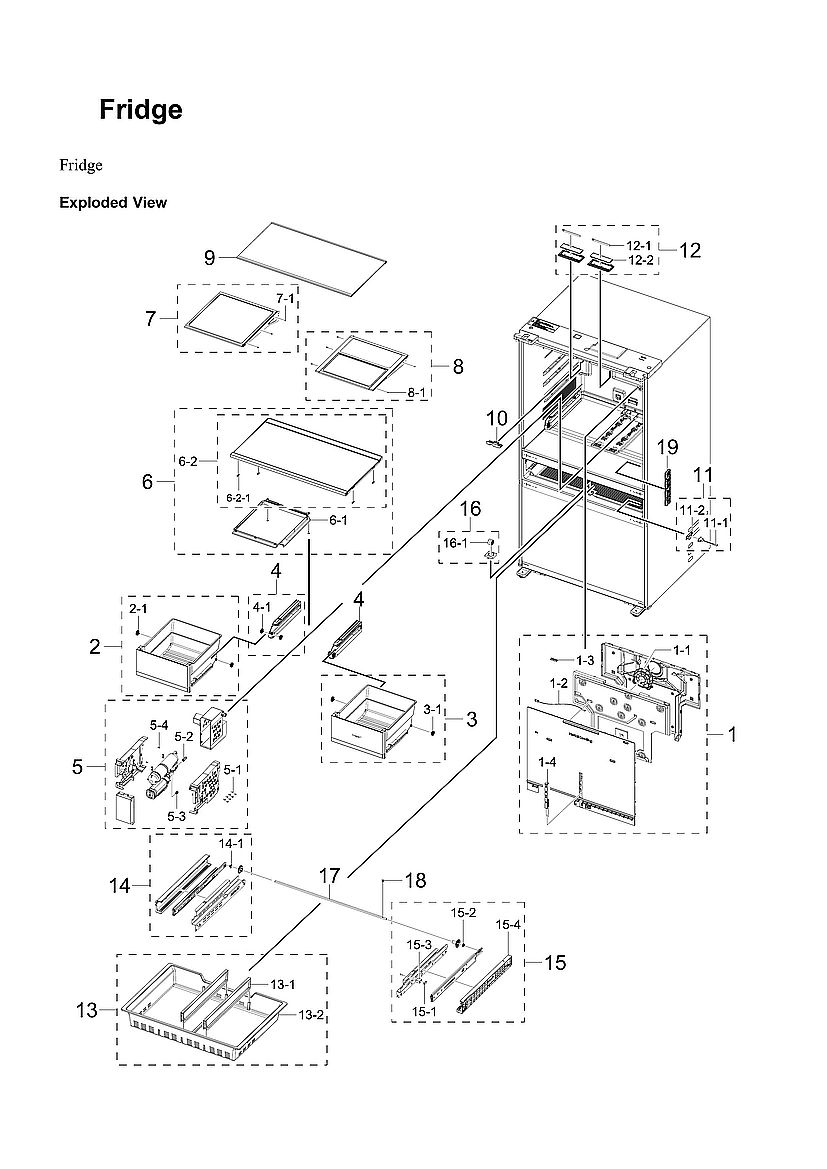

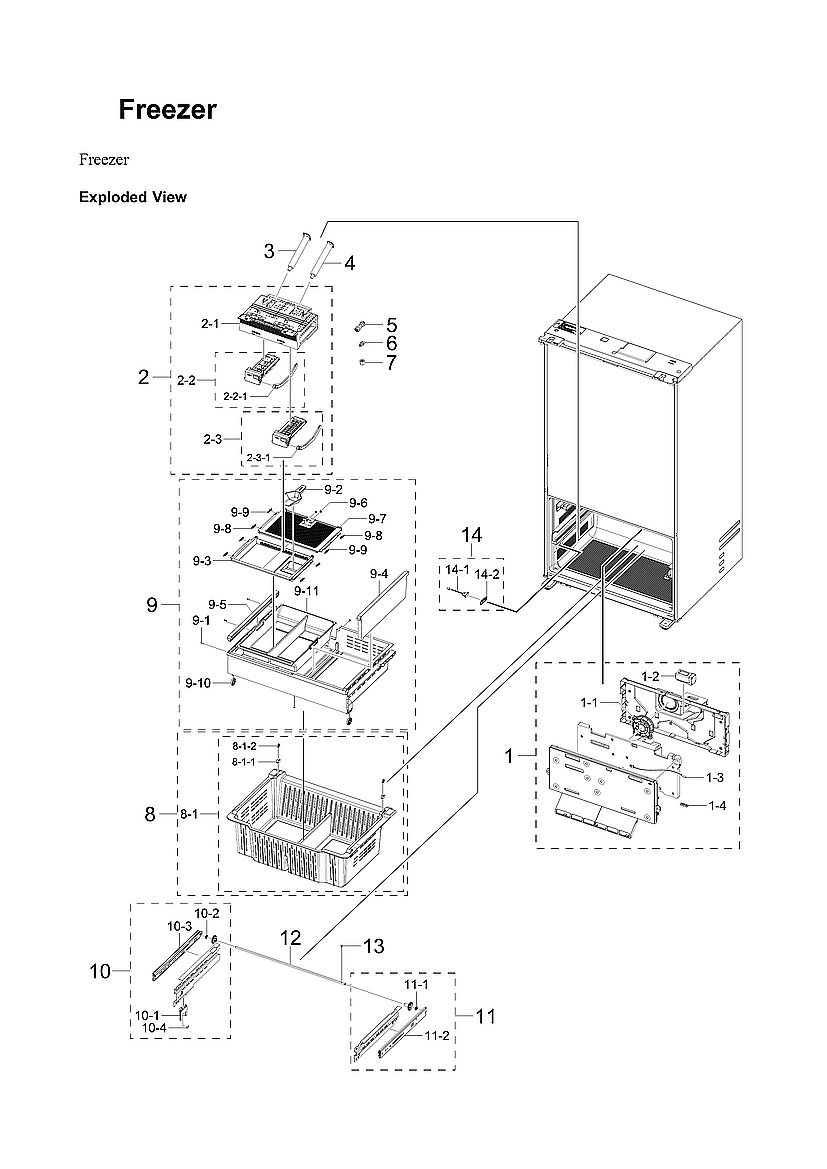

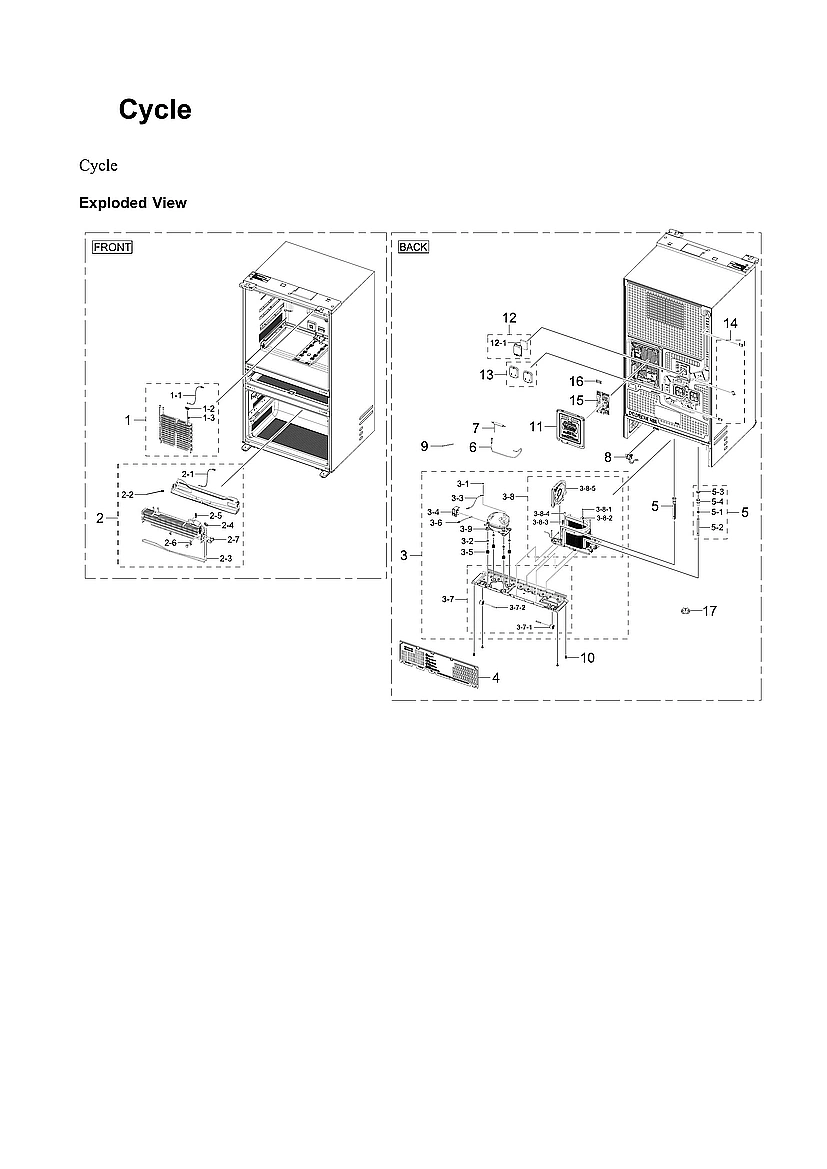

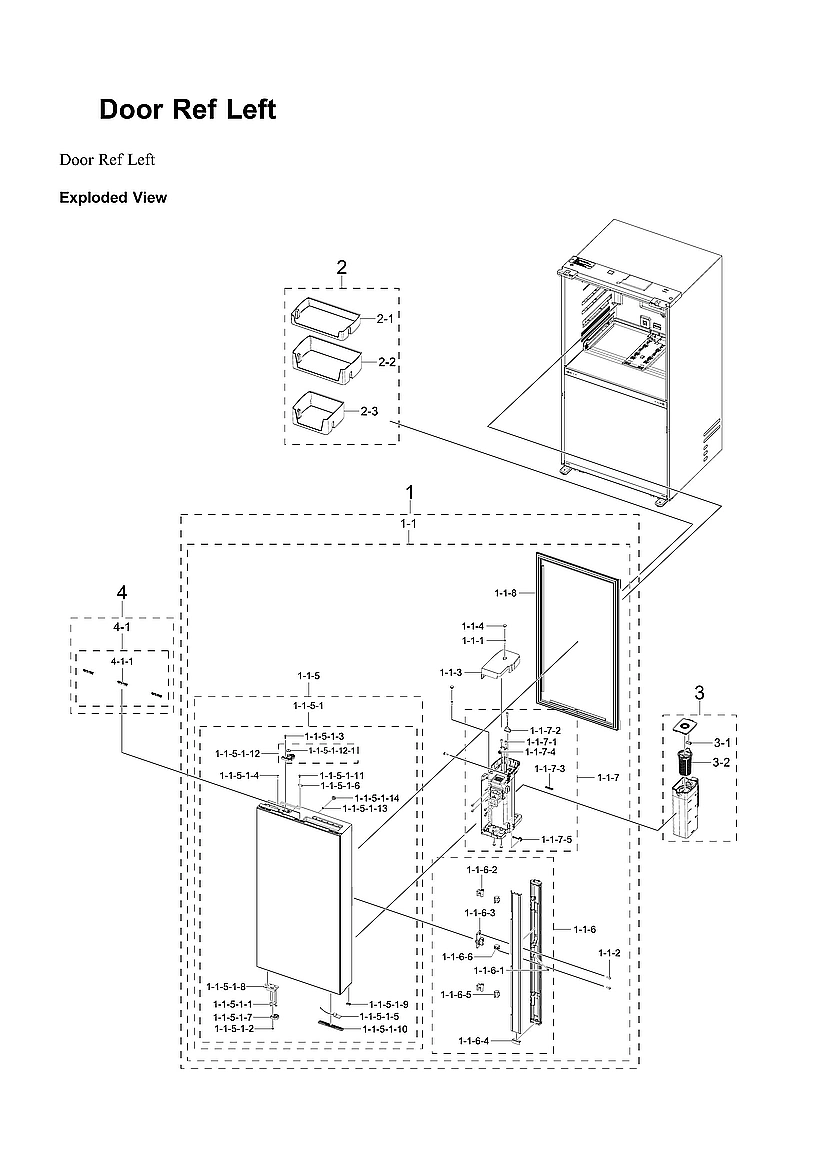

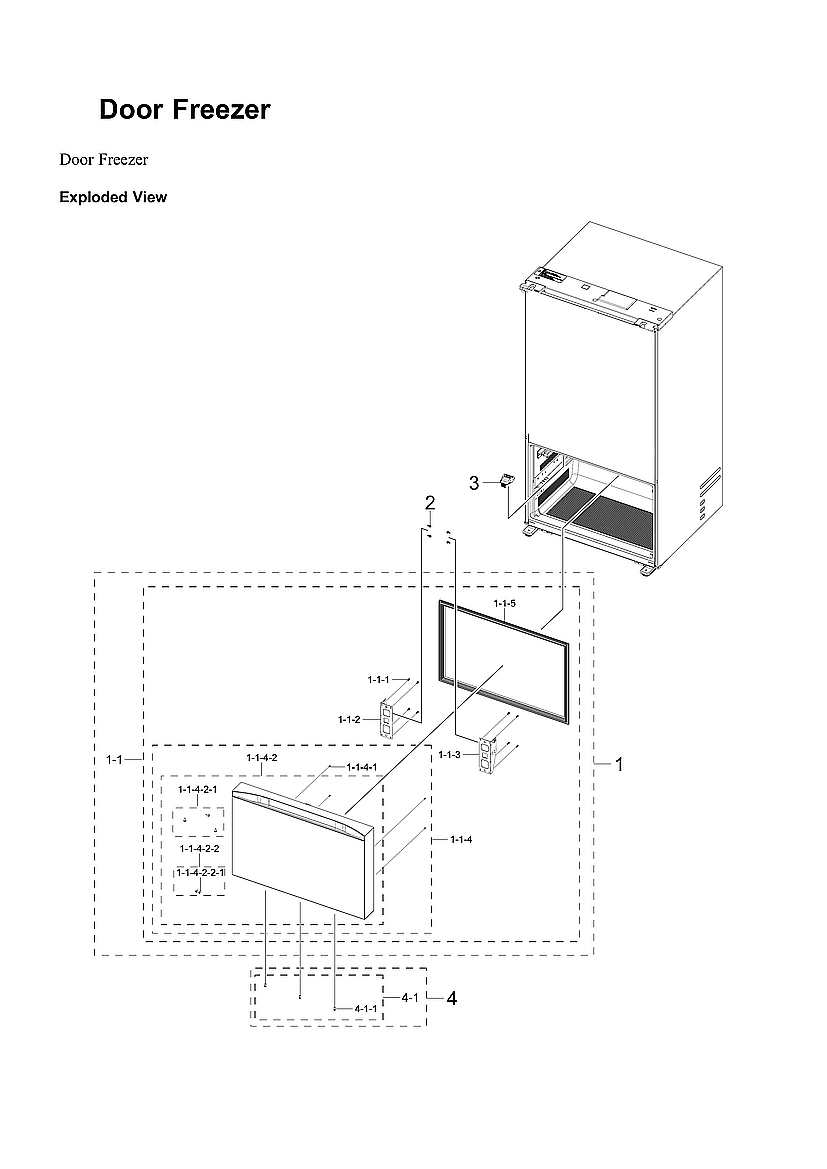

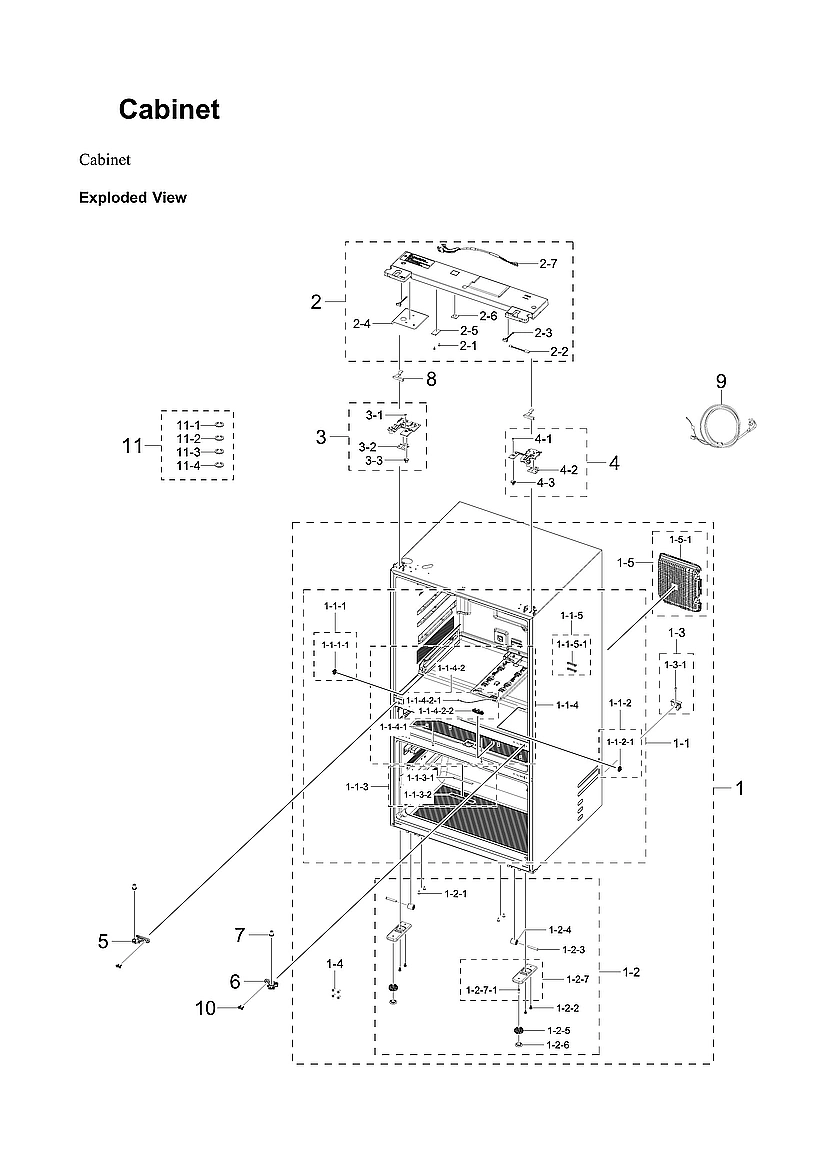

Model Samsung RF29BB8200AP/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA97-22973A Samsung Refrigerator Evaporator C Backorder SMG DA97-22973A $346.27

1

DA97-22974A Samsung Refrigerator Cover Assemb Backorder SMG DA97-22974A $227.50

1

Assy door sub-ref left SMG DA93-01229B Contact Us For Availability

1

Assy door sub-middle SMG DA93-01235E Contact Us For Availability

1

Assy door sub-ref right SMG DA93-01233B Contact Us For Availability

DA31-00334D Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334D $154.61

DA32-00070M Samsung Refrigerator Temperature Backorder SMG DA32-00070M $31.87

Assy door sub-ref left door module SMG DA93-01221A Contact Us For Availability

Assy door sub-middle door module SMG DA93-01225A Contact Us For Availability

Assy door sub-ref right door module SMG DA93-01223A Contact Us For Availability

1-1-1

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

1-1-1

DA91-06111A Samsung Right Door Foam Assembly Backorder SMG DA91-06111A $253.45

1-1-1-1

Assy plate door-ref right SMG DA97-23001A Contact Us For Availability

6002-001406 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001406 $1.18

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $92.17

DA61-09248A Samsung Refrigerator Left Middle Backorder SMG DA61-09248A $50.88

DA97-21890B Samsung Refrigerator Dark Gray Ga Backorder SMG DA97-21890B $199.12

1-1-3

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $102.60

1-1-3

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $37.62

1-1-3

DA63-11213A Samsung Refrigerator Autofill Cov Backorder SMG DA63-11213A $89.72

1-1-4

DA67-30266Q Samsung Cap Screw Backorder SMG DA67-30266Q $70.50

1-1-4

DA91-06107A Samsung Refrigerator Middle Door Backorder SMG DA91-06107A $211.76

1-1-4-1

Tapping screw SMG 6002-001149 Contact Us For Availability

1-1-4-2

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $29.85

1-1-5

DA91-06105A Samsung Refrigerator Left Door Fo Backorder SMG DA91-06105A $284.37

1-1-5

DA97-23011A Samsung Refrigerator Middle Gaske In Stock SMG DA97-23011A $185.30

1-1-5-1

Assy plate door-ref left SMG DA97-22999A Contact Us For Availability

1-1-6

DA97-14049G Samsung Refrigerator French Door Backorder SMG DA97-14049G $196.67

1-1-6-2

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $5.97

1-1-6-3

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $7.47

1-1-6-4

DA63-08421A Samsung Gasket Low French Backorder SMG DA63-08421A $9.94

1-1-6-5

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.98

1-1-6-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.98

1-1-7

DA97-17399F Samsung Refrigerator Inner Case Backorder SMG DA97-17399F $265.08

1-1-7-2

DA34-00043M Samsung Refrigerator Reed Switch Backorder SMG DA34-00043M $38.49

1-1-7-3

DA61-11032A Samsung Refrigerator Fixer Assemb Backorder SMG DA61-11032A $6.96

1-1-7-4

Fitting tube SMG DA62-03914C Contact Us For Availability

1-1-7-5

DA67-04504D Samsung Refrigerator Tube Cap Fix Backorder SMG DA67-04504D $7.97

1-2

DA31-00346A Samsung Refrigerator DC Geared Mo Backorder SMG DA31-00346A $175.36

1-2

DA32-00070A Samsung Refrigerator Temperature Backorder SMG DA32-00070A $15.42

1-2-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.97

1-2-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $8.46

1-2-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.45

1-2-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $3.48

1-3

DA32-00070B Samsung Refrigerator Temperature Backorder SMG DA32-00070B $14.08

1-3

Fixer SMG DA61-11034A Contact Us For Availability

1-4

DA61-14455A Samsung Refrigerator Angle Shelf Backorder SMG DA61-14455A $140.72

2

6011-001656 Samsung Refrigerator Hex Bolt Backorder SMG 6011-001656 $1.50

2

Assy ice maker SMG DA97-21804C Contact Us For Availability

2

Assy tray drawer-drawer module SMG DA97-23246C Contact Us For Availability

2

Case veg-low SMG DA97-21873K Contact Us For Availability

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.89

DA61-14435A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-14435A $131.27

DA97-21912E Samsung Refrigerator Guard Top As Backorder SMG DA97-21912E $92.85

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $52.05

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $28.44

DA97-21916B Samsung Refrigerator Guard Upper Backorder SMG DA97-21916B $80.46

DA97-22160A Samsung Refrigerator Ice Case Ass Backorder SMG DA97-22160A $187.37

2-3

DA97-21913B Samsung Refrigerator Guard Assemb Backorder SMG DA97-21913B $99.80

2-3

DA97-22162A Samsung Refrigerator Ice Case Ass In Stock SMG DA97-22162A $183.51

2-6

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $44.70

3

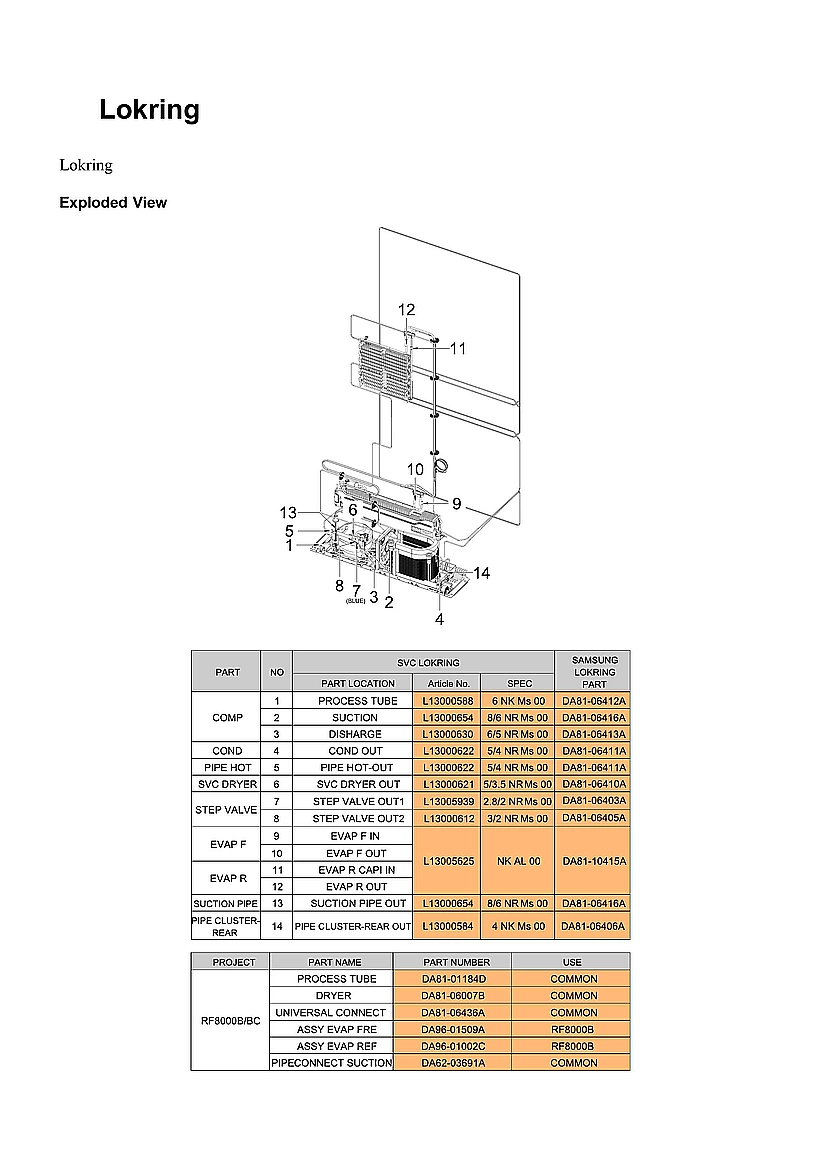

L13000630 American Vulkan Lokring Refrigerati In Stock ALC L13000630 $7.00

3

DA97-21256C Samsung Refrigerator Water Ice Pi Backorder SMG DA97-21256C $150.59

3

DA97-21261K Samsung Refrigerator Water Filter Backorder SMG DA97-21261K $251.54

3

DA97-21873B Samsung Refrigerator Low Vegetabl Backorder SMG DA97-21873B $212.70

3

DA97-23024A Samsung Refrigerator Stopper Asse Backorder SMG DA97-23024A $41.60

3

Assy manual SMG DA98-03263B Contact Us For Availability

3-1

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.18

3-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.96

3-1

DA91-05369L Samsung Refrigerator Installation Backorder SMG DA91-05369L $52.05

3-1-1

DA63-09686A Samsung Refrigerator Dark ABS Doo Backorder SMG DA63-09686A $5.48

3-1-1

DA67-04961A Samsung Refrigerator Cap Screw As Backorder SMG DA67-04961A $63.50

3-2

DA61-15091A Samsung Refrigerator Filter Case Backorder SMG DA61-15091A $43.36

3-7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.96

3-7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.48

4

DA97-21256B Samsung Refrigerator Water Pipe I Backorder SMG DA97-21256B $159.47

4

DA97-21871A Samsung Assembly Left Middle Rail Backorder SMG DA97-21871A $45.59

5

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $23.88

5

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $28.76

5

DA97-23062A Samsung Refrigerator Assembly Cas Backorder SMG DA97-23062A $309.99

5-2

DA60-00393A Samsung Refrigerator Tube Fitting Backorder SMG DA60-00393A $38.05

5-3

DA62-02414A Samsung Refrigerator Fitting Tube Backorder SMG DA62-02414A $19.90

5-4

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.18

6

L13000621 American Vulkan Lokring .197 or 3/1 In Stock ALC L13000621 $7.96

6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $21.90

6

Assy shelf veg-low SMG DA97-21901M Contact Us For Availability

6-1

DA63-11226A Samsung Refrigerator Vegetable Dr Backorder SMG DA63-11226A $192.28

6-2

DA97-21901C Samsung Refrigerator Low Shelf Mo Backorder SMG DA97-21901C $197.38

6-2-1

DA64-03784A Samsung Refrigerator Shelf Trim Backorder SMG DA64-03784A $1.18

7

L13000612 American Vulkan Lokring .118" to .0 In Stock ALC L13000612 $9.60

7

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $2.00

7

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $7.97

7

DA97-22971A Samsung Shelf Insert Assembly Backorder SMG DA97-22971A $148.66

8

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $14.43

8

DA97-20047B Samsung Refrigerator Shelf Assemb Backorder SMG DA97-20047B $250.56

8-1

DA97-23029A Samsung Refrigerator Drawer Tray Backorder SMG DA97-23029A $277.63

8-1-1

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $1.18

8-1-2

DA97-22036A Samsung Refrigerator Roller Assem In Stock SMG DA97-22036A $5.97

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $67.45

9

DA97-21897A Samsung Refrigerator Assembly She Backorder SMG DA97-21897A $195.57

9

DA97-22997A Samsung Refrigerator Tray Upper A Backorder SMG DA97-22997A $335.56

9-1

refrigerator screw SMG 6002-000473 Contact Us For Availability

9-2

DA61-14309A Samsung Refrigerator Ice Scoop Ca Backorder SMG DA61-14309A $99.15

9-3

DA61-15175A Samsung Refrigerator Basket Assem Backorder SMG DA61-15175A $74.57

9-4

GUIDE TRAY-FRE;RF8000B,HIPS,T2 Backorder SMG DA61-15177A $83.40

9-5

DA61-15179A Samsung Left Rail Assembly Backorder SMG DA61-15179A $36.73

9-6

DA63-11374A Samsung Refrigerator Door Grommet Backorder SMG DA63-11374A $6.46

9-7

DA63-11588A Samsung Refrigerator Upper Front Backorder SMG DA63-11588A $59.15

9-8

DA63-11592A Samsung GROMMET-A;RF8000BC,POM,NA Backorder SMG DA63-11592A $2.00

9-9

DA63-11593A Samsung Refrigerator Grommet Backorder SMG DA63-11593A $2.00

9-10

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.48

9-11

DA97-23081B Samsung Refrigerator Ice Case Ass Backorder SMG DA97-23081B $145.47

10

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $2.00

10

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.96

10

DA97-21688A Samsung Refrigerator Left Slide R Backorder SMG DA97-21688A $232.09

10-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.28

10-3

DA61-03156A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03156A $113.27

10-4

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $5.97

11

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $27.87

11

DA97-21686A Samsung Refrigerator Low Right Sl In Stock SMG DA97-21686A $237.26

11

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $12.93

11-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $2.00

11-2

DA61-03157A Samsung Refrigerator Low Hanger R Backorder SMG DA61-03157A $84.51

11-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $5.97

12

DA66-00437H Samsung Refrigerator Shaft Backorder SMG DA66-00437H $37.62

12

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $20.89

12

DA97-21951B Samsung Lamp Cover Assembly Backorder SMG DA97-21951B $79.36

12-1

DA96-01119E Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-01119E $123.23

12-2

Cover lamp SMG DA63-11686A Contact Us For Availability

13

Assy case convertible SMG DA97-22988A Contact Us For Availability

13-1

DA61-15162A Samsung Refrigerator Middle Guide Backorder SMG DA61-15162A $39.39

13-2

DA61-15164A Samsung Refrigerator Convertible Backorder SMG DA61-15164A $165.35

14

L13000584 American Vulkan Lokring Refrigerati In Stock ALC L13000584 $5.53

14

DA97-13781C Samsung Refrigerator Middle Left Backorder SMG DA97-13781C $211.22

14-1

DA34-00043J Samsung Refrigerator Door Reed Sw Backorder SMG DA34-00043J $23.38

15

DA97-13780C Samsung Refrigerator Middle Right Backorder SMG DA97-13780C $212.72

15-3

Cover fixer SMG DA63-11585A Contact Us For Availability

15-4

Cover rail-m SMG DA63-11594A Contact Us For Availability

16

DA97-23068A Samsung Refrigerator Roller Assem Backorder SMG DA97-23068A $6.96

16-1

Roller-veg SMG DA66-00276B Contact Us For Availability

17

DA66-00733B Samsung Refrigerator Shaft Backorder SMG DA66-00733B $25.87

19

DA97-20552R Samsung Refrigerator Control Cove Backorder SMG DA97-20552R $214.88

11111

6001-000570 Samsung Machine Screw Backorder SMG 6001-000570 $1.18

11112

Screw SMG 6002-000538 Contact Us For Availability

11113

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.18

11117

DA61-09952B Samsung Refrigerator Door Stopper Backorder SMG DA61-09952B $10.67

11118

DA61-13385A Samsung Refrigerator Door Close S Backorder SMG DA61-13385A $6.46

11119

DA63-04825B Samsung Refrigerator Grommet Cap Backorder SMG DA63-04825B $3.48

11421

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $22.89

11422

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.97

11422

Assy lever handle SMG DA97-22986A Contact Us For Availability

11514

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.18

11515

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $16.83

11516

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.49

11518

DA61-13422A Samsung Refrigerator Low Door Sto Backorder SMG DA61-13422A $67.16

111111

6021-000258 Samsung Hexagon Nut Backorder SMG 6021-000258 $1.18

111112

DA97-20572A Samsung Assy Fixer-Up Backorder SMG DA97-20572A $8.46

114221

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $1.18

115110

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $55.11

115111

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.18

115112

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $19.90

1151121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.50

L13000622 American Vulkan Lokring Refrigerati In Stock ALC L13000622 $7.64

L13000654 American Vulkan Lokring Brass Reduc In Stock ALC L13000654 $7.00

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $1.18

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.50

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.50

DA61-14661A Samsung Refrigerator Ice Guide Backorder SMG DA61-14661A $69.80

DA62-03691A Samsung Refrigerator Suction Pipe Backorder SMG DA62-03691A $87.63

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.50

DA81-01184D Samsung Refrigerator Check Plug A Backorder SMG DA81-01184D $27.80

DA81-06007B Samsung Refrigerator Dryer Assemb In Stock SMG DA81-06007B $137.90

DA81-06436A Samsung Pipe Connection Assembly Backorder SMG DA81-06436A $26.37

DA81-10415A Samsung Refrigerator Lock Ring As Backorder SMG DA81-10415A $154.77

DA96-01002C Samsung Refrigerator Evaporator M Backorder SMG DA96-01002C $236.06

DA96-01509A Samsung Refrigerator EVAP-FRE Mod Backorder SMG DA96-01509A $283.72

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $93.20

Samsung refrigerator water filter SMG HAF-QIN Contact Us For Availability
